2AIHFZYSM108SMOOTH-X (2-axis stabilizer with Bluetooth)

Z H I Y U N - v 1 . 0 0 SMOOTH-X ·
EN
-
Quick
start
guide
EN
1 Model No:SM108 Quick
Start
Guide
EN
2 ZY
Cami
app
is
an
integrated
part
of
the
stabilizer.
Please
make
sure
to
download
it
on
your
phone.
Search
"ZY
Cami"
in
APP
Store
or
Google
Play
or
directly
scan
the
QR
code
on
the
right
for
download
(Android
7.0
above
or
iOS
10.0
above
required). Download
ZY
Cami About
Complete
User
Guide To
reduce
resource
consumption
and
protect
the
environment,
we
now
offer
you
a
paper
version
of
Quick
Start
Guide
instead
of
Complete
User
Guide.
Before
using
this
product,
you
can
read
the
Complete
User
Guide
through
following
ways: 1.
Scan
the
QR
code
on
the
right
with
mobile
phone
built-in
QR
code
scanner
or




QR
code
scanner
app. 2.
Click
the
icon
on
the
top
right
corner
of
home
page
in
ZY
Cami
and
enter
the




user
manual.
3.
Go
to
ZHIYUN
official
website:
www.zhiyun-tech.com
for
download. EN
-
Quick
Start
Guide
Please
follow
the
steps
below
to
learn
the
basic
functions
of
SMOOTH-X
and
read
the
Complete
User
Guide
carefully
before
using
the
product. EN
3 1.
Charging Connect
the
USB
Type-C
cable
with
an
adapter
(not
provided.
5V2A
is
recommended).
Plug
the
cable
into
the
charging
port
on
vertical
arm.
When
the
four
indicator
lights
turn
into
solid
white
lights,
the
charging
is
completed.

Quick
Start
Guide
EN
4 2.
Use 1.
Rotate
the
handle
180°counterclockwise.2.
To
unfold
the
vertical
arm,
pull
out
and




tilt
the
pan
axis
in
certain
degrees. Quick
Start
Guide
3.
Rotate
the
vertical
arm
180°counterclockwise.




It
can
be
only
rotated
in
one
direction. 4.
Return
the
pan
axis
to
the
initial
position.


EN
5 Quick
Start
Guide
5.
The
phone
clamp
can
be
rotated

90°
clockwise. 6. EN
6 Quick
Start
Guide
When
installing
the
phone,
please
notice
that
the
phone
camera
should
be
always
on
the
left
side
of
the
clamp.
Then
balance
the
phone. EN
7 3.
Power
on,
off
and
Standby •
Long
press
the
power
button
for
3
seconds



to
power
on/off
the
gimbal. •
Long
press
the
M
button
for
2
seconds
to



enter
or
exit
the
standby
mode. 4.
Basic
Operation Long
press:
power
on
or
off Control
zoom Single
press:
take
photos
or
videos Double
press:
switch
between
and
Video
(connected
with
ZY
Cami) Triple
press:
switch
between
front
and
rear
camera
(connected
with
ZY
Cami) Single
press:
switch
between
working
modes Double
press:
switch
between
portrait
and
landscape
mode Control
the
gimbal
direction
Quick
Start
Guide
EN
8 Locking
Mode L Pan
Following
Mode PF Following
Mode F Default
mode Singl e
press
M
button Sin gle
press
M
bu tto n Single
press
M
button StandardExtend
the
built-in
rod Quick
Start
Guide
EN
9 Quick
Start
Guide
5.
Connecting
ZY
Cami 1.
Power
on
the
stabilizer
and
connect
the
stabilizer
with
your
camera
with
camera
control
cable.
Turn
on




Bluetooth
of
smartphone. ①
For
a
better
using
experience,
it
is
recommended
to
use
SMOOTH-X
with
ZY
Cami
App. ②
Please
always
refer
to
the
latest
version
of
ZY
Cami;
ZY
Cami
is
subject
to
change
without
notice. Scan
the
QR
code
below
to
know
more
about
our
products. Disclaimer
and
Warning Thank
you
for
purchasing
SMOOTH-X.
The
information
contains
herein
affects
your
safety
and
your
legal
rights
and
responsibilities.
Read
this
entire
document
carefully
to
ensure
proper
configuration
before
use.
Failure
to
read
and
follow
the
instructions
and
warnings
herein
may
result
in
serious
injury
to
you
or
bystanders,
or
damage
to
SMOOTH-X
or
property.
ZHIYUN
reserves
the
right
of
final
explanation
for
this
document
and
all
relevant
documents
relating
to
SMOOTH-X,
and
the
right
to
make
changes
at
any
time
without
notice.
Please
visit
www.zhiyun-tech.com
for
the
latest
product
information. 2.
Launch
“ZY
Cami”
and
choose
the
corresponding
product
page
for
SMOOTH-X.
Tap
“Connect
now”
to




connect
with
stabilizer
via
Bluetooth
(Please
check
USER
ID
on
the
bottom
of
the
quick
release
plate
for




stabilizer
Bluetooth
name). EN
1 0 Quick
Start
Guide
By
using
this
product,
you
hereby
signify
that
you
have
read
this
document
carefully
and
that
you
understand
and
agree
to
abide
by
the
terms
and
conditions
herein.
You
agree
that
you
are
solely
responsible
for
your
own
conduct
while
using
this
product,
and
for
any
consequences
thereof.
You
agree
to
use
this
product
only
for
purposes
that
are
proper
and
in
accordance
with
all
terms,
precautions,
practices,
policies
and
guidelines
ZHIYUN
has
made
and
may
make
available. ZHIYUN
accepts
no
liability
for
damage,
injury
or
any
legal
responsibility
incurred
directly
or
indirectly
from
the
use
of
this
product.
Users
shall
observe
safe
and
lawful
practices
including,
but
not
limited
to,
those
set
forth
herein.
ZHIYUN™
are
the
trademarks
of
Guilin
Zhishen
Information
Technology
Co.,
Ltd.
(hereinafter
referred
to
as
“ZHIYUN”
or
“ZHIYUN
TECH”)
and
its
affiliates.
All
product
names
or
trademarks
referred
to
herein
are
trademarks
or
registered
trademarks
of
their
respective
holders. Reading
Tips Data
charges
may
occur
when
you
scan
QR
code
to
read
or
download
online
user
manual.
It
is
suggested
to
process
with
WiFi
access. Legend:














Hints
and
Tips





























Important Warnings Read
the
Complete
User
Guide
to
become
familiar
with
the
features
of
this
product
before
operating.
Failure
to
operate
the
product
correctly
can
result
in
damage
to
the
product
or
personal
property
and
cause
serious
injury.
This
is
a
sophisticated
product.
It
must
be
operated
with
caution
and
common
sense
and
requires
some
basic
mechanical
ability.
Failure
to
operate
this
product
in
a
safe
and
responsible
manner
could
result
in
injury
or
damage
to
the
product
or
other
property.
This
product
is
not
intended
for
use
by
children
without
direct
adult
supervision.
DO
NOT
use
with
incompatible
components
or
in
any
way
otherwise
as
mentioned
or
instructed
in
the
product
documents
provided
by
ZHIYUN.
The
safety
guidelines
her…

Text truncated - open the document above for the full version.

Date: 2017/04/05 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Guilin Zhishen Information Technology Co., Ltd., the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Guilin Zhishen Information Technology Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AIHFZYSM108 including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Guilin Zhishen Information Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Guilin Zhishen Information Technology Co., Ltd.. Guilin Zhishen Information Technology Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter.

Guilin Zhishen Information Technology Co., Ltd. Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: SMOOTH‐X Brand Nam: ZHIYUN Model Number:SM108 Report Number:SZ20030196E01 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: NA Company Address: NA Telephone:NA Fax: NA Person is responsible for marking this declaration: Yilun LiaoCEO __________________________________________________________________________ Name (Full name )Position / Title 2020.04.15 __________________________________________________________________________ Legal SignatureDate

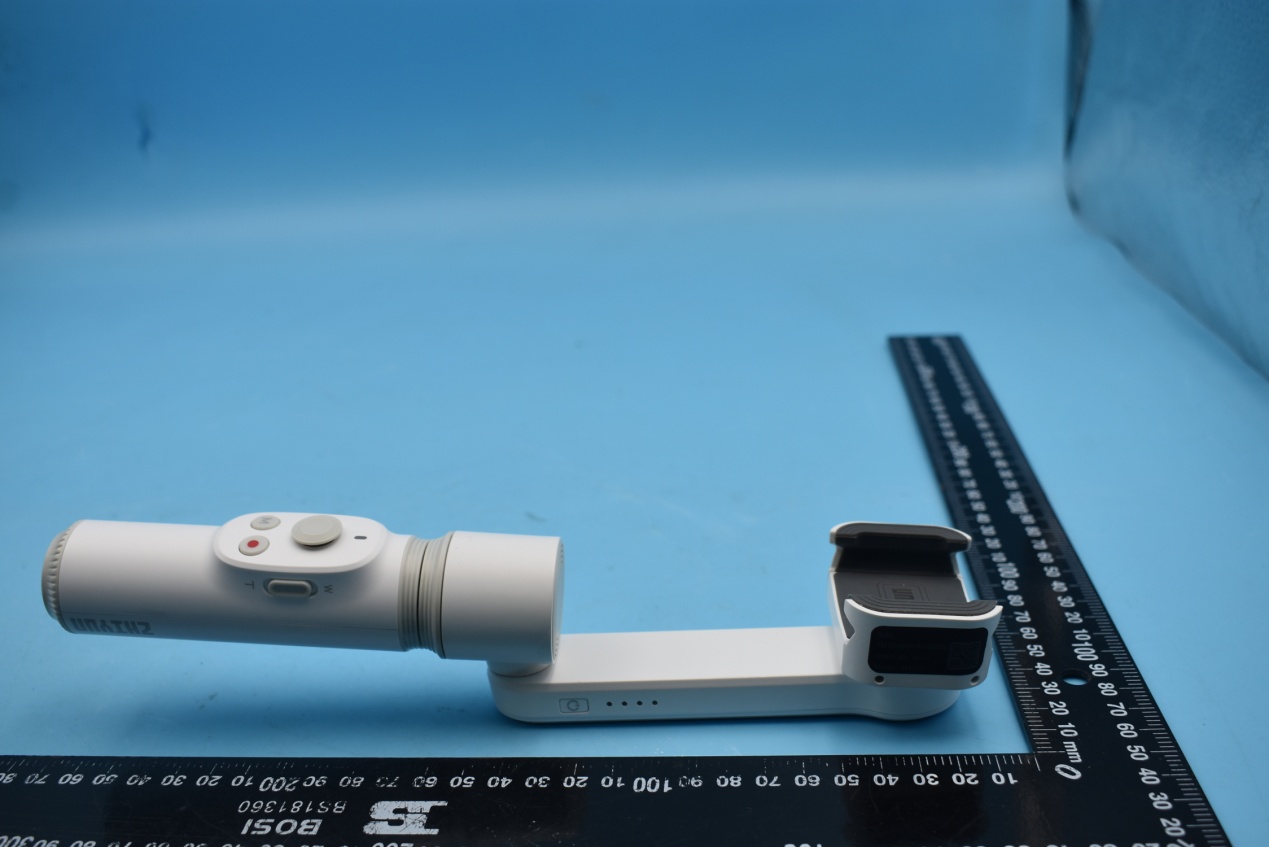

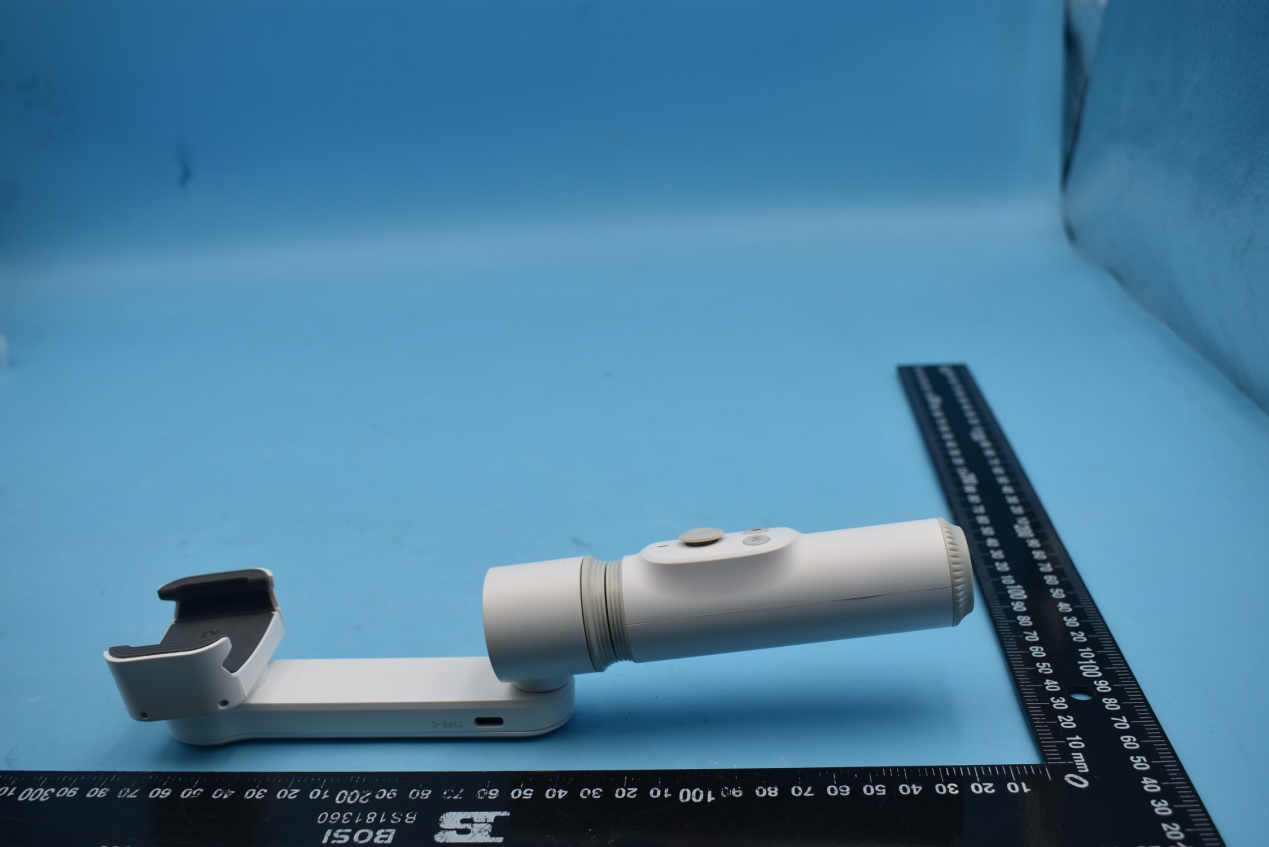

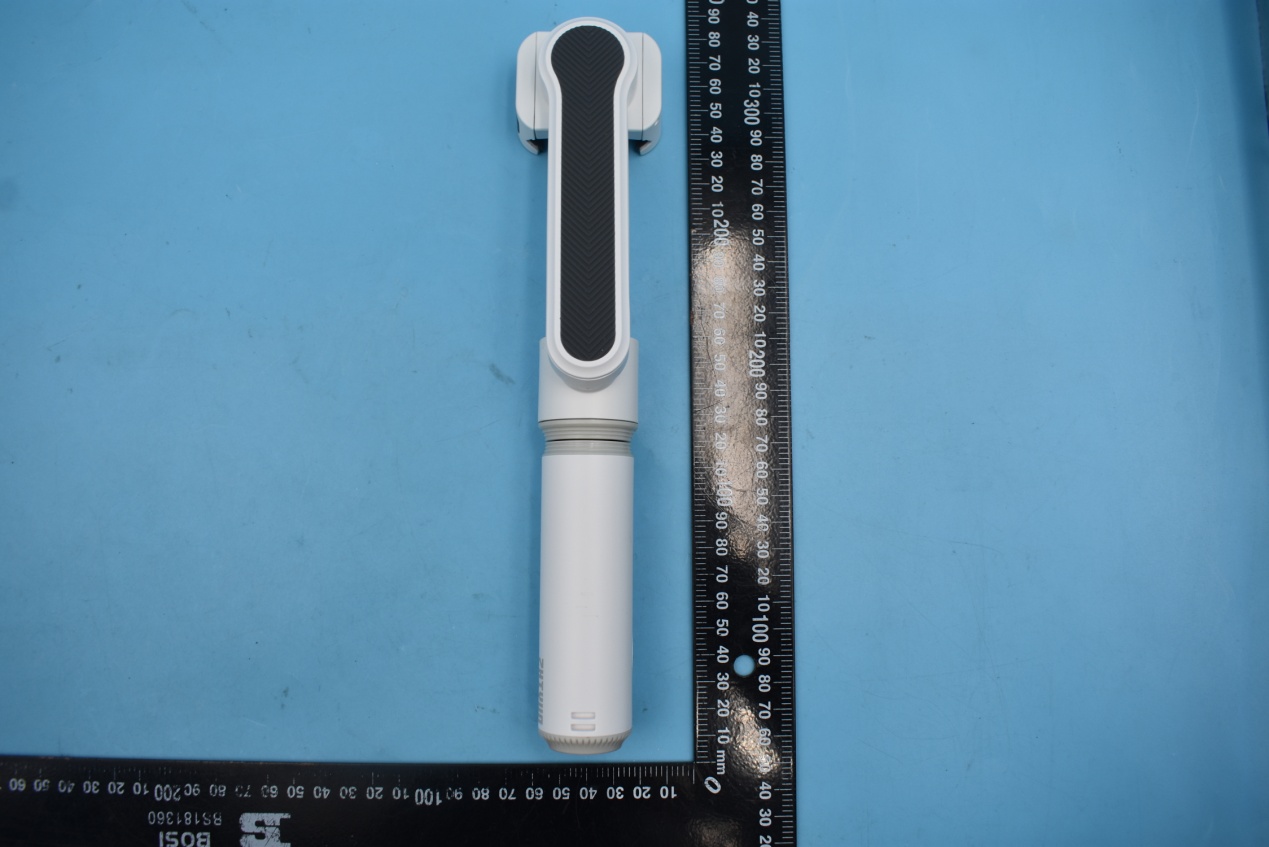

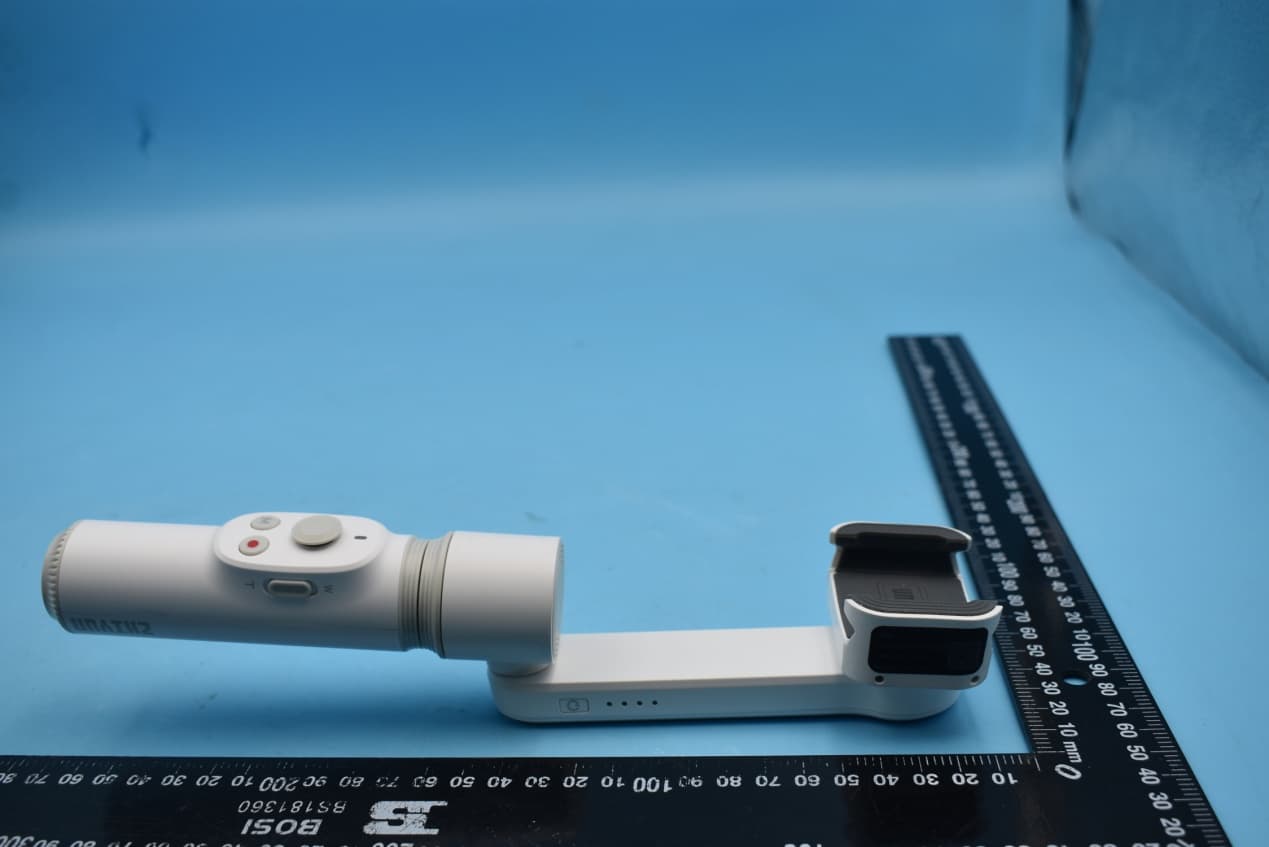

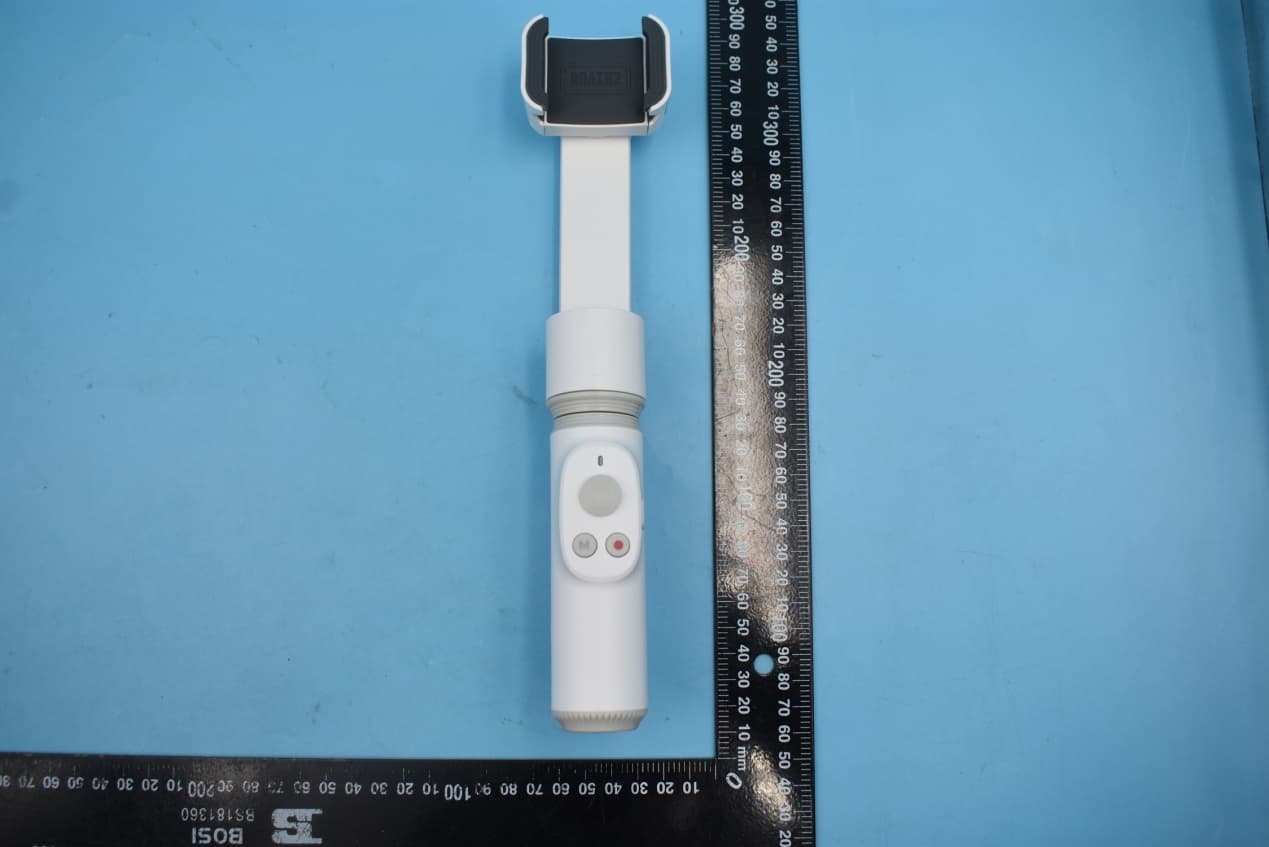

FCC ID:2AIHFZYSM108 External Photos 1.EUT front view 2.EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Ports supported by this device 8. Accessories

FCC ID:2AIHFZYSM108 Internal Photos 1.EUT uncover view 2. Antenna view BT Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 58 REPORT No.：SZ20030196W01 TEST REPORT APPLICANT : Guilin Zhishen Information Technology Co., Ltd. PRODUCT NAME : SMOOTH-X MODEL NAME :SM108 BRAND NAME : ZHIYUN FCC ID : 2AIHFZYSM108 STANDARD(S) : 47 CFR Part 15 Subpart C RECEIPT DATE : 2020-03-20 TEST DATE :2020-03-31 to 2020-04-08 ISSUE DATE :2020-04-11 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui ( Supervisor ) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 58 REPORT No.：SZ20030196W01 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.3. The channel number and frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.4. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 1.5. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 2. 47 CFR Part 15C Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2.1. Antenna requirement ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2.2. Duty Cycle Of Test Signal ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.3. Maximum Peak Conducted Output Power ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 2.4. Maximum Average Conducted Output Power ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15 2.5. 6dB Bandwidth ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 17 2.6. Conducted Spurious Emissions and Band Edge ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 22 2.7. Power spectral density (PSD) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 29 2.8. Conducted Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 34 2.9. Restricted Frequency Bands ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 38 2.10. Radiated Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 45 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 55 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 56 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 58 REPORT No.：SZ20030196W01 Change History Version Date Reason for change 1.0 2020-04-11 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 58 REPORT No.：SZ20030196W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Guilin Zhishen Information Technology Co., Ltd. Applicant Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guilin, Guangxi, China Manufacturer: Guilin Zhishen Information Technology Co., Ltd. Manufacturer Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guilin, Guangxi, China 1.2. Equipment Under Test (EUT) Description Product Name: SMOOTH-X Serial No: (N/A, marked #1 by test site) Hardware Version: V1.1 Software Version: V1.70 Equipment Type: Bluetooth LE Modulation Type: GFSK Bluetooth Version: 5.0 Data Rate: 1Mbps, 2Mbps Operating Frequency Range: 2402MHz - 2480MHz Antenna Type: Ceramic Antenna Antenna Gain: 3.37dBi Accessory Information: Battery Brand Name: N/A Model No.: 652265 Serial No.: (N/A, marked #1 by test site) Capacity: 1000mAh Rated Voltage: 3.7V Charge Limit: 4.2 V Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 58 REPORT No.：SZ20030196W01 1.3. The channel number and frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 10 2422 20 2442 30 2462 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 39 2480 Note: The Lowest Channel 0, Middle 19 and Highest …

Text truncated - open the document above for the full version.

FCC ID:2AIHFZYSM108 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement Setup (BLE)
