2AIKX-F202-8GTABLET PC

13. FCC Statements: FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could voidthe user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, ther eisno guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a c ircuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The device has been tested and comply with FCC/ISEDC SAR limits.

Registered Address: 3500 S Dupont Hwy Ste 300, Dover, DE, 19901 Trading Address: 207 King Rd Ste#104, Frisco, TX, USA, 75036 www.fusion5store.com (302) 261 5385 F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] ATTESTATION LETTER Date: 2023-07-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2AIKX-F202-8G F5CS LTD certifies that the equipment for which authorization is sought, is not “covered”. equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. S incerely, Signature Gan Perla Title: Director

Registered Address: 3500 S Dupont Hwy Ste 300, Dover, DE, 19901 Trading Address: 207 King Rd Ste#104, Frisco, TX, USA, 75036 www.fusion5store.com (302) 261 5385 F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] ATTESTATION LETTER Date: 2023-07-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID:2AIKX-F202-8G F5CS LTD certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Gan Perla Title: Director

Registered Address: 3500 S Dupont Hwy Ste 300, Dover, DE, 19901 Trading Address: 207 King Rd Ste#104, Frisco, TX, USA, 75036 www.fusion5store.com (302) 261 5385 F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] ATTESTATION LETTER Date: 2023-07-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AIKX-F202-8G F5CS LTD certifies that, as of the date of the filing of the application, F5CS LTD is our designated U.S. agent for service of process f or the above referenced FCC ID. F5CS LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. F5CS LTD accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process f or the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: F5CS LTD Address: 3500 S Dupont Hwy Suite 300 Dover DE 19901 FRN: 0025613043 Tel: +13022615385 Email: [email protected] Signed by (printed name): Gandhi Perla Sincerely, Signature Gan Perla Title: Director

Registered Address: 3500 S Dupont Hwy Ste 300, Dover, DE, 19901 Trading Address: 207 King Rd Ste#104, Frisco, TX, USA, 75036 www.fusion5store.com (302) 261 5385 F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] FCC Authorization Date: 2023-07-14 F EDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: Sincerely, Signature Gan Perla Title: Director We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. We, F5CS LTD, the undersigned, hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action.

Registered Address: 3500 S Dupont Hwy Ste 300, Dover, DE, 19901 Trading Address: 207 King Rd Ste#104, Frisco, TX, USA, 75036 www.fusion5store.com (302) 261 5385 F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] FCC Authorization Date: 2023-07-14 F EDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIKX-F202-8G In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, F5CS LTD hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Gan Perla Title: Director  ÿSoftware Security Description

F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] Date: 2023-07-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product TABLET PC, model: F202_8G, F203, F204, F301, F302, F303, F202_128G, FWIN232_N5, FWIN232_P2, FWIN232 PRO N4, FWIN232 PLUS, FWIN232 ELITE, FWIN232 PRO N5, FWIN232 PLUS N5, FCC ID: 2AIKX-F202-8G, for marketing purpose, this product only supports BT(GFSK, π/4-DQPSK, 8DPSK), BLE 1M, 2.4G Wi-Fi(2412-2462MHz, 802.11b/g/n20/n40 modes), 5G Wi-Fi(5150-5250MHz, 5725- 5850MHz, 802.11 a / n20/n40/ac20/ac40/ac80 modes).The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature Gan Perla Title: Director

F5CS LTD 3500 S Dupont Hwy Suite 300 Dover DE 19901 Tel: +13022615385 Fax: +13022615385 Email: [email protected] Date：2023/07/14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration of Similarity Dear Sir/Madam, We, F5CS LTD, hereby declare that we have a product named as TABLET PC, model: F202_8G, F203, F204, F301, F302, F303, F202_128G, FWIN232_N5, FWIN232_P2, FWIN232 PRO N4, FWIN232 PLUS, FWIN232 ELITE, FWIN232 PRO N5, FWIN232 PLUS N5 (FCC ID: 2AIKX-F202-8G), all the models are identical in electrically, only the model name is different. We confirm that all information above is true, and we'll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature Gan Perla Title: Director

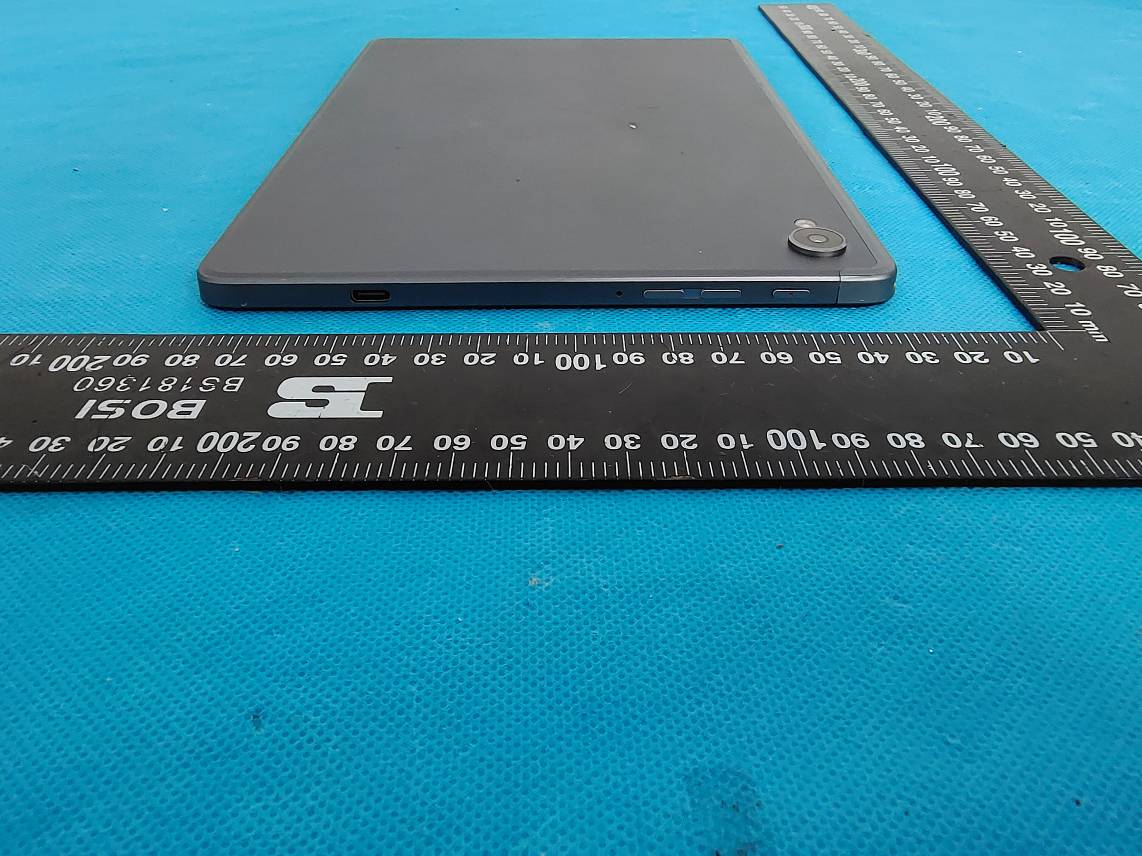

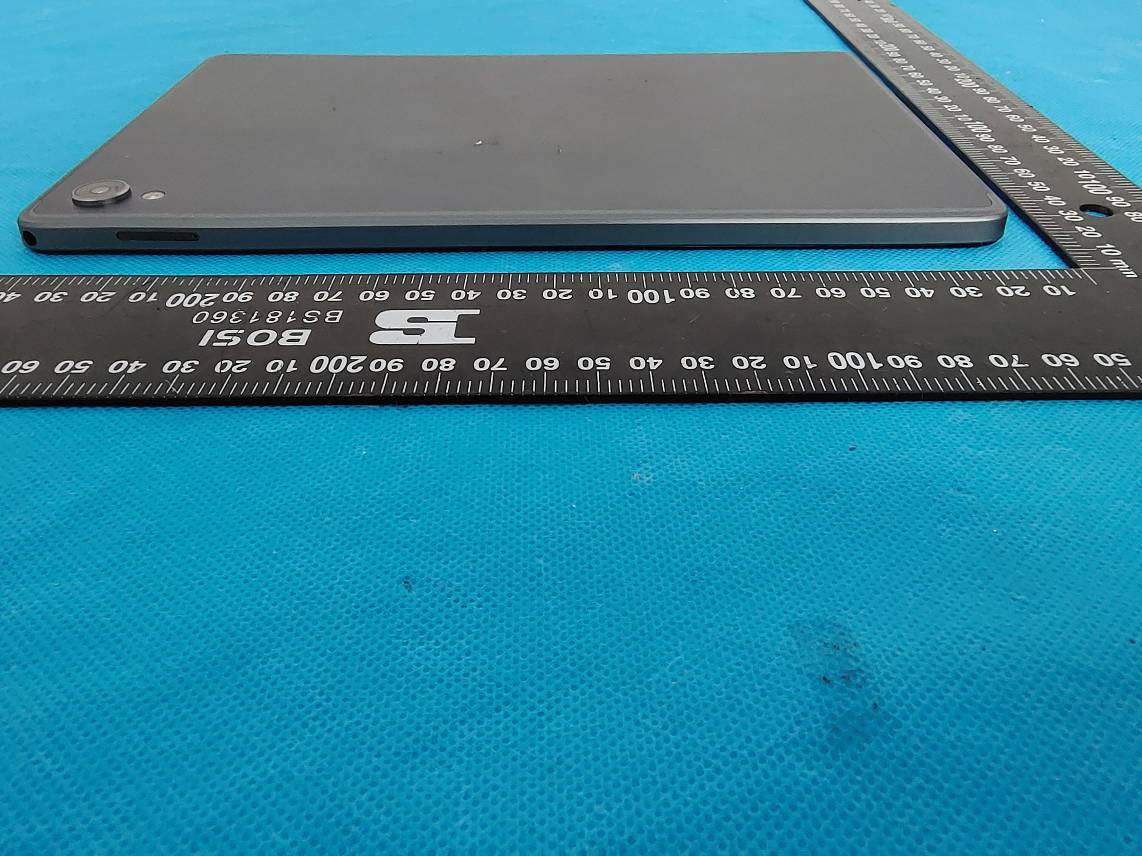

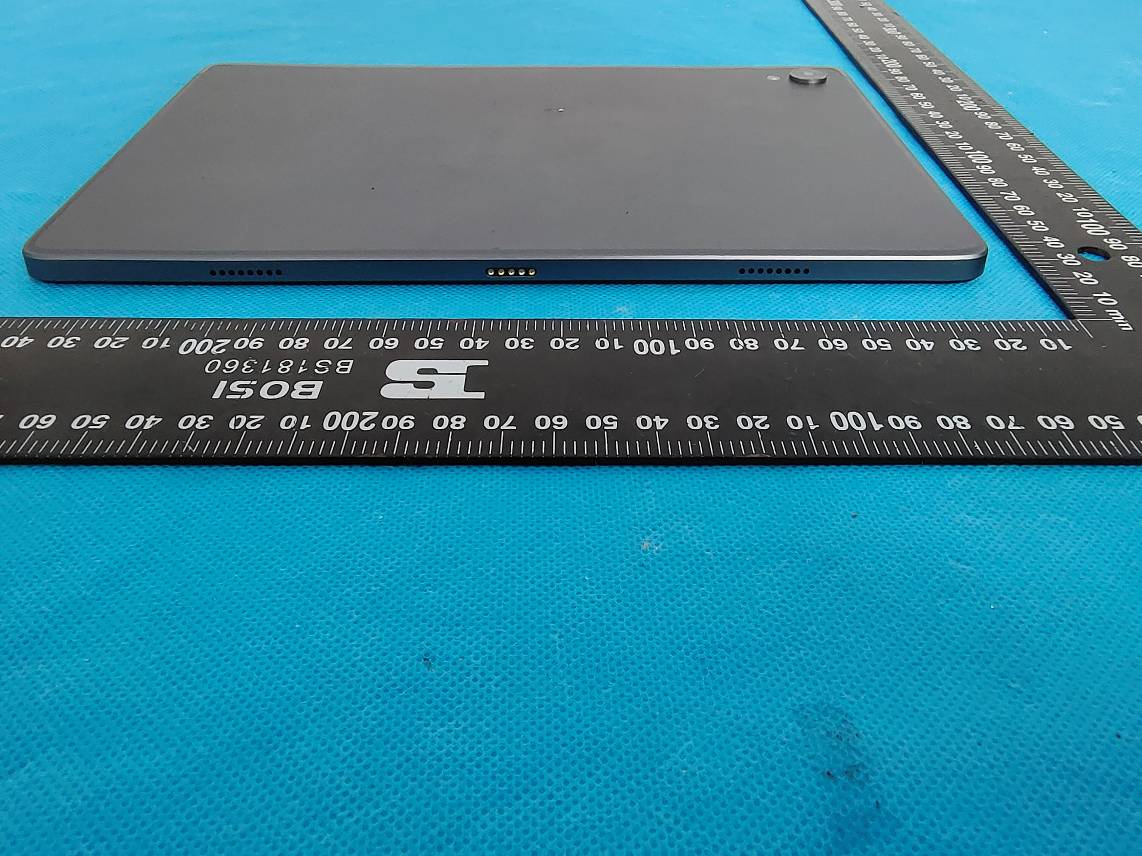

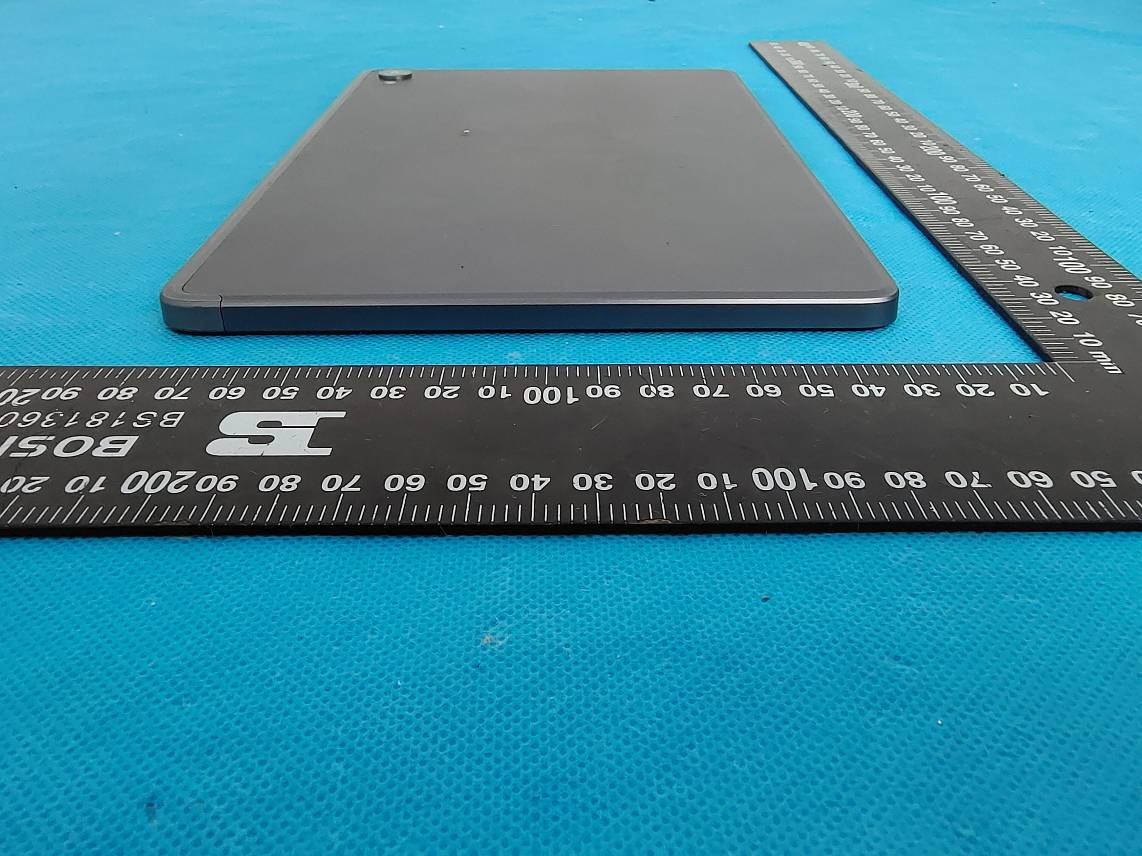

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-EXP EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-EXP

Label Location

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-INP ANT

China Certification ICT Co., Ltd (Dong guan) Report No.: RA230619-34889E-SA Page 1 of 12 Plot 1#: 2.4G WIFI_ Body Front _Low DUT: TABLET PC; Type: F202_8G; Serial: 2716-1 Communication System: UID 0, 2.4G DTS (0); Frequency: 2422 MHz;Duty Cycle: 1:1.062 Medium parameters used (interpolated): f = 2422 MHz; σ = 1.767 S/m; ε r = 39.672; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2422 MHz; Calibrated: 2023/4/10; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Body Front/WLAN 802.11n HT40 Low/Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.02 W/kg Body Front/WLAN 802.11n HT40 Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.71 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 2.24 W/kg SAR(1 g) = 0.926 W/kg; SAR(10 g) = 0.387 W/kg Maximum value of SAR (measured) = 1.12 W/kg 0 dB = 1.12 W/kg = 0.49 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: RA230619-34889E-SA Page 2 of 12 Test Plot 2#: 2.4G WIFI_ Body Front _Mid DUT: TABLET PC; Type: F202_8G; Serial: 2716-1 Communication System: UID 0, 2.4G DTS (0); Frequency: 2437 MHz;Duty Cycle: 1:1.062 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.817 S/m; ε r = 39.808; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2437 MHz; Calibrated: 2023/4/10; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Body Front/WLAN 802.11n HT40 Mid/Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.21 W/kg Body Front/WLAN 802.11n HT40 Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.91 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 2.63 W/kg SAR(1 g) = 1.08 W/kg; SAR(10 g) = 0.452 W/kg Maximum value of SAR (measured) = 1.28 W/kg 0 dB = 1.28 W/kg = 1.07 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: RA230619-34889E-SA Page 3 of 12 Test Plot 3#: 2.4G WIFI_ Body Front _High DUT: TABLET PC; Type: F202_8G; Serial: 2716-1 Communication System: UID 0, 2.4G DTS (0); Frequency: 2452 MHz;Duty Cycle: 1:1.062 Medium parameters used (interpolated): f = 2452 MHz; σ = 1.862 S/m; ε r = 39.926; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2452 MHz; Calibrated: 2023/4/10; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Body Front/WLAN 802.11n HT40 High/Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.938 W/kg Body Front/WLAN 802.11n HT40 High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.09 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 2.33 W/kg SAR(1 g) = 0.959 W/kg; SAR(10 g) = 0.401 W/kg Maximum value of SAR (measured) = 1.15 W/kg 0 dB = 1.15 W/kg = 0.61 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: RA230619-34889E-SA Page 4 of 12 Test Plot 4#: 2.4G WIFI_ Body Back_Low DUT: TABLET PC; Type: F202_8G; Serial: 2716-1 Communication System: UID 0, 2.4G DTS (0); Frequency: 2422 MHz;Duty Cycle: 1:1.062 Medium parameters used (interpolated): f = 2422 MHz; σ = 1.767 S/m; ε r = 39.672; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2422 MHz; Calibrated: 2023/4/10; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Body Back/WLAN 802.11n HT40 Low/Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.01 W/kg Body Back/WLAN 802.11n HT40 Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.94 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.06 W/kg SAR(1 g) = 1.01 W/kg; SAR(10 g) = 0.427 W/kg Maximum value of SAR (measured) = 1.20 W/kg 0 dB = 1.20 W/kg = 0.79 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: RA230619-34889E-SA Page 5 of 12 Test Plot 5#: 2.4G WIFI_ Body Back _Mid DUT: TABLET PC; Type: F202_8G; Serial: 2716-1 Communication System: UID 0, 2.4G DTS (0); Frequency: 2437 MHz;Duty Cycle: 1:1.062 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.817 S/m; ε r = 39.808; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2437 MHz; Calibrated: 2023/4/10; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Body Back/WLAN 802.11n HT40 Mid/Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.990 W/kg Body Back/WLAN 802.11n HT40 Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.66 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.25 W/kg SAR(1 g) = 1.07 W/kg; SAR(10 g) = 0.452 W/kg Maximum value of SAR (measured) = 1.28 W/kg 0 dB = 1.28 W/kg = 1.07 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: RA230619-34889E-SA Page 6 of 12 Test Plot 6#: 2.4G WIFI_ Body Back _High DUT: TABLET PC;…

Text truncated - open the document above for the full version.

SAR TEST REPORT Applicant: F5CS LTD Address: 3500 S Dupont Hwy Suite 300 Dover DE 19901 FCC ID: 2AIKX-F202-8G Product Name: TABLET PC Model Number: F202_8G Multiple Models: F203, F204, F301, F302, F303, F202_128G, FWIN232_N5, FWIN232_P2, FWIN232 PRO N4, FWIN232 PLUS, FWIN232 ELITE, FWIN232 PRO N5, FWIN232 PLUS N5 (Please refer to DOS for Model difference) Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230634889-SA Date Of Issue: 2023-10-08 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dong guan) Report No.:CR230634889E-SA Page 2 of 78 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Body SAR (Gap 0mm) WLAN 2.4G 1.11 1.6 WLAN 5.2G 1.45 WLAN 5.8G 1.26 EUT Received Date: 2023/06/25 Tested Date: 2023/10/07 Tested Result: Pass Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dong guan) Report No.:CR230634889E-SA Page 3 of 78 CONTENTS SAR TEST RESULTS SUMMARY .............................................................................................. 2 TEST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 7 1.3 SAR LIMTS ........................................................................................................................................... 8 2. SAR MEASUREMENT SYSTEM ............................................................................................ 9 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 16 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 16 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 17 4.1 LIQUID VERIFICATION ...................................................................................................................... 17 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 18 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 19 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 22 5.1 TEST POSITIONS FOR BODY SUPPORTED AND OTHER CONFIGURATIONS ....................................... 22 5.2 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 23 5.3 SAR EVALUATION PROCEDURE ....................................................................................................... 24 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 25 6.1 TEST PROCEDURE .............................................................................................................................. 25 6.2 MAXIMUM TARGET OUTPUT POWER ............................................................................................... 25 6.3 TEST RESULTS: .................................................................................................................................. 26 7. Standalone SAR test exclusion considerations ....................................................................... 28 7.1 ANTENNA DISTANCE TO EDGE ......................................................................................................... 28 7.2 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ................................................................. 29 7.3 SAR TEST EXCLUSION FOR THE EUT EDGE CONSIDERATIONS RESULT ........................................ 29 8. SAR MEASUREMENT RESULTS ...............…

Text truncated - open the document above for the full version.

深圳天路通电子有限公司 ShenzhenTIANLUTONGTechnologyCo.,Ltd. TIANLUTONGAntennaTest Report Project:1017A VERSIONS: TestingDate:2023-4-18 No.503 Jihua Road, Bantian Community, Bantian Street, Longgang District, Shenzhen Model: TLT5248 Frequency Range:2400-5850 MHz Antenna gain: 2dBi 深圳天路通电子有限公司 ShenzhenTIANLUTONGTechnologyCo.,Ltd. 1.TheEquipmentofActiveTest 1.ETSChamber7×4×3(m) 2.8960 3.Networkanalyzer-R&SZVL . 深圳天路通电子有限公司 ShenzhenTIANLUTONGTechnologyCo.,Ltd. 深圳天路通电子有限公司 ShenzhenTIANLUTONGTechnologyCo.,Ltd. 5150MHz 5550MHz 5850MHz ANT

TEST REPORT Applicant: F5CS LTD Address: 3500 S Dupont Hwy Suite 300 Dover DE 19901 FCC ID: 2AIKX-F202-8G Product Name: TABLET PC Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230634889-00A Date Of Issue: 2023/9/20 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-00A Page 2 of 46 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-00A Page 3 of 46 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB BANDWIDTH ............................................................................................................. 17 3.3.1 Applicable Standard …

Text truncated - open the document above for the full version.

TEST REPORT Applicant: F5CS LTD Address: 3500 S Dupont Hwy Suite 300 Dover DE 19901 FCC ID: 2AIKX-F202-8G Product Name: TABLET PC Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230634889-00C Date Of Issue: 2023/9/23 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230634889-00C Page 2 of 59 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks e…

Text truncated - open the document above for the full version.
