2AIPD1678Narwhal Shower Speaker

WARNING! This is not a toy. Listening to Excessively loud music for a prolonged period can damage your hearing. BATTERY INSTRUCTIONS: Requires 1 X Li-ion Polymer Rechargeable Battery (Included but not replaceable).USB rechargeable battery built into speaker. To charge connect speaker to USB port using cable provided. Only use USB cable provided. Only use battery provided, do not attempt to replace the battery. This product has no user serviceable parts. IPX4 Splash Proof Warning. This item is splash proof, not to be submerged under water. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. POWER SPECIFICATION: Input: DC 5V Output: 2W Capacity: 300mAh Charging time: 1.5hrs Operating time: 3hrs Range: >=10M Transmitting Frequency: 100Hz-20KHz Battery: 3.7V 300mAh Li-ion battery Environment Working Temperature: -40°C to +85°C Operating Frequency: 2.402GHz-2.480GHz Maximum Radio Frequency Transmitted: -0.58dBm 6 Commerce Way, Lancing, BN15 8TA, UK Unit 3D North Point House, New Mallow Road, Cork, T23 AT2P, Ireland www.fizzcreations.com © 2019 Fizz Creations Ltd. All rights reserved. 1678 745126XXXXX Made in Dongguan, China V1 148mm 105 mm 1678 0129 Fizz ****************** ****************** ** MC 2 Kawaii - Narwhal Shower Speaker IFU *********************************** *********************************** 08 07 19 0000 0000 ******* Foil Spot UV Cut Crease 0000 0000 0000 WARNING! This is not a toy. Listening to Excessively loud music for a prolonged period can damage your hearing. BATTERY INSTRUCTIONS: Requires 1 X Li-ion Polymer Rechargeable Battery (Included but not replaceable).USB rechargeable battery built into speaker. To charge connect speaker to USB port using cable provided. Only use USB cable provided. Only use battery provided, do not attempt to replace the battery. This product has no user serviceable parts. IPX4 Splash Proof Warning. This item is splash proof, not to be submerged under water. FCC ID: 2AIPD1678 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Your new shower friend Narwhal Shower Speaker Narwhal Shower Speaker POWER SPECIFICATION: Input: DC 5V Output: 2W Capacity: 300mAh Charging time: 1.5hrs Operating time: 3hrs Range: >=10M Transmitting Frequency: 100Hz-20KHz Battery: 3.7V 300mAh Li-ion battery Environment Working Temperature: -40 to +85 Operating Frequency: 2.402GHz-2.480GHz Maximum Radio Frequency Transmitted: -0.58dBm 6 Commerce Way, Lancing, BN15 8TA, UK Unit 3D North Point House, New Mallow Road, Cork, T23 AT2P, Ireland www.zzcreations.com © 2020 Fizz Creations Ltd. All rights reserved. This cute lile narwhal shower speaker gives you great sound and the sucker means that you can aach this to any lat surface. Perfect for making showering more fun! 1678 0129 Fizz Carton Board Matt AL CP 1 Narwhal Shower Speaker 2208 19 Cut Crease LM 304 7.25 Distributed by: CBOCS Distribution, inc 900 Hutchinson Place Lebanon, TN 37090 Made in China 745126 1678 090320 V1 0129 Made in Dongguan, China

APPROVED:ECO NO:LTRDATE: A B C D 654321 D C B A REVISION RECORD SCALE:SHEET: OF DRAWING NO: TITLE: COMPANY: RELEASED:DATED: DATED:QUALITY CONTROL: CHECKED:DATED: DATED:DRAWN: CODE:SIZE:REV: 211:1 0.1 A3 AC6928B MR LI MIX2052 AC6928B Audio output Analog power/play B +recharging 4R L AMP ON/OFF control BT TC4054(0.15A) + - USB cable 24MHz Battery 3.7v 3V7 4.2v 3V7

F i z z C r e a t i o n s L t d 6 C o m m e r c e W a y, L a n c i n g , W e s t S u s s e x , B N 1 5 8 T A t 0 1 9 0 3 3 2 7 0 0 6 e s a l e s @ f i z z c r e a t i o n s . c o m w f i z z c r e a t i o n s . c o m F i z z C r e a t i o n s L i m i t e d . R e g i s t e r e d O f f i c e : T h e O l d C a s i n o , 2 8 F o u r t h A v e n u e , H o v e , E a s t S u s s e x . B N 3 2 P J R e g i s t e r e d i n E n g l a n d - N u m b e r 0 7 3 8 7 1 7 5 V a t R e g . N o . 9 9 8 2 9 1 6 4 7 Letter of Agency "I, an officer of Fizz Creations Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee/ Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated 4/6/2020 By Signature Jo Best Printed Name Head of Quality Assurance Title

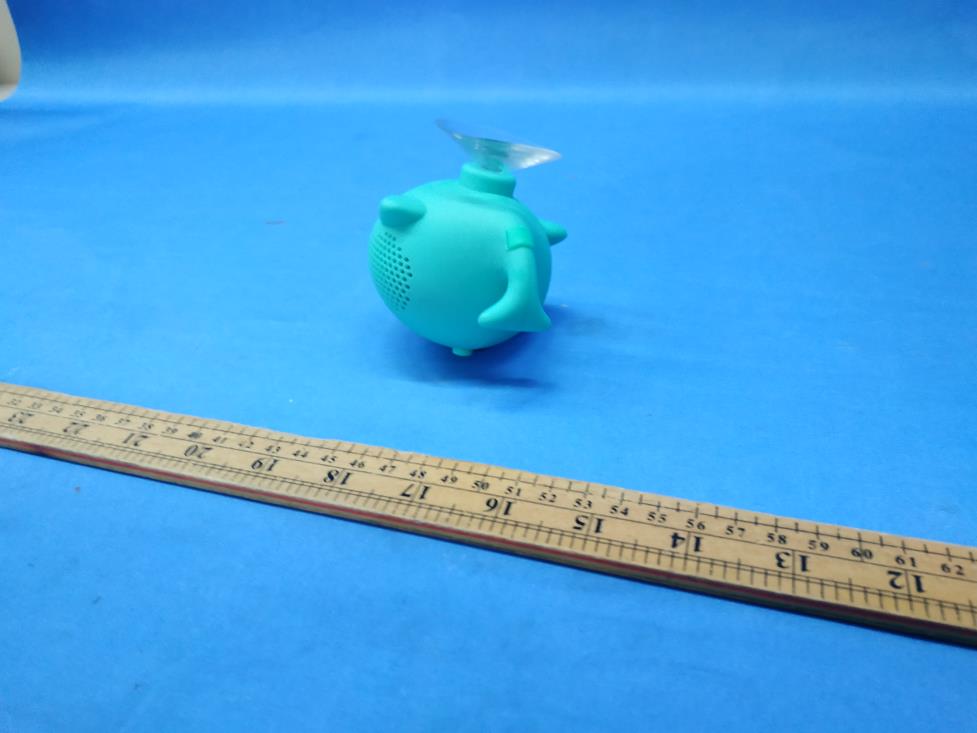

INTERTEK TESTING SERVICE Report No.:20060073HKG-001 Equipment Photographs (External) FCCID:2APID1678

30 mm 15 mm

INTERTEK TESTING SERVICE Report No.: 20060073HKG-001 FCCID:2APID1678 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 20060073HKG-001 FCCID:2APID1678 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 20060073HKG-001 FCCID:2APID1678 Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT) is the Narwhal Shower Speaker which is the audio speaker for audio playing. The EUT is a “Bluetooth 5” device which operates at frequency range between 2402MHz and 2480MHz. The EUT is powered by an internal 3.7V rechargeable battery. The USB port is for charging internal battery purpose only that does not have data transfer. This “Bluetooth 5” device that without support data rate of 2Mbps. 2.4GHz Bluetooth portion: Modulation Type: GFSK Antenna Type: Integral, Internal Antenna gain: -0.58dBi Peak EIRP range: 91.2 to 97.2 dBμV/m@3m Frequency Range: 2402MHz - 2480MHz The main components are described as below: 1. AC6928 is 2.4GHz Bluetooth RF core with microcontroller 2. 24MHz crystal is master clock for AC6928 3. MIX2052 is audio amplifier for internal speaker 4. 4504 is battery charging IC

Analysis Report Report No.: 20060073HKG-001 The Equipment Under Test (EUT) is the Narwhal Shower Speaker which is the audio speaker for audio playing. The EUT is a “Bluetooth 5” device which operates at frequency range between 2402MHz and 2480MHz. The EUT is powered by an internal 3.7V rechargeable battery. The USB port is for charging internal battery purpose only that does not have data transfer. This “Bluetooth 5” device that without support data rate of 2Mbps. According to the KDB 447498: Max Conducted Power = EIRP – antenna gain = 2 dBm (97.2 dBμV/m@3m) + 0.58 dBi = 2.58 dBm (1.8 mW) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

A B C D 654321 D C B A SCALE:SHEET: OF DRAWING NO: TITLE: COMPANY: RELEASED:DATED: DATED:QUALITY CONTROL: CHECKED:DATED: DATED:DRAWN: CODE:SIZE:REV: 221:1 0.1A3AC6928B MR LI DC+ VBAT 开关/暂停 下一曲/音量+ 上一曲/音量- C10 2.7pf 1 2 Bluetooth 2402 to 2480MHz ANT1 1 2 LED1BLUE R4 0R R14 51K R15 22K 12 K3 12 K4 R30R Y1 24MHZ C14 NC C15 NC R13 33K 12 K2 1 DC5V 2 D- 3 D+ 4 GND 5 GND 67 89 USB1 USB-5 1 L 2 GND 3 OUT 4 IN 5 BP U34054 R8 7.5K R7 1K LED2 RED J2 BAT B+ B- R4147K C50 224 1 2 SPK1 SP R38 1K C42105 C2 NC R42 10K 1 CTRL 2 BYPASS 4 IN+ 3 IN- 8 OUT- 7 GND 6 VDD 5 OUT+ U7 MIX2052 R5 47K C1 224 R2 560R L40R L30R C4 102 C3 102 L2150MA L10R C6 105 C5 104 C49 106 1 PC5/SD1CLK 2 PC4/SD1CMD/ADC4 3 USBDM/PC3/SD1DAT/ADC10 4 USBDP/PA4/AUX1R/ADC1 5 PA0/MIC/PA3/AUX1L/ADC0 6 DACL 7 DACVDD 8 VCOM 9 VSSIO 10 VDDIO 11 PWMH2H/ADC9/AUX0R/PB5 12 VBAT 13 RTCVDD 14 ADC/PR1 15 ADC/PR2 16 BT_AVDD 17 BT_RF 18 FMIP 19 BT_OSCI 20 BT_OSCO U4 AC6928 C11 104 C12 104 C13104 C19105 C70104 C8 104 [2] KEY DGND AGND OSCO OSCI GND [2] +3.3V DC+ VBAT [2] RED [2] RED [2] DC+ MUTE [2] VBAT [2] DACL [2] AG ND VBAT [2] BLED [2] VBAT [2] DACL [2] BLED [2] KEY [2]MUTE [2] +3.3V GND

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 29 TEST REPORT Report No.: 20060073HKG-001 Fizz Creations Ltd. Application For Certification (Original Grant) FCC ID: 2AIPD1678 Transceiver Prepared and Checked by: Approved by: Signed On File Chan Hin Man, Oscar Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 06, 2020 TEST REPORT Fizz Creations Ltd. Intertek Report No: 20060073HKG-001 Page 2 of 29 GENERAL INFORMATION Grantee: Fizz Creations Ltd. Grantee Address: Unit 6, Commerce Way, Lancing, West Sussex, BN15 8TA, United Kingdom. Contact Person: Jo Best Tel: +44(0) 1903 327006 Fax: +44(0) 1903 327006 e-mail: n/a Manufacturer: Fizz Creations Ltd. Manufacturer Address: Unit 6, Commerce Way, Lancing, West Sussex, BN15 8TA, United Kingdom. Brand Name: Narwhal Shower Speaker Model: 1678 FCN Code: 0129 Type of EUT: Transceiver Description of EUT: Narwhal Shower Speaker Serial Number: N/A FCC ID: 2AIPD1678 Date of Sample Submitted: June 02, 2020 Date of Test: June 02, 2020 to July 02, 2020 Report No.: 20060073HKG-001 Report Date: July 06, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Fizz Creations Ltd. Intertek Report No: 20060073HKG-001 Page 3 of 29 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Power Line Conducted Emissions 15.207 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Fizz Creations Ltd. Intertek Report No: 20060073HKG-001 Page 4 of 29 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 3.4 Conducted Emission Configuration Photograph ........................................................ 8 3.5 Conducted Emission Data .......................................................................................... 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 17 5.0 PRODUCT LABELLING .................................................................................................. 17 6.0 TECHNICAL SPECIFICATIONS .............................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No:20060073HKG-001 FCC ID: 2AIPD1678 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No:20060073HKG-001 FCC ID: 2AIPD1678 Configuration Photographs Worst-Case Radiated Emissions (Back View) INTERTEK TESTING SERVICE Report No:20060073HKG-001 FCC ID: 2AIPD1678 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No:20060073HKG-001 FCC ID: 2AIPD1678 Configuration Photographs Worst-Case Radiated Emissions (Back View)

INTERTEK TESTING SERVICE Report No:20060073HKG-001 FCCID: 2AIPD1678 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No:20060073HKG-001 FCCID: 2AIPD1678 Configuration Photographs Worst-Case Line-Conducted Emissions (Back View)
