2AITMSV-1082XSmart Pass Management Module

SV-1082X

Shenzhen Smart Device Technology Co., LTD 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Date: Jun. 28, 2020 FCC ID: 2AITMSV-1082X Model Number: SV-1082X To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Smart Device Technology Co., LTD declare that this EUT (FCC ID: 2AITMSV-1082X) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Signature: Name: Ling Zhang Company: Shenzhen Smart Device Technology Co., LTD Address: 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Phone: 0755-26992276 Fax: 0755-26992276 E-Mail: [email protected]

Shenzhen Smart Device Technology Co., LTD 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/30/2020 To whom it may concern: We, Shenzhen Smart Device Technology Co., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: [ 2AITMSV-1082X] including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature: Name: Ling Zhang Company: Shenzhen Smart Device Technology Co., LTD Address: 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Phone: 0755-26992276 Fax: 0755-26992276 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-28> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID 2AITMSV-1082X Model name SV-1082X For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Label and Label Location Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature: Name: Ling Zhang Company: Shenzhen Smart Device Technology Co., LTD Address: 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Phone: 0755-26992276 Fax: 0755-26992276 E-Mail: [email protected]

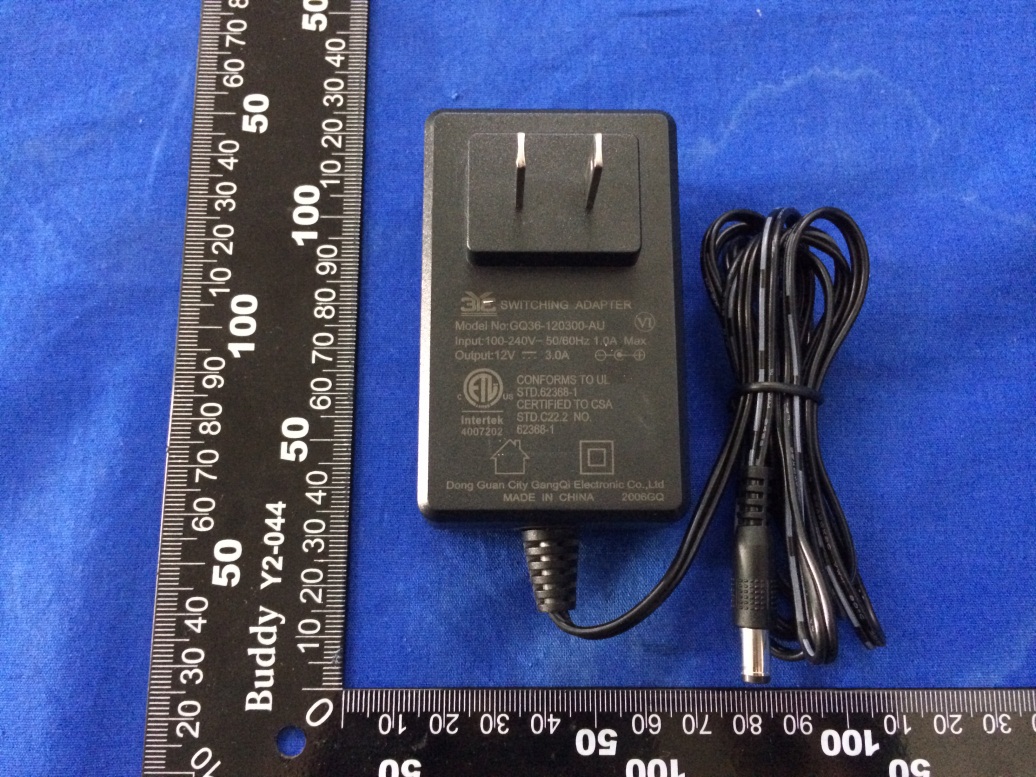

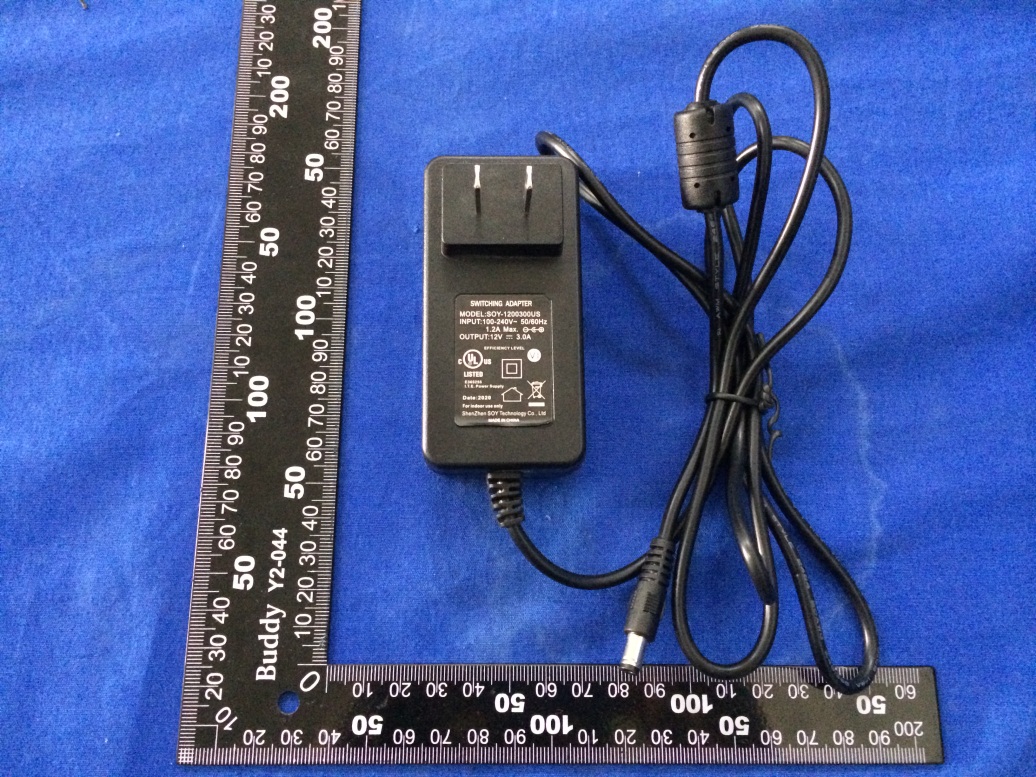

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn External Photographs Page 1 of 5 Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Label Label Location 1. Page 1 of 1

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Internal Photographs Page 1 of 12 RF ID Ant Page 2 of 12 Wi-Fi Ant Page 3 of 12 Page 4 of 12 Page 5 of 12 Page 6 of 12 Page 7 of 12 Page 8 of 12 Page 9 of 12 Page 10 of 12 Page 11 of 12 Page 12 of 12

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.com.cn Maximum Permissible Exposure Evaluation FCC ID: 2AITMSV-1082X According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: Smart Pass Management Module Trade Mark: N/A Model/Type reference: SV-1082X Listed Model(s): N/A Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz RLAN: 5.180GHz ~ 5.240GHz RLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) -1dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Page 2 of 2 Report No.: CTC20200912E09 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limits (mW/cm 2 ) 802.11 b 2412 19.06 19±1 20 -1 0.01580 1 2437 19.18 19±1 20 -1 0.01580 1 2462 19.09 19±1 20 -1 0.01580 1 802.11g 2412 23.02 23±1 24 -1 0.03970 1 2437 23.11 23±1 24 -1 0.03970 1 2462 23.16 23±1 24 -1 0.03970 1 802.11n(HT20) 2412 22.34 22±1 23 -1 0.03153 1 2437 22.51 22±1 23 -1 0.03153 1 2462 22.37 22±1 23 -1 0.03153 1 13.56MHz: 52.10dBuV/m@ 3m @20cm=@3m+40*log (3/0.02) =139.14dBuV/m For 13.56MHz: 139.14dBuV/m=9.06V/m< 60.77V/m. 13.56MHz and WiFi modules can simultaneous transmitting, so the maximum rate of MPE is 9.06/60.77+0.03153/1.0 =0.18<=1.0. according to the KDB447498 section 7.2 determine the device is exclusion from SAR test. Note For a more detailed features description, please refer to the RF Test Report. **********************THE END********************** CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20200912E07 FCC ID................................: 2AITMSV-1082X Applicant····························: Shenzhen Smart Device Technology Co., LTD Address·······························: 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Manufacturer························: Shenzhen Smart Device Technology Co., LTD Address·······························: 17th-18th floor, Guoshi Mansion, Shahe West Road 1801, Nanshan, Shenzhen, China Product Name······················: Smart Pass Management Module Trade Mark···························: N/A Model/Type reference·············: SV-1082X Listed Model(s) ····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Jun. 05, 2020 Date of testing.......................: Jun. 06, 2020 to Jun. 30, 2020 Date of issue.........................: Jun. 30, 2020 Result.................................: PASS Compiled by: (Printed name+signature) Terry Su Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 78 Report No.: CTC20200912E07 Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION .......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 4 1.4. TEST FACILITY .............................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. CLIENT INFORMATION ................................................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 8 2.4. OP E R AT I O N S TAT E ......................................................................................................................................................... 8 2.5. MEASUREMENT INSTRUMENTS LIST ............................................................................................................................... 10 3. TEST ITEM AND RESULTS ........................................................................................................................................ 12 3.1. CONDUCTED EMISSION ................................................................................................................................................ 12 3.2. RADIATED EMISSION ................................................................................................................................................... 19 3.3. BAND EDGE EMISSIONS ............................................................................................................................................... 45 3.4. DTS BANDWIDTH ....................................................................................................................................................... 61 3.5. PEAK OUTPUT POWER ................................................................................................................................................ 66 3.6. POWER SPECTRAL DENSITY .......................................................................................................................................... 68 3.7. DUTY CYCLE .............................................................................................................................................................. 73 3.8. ANTENNA REQUIREMENT ................................................................................................................................…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1- 2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Radiated Measurements Below 1GHz Above1GHz Page 1 of 2 Conducted Emissions Page 2 of 2
