2AIWP-HW325MULTIFUNCTION LCD PROGRAM BOX Pro

Thank you for purchasing this HOBBYWING product! Please read this declaration carefully before use, once you start to use, we will assume that you have read and agreed with all the content. Brushless power systems can be very dangerous, and any improper use may cause personal injury and damage to the product and related devices, so please strictly follow the instruction during installation and use. Because we have no control over the use, installation, or maintenance of this product, no liability may be assumed for any damages or losses resulting from the use of the product. We do not assume responsibility for any losses caused by unauthorized modifications to our product. Besides, we have the right to modify our product design, appearance, features and usage requirements without notification. We, HOBBYWING, are only responsible for our product cost and nothing else as result of using our product. 01 Features  As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).  Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.  The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.  Detect the overall voltage of the lithium battery and the individual voltage of each cell. 02 Specifications Exterior size：105.6mm（Length）*59mm（width）*24.4mm（Including wheel height） Weight：85g Input voltage：DC 5V~12.6V 03 Scope of application  XERUN series car model brushless ESC (V2.0 and above)  EZRUN series car model brushless ESC (V2.0 and above)  PLATINUM series air model brushless ESC  SEAKING Pro series ship model brushless ESC  Some ESCs of QUICRUN series Remarks: Whether the programmable box is supported depends on the specific ESC model. If necessary, you can check the ESC information introduction on the official website or consult the Hobbywing official. Hobbywing official website: https://www.hobbywing.com 04 Product icon and button/interface description 1. Wheel: Select the target menu by rotating the wheel up and down. 2. Save: Save button, to save parameter settings. 3. Back/Cancel: Return button is used to return to the previous menu. If you press and hold this button for about 2 seconds, you will be directed back to the home page. 4. ESC (S + -): This interface is used to connect to the programming interface of the ESC. Remarks: Different types of ESCs may have different programming interfaces. For example, some ESCs have an independent programming port, some ESCs share the interface with the fan, and some ESCs have a throttle signal line. Please check the manual of the ESC and use the correct programming interface to connect with the setting box. 5. 5-12.6V (+ -): The power supply interface of the setting box. Please use an independent battery or UBEC supplies power to the setting box from this interface if the programming interface of the ESC has no voltage output (such as some old OPTO ESCs, please refer to the ESC manual). Please note that for most programming interfaces with voltage output ESCs, this interface does not need a separate power supply. 6. TYPE-C: Connect the setting box to a computer. 7. BATTERY CHECK: This interface is connected to the balance charging plug of the battery pack and is also used to detect the overall voltage of the battery pack and the individual voltage of each cell. Remarks: Please pay attention to the wiring direction to avoid damage to the equipment; The pin pitch of this interface is 2.54mm, and is consistent with XH, EH, HP/PQ standards. The battery balance charging plug can be directly inserted into this interface. However, some battery balancing charging plugs may have a different pin pitch and cannot be directly connected. It is recommended to use the conversion cable shown in the figure above to connect. 05 User Guide 1: Set the parameters of the ESC as an independent device. Step 1: Determine the programming interface of the ESC (check the ESC manual) and use the corresponding connection method. a)The ESC has an independent programming interface: use a programming cable (JR/DuPont connectors at both ends) to connect the programming port of the ESC to the "ESC" interface on the setting box. b)The programming interface of the ESC is shared with the fan interface: take off the fan plug of the ESC and use the programming cable (JR/DuPont connectors at both ends) to connect the fan interface of the ESC to the "ESC" interface on the setting box. c)The programming port for the ESC is the throttle cable: pull out the ESC cable from the receiver and insert it into the "ESC" socket of the setting box. Step 2: Determine whether the programming interface of the ESC has voltage output, and if the setting box needs a separate power supply (check the ESC manual). The majority of Hobbywing ESCs have voltage output equipped. This eliminates external power supply. However, there are also a few older ESCs whose programming interface does not have voltage output (such as Platinum-150A-OPTO V2). In that case, you would need to use an independent battery or UBEC on the "5-12.6V (+ -)" interface of the setting box to power the device. Fixed box power supply. Step 3: Connect the battery to the ESC and turn on the ESC switch (if there is a switch). The setting box will display the homepage interface. Select the corresponding function menu according to your needs. 2: As a USB converter, connect the ESC to a computer for parameter setting and firmware update. Connect the setting box to the ESC according to the connection method introduced in the points above. Next, connect the setting box to the computer using a USB cable. Open the HOBBYWING USB LINK application software on the computer and connect the ESC to a battery. Finally, turn on the ESC switch (if any), and the HOBBYWING USB LINK software on the computer can establish a connection with the ESC…

Text truncated - open the document above for the full version.

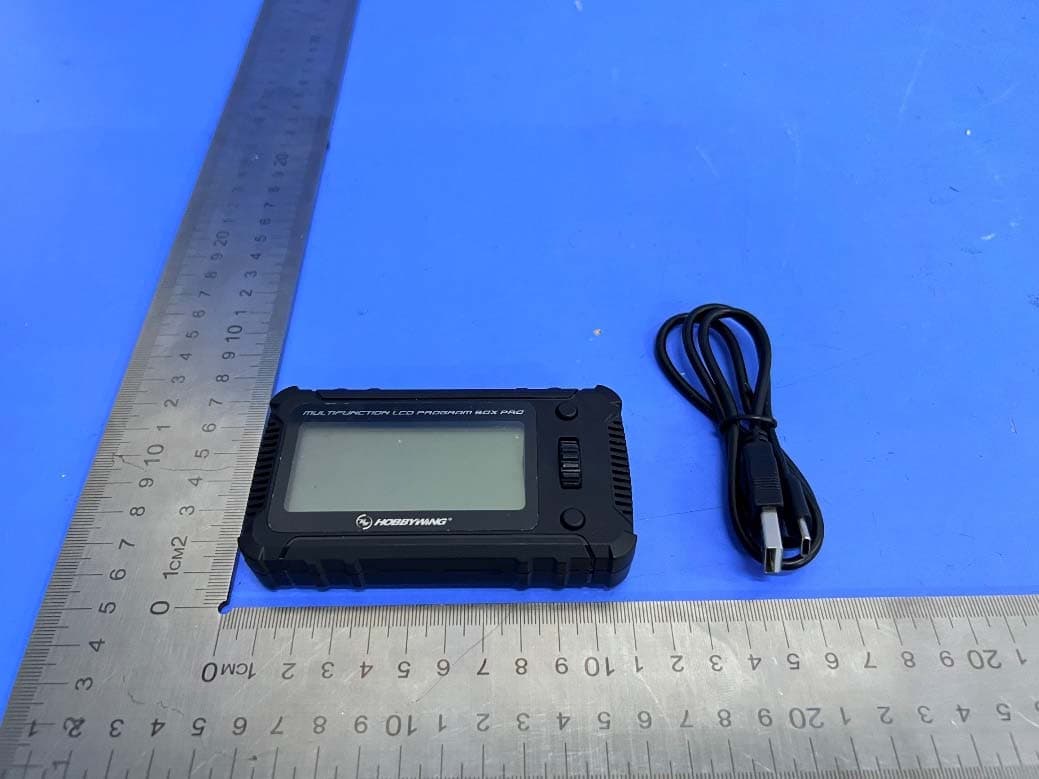

FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Photo 5 Appearance of EUT

FCC ID: 2AIWP-HW325 TB-RF-074-1.0 AppendixI Label FCC ID:2AIWP-HW325 Model:MULTIFUNCTION LCD PROGRAM BOX Pro FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Appearance of PCB FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB PCB Antenna FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Photo 9 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202309-0059-7 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AIWP-HW325 1. Client Information Applicant : SHENZHEN HOBBYWING TECHNOLOGY CO., LTD. Address : 101-402.Bldg 4, Yasen Hi-tech Industrial Park, 8 Chengxin Rd., Baolong Town, Longgang Dist., Shenzhen. China Manufacturer : SHENZHEN HOBBYWING TECHNOLOGY CO., LTD. Address : 101-402.Bldg 4, Yasen Hi-tech Industrial Park, 8 Chengxin Rd., Baolong Town, Longgang Dist., Shenzhen. China 2. General Description of EUT EUT Name : MULTIFUNCTION LCD PROGRAM BOX Pro Model(s) No. : MULTIFUNCTION LCD PROGRAM BOX Pro Model Difference : ---- Product Description : Operation Frequency: Bluetooth 5.1(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.1(BLE):40 channels Antenna Gain: 0dBi PCB Antenna Modulation Type: GFSK Bit Rate of Transmitter: 1/2Mbps Power Rating : Input: DC 5~12.6V Software Version : HW325-V1.2-PB-1.0.26 Hardware Version : HW325-V1.3 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202309-0059-7 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202309-0059-7 Page: 3 of 3 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth LE Mode(1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -2.865 -2±1 -1 0.794 0.246 3.0 2.440 -4.086 -4±1 -3 0.501 0.157 3.0 2.480 -4.61 -4±1 -3 0.501 0.158 3.0 Bluetooth LE Mode(2Mbps) 2.402 -2.845 -2±1 -1 0.794 0.246 3.0 2.440 -4.085 -4±1 -3 0.501 0.157 3.0 2.480 -4.62 -4±1 -3 0.501 0.158 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz Center Frequency -1.26-0.76 0.00 -5.25-2.46-1.86 MAX. Gain 0dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 9.55mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) ZHUHAI JIELI TECHNOLOGY CO.,LTD Room 301, Building A, No.30 Hangkong Road, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500 0. 00-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(d B) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 1 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: MULTIFUNCTION LCD PROGRAM BOX Pro Test Model: MULTIFUNCTION LCD PROGRAM BOX Pro Sample ID: HC-C-202309-0059-01-02-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: DC 5V Test Engineer: Liyingjing Note: For a more detailed features description, please refer to the report TBR-C-202309-0059-1 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 2 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 17.22 7.64 9.26 NVNT BLE 1Mbps 2440 Ant1 16.83 7.74 9.52 NVNT BLE 1Mbps 2480 Ant1 17.31 7.62 9.26 NVNT BLE 2Mbps 2402 Ant1 10.58 9.76 15.15 NVNT BLE 2Mbps 2440 Ant1 10.58 9.76 15.15 NVNT BLE 2Mbps 2480 Ant1 10.58 9.76 15.15 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 3 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 4 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 5 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 6 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -2.865 30 Pass NVNT BLE 1Mbps 2440 Ant1 -4.086 30 Pass NVNT BLE 1Mbps 2480 Ant1 -4.61 30 Pass NVNT BLE 2Mbps 2402 Ant1 -2.845 30 Pass NVNT BLE 2Mbps 2440 Ant1 -4.085 30 Pass NVNT BLE 2Mbps 2480 Ant1 -4.62 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 7 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 8 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 9 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 10 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 2402 Ant1 0.61 0.5 Pass NVNT BLE 1Mbps 2440 Ant1 0.62 0.5 Pass NVNT BLE 1Mbps 2480 Ant1 0.6 0.5 Pass NVNT BLE 2Mbps 2402 Ant1 1.06 0.5 Pass NVNT BLE 2Mbps 2440 Ant1 1.07 0.5 Pass NVNT BLE 2Mbps 2480 Ant1 1.07 0.5 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 11 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT BLE 1Mbps 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 12 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 1Mbps 2480MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 13 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 2Mbps 2440MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0059-1 Page: 14 of 39 FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1Mbps 2402 Ant1 1.071 NVNT BLE 1Mbps 2440 Ant1 1.073 NVNT BLE 1Mbps 2480 Ant1 1.09 NVNT BLE 2Mbps 2402 Ant1 2.142 NVNT BLE 2Mbps 2440 Ant1 2.175 NVNT BLE 2M…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202309-0059-1 Page: 1 of 36 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2AIWP-HW325 Report No. : TBR-C-202309-0059-1 Applicant : SHENZHEN HOBBYWING TECHNOLOGY CO., LTD. Equipment Under Test (EUT) EUT Name : MULTIFUNCTION LCD PROGRAM BOX Pro Model No. : MULTIFUNCTION LCD PROGRAM BOX Pro Series Model No. : ---- Brand Name : Hobbywing Sample ID : HC-C-202309-0059-01-02-1# & HC-C-202309-0059-01-02-2# Receipt Date : 2023-09-11 Test Date : 2023-09-11 to 2023-09-20 Issue Date : 2023-09-23 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202309-0059-1 Page: 2 of 36 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION ....................................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Mode ........................................................................................................ 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 7.4 Deviation From Test Standard ......................................................................................... 21 Report No.: TBR-C-202309-0059-1 Page: 3 of 36 TB-RF-074-1.0 7.5 EUT Operating Mode ........................................................................................................ 21 7.6 Test Data ............................................................................................................................. 21 8. BANDWIDTH TEST ...........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2AIWP-HW325 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
