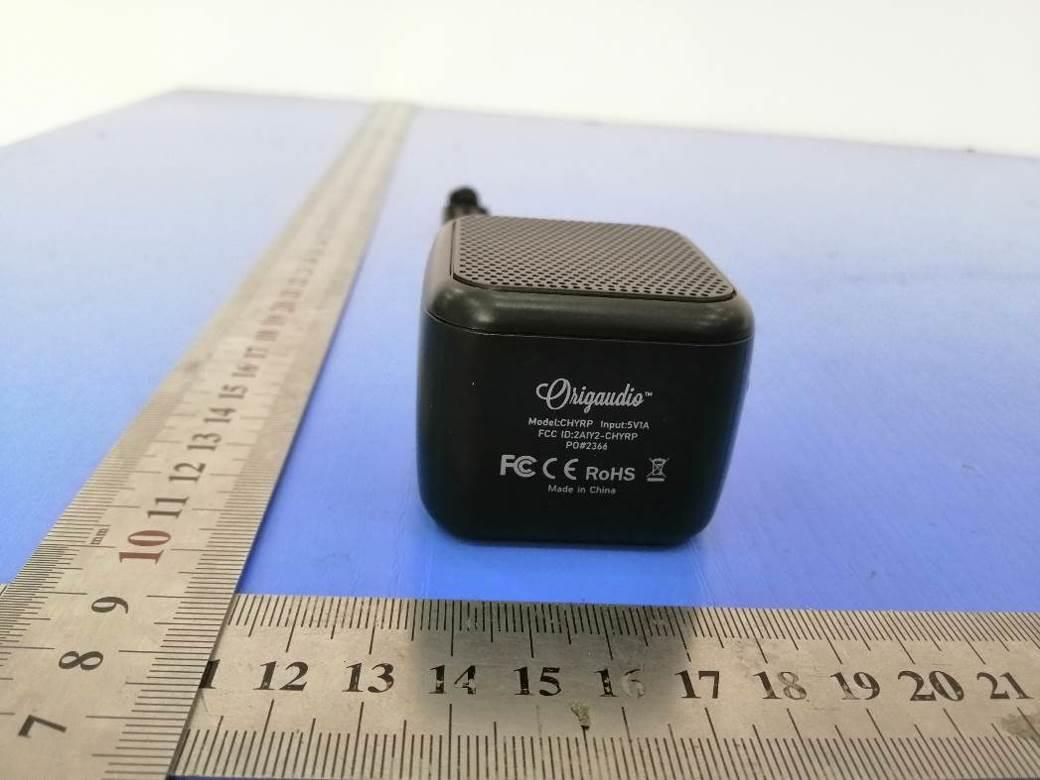

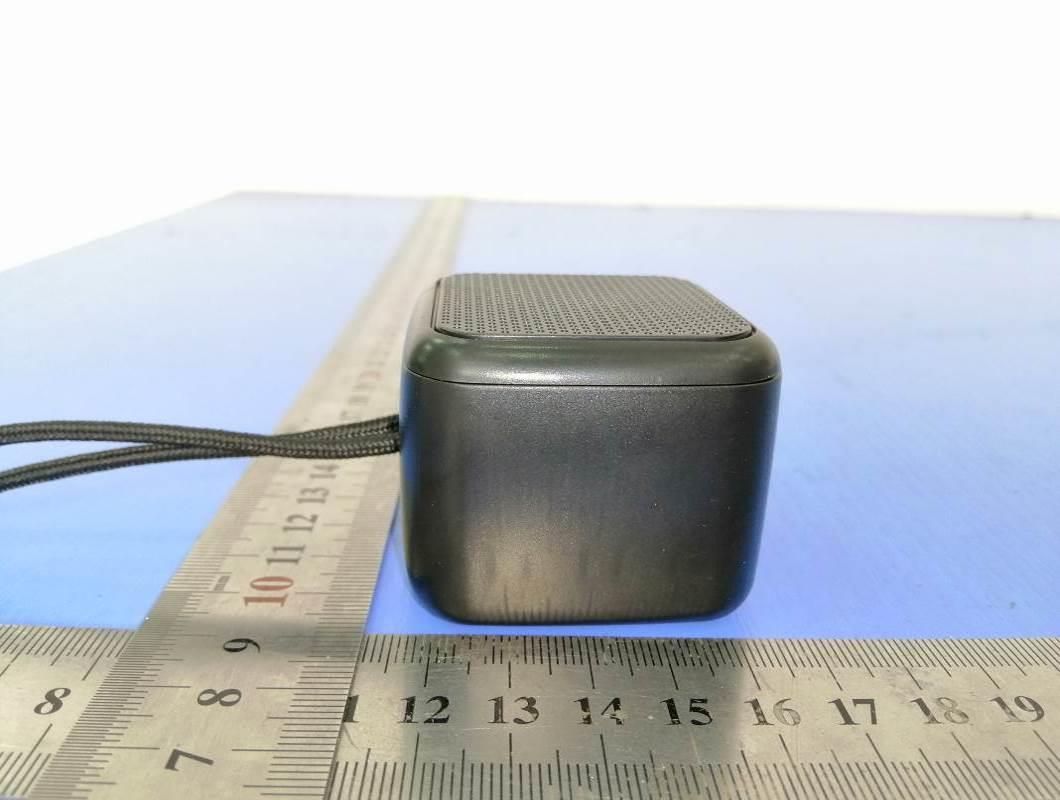

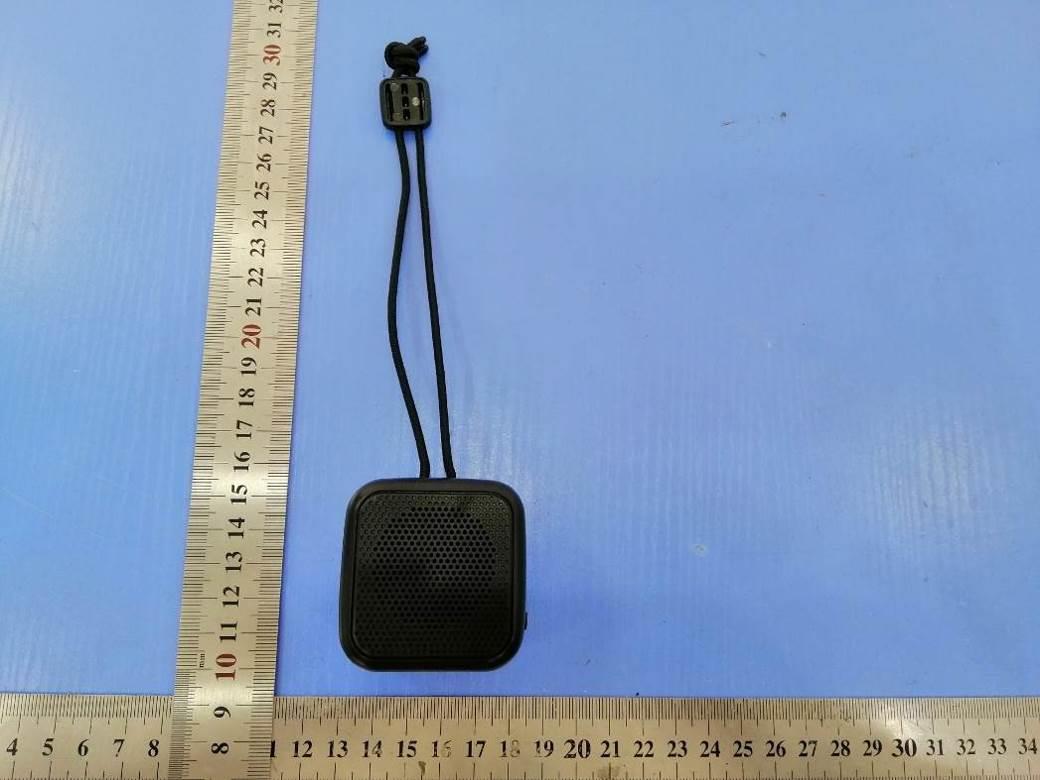

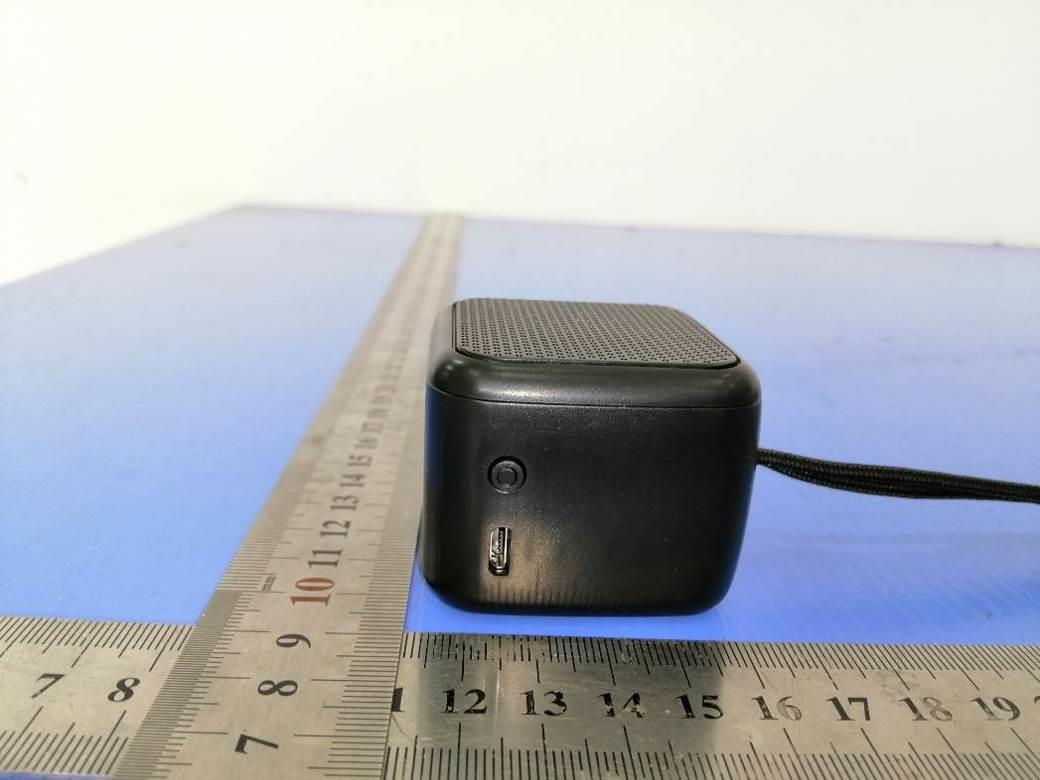

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L1.5cm*W1.0cm Label Location Bluetooth Speaker Model No.: CHYRP FCC ID: 2AIY2-CHYRP

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Fig. 5 Fig. 6 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AIY2-CHYRP Product name : Bluetooth Speaker Test Model : CHYRP Power Supply : Input: DC 5V, 0.3A DC 3.7V By battery(300mAh) Hardware Version : FF020VER1.2 Software Version : BK3265D.P28.4M_FF020_(Chyrp)_LY_EQ_MFB.XX_V1.8_20191216_(a2 de)_crc.bin Bluetooth : 2402-2480MHz Channel Number : 79 channels for Bluetooth V5.0 (DSS) 40 channels for Bluetooth V5.0 (DTS) Channel Spacing : 1MHz for Bluetooth V5.0(DSS) 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK , π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 (DTS) Bluetooth Version : V5.0 Antenna Type : PCB Antenna Antenna Gain : 0dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT Classics> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.485 39 2441 -1.077 78 2480 -2.745 π/4DQPSK 0 2402 2.663 39 2441 1.064 78 2480 -0.285 8DPSK 0 2402 0.509 39 2441 -0.966 78 2480 -2.788 <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.357 19 2440 1.838 39 2480 0.259 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0(DSS) (Conducted Measurement) Product Name: Bluetooth Speaker Trade Mark: Origaudio Test Model: CHYRP Environmental Conditions Temperature: 23.3  C Relative Humidity: 53.8% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Wang Chuang A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.485 30 PASS MCH -1.077 30 PASS HCH -2.745 30 PASS π/4DQPSK LCH 2.663 21 PASS MCH 1.064 21 PASS HCH -0.285 21 PASS 8DPSK LCH 0.509 21 PASS MCH -0.966 21 PASS HCH -2.788 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9484 Not Specified PASS MCH 0.9494 Not Specified PASS HCH 0.9491 Not Specified PASS π/4DQPSK LCH 1.323 Not Specified PASS MCH 1.324 Not Specified PASS HCH 1.324 Not Specified PASS 8DPSK LCH 1.290 Not Specified PASS MCH 1.294 Not Specified PASS HCH 1.294 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.940 0.633 PASS MCH 1.194 0.633 PASS HCH 0.958 0.633 PASS π/4DQPSK LCH 1.018 0.883 PASS MCH 1.010 0.883 PASS HCH 0.912 0.883 PASS 8DPSK LCH 1.170 0.863 PASS MCH 0.992 0.863 PASS HCH 1.066 0.863 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.309 0.4 PASS 2DH5 MCH 2.9 106.7 0.309 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS 8DPSK 3DH5 LCH 2.9 106.7 0.309 0.4 PASS 3DH5 MCH 2.9 106.7 0.309 0.4 PASS 3DH5 HCH 2.9 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.103 -37.853 -20.103 PASS MCH -1.611 -29.486 -21.611 PASS HCH -3.434 -31.208 -23.434 PASS π/4DQPSK LCH -0.459 -35.045 -20.459 PASS MCH -1.928 -38.443 -21.928 PASS HCH -3.208 -37.785 -23.208 PASS 8DPSK LCH 0.013 -37.979 -19.987 PASS MCH -4.135 -36.796 -24.135 PASS HCH -5.861 -37.132 -25.861 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Fortyfour group LLC Bluetooth Speaker Test Model: CHYRP Prepared for : Fortyfour group LLC Address : 11397 Slater Ave,Fountain Valley,CA 92708 USA CALIFORNIA CA United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 06, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : March 06, 2020 ~ March 20, 2020 Date of Report : March 24, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200101040AEA Date of Issue ................................... : March 24, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Fortyfour group LLC Address ........................................... : 11397 Slater Ave,Fountain Valley,CA 92708 USA CALIFORNIA CA United States Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Bluetooth Speaker Trade Mark ...................................... : Origaudio Test Model ...................................... : CHYRP Ratings ............................................ : Input: DC 5V, 0.3A DC 3.7V By battery(300mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jayden Zhuo/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200101040AEA March 24, 2020 Date of issue Test Model........................... : CHYRP EUT......................................... : Bluetooth Speaker Applicant............................... : Fortyfour group LLC Address.................................. : 11397 Slater Ave,Fountain Valley,CA 92708 USA CALIFORNIA CA United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Winnershine Electronics Co., Ltd Address................................... : 5 Floor, D3 Bldg, 8# Zaohekeng industrial part (YuXiang), JiXia, Bu Ji Town, Long Gang, Shenzhen China 518114 Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 March 24, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP Report No.: LCS200101040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ....................................................................................................................... 6 1.3 External I/O Cable ............................................................................................................................... 6 1.4 Description of Test Facility ................................................................................................................. 6 1.5 Statement of the Measurement Uncertainty .......…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIY2-CHYRP _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
