Maintenance And Storage It is important to keep the earbud clean for safe and healthful use. 1. Do not wear the in-ear earbud that are dirty. 2. When the earbud are out of use, please always store it in the clean dry environment provided. 3. Do not store it with other articles, as it may cause pollution. 4. Avoid storing it in the environment that is too hot or too cold. 5. Avoid contact with liquid, and avoid extreme temperature or high humidity environment. 6. Do not dismantle the earbud in an unprofessional and nonstandard manner, to avoid partial sound of the earbud. Bad sound quality 1. Please confirm if the earplugs are tightly plugged. 2. Please try to change a player or music playing application. Bad noise cancellation effect 1. Please confirm if the earplugs cannot be tightly plugged . If so, please replace with the silicone cover of a different size delivered. 2. Plearse confirm if the earphones are correctly worn. No sound or sound change 1. Please confirm if the current device supports this product. 2. Please try to change a player or music playing application. Frequently Asked Questions Earplug Selection The sound quality will be affected by whether the earplugs are selected at right size, and the correct wearing will make you feeling comfortable. Since different person's ear type is different, we offer several different sizes of earplugs. Please choose the earplugs that are suitable for your ear type. We recommend you to try the smallest earplugs first and then try the bigger ones until you find the best and ensure the earplugs are not easy fall off. Earplugs Cleaning 1. It is important to keep the earplugs clean for safe and healthful use. Important notice: please remove the earplugs from the earphones first and then try cleaning the earplugs. 2. Tightly hold the earplugs with one hand, tightly hold the earphones with the other hand, andremove the earplugs from the earphones carefully. 3. Use a piece of wet cloth with warm water and soft soap to clean the dirt and fouling on the earplugs. Do not use powerful detergent. 4. Rinse the earplugs and put them back to the earphons until they are fully dry. 5. Carefully push the earplugs back to the earphones to ensure they are completely reset. SML

Pick up call: Double touch Hang up call:
Double touch




Reject:
Press the key for 2 seconds Play/Pause:
Double touch Next song:
Press the right earphone for 2 seconds Last song: Press the left earphone for 2 seconds Start voice assistant: Triple touch Operation Touch key Item Cooperation LED Power On Take out the earphones from the charging case Red and blue lights flash alternately Power Off Put back to charging caseRed light on Pairing After take out from the charging case, it will be in pairing mode(it will automatically enter the single ear pairing state after 10 seconds) Red and blue lights flash alternately Connection Choose the K09 when you search it Blue light flashes every 5 seconds Disconnection Disconnect between phone and earphones, it will enter the pairing mode Red and blue lights flash alternately Re-connection Earphones paired automaticly / Turn off automatically if no connection If no connection in 5 minutes, it will turn off automatically LED light off Charging Put earphones back to charging caseRed light on Finish chargedEarphones in charging caseLED light off Low power alarm Voice alarm occurs when power is below 3.3V Red light flashes once every 3 secones Clear pairing Press and hole the touch button for 8 seconds when the earphones enters pairing mode Red light flashes 2 times 210*90mm Notice Built-in lithium battery. Disassembly prohibited, bump, squeeze or throw into fire. If severe bulging occurs, do not continue to use. Do not place in high temperature environment. Specification Made in China Model number : K09 Bluetooth version : V5.0 Input: DC 5V Frequency response range : 20Hz-20KHz Earphones battery capacity : 3.7V/35mAh Charging case battery capacity : 3.7V/400mAh Working time : About 3 hours Earphones charging time : About 1 hour Charging case charging time : About 1 hour Bluetooth transmission distance : 10 meters (unobstructed enviroment) Bluetooth protocol : A2DP/AVRCP/HFP/SDP/SPP K09 User Manual Chinese and English switching: Touch 4 times TRUE WIRELESS STEREO BLUETOOTH EARPHONES FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Co m Ad d Tow Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Sh dress: 2-3/ wn, Longh oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: Sh enzhen Un F., Bldg. B hua New D e: Ture Wir er(s): K09 ription: Tu MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Sandy W u Manager Shenzhen henzhen U Agen niwins Tech B, Quanyu District, Sh reless Stere re Wireless bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect u n Uniwins Te niwins Tec nt Auth hnology Co uanfa Indu henzhen, C eo Bluetoo s Stereo B Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of echnology C hnology Co horizat o., Limited ustrial Par China oth Earpho luetooth E ourt, Pleasa certification forward all i agencies as and all acts our own. Co., Limited o., Limited tion rk, Guanla nes arphones anton, Califo of above na information s required a s carried ou Date: d an Avenue ornia 94566 amed equip related to t nd to discu ut by MiCOM Nov. 30, 20 e, Guanlan 6, USA, to pment. the approva ss any M Labs on 020 n al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AIY7-K0 om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio r understand pondence du ents and thi zation is iss ely, ure: Sandy Wu anage r She ing Techno cations Com s Road 046 for Confiden 09 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri ding that all uring the ce s informatio sued. enzhen Uniw logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption l measurem ertification re on will be av wins Techn ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for nology Co., s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Limited Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: Nov. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 30, 2020 0.459, we al dered as documents the market . ntial quipment .

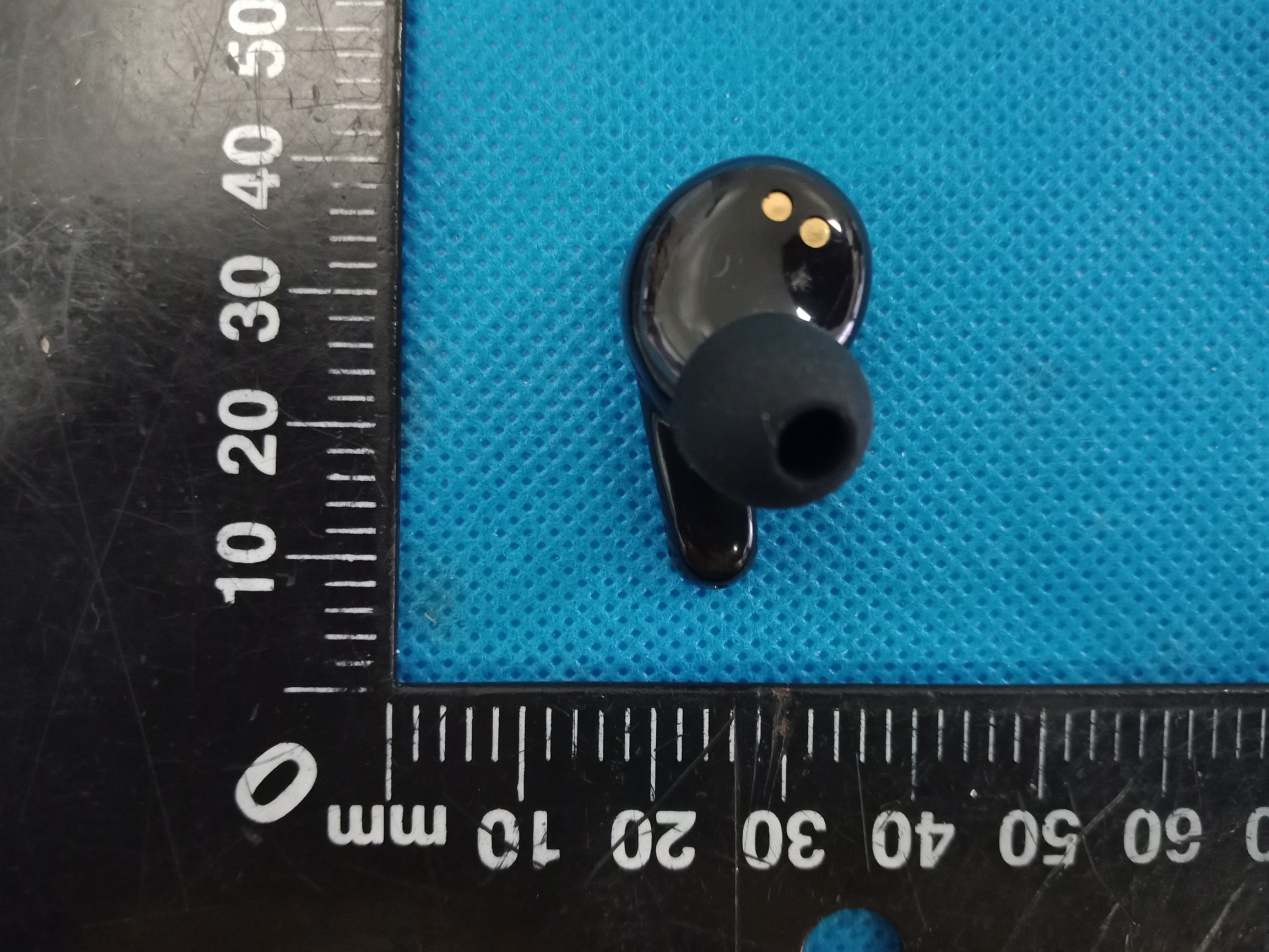

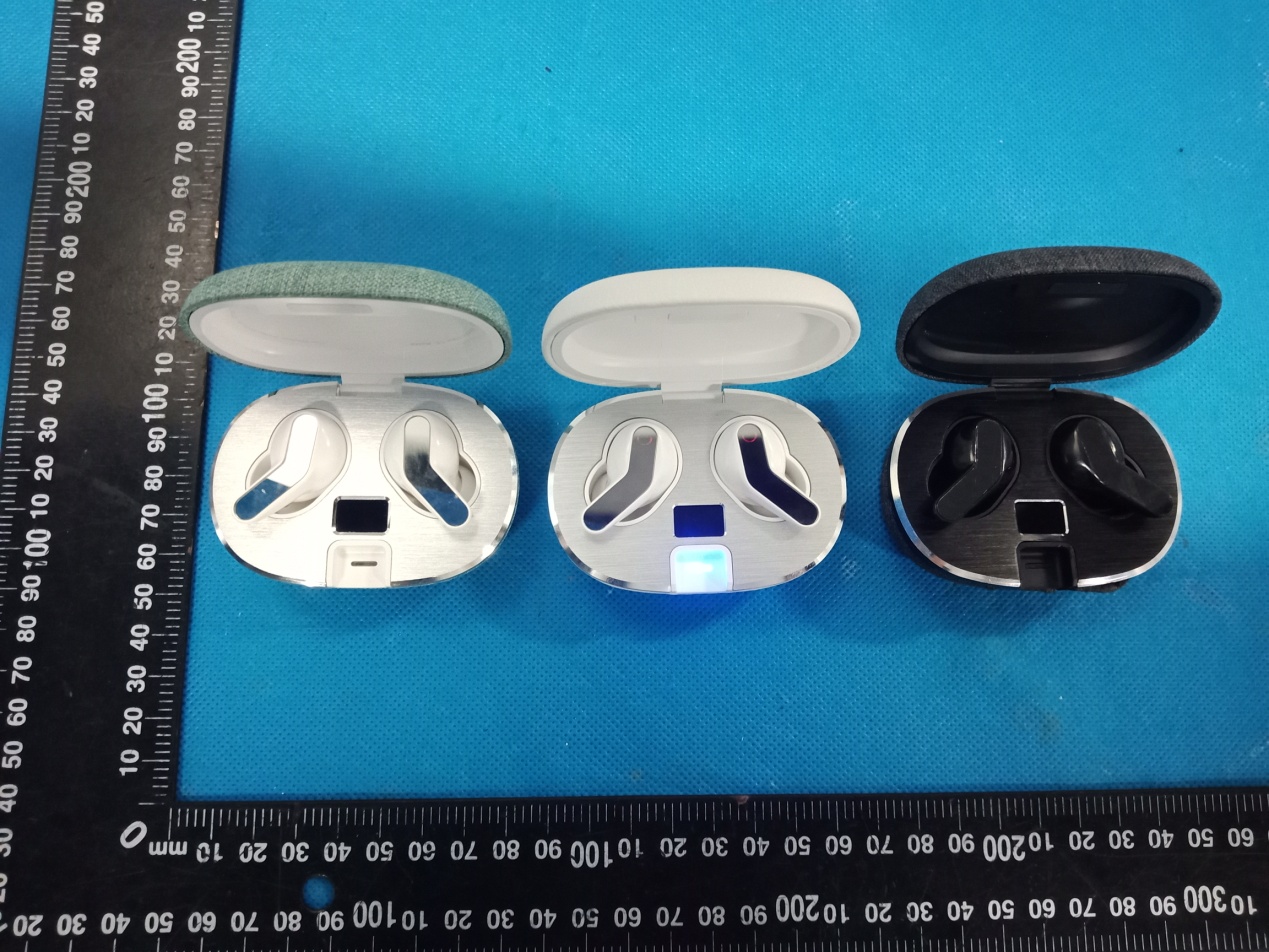

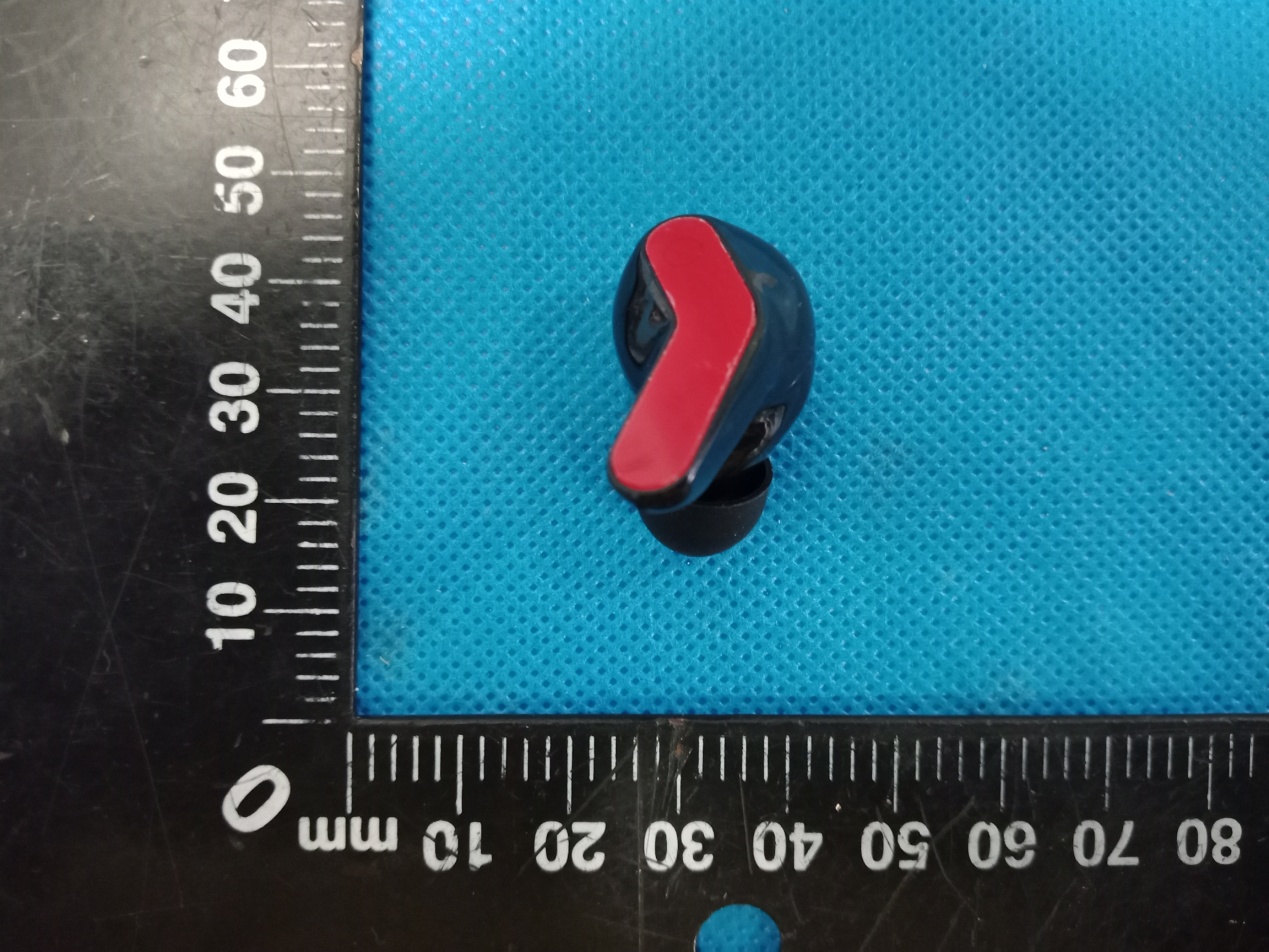

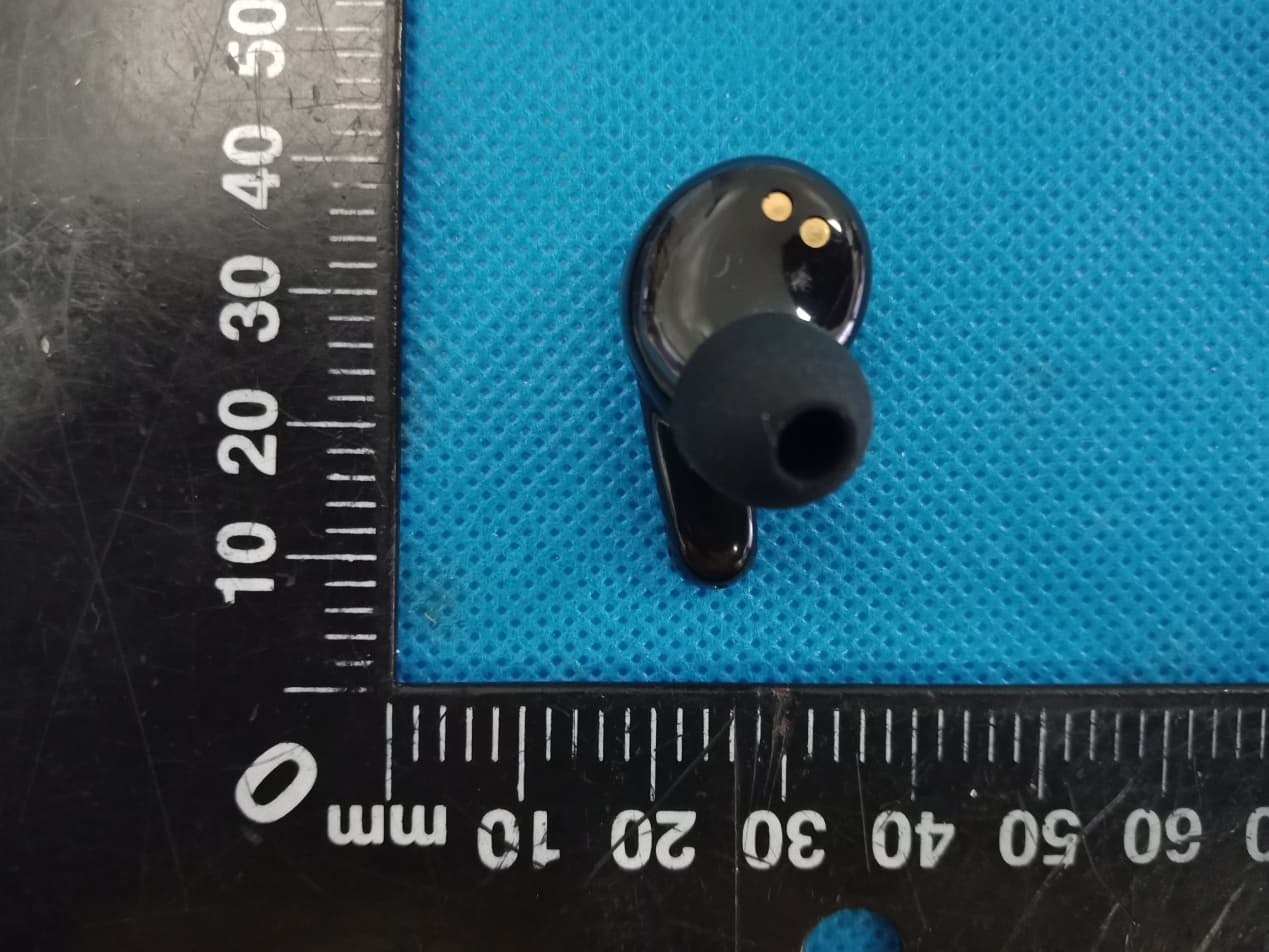

Annex A External Photos Re port No.: HK2011033269‐E Page 1 of 4 Report No.: HK2011033269‐E Page 2 of 4 Report No.: HK2011033269‐E Page 3 of 4 Report No.: HK2011033269‐E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AIY7-K09

Annex B Internal Photo Report No.:HK2011033269-E Page 1 of 4 Antenna Report No.:HK2011033269-E Page 2 of 4 Antenna Report No.:HK2011033269-E Page 3 of 4 Report No.:HK2011033269-E Page 4 of 4

FCC RF Exposure EUT Description: Ture Wireless Stereo Bluetooth Earphones Model No.: K09 FCC ID: 2AIY7-K09 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR -2.348 -2±1(-1) 0.794 5 0.250 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2011033269-E antenna gain=0dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.250 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 48 Report No.: HK2011033269-E TEST REPORT FCC PART 15 SUBPART C 15.247 T est report On Behalf of Shenzhen Uniwins Technology Co., Limited For Ture Wireless Stereo Bluetooth Earphones Model No.: K09 FCC ID: 2AIY7-K09 Prepared for : Shenzhen Uniwins Technology Co., Limited 2-3/F., Bldg. B, Quanyuanfa Industrial Park, Guanlan Avenue, Guanlan Town, Longhua New District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Nov. 03, 2020 ~Nov. 19, 2020 Date of Report: Nov. 19, 2020 Report Number: HK2011033269-E Page 2 of 48 Report No.: HK2011033269-E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Uniwins Technology Co., Limited Address ................................. : 2-3/F., Bldg. B, Quanyuanfa Industrial Park, Guanlan Avenue, Guanlan Town, Longhua New District, Shenzhen, China Manufacture's Name ............ : Dongguan Uniwins Technology Co., Ltd Address ................................. : 4F., Bldg. D, Songhu Yungu Dalang Creative Industrial Park, 888 Yangxin Rd., Yangchong village, Dalang, Dongguan, China Product description Trade Mark: N/A Product name ........................... : Ture Wireless Stereo Bluetooth Earphones Model and/or type reference : K09 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Nov. 03, 2020 ~Nov. 19, 2020 Date of Issue ........................................... : Nov. 19, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 48 Report No.: HK2011033269-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 27 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 31 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 33 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 35 3.8. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 39 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 45 3.10. ANTENNA REQUIREMENT...........................…
