2AJ3WEBESW001Smart plug

110-130V 60Hz 10A Android

CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date:2023-08-01 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:2AJ3WEBESW001 ZHEJIANG EBOY TECHNOLOGY CO., LTD. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. ZHEJIANG EBOY TECHNOLOGY CO., LTD. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Yang Xiao Fen Title: R&D MANAGER Company Name& Address: ZHEJIANG EBOY TECHNOLOGY CO., LTD. & No.568 Huabao Street, Qianyuan Town, Deqing County Huzhou City, Zhejiang Province huzhou China

QA-FR-170-B ZHEJIANG EBOY TECHNOLOGY CO., LTD. Add: No.568 Huabao Street, Qianyuan Town, Deqing County Huzhou City, Zhejiang Province huzhou China Tel: 0086-571-89000977 Fax: 0086-571-89009898 Email: [email protected] FCC Authorization Date: 2023-08-01 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , ZHEJIANG EBOY TECHNOLOGY CO., LTD., Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Yang Xiao Fen Title: R&D MANAGER

QA-FR-171-A ZHEJIANG EBOY TECHNOLOGY CO., LTD. Add: No.568 Huabao Street, Qianyuan Town, Deqing County Huzhou City, Zhejiang Province huzhou China Tel: 0086-571-89000977 Fax: 0086-571-89009898 Email: [email protected] FCC Confidential Authorization Date: 2023-08-01 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2AJ3WEBESW001 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (ZHEJIANG EBOY TECHNOLOGY CO., LTD.) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Yang Xiao Fen Title: R&D MANAGER

ZHEJIANG EBOY TECHNOLOGY CO., LTD. Add: No.568 Huabao Street, Qianyuan Town, Deqing County Huzhou City, Zhejiang Province huzhou China Tel: 0086-571-89000977 Fax: 0086-571-89009898 Email: [email protected] DECLARATION OF SIMILARITY Date: 2023-08-01 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the di We, ZHEJIANG EBOY TECHNOLOGY CO., LTD., hereby declare that the product: Smart plug, FCC ID:2AJ3WEBESW001. model: EBE-SW001,WW117, WW217, WW317, WW417 are electrically identical with the model: EBE-SW001-C which was tested by China Certification ICT Co., Ltd (Dongguan) with the same electromagnetic emissions and electromagnetic compatibility characteristics. fferent model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Yang Xiao Fen Title: R&D MANAGER

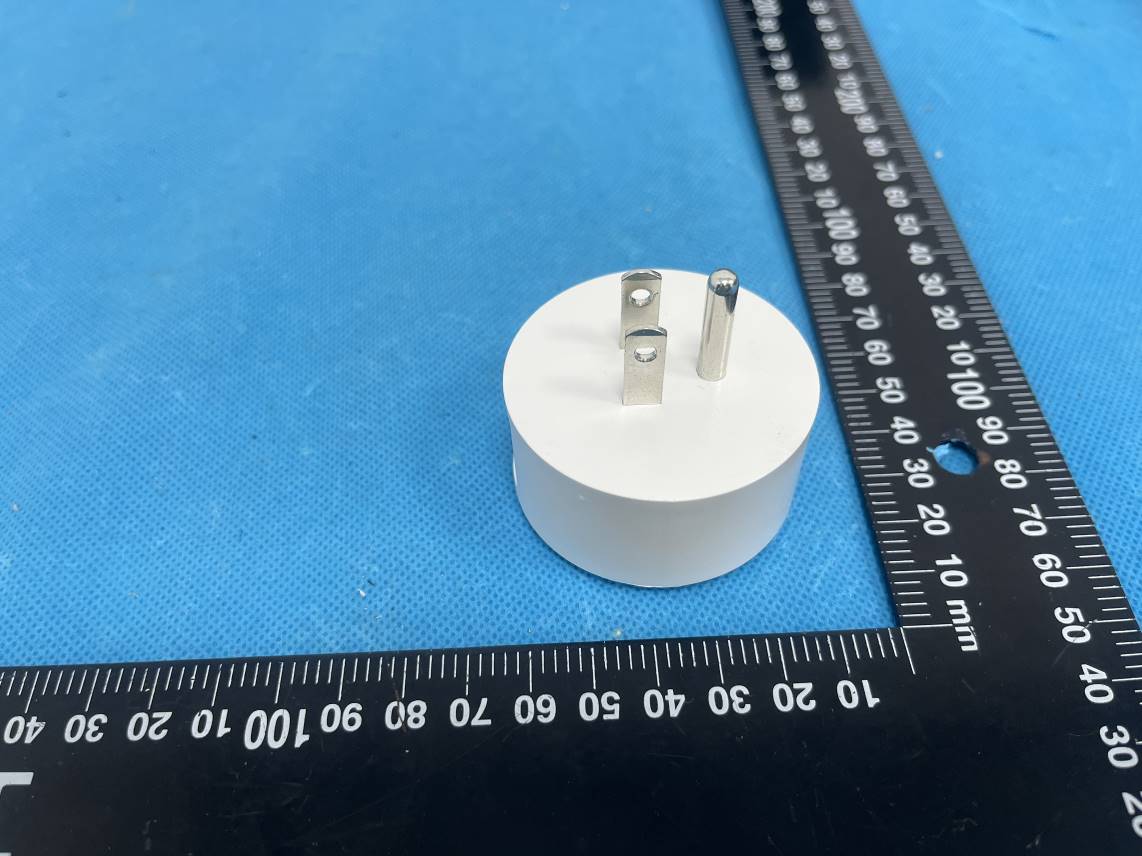

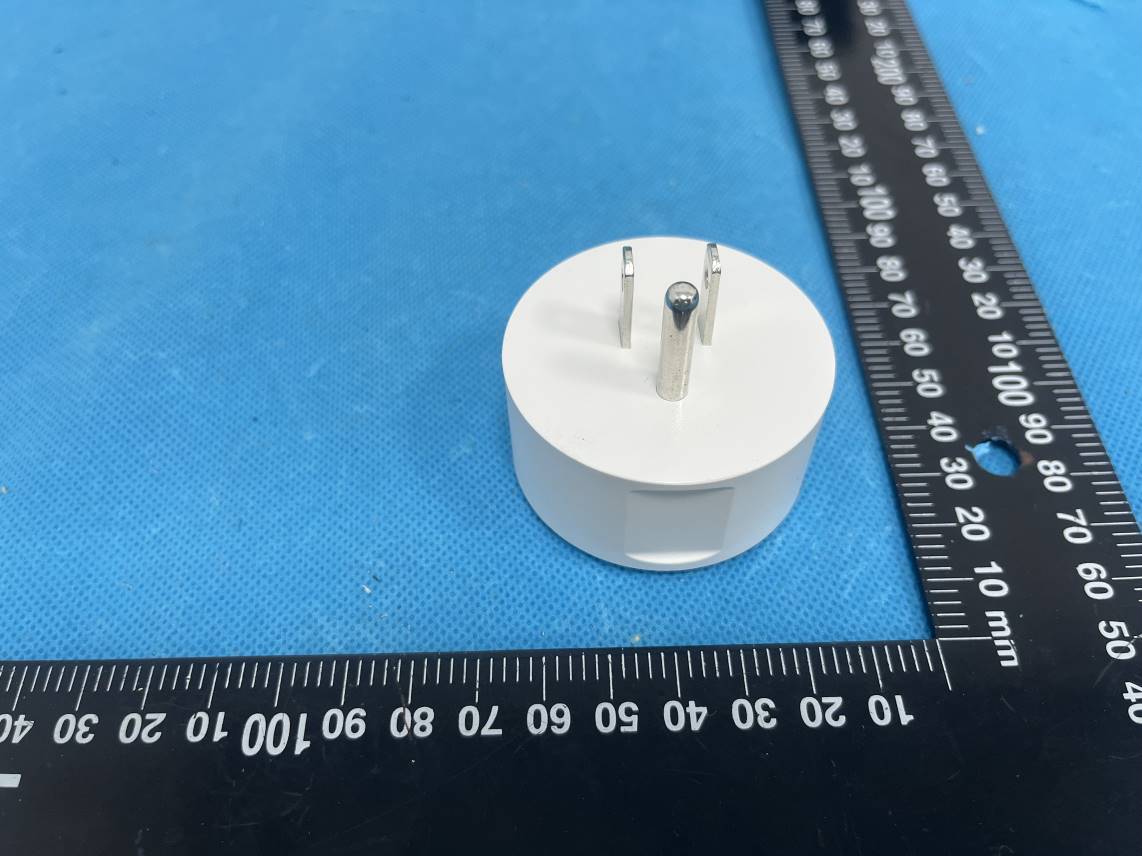

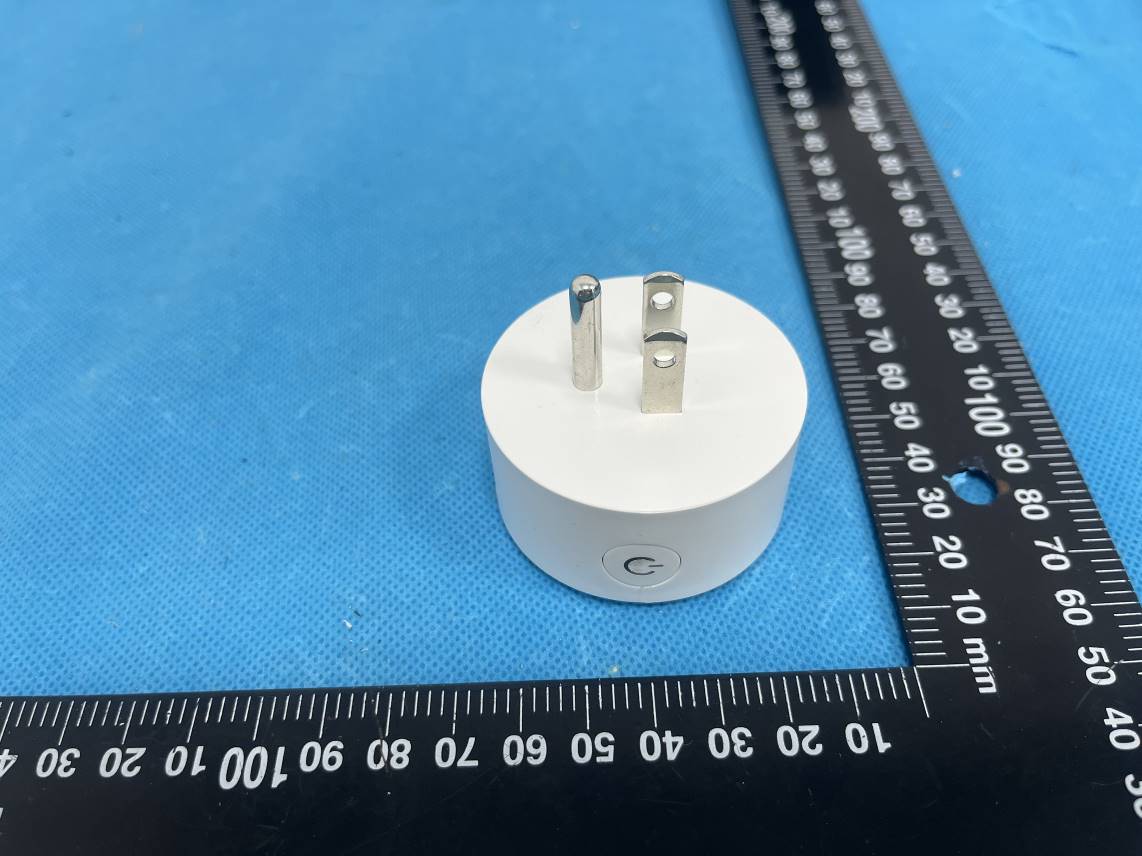

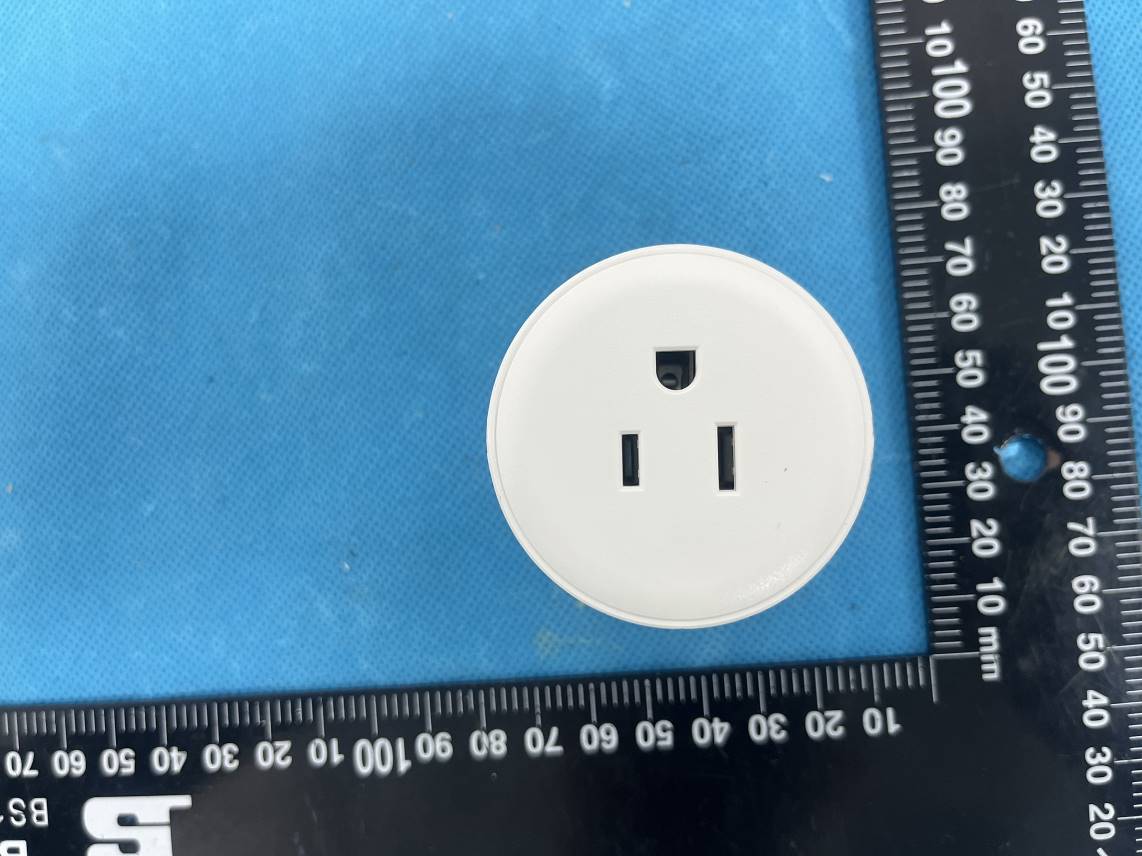

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Page 1 of 3 Page 2 of 3 Page 3 of 3

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Page 1 of 6 Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 WIFI Antenna Page 6 of 6

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738322-00A Page 57 of 57 5. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 5.1 Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. 5.2 Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Calculated Data: Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm)(mW) 2412-2462 0.04 1.01 1215.8520.00 0.0032 1.0 Result: The device meet FCC MPE at 20 cm distance ===== END OF REPORT ====

ANTENNAREPORT Manufacture：TUYA ProductName：CB2SAntenna AntennaType：PCB TestDate：2021.03.18 Testedby：HaigangRuan Approvedby：Licco Content 1.GeneralDescription..................................................................................1 2.TestConfigurations..................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment................................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults...............................................................................................3 3.1S11...................................................................................................3 3.2GainandEfficiency.........................................................................4 3.3RadiationPattern.............................................................................5 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto.......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameCB2SAntenna Productmodel CB2S AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1S11 Frequency(MHz)240024502500 ReturnLoss(dB)-8.73-11.76-11.21 VSWR2.161.711.77 4 3.2GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400-0.9824.43 2410-0.6725.64 2420-0.3726.24 2430-0.1227.04 24400.0427.48 2450-0.4525.25 2460-0.5523.88 2470-0.6922.65 2480-0.9321.78 2490-1.1120.04 2500-2.0716.18 5 3.3RadiationPattern Phi02D Phi902D Theta902D 6 4.AntennaDimensions 5.EUTPhoto 7 6.TestSetupPhoto

TEST REPORT Applicant: ZHEJIANG EBOY TECHNOLOGY CO., LTD. Address: No.568 Huabao Street, Qianyuan Town, Deqing County Huzhou City, Zhejiang Province, 313200 China FCC ID: 2AJ3WEBESW001 Product Name: Smart Plug Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230738322-00A Date Of Issue: 2023/7/27 Reviewed By: Julie Tan Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738322-00A Page 2 of 57 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738322-00A Page 3 of 57 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB EMISSION BANDWIDTH ....................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
