2AJ7M-MN1HAir Mini(+)

Molekule Air Mini User Manual Try it in the bedroom. Molekule Air Mini will work in any room, but giving it space in a central location, and on a shelf, stand, or table will help maximize air intake. It’s designed for rooms under 250 sq. ft. We recommend running it in the bedroom, closer to your bed for a clean, sleep-breathing zone. Run it 24/7. Constantly clean air is a good thing, plus, your Molekule Air Mini is low energy. So keep fresh air flowing. 01 Best Practices Setting Up 02 Twist off shell and pull out PECO-Filter. Unwrap PECO-Filter and place on base. Align logo on shell with arrow on base. Close shell and twist to lock. Unwind cord and plug in. Download the Molekule app to complete setup and set up device control from your phone. Once WiFi light is pulsing, you’re ready to pair to the app. 03 There’s just one button. It’s on top, in the center of the display. Tap it to wake the device, and cycle through fan speeds. A long press of 3 seconds puts it on standby, which deactivates the fan, UV-A lights, and display lights. Controls & Interface 04 Modes & States Fan Speeds Your device’s five fan speeds correspond to the number of dotted white lights. Tapping the button cycles through speeds. Press here Fan speeds PECO-Filter status WiFi status PECO-Filter Status The PECO-Filter status indicator helps you track the replacement schedule for your PECO-Filter. Keeping your Molekule Air Mini connected to WiFi lets you track this information on your app. • An orange pulsing light indicates when your PECO-Filter is nearing recommended replacement time. • A red pulsing light indicates when your PECO-Filter has reached recommended replacement time. Replace the existing PECO-Filter. • If the PECO-Filter hasn’t been replaced for an extended period of time, your device will go on standby, and the PECO-Filter Status and fan speed lights will pulse as a reminder to replace immediately. You can restart Molekule Air Mini from the app, or by tapping the button on your device. Molekule Air Mini will continue to go on standby after extended use until the PECO-Filter is replaced. • If the PECO-Filter Status Indicator is off, there’s no need to replace your PECO-Filter. • Each time you plug in your device or lock its shell into place, it checks the authenticity of the PECO-Filter. The light will pulse white while in progress. If it turns green, it’s confirmed as a certified Molekule PECO-Filter and will run normally. If it turns red, the PECO-Filter has not been verified and the device will not start. WiFi Status • Upon powering the device (after setup), this indicator will pulse white while the device searches for a connection. • Once it has connected successfully, the indicator will briefly turn green. • If the WiFi status indicator turns red, an issue with your WiFi is prohibiting your device from connecting. • If this indicator is off, your device has successfully connected. • If it stops pulsing and turns solid white, it’s paired to your phone, but hasn’t been connected to WiFi. How do I replace the PECO-Filter? With the base on a steady surface, twist device shell counterclockwise and lift to open. Remove new PECO-Filter from packaging and place onto base with small hole face down, as indicated on PECO-Filter. Lift used PECO-Filter off device base and discard. Place device shell back onto base and twist clockwise to click into place. Good work. User Servicing Instructions 05 Help & Support We’re here to help you breathe easier. If you have issues with your device, filter, app or account. Visit us https://help.molekule.com Call us seven days a week 8am-5pm PT +1 (855) 999-9069 06 Frequently Asked Questions 07 How do PECO-Filter auto-refills work? Molekule Air Mini ships with one PECO-Filter. We offer PECO-Filter auto- refill plans to help ensure you have clean air when you need it. PECO-Filters are automatically shipped to your doorstep. To start or manage your auto-refill plan, go to Molekule.com How do I reset my device? To reset your device, hold the center button on the device for 10 seconds. Your device will return to its out-of-box settings, and the device name and all WiFi settings will be deleted. To reconnect your device to WiFi, open the Molekule mobile app, go to More > Add device, and follow the prompts. Why does my device keep turning off? If the filter hasn’t been replaced for an extended period of time, your device will turn off, and its fan speed lights and filter status indicator will pulse as a reminder to replace the filter immediately. You can restart Molekule Air Mini by tapping the button on the device. Why does my device come with a bag of activated carbon on top? To reduce the presence of volatile organic compounds (VOCs) in the air before you’ve had a chance to plug in your new Molekule Air Mini, each new device ships with a small bag of nature’s oldest purifier: activated carbon. Once your device is plugged in, you can reuse the bag. To rejuvenate it, simply leave it outside in direct sunlight for at least an hour once a month. It’ll then be ready to help deodorize your fridge, pet’s room or anywhere else you have odors. Molekule Air Mini does not require the Molekule app to function? The device will work just as effectively without being connected to WiFi. Connecting your device lets you control it remotely from your smartphone through the app and see your filter health. Why is my device unresponsive, and my WiFi and PECO-Filter status indicators pulsing red? Something has triggered a fatal error. Unfortunately, your device is no longer operational. Contact Molekule Customer Support from 8am-5pm PT seven days a week at +1 (855) 999-9069 to see if your device is under warranty and how to get a replacement unit. Never place any objects on top of the unit. Do not place the unit directly below a shelf and other objects that might hinder the exiting air flow. Never cover vents while the unit is running. Avoid dropping the device or placing the device on an uneven or potenti…

Text truncated - open the document above for the full version.

Letter of Authorization Date: January 11, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2AJ7M-MN1H Product Name: Air Mini(+) To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Manager e- mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti -Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Molekule Inc. Address : 1301 Folsom St. San Francisco California United States 94103 Signature : _________________________________ Name and Job Title. : David Rowe, Manager - Quality, Reliability & Compliance E- mail : [email protected] Tel. : 1.(408) 667 - 9884

Date: January 11, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: 2AJ7M-MN1H To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as All other devices has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Molekule Inc. Address : 1301 Folsom St. San Francisco California United States 94103 Signature : _________________________________ Name and Job Title. : David Rowe, Manager - Quality, Reliability & Compliance E- mail : [email protected] Tel. : 1.(408) 667 - 9884

Confidentiality Request Letter Date: January 11, 2021 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: 2AJ7M-MN1H To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 90 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User ’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Molekule Inc. Address : 1301 Folsom St. San Francisco California United States 94103 Signature : _________________________________ Name and Job Title. : David Rowe, Manager - Quality, Reliability & Compliance E- mail : [email protected] Tel. : 1.(408) 667 - 9884

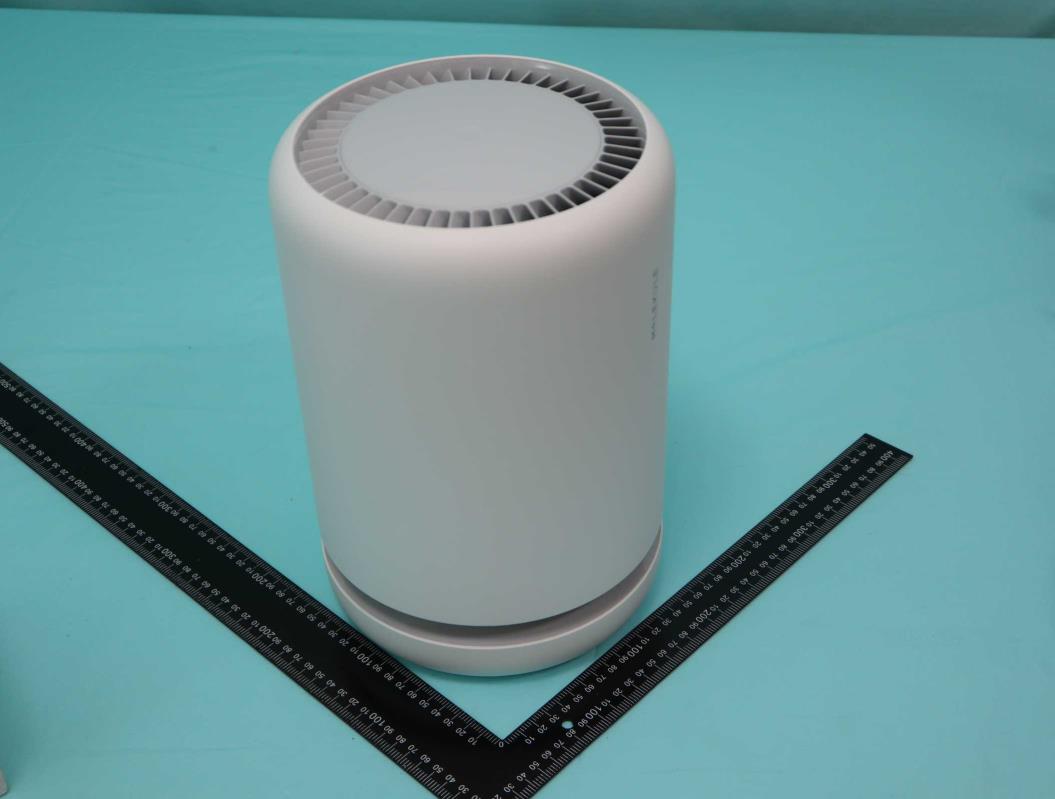

Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 1 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021

1 1 2 17.5 +/- 0.3 mm 60 +/- 0.3 mm 24 +/- 0.3 mm 10.4 +/- 0.3 mm 9.3 +/- 0.3 mm 3 4.6 +/- 0.3 mm 31.6 +/- 0.3 mm

Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 2 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 3 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 4 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 5 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 6 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 7 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 8 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 9 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 10 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 11 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 12 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 13 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 14 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 15 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 16 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 17 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 18 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 19 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 20 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 21 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 22 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 23 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 24 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 25 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 26 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 27 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 Photographs of EUT Report No. : EP0O1626 SPORTON International Inc. Page No. : 28 of 28 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 06, 2021 ─────THE END────

Radio Exposure Evaluation Report Report No. : FA0O1626 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2AJ7M-MN1H Radio Exposure Evaluation Report FCC ID : 2AJ7M-MN1H Equipment : Air Mini(+) Brand Name : Molekule Model Name : MN1H-US , MN1L-US Applicant : Molekule Inc. 1301 Folsom St. San Francisco CA 94103 United States Of America Manufacturer 1 : Inventec Appliances(Pudong)Corporation NO.789 Puxing Road Shanghai N/A China Manufacturer 2 : Scope Manufacturers (M) Sdn. Bhd. Lot 6181, Jalan Perusahaan 2, Kawasan Perindustrian Parit Buntar, 34200 Parit Buntar, Perak Darul Ridzuan, Malaysia Standard : 47 CFR Part 2.1091 The product was received on Oct. 20, 2020, and testing was started from Oct. 29, 2020 and completed on Nov. 04, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA0O1626 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2AJ7M-MN1H Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Testing Location ..................................................................................................................................... 5 1.3 Table for Multiple Listing ........................................................................................................................ 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA0O1626 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2AJ7M-MN1H History of this test report Report No. Version Description Issued Date FA0O1626 01 Initial issue of report Jan. 07, 2021 Radio Exposure Evaluation Report Report No. : FA0O1626 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2AJ7M-MN1H Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Debby Hung Radio Exposure Evaluation Report Report No. : FA0O1626 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2AJ7M-MN1H 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. 1.3 Table for Multiple Listing The brand/model names in the following table are all refer to the identical product. Brand Name Model Name Description Molekule MN1H-US All the models are identical, the difference model for difference brand served as marketing strategy. Molekule MN1L-US Radio Exposure Evaluation Report Report No. : FA0O1626 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2AJ7M-MN1H 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Fie…

Text truncated - open the document above for the full version.

FCC Test Report Report No. :FR0O1626AC TEL : 886-3-3273456 Page Number : 1 of 24 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-C8 Ver3.9 Report Version : 01 FCC ID: 2AJ7M-MN1H FCC Test Report FCC ID : 2AJ7M-MN1H Equipment : Air Mini(+) Brand Name : Molekule Model Name : MN1H-US , MN1L-US Applicant : Molekule Inc. 1301 Folsom St. San Francisco CA 94103 United States Of America Manufacturer 1 : Inventec Appliances(Pudong)Corporation NO.789 Puxing Road Shanghai N/A China Manufacturer 2 : Scope Manufacturers (M) Sdn. Bhd. Lot 6181, Jalan Perusahaan 2, Kawasan Perindustrian Parit Buntar, 34200 Parit Buntar, Perak Darul Ridzuan, Malaysia Standard : 47 CFR FCC Part 15.247 The product was received on Oct. 20, 2020, and testing was started from Oct. 29, 2020 and completed on Nov. 04, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. :FR0O1626AC TEL : 886-3-3273456 Page Number : 2 of 24 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-C8 Ver3.9 Report Version : 01 FCC ID: 2AJ7M-MN1H Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 Test Condition ........................................................................................................................................ 9 2.2 Test Channel Mode ................................................................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Support Equipment ............................................................................................................................... 11 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 DTS Bandwidth..................................................................................................................................... 14 3.3 Maximum Conducted Output Power .................................................................................................... 15 3.4 Power Spectral Density ........................................................................................................................ 17 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 18 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 19 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 23 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Test Report Report No. :FR0O1626AC TEL : 886-3-3273456 Page Number : 3 of 24 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-C8 Ver3.9 Report Version : 01 FCC ID: 2AJ7M-MN1H History of this test report Report No. Version Description Issued Date FR0O1626AC 01 Initial issue of report Jan. 07, 2021 FCC Test Report Report No. :FR0O1626AC TEL : 886-3-3273456 Page Number : 4 of 24 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-C8 Ver3.9 Report Version : 01 FCC ID: 2AJ7M-MN1H Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power…

Text truncated - open the document above for the full version.

Test Photos Appendix G Page No. : G1 of G4 0O1626 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix G Page No. : G2 of G4 0O1626 Under table view Test Photos Appendix G Page No. : G3 of G4 0O1626 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix G Page No. : G4 of G4 0O1626 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
