2AJ9K-UT2304MINI SPEAKER

Mini Speaker User Manual Dear customer: Thank you for purchasing Mini Wireless Speaker. Please read this user guide carefully before operation and save these instructions for future reference. Turn ON: Press and hold the ON/OFF button till to hearing reminder tone and LED light starts flashing. Turn OFF: Press and hold the ON/OFF button till to hearing reminder tone and the LED lights off. 1. Press and hold the ON/OFF button till to hearing reminder tone and LED light starts flashing, speaker now is in pairing mode. 2. Place the speaker and Bluetooth ® device (phone or music device) so that they are no further than 1 meter apart. 3. Activiate the Bluetooth ® function on your Bluetooth® device (phone or music device). Please refer to the manufacturer’s instruction manual to enable Bluetooth ® on your device. 4. Select the speaker “Mini Speaker” from the list of available Bluetooth ® devices. 6. Once paired sucessfully, you will hear the confirmation tone. If pairing is unsucessful, turn off the speaker first and then re-pair following the above steps. 7. Once you have paired the speaker with a device, the speaker will remember this device and will pair automatically when the device’s Bluetooth ® is activated and in range. The speaker will attempt to automatically connect to the last device it was paired with when switched on. If you want to pair it with a new device, please follow the steps outlined above. BLUETOOTH® PAIRING ON/OFF Model#: MODE SWITCH Turn ON the speaker and short press twice “ ” button to switch through different modes by following below orders: Bluetooth ® - FM - Bluetooth® CHARGING The speaker includes a built-in rechargeable battery. It is recommended to charge the battery fully prior to first use. Connect the USB cable to a computer or other USB charging port and the micro USB plug into charging port of the speaker. A red light turns ON during charging and turns OFF after full charged. IMPORTANT NOTES 1. This product is not a toy. 2. Do not drop or damage the speaker. 3. Do not use in humid or extrem temperatures. 4. Do not place the speaker near an open flame. 5. Do not block the sound of the speaker while it is in use. 6. Do not use the unit if it has been dropped or damaged in any way. 7. If damaged, do not attempt to repair or disassembled the speaker. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Packaging included: 1. Mini Speaker..............................................1 pc 2. Charging Cable (FM antenna) ................................1 pc 3. User manual .................................................................1 pc Hands Free LED Light Wireless Transmission The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. FEATURES FUNCTION KEYS 1. ON/FF button: Long press to turn Power ON/OFF; Short press for Play / Pause; Short twice press to switch to FM mode; Short press to enable automatic search in FM mode. 2. Long press to turn down the volume / Short press to skip to previous song or previous FM station. 3. Long press to turn up the volume / Short press to skip to next song or next FM station. 4. Charging Port 5. USB port 6. 7. 8. PLAY MUSIC 1. Short press “ ” button to pause music. Short press again to resume music play. 2. In Bluetooth Mode, Short press “ ” button to skip to the previous song. Press and hold this button to turn down the volume. 3. In Bluetooth Mode, short press “ ” button to skip to next song. Press and hold this button to turn up the volume. Hands free Phone Call Operation 1. Short press “ ” button to answer an incoming call. FM RADIO 1. Turn ON the speaker, short press twice “ ” button till to hear “FM Tuner”. 2. Plug the USB charging cable (included) to the DC 5V charging port of speaker, this cable serves as FM Antenna as well. 3. short press “ ” button and device will automatically search and store all the FM Radio stations 4. Short press “ ” and “ ” button to change the FM Radio station. 5. Press and hold “ ” and “ ” button to turn down or turn up the volume. FCC ID: Federal Communications Commission (FCC) Statement.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1)This device may not cause harmful interference, and (2)this device must acceptany interference received, including interference that may cause undesired operation.Note: This equipment has beentested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide Reasonableprotection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by UTONG (HK) COMMERCIAL LIMITED. may void the FCC authorization to operate this device.Note: The manufacturer is not responsible for any radio or TV interference caused byunauthorized modifications to this equipment. Such modifications could void the user’s authority…

Text truncated - open the document above for the full version.

UTONG (HK) COMMERCIAL LIMITED U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Dec. 11, 2023 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: UTONG (HK) COMMERCIAL LIMITED Grantee Code: 2AJ9K FCC ID: 2AJ9K-UT2304 FRN: 0026005611 Contact Name: Hao Zhang Street Address: Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong City/Province/Zip: China Telephone No: +86-754-86204818 Email: [email protected] Applicant Signature: Date: 2023.12.11 Signed by (Printed Name/Title): Hao Zhang / Manager

Antenna Describe 1： Antenna Describe Antenna PCB Antenna Gain 0dBi Frequency Range 2.4Ghz-2.483Ghz Connector Type Direct Location of mearement(company name) UTONG (HK) COMMERCIAL LIMITED Address Room 913, 9F, Hollywood Plaza, 610 N athan Road, Mong Kok, Kowloon, Hong Kong 2：External View Drawing Picture of antenna 3：Measurement Result 3.1 Return Loss (S11 ) 3.2 Smith Chart 3.3 Gain

UTONG (HK) COMMERCIAL LIMITED Address: Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong Date: 2023-12-11 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing SUBJECT: FCC Application for FCC ID: 2AJ9K-UT2304 To Whom It May Concern: UTONG (HK) COMMERCIAL LIMITED certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Date: 2023-12-11

UTONG (HK) COMMERCIAL LIMITED Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 11, 2023 Subject; Request for Confidentiality FCC ID: 2AJ9K-UT2304 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Hao Zhang Title: Manager

UTONG (HK) COMMERCIAL LIMITED Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong Series Models Description To whom it may concern: The device (Product Name: MINI SPEAKER) Models Name: UT2304 ,CPP-6940,UT2302, CPP-4981,UT2303, CPP-4668,UT2305, CPP-6941,UT2306, CPP-6942,UT2307, CPP-6943,UT2308, CPP-6944,UT2309,CPP-6945,CPP-4785,CPP-5087,CPP-4661, CPP-4681,CPP-4668,CPP-6941,UT2305 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Hao Zhang Phone: +86-754-86204818 e-mail: [email protected] Dated:12/11/2023

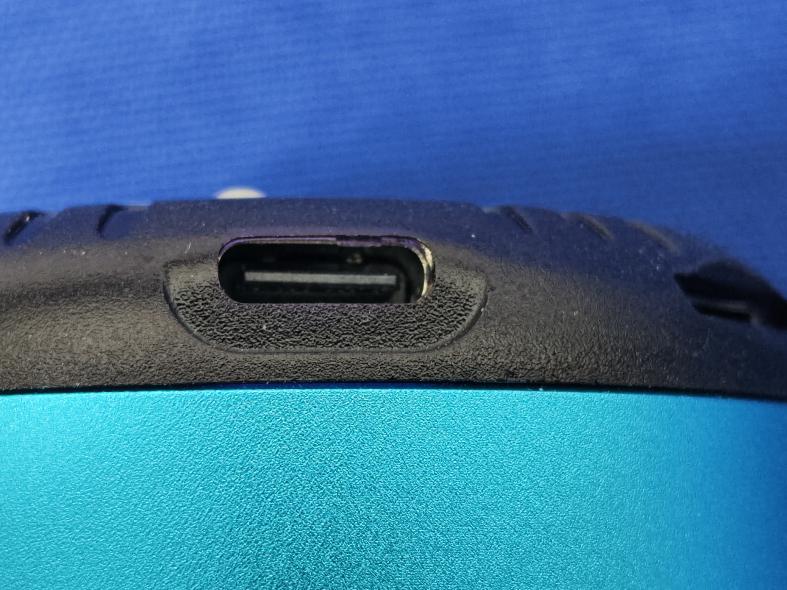

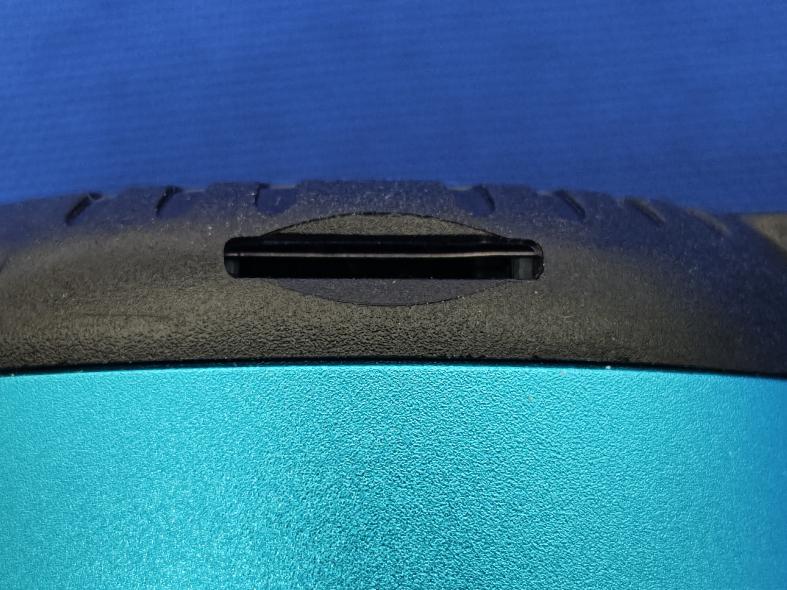

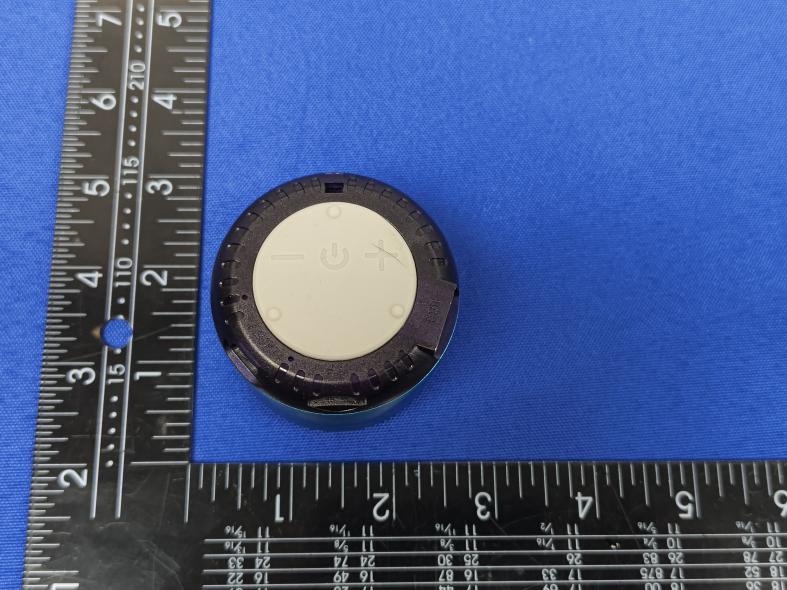

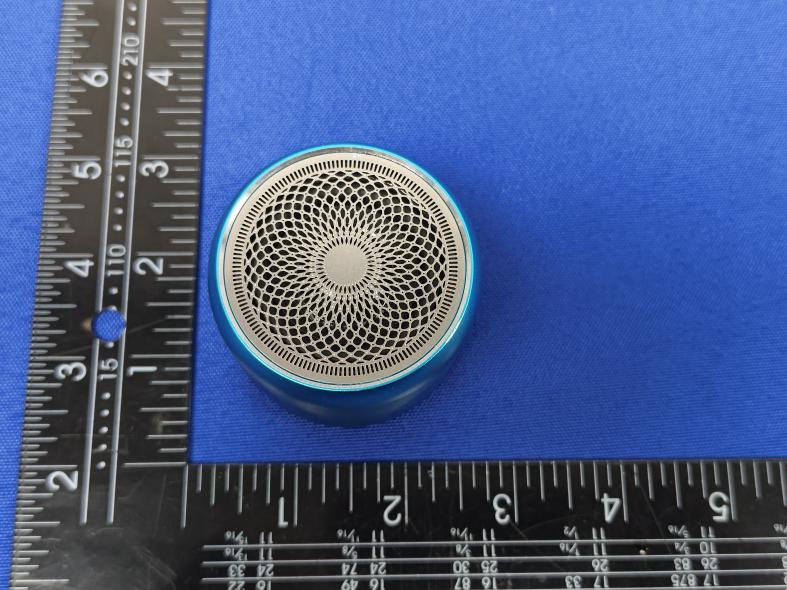

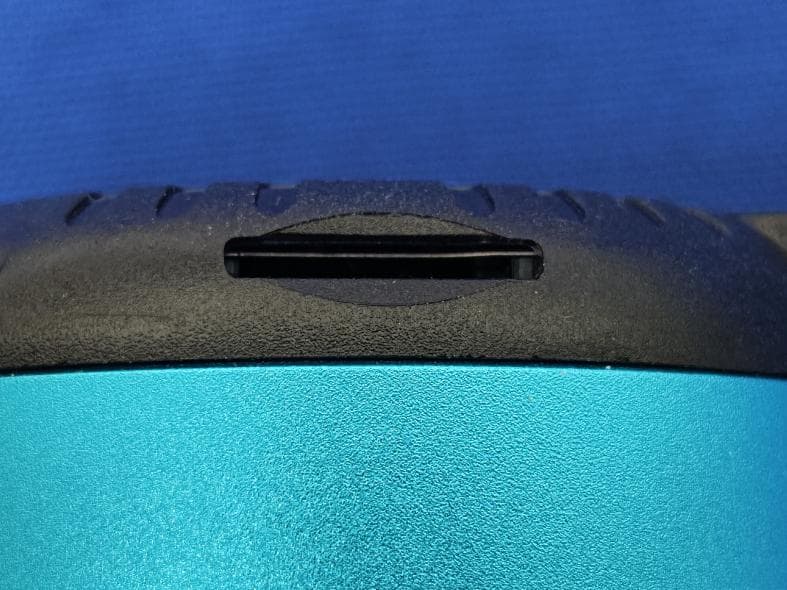

FCC ID: 2AJ9K-UT2304 Page 1 of 4 Report No.: CTL2311232031-WF External Photos of EUT FCC ID: 2AJ9K-UT2304 Page 2 of 4 Report No.: CTL2311232031-WF FCC ID: 2AJ9K-UT2304 Page 3 of 4 Report No.: CTL2311232031-WF FCC ID: 2AJ9K-UT2304 Page 4 of 4 Report No.: CTL2311232031-WF

FCC ID:2AJ9K-UT2304 Page 1 of 1 Report No.: CTL2311232031-WF FCC ID Label Information Label location: MINI SPEAKER Model: UT2304 FCC ID : 2AJ9K-UT2304

FCC ID: 2AJ9K-UT2304 Page 1 of 3 Report No.: CTL2311232031-WF Internal Photos of EUT Antenna FCC ID: 2AJ9K-UT2304 Page 2 of 3 Report No.: CTL2311232031-WF FCC ID: 2AJ9K-UT2304 Page 3 of 3 Report No.: CTL2311232031-WF

FCC ID: 2AJ9K-UT2304 Page 1 of 1 Report No.: CTL2311232031-WF RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth BT: pt=-1.66dBm=0.6823mW at 2441MHz So (0.6823mW/5mm)x √2.441GHz = 0.2132<3 BLE: pt=-2.84dBm=0.5200mW at 2440MHz So (0.5200mW/5mm)x √2.440GHz = 0.1625<3 Then SAR evaluation is not required.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.032 / Pass 2440 1 1.032 / Pass 2480 1 1.033 / Pass 2M SISO 2402 1 2.057 / Pass 2440 1 2.056 / Pass 2480 1 2.058 / Pass V1.0 Page 2 of 26 Report No.: CTL2311232031-WF 02 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 3 of 26 Report No.: CTL2311232031-WF 02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 4 of 26 Report No.: CTL2311232031-WF 02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 5 of 26 Report No.: CTL2311232031-WF 02 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.667 >=0.5 Pass 2440 1 0.669 >=0.5 Pass 2480 1 0.676 >=0.5 Pass 2M SISO 2402 1 1.252 >=0.5 Pass 2440 1 1.245 >=0.5 Pass 2480 1 1.243 >=0.5 Pass V1.0 Page 6 of 26 Report No.: CTL2311232031-WF 02 1.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 7 of 26 Report No.: CTL2311232031-WF 02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 8 of 26 Report No.: CTL2311232031-WF 02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 9 of 26 Report No.: CTL2311232031-WF 02 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -3.85 <=30 Pass 2440 -3.05 <=30 Pass 2480 -3.76 <=30 Pass 2M SISO 2402 -3.67 <=30 Pass 2440 -2.84 <=30 Pass 2480 -3.53 <=30 Pass Note1: Antenna Gain: Ant1: 0.00dBi; V1.0 Page 10 of 26 Report No.: CTL2311232031-WF 02 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 11 of 26 Report No.: CTL2311232031-WF 02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 12 of 26 Report No.: CTL2311232031-WF 02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 13 of 26 Report No.: CTL2311232031-WF 02 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -19.99 <=8 Pass 2440 -19.32 <=8 Pass 2480 -19.95 <=8 Pass 2M SISO 2402 -23.04 <=8 Pass 2440 -22.03 <=8 Pass 2480 -22.64 <=8 Pass Note1: Antenna Gain: Ant1: 0.00dBi; V1.0 Page 14 of 26 Report No.: CTL2311232031-WF 02 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 15 of 26 Report No.: CTL2311232031-WF 02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 16 of 26 Report No.: CTL2311232031-WF 02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 17 of 26 Report No.: CTL2311232031-WF 02 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -4.04 2440 1 -3.26 2480 1 -4.00 2M SISO 2402 1 -4.80 2440 1 -4.03 2480 1 -4.64 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 18 of 26 Report No.: CTL2311232031-WF 02 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0 Page 19 of 26 Report No.: CTL2311232031-WF 02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 20 of 26 Report No.: CTL2311232031-WF 02 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV V1.0 Page 21 of 26 Report No.: CTL2311232031-WF 02 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -3.26 -23.26 Pass 2440 1 -3.26 -23.26 Pass 2480 1 -3.26 -23.26 Pass 2M SISO 2402 1 -4.03 -24.03 Pass 2440 1 -4.03 -24.03 Pass 2480 1 -4.03 -24.03 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. V1.0 Page 22 of 26 Report No.: CTL2311232031-WF 02 4.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV V1.0 Page 23 of 26 Report No.: CTL2311232031-WF 02 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV V1.0 Page 24 of 26 Report No.: CTL2311232031-WF 02 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV V1.0 Page 25 of 26 Report No.: CTL2311232031-WF 02 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV V1.0 Page 26 of 26 Report No.: CTL2311232031-WF 02 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2311232031-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Yapeng Jin (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : MINI SPEAKER Model/Type reference ................ : UT2304 List Model(s) ............................... : CPP-6940,UT2302, CPP-4981,UT2303, CPP-4668,UT2305, CPP-6941,UT2306, CPP-6942,UT2307, CPP-6943,UT2308, CPP-6944,UT2309,CPP-6945,CPP-4785,CPP-5087,CPP-4661, CPP-4681,CPP-4668, ,CPP-6941,UT2305 Trade Mark .................................. : N/A FCC ID ......................................... : 2AJ9K-UT2304 Applicant’s name ....................... : UTONG (HK) COMMERCIAL LIMITED Address of applicant ................. : Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Zone A, 1st Floor, Warehouse 2, Baisha Logistics Company, No. 3011 Shahe West Road, Nanshan District, Shenzhen Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Nov.24,2023 Date of Test Date ........................ : Nov.24,2023- Dec.05,2023 Date of Issue .............................. : Dec.06,2023 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 34 Report No.: CTL2311232031-WF02 TEST REPORT Test Report No. : CTL2311232031-WF02 Dec.06,2023 Date of issue Equipment under Test : MINI SPEAKER Sample No : CTL2311232031 Model /Type : UT2304 Listed Models : CPP-6940,UT2302, CPP-4981,UT2303, CPP-4668,UT2305, CPP-6941,UT2306, CPP-6942,UT2307, CPP-6943,UT2308, CPP-6944,UT2309,CPP-6945,CPP-4785,CPP-5087,CPP-4661, CPP-4681,CPP-4668, CPP-6941,UT2305 Applicant : UTONG (HK) COMMERCIAL LIMITED Address : Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong Manufacturer : UTONG (HK) COMMERCIAL LIMITED Address : Room 913, 9F, Hollywood Plaza, 610 Nathan Road, Mong Kok, Kowloon, HongKong Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 34 Report No.: CTL2311232031-WF02 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2023-12-06 CTL2311232031-WF02 Tracy Qi V1.0 Page 4 of 34 Report No.: CTL2311232031-WF02 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ............…

Text truncated - open the document above for the full version.

FCC ID: 2AJ9K-UT2304 Page 1 of 2 Report No.: CTL2311232031-WF Test Setup Photos of the EUT FCC ID: 2AJ9K-UT2304 Page 2 of 2 Report No.: CTL2311232031-WF
