2AJ9LESLTOPJX00SRExternal PIR Sensor

Fulham's Link: Smart Link+ General Specifications Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 1 of 7 2019-1245 Rev A Input Voltage Input Current 0-90% Max. Case Temperature per certification Opration Ambient Temperature Rang Operating Relativity Humidity Range Sound Rating A RFI/EMI FCC PART 15B CONSUMER Service Life 1dBi Approvals/Class Location/IP Rating Suitable for Dry Location/ IP20 cULus Listed, CE, FCC type 15B, RoHS 30mA(Max) (when mounted directly onto luminaire using threaded nut) Occupancy Detection Angle 62° ESLTOPJX00SR Occupancy Detection Area Daylight Harvesting Type Ambient Light Sensor Interface RJ12 (45 push-in port) ° 0°C to 60°C (32°F to 140°F) 61°C SIG qualified Bluetooth Mesh Operating Frequency 2.4GHz Suitable for IP20 Locations Status Indicators See Figure1 Operating Frequency 2.4GHz Modulation GFSK The Gain of Antenna RF Output Power -1dBm Effective Working Distance 50m line of sight (No obstacle) 50,000 hours Ø4m/H=2.4m , Ø5m/H=2.7m 5V FCC ID:2AJ9LESLTOPJX00SR E513534 Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 2 of 7 Graphs1 Figure1- Detection Area Vertical Horizontal ESLTOPJX00SR 2019-1245 Rev A E513534 Graphs2 Figure1- Blinking sequence of Status LED ESLTOPJX00SR Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 3 of 7 2019-1245 Rev A E513534 Mechanical Drawings NOTES : 1) This driver must be installed by a licensed electrician Wire Diagram Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 4 of 7 FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Overall Dimensions Height 2.5 8” ( 6 5.5m m) Diameter 2.24 . ” (57m m ) Wire Length RJ12 Wire (White) 1 3 . 7 8 ” ( 3 50m m) 2.58” (65.5mm) ø2.24” (350mm) 13.78” (ø57mm) 1.61” (41mm) ESLTOPJX00SR 2019-1245 Rev A DRIVER RED BLUE RJ12 (RJ12 Cable) ESLTOPJX00SR + - INPUT WHITE (N) BLACK (L) RPURPLE(+Dimming0-10VDC) GREY(-Dimming0-10VDC) OUTUT Rj12 (PC) + - R-SET ORG YLW + - 2) This driver must be grounded E513534 Guidelines Compatible • Warranty Reference Fulham's limited Warranty: https://cdn.fulham.com/PDFs/Limited-Warranty.pdf • Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 5 of 7 Only compatible with Fulham's connected products (EliteControls Workhorse) FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • ESLTOPJX00SR 2019-1245 Rev A Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules: These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. E513534 Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 6 of 7 ESLTOPJX00SR 2019-1245 Rev A Accessories Switch Fulham Part Number: ESRPB-W-EO (Single) Single rocker EnOcean switch • EDRPB-W-EO (Double) Double rocker EnOcean switch • Fulham Application Information Fulham Part Number: T2C1UNV150P-40L (BLE Compatible Constant Current Programmable Driver) Reference Fulham's commissioning guide: http://www.fulham.com/PDFs/SpecSheets/eliteBlue-commissioning-manual.pdf Driver E513534 Part Number Matrix Product Image: External PIR Smart Link+ Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060. Specifications subject to change without notice. [email protected] www.fulham.com Page 7 of 7 (Conduit Male fitting c…

Text truncated - open the document above for the full version.

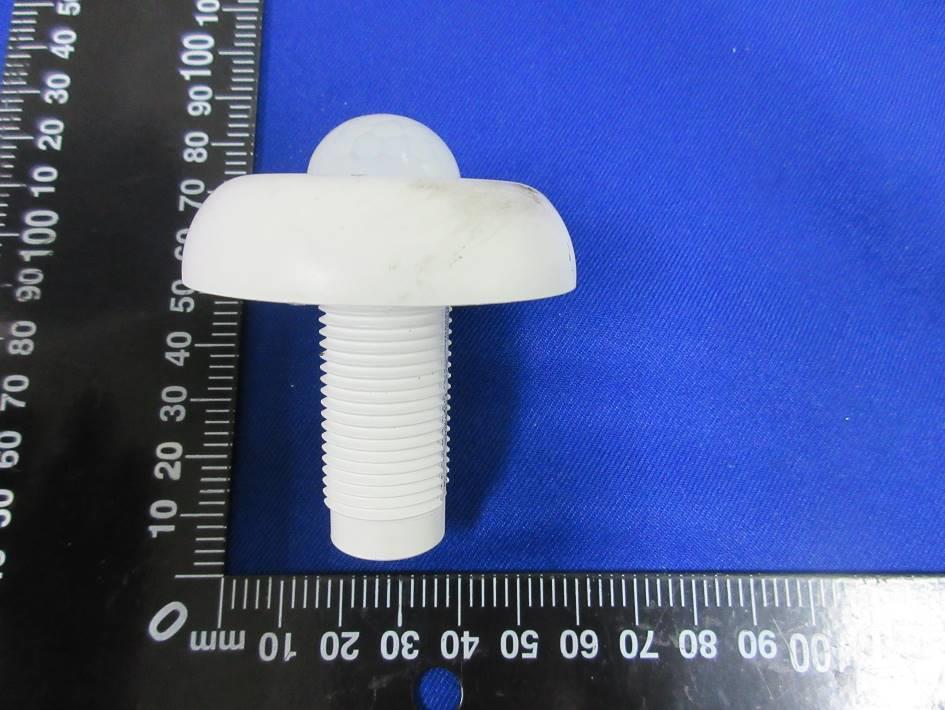

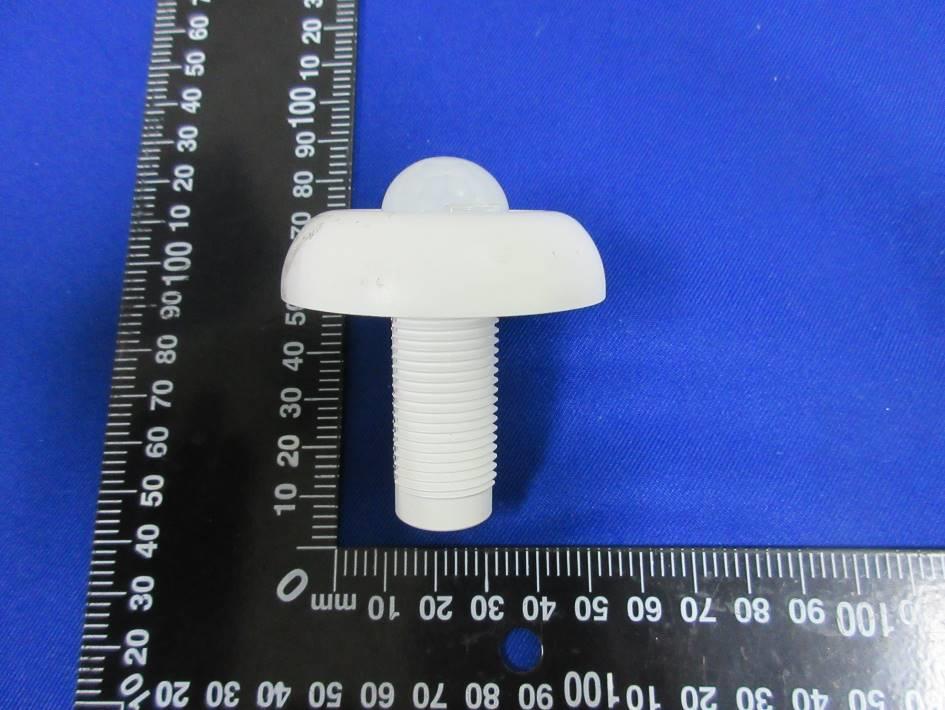

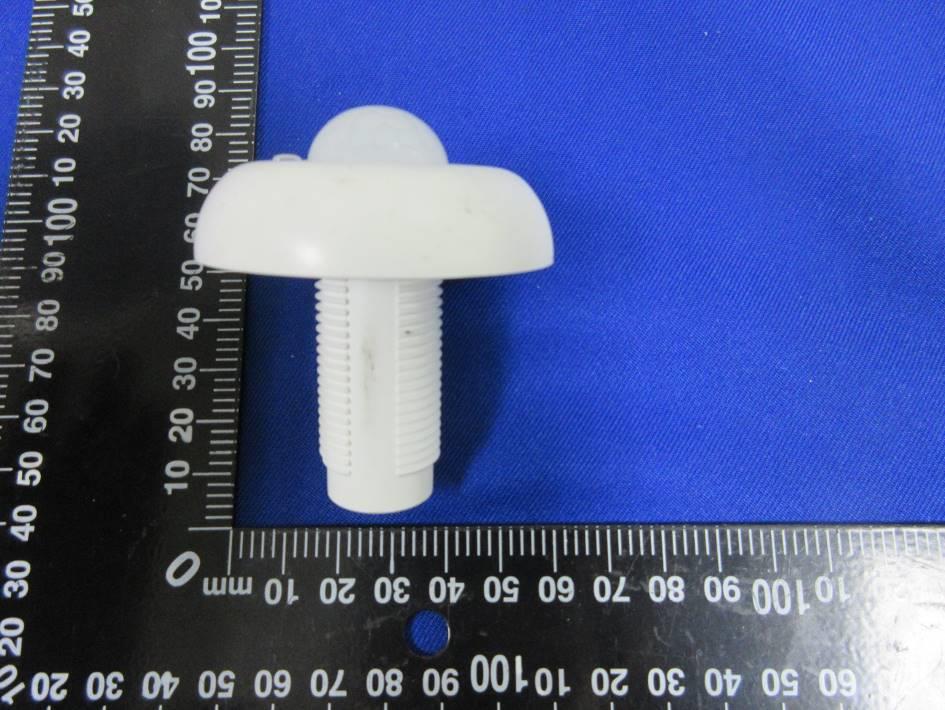

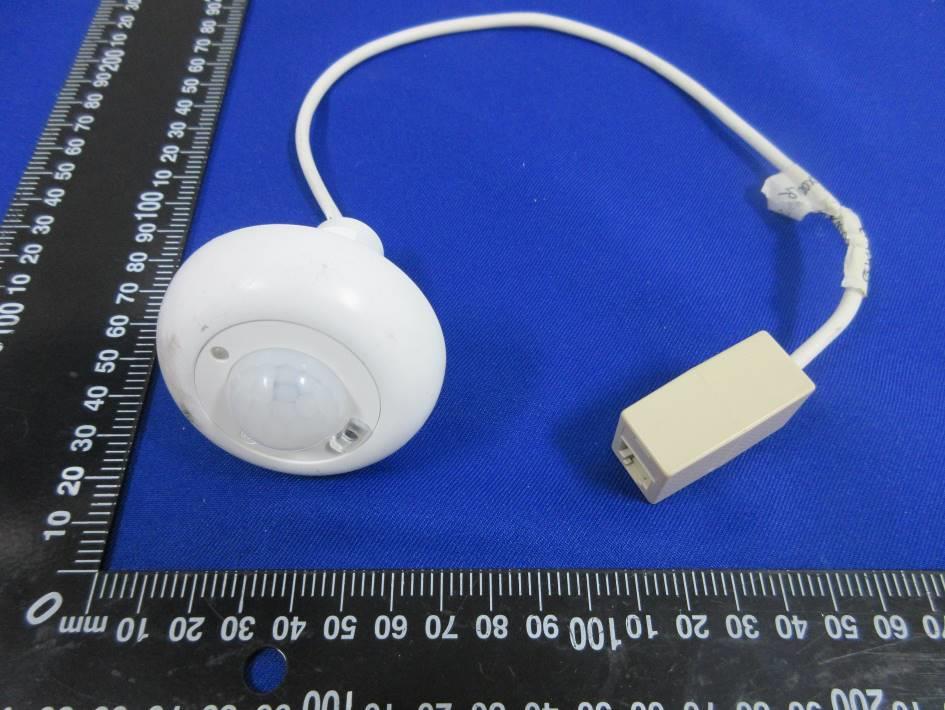

UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Appendix I External Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . All View of EUT Front View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . Back View of EUT Top View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . Bottom View of EUT Left View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . Right View of EUT

MODEL: ESLTOPJX00SR 8047098 04653 0 61 C max TC INPUT VOLTAGE : INPUT CURRENT : Ta : Fulham’s Link: Smart Link+ 30mA MaX 0°c to 60°c 5V E513534 FCC ID:2AJ9LESLTOPJX00SR

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Open View of EUT Internal View of EUT-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-2 Internal View of EUT-3 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-4 Internal View of EUT-5 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-6 Internal View of EUT-7 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Antenna Connector-1 Antenna Connector-2 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Antenna & RF Module

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For External PIR Sensor MODEL NUMBER: ESLTOPJX00SR-XXX (Where XXX may be any alphanumeric character or blank) FCC ID: 2AJ9LESLTOPJX00SR PROJECT NUMBER: 4789357614 REPORT NUMBER: 4789357614-4 ISSUE DATE: Apr. 13, 2020 Prepared for Fulham Electronic Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512 6808 6400 Fax: +86 512 6808 4099 Website: www.ul.com REPORT No.: 4789357614-4 Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 3 2. TEST METHODOLOGY ..................................................................................................... 4 3. FACILITIES AND ACCREDITATION ................................................................................. 4 4. REQUIREMENT ................................................................................................................. 5 REPORT No.: 4789357614-4 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Fulham Electronic Co., Ltd. Address: 4th Floor, Building #18, Co. Park, No. 8, Heying Road, Changping District, Beijing, China Manufacturer Information Company Name: Fulham Electronic Co., Ltd. Address: 4th Floor, Building #18, Co. Park, No. 8, Heying Road, Changping District, Beijing, China EUT Description EUT Name: External PIR Sensor Model: ESLTOPJX00SR-XXX (Where XXX may be any alphanumeric character or blank) Sample Status: Normal Sample Received Date: Mar. 05, 2020 Date of Tested: Mar. 22, 2019 ~ Apr 02, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Chris Zhong Engineer Project Associate Senior Project Engineer Authorized By: Scholl Zhang Laboratory Leader REPORT No.: 4789357614-4 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OATS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789357614-4 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) (the measured power value see Report: F12124 Section 6.6) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4789357614-4 Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. CALCULATED RESULTS Radio Frequency Radiation Exposure Evaluation BLE (Worst case) Output Power to Antenna Antenna Gain Power Density Limit Test Result (dBm) (mW) (dBi) (Numeric) (mW/cm2) (mW/cm2) -- -0.5 0.32 1 1.26 0.0002 1 C…
