2AJ9T-103002Smart Identification Terminal

Product Name and Model Number User Manual Page | 1 Copyright©2020 ZKTECO CO., LTD. All rights reserved. Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com . User Manual MB10-VL Date: April 2021 Doc Version: 1.2 English MB10-VL User Manual Page | 1 Copyright©2021 ZKTECO CO., LTD. All rights reserved. Copyright © 2021 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco"). Trademark is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by their respective owners. Disclaimer This manual contains information on the operation and maintenance of the ZKTeco equipment. The copyright in all the documents, drawings, etc. in relation to the ZKTeco supplied equipment vests in and is the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third party without express written permission of ZKTeco. The contents of this manual must be read as a whole before starting the operation and maintenance of the supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact ZKTeco before starting the operation and maintenance of the said equipment. It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and maintenance personnel are fully familiar with the design and that the said personnel have received thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the safe operation of the machine/unit/equipment that personnel has read, understood and followed the safety instructions contained in the manual. In case of any conflict between terms and conditions of this manual and the contract specifications, drawings, instruction sheets or any other contract-related documents, the contract conditions/documents shall prevail. The contract specific conditions/documents shall apply in priority. ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular purpose. ZKTeco does not assume responsibility for any errors or omissions in the information or documents which are referenced by or linked to this manual. The entire risk as to the results and performance obtained from using the information is assumed by the user. ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect, special, or exemplary damages, including, without limitation, loss of business, loss of profits, business interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors. ZKTeco periodically changes the information herein which will be incorporated into new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better operation and safety of the machine/unit/equipment. The said additions or amendments are meant for MB10-VL User Manual Page | 2 Copyright©2021 ZKTECO CO., LTD. All rights reserved. improvement /better operations of the machine/unit/equipment and such amendments shall not give any right to claim any compensation or damages under any circumstances. ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any non- compliance of the instructions contained in this manual (ii) in case of operation of the machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in conditions different from the prescribed conditions of the manual. The product will be updated from time to time without prior notice. The latest operation procedures and relevant documents are available on http://www.zkteco.com If there is any issue related to the product, please contact us. ZKTeco Headquarters Address ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone +86 769 - 82109991 Fax +86 755 - 89602394 For business related queries, please write to us at: [email protected] . To know more about our global branches, visit www.zkteco.com. MB10-VL User Manual Page | 3 Copyright©2021 ZKTECO CO., LTD. All rights reserved. About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art 700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design, component assembly, and logistics/shipping, all under one roof. The founders of ZKTeco have been determined for independent research and development of biometric verification procedures and the productization of bio…

Text truncated - open the document above for the full version.

ZKTECO CO., LTD. Date: 2021-07-03 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AJ9T-103002 To Whom It May Concern: This letter is to ascertain that ZKTECO CO., LTD. EUT：Smart Identification Terminal MODEL No.: MB10-VL Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ： ZhonglieGey/ Engineer Contact information / address: ZKTECO CO., LTD. /No.32,Pingshan Industrial Avenue,Tangxia Town,Dongguan City,Guangdong Province,China 523728

Rev11/20/07 ZKTECOCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID: 2AJ9T-103002 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics,Operational Description, BlockDiagram OperationDescription schematicdiagram Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. ZhonglieGe ZKTECOCO.,LTD.

ZKTECOCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2021-07-03 SUBJECT:FCCApplicationforFCCID:2AJ9T-103002 ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. ZhonglieGey/Engineer ZKTECOCO.,LTD.

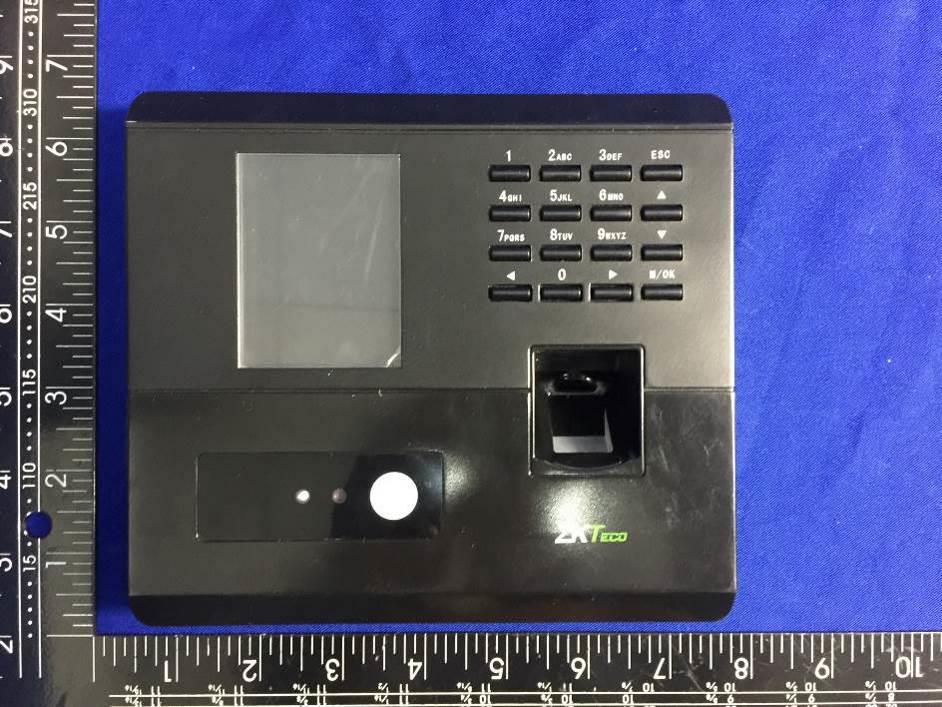

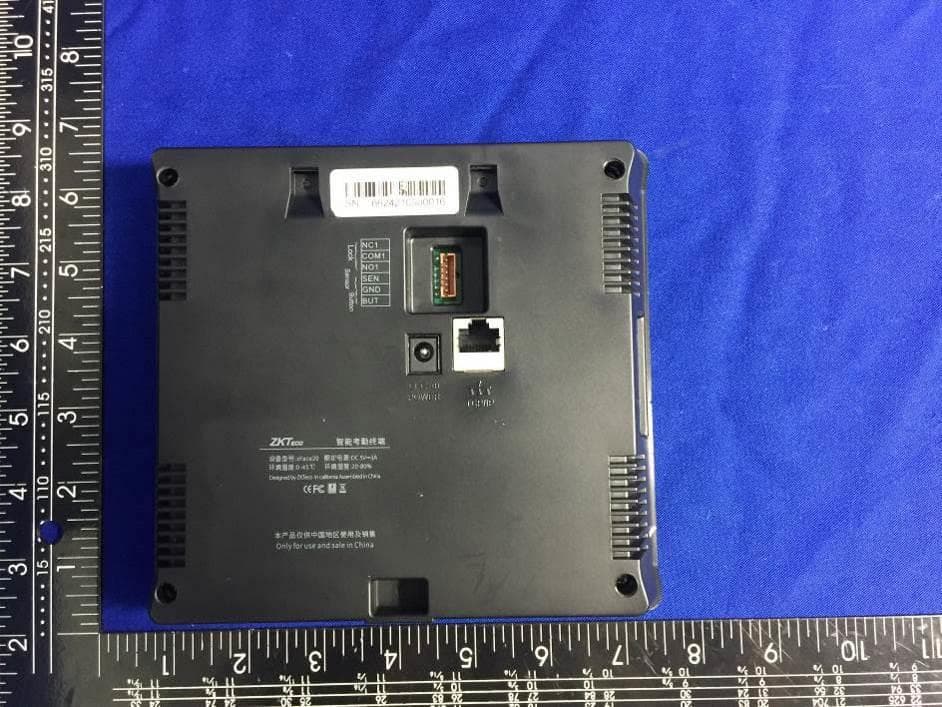

TRF NO. FCC15/A Page 1 of 4 Report No.: ES200624014W Ver.1.0 EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 TRF NO. FCC15/A Page 2 of 4 Report No.: ES200624014W Ver.1.0 EUT View 4 TRF NO. FCC15/A Page 3 of 4 Report No.: ES200624014W Ver.1.0 EUT View 5 EUT View 6 TRF NO. FCC15/A Page 4 of 4 Report No.: ES200624014W Ver.1.0 EUT View 7 ----------------The end----------------

Page 1 of 4 EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 NFC Antenna WIFI Antenna Page 2 of 4 Solder Board-Component View 2 Solder Board-Component View 3 Page 3 of 4 Solder Board-Component View 4 Solder Board-Component View 5 Page 4 of 4 Adapter ----------------The end----------------

Report No. ES210429004W02 Page 1 of 34 Ver.1.0 TEST REPORT Product Name ： Smart Identification Terminal Model Number ： MB10-VL FCC ID ： 2AJ9T-103002 Prepared for : ZKTECO CO., LTD. Address : No.32,Pingshan Industrial Avenue,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210429004W02 Date(s) of Tests : May 8,2021 to Jun 30,2021 Date of issue : Jul 2,2021 Report No. ES210429004W02 Page 2 of 34 Ver.1.0 Table of Contents 1 EUT TECHNICAL DESCRIPTION .................................................................................................................... 4 2 SUMMARY OF TEST RESULT ........................................................................................................................... 5 3 TEST METHODOLOGY...................................................................................................................................... 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 6 3.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 6 3.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 4 FACILITIES AND ACCREDITATIONS ............................................................................................................. 9 4.1 FACILITIES ................................................................................................................................................. 9 4.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 9 5 TEST SYSTEM UNCERTAINTY ...................................................................................................................... 10 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 11 6.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................................... 11 6.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................................... 11 6.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 12 6.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................. 13 6.5 SUPPORT EQUIPMENT ........................................................................................................................... 13 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 OCCUPIED BANDWIDTH ....................................................................................................................... 14 7.2 FREQUENCY STABILITY ....................................................................................................................... 16 7.3 RADIATED SPURIOUS EMISSION......................................................................................................... 18 7.4 CONDUCTED EMISSION TEST .............................................................................................................. 31 8 ANTENNA APPLICATION ................................................................................................................................ 34 8.2 RESULT ........................................................................................................................................................ 34 Report No. ES210429004W02 Page 3 of 34 Ver.1.0 TEST RESULT CERTIFICATION Applicant : ZKTECO CO., LTD. Address： No.32,Pingshan Industrial Avenue,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Manufacturer : ZKTECO CO., LTD. Address： No.32,Pingshan Industrial Avenue,Tangxia Town,Dongguan City,Guangdong Province,China 523728 EUT : Smart Identification Terminal Model Name : MB10-VL Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.225. The test results of this report relate only to the tested sample identified in this report. Date of Test : May 8,2021 to Jun 30,2021 Prepared by : Qiang Wang /Editor Reviewer : Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ES210429004W02 Page 4 of 34 Ver.1.0 1 EUT TECHNICAL DESCRIPTION Characteristics Description Device Type: RFID Modulation: ASK modulation Operating Frequency Range(s): 13.553-13.567MHz Channel Frequency: 13.56MHz Number of Channels: 1 channel Antenna Type : Induction coil antenna Power Supply DC 5V from adapter Test Voltage AC 120V/60Hz Adapter Model :ADS-12FB-06 05010EPCU Input:AC100-240V,50/60Hz,0.3A Max Output:DC5V,2.0A Temperature Range -20°C ~ +50°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ES210429004W02 Page 5 of 34 Ver.1.0 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 2.1049 Occupied Bandwidth PASS 15.225(e) Frequency stability PASS 15.225(d) 15.209 Radiated Spurious Emissions PASS 15.207 Conducted Emission PASS NOTE1: N/A (Not Applicable) RELATED SUBMITTAL(S) / GRANT(S): This submittal(s) (test report) is int…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 30MHz) Spurious Emission Test Setup (30MHz-1GHz) Spurious Emission Test Setup (Above 1GHz) 1.2. Conducted Emission Test ----------------The end----------------
