2AJ9T-20702Smart Access Control Terminal

Quick Start Guide F35 Version: 1.1 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual. 1 Overview Microphone 2.4-inch Color Screen Camera Doorbell Button Fingerprint Sensor Near-infrared Flash Speaker Terminal Block Card Reading Area Hidden Touch Keypad Restart Front Bottom SideBack GND AUX BUT SEN NC COM NO BELL+ BELL- AL+ AL- TX+ RX+ TX- RX- 12VIN PGND PGND INWD0 INWD1 GND 12VOUT RX232 485A TX232 WD1-OUT WD0-OUT 485B Power In Network Bell & Alarm Lock, Door Sensor, Exit Button & Auxiliary Input Wiegand, RS232 & RS485 1 9 5 . 0 0 m m 25.35mm 75.00mm Installation Environment Please refer to the following recommendations for installation. Device Installation Fix the backplate on the wall using wall mounting screws. Attach the device to the backplate. ① ② ③ Stick the mounting template sticker to the wall and drill holes according to the mounting template sticker.
1 3 ① ② 2 AVOID DIRECT SUNLIGHT AND EXPOSURE AVOID GLASS REFRACTION KEEP DISTANCE 10ft 6.5ft window AVOID USE OF ANY HEAT SOURCE NEAR THE DEVICE 1.5m 2 4 Attach the device to the backplate with a security screw. ④ Mounting Template (Only for your reference) Wiring Hole Mounting Hole Mounting Hole Mounting Hole 1 2 3 4 5 6 7 8 9 12 4 5 Baseline Instruction for using this template: 3 10 11 12 13 14 15 Standalone Installation Power Connection Recommended AC Adapter 1) 12V ± 10%, at least 3000mA. 2) To share the power with other devices, use an AC Adapter with higher current ratings. TCP/IP Alarm Smoke
Detector Lock Exit Button Door Sensor Reader 3 ZKBio CVAccess ZKBioTime 8.0 Note: Features and parameters with mark are not available in all devices.★ Printer Bell AC Adapter DC 12 3A Ethernet Connection Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and tap on [M/OK]. IP address: 192.168.1.130 Subnet mask: 255.255.255.0 Default IP address: 192.168.1.201 Subnet mask: 255.255.255.0 Connect the device and computer software via an Ethernet cable. As shown in the example below: Note: In LAN, the IP address of the server (PC) and the device must be in the same network segment when connecting to the software. Wiegand Connection 4 Wiegand Reader +12V GND WD1 WD0 ZKBio CVAccess ZKBioTime 8.0 INWD0 INWD1 GND 12VOUT RX232 485A TX232 WD1-OUT WD0-OUT 485B D0 D1 485A 485B GND Access Controller +12V GND RS485, RS232 & DM10 Connection Door Sensor, Exit Button, Alarm & Auxiliary Connection 5 RS485 Reader +12V GND 485+ 485- INWD0 INWD1 GND 12VOUT RX232 485A TX232 WD1-OUT WD0-OUT 485B BELL+ BELL- AL+ AL- Alarm NC COM NO SEN GND BUT AUX NO COM + - Smoke Detector Exit Button Door Sensor Printer RS232 - - - Alarm Power INWD0 INWD1 GND 12VOUT RX232 485A TX232 WD1-OUT WD0-OUT 485B PWR 485A485BGNDBEEP GLEDWD1WD0GND12VBEEPGLEDWD1WD0GND12V GNDAUX NOCOMNC BUTGNDSENNOCOMNC 12VOUT GND12VGND RS485 DIP AUX OUT LOCK VOUTPOWER RS485 AUX IN READER1READER2 DM10 Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally unlocks when power-on) is connected with 'NO' and 'COM' terminals, and the NC LOCK (normally locks when power-on) is connected with 'NC' and 'COM' terminals. Take NC Lock as an example below: 6 1) Device not sharing power with the lock




2) Device sharing power with the lock Normally Closed Lock Normally Closed Lock GND DC12V FR107 Maximum 30V 3A input. +12V DC12V GND DC12V FR107 +12V NC COM NO SEN GND BUT AUX NC COM NO SEN GND BUT AUX Connect the Wireless Doorbell 7 First, power on the wireless doorbell. Then, press and hold the music button for 1.5 seconds until you see the indicator start flashing. The flashing indicator shows that the doorbell is now in pairing mode. If the wireless doorbell rings and the indicator flashes, the connection has been successful, and you can then click on the device icon to finish the process. After a successful pairing, click the device icon will ring the wireless doorbell. L This function needs to be used with the wireless doorbell. Note: 1) Each F35 only supports one wireless doorbell. 2) Wireless doorbell needs to be purchased by the customers themselves. 8 User Registration Method 1: Registering on the Device: Press the [M/OK] key to access the main menu in case the device has not been configured with a super administrator. When creating a new user, assign the User Role as Super Admin. This action will prompt the system to request verification from the administrator before granting access to the menu. It is advisable to register a super administrator during the initial setup for enhanced security measures. L Tap on [M/OK] > [User Mgt.] > [New User] to register a new user. There are several options available, including entering the user ID and name, setting the user role and access control role, and registering the fingerprint, card number and password. 9 Method 2: Register on ZKBio CVAccess software: Please set the IP address and cloud service server address in the Comm. Menu option on the device. Click [Access] > [Device] > [Search] > [Search] to search the device on the software. When an appropriate server address and port is set on the device, the searched device displays automatically. 1. Click [Add] in operation column, a new window will pop-up. Select Icon type, Area, and Add to Level from each drop down list and click [OK] to add the device. 2. Click [Personnel] > [Person] > [New] and fill in all the required fields to register new users in the software. 3. Click [Access] > [Device] > [Control] > [Synchronize All Data to Devices] to synchronize all the data to the device including the new users. 4. For more details, please refer to the ZKBio CVAccess User Manual. 10 Card Management Personnel Registration Personnel Registration Personnel ID First Name Last Name Last Name xia 111 OK Method 3: Register on the phone: Click [Personnel] > [Parameters], ‘’http://Server address: Port’’ in the QR Code enter URL bar. The software wil…

Text truncated - open the document above for the full version.

Rev 1/26/2023 ZKTECO CO., LTD. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 6-8-2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AJ9T-20702 ZKTECO CO., LTD. ("the applicant")certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicantsignature) (Applicant printed name) Zhonglie Ge/Engineer Rev 1/26/2023 ZKTECO CO., LTD. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 6-8-2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AJ9T-20702 ZKTECO CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Zhonglie Ge/Engineer

ZKTECO CO., LTD. Attestation Statements Date:July 3, 2024 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for FCC ID:2AJ9T-20702 ZKTECO CO., LTD. , the undersigned, hereby authorize ZK Technology LLC DBA ZK Teco to act as our designated U.S. agent for service of process, ZKTECO CO., LTD. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. ZK Technology LLC DBA ZK Teco accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: ZKTECO CO., LTD. Contact Name: zhonglie.Ge Address: No.32, Pingshan Industrial Avenue, Tangxia Town, Dongguan City, Guangdong Province, China 523728 FRN: 0026008086 Tel: +86 0755 89602277 Email: [email protected] Signature zhonglie.Ge U.S. Agent Information: Company Name: ZK Technology LLC DBA ZK Teco Address: 200 Centennial Ave, Suite 211, Piscataway, NJ,08854. U.S. FRN: 0028749521 Contact Name: Jaimin Shah Tel: (732) 412-6007 Email: [email protected]

Rev11/20/07 ZKTECOCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID: 2AJ9T-20702 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics, OperationalDescription, BlockDiagram, Schematics, OperationalDescription, Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. Client’sname/title ： ZhonglieGe/Engineer Contactinformation/address:ZKTECOCO.,LTD./No.32,PingshanIndustrialAvenue, TangxiaTown,DongguanCity,GuangdongProvince,China523728

ZKTECOCO.,LTD. Declarationonmodeldifference Wetheundersignedherebyconfirmthatanyofourproductionunitsbearingthefollowingmodel numbersareidenticalincircuitryandelectrical,mechanicalandphysicalconstruction;onlyindicates fordifferentmarketpurposes; FCCID:2AJ9T-20702 ProductionnameTradenameModelno. SmartAccessControlTerminal N/A AC01-F35H-17，F35 Confirmedby ZKTECOCO.,LTD. Client’sname/title：ZhonglieGe/Engineer Contactinformation/address:ZKTECOCO.,LTD./No.32,PingshanIndustrialAvenue,TangxiaTown,DongguanCity, GuangdongProvince,China523728 Date:2024-8-6

ZKTECOCO.,LTD. Date:6-8-2024 To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2AJ9T-20702 ToWhomItMayConcern: ThisletteristoascertainthatZKTECOCO.,LTD./No.32,PingshanIndustrialAvenue, TangxiaTown,DongguanCity,GuangdongProvince,China523728 EUT ： SmartAccessControlTerminal MODELNo.: AC01-F35H-17，F35 HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartHavebe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Sincerely, Client’ssignature ： Client’sname/title：ZhonglieGe/Engineer Contactinformation/address:ZKTECOCO.,LTD./No.32,PingshanIndustrialAvenue,Tangxia Town,DongguanCity,GuangdongProvince,China523728

ZKTECOCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2024-8-6 SUBJECT:FCCApplicationforFCCID:2AJ9T-20702 ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWang atEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD. onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Client’sname/title：ZhonglieGe/Engineer Contactinformation/address:ZKTECOCO.,LTD./No.32,PingshanIndustrialAvenue,TangxiaTown, DongguanCity,GuangdongProvince,China523728

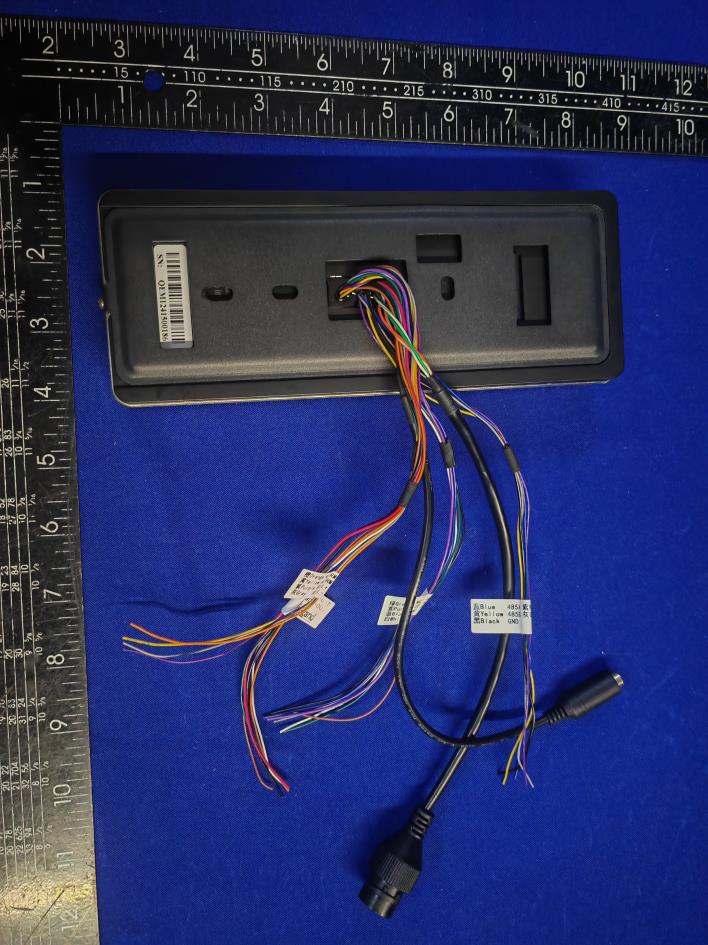

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

Label location

EUT INTERNAL PHOTOGRAPHS WIFI ANTENNA RFID ANTENNA ----------------The end----------------

FCC ID: 2AJ9T-20702 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result Wifi 2.4G TestMode 11B Transmit Power Max: 16.44dBm Antenna gain: 0.54dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 15.38 14 to 16 16 1.13 0.00897 1 RFID 125KHz, Antenna Gain: 0dBi Operation Mode Channel Number Channel Frequency (KHz) Emission Level(dBuV/m) EIRP (dBm) Max power (mW) RFID 1 125 45.72 -49.51 0 Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0 1 0.00020 1 * EIRP[dBm] = E[dBμV/m] + 20 log(d[meters]) - 104.77 RFID 13.56MHz, Antenna Gain: 0dBi Operation Mode Channel Number Channel Frequency (MHz) Emission Level(dBuV/m) EIRP (dBm) Max power (mW) RFID 1 13.56 49.45 -45.78 0 Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0 1 0.00020 1 * EIRP[dBm] = E[dBμV/m] + 20 log(d[meters]) - 104.77 MAX RF EXPOSURE EVALUATION Wifi 2.4G RFID Summation of Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 0.00897 0.00020 0.00917 <1 *** End of Report ***

f>�踹 深圳市盛邦尔科技有限公司 Shenzhen Surbaner Technology CO.;LTD 承 认 书 SPE汇田°CATION FOR APPROVAL 窑户名称 摘基 Customer Name 客户项目名Customer 盛邦尔项目名 F180 Surbaner Project F180 Project Name Name 客户编码 盛邦尔料号 3160-180-00311 Customer P/N Surbaner P/N 频段 2400MHz Band 版本号 AO Version 设计人信息／ Designer Information 射频工程师 1 例 研发主管 克拉t� RF Engineer R&D Diretor 结构工程师 如 亏 、 U ME Engineer 盛邦尔审批 ／Surbaner Approval 客户批 准 ／Customer Approval 签章 Signature 日期 刘胜荣 批准 , , r 如 〉哟 鸟 审核 Checked By 批准 Approval By 制作 Prepared By Date 2023.05. 25 修订履历／Change Log 版本 修订内容 责任人 核准日期 Version Change Description Person in Charge Approval By Date 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼 TEL: 0755-82790675 FAX: 0755-82809726 SBR Communication has possession of proprietary . information provided in this report and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of SBR Communication Technology. www.surbaner.com.cn A86020 082 1/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.,LTD. 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 Address:2/F,BuildingB25,Hengfengindustrialcity,Hezhoucommunity,XixiangStreet,BaoanDistrict,ShenzhenCity. SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. FM ： SBR-QR-RD-37REV ： A2 目录/Catalogue 序号 No. 项目 Item 页码 PageNo. 1 图纸或实物图片 DrawingorProductImage 3 2 技术参数 TechnicalParameter 4 3 射频性能测试报告 RFPerformanceTestReport 5-8 4 包装文件 PackageDocument 9 5 尺寸测量报告 DimensionsTestReport 10 6 可靠性测试报告 ReliabilityTestReport1 11 7 安装事宜或其它 InstallWizardorOther 12 2/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.;LTD 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. www.surbaner.com.cn 产品图纸或实物图片 DrawingorProductImage 3/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.,LTD. 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 Address:2/F,BuildingB25,Hengfengindustrialcity,Hezhoucommunity,XixiangStreet,BaoanDistrict,ShenzhenCity. SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. FM ： SBR-QR-RD-37REV ： A2 1.Antenna/天线 No/序号PartName/项目SPEC/规格 1 FrequencyRange/ 频率范围 2400-2500MHz 2 Impendence/阻抗50ohmnominal 3 Gain/ 增益≥ 0dBi 4 Polarization/极化LINE 5 VSWR/ 驻波比 ＜3 6 Efficiency/ 效率 ≥35%AVG 7 RFCable/ 射频连接线 1.13黑色线67mm 8 RFConnector/连接器1代端子 2.EnvironmentalCharacteristics/环境特性 No/ 序号 PartName/ 项目 SPEC/ 规格 1 OperationHumidity /工作湿度 5~95%不冷凝 2 OperatingTemperature/ 工作温度 -20~+60 °C 3 StoreTemperatuer/ 工作 储存温度 -30~+70°C 4 SaltSprayTest/ 盐雾试验 24H 4/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.;LTD 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. www.surbaner.com.cn 射频性能测量报告 RFPerformanceTestReport 客户名称 Customer Name 项目名称 Project Nam 熵基 e 盛邦尔料号 SurbanerP/ F180 N 频段 Ban 3160-180-00311 d 测试日期 TestDat 2400MHz e 测试人 Inspecto 2023/05/25 r 天线测试设备简介 AntennaTestEquipmentIntroductio 林德友 n 测试天线输入特性使用AgilentE5071CandAgilent5062A矢量网络分析仪；辐射特性利 用Satimo三维近场暗室进行测试，并分别使用8960E5515和AgilentE4438C进行了分析。暗房 的测试坐标如下: TestofantennainputcharacteristicsusingAgilentE5071CandAgilent5062Avectornetwork analyzer;TheradiationpatternoftheantennaaretestedusingtheSatimostarlab3DnearfieldAnechoic Chamber,andtheinstrumentisusedtoagilent8960E5515andAgilentE4438C.Thetestcoordinatesofthe darkroomareasfollows: 1.S11参数测量/ S11Parameter-VSWR 使用一根50Ω同轴电缆连接到天线，然后该电缆连接到网络分析仪测量S11参数，被测量产品远离 金属至少20厘米。 MeasuringMethodisa50Ωcoaxialcableisconnectedtotheantenna.Thenthiscableisconnectedtoanetworkanalyzer tomeasuretheS11parameter,Keepingthisfixtureawayfrommetalatleast20cm. 5/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.,LTD. 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 Address:2/F,BuildingB25,Hengfengindustrialcity,Hezhoucommunity,XixiangStreet,BaoanDistrict,ShenzhenCity. SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. FM ： SBR-QR-RD-37REV ： A2 S11Parameter-S11-2.4G 4.Gain&Efficiency-2.4G 1.95 1.31 2.53 6/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.,LTD. 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 Address:2/F,BuildingB25,Hengfengindustrialcity,Hezhoucommunity,XixiangStreet,BaoanDistrict,ShenzhenCity. SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. FM ： SBR-QR-RD-37REV ： A2 2DPattern--2.4G Phi=0 Phi=90 Theta=90 7/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.;LTD 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformationshallbekeptinstrictconfidenceandnot disclosedtoanypersonorfirmwithoutthepriorwrittenconsentofSBRCommunicationTechnology. www.surbaner.com.cn 2.天线匹配网络/ AntennaMatchingNetwork 3.OTA 4.ProductOverview&Dimension 8/12 深圳市盛邦尔科技有限公司 ShenzhenSurbanerTechnologyCO.,LTD. 地址：深圳市宝安区西乡街道鹤洲社区恒丰工业城B25栋2楼TEL：0755-82790675FAX：0755-82809726 Address:2/F,BuildingB25,Hengfengindustrialcity,Hezhoucommunity,XixiangStreet,BaoanDistrict,ShenzhenCity. SBRCommunicationhaspossessionofproprietaryinformationprovidedinthisreportandthisproprietaryinformati…

Text truncated - open the document above for the full version.

Report No. ENS2405110218W00401R Page 1 of 58 Ver.1.0 TEST REPORT Product Name ： Smart Access Control Terminal Model Number ： AC01-F35H-17，F35 FCC ID ： 2AJ9T-20702 Prepared for : ZKTECO CO., LTD. Address : No.32, Pingshan Industrial Avenue, Tangxia Town, Dongguan City, Guangdong Province, China 523728 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2405110218W00401R Date(s) of Tests : May 12, 2024 to July 25, 2024 Date of issue : July 28, 2024 $二维码$ Report No. ENS2405110218W00401R Page 2 of 58 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 6 4 TEST METHODOLOGY ........................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................ 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................... 8 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 9 5.1 FACILITIES ...................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ....................................................................... 9 6 TEST SYSTEM UNCERTAINTY ............................................................................................................ 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................................ 11 7.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................................ 11 7.3 CONDUCTED EMISSION TEST SETUP ....................................................................................... 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................... 14 7.5 SUPPORT EQUIPMENT ................................................................................................................ 14 8 TEST REQUIREMENTS......................................................................................................................... 15 8.1 DTS (6DB) BANDWIDTH ............................................................................................................... 15 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ..................................................................... 16 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................... 26 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................... 35 8.5 RADIATED SPURIOUS EMISSION ............................................................................................... 40 8.6 CONDUCTED EMISSIONS TEST ................................................................................................. 54 8.7 ANTENNA APPLICATION .............................................................................................................. 57 Report No. ENS2405110218W00401R Page 3 of 58 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : ZKTECO CO., LTD. Address : No.32, Pingshan Industrial Avenue, Tangxia Town, Dongguan City, Guangdong Province, China 523728 Manufacturer : ZKTECO CO., LTD. Address : No.32, Pingshan Industrial Avenue, Tangxia Town, Dongguan City, Guangdong Province, China 523728 EUT : Smart Access Control Terminal Model Name : AC01-F35H-17，F35 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 , Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : May 12, 2024 to July 25, 2024 Prepared by : Una Yu/Editor Reviewer : Joe Xia/Editor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2405110218W00401R Page 4 of 58 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Note: for more details, please refer to the User’s manual of the EUT. Characteristics Description Product Smart Access Control Terminal Model Number AC01-F35H-17，F35 IEEE 802.11 WLAN Mode Supported 802.11b 802.11g 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) Data Rate 802.11 b:1,2,5.5,11Mbps; 802.11 g:6,9,12,18,24,36,48,54Mbps; 802.11n(HT20): up to 72.2Mbps; 802.11n(HT40): up to 150Mbps; Modulation DSSS with DBPSK/DQPSK/CCK for 802.11b; OFDM with BPSK/QPSK/16QAM/64QAM for 802.11g/n; Operating Frequency Range 2412-2462MHz for 802.11b/g/n(HT20); 2422-2452MHz for 802.11n(HT40); Number of Channels 11 channels for 802.11b/g n(HT20); 7 Channels for 802.11n(HT40); Transmit Power Max 15.38 dBm Antenna Type FPC Antenna Antenna Gain 0.54 dBi Note: The antenna information provided by the manufacturer will have a certain…

Text truncated - open the document above for the full version.

Report No. ENS2405110218W00401R Page 31 of 58 Ver.1.0 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No. ENS2405110218W00401R Page 32 of 58 Ver.1.0 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No. ENS2405110218W00401R Page 33 of 58 Ver.1.0 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No. ENS2405110218W00401R Page 34 of 58 Ver.1.0 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No. ENS2405110218W00401R Page 35 of 58 Ver.1.0 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS 8.4.1 Applicable Standard According to FCC Part15.247(d) and KDB 558074 D01 15.247 Meas Guidance v05r02 8.4.2 Conformance Limit According to FCC Part 15.247(d): In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 8.4.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 8.4.4 Test Procedure The transmitter output (antenna port) was connected to the spectrum analyzer  Reference level measurement Establish a reference level by using the following procedure: Set instrument center frequency to DTS channel center frequency. Set the span to ≥ 1.5 times the DTS bandwidth. Set the RBW = 100 kHz. Set the VBW ≥ 3 x RBW. Set Detector = peak. Set Sweep time = auto couple. Set Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum PSD level. Note that the channel found to contain the maximum PSD level can be used to establish the reference level.  Emission level measurement Set the center frequency and span to encompass frequency range to be measured. Set the RBW = 100 kHz. Set the VBW =300 kHz. Set Detector = peak Sweep time = auto couple. Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum amplitude level. Ensure that the amplitude of all unwanted emissions outside of the authorized frequency band (excluding restricted frequency bands) are attenuated by at least the minimum requirements . Report the three highest emissions relative to the limit. 8.4.5 Test Results Report No. ENS2405110218W00401R Page 36 of 58 Ver.1.0 All modes 2.4G 802.11b/g/n have been tested, and the worst result 802.11b recorded was report as below: Reference level measurement TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] 11B Ant1 2412 2414.02 4.45 2437 2435.47 4.64 2462 2461.50 5.65 Report No. ENS2405110218W00401R Page 37 of 58 Ver.1.0 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No. ENS2405110218W00401R Page 38 of 58 Ver.1.0 Band edge measurements TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.45 -32.35 ≤-25.55 PASS High 2462 5.65 -39.98 ≤-24.35 PASS 11B_Ant1_Low_2412 11B_Ant1_High_2462 Report No. ENS2405110218W00401R Page 39 of 58 Ver.1.0 Conducted Spurious Emission TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 30~1000 4.45 -71.53 ≤-25.55 PASS 1000~26500 4.45 -47.13 ≤-25.55 PASS 2437 30~1000 4.64 -71.57 ≤-25.36 PASS 1000~26500 4.64 -46.69 ≤-25.36 PASS 2462 30~1000 5.65 -70.58 ≤-24.35 PASS 1000~26500 5.65 -42.62 ≤-24.35 PASS Report No. ENS2405110218W00401R Page 40 of 58 Ver.1.0 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_30~1000 Report No. ENS2405110218W00401R Page 41 of 58 Ver.1.0 11B_Ant1_2437_1000~26500 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Report No. ENS2405110218W00401R Page 42 of 58 Ver.1.0 8.5 RADIATED SPURIOUS EMISSION 8.5.1 Applicable…

Text truncated - open the document above for the full version.
