2AJ9T-HBLZMHybrid Biometric Lock

HBL100 User Manual 1 USER MANUAL Version: 1.0 Date: June 2019 HBL100Z User Manual I Read Before Use ........................................................................................................................................................ 1 Safety Cautions ................................................................................................................................................................................... 1 Position and Gesture ...................................................................................................................................................................... 2 Facial Expression ................................................................................................................................................................................ 2 Face Position ........................................................................................................................................................................................ 3 Method for Using the Touch Screen ..................................................................................................................................... 3 Method for Pressing Fingerprint ............................................................................................................................................. 4 Structure ..................................................................................................................................................................... 5 Basic Function ........................................................................................................................................................... 6 User Introduction .............................................................................................................................................................................. 6 Initialization .......................................................................................................................................................................................... 6 Lockout Mode ..................................................................................................................................................................................... 7 Normal Open Mode ........................................................................................................................................................................ 7 Verification Mode .............................................................................................................................................................................. 7 Network Control ................................................................................................................................................................................ 8 Operate Alarm .................................................................................................................................................................................... 8 Contents HBL100Z II HBL100Z User Manual Low Battery Warning ...................................................................................................................................................................... 8 Emergency Charging ..................................................................................................................................................................... 8 Emergency Mechanical Key ....................................................................................................................................................... 9 How to Use .............................................................................................................................................................. 10 Enter Main Menu............................................................................................................................................................................ 10 Register User ..................................................................................................................................................................................... 12 Manage Users................................................................................................................................................................................... 17 Autolock Time .................................................................................................................................................................................. 17 Language Setting .......................................................................................................................................................................... 18 Verification Mode ........................................................................................................................................................................... 18 Operate Alarm ................................................................................................................................................................................. 19 Normal Open Mode ..................................................................................................................................................................... 19 Date/Time Setting ......................................................................................................................................................................... 19 Advanced Options ........................................................................................................................................................................ 20 Network Setting (optional) ...................................................................................................................................................... 20 Upgrade Firmware…

Text truncated - open the document above for the full version.

ZKTECO CO., LTD. Letter of Authorization Company: ZKTECO CO., LTD. Address: No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Product Name: Hybrid Biometric Lock Model Number: HBL100Z, HBL200Z FCC Identifier: 2AJ9T-HBLZM We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Zhonglie Ge Date: 2020-04-28 Title: Engineer

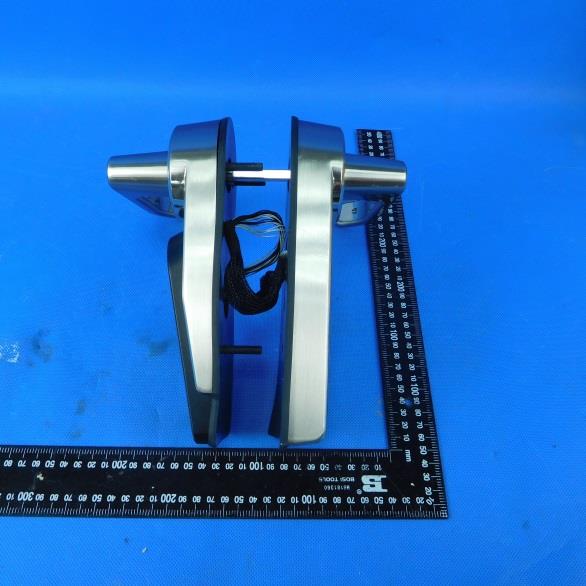

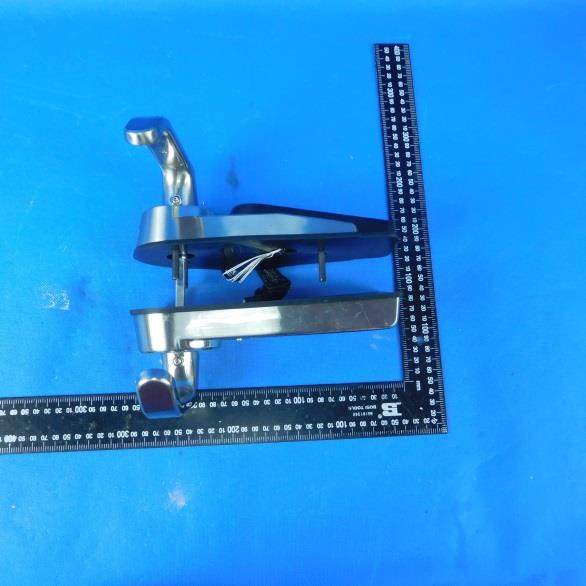

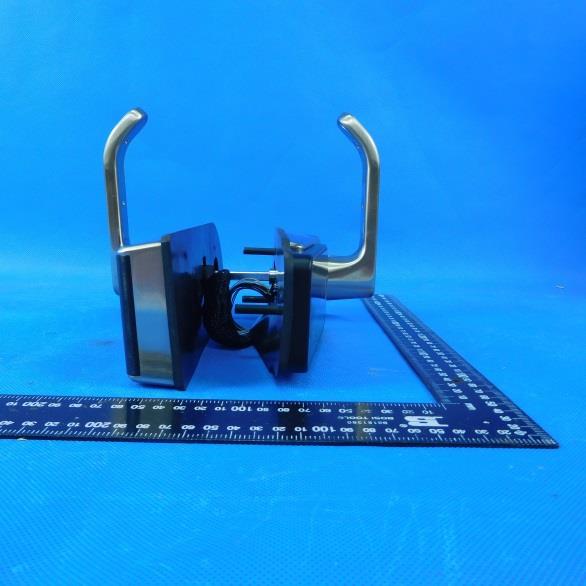

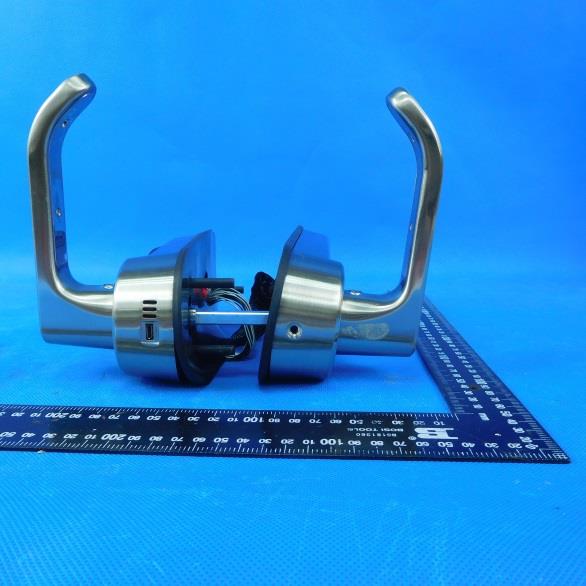

External Photos

Internal Photos

Page: 1 of 25 TEST REPORT Report No. .......................................: CHTEW20040140 Report verification : Project No. ..................................: SHT1912063001EW FCC ID ............................................. : 2AJ9T-HBLZM Applicant’s name ........................... : ZKTECO CO., LTD. Address ............................................. : No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Manufacturer....................................: ZKTECO CO., LTD. Address ............................................. : No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Test item description .................... : Hybrid Biometric Lock Trade Mark ....................................... : - Model/Type reference ....................... : HBL100Z Listed Model(s) ................................. : HBL200Z Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.225 Date of receipt of test sample..........: Dec.20, 2019 Date of testing..............................: Dec.20, 2019- Apr.17, 2020 Date of issue................................: Apr.20, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators Echo Wei Supervised by (position+printedname+signature) .... : Project Engineer Kiki Kong Approved by (position+printedname+signature) .... : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No : CHTEW20040140 Page 2 of 25 Issued: 2020-04-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) Contents 1. TEST STANDARDS AND REPORT VERSION 3 1.1. Test Standards 3 1.2. Report version information 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. EUT operation mode 6 3.4. EUT configuration 6 4. TEST ENVIRONMENT 7 4.1. Address of the test laboratory 7 4.2. Test Facility 7 4.3. Environmental conditions 8 4.4. Statement of the measurement uncertainty 8 4.5. Equipments Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna requirement 11 5.2. AC Power Conducted Emissions 12 5.3. Field Strength of the Fundamental and Mask Measurement 15 5.4. 20dB Bandwidth 17 5.5. Radiated Emission 19 5.6. Frequency Stability 23 6. TEST SETUP PHOTOS OF THE EUT 24 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 25 Report No : CHTEW20040140 Page 3 of 25 Issued: 2020-04-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.225: Operation within the band 13.110-14.010 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Report version information Revision No. Date of issue Description N/A 2020-04-20 Original Report No : CHTEW20040140 Page 4 of 25 Issued: 2020-04-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 2. TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Antenna requirement 15.203 PASS N/A AC Power Line Conducted Emissions 15.207 PASS Greg WU Field Strength of the Fundamental and Mask Measurement 15.225(a)(b)(c) PASS Pan Xie 20dB Bandwidth 15.215 PASS Jiongsheng Feng Radiated Emission 15.225(d)&15.209 PASS Pan Xie Frequency Stability 15.225(e) PASS Pan Xie Report No : CHTEW20040140 Page 5 of 25 Issued: 2020-04-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 3. SUMMARY 3.1. Client Information Applicant: ZKTECO CO., LTD. Address: No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Manufacturer: ZKTECO CO., LTD. Address: No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 3.2. Product Description Name of EUT: Hybrid Biometric Lock Trade Mark: - Model No.: HBL100Z Listed Model(s): HBL200Z Power supply: DC 7.4V Hardware version: V1.5 Software version: V 19.0919.1702 RF Specification Operation frequency: 13.56MHz Channel number: 1 Modulation Type: ASK Antenna type: Coil antenna Antenna Gain: 0.5 dBi Report No : CHTEW20040140 Page 6 of 25 Issued: 2020-04-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 3.3. EUT operation mode TEST MODE For RF test items The engineering test program was provided and enabled to make EUT continuous transmit. For AC power line conducted emissions: The EUT was set to connect with large package sizes transmission. During all testing, the product is powered by full charged batterys. For Radiated spurious emissions test item: The EUT in each of three orthogonal axis emissions had been tested ,but only the worst case (X axis) data recorded in the report. During all testing, the product is powered by full charged batterys. 3.4. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab Manufacturer : / Model No. : / Manufacturer : / Model No. : / Report N…

Text truncated - open the document above for the full version.
