2AJ9T-HIMetal RFID Standalone Access control

                                   a)        FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Thedevicehasbeenevaluatedtomeetgeneral.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiatorandyourbody.Thistransmittermustnotbeco-locatedor operatinginconjunctionwithanyotherantennaortransmitter. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe (1)Thisdevicemaynotcauseharmfulinterference, (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation.

Rev11/20/07 ZKTECOCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID: 2AJ9T-HI PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics,Operational Description, BlockDiagram OperationDescription schematicdiagram Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. ZhonglieGe ZKTECOCO.,LTD.

Declarationonmodeldifference Wetheundersignedherebyconfirmthatanyofourproductionunitsbearingthefollowingmodel numbersareidenticalincircuitryandelectrical,mechanicalandphysicalconstruction;theonly differencesarethemodelnameandthecolorofappearancefortradingpurpose. FCCID:2AJ9T-HI ProductionnameTradenameModelno. MetalRFIDStandalone Accesscontrol N/AMKW-H2,SKW-H2-Primion,SKW-H2-Pro,Proxy- KeyMH,Proxy-KeyAH,SKW-H,SKW-HA ConfirmedbyZKTECOCO.,LTD. ZhonglieGe ZKTECOCO.,LTD. Date:2020-08-17

ZKTECOCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020-08-17 SUBJECT:FCCApplicationforFCCID:2AJ9T-HI ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. ZhonglieGe ZKTECOCO.,LTD.

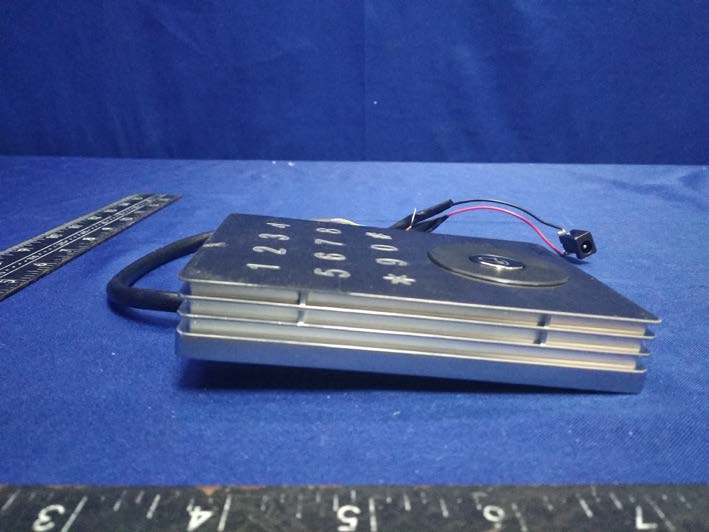

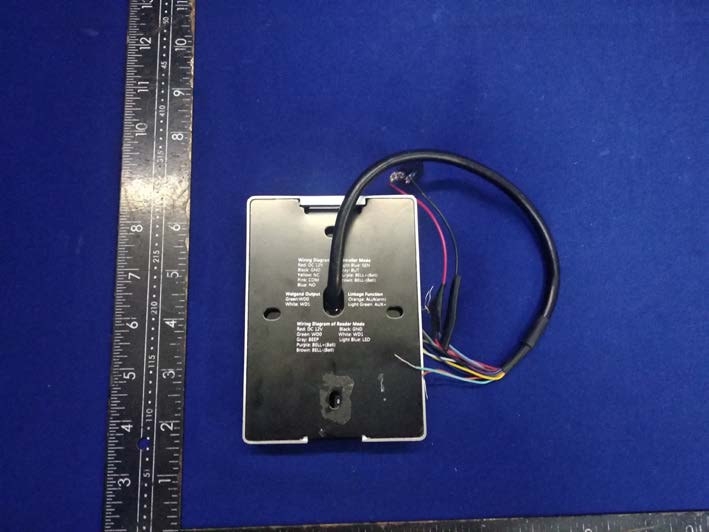

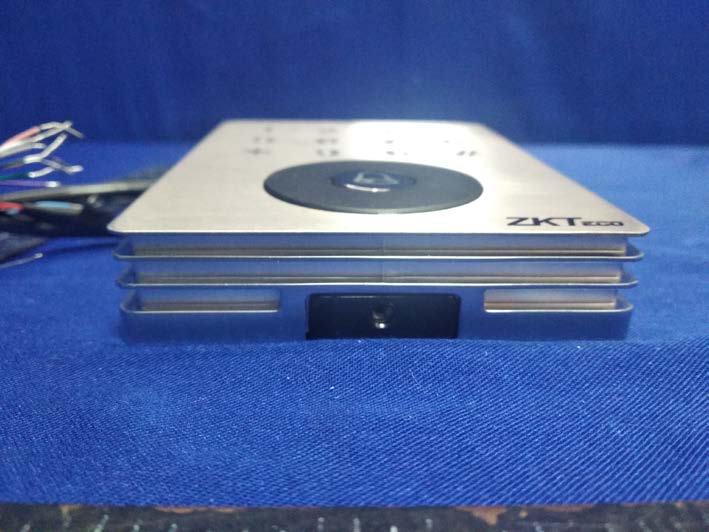

TRF NO. FCC Page 1 of 4 Report No.: ES200708075W Ver.1.0 EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 TRF NO. FCC Page 2 of 4 Report No.: ES200708075W Ver.1.0 EUT View 3 EUT View 4 TRF NO. FCC Page 3 of 4 Report No.: ES200708075W Ver.1.0 EUT View 5 EUT View 6 TRF NO. FCC Page 4 of 4 Report No.: ES200708075W Ver.1.0 EUT View 7 ----------------The end----------------

Label and label location

TRF NO. FCC Page 1 of 3 Report No.: ES200708075W Ver.1.0 EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 TRF NO. FCC Page 2 of 3 Report No.: ES200708075W Ver.1.0 Solder Board-Component View 2 Solder Board-Component View 3 Antenna TRF NO. FCC Page 3 of 3 Report No.: ES200708075W Ver.1.0 Solder Board-Component View 4 Adapter ---------------The end----------------

Report No.ES200708075W Page 1 of 28 Ver.1.0 TEST REPORT Product Name ： Metal RFID Standalone Access control Model Number : MKW-H2,SKW-H2-Primion,SKW-H2-Pro,Proxy- KeyMH,Proxy-KeyAH,SKW-H,SKW-HA FCC ID ： 2AJ9T-HI Prepared for : ZKTECO CO.,LTD Address : No.26,Pingshan 188 Industry zone,Tangxia Town, Dongguan City,Guangdong Province,China 523728 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200708075W Date(s) of Tests : July 12, 2020 to July 31, 2020 Date of issue : August 17, 2020 $二维码$ Report No.ES200708075W Page 2 of 28 Ver.1.0 Table of Contents 1 EUT TECHNICAL DESCRIPTION ............................................................................................................. 4 2 SUMMARY OF TEST RESULT .................................................................................................................... 5 3 TEST METHODOLOGY ............................................................................................................................... 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................... 6 3.2 MEASUREMENT EQUIPMENT USED .................................................................................................. 6 3.3 DESCRIPTION OF TEST MODES ........................................................................................................... 7 4 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 4.1 FACILITIES............................................................................................................................................... 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................... 8 5 TEST SYSTEM UNCERTAINTY ................................................................................................................. 9 6 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 10 6.1 RADIO FREQUENCY TEST SETUP 1 ................................................................................................... 10 6.2 RADIO FREQUENCY TEST SETUP 2 ................................................................................................... 10 6.3 CONDUCTED EMISSION TEST SETUP .............................................................................................. 11 6.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ............................................................... 12 6.5 SUPPORT EQUIPMENT......................................................................................................................... 12 7 TEST REQUIREMENTS ............................................................................................................................. 13 7.1 OCCUPIED BANDWIDTH .................................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ...................................................................................................... 15 7.3 CONDUCTED EMISSION TEST ........................................................................................................... 25 8 ANTENNA APPLICATION ......................................................................................................................... 28 Report No.ES200708075W Page 3 of 28 Ver.1.0 TEST RESULT CERTIFICATION Applicant : ZKTECO CO.,LTD. Address : No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Manufacturer : ZKTECO CO.,LTD. Address : No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 EUT : Metal RFID Standalone Access control Model Name : MKW-H2,SKW-H2-Primion,SKW-H2-Pro,Proxy-KeyMH,Proxy-KeyAH,SKW-H,S KW-HA Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207&15.209. The test results of this report relate only to the tested sample identified in this report. Date of Test : July 12, 2020 to July 31, 2020 Prepared by : Sewen Guo /Editor Reviewer : Joe Xia/Editor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES200708075W Page 4 of 28 Ver.1.0 1 EUT TECHNICAL DESCRIPTION Product: Metal RFID Standalone Access control Model Number: MKW-H2,SKW-H2-Primion,SKW-H2-Pro,Proxy-KeyMH,Proxy-KeyAH,SKW-H,S KW-HA (Note: These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are appearance and model. for trading purpose. We prepare MKW-H2 for test.) Power Supply DC12V from adapter Test Voltage AC 230V/50Hz Adapter Model :ADS-40SI-12-3 Input:AC100-240V,50/60Hz,1.0A Max Output:DC12V,3.0A Frequency Range: 125KHz Antenna Type: Induction coil antenna Antenna Gain: 0 dBi Temperature Range: 0°C ~ +45°C Note: for more details, please refer to the User’s manual of the EUT. Report No.ES200708075W Page 5 of 28 Ver.1.0 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 2.1049 Occupied Bandwidth PA SS 15.209 Radiated Spurious Emissions PA SS 15.207 Conducted Emission PA SS NOTE1: N/A (Not Applicable) RELATED SUBMITTAL(S) / GRANT(S): This submittal(s) (test report) is intended for FCC ID: 2AJ9T-HI filing to comply with Section 15.225 of the FCC Part 15, Subpart C Rules. Report No.ES200708075W Page …
