2AJ9T-ZL400Wireless Hotel Lock

Installation Guide Ve rs ion: 1 . 0 D at e: A pr i l 2 01 9 ZL400 Diagram and Caution P A E H I T A B C D F G J K L M K N O Q R H S 1 Diagram C aution Do not overexert when tighten the screws. Do not use electric tool to tighten the screws. Please wear eye-protection device to protect your eyes when drilling and slotting 2 R R Inward Outward Installation Step 1. Align the template along the vertical center line of the mortise at the desired handle height, and tape it to the door. Drill the hole on the door. desired handle height handle centerline door thick ness 35~55mm backset 70mm 3 2. R emo v e t w o scr ew s (D ) fr om mor tise la t ch pla t e A C D D A 4 3. Install mortise (A) 4. Install mortise latch plate (C) C D D B B A Note: Two Triangles on the mortise must be in horizontal alignment (as the above enlarged figure). 5 5. Install lock cylinder (E) E F G G F E F E 6 6. Install 8x8 spindle (H) and fix outdoor unit (I) H H H J K H I J K Note: Please confirm the two triangles of the mortise be in horizontal position always! As step3 in this installation instruction. K 7 H L M H L L H L M K 7.Install 8x8 spindle (H) and 5x5 spindle (L), and fix the indoor unit (M) 8 O N 125mm 89mmX25mm 22mm 3mm S S Q R P P 8. Install batteries (N) 9. Measure the doorframe for strike dimensions and drill the hole 9 10. Test lock 1. Test lock by rotating handle and emergency key. 2. You can use emergency key by removing the cover on the lock cylinder with screwdriver or nails. Maintenance 1. Avoid contacting with corrosive substances. 2. Do not hang objects on the handle. 3. When battery power is lower, the lock will beep to remind user to renew the batteries. 4. Please do not mix up positive and negative while replacing battery. 5. To avoid leaking, it is better to renew battery at least once in half year. Do not use battery of poor quality. Warm tips 1. The demonstration figure in this installation instruction maybe different with your actual product, the actual product shall prevail. 2. The software within the lock manages the RFID cards, for more details please refer to the software user manual. 3. Please keep the emergency key in a safe place, as backup. 4. If there are any questions, please do not hesitate to contact the seller. T 10 FCCwarning: AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser's authoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencein aresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon, theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser's authoritytooperatetheequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference, (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedinportable exposureconditionwithoutrestriction. FCCwarning: AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry tocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser'sauthoritytooperatetheequipment. Tel: +86 755-89602345 Fax: +86 755-89602394 www.zkteco.com Copyright©2019 ZKTECO CO., LTD. All rights reserved. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference, (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedin portableexposureconditionwithoutrestriction. No.26,Pingshan188Industryzone, TangxiaTown,DongguanCity, GuangdongProvince,China523728

ZKTECO CO., LTD. Letter of Authorization Company: ZKTECO CO., LTD. Address: No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Product Name: Wireless Hotel Lock Model Number: ZL400 FCC Identifier: 2AJ9T-ZL400 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Zhonglie Ge Date: 2020-04-20 Title: Engineer

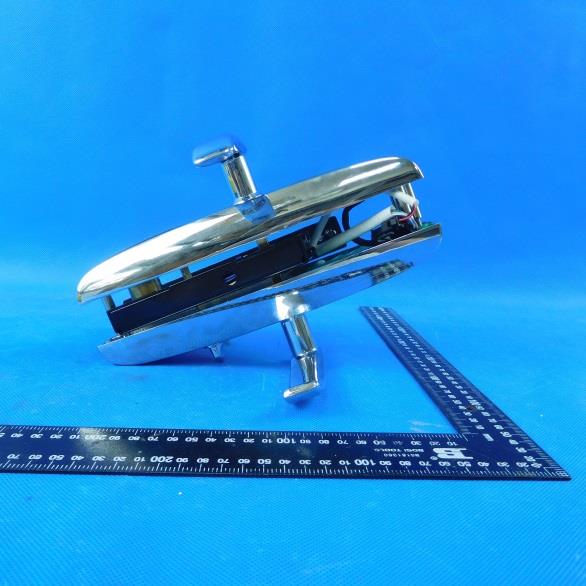

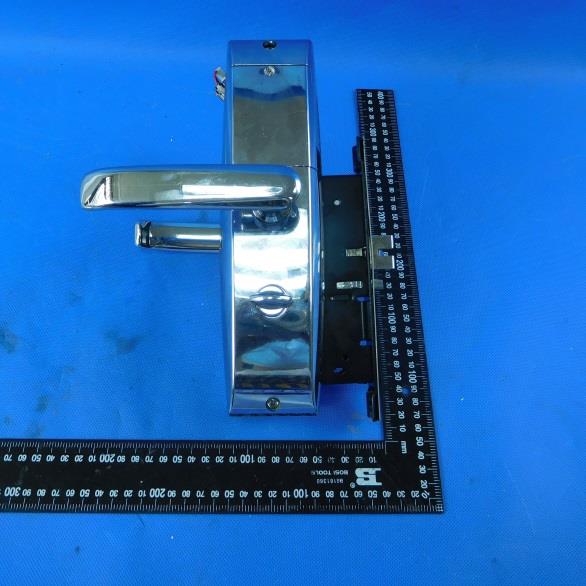

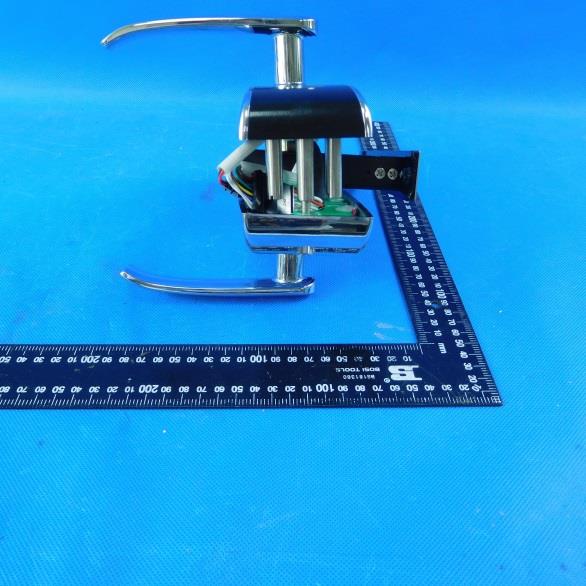

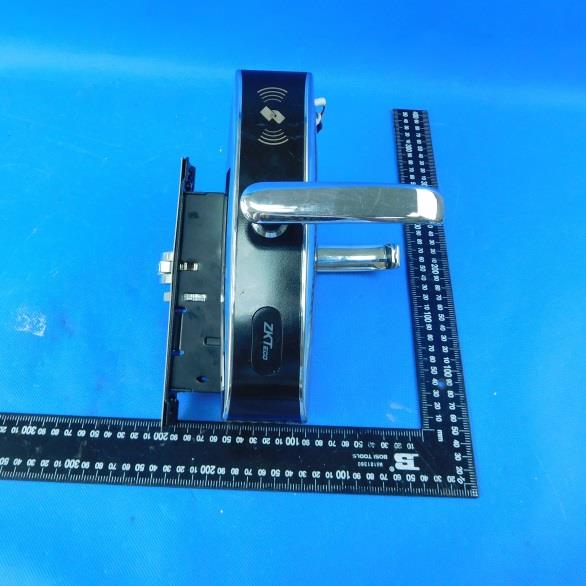

External Photos

Label location

Internal Photos

Page: 1 of 32 TEST REPORT Report No. ...................................... : CHTEW20040114 Report Verification : Project No.................................: SHT1910069302EW FCC ID ............................................. : 2AJ9T-ZL400 Applicant’s name ........................... : ZKTECO CO., LTD. Address ............................................. : No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Manufacturer....................................: ZKTECO CO., LTD. Address ............................................. : No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Test item description .................... : Wireless Hotel Lock Trade Mark ....................................... : ZKTECO Model/Type reference ....................... : ZL400 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of receipt of test sample..........: Nov.04, 2019 Date of testing..............................: Nov.04, 2019- Apr.15, 2020 Date of issue................................: Apr.16, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators Echo Wei Supervised by (position+printedname+signature) .... : Project Engineer Kiki Kong Approved by (position+printedname+signature) .... : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No : CHTEW20040114 Page 2 of 32 Issued: 2020-04-16 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST STANDARDS AND REPORT VERSION 3 1.1. Test Standards 3 1.2. Report version information 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 5 4. TEST CONFIGURATION 6 4.1. Test frequency list 6 4.2. Test mode 6 4.3. Support unit used in test configuration and system 6 4.4. Testing environmental condition 7 4.5. Measurement uncertainty 7 4.6. Equipment Used during the Test 8 5. TEST CONDITIONS AND RESULTS 10 5.1. Antenna requirement 10 5.2. AC Conducted Emissions 11 5.3. 20 dB bandwidth 12 5.4. Radiated field strength of the fundamental signal 14 5.5. Radiated Band edge Emission 16 5.6. Radiated Spurious Emission 19 6. TEST SETUP PHOTOS OF THE EUT 24 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 26 Report No : CHTEW20040114 Page 3 of 32 Issued: 2020-04-16 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Report version information Revision No. Date of issue Description N/A 2020-04-16 Original Report No : CHTEW20040114 Page 4 of 32 Issued: 2020-04-16 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Note: ‒ The measurement uncertainty is not included in the test result. Report clause Test Item Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203 PASS N/A 5.2 AC Conducted Emission 15.207 N/A N/A 5.3 20dB Bandwidth 15.215/15.249 PASS Jiongsheng Feng 5.4 Field strength of the Fundamental signal 15.249(a) PASS Jiongsheng Feng 5.5 Radiated Band Edge Emission 15.249(a)15.205/15.209 PASS Pan Xie 5.6 Radiated Spurious Emission 15.249(d)15.205/15.209 PASS Pan Xie Report No : CHTEW20040114 Page 5 of 32 Issued: 2020-04-16 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: ZKTECO CO., LTD. Address: No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 Manufacturer: ZKTECO CO., LTD. Address: No.26,Pingshan 188 Industry zone,Tangxia Town,Dongguan City,Guangdong Province,China 523728 3.2. Product Description Name of EUT: Wireless Hotel Lock Trade Mark: ZKTECO Model No.: ZL400 Listed Model(s): - Power supply: DC 6V by 1.5*4AA battery Adapter information: - Hardware Version: V1.02 Software Version: V1.03 3.3. Radio Specification Description Operation frequency: 2405~2480MHz Channel number: 16 Modulation Type: GFSK Antenna type: Monopole antenna Antenna gain: 2dBi 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Qualifications Type Accreditation Number CNAS L1225 A2LA 3902.01 FCC 762235 Canada 5377A Report No : CHTEW20040114 Page 6 of 32 Issued: 2020-04-16 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 4. TEST CONFIGURATION 4.1. Test frequency list According to section 15.31(m), regards to the operating frequency range over 10 MHz, must select three channel which were tested. the Lowest frequency, the…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS OF THE EUT Radiated Emissions
