2AJE9MR-2400MBWireless transceiver unit

IM-A-1457 July 2023 User’s manual The module is only approved for use by the grantee in its own products and not intended for sale to third parties. T he user manual for integration instructions are internal confidential manufacturing documents. For the details about this module, please refer to the specification sheet of the module. This module should be installed in the host device according to the interface specification (installation procedure). Identifier marking for 2.4GHz band RF SiP MR-2400MB modules The module is a Surface Mount Device SiP (System in Package) soldered onto the end product and is not accessible to the end-user. It is not possible for the end-user to replace or remove the module. The outline size is 6.5 x 6.5 mm. The identification marking is made by sticker (see Figure- 1): - Readable module name - Company Logo The size of the marking area is only 4.0 x 6.0 mm, thus the size of the module/label makes it impossible to print the FCC and IC IDs on the identifier label in a print size of 4 points or larger. Instead the FCC, CE-Red, MIC and NCC IDs are printed on the cardboard box as well as the modules user manual of the end devices. Figure-1 MR-2400MB with identifier marking. This device complies with radio regulations of below countries and region. 1) Regulatory information for Japan Radio Law The MR-2400MB module comply with the Japanese Technical Regulation Conformity Certification of Specified Radio Equipment (ordinance of MPT No. 37, 1981), Article 2, Paragraph 1: Item 19 "2.4 GHz band wide band low power data communication system". End products based on MR-2400MB module and targeted for distribution in Japan must be affixed with a label with the “Giteki” marking or certification number. The marking or certification number must be visible for inspection. Also, the following statements must be described on the user manual of the host device of this module; 本製品は，電波法に基づく小電力データ通信システムの無線局の無線設備（技術基準 適合認定：証明規則第2条第1項第19号）として，認証を受けています。 従って，本製品を使用するときに無線局の免許は必要ありません。 ただし，以下の事項を行うと法律で罰せられることがあります。 ・本製品を分解／改造すること ・本製品に貼ってある証明ラベルをはがすこと 機器名称：MR-2400MB 工事設計認証番号：007-AM0009 Statement translation: The product has been certified as a low-power data communications system in the 2.4 GHz band (Technical Regulations Conformity Certification System: Ordinance of MPT No. 37, 1981, Article 2, paragraph 1, item (19)) according to the Radio Law of Japan. Accordingly, no radio equipment license is required to use this product. However, the following actions may be punishable under law: • Disassembling or modifying the product. • Removing the certification label on the product. Name of radio equipment: MR-2400MB Number of type certification: 007-AM0009 * If it is difficult to describe this statement on the host product due to the size, please describe it in the User's manual. The auxiliary label will have at least the information shown in the figure below: Figure-2 MR-2400MB auxiliary label for Japan Radio Low AM0009 2) Regulatory information for FCC(U.S.A.) The MR-2400MB module is FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart C compliance testing with the modular transmitter installed. Fine tuning of return loss etc. can be performed using a matching network. However, it is required to check "Class1 change" and "Class2 change" which the authorities define then. The following information must be indicated on the host device of this module; Contains Transmitter Module FCC ID: 2AJE9MR-2400MB or Contains FCC ID: 2AJE9MR-2400MB This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. * If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment is not certified as type of the portable device with FCC Rules. Then, please use within specification of this product and have a separation distance of minimum 20 mm between the user and/or bystander and the antenna and /or radiating element. Digital devices used EXCLUSIVELY as industrial, commercial or medical test equipment. "Test equipment" includes devices used for maintenance, research, evaluation, simulation and other analytical or scientific applications in areas such as industrial plants, public utilities, hospitals, universities, laboratories, automotive service centers and electronic repair shops. If the final host is installed at the areas that are not subject to 15.103(c) exempted devices from Part 15 subpart B, it requires Part 15 Subpart B compliance testing. FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product." Antenna list: No Antennas Cable Brand name Model name Antenna type Antenna gain[dBi] Combination Total loss[dB] Total gain[dBi] A HWaYaoTek DA-2450- 03RP- SMA-04 Dipole antenna 4.3 1+2 1.01 3.29 B FUTABA EXT- ANT2 Patch antenna 1.95 1+2 1.01 0.94 Cable Product number Length Insertion los…

Text truncated - open the document above for the full version.

Test report No. : 4790723321-EP Page : 1 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Product Photos External Photos Outview: MR-2400MB with Tai-Saw crystal Pic 1 Outview: MR-2400MB with Tai-Saw crystal Pic 2 Test report No. : 4790723321-EP Page : 2 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: MR-2400MB with Epson crystal Pic 1 Outview: MR-2400MB with Epson crystal Pic 2 Test report No. : 4790723321-EP Page : 3 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: DA-2450-03RP-SMA-04 Pic 1 Accessory: DA-2450-03RP-SMA-04 Pic 2 Test report No. : 4790723321-EP Page : 4 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: DA-2450-03RP-SMA-04 Pic 3 Test report No. : 4790723321-EP Page : 5 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: EXT-ANT2 Pic 1 Accessory: EXT-ANT2 Pic 2 Test report No. : 4790723321-EP Page : 6 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: EXT-ANT2 Pic 3 Accessory: EXT-ANT2 Pic 4 Test report No. : 4790723321-EP Page : 7 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: EXT-ANT2 Pic 5 Test report No. : 4790723321-EP Page : 8 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AA-562-2020(SMA-MHF_harness(150mm) Pic 1 Accessory: AA-562-2020(SMA-MHF_harness(150mm) Pic 2 Test report No. : 4790723321-EP Page : 9 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AA-562-2020(SMA-MHF_harness(150mm) Pic 3

The module is a Surface Mount Device SiP (System in Package) soldered onto the end product and is not accessible to the end-user. It is not possible for the end-user to replace or remove the module. The outline size is 6.5 x 6.5 mm. The identification marking is made by sticker (see Figure-1): - Readable module name - Company Logo The size of the marking area is only 4.0 x 6.0 mm, thus the size of the module/label makes it impossible to print the FCC and IC IDs on the identifier label in a print size of 4 points or larger. Instead the FCC, CE-Red, MIC and NCC IDs are printed on the cardboard box as well as the modules user manual of the end devices. Figure-1 MR-2400MB with identifier marking.

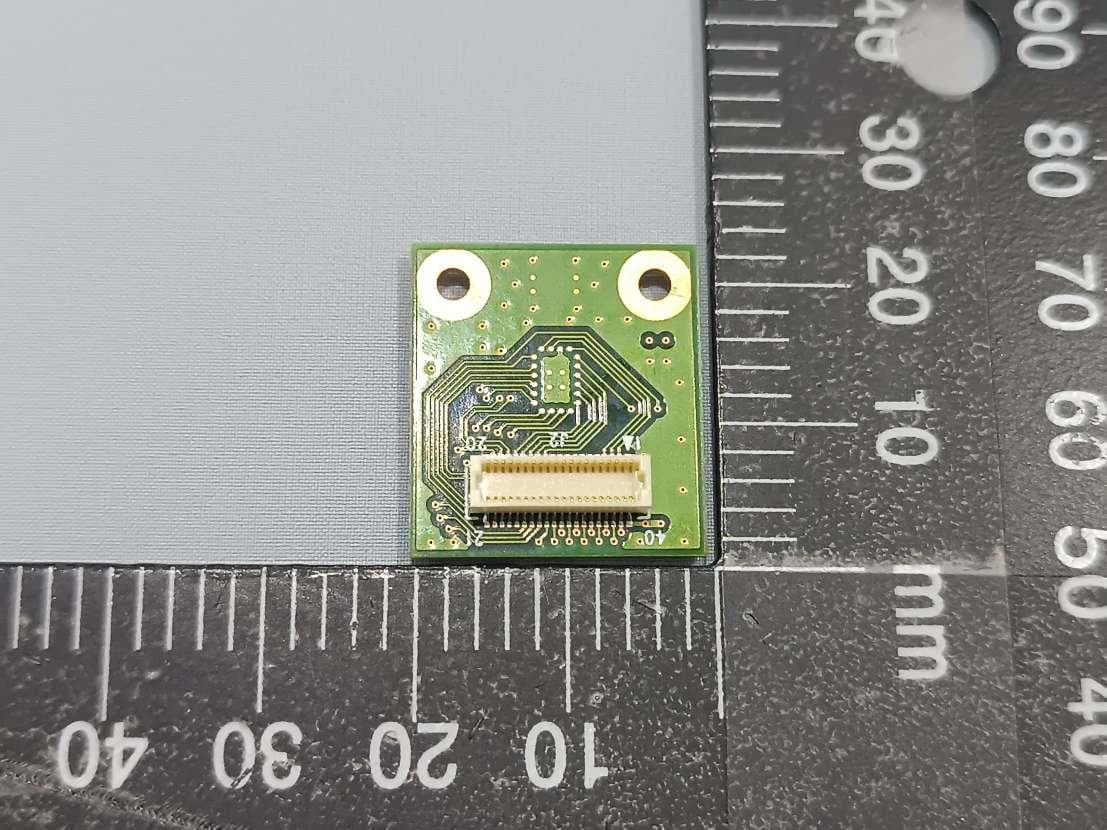

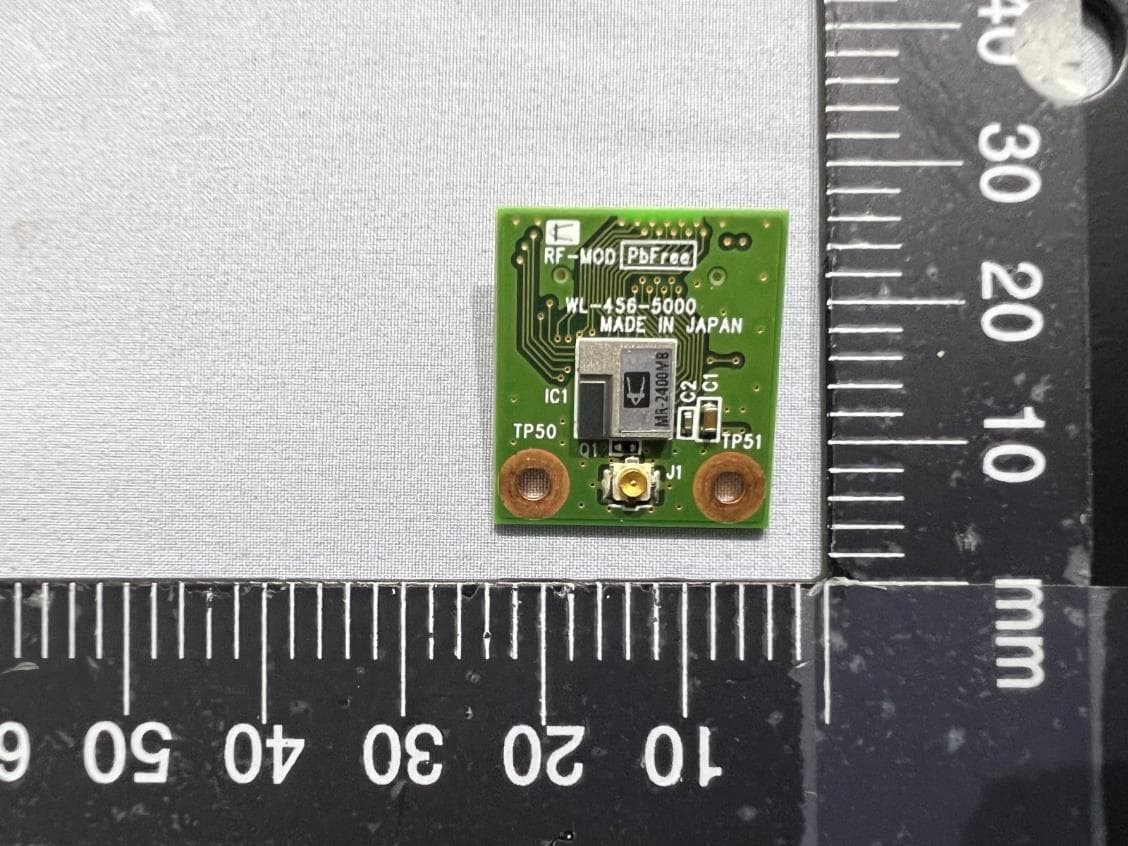

Test report No. : 4790723321-EP Page : 10 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos MR-2400MB with Tai-Saw crystal Pic 1 MR-2400MB with Tai-Saw crystal Pic 2 Test report No. : 4790723321-EP Page : 11 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 MR-2400MB with Tai-Saw crystal Pic 3 Test report No. : 4790723321-EP Page : 12 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 MR-2400MB with Epson crystal Pic 1 MR-2400MB with Epson crystal Pic 2 Test report No. : 4790723321-EP Page : 13 of 13 Issued date : Jul. 20, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 MR-2400MB with Epson crystal Pic 3

Test report No. : 4790723321-US-10-V0 Page : 1 of 11 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: Form-ULID-004725 (DCS:17-EM-F0864) / 5.1 Maximum Permissible Exposure Report Product : Wireless transceiver unit Model Name : MR-2400MB FCC ID : 2AJE9MR-2400MB Test Regulation : 47 CFR FCC Part 2.1091 Received Date : 2023/2/7 Test Date : 2023/2/10 ~ 2023/2/17 Issued Date : 2023/6/29 Applicant : Kyowa Electronic Instruments Co., Ltd. 3-5-1 Chofugaoka, Chofu, Tokyo 182-8520 Japan Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790723321-US-10-V0 Page : 2 of 11 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: Form-ULID-004725 (DCS:17-EM-F0864) / 5.1 REVISION HISTORY Original Test Report No.: 4790723321-US-R1-V0 Rev. Test report No. Date Page revised Contents Original 4790723321-US-R1-V0 2023/6/29 - Initial issue Test report No. : 4790723321-US-10-V0 Page : 3 of 11 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: Form-ULID-004725 (DCS:17-EM-F0864) / 5.1 Table of Contents 1. Attestation of Test Results ......................................................................................... 4 2. Test Methodology and Reference Procedures .......................................................... 5 3. Facilities and Accreditation ....................................................................................... 5 4. Equipment Under Test ............................................................................................... 6 4.1. Description of EUT .............................................................................................. 6 4.2. Description of Available Antennas ....................................................................... 7 5. Requirement ................................................................................................................ 8 6. General RF Exposure Test Exemption ..................................................................... 9 7. Radio Frequency Radiation Exposure Evaluation ................................................ 11 Test report No. : 4790723321-US-10-V0 Page : 4 of 11 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: Form-ULID-004725 (DCS:17-EM-F0864) / 5.1 1. Attestation of Test Results APPLICANT: Kyowa Electronic Instruments Co., Ltd. 3-5-1 Chofugaoka, Chofu, Tokyo 182-8520 Japan MANUFACTURER: Kyowa Electronic Instruments Co., Ltd. 3-5-1 Chofugaoka, Chofu, Tokyo 182-8520 Japan EUT DESCRIPTION: Wireless transceiver unit BRAND: KYOWA MODEL: MR-2400MB SAMPLE STAGE: Engineering Verification Test sample APPLICABLE STANDARDS STANDARD Test Results 47 CFR FCC Part 2.1091 PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Prepared By: Approved and Authorized By: Cindy Hsin Date : 2023/6/29 Eric Lee Date : 2023/6/29 Project Handler Senior Laboratory Engineer Test report No. : 4790723321-US-10-V0 Page : 5 of 11 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: Form-ULID-004725 (DCS:17-EM-F0864) / 5.1 2. Test Methodology and Reference Procedures The tests documented in this report were performed in accordance with KDB 447498 D04 Interim General RF Exposure Guidance v01. 3. Facilities and Accreditation Test Location Underwriters Laboratories Taiwan Co., Ltd. Address Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Accreditation Certificate Underwriters Laboratories Taiwan Co., Ltd. is accredi…

Text truncated - open the document above for the full version.

Test report No. : 4790723321-US-R0-V0 Page : 1 of 51 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 RADIO TEST REPORT Product : Wireless transceiver unit Model Name : MR-2400MB FCC ID : 2AJE9MR-2400MB Test Regulation : FCC 47 CFR Part 15 Subpart C (Section 15.247) Received Date : 2023/2/7 Test Date : 2023/2/10 ~ 2023/2/17 Issued Date : 2023/6/29 Applicant : Kyowa Electronic Instruments Co., Ltd. 3-5-1 Chofugaoka, Chofu, Tokyo 182-8520 Japan Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790723321-US-R0-V0 Page : 2 of 51 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 REVISION HISTORY Original Test Report No.: 4790723321-US-R0-V0 Rev. Test report No. Date Page revised Contents Original 4790723321-US-R0-V0 2023/6/29 - Initial issue Test report No. : 4790723321-US-R0-V0 Page : 3 of 51 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 Table of Contents 1. Attestation of Test Results ............................................................................................. 4 2. Summary of Test Results ............................................................................................... 5 3. Test Methodology and Reference Procedures ............................................................ 6 4. Facilities and Accreditation ........................................................................................... 6 5. Measurement Uncertainty ............................................................................................. 7 6. Equipment under Test ................................................................................................... 8 6.1. Description of EUT ............................................................................................. 8 6.2. Channel List ......................................................................................................... 9 6.3. Test Condition ................................................................................................... 10 6.4. Description of Available Antennas .................................................................... 11 6.5. Test Mode Applicability and Tested Channel Detail ........................................ 12 6.6. Duty cycle .......................................................................................................... 13 7. Test Equipment ............................................................................................................. 14 8. Description of Test Setup............................................................................................. 16 9. Test Results ................................................................................................................... 18 9.1. 6dB Bandwidth .................................................................................................. 18 9.2. Conducted Output Power ................................................................................... 20 9.3. Power Spectral Density ..................................................................................... 22 9.4. Conducted Out of Band Emission ..................................................................... 24 9.5. Radiated Spurious Emission .............................................................................. 28 9.6. AC Power Line Conducted Emission ................................................................ 48 Test report No. : 4790723321-US-R0-V0 Page : 4 of 51 Issued date : 2023/6/29 FCC ID : 2AJE9MR-2400MB Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 1. Attestation of Test Results APPLICANT: Kyowa Electronic Instruments Co., Ltd. 3-5-1 Chofugaoka, Chofu, Tokyo 182-8520 Japan MANUFACTURER: Kyowa Electronic Instruments Co., Ltd. 3-5-1 Chofugaoka, Chofu, Tokyo 182-8520 Japan EUT DESCRIPTION: Wireless transceiver unit BRAND: KYOWA MODEL: MR-2400MB SAMPLE STAGE: Engineering Verification Test sample DATE of TESTED: 2023/2/10 ~ 2023/2/17 APPLICABLE STANDARDS STANDARD Test Results FCC 47 CFR PART 15 Subpart C (Section 15.247) PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the…

Text truncated - open the document above for the full version.

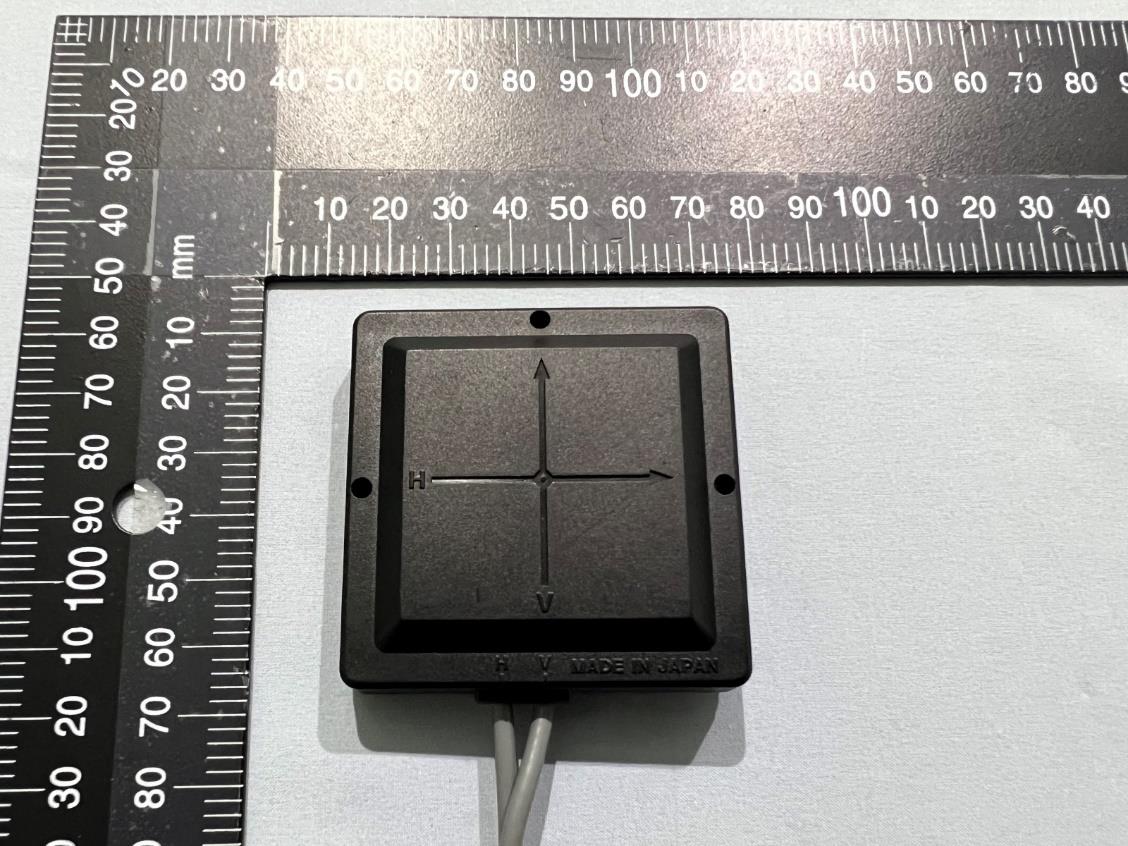

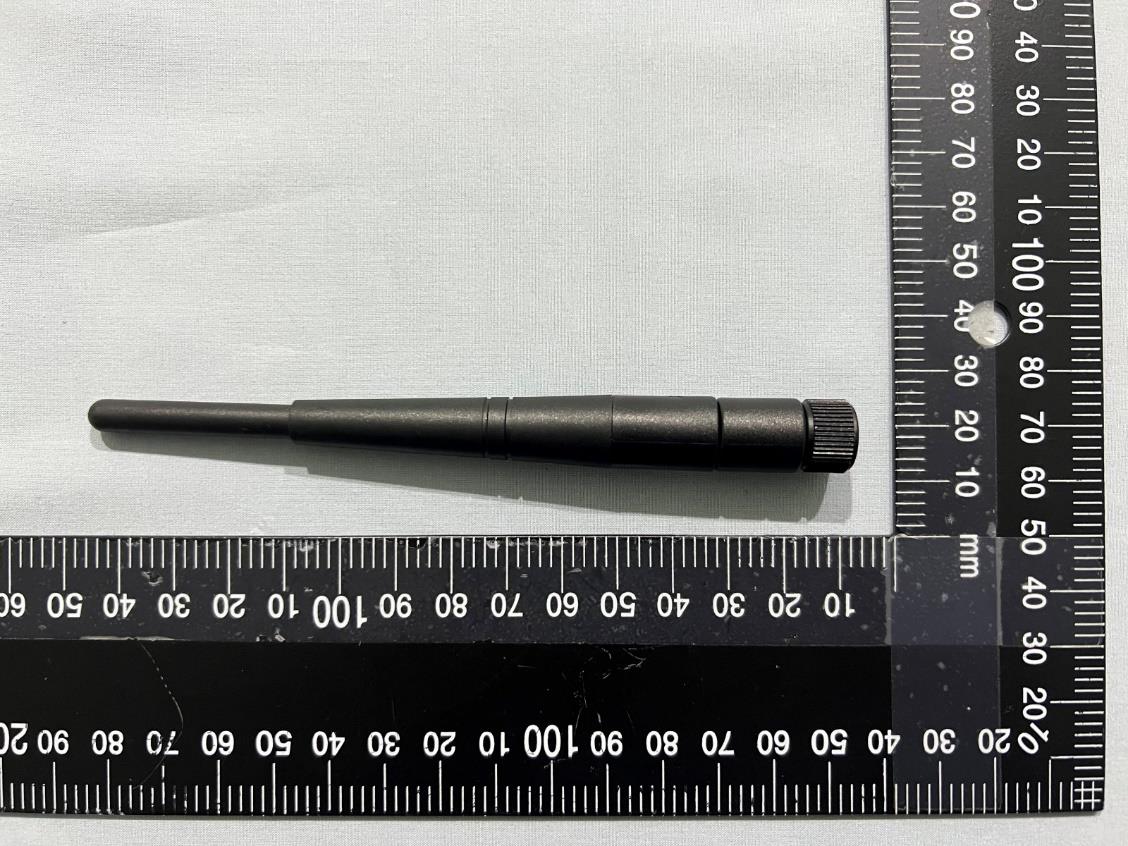

10 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 6: Antenna specification; 12 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 6- 2: Description of Available antennas for FCC NoAntennasCables Model name Antenna type Antenna gain[dBi] Combination (refer to cable list) To t a l loss[dB] To t a l gain[dBi] e.i.r.p. [dBm e.i.r.p.] A DA-2450- 03RP-SMA- 04 dipole antenna 4.31+21.013.2912.04 B EXT-ANT2 Patch antenna 1.951+21.010.949.69 * Change the emission power of radio module to 8.53dBm. 15 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. A: Antenna specification: DA-2450-03RP-SMA-04 Brand nameHWaYaoTek Model nameDA-2450-03RP-SMA-04 Manufacturer information Hwa Yao Technologies Co., Ltd. No.1, Ln. 32, Zhengnan8 thSt., Yongkang Dist., Tainan City 710, Taiwan (R.O.C.) Antenna gain result (table) Please see the slide 12(for FCC) and 13(for NCC). gain pattern plotsPlease see the slide 15 and the spec. sheet. 16 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. A: Antenna specification: DA-2450-03RP-SMA-04 VSWR 17 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. B: Antenna specification: EXT-ANT2 Brand nameFUTABA Model nameEXT-ANT2 Manufacturer information FUTABA CORPORATION 629, Oshiba, Mobara, Chiba Prefecture 297- 8588, Japan Frequency range 2.4GHz～2.5GHz （VSWR<2.0） Antenna typePatch antenna Connector typeSMA-P (Reversed type*) Antenna gain1.95dBi * D-C16-086-A-G is connected to SMA-P and molded by heat shrinkable tube for converting to SMA-R P. 18 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. B: Antenna specification: EXT-ANT2(Cont.) VSWR ーV偏波アンテナ ーH偏波アンテナ Radiation patterns(Free space) ー2400MHz 19 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. B: Antenna specification: EXT-ANT2(Cont.) Radiation patterns(Free space) ー2450MHz Radiation patterns(Free space) ー2500MHz Frequency[ MHz] 240024502500 Antenna gain[dBi] 1.951.911.91 26 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 7: Cable information 27 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. Description of Available Cables Product numberLengthInsertionloss １WL-456-5000Referto attached slide0.38dB ２ AA-562-2020(SMA-MHF_harness(150mm)) 150mm0.63dB 28 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 7-1: WL-456-5000: Internal layer pattern Insertion loss of the Strip line:0.38dB(@2.45GHz) Transmission line RF port of MR-2400MB Connector for external antenna 29 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 7- 2: AA-562-2020: SMA-MHF_harness(150mm) Insertion loss: 0.63dB Drawing

Page : 1 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Radiated Spurious Emission Setup Configurations Above 1GHz Dipole Antenna Page : 2 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Patch Anternna Page : 3 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 30 MHz ~ 1 GHz Dipole Antenna Page : 4 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Patch Anternna Page : 5 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 9 kHz ~ 30 MHz Dipole Antenna Page : 6 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Patch Anternna Page : 7 of 7 Issued date : 2023/6/29 Project No. : 4790723321 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 AC Power Line Conducted Emission Setup Configurations

33 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos 34 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of Antennas 35 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of DA-2450-03RP-SMA-04 36 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of DA-2450-03RP-SMA-04 38 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of EXT-ANT2 39 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 41 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of antennas and cables 42 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of AA-562-2020(SMA-MHF_harness(150mm)) 43 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of AA-562-2020(SMA-MHF_harness(150mm)) 48 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External photos of MA-2400MB 49 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 8- 1: External Photos of MA-2400MB MA-2400MB is molded by the coating device with electrically shielded . Tt is difficult for users to open the RF circuit. 50 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 8- 2: Photos of test board for MA-2400MB Photo of test equipment Radio module: MR-2400MB Rf Output 51 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. External drawing of MR-2400MB 52 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 8- 3: External drawing of MR-2400MB 53 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 8- 3: External drawing of MR-2400MB(Cont.) 54 CONFIDENTIAL © 2022 KYOWA ELECTRONIC INSTRUMENTS CO., LTD. 9- 1: Test method & equipment list Test method ーCalibration •Define the average receiving power of dipole antenna with omni directional as the antenna gain of 2.15 dBi. ーMeasurement of test antenna •Measure the receiving power of the test antenna. •Convert the receiving antenna (dBm) to theantennagain (dBi). Test setup & equipment list
