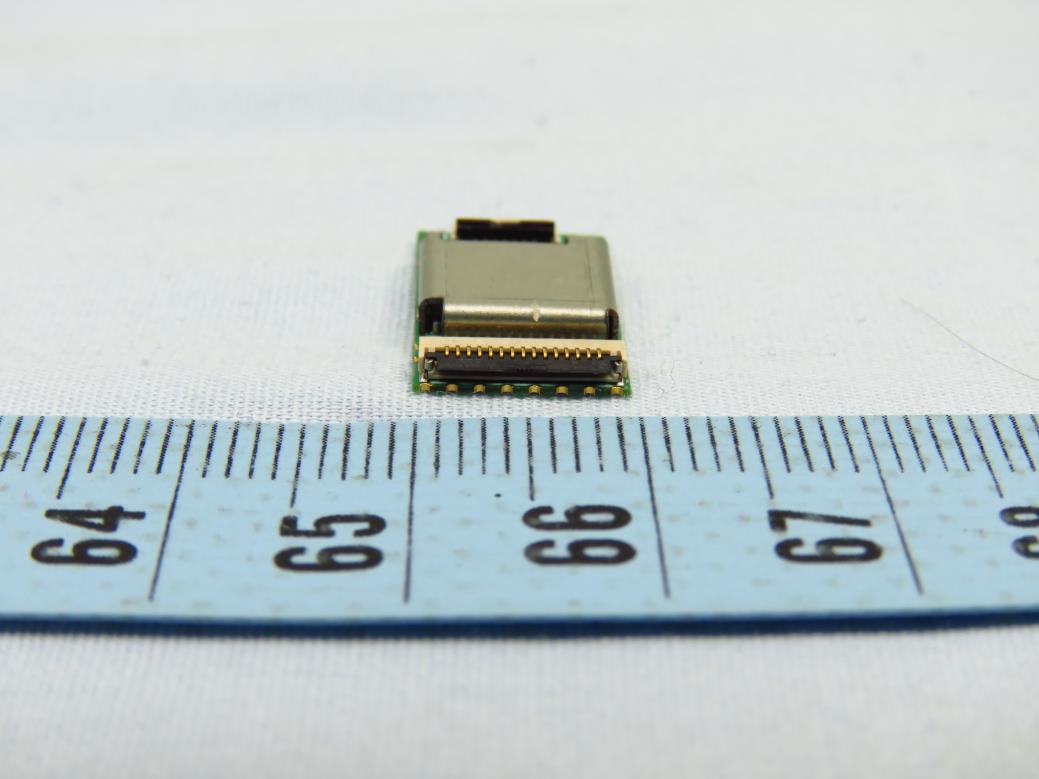

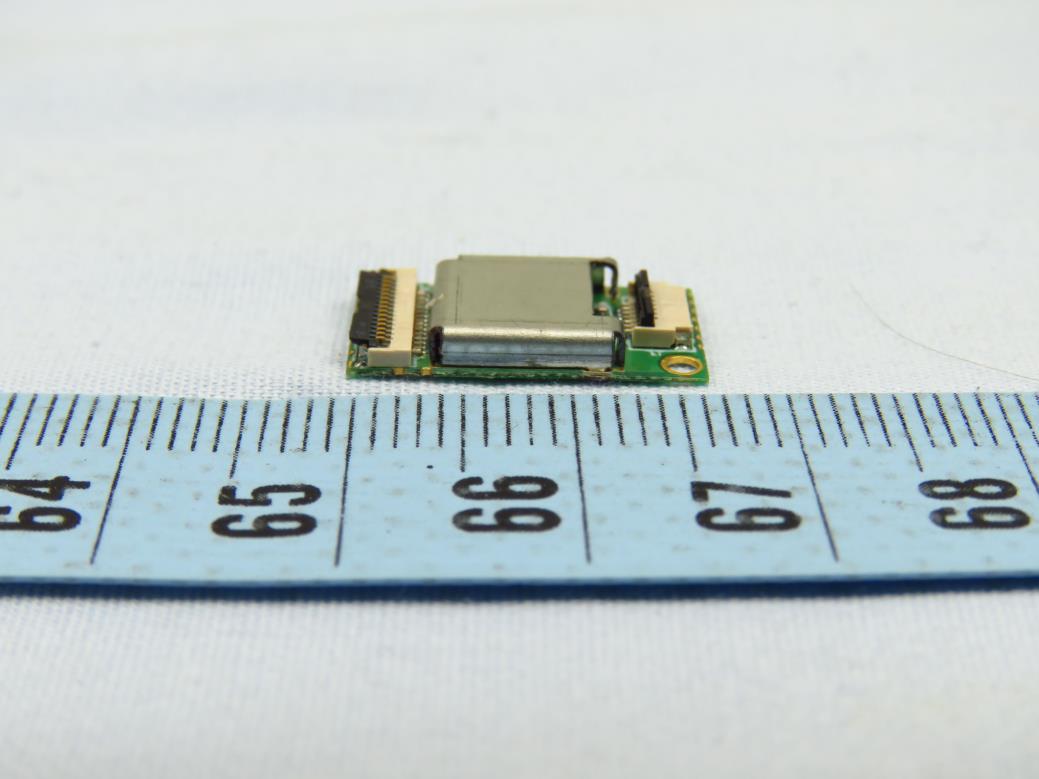

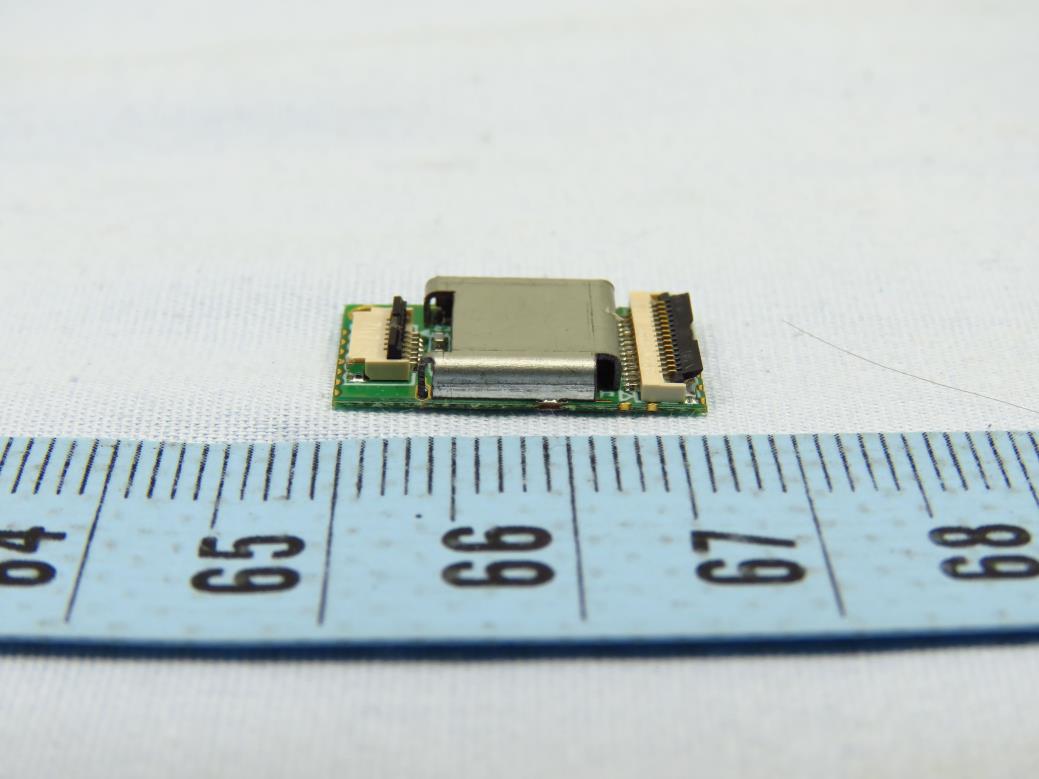

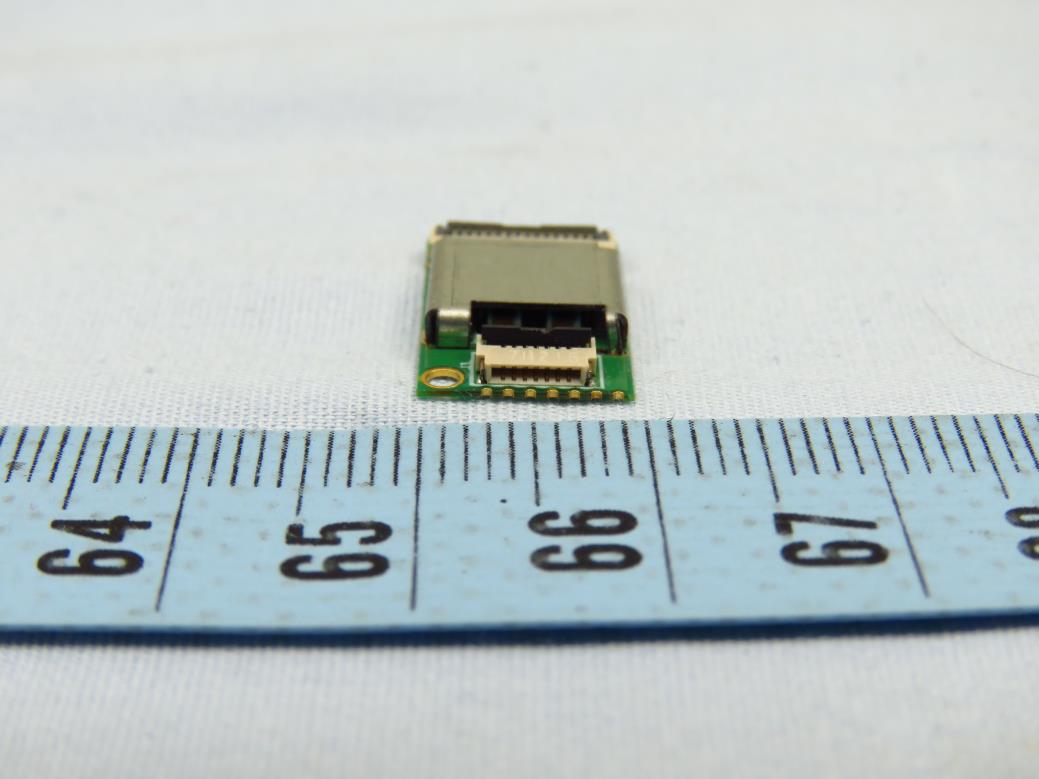

2AJIC-HB300NNFC module

HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan HB Wireless Communication Technology HB300N USER MANUAL FCC ID: 2AJIC-HB300N Model Name: HB300N Product Name: NFC module Description: NFC reader/writer module compatible Version: V1.0 HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan Contents 1. Introduction .......................................................................................................... 3 2. Hardware Block Diagram ................................................................................... 4 3. Pin Definition ........................................................................................................ 5 3.1 Host Interface ............................................................................................. 5 3.2 Antenna Interface ....................................................................................... 6 4. Power & Current Consumption ......................................................................... 7 4.1 Power modes & Power Reset ........................................................................ 7 4.1.1 Power modes ................................................................................ 7 4.1.2 Reset and download concept ......................................................... 7 4.3 5V Condition .............................................................................................. 9 4.4 Total Condition ........................................................................................ 10 5. Reference Circuit ............................................................................................... 11 4.1 No SIM Card ............................................................................................ 11 5.2 SIM Card used ......................................................................................... 11 6. Dimension & FPC Connector Mechanical ...................................................... 12 7. Certifications and Regulatory ........................................................................... 14 8. Marking .............................................................................................................. 23 HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan 1. Introduction HB300N is a kind of NFC module that could be embedded in one IT system by simply connecting the module through I2C interface and start developing his ap- plication soft. Top Side Bottom Side HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan 2. Hardware Block Diagram HB300N is a full feature NFC module and compliant with NFC standards (NFC Forum, EMVCo, ETSI/SCP). HB300N has an optimized architecture for low-power consumption in different operation modes. The RF contactless front-end is supporting various transmission modes according to NFCIP-1, NFCIP-2, ISO/IEC1444e, ISO/IEC 15693, ISO-14443, MIFARE, and FeliCa specifications. The major internal components are illustrated in Figure 1-1 Note: *Host FPC/FFC Connector: Allow user to connect the HB300N module to the host board via FPC/FFC connector. *Antenna Connector Connected to FPC antenna, please note that matching circuitry should be design on antenna. HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan 3. Pin Definition 3.1 Host Interface Pin number Name Configuration Description 1 MOD_VDD Power Supply Input Module power supply 2 MOD_GND Power Supply Ground Module ground 3 SWP Input/ Output Single Wire Protocol line to UICC/ SIM 4 MOD_VUP Power Supply Input Power supply for RF Front-end 5 IRQ Output Interrupt request from module to platform 6 VDD_SIM (PMUVCC) Power supply input The power rail used to power UICC/SIM. Applicable in a sys- tem where NFC module used SWP to communicate with an UICC/SIM in the platform 7 I 2 C_SDA Input/ Output I 2 C data 8 I 2 C_SCL Input I 2 C clock 9 MOD_GND Input Used for extra GND for signal integrity 10 Reset/ WakeUp Input Reset pin input from the host to wake up the device from standby and also to reset the device 11 DWL_REQ Input Control pin to set the NPC300 in firmware download mode 12 SWP_PWR (SIM_VCC) Power Supply Output Power supply to UICC/SIM or power supply “request” to PMIC. Applicable in a system where NFC module uses SWP to com- municate with an UICC/SIM in the platform 13 MOD_VDD Power supply input Additional pin for module power supply to support higher current capacity 14 VDD_IO Power supply input Host IO reference voltage 15 MOD_GND Power Supply Ground Module ground HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan 3.2 Antenna Interface Pin number Name Configuration Description 1 ANT1 Output Antenna connection for Card emulation 2 RXP Input Contactless receiver input 3 TX1 Output Contactless receiver output 1 4 GND Ground Transmitter ground 5 TX2 Output Contactless receiver output 2 6 RXN Input Contactless receiver input 7 ANT2 Output Antenna connection for Card emulation HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan 4. Power & Current Consumption 4.1 Power modes & Power Reset 4.1.1 Power modes 4.1.2 Reset and download concept To enter reset there are 2 ways: • Pulling VEN voltage low (Hard Power Down state) • if VBAT monitor is enabled: lowering VBAT below the monitor threshold (Monitor state, if VEN voltage is kept above 1.1 V) To get out of reset: • Pulling VEN voltage high with VBAT above VBAT monitor threshold if enabled HONGBO WIRELESS COMMUNICATION TECHNOLOGY CO.,LTD. 4F., No.143, Sinhu 1 st Rd., Neihu Dist, Taipei City 11494, Taiwan 4.2 3.3V Condition Test Condition: MOD_VDD = 3.3V, VDD_IO= 3.3V, MOD_V…

Text truncated - open the document above for the full version.

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: The product is a low power device and its output power is lower than FCC SAR exemption level. This device is intended only for OEM integrators under the following conditions: The transmitter module may not be co-located with any other transmitter or antenna. The co-transmitting with other radio will need a separate evaluation. As long as this condition is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that this condition cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: 2AJIC-HB300N”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. *********************************************************************** This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicable FCC rules This module has been tested for compliance to FCC Part C (Section 15.225) as an End User Device. 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) or being used in a portable condition will need a separate reassessment through a class II permissive change application or new certification. 2.4 Limited module procedures Not applicable. 2.5 Trace antenna designs Not applicable. 2.6 RF exposure considerations The product is a low power device and its output power is lower than FCC SAR exemption level. 2.7 Antennas The following antennas have been certified for use with this module; antennas of the same type with equal or lower gain may also be used with this module. • Antenna type: Loop 2.8 Label and compliance information The final end product must be labeled in a visible area with the following: “Contains FCC ID: 2AJIC-HB300N”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. 2.9 Information on test modes and additional testing requirements This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) or portable use will require a separate class II permissive change re-evaluation or new certification. 2.10 Additional testing, Part 15 Subpart B disclaimer This transmitter module is tested as a subsystem and its certification does not cover the FCC Part 15 Subpart B (unintentional radiator) rule requirement applicable to the final host. The final host will still need to be reassessed for compliance to this portion of rule requirements if applicable. As long as all conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Manual Info…
