2AJKI-TITANTELFirefighter Telemetry System

TITAN ™ RF PASS NFPA 1981, 2018 EDITION COMPLIANT Operation Manual Rev B WARNING DO NOT USE this respirator until you completely read and understand this instruction manual. You are required to inspect your respirator prior to putting it into field service. Please refer to the inspection procedures in this manual. Failure to comply with this warning may lead to illness, personal injury, or death. Revision History Rev. Date Author Description A 12/21/2018 Steve Huseth Initial draft B 1/28/2019 Steve Huseth FCC Updates Honeywell TITAN RF PASS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter meets both portable and mobile limits as demonstrated in the RF Exposure Analysis. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Honeywell has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. Industry Canada Statements: Under Innovation, Science and Economic Development (ISCD) Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by ISCD Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power (ERP) is not more than that necessary for successful communication. This device contains license-exempt transmitter(s)/receiver(s) that comply with ISCD Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Honeywell TITAN RF PASS v TABLE OF CONTENTS TABLE OF CONTENTS ....................................................................................................................................... 5 I. DESCRIPTION ............................................................................................................................................... 6 II. TITAN RF PASS OPERATION ...................................................................................................................... 6 III. TELEMETRY AUXILARY MODULE OPERATION .......................................................................................... 7 1. Auxiliary Module LED Indications and Button Functions ........................................................................... 8 2. RFID Reader .............................................................................................................................................. 8 IV.INSTALLING THE SOFTWARE ...................................................................................................................... 9 V. TELEMETRY SOFTWARE OPERATION........................................................................................................ 9 3. Personal Accountability Report (PAR) .....................................................................................................10 4. Loss of Communications .........................................................................................................................10 5. Emergency Evacuation ............................................................................................................................11 6. Panic and Man-down Alarms ...................................................................................................................11 VI.ADDITIONAL INFORMATION .....................................................................................................................12 Honeywell TITAN RF PASS 6 I. DESCRIPTION The TITAN RF PASS provides the wearer with additional safety through continuous monitoring and communication with the incident commander. Using an advanced long range radio, the RF PASS is able to send air level, fault conditions, alarm status, and other sensor data to the incident commander and receive critical commands such as Personal Accountability Requests (PAR) and Emergency Evacuation. The TITAN RF PASS meets all requirements of the NFPA 1982 Standard, 2018 Edition for Wireless PASS. II. TITAN RF PASS OPERATION The Telemetry radio communicates to a Base Station Host Radio connected to a standard Windows PC running either Windows10 or Windows7. The PC uses the Honeywell Safety Suite Responder software to monitor all active SCBAs at the incident and send commands and receive data from all Titan SCBAs containing the RF PASS that are operating at the incident. The Titan 2018 SCBA will be connected to a standard PC through a wireless long range radio. The long-range radio reads the SCBA status and relays the information to the PC over a serial USB interface cable. It also accepts commands from the PC and informs the firefighter of commands such as PAR or evacuation alarm through audio and visual interfaces on the SC…

Text truncated - open the document above for the full version.

TITAN TELEMETRY RFPASS MODULE EXTERNAL PHOTOS

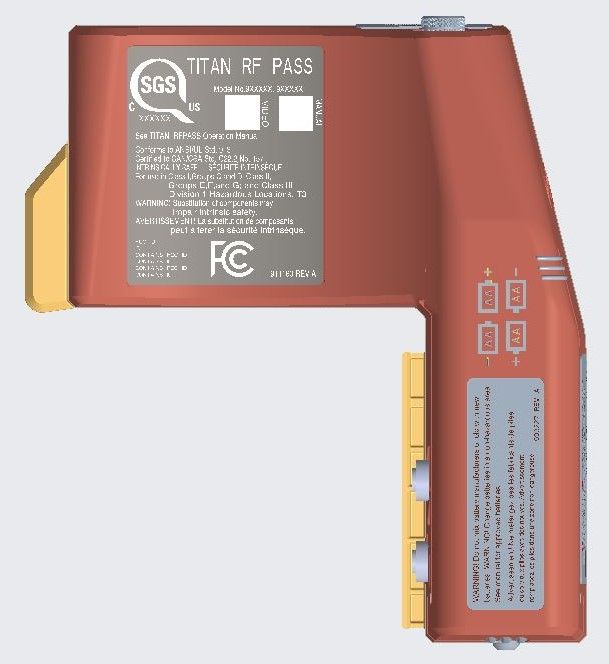

A B C D 43 A B 2 C 1 D 432 1 DATE APPROVED DATE DRAWN BY E.O. TYPE & NO. LTR REVISIONS NOTES: UNLESS OTHERWISE SPECIFIED THE MATERIAL DISCLOSED HEREON IS THE PROPRIETARY RIGHT OF HONEYWELL INTERNATIONAL INC. THIS DRAWING IS ISSUED IN CONFIDENCE FOR ENGINEERING INFORMATION ONLY AND MAY NOT BE USED TO MANUFACTURE ANYTHING SHOWN HEREON WITHOUT THE WRITTEN PERMISSION OF HONEYWELL INTERNATIONAL INC. MI OR MITP: CAD FILE NAME: PRO/E CAGE CODE C SIZE SHEETSCALE: DWG. NO. 56434 DRAWN ENGINEER APPROVAL FINAL PROTECTIVE FINISH: MATERIAL: UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES TOLERANCES: .XX
# .XXX
# ANGLES:
# SURFACE ROUGHNESS: ALL DIA'S REMOVE BURRS AND BREAK SHARP EDGES: MAX FILLET AND CORNER RADII: MAX DO NOT SCALE DRAWING " " DENOTES KEY CHARACTERISTIC PER EP-155 DIMENSIONING PER ANSI Y14.100-2013 PROJECTION: INTERPRET THREADS PER FED-STD-H28 OF Safety Products 3001 South Susan Street - Santa Ana, CA 92704 A ECN #2018-4930BNK02-01-19 911160 0.030.005 0.5 BNK BNK IS, RFPASS, LABEL, TELEMETRY 911160 2/1 AND NOTED 11 QUANTITY PARTS LIST PART NUMBERDESCRIPTIONDRAWING NUMBER ITEM NO. I. ART WORK OVERALL DIMENSIONS: 2.56
#.02 X 3.15
#.02 X .125 CORNER RADIUS II. MATERIAL 1: NONE MATERIAL 2: NONE III. PRINT COLORS(S): BLACK ON PANTONE 423, GREY BACKGROUND IV. PROTECTIVE FINISH: 1 MIL CLEAR PPET LAMINATION W/PERM ADHESIVE V. SUBSTRATE MATERIAL: 2 MIL WHITE C.I. 40#BG POLYESTER W/PERM ADHESIVE VI. ADHESIVE: S8020 PERMANENT, PRESSURE SENSITIVE, WATER-RESISTANT VII. SCORING: NONE VIII. FOLDING: NONE IX. STAPLING: NONE X. RECOMMENDED PACKAGING: ROLLS XI. SPECIAL INSTRUCTIONS: FONT - SANS SERIF, OPTIONAL WEATHERING AND TEMPERATURE EXTREMES. PRINTED MATERIAL SPECIFICATION(ART WORK NO.: 911160A-ART) VIDEO BAR CODE MANUAL BAR CODE 2. C OF C REQUIRED FOR MATERIALS AND ALL LISTED CHARACTERISTICS. 1. MAIN BODY TEXT TO BE 2MM HIGH, MINIMUM. SGS LOGO TO BE 10MM HIGH MINIMUM. ARTWORK TO BE AS PER IMAGE SHOWN REFER TO ARTWORK, VIEW IS FOR REFERENCE ONLY SCALE 2/1 ±.022.56 ±.023.15 4X R.125 2X .50 2X .50

TITAN TELEMETRY RFPASS MODULE INTERNAL PHOTOS

BLE Antenna Test Report Test Data Frequency (MHz) Efficiency (dB) Efficiency (%) Gain (dBi) 2400 -9.8041 10.4614 -3.18787 2405 -9.47939 11.2736 -3.02116 2410 -9.60191 10.96 -3.06801 2415 -9.61786 10.9198 -2.65459 2420 -9.68221 10.7592 -2.97583 2425 -9.72227 10.6604 -3.0127 2430 -9.28149 11.7991 -2.62967 2435 -9.39825 11.4862 -2.6458 2440 -9.29408 11.765 -2.5427 2445 -9.20258 12.0155 -2.46454 2450 -9.41201 11.4498 -2.54691 2455 -9.20843 11.9993 -2.44886 2460 -9.59213 10.9847 -2.73185 2465 -9.74988 10.5928 -2.76304 2470 -9.62387 10.9047 -2.47866 2475 -9.81114 10.4445 -2.86665 2480 -9.54545 11.1034 -2.56325 2485 -9.41317 11.4468 -2.51253 2490 -9.42917 11.4047 -2.45885 2D 3D RFID Test Data

Project Name TITAN RF PASS BoM Revision Rev 0.2 Board name TITAN RF PASS Main Board Board revision Rev A Date 29-Oct-18 IS Compon ent S.No LEVEL Mfg . Part No Manufacturer Description Qty Ref Designator First alternate Mfg . Part No First alternate part manufacturer Second alternate Mfg . Part No Second alternate part manufacturer Remarks 1 C0603X104K4RACTU Kemet CAP CER 0.1UF 16V X7R 0603 22 C3,C6,C7,C10,C12,C14-C16,C19,C26,C29,C45,C69,C70,C72,C73,C78-C82,C85 0603YC104KAT2A AVX CS0603KRX7R7BB104 Yageo 2 C1206C105K4RACTU Kemet CAP CER 1UF 16V X7R 1206 2 C8, C71 1206YC105JAT2A AVX CC1206JKX7R7BB105 Yageo 3 C0603T103K5RACTU Kemet CAP CER 10000PF 50V X7R 0603 7 C9,C18,C38,C39,C43,C44,C58 CGA3E2X7R1H103K080AA TDK 500R14W103KV4T Johanson Dielectrics Inc. 4 GRM188R71A225KE15D Murata CAP CER 2.2UF 10V X7R 0603 6 C13,C34,C35,C42,C51,C57 C0603C225K8RACTU Kemet C1608X7R1A225K080AE TDK 5 C0603C150J5GACTU Kemet CAP CER 15PF 50V C0G/NP0 0603 2 C30,C36 CGA3E2C0G1H150J080AA TDK 06035A150JAT4A AVX 6 GRM1885C1H152JA01D Murata CAP CER 1500PF 50V C0G/NP0 0603 2 C47,C48 C0603C152J5GACTU Kemet CGJ3E2C0G1H152J080AA TDK 7 GRM1885C1H122JA01D Murata CAP CER 1200PF 50V C0G/NP0 0603 2 C49,C50 C0603C122J5GACTU Kemet CGA3E2C0G1H122J080AA TDK 8 C0603C100J5GACTU Kemet CAP CER 10PF 50V C0G/NP0 0603 1 C54 06035A100JAT2A AVX 251R14S100JV4T Johanson Technology Inc. 9 C0603C221J5GACTU Kemet CAP CER 220PF 50V C0G/NP0 0603 1 C55 CGJ3E2C0G1H221J080AA TDK CL10C221JB8NNNC Samsung Electro-Mechanics 10 GRM1885C1H681JA01D Murata CAP CER 680PF 50V C0G/NP0 0603 2 C56,C60 C0603X681J5GACTU Kemet CGJ3E2C0G1H681J080AA TDK 11 C0603C101J5GACTU Kemet CAP CER 100PF 50V C0G/NP0 0603 2 C61,C84 CGJ3E2C0G1H101J080AA TDK 06035A101FAT2A AVX 12 C0402C270J5GACTU Kemet CAP CER 27PF 50V C0G/NP0 0402 2 C62,C63 CGA2B2C0G1H270J050BA TDK 00R07S270GV4T Johanson Technology Inc. 13 C0603C270J5GACTU Kemet CAP CER 27PF 50V C0G/NP0 0603 1 C64 CGA3E2C0G1H270J080AA TDK 14 C3216X7R1C106K160AC TDK CAP CER 10UF 16V X7R 1206 1 C74 C1206C106K4RACTU Kemet 15 C0603X105K4RACTU Kemet CAP CER 1UF 16V X7R 0603 3 C75-C77 CGA3E1X7R1C105K080AC TDK CL10B105MO8NNWC Samsung Electro-Mechanics 16 C0603C470J5GACTU Kemet CAP CER 47PF 50V C0G/NP0 0603 1 C83 06035A470JAT2A AVX 17 ACM2520-102-2P-T002 TDK CMC 200MA 2LN 1 KOHM SMD 2 CC1,CC4 18 ACM70V-701-2PL-TL00 TDK CMC 4A 2LN 700 OHM SMD AEC-Q200 2 CC2,CC3 19 CZRU52C3-HF Comchip Technology DIODE ZENER 3V 150MW 0603 1 D2 20 PESD3V3U1UB,115 Nexperia USA Inc. TVS DIODE 3.3VWM SOD523 1 D3 21 D12V0L1B2LP-7B Diodes Incorporated TVS DIODE 12V 25V DFN1006-2 8 D11-D16,D18,D19 22 MMZ1608B121CTAH0 TDK FERRITE BEAD 120 OHM 0603 1LN 3 FB1-FB3 23 73412-0110 Molex CONN UMC RCPT STR 50 OHM SMD 1 J2 24 502352-0400 Molex CONN HEADER 4POS 2MM R/A SMD 1 J3 25 502584-0660 Molex CONN RCPT 6CKT VERT BEIGE 2 J4,P1 26 1008CS-151XJLB Coilcraft Fixed Inductors 1008CS Ceramic Chip 150 nH 5 % 0.58 A 1 L8 27 1008CS-331XJLB Coilcraft Fixed Inductors 1008CS Ceramic Chip 330 nH 5 % 0.45 A 1 L9 28 CLP-120-02-G-D-K-TR Samtec Inc CONN RECEPT 40POS DUAL SMD 1 P2 22L8702-40M00B-01G-4.45-C-GR01 JVE Global 29 502584-1060 Molex CONN RCPT 10CKT VERT BEIGE 1 P7 30 BSS138LT1G ON Semiconductor MOSFET N-CH 50V 200MA SOT-23 12 Q1-Q3,Q9,Q11,Q13,Q15,Q16,Q19,Q22,Q23,Q25 31 FDN306P ON Semiconductor MOSFET P-CH 12V 2.6A SSOT3 9 Q6-Q8,Q12,Q14,Q18,Q20,Q21,Q24 32 NDS331N ON Semiconductor MOSFET N-CH 20V 1.3A SSOT3 1 Q10 33 CRCW0603100KFKEA Vishay Dale RES SMD 100K OHM 1% 1/10W 0603 19 R1,R9,R11,R18,R27,R29,R32,R41,R46,R49,R54,R56,R58,R63,R105,R106,R122,R124,R140 RC0603FR-07100KL Yageo KTR03EZPF1003 Rohm Semiconductor * 34 CRCW120662K0FKEA Vishay Dale RES SMD 62K OHM 1% 1/4W 1206 1 R2 RC1206FR-0762KL Yageo KTR18EZPF6202 Rohm Semiconductor 35 CRCW06031K00FKEA Vishay Dale RES SMD 1K OHM 1% 1/10W 0603 16 R3,R17,R22,R35,R50,R55,R57,R93-R95,R103,R107,R108,R112,R137,R138 RC0603FR-071KL Yageo KTR03EZPF1001 Rohm Semiconductor * 36 CRCW120624K0FKEA Vishay Dale RES SMD 24K OHM 1% 1/4W 1206 1 R8 RC1206FR-0724KL Yageo KTR18EZPF2402 Rohm Semiconductor * 37 CRCW12061K00FKEA Vishay Dale RES SMD 1K OHM 1% 1/4W 1206 14 R12,R20,R109-R111,R117-R120,R123,R132-R134,R136 RC1206FR-071KL Yageo KTR18EZPF1001 Rohm Semiconductor 38 CRCW060362K0FKEA Vishay Dale RES SMD 62K OHM 1% 1/10W 0603 6 R34,R45,R53,R62,R104,R139 RC0603FR-0762KL Yageo KTR03EZPF6202 Rohm Semiconductor * 39 CRCW1210200RFKEA Vishay Dale RES SMD 200 OHM 1% 1/2W 1210 2 R44,R52 RC1210FR-07200RL Yageo ERJ-14NF2000U Panasonic 40 CRCW121015R0FKEA Vishay Dale RES SMD 15 OHM 1% 1/2W 1210 2 R47,R48 RC1210FR-0715RL Yageo ERJ-14NF15R0U Panasonic 41 CRCW120647K5FKEA Vishay Dale RES SMD 47.5K OHM 1% 1/4W 1206 1 R60 RC1206FR-0747K5L Yageo KTR18EZPF4752 Rohm Semiconductor 42 CRCW060328K0FKEA Vishay Dale RES SMD 28K OHM 1% 1/10W 0603 2 R61,R68 RC0603FR-0728KL Yageo ERJ-3EKF2802V Panasonic 43 CRCW060310K0FKEA Vishay Dale RES SMD 10K OHM 1% 1/10W 0603 10 R65,R66,R75-R77,R81,R84,R85,R88,R89 RC0603FR-0710KL Yageo KTR03EZPF1002 Rohm Semiconductor 44 CRCW060324K0FKEA Vishay Dale RES SMD 24K OHM 1% 1/10W 0603 1 R71 RC0603FR-0724KL Yageo KTR03EZPF2402 Rohm Semiconductor 45 CRCW06030000Z0EA Vishay Dale RES SMD 0 OHM JUMPER 1/10W 0603 4 R113-R116 AC0603FR-070RL Yageo ERJ-3GEY0R00V Panasonic 46 CRCW0603100RFKEA Vishay Dale RES SMD 100 OHM 1% 1/10W 0603 1 R121 RC0603FR-07100RL Yageo KTR03EZPF1000 Rohm Semiconductor 47 TLS850D0TAV33ATMA1 Infineon IC REG LINEAR 500MA TO263-7 1 U1 48 74AUP1G17GW,125 Nexperia USA Inc. IC BUFF SCHMT TRG LOW PWR 5TSSOP 2 U2,U9 49 LTC2850HS8#PBF Linear Technology IC TXRX RS485 20MBPS 8-SOIC 2 U3,U10 50 24LC01BT-E/OT Microchip IC EEPROM 1KBIT 400KHZ SOT23-5 1 U4 51 PIC24FJ64GA106-E/PT Microchip IC MCU 16BIT 64KB FLASH 64TQFP 1 U6 52 TRF7970ARHBR Taxas Instruments IC RFID/NFC AFE 13.56MHZ 32QFN 1 U8 53 ABM8AIG-13.560MHZ-12-2Z-T3 Abracon LLC CRYSTAL 13.560MHZ 12PF SMD 1 Y1 54 ABLS-4.000MHZ-K4T Abracon LLC CRYSTAL 4.0000MHZ 18PF SMD 1 Y2 55 965074 Refer Honeywell drawing M3 board standoff 1 ST1 56 965073 Refer Honeywell drawing M1 board standoff 3 ST2-ST…

Text truncated - open the document above for the full version.

Project Name TITAN RF PASS BoM Revision Rev 0.2 Board name TITAN RF PASS RFID Antenna Board revision Rev A Date 29-Oct-18 S.No LEVEL Mfg . Part No Manufacturer Description Qty Ref Designator First alternate Mfg . Part No First alternate part manufacturer Second alternate Mfg . Part No Second alternate part manufacturer Remarks 1 C0603C100J5GACTU Kemet CAP CER 10PF 50V C0G/NP0 0603 1 C1 06035A100JAT2A AVX 2 C0603C680J5GACTU Kemet CAP CER 68PF 50V C0G/NP0 0603 2 C2, C3 CGA3E2C0G1H680J080AA TDK 3 C0603C330J5GACTU Kemet CAP CER 33PF 50V C0G/NP0 0603 1 C4 CGA3E2C0G1H330J080AD TDK 4 CRCW0603619RFKEA Vishay Dale RES SMD 619 OHM 1% 1/10W 0603 1 R1 RC0603FR-07619RL Yageo ERJ-3EKF6190V Panasonic 5 CRCW06030000Z0EA Vishay Dale RES SMD 0 OHM JUMPER 1/10W 0603 1 R2 AC0603FR-070RL Yageo ERJ-3GEY0R00V Panasonic 6 73412-0110 Molex CONN UMC RCPT STR 50 OHM SMD 1 E1 7 PCB 921793 UEI PCB, RFID Antenna, RFPASS_REVA 1 Revision History Rev 0.1 Initial BoM Release Rev 0.2Tittle Block Board Revision is updated to Rev A and Date changed to 29-OCT-2018Added PCB part no 921793 TITAN RF PASS RFID Antenna BOM SMT

SAR Evaluation FCC ID: 2AJKI-TITANTEL SAR Evaluation Page 1 of 1 SAR Test Exclusion Thresholds: (FCC KDB Publication 447498 D01 v06)  For 100 MHz ≤ f ≤ 6 GHz and d min ≤ 50 mm: P max d min · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR where P max = max. power of channel in mW d min = minimum test separation distance in mm f = RF channel transmit frequency The values 3.0 and 7.5 are referred to as numeric thresholds  For f < 100 MHz and d ≤ 50 mm: ½*[1 + log(100/ f (MHz) )] * {[Power allowed at numeric threshold for 50 mm] + [(d min – 50 mm) *(f (MHz) /150)]} mW Evaluation Results: Complies Details: Frequency MHz Power (dBm) Antenna gain (dBi) Duty Cycle (%) EIRP (mW) Test Separation Distance (mm) SAR Test Exclusion Threshold (mW) 13.56 1) - - 100 0.0001 5 1,199 906 2) 18.797 3 0.256 0.41 5 16 2480 -14.21 -2.45 100 0.0216 5 10 1) The measured field strength is 55.2 dBuV/m @ 3 meters, which is 0.0000001 W (EIRP) 2) Data taken from SAR evaluation report of the certified module, FCC ID: SU3RM900B-M1 Summation ∑ (EIRP) = 0.0001 + 0.41 + 0.0216 = 0.4317 (mW) Conclusion: The sum of all 3 transmitting antennas is within the SAR Test Exclusion Thresholds at 5 mm test separation distance. SAR test exclusion applies.

Honeywell Safety Products USA, Inc. TEST REPORT SCOPE OF WORK FCC 15.247 TESTING – TITAN TELEMETRY REPORT NUMBER 103680797LAX-001 ISSUE DATE REVISED DATE December 17, 2018 December 17, 2019 PAGES 38 DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. December 2017 © 2017 INTERTEK Non-Specific Radio Report Shell Rev. December 2017 Page 2 of 38 Honeywell Safety Products USA, Inc., model: Titan Telemetry EMC TEST REPORT (FULL COMPLIANCE) Report Number: 103680797LAX-001 Project Number: G103680797 Report Issue Date: December 17, 2018 Report Revision Date: December 17, 2019 Model(s) Tested: Titan Telemetry Standards: FCC CFR47 Part 15 Subpart C, April 2018 Intentional Radiator §15.247, Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ISED RSS-247 Issue 2, February 2017 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices ISED RSS-Gen Issue 5, April 2018 General Requirements for Compliance of Radio Apparatus Tested by: Client: Intertek 25791 Commercentre Drive Lake Forest, CA 92630 USA Honeywell Safety Products USA, Inc. 3001 S. Susan Street Santa Ana, CA 92704 USA Report prepared by Report reviewed by Grace Lin EMC Staff Engineer Suresh Kondapalli Sr. Staff Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 103680797LAX-001 Issued: December 17, 2018 Revised: December 17, 2019 Non-Specific Radio Report Shell Rev. December 2017 Page 3 of 38 Honeywell Safety Products USA, Inc., model: Titan Telemetry Table of Contents Honeywell Safety Products USA, Inc. ............................................................................................................................. 1 1 Introduction and Conclusion ..................................................................................................................... 4 2 Test Summary .......................................................................................................................................... 4 3 Client Information .................................................................................................................................... 5 4 Description of Equipment Under Test and Variant Models ......................................................................... 5 5 System Setup and Method ........................................................................................................................ 7 6 DTS (6 dB) Bandwidth and 99% Bandwidth................................................................................................ 8 7 Maximum Peak Conducted Output Power at Antenna Terminals .............................................................. 14 8 Maximum Power Spectral Density .......................................................................................................... 18 9 Conducted Spurious Emissions ................................................................................................................ 22 10 Radiated Spurious Emissions ............................................................................................................... 27 11 AC Mains Conducted Emissions ........................................................................................................... 35 12 Revision History ................................................................................................................................. 38 Intertek Report Number: 103680797LAX-001 Issued: December 17, 2018 Revised: December 17, 2019 Non-Specific Radio Report Shell Rev. December 2017 Page 4 of 38 Honeywell Safety Products USA, Inc., model: Titan Telemetry 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test full name Result 3 Client Information - 4 Description of Equipment Under Test and Variant Models - 5 System Setup and Method - 6 6 dB Bandwidth and 99% Bandwidth (FCC §15.247(a)(2), ISED RSS-247 §5.2a; ISED RSS-Gen §6.7) Compliant 7 Maximum Peak Conducted Output Power at Antenna Terminals (FCC §15.247(b)(3), ISED RSS-247 §5.4d) Compliant 8 Maximum Power Spectral Density (FCC §15.247(e), ISED RSS-247 §5.2b) Compliant 9 Conducted Spurious Emissions (FCC §15.247(d), ISED RSS-247 §5.5) Compliant 10 Radiated Spurious Emissions (FCC §15.247(d), §15.209, §15.205, ISED RSS-247 §5.5, ISED RSS-Gen §8.9) C…

Text truncated - open the document above for the full version.

Honeywell Safety Products USA, Inc. TEST REPORT SCOPE OF WORK EMC TESTING – TITAN TELEMETRY REPORT NUMBER 103680797LAX-002 ISSUE DATE REVISED DATE December 12, 2018 December 17, 2019 PAGES 23 DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. December 2017 © 2017 INTERTEK Non-Specific Radio Report Shell Rev. December 2017 Page 2 of 23 Honeywell Safety Products USA, Inc., model: Titan Telemetry EMC TEST REPORT (FULL COMPLIANCE) Report Number: 103680797LAX-002 Project Number: G103680797 Report Issue Date: December 12, 2018 Report Revised Date: December 17, 2019 Model(s) Tested: Titan Telemetry Standards: FCC CFR47 Part 15 Subpart C, September 2018 Intentional Radiator §15.225, Operation within the bands 13.110-14.010 MHz ISED RSS-210 Issue 9, August 2016 (Amendment November 2017) License-Exempt Radio Apparatus: Category I Equipment ISED RSS-Gen Issue 5, April 2018 General Requirements for Compliance of Radio Apparatus Tested by: Client: Intertek 25791 Commercentre Drive Lake Forest, CA 92630 USA Honeywell Safety Products USA, Inc. 3001 S. Susan Street Santa Ana, CA 92704 USA Report prepared by Report reviewed by Grace Lin EMC Staff Engineer Suresh Kondapalli Sr. EMC Staff Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 103680797LAX-002 Issued: 12/12/2018 Revised: 12/17/2019 Non-Specific Radio Report Shell Rev. December 2017 Page 3 of 23 Honeywell Safety Products USA, Inc., model: Titan Telemetry Table of Contents Honeywell Safety Products USA, Inc. ............................................................................................................................. 1 1 Introduction and Conclusion ..................................................................................................................... 4 2 Test Summary .......................................................................................................................................... 4 3 Client Information .................................................................................................................................... 5 4 Description of Equipment Under Test and Variant Models ......................................................................... 5 5 System Setup and Method ........................................................................................................................ 7 6 Field Strength at Fundamental and Radiated Emissions Outside the band .................................................. 8 7 Frequency Stability................................................................................................................................. 15 8 Occupied Bandwidth .............................................................................................................................. 17 9 AC Mains Conducted Emissions ............................................................................................................... 20 10 Revision History ................................................................................................................................. 23 Intertek Report Number: 103680797LAX-002 Issued: 12/12/2018 Revised: 12/17/2019 Non-Specific Radio Report Shell Rev. December 2017 Page 4 of 23 Honeywell Safety Products USA, Inc., model: Titan Telemetry 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test full name Result 3 Client Information - 4 Description of Equipment Under Test and Variant Models - 5 System Setup and Method - 6 Field Strength at Fundamental and Radiated Emissions Outside of the band (FCC §15.225(a)(b)(c)(d); ISED RSS-210 §B.6a, b, c, d) Compliant 7 Frequency Stability (FCC §15.225(e); ISED RSS-210 §B.6) Compliant 8 Occupied Bandwidth (FCC §15.215(c); ISED RSS-Gen Issue 5 §6.7) Compliant 9 AC Mains Conducted Emissions (FCC §15.207; ISED RSS-Gen Issue 5 §8.8) Not Applicable * 10 Revision History - *: The EUT is battery powered. Intertek Report Number: 103680797LAX-002 Issued: 12/12/2018 Revised: 12/17/2019 Non-Specific Radio Report Shell Rev. December 2017 Page 5 of 23 Honeywell Safety Products USA, Inc., model: Titan Telemetry 3 Client Information This EUT was tested at the request of: Client: Honeywell Safety Products USA, Inc. 3001 S. Susan Street Santa Ana, CA 92704 USA Contact: Lance Gifford Telephone: 714 427 5220 Email: Lance.Giggord@Ho…

Text truncated - open the document above for the full version.

Test Setup Photos Honeywell Titan Telemetry Test Setup Photos Page 1 of 4 EUT Orientations EUT =XY EUT =YZ EUT =ZX Test Setup Photos Honeywell Titan Telemetry Test Setup Photos Page 2 of 4 Test Setup Photos Honeywell Titan Telemetry Test Setup Photos Page 3 of 4 Test Setup Photos Honeywell Titan Telemetry Test Setup Photos Page 4 of 4
