2AJOTTA-1216

HMD global Oy

Multi-band GSM/WCDMA/LTE phone with Bluetooth, WLAN

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 18, 2020
Application Purpose: Original Equipment
Date of Application: Jan 16, 2020
Equipment Note: Multi-band GSM/WCDMA/LTE phone with Bluetooth, WLAN
Frequency Range: 2510.00000000 - 2560.00000000
Company: HMD global Oy
Country: Finland

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

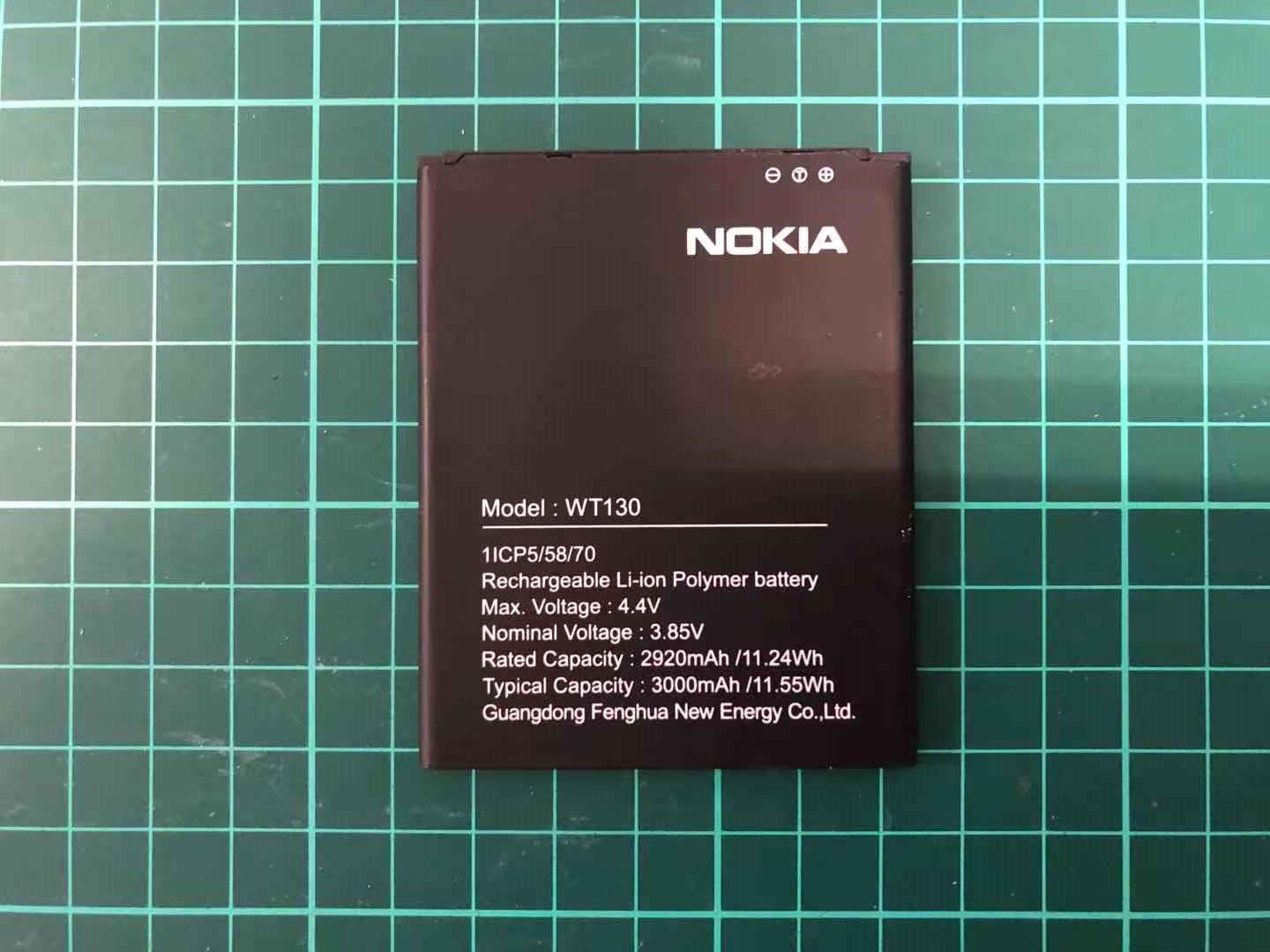

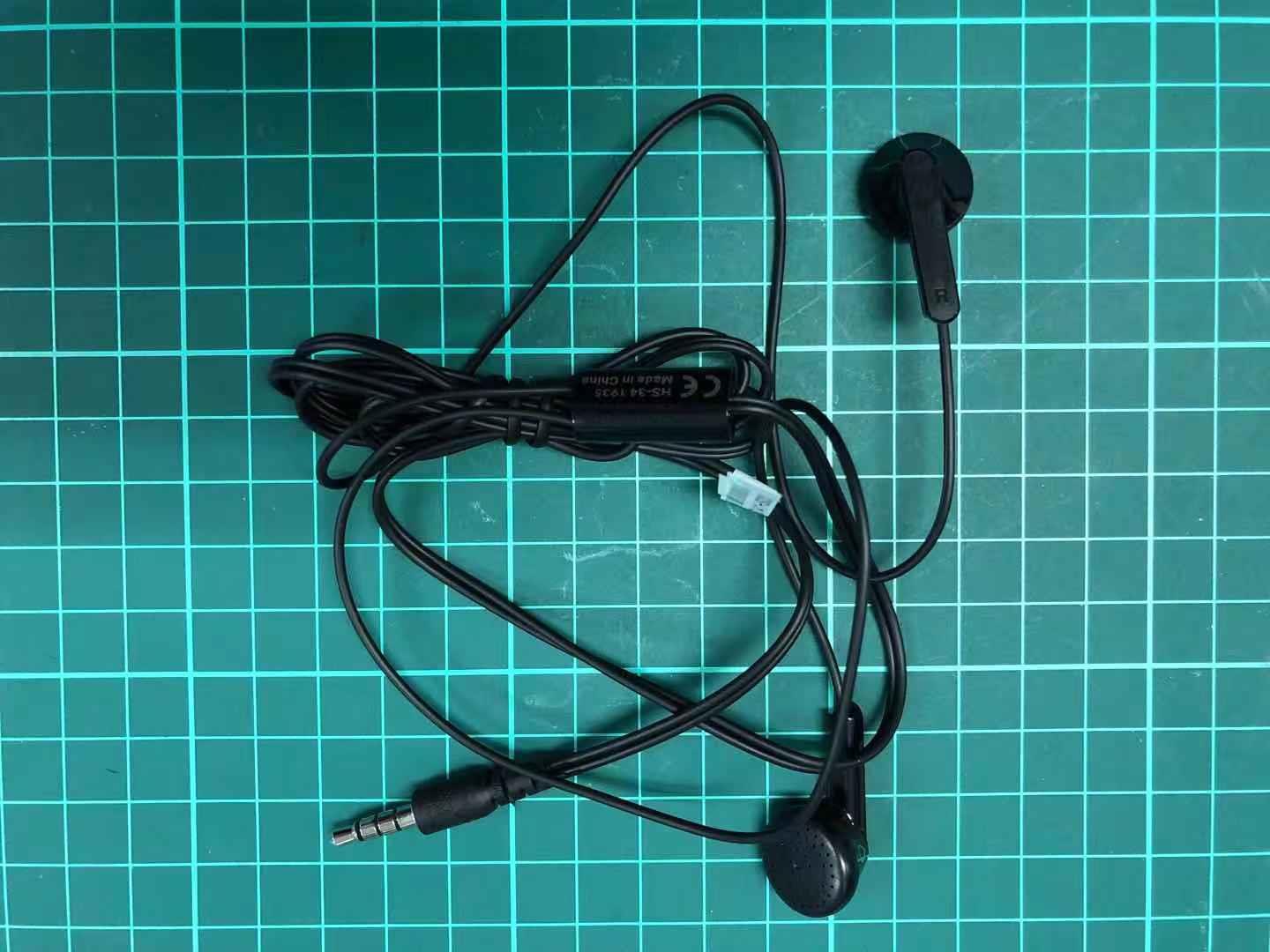

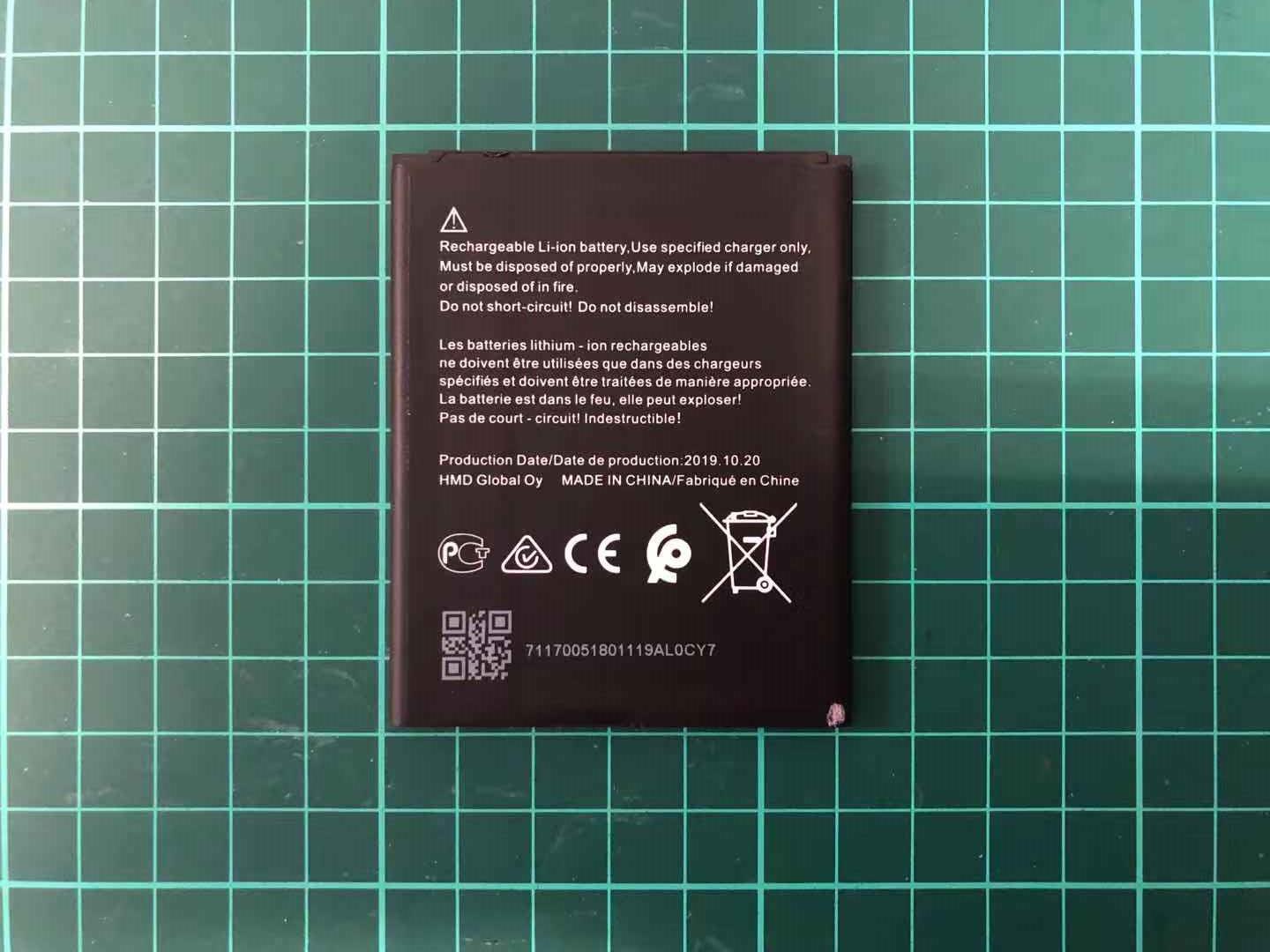

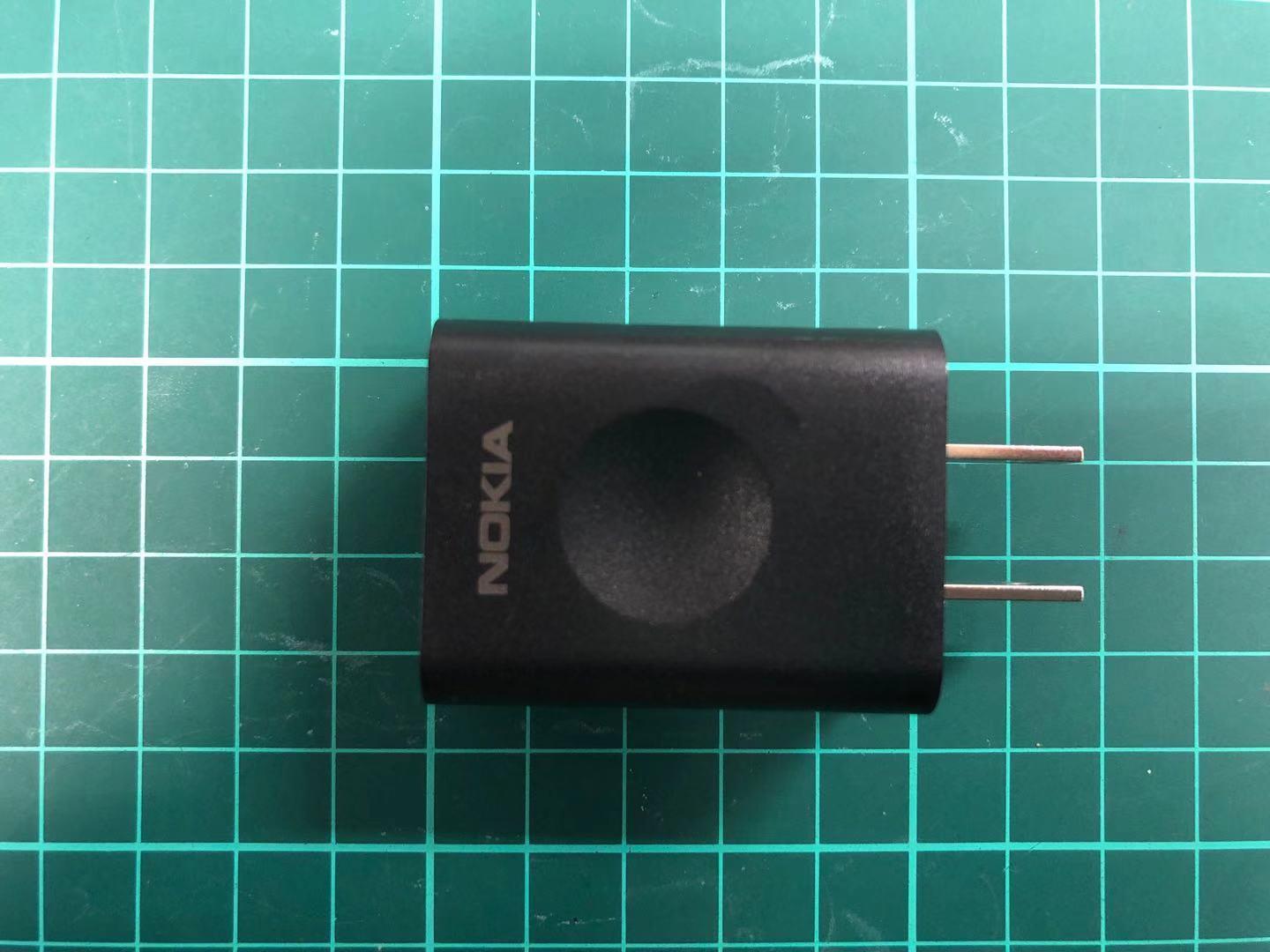

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Reza Serafat(General Manager, Quality and Customer Compliance)

[email protected]+491735287964Fax: +358452133756

Technical Contact

CTTL-Terminals Test Lab of China Academy of TelecoXue Zhen

[email protected]86-10-62304633

No. 52, Huayuan Bei Road, Haidian District, · Beijing · China

Test Firm

Telecommunication Technology Labs, CAICTYaqin Shen

[email protected]8610-62304633Fax: 8610-62300586

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
11	27	2.51 GHz - 2.56 GHz	180.70 mW	17M9W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Power output is ERP for Part 22 and EIRP for Part 24/27. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 10 mm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router) and simultaneous transmission exposure conditions are 0.37 W/kg, 0.68 W/kg, 0.68 W/kg and 0.87 W/kg, respectively. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 850 MHz Cell, 1900 MHz PCS, and 2600 MHz IMT operations. This device has 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 5 MHz, 10 MHz, 15MHz and 20 MHz bandwidth modes for LTE Band 7. This device contains Bluetooth, BLE and 2.4GHz WLAN transmitters.
