2AJOTTA-1451

HMD global Oy

GSM/WCDMA/LTE phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Feb 24, 2022
Application Purpose: Original Equipment
Date of Application: Feb 23, 2022
Equipment Note: GSM/WCDMA/LTE phone
Frequency Range: 673.00000000 - 688.00000000
Company: HMD global Oy
Country: Finland

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

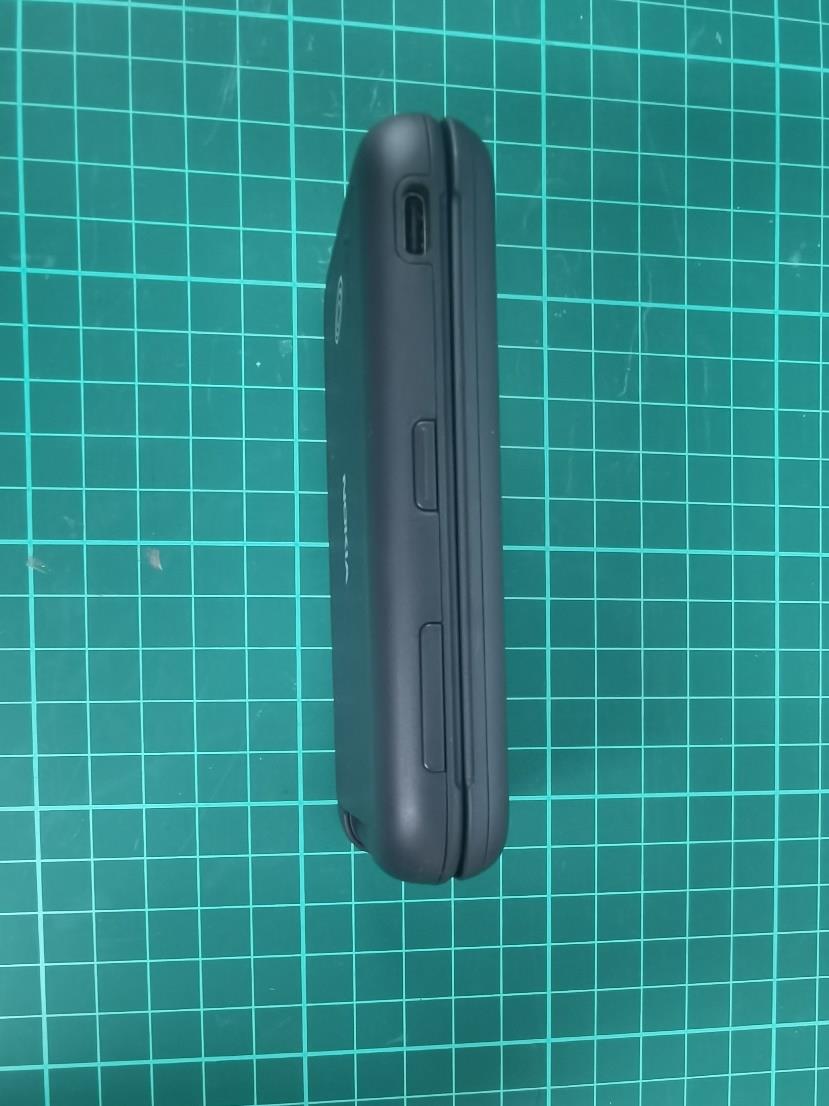

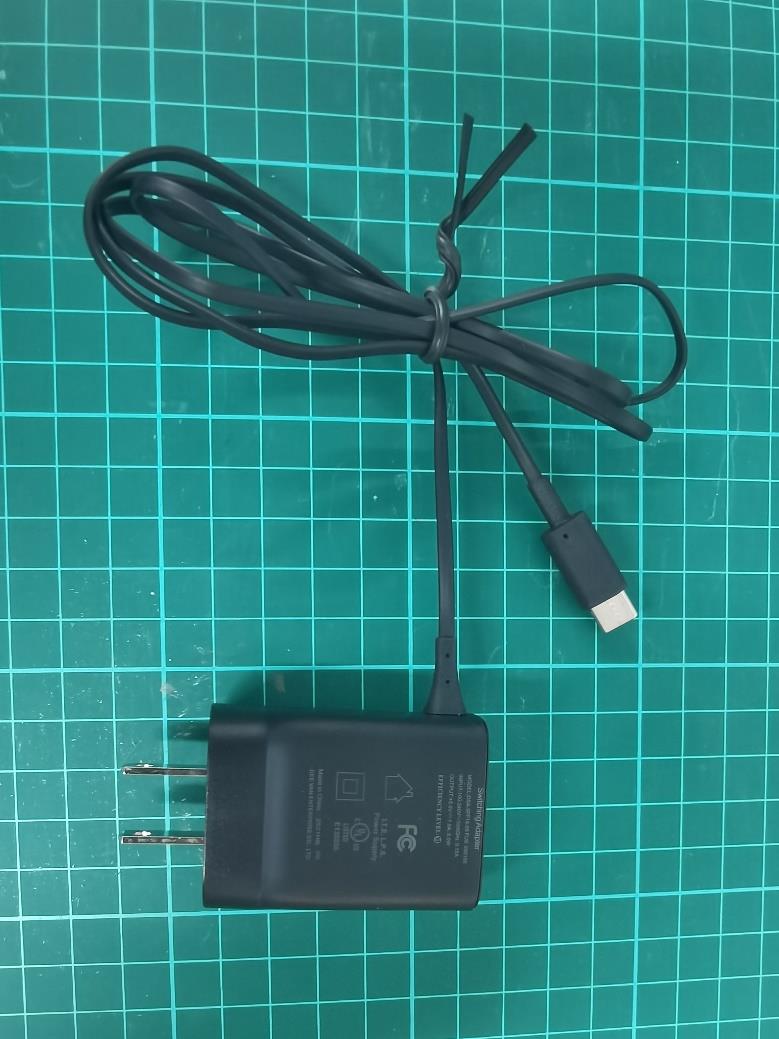

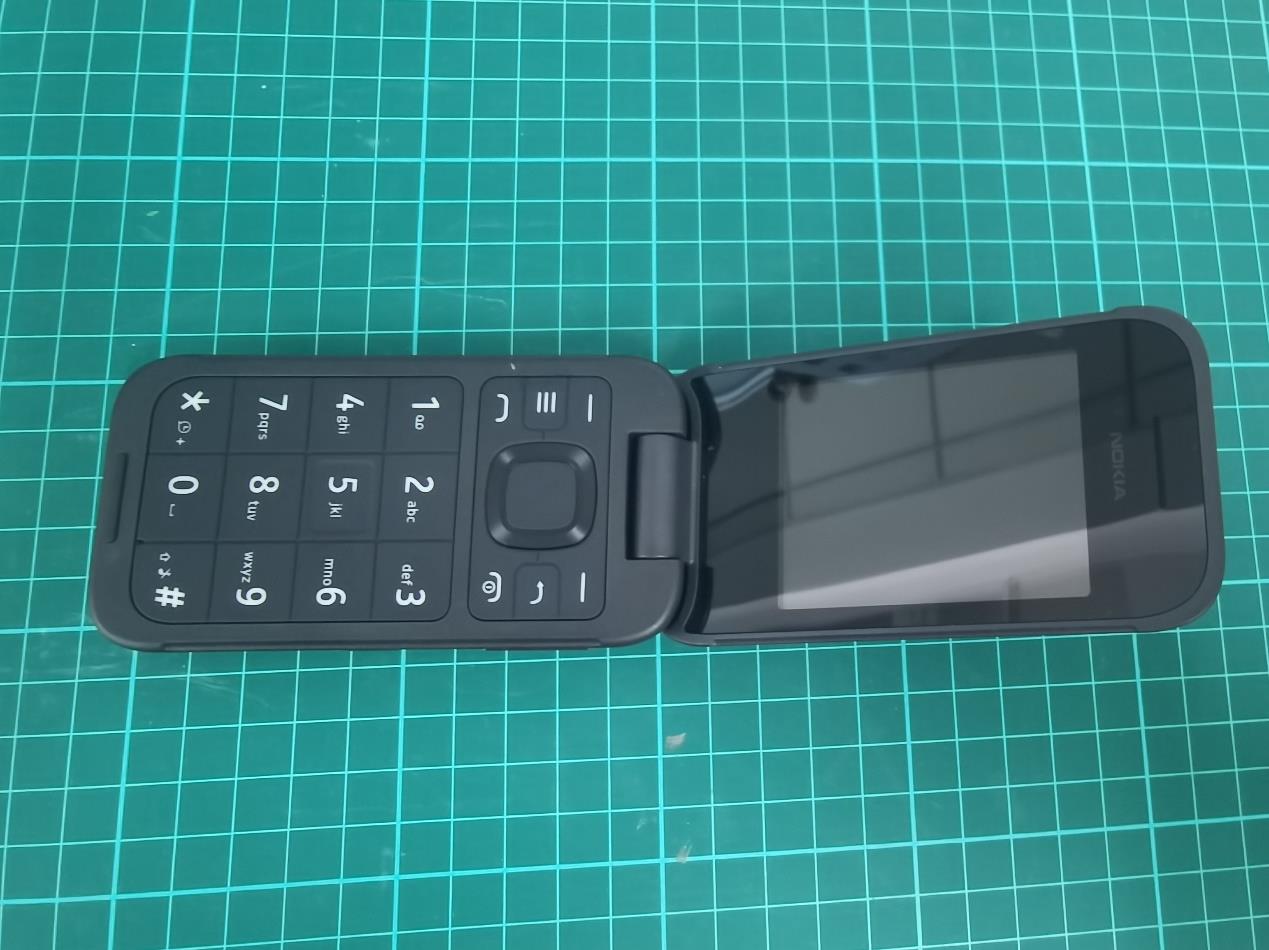

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Reza Serafat(General Manager, Quality and Customer Compliance)

[email protected]+491735287964Fax: +358452133756

Technical Contact

CTTL-Terminals Test Lab of China Academy of TelecoXue Zhen

[email protected]86-10-62304633

No. 52, Huayuan Bei Road, Haidian District, · Beijing · China

Test Firm

Telecommunication Technology Labs, CAICTYaqin Shen

[email protected]8610-62304633Fax: 8610-62300586

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
39	27	673 MHz - 688 MHz	18.30 mW	17M9W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Power output is ERP for Part 22/27 and EIRP for Part 24/27. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 15 mm separation between the device and the user�s body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router) and simultaneous transmission exposure conditions are 0.72 W/kg, 1.32 W/kg, 1.22 W/kg and 1.43 W/kg, respectively. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 600 MHz, 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS, 2500 MHz BRS/EBS and 2600 MHz IMT operations. This device has 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15MHz and 20 MHz bandwidth modes for LTE Band 2/4/66; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5/12; 5 MHz, 10 MHz, 15MHz and 20 MHz bandwidth modes for LTE Band 7/41/71 and 5 MHz and 10 MHz bandwidth modes for LTE Band 13/17. This device also contains Bluetooth, BLE and 2.4GHz WLAN transmitters. HAC Rating: M4/T4-2011.
