SHENZHEN MARKTRACE CO., LTD [email protected] PRODUCT SPECIFICATION DESCRIPTION: Product Name：2.4G RFID Tag ( Card Type) Model No .：HX607 Key Features: 1. Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability; 2. Effective reading range up to 80m (depend on reader and antenna, software configurable); 3. Super wide working band design, conforming to relevant industry rules and also flexible in application development; 4. Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range. 5. Ultra-low power consumption ， average working current<10uA 6.Hybrid design 2.4G + 13.56MHz, 13.56Mhz effective reading rang >3cm (125KHz optional) 7.Typical application are school students attendance, employee tracking,vehicle tracking etc. SHENZHEN MARKTRACE CO., LTD [email protected] Parameters: Model NoHX607 Type2.4G Card type (Beacon type, MAX RF power) Inductive modeInitiative transmit, transmit every second MaterialABS, heat resistant ,White color Dimension86*55*5.5mm Batterybattery life up to 3 years IP GradeIP67 InstallationCarry on Signal modulationGFSK Communication speed 1Mbit/s Operation frequency 2.44GHz Output power0dbm Average current<7uA Battery modelCR2032 Battery capacity220mA Operating temperature -20 °C ~+45 °C Storage temperature-30 °C ~+65 °C Operating humidity<85% 13.56MHz Features: Memory8Kbit ProtocolISO14443A Communication Speed 106kbit/s SHENZHEN MARKTRACE CO., LTD [email protected] SHENZHEN MARKTRACE CO., LTD [email protected] Photos: SHENZHEN MARKTRACE CO., LTD [email protected] FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interferencecaused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user ’ s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement, Thedevice can be used in portable exposure condition without restriction. Federal Communication Commission (FCC) Radiation Exposure Statement Power is solow that no RF exposure calculation is needed.

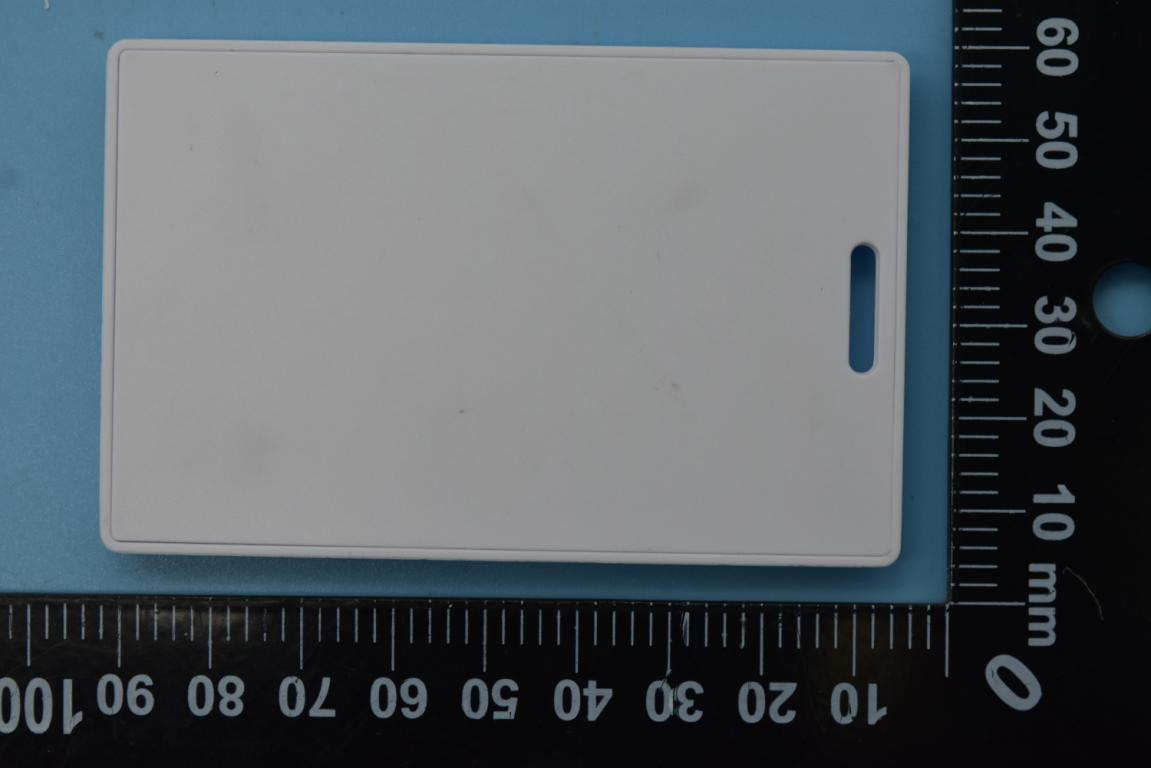

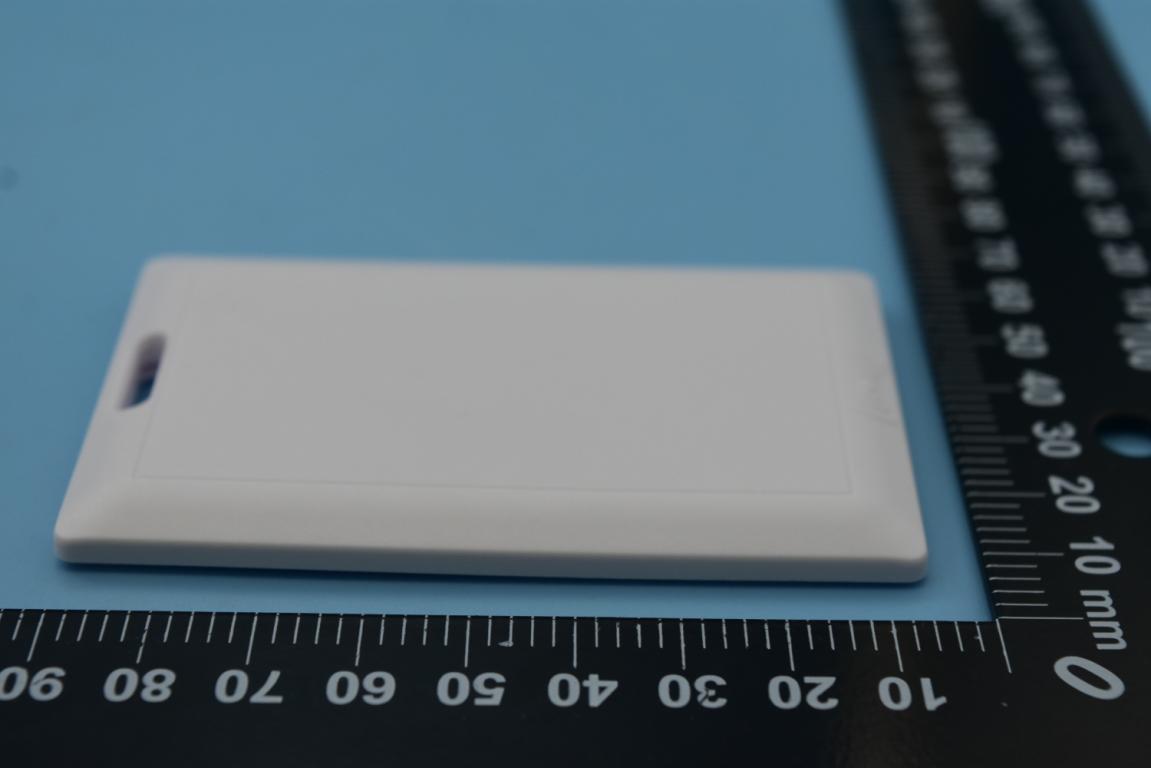

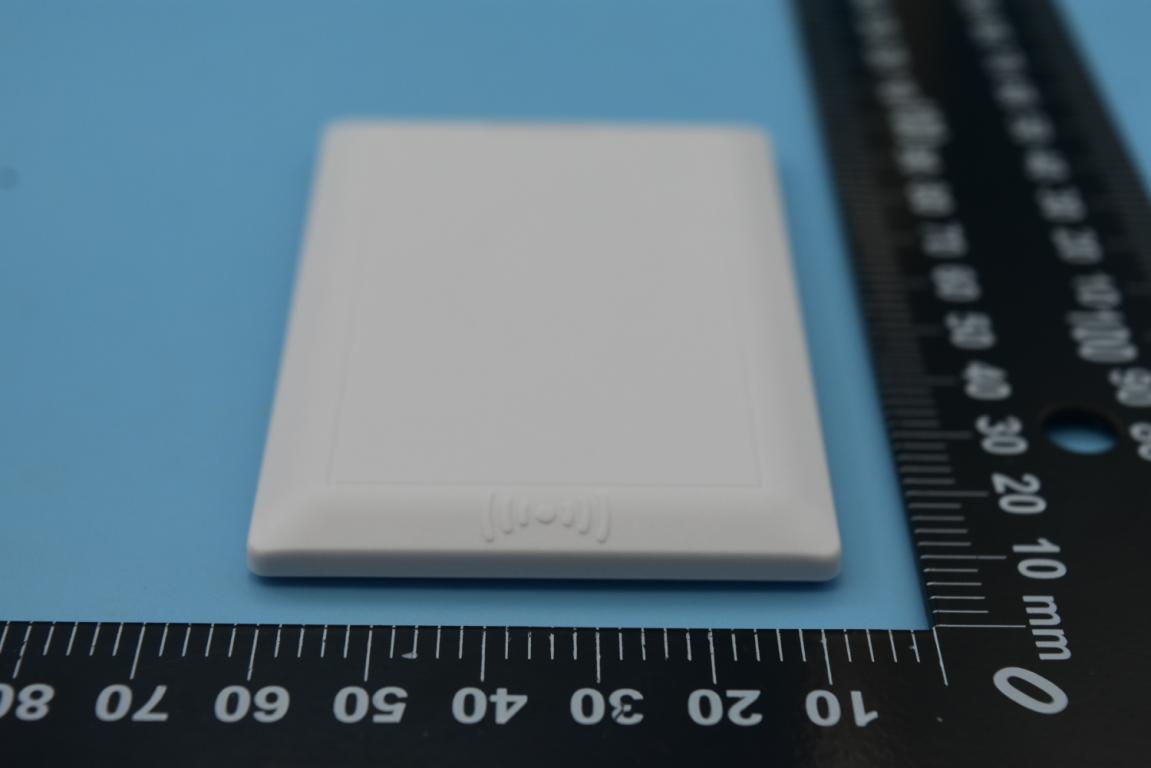

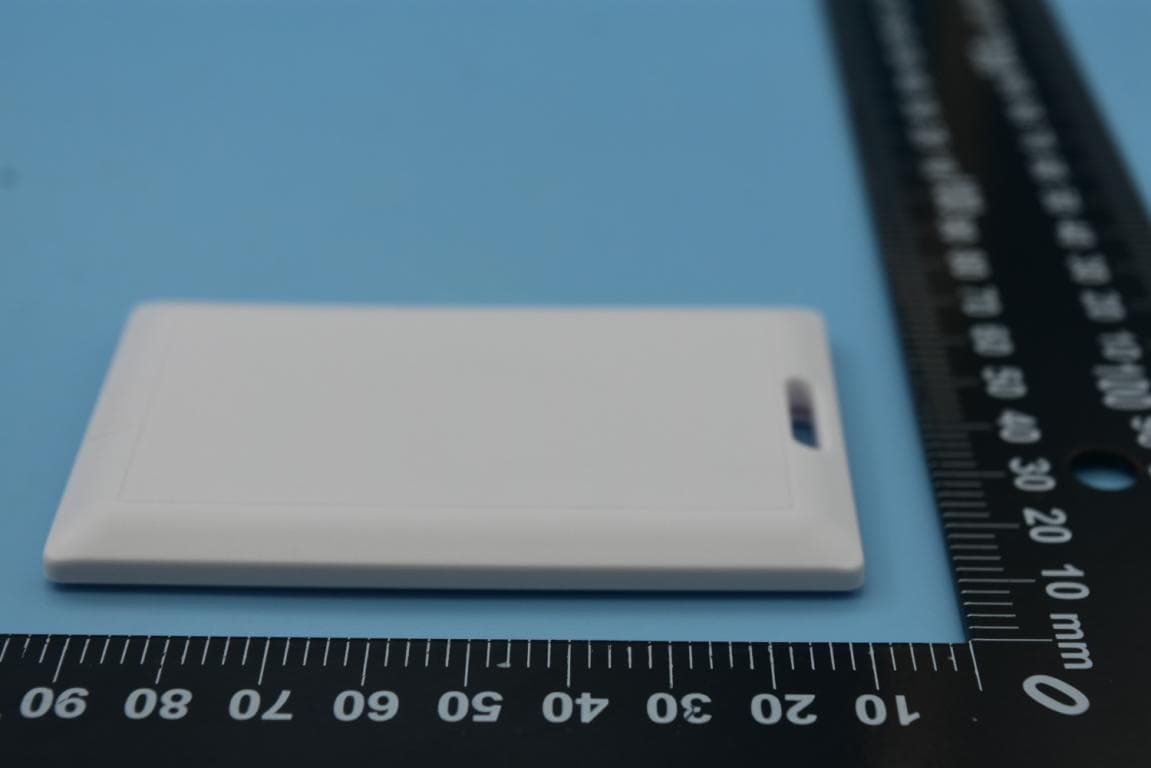

FCC ID: 2AJQV-HX607 MODEL NAME: HX607 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

Label： Location： BackView

FCC ID: 2AJQV-HX607 MODEL NAME: HX607 Internal Photos 1. EUT uncover view 2. Antenna view RFID Antenna NFC Antenna

Manufacturer: SHENZHEN MARKTRACE CO., LTD Address: 1902-1903,Gongxiang Building A, No. 78, Songpingshan Community, Nanshan District, Shenzhen, China ANTENNA SPEC MODEL HX607-ANT FREQ2400-2500MHz BAND100MHz GAIN1.5dBi RES50Ω VSWR≤1.5 Manufacturer: SHENZHEN MARKTRACE CO., LTD Address: 1902-1903,Gongxiang Building A, No. 78, Songpingshan Community, Nanshan District, Shenzhen, China Manufacturer: SHENZHEN MARKTRACE CO., LTD Address: 1902-1903,Gongxiang Building A, No. 78, Songpingshan Community, Nanshan District, Shenzhen, China Manufacturer: SHENZHEN MARKTRACE CO., LTD Address: 1902-1903,Gongxiang Building A, No. 78, Songpingshan Community, Nanshan District, Shenzhen, China

FCC ID: 2AJQV-HX607 MODEL NAME: HX607 Test Setup Photos 1. Radiated emission (9KHz-30MHz) 2. Radiated emission (30MHz-1GHz) 3. Radiated emission (above 1GHz) 4. RF measurement setup (2.44GHz)
