2AJUM-AC-FLS20Flower Shower LED Speaker

FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

Aduro Products, LLC 250 Liberty Street, Metuchen, N.J. 08840.USA Tel: 001-718-832-8500 E-mail: [email protected] Date: 07/01/2022 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Aduro Products, LLC hereby declare that： Product Name: Flower Shower LED Speaker Main Model NO.: AC-FLS20 Serial Model NO.: AC-FLS20-21, AC-FLS20-08, AC-FLS20-19, AC-FLS20-PW FCC ID: For BT Mode: BLE 1M/2M are disable by software For Below are activated: Bluetooth BDR(GFSK) ,EDR(π/4‐DQPSK), EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Jack Braha Title: President 2AJUM-AC-FLS20

Aduro Products, LLC 250 Liberty Street, Metuchen, N.J. 08840.USA Tel:001-718-832-8500 E-mail: [email protected] Product Similarity Declaration Date: 2022-07-01 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Aduro Products LLC, hereby declare that we have a product named as ,(model: AC-FLS20, FCC ID: 2AJUM-AC-FLS20) was tested by Shenzhen Accurate Technology Co., LTD. Meanwhile, for our marketing purpose, we would like to list a series model (AC-FLS20-21, AC-FLS20-08, AC-FLS20-19, AC-FLS20-PW) on reports and certificate; all the models are identical in schematics. Only the model name and appearance color is different. No other changes are made on them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Printed Name: Jack Braha Title: President Flower Shower LED Speaker

Aduro Products, LLC 250 Liberty Street, Metuchen, N.J. 08840.USA Tel:001-718-832-8500 E-mail: [email protected] FCC Authorization 07/01/2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Aduro Products, LLC , the undersigned, hereby authorize Shenzhen Accurate Technology Co., Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Jack Braha Title: President

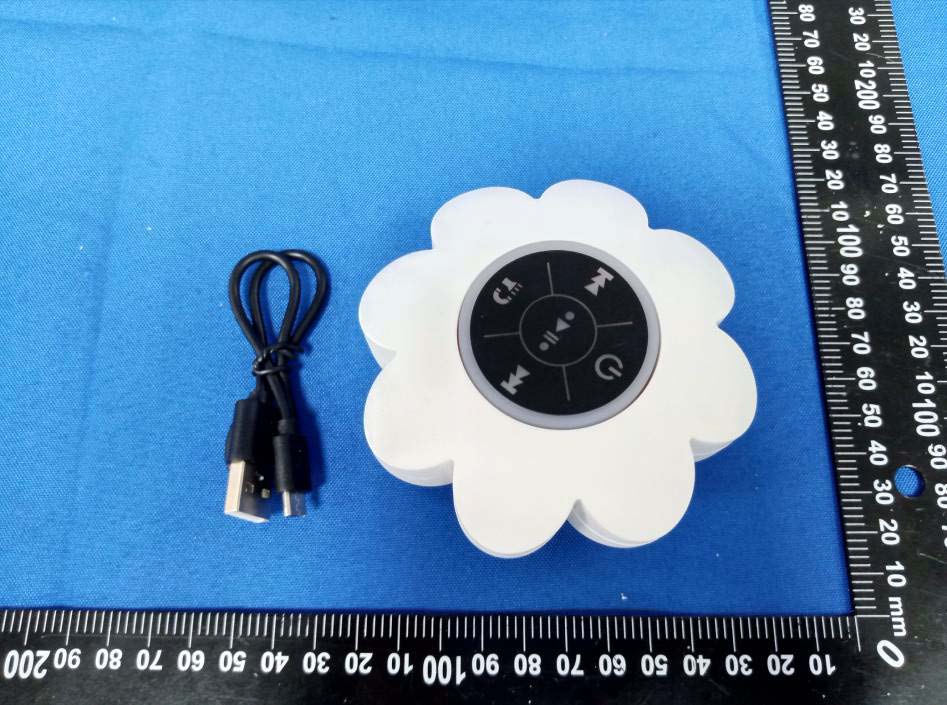

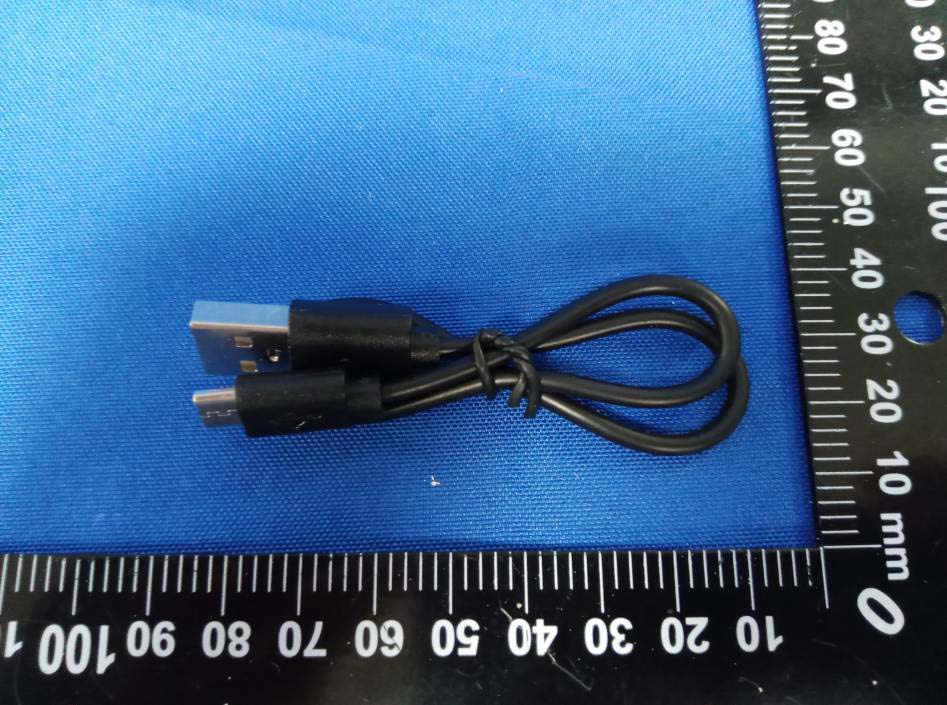

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 1 of 5 External Photos AC-FLS20 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 2 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 4 of 5 AC-FLS20-21, AC-FLS20-08, AC-FLS20-19, AC-FLS20-PW Note: The color is different. Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 5 of 5

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 1 of 4 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 2 of 4 ANT Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 4 of 4

OPERATIONAL DESCRIPTION The equipment under test (EUT) is a transmitter of 2.402-2.480GHz ATLANTIK speaker. A major technical description of EUT is described as following Product Designation Flower Shower LED Speaker Operation Frequency 工作频率 26MHz Maximum conducted Peak output power 最大传导峰值输出功率 3.06dBm Modulation 振幅调制 1M 2M 3M Number of channels 通道数 72 Hardware Version 硬件版本 VE Software Version 软件版本 S3319 Antenna Designation 天线名称 PCB Antenna Antenna Gain 天线增益 -0.58dBi Power Supply Normal Voltage: 正常电压 DC 3.7V Operation principle description: The 300mAh polymer battery provides operating voltage and current to the entire circuit. When the battery power is low, the battery can be charged through the charging column. The 26MHz crystal oscillator provides the main control chip with a normal operating frequency. The 36D main control chip receives the signal sent by the corresponding function button, and performs functions such as turning on and off, adjusting the upper and lower song and the volume, and at the same time lights up different LED instructions in different states. The signal is received through the carrier frequency of 26MHz , and the audio signal is decoded by the master to drive the speaker.

MARK Bluetooth M1M2 1 2 MIC1 LED3 蓝色 R3 M3 POWER 4*4*1.7MM B1 BT_RF M4 LED2 红色 SP+ SP- R4 33K C8 104 C7 105 1 PE7/ADC9 2 AGND 3 PE0 4 VUSB 5 VDDIO 6 VBAT 7 DGND 8 VDDBT 9 PWRKEY 10 BT_ANT 11 BT_OSCI 12 BT_OSCO 13 ADC5/PB3 14 ADC10/MICL/PF2 15 VCMBUF 16 DACL U1 AB5357H C2 105 C1 105 B+ B- 1 SHDN 2 PASS 3 +IN 4 -IN 5 VO- 6 VDD 7 GND 8 V0+ U2 IC_8002 R30 5K1 C60 104 R6 0R R1 100K G +5V VOL- 4*4*1.7MM R13 820K P/P 4*4*1.7MM R5 150K VOL+ 4*4*1.7MM R2 47K CALL 4*4*1.7MM R8 12k Q1 8050 R 9 4 7 k R12 22R LED- LED+ Y1 26M C4 104 C13 NC C5 104 C3 101 C14 104 C 6 3 3 0 P L E D 1 L E D 4 L E D 5 L E D 6 MIC BTOSCO BTOSCI DACL MIC BTOSCO BTOSCI BT_RF VBAT DACL CHRG_LED VUSB BT_RF PWRKEY MUTE VDDIO VBAT LEDW VUSB VBAT MUTE VBAT VDDIO LED PWRKEY LEDW VBAT

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 62 FCC-BT TEST REPORT Applicant Name : Aduro Products, LLC Address : 250 Liberty Street,Metuchen, N.J. 08840. USA Report Number : SZ3220510-18685E-RF FCC ID: 2AJUM-AC-FLS20 Test Standard (s) FCC PART 15.247 Sample Description Product Type: Flower Shower LED Speaker Test Model: AC-FLS20 Multiple Model: AC-FLS20-21, AC-FLS20-08, AC-FLS20-19, AC-FLS20-PW Trade Mark: N/A Date Received: 2022-05-10 Date of Test: 2022-06-24 to 2022-07-02 Report Date: 2022-07-05 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy.Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3220510-18685E-RF Version 11: 2021-11-09 Page 2 of 62 FCC-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §1.1310 & §2.1091 – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ...................................................... 10 TEST RESULT ............................................................................................................................................................. 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 13 FACTOR & MARGIN CALCULATION ........................................................................................................................... 13 TEST DATA ....................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220510-18685E-RF Page 2 of 2 Photo of Radiated Emission Measurement Below 1GHz Photo of Radiated Emission Measurement Above 1GHz
