2AJWI-GSMSOCUS4G4G Power Socket

SimPal-T420 4G Power Socket SimPal-T20 Wireless Power Socket User Manual Version 3.0 SimPal-T420/T20 USER MANUAL 1 SimPal-T420/T20 Power Socket Thank you for purchasing the SimPal-T420/T20. SimPal-T420 4G power socket is a remote-controlled socket consisting of a 4G LTE module. The power supply output can be turned on or off remotely by SMS command or voice calling. SimPal-T420 Master socket can be connect up to 4pcs SimPal-T20 slave socket and 6pcs wireless sensor. Both T20 and T420 socket come with temperature sensor, support temperature monitor, temperature control, schedule control, timer control etc functions. It can monitor your house by connecting wireless sensor with T420. All services and functions need to be supported by the 4G network and a SIM card. This brochure suits for SimPal-T420 and SimPal-T20 model. Details of the functioning and advanced operation of this socket are described in this instruction manual. SimPal-T420/T20 USER MANUAL 2 For your safety ......................................................................................7 Exception clause ................................................................................. 11 1.1 Package contents...........................................................................12 1.2 Sockets instructions .......................................................................13 1.3 Light indicator ..............................................................................15 2.1 User authorization level ................................................................16 SimPal-T420/T20 USER MANUAL 3 2.2 About the SMS Command ..............................................................17 3.1 Start to use ....................................................................................17 3.2 Download “LTE Socket” APP ......................................................20 3.3 Register Master-number. ...............................................................20 3.4 Pairing slave socket ......................................................................22 3.5 Turn on/off power ..........................................................................24 3.6 Delay control .................................................................................25 SimPal-T420/T20 USER MANUAL 4 3.7 Schedule control ............................................................................27 3.8 Temperature control ......................................................................30 3.9 Temperature alarm ........................................................................33 3.10 Connect wireless sensor ..............................................................34 3.11 SMS when on/off button pressed ..................................................37 3.12 Power failure alarm ....................................................................37 3.13 Calling control ............................................................................38 SimPal-T420/T20 USER MANUAL 5 3.14 SMS notification to User .............................................................39 3.15 Check status ................................................................................39 3.16 Weak LTE signal alarm ...............................................................41 4. Reset factory setting ........................................................................42 5. Main Technical Parameters ............................................................43 Appendix: SMS commands list ............................................................45 SimPal-T420/T20 USER MANUAL 6 1. Purchase a LTE SIM card (mobile phone card) from LTE network service provider and install it in the socket. This SIM card number is referred as SimPal-T420 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM. Contact with LTE network service provider for support. SimPal-T420/T20 USER MANUAL 7 For your safety  This socket was designed for home or office use. Do not use it on the electrical appliance which is for industry or business operation, for example, Industrial appliances, large heaters and refrigerates.  Before using this socket, make sure that the mobile phones can be used well in the area, otherwise, do not put this socket into operation.  The power consumption of the appliances connected with the socket cannot exceed 3500W and the current cannot exceed 16A.  The electrical appliance which power consumption is higher than 1500W must be grounded.  Do not make two plugs of socket short circuit.  Do not touch the socket jack by any metal objects or hand.  This socket was designed for indoor use. Don’t use it in wet, chemically aggressive or dusty environment. Device working temperature range is -10°C~+35°C, stop to use this product when environment temperature out of working range. SimPal-T420/T20 USER MANUAL 8  Do not plug this socket in a row, only allow connect other electricity device on the socket. (nicht hintereinander stecken, nur andere Stromgeräte an der Steckdose anschließen lassen).  Do not open the case unless maintenance needed by professionals.  Do not keep shaking or fall down this socket, otherwise it can be damaged.  This socket is a wireless signal transmission socket. Keep it away from electronic equipment likely to interfere with the wireless signals, in order to avoid signals interference.  Switch off this socket and mobile phone when entering areas marked "Explosive", "Might explode", "Closed wireless transceiver sockets" etc.  Do not cast this socket in a fire, as this may cause explosion.  This socket should only be operated from power approved by the socket manufacturer. The use of any other types of power may damage the socket.  Keep the socket and its accessories out of the children reach. SimPal-T420/T20 USER MANUAL 9 FCC Radiation Exposure Statement:  This equipment complies with FCC radiation exposure limits set f…

Text truncated - open the document above for the full version.

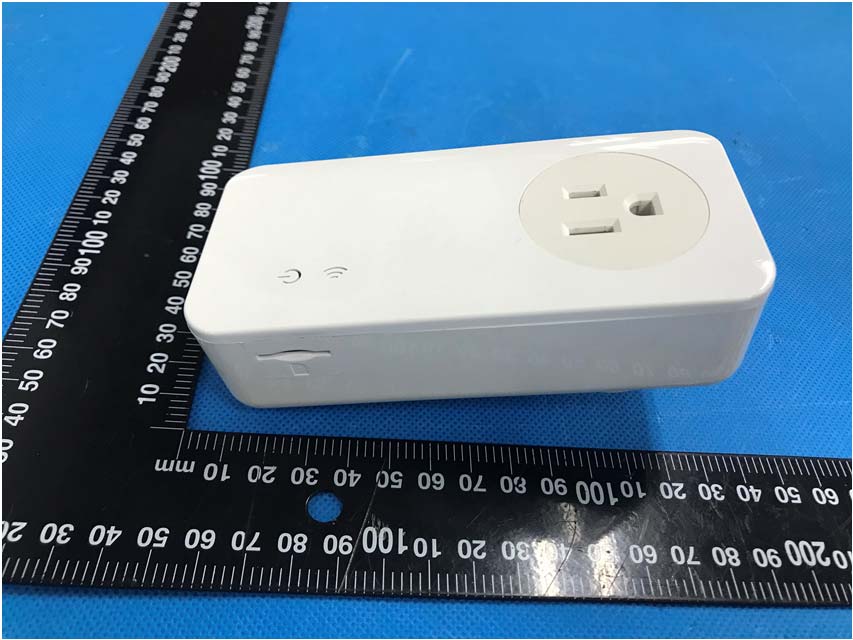

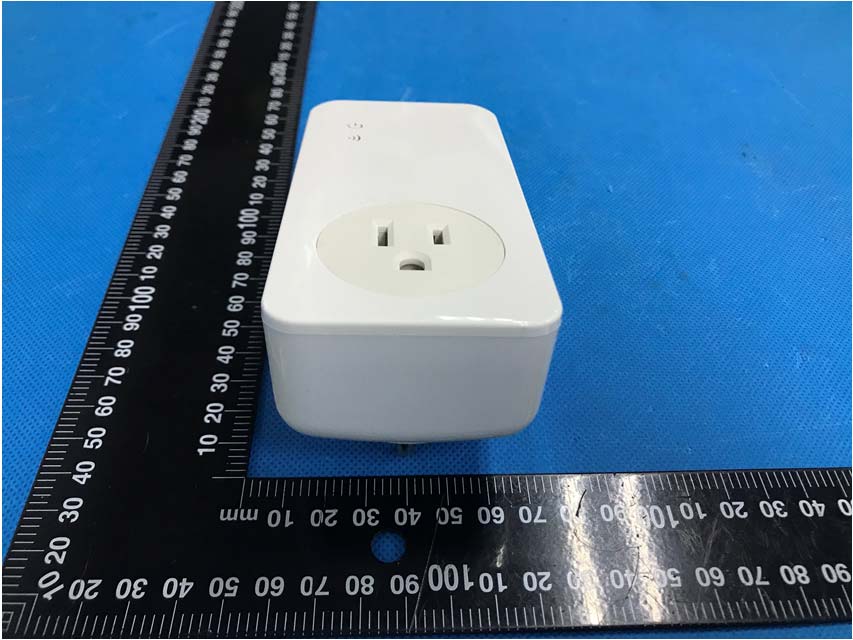

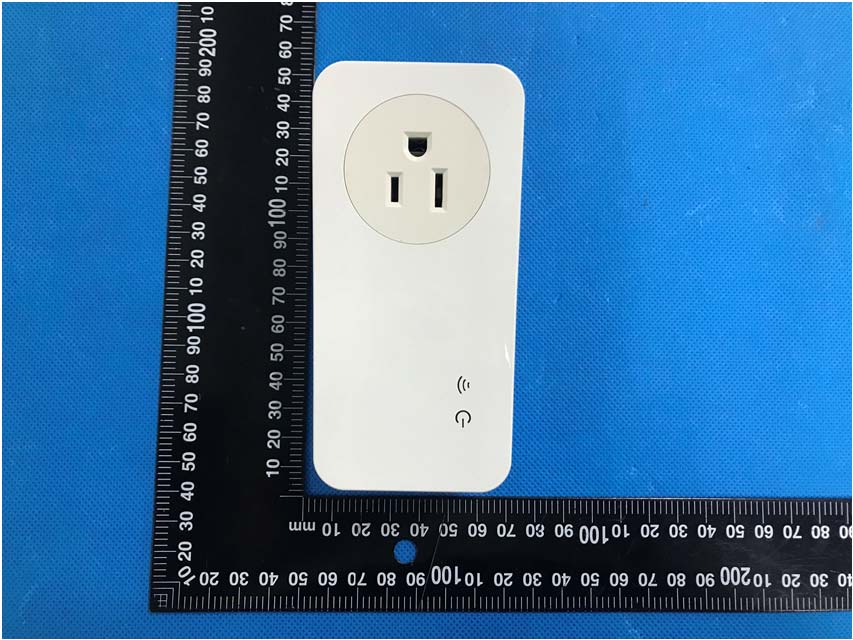

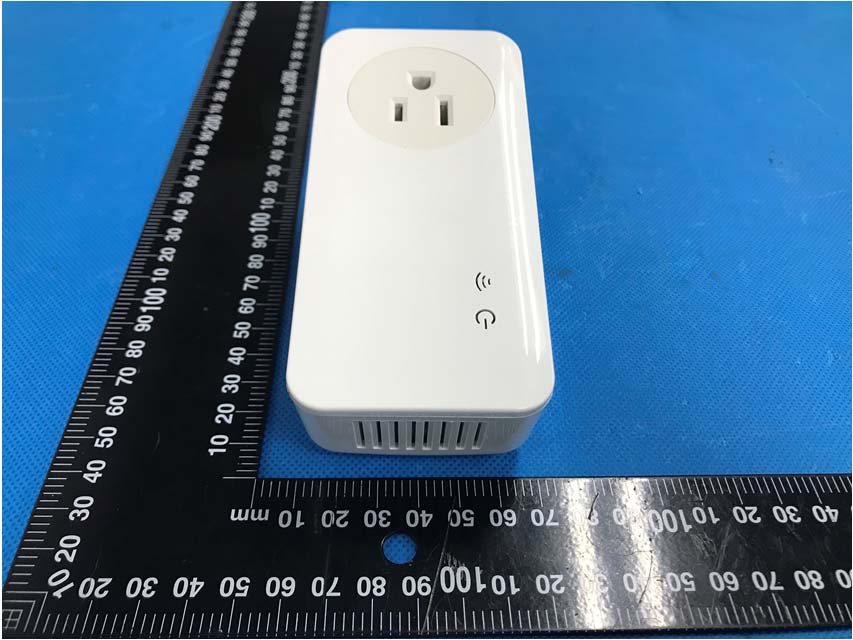

Reference No.: WTX21X03021684W-1/2/3 Page 2 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X03021684W-1/2/3 Page 3 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X03021684W-1/2/3 Page 4 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6

Reference No.: WTX21X03021684W-1/2/3 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AJWI-GSMSOCUS4G Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X03021684W-1/2/3 Page 5 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX21X03021684W-1/2/3 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX21X03021684W-1/2/3 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX21X03021684W-1/2/3 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 6 Solder Board-Component View 7 Reference No.: WTX21X03021684W-1/2/3 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 8 Solder Board-Component View 9 Reference No.: WTX21X03021684W-1/2/3 Page 10 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: Tekview Limited Address of applicant: Unit 8 George Holmes Business Centre George Holmes Way Swadlincote Derbyshire DE11 9DF United Kingdom Manufacturer: Xiamen SimPal Communication Technology Co., Ltd. Address of manufacturer: 3F, No 2208, Dianqian Group II, Gaodian Village, Huli District, Xiamen General Description of EUT: Product Name: 4G Power Socket Trade Name: / Model No.: GSMSOCUS4G Adding Model(s): SimPal-T420 Rated Voltage: AC110-250V FCC ID: 2AJWI-GSMSOCUS4G Equipment Type: Mobile Technical Characteristics of EUT: Main board 4G Support Networks: FDD-LTE Support Band: FDD-LTE Band 2, 4, 5, 7,12, 13, 25, 26, 66, 71 Uplink Frequency: FDD-LTE Band 2: Tx: 1850-1910MHz, FDD-LTE Band 4: Tx: 1710-1755MHz, FDD-LTE Band 5: Tx: 824-849MHz, FDD-LTE Band 7: Tx: 2500-2570MHz, FDD-LTE Band 12: Tx: 699-716MHz, FDD-LTE Band 13: Tx: 777-787MHz, FDD-LTE Band 25: Tx: 1850-1915MHz FDD-LTE Band 26: Tx: 814-824MHz, FDD-LTE Band 26: Tx: 824-849MHz FDD-LTE Band 66: Tx: 1710-1780MHz FDD-LTE Band 71: Tx: 663-698MHz Downlink Frequency: FDD-LTE Band 2: Rx: 1930-1990MHz, FDD-LTE Band 4: Rx: 2110-2155MHz, FDD-LTE Band 5: Rx: 869-894MHz, FDD-LTE Band 7: Rx: 2620-2690MHz, FDD-LTE Band 12: Rx: 729-746MHz, FDD-LTE Band 13: Rx: 746-756MHz, FDD-LTE Band 25: Rx: 1930-1995MHz FDD-LTE Band 26: Rx: 859-869MHz, FDD-LTE Band 26: Rx: 869-894MHz FDD-LTE Band 66: Rx: 2110-2200MHz FDD-LTE Band 71: Rx: 617-652MHz RF Output Power: FDD-LTE Band 2:23.67dBm, FDD-LTE Band 4: 24.08dBm, FDD-LTE Band 5: 23.45dBm, FDD-LTE Band 7: 23.45dBm, FDD-LTE Band 12: 24.39dBm, FDD-LTE Band 13: 24.28dBm, FDD-LTE Band 25: 24.58dBm FDD-LTE Band 26(814-824MHz): 24.21dBm, FDD-LTE Band 26 (824-849MHz): 23.76dBm FDD-LTE Band 66: 23.27dBm FDD-LTE Band 71: 23.17dBm Type of Emission: FDD-LTE Band 2: 17M8G7D, 17M8W7D FDD-LTE Band 4: 17M8G7D, 17M8W7D FDD-LTE Band 5: 8M94G7D, 8M93W7D FDD-LTE Band 7: 17M8G7D, 17M8W7D FDD-LTE Band 12: 8M93G7D, 8M92W7D FDD-LTE Band13: 8M91G7D, 8M90W7D FDD-LTE Band 25: 17M8G7D, 17M8W7D FDD-LTE Band 26(814-824MHz): 8M90G7D, 8M89W7D FDD-LTE Band 26 (824-849MHz): 13M3G7D, 13M4W7D FDD-LTE Band 66: 17M9G7D, 17M9W7D FDD-LTE Band 71: 17M8G7D, 17M8W7D Type of Modulation: QPSK, 16QAM Antenna Type: Integral Antenna Antenna Gain: FDD-LTE Band 2: 1dBi, FDD-LTE Band 4:1dBi, FDD-LTE Band 5: 1dBi, FDD-LTE Band 7: 1dBi, FDD-LTE Band 12: 1dBi, FDD-LTE Band 13: 1dBi, FDD-LTE Band 25: 1dBi FDD-LTE Band 26(814-824MHz): 1dBi, FDD-LTE Band 26 (824-849MHz): 1dBi FDD-LTE Band 66: 1dBi FDD-LTE Band 71: 1dBi 3G Support Networks: WCDMA, HSDPA, HSUPA Support Band: WCDMA Band 2, WCDMA Band 4, WCDMA Band 5 Uplink Frequency: WCDMA Band 2: 1850~1910MHz WCDMA Band 4: 1710~1755MHz WCDMA Band 5: 824~849MHz Downlink Frequency: WCDMA Band 2: 1930~1990MHz WCDMA Band 4: 2110~2155MHz WCDMA Band 5: 869~894MHz RF Output Power: WCDMA Band 2: 23.49dBm, WCDMA Band 4: 23.39dBm WCDMA Band 5: 23.53dBm Type of Emission: WCDMA Band 2: 4M17F9W WCDMA Band 4: 4M15F9W WCDMA Band 5: 4M16F9W Type of Modulation: BPSK Antenna Type: Integral Antenna Antenna Gain: WCDMA Band 2: 1dBi, WCDMA Band 4: 1dBi, WCDMA Band 5: 1dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For WCDMA Band V Maximum Tune-Up output power: 24.0(dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: >20(cm) Prediction frequency: 826.4 (MHz) Antenna gain: 1 (dBi) Directional gain (numeric gain): 1.26 The worst case is power density at prediction frequency at 20cm: 0.0629 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 0.5509 (mw/cm 2 ) For WCDMA Band IV Maximum Tune-Up output power: 24.0(dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: >20(cm) Prediction frequency: 1752.6 (MHz) Antenna gain: 1(dBi) Directional gain (numeric gain): 1.26 The worst case is power density at prediction frequency at 20cm: 0.0629 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For WCDMA Band II Maximum Tune-Up output power: 24.0(dBm) Maximum peak output power at antenna input terminal: 251.19 (mW) Prediction distance: >20(cm) Prediction frequency: 1907.6 (MHz) Antenna gain: 1 (dBi) Directional gain (numeric gain): 1.26 The worst case is power density at prediction frequency at 20cm: 0.0629 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For FDD-LTE Band 2 Maximum Tune-Up output power: 24.0(dBm) Maximum peak output power at antenna in…

Text truncated - open the document above for the full version.

Reference No.: WTX21X03021684W-2 Page 1 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix for Band 2 Product Name: 4G Power Socket Model No: GSMSOCUS4G Reference No.: WTX21X03021684W-2 Page 2 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix A: Average Power Output Data Test Result Channel Bandwidth: 1.4 MHz Modulati on Channel RB Configuration Average Power [dBm]Verdict Size Offset QPSK LCH 1 0 23.10 PASS 1 3 23.15 PASS 1 5 23.12 PASS 3 0 23.06 PASS 3 2 23.05 PASS 3 3 23.20 PASS 6 0 22.60 PASS MCH 1 0 22.79 PASS 1 3 22.95 PASS 1 5 22.91 PASS 3 0 22.74 PASS 3 2 22.77 PASS 3 3 22.73 PASS 6 0 21.74 PASS HCH 1 0 22.98 PASS 1 3 22.95 PASS 1 5 22.98 PASS 3 0 22.81 PASS 3 2 22.88 PASS 3 3 22.86 PASS 6 0 21.92 PASS 16QAM LCH 1 0 22.58 PASS 1 3 22.40 PASS 1 5 22.35 PASS 3 0 22.61 PASS 3 2 22.36 PASS 3 3 22.33 PASS 6 0 21.10 PASS MCH 1 0 21.97 PASS 1 3 21.61 PASS 1 5 21.52 PASS 3 0 21.67 PASS 3 2 21.73 PASS Reference No.: WTX21X03021684W-2 Page 3 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 3 3 21.34 PASS 6 0 20.95 PASS HCH 1 0 22.15 PASS 1 3 22.23 PASS 1 5 22.20 PASS 3 0 22.12 PASS 3 2 22.17 PASS 3 3 22.28 PASS 6 0 21.13 PASS Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Average Power [dBm]Verdict Size Offset QPSK LCH 1 0 22.84 PASS 1 7 23.05 PASS 1 14 22.94 PASS 8 0 22.23 PASS 8 4 22.08 PASS 8 7 22.09 PASS 15 0 22.08 PASS MCH 1 0 22.78 PASS 1 7 22.94 PASS 1 14 22.87 PASS 8 0 21.69 PASS 8 4 21.71 PASS 8 7 21.69 PASS 15 0 21.68 PASS HCH 1 0 22.78 PASS 1 7 23.09 PASS 1 14 23.02 PASS 8 0 21.84 PASS 8 4 21.97 PASS 8 7 21.88 PASS 15 0 21.95 PASS 16QAM LCH 1 0 22.18 PASS 1 7 22.41 PASS 1 14 22.29 PASS 8 0 20.95 PASS 8 4 21.06 PASS 8 7 20.86 PASS 15 0 21.02 PASS Reference No.: WTX21X03021684W-2 Page 4 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn MCH 1 0 22.09 PASS 1 7 22.40 PASS 1 14 22.35 PASS 8 0 20.81 PASS 8 4 20.60 PASS 8 7 20.50 PASS 15 0 20.91 PASS HCH 1 0 21.84 PASS 1 7 22.16 PASS 1 14 21.94 PASS 8 0 20.77 PASS 8 4 21.05 PASS 8 7 20.96 PASS 15 0 20.95 PASS Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Average Power [dBm]Verdict Size Offset QPSK LCH 1 0 22.89 PASS 1 12 23.49 PASS 1 24 22.96 PASS 12 0 22.03 PASS 12 6 22.06 PASS 12 13 22.05 PASS 25 0 21.99 PASS MCH 1 0 22.76 PASS 1 12 22.86 PASS 1 24 22.87 PASS 12 0 21.69 PASS 12 6 21.72 PASS 12 13 21.69 PASS 25 0 21.69 PASS HCH 1 0 22.85 PASS 1 12 23.01 PASS 1 24 23.01 PASS 12 0 21.93 PASS 12 6 22.05 PASS 12 13 21.96 PASS 25 0 21.90 PASS 16QAM LCH 1 0 22.06 PASS 1 12 22.48 PASS Reference No.: WTX21X03021684W-2 Page 5 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 1 24 22.07 PASS 12 0 21.05 PASS 12 6 21.17 PASS 12 13 20.92 PASS 25 0 21.23 PASS MCH 1 0 21.45 PASS 1 12 21.52 PASS 1 24 21.61 PASS 12 0 20.79 PASS 12 6 20.80 PASS 12 13 20.81 PASS 25 0 20.81 PASS HCH 1 0 21.54 PASS 1 12 21.80 PASS 1 24 21.46 PASS 12 0 20.68 PASS 12 6 20.79 PASS 12 13 20.85 PASS 25 0 20.88 PASS Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Average Power [dBm]Verdict Size Offset QPSK LCH 1 0 22.96 PASS 1 24 23.36 PASS 1 49 22.73 PASS 25 0 22.11 PASS 25 12 22.13 PASS 25 25 22.04 PASS 50 0 22.00 PASS MCH 1 0 22.92 PASS 1 24 23.12 PASS 1 49 22.91 PASS 25 0 21.77 PASS 25 12 21.90 PASS 25 25 21.76 PASS 50 0 21.76 PASS HCH 1 0 22.90 PASS 1 24 23.06 PASS 1 49 22.83 PASS 25 0 21.89 PASS Reference No.: WTX21X03021684W-2 Page 6 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 25 12 22.06 PASS 25 25 22.00 PASS 50 0 21.91 PASS 16QAM LCH 1 0 22.57 PASS 1 24 23.13 PASS 1 49 22.27 PASS 25 0 21.13 PASS 25 12 21.12 PASS 25 25 21.05 PASS 50 0 21.12 PASS MCH 1 0 22.27 PASS 1 24 22.57 PASS 1 49 22.27 PASS 25 0 20.79 PASS 25 12 20.89 PASS 25 25 20.79 PASS 50 0 20.82 PASS HCH 1 0 21.85 PASS 1 24 21.99 PASS 1 49 21.84 PASS 25 0 20.80 PASS 25 12 20.92 PASS 25 25 20.96 PASS 50 0 20.84 PASS Channel Bandwidth: 15 MHz Modulation Channel RB Configuration Average Power [dBm]Verdict Size Offset QPSK LCH 1 0 22.84 PASS 1 37 23.43 PASS 1 74 22.61 PASS 37 0 22.16 PASS 37 18 22.17 PASS 37 38 22.11 PASS 75 0 21.97 PASS MCH 1 0 22.77 PASS 1 37 22.87 PASS 1 74 22.44 PASS 37 0 21.75 PASS 37 18 21.90 PASS 37 38 21.80 PASS Reference No.: WTX21X03021684W-2 Page 7 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 75 0 21.70 PASS HCH 1 0 22.82 PASS 1 37 22.99 PASS 1 74 22.77 PASS 37 0 21.93 PASS 37 18 21.91 PASS 37 38 21.82 PASS 75 0 22.00 PASS 16QAM LCH 1 0 22.71 PASS 1 37 23.32 PASS 1 74 22.04 PASS 37 0 21.06 PASS 37 18 21.19 PASS 37 38 21.12 PASS 75 0 21.09 PASS MCH 1 0 22.12 PASS 1 37 22.44 PASS 1 74 22.61 PASS 37 0 20.74 PASS 37 18 20.87 PASS 37 38 20.77 PASS 75 0 20.81 PASS HCH 1 0 21.83 PASS 1 37 21.86 PASS 1 74 21.87 PASS 37 0 20.89 PASS 37 18 20.83 PASS 37 38 20.92 PASS 75 0 20.82 PASS Channel Bandwidth: 20 MHz Modulation Channel RB Configuration Average Power [dBm]Verdict Size Offset QPSK LCH 1 0 23.31 PASS 1 49 23.67 PASS 1 99 22.51 PASS 50 0 22.12 PASS 50 25 22.27 PASS 50 50 21.85 PASS 100 0 21.99 PASS MCH 1 0 22.97 PASS Reference No.: WTX21X03021684W-2 Page 8 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 1 49 23.30 PASS 1 99 22.99 PASS 50 0 21.81 PASS 50 25 21.95 PASS 50 50 21.75 PASS 100 0 21.77 PASS HCH 1 0 22.70 PASS 1 49 22.92 PASS 1 99 22.58 PASS 50 0 21.70 PASS 50 25 21.79 PASS 50 50 21.69 PASS 100 0 21.80 PASS 16QAM LCH 1 0 22.04 PASS 1 49 22.29 PASS 1 99 20.99 PASS 50 0 21.07 PASS 50 25 21.25 PASS 50 50 20.99 PASS 100 0 21.04 PASS MCH 1 0 21.73 PASS 1 49 21.86 PASS 1 99 22.17 PASS 50 0 20.77 PASS 50 25 20.83 PASS 50 50 20.84 PASS 100 0 20.76 PASS HCH 1 0 21.49 PASS 1 49 21.78 PASS 1 99 21.36 PASS 50 0 20.90 PASS 50 25 20.89 PASS 50 50 20.81 PASS 100 0 20.75 PASS Reference No.: WTX21X03021684W-2 Page 9 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix B: Peak-to-Average Ratio Test Resul…

Text truncated - open the document above for the full version.

Reference No.: WTX21X03021684W-2 Page 58 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#0 Reference No.: WTX21X03021684W-2 Page 59 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_LCH_QPSK_50RB#0 Reference No.: WTX21X03021684W-2 Page 60 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#49 Reference No.: WTX21X03021684W-2 Page 61 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#25 Reference No.: WTX21X03021684W-2 Page 62 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_MCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#24 Reference No.: WTX21X03021684W-2 Page 63 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#12 Reference No.: WTX21X03021684W-2 Page 64 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_HCH_QPSK_50RB#0 Reference No.: WTX21X03021684W-2 Page 65 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#24 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#49 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#0 Reference No.: WTX21X03021684W-2 Page 66 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#12 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#25 Channel Bandwidth: 10 MHz_LCH_16QAM_50RB#0 Reference No.: WTX21X03021684W-2 Page 67 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#24 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#49 Reference No.: WTX21X03021684W-2 Page 68 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_MCH_16QAM_25RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_25RB#12 Channel Bandwidth: 10 MHz_MCH_16QAM_25RB#25 Reference No.: WTX21X03021684W-2 Page 69 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_MCH_16QAM_50RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#24 Reference No.: WTX21X03021684W-2 Page 70 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#49 Channel Bandwidth: 10 MHz_HCH_16QAM_25RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_25RB#12 Reference No.: WTX21X03021684W-2 Page 71 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_HCH_16QAM_25RB#25 Channel Bandwidth: 10 MHz_HCH_16QAM_50RB#0 Reference No.: WTX21X03021684W-2 Page 72 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 15 MHz (Channel Bandwidth:15 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_LCH_QPSK_1RB#37 (Channel Bandwidth:15 MHz)_LCH_QPSK_1RB#74 (Channel Bandwidth:15 MHz)_LCH_QPSK_37RB#0 Reference No.: WTX21X03021684W-2 Page 73 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_LCH_QPSK_37RB#18 (Channel Bandwidth:15 MHz)_LCH_QPSK_37RB#38 (Channel Bandwidth:15 MHz)_LCH_QPSK_75RB#0 Reference No.: WTX21X03021684W-2 Page 74 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#37 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#74 Reference No.: WTX21X03021684W-2 Page 75 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#18 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#38 Reference No.: WTX21X03021684W-2 Page 76 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_MCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#37 Reference No.: WTX21X03021684W-2 Page 77 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#74 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#18 Reference No.: WTX21X03021684W-2 Page 78 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#38 (Channel Bandwidth:15 MHz)_HCH_QPSK_75RB#0 Reference No.: WTX21X03021684W-2 Page 79 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#37 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#74 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#0 Reference No.: WTX21X03021684W-2 Page 80 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#18 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#38 (Channel Bandwidth:15 MHz)_LCH_16QAM_75RB#0 Reference No.: WTX21X03021684W-2 Page 81 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#37 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#74 Reference No.: WTX21X030216…

Text truncated - open the document above for the full version.

Reference No.: WTX21X03021684W-2 Page 102 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Test Graphs Channel Bandwidth: 1.4 MHz (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_6RB#0 Reference No.: WTX21X03021684W-2 Page 103 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_6RB#0 Reference No.: WTX21X03021684W-2 Page 104 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 3 MHz (Channel Bandwidth: 3 MHz)_LCH_QPSK_15RB#0 (Channel Bandwidth: 3 MHz)_MCH_QPSK_15RB#0 (Channel Bandwidth: 3 MHz)_HCH_QPSK_15RB#0 Reference No.: WTX21X03021684W-2 Page 105 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth: 3 MHz)_LCH_16QAM_15RB#0 (Channel Bandwidth: 3 MHz)_MCH_16QAM_15RB#0 (Channel Bandwidth: 3 MHz)_HCH_16QAM_15RB#0 Reference No.: WTX21X03021684W-2 Page 106 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_25RB#0 Reference No.: WTX21X03021684W-2 Page 107 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth: 5 MHz)_LCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_25RB#0 Reference No.: WTX21X03021684W-2 Page 108 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz_LCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_50RB#0 Reference No.: WTX21X03021684W-2 Page 109 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz_LCH_16QAM_50RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_50RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_50RB#0 Reference No.: WTX21X03021684W-2 Page 110 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 15 MHz (Channel Bandwidth:15 MHz)_LCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_75RB#0 Reference No.: WTX21X03021684W-2 Page 111 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:15 MHz)_LCH_16QAM_75RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_75RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_75RB#0 Reference No.: WTX21X03021684W-2 Page 112 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 20 MHz (Channel Bandwidth:20 MHz)_LCH_QPSK_100RB#0 (Channel Bandwidth:20 MHz)_MCH_QPSK_100RB#0 (Channel Bandwidth:20 MHz)_HCH_QPSK_100RB#0 Reference No.: WTX21X03021684W-2 Page 113 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth:20 MHz)_LCH_16QAM_100RB#0 (Channel Bandwidth:20 MHz)_MCH_16QAM_100RB#0 (Channel Bandwidth:20 MHz)_HCH_16QAM_100RB#0 Reference No.: WTX21X03021684W-2 Page 114 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix D: Band Edge Test Graphs Channel Bandwidth: 1.4 MHz (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#5 Reference No.: WTX21X03021684W-2 Page 115 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#2 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_6RB#0 Reference No.: WTX21X03021684W-2 Page 116 of 283 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.c…

Text truncated - open the document above for the full version.
