2AJX5-BE010566Thesis

MOUNTS AND ACCESSORIES Thesis should only be used with approved Byrne Mounts and Accessories. Read and follow all instructions provided with each accessory. CHARGING YOUR THESIS ® INITIAL CHARGE The Thesis ® is shipped with a 25% charge level. For the best results, charge the battery completely before use. DEAD TO FULL CHARGE TIME Thesis will charge fully in 5-6 hours. CHARGER SPECS 100W PD Type C, 20V at 5A Wireless Charger, 9V at 1.67A LED BATTERY DISPLAY WHAT DO LEDs INDICATE? While charging, the LEDs will cycle through the lights to indicate the level of the charge. Starting with 1 and stopping at the charge level. Each light in the cycle accounting for 25% of the fully charged battery. All 4 lights will remain on when the battery has reached 100% charge level. 320 Byrne Industrial Drive, Rockford, MI 49341 www.byrne.com 1 of 2 IS05711 © 2024 Byrne Electrical Specialists, Inc. All Rights Reserved P 800.999.3567 07/22/24 PACKAGE INCLUDES 1, 3, or 5 Pack of Thesis (1) Charging cord Replacement part number OPERATING INSTRUCTIONS Please read all the instructions before using Thesis. GENERAL USE Plug devices into the proper port. There are 3 USB-C connections, 1 USB-A connection. Thesis can be charged by plugging a 100W PD Type C power supply into the indicated Type C Port. *Not to be stacked with more that 5 units. For best results, charge Thesis when the level drops to 25%. If the battery is discharged below its rating, the unit will not function correctly. Recharge the battery before using. Thesis may become warm during use. An internal fan may activate to cool Thesis when in use. Keep the air vents free from debris or obstructions. Always allow adequate ventilation around Thesis. Do not place Thesis under a blanket, pillow, or body when in use. THESIS CAPACITIES TOTAL AVAILABLE POWER 21.6V DC, 10,000mAH, 216WH 100W USB-C / Charging Input 100W USB-C 20W USB-C 10W USB-A LOCATING DEVICE Thesis contains a cavity for the storage of a locating device. Fold back the bottom pad to access the cavity. A magnetic disc secures the pad in one corner. Only fold the pad back at this corner. Do not remove the pad from the adhesive. Read and follow all of the locating device manufacturer’s instructions and recommendations. www.byrne.com 2 of 2 CARE, STORAGE, AND TRANSPORTATION Do not subject Thesis to mechanical shock, crushing or cutting. Misuse, dropping or excessive force may damage Thesis. Do not clean Thesis with harmful chemicals or detergents. Store Thesis in a cool dry place. Do not store Thesis in a hot or humid environment. Do not store Thesis near re or in high temperatures such as in direct sunlight or in a vehicle. Refer to the current IATA restrictions before attempting to bring Thesis on an airplane. DISPOSAL INSTRUCTIONS Thesis contains Lithium-ion batteries and should not go in household garbage or recycling bins. Do not dispose of Thesis in heat or fire. Thesis should be taken to separate recycling or household hazardous waste collection points that accept Lithium-ion batteries. 320 Byrne Industrial Drive, Rockford, MI 49341 IS010668 © 2024 Byrne Electrical Specialists, Inc. All Rights Reserved P 800.999.3567 07/22/24 IMPORTANT SAFETY INSTRUCTIONS WARNING – When using this product, basic precautions should always be followed, including the following: • Read all instructions before using Thesis. • To reduce the risk of injury, close supervision is necessary whenThesis is used near children. • Do not put ngers or hands into Thesis. • Use of an attachment not recommended or sold by Byrne may result in the risk of re, electric shock, or injury to persons. • To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting Thesis. • Do not use Thesis if it is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. • Do not operate Thesis with a damaged cord or plug. • Do not expose Thesis to re or excessive temperature. Exposure to re or temperatures above 265°F may cause explosion. • There are no user serviceable parts inside. Do not disassemble Thesis. Contact Byrne for service options. • Do not store or operate at temperatures below 40°F or above 90°F. • Do not cover or block ventilation slots. • Do not stack more than 5 units SAVE THESE INSTRUCTIONS WARNING – For indoor use only. Do not use outdoors. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrol…

Text truncated - open the document above for the full version.

(Byrne Electrical Specialists, Inc.) (2024.8.14) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AJX5-BE010566) [Byrne Electrical Specialists, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Tim Warwick (Byrne Electrical Specialists, Inc.) (2024.8.14) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AJX5-BE010566) [Byrne Electrical Specialists, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Tim Warwick

Attestation Statements (2024.7.26) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AJX5-BE010566) (Byrne Electrical Specialists, Inc.), the undersigned, hereby authorize Byrne Electrical Specialists, Inc. to act as our designated U.S. agent for service of process, (Byrne Electrical Specialists, Inc.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Byrne Electrical Specialists, Inc. accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information ： Company Name: Byrne Electrical Specialists, Inc. Contact Name: Tim Warwick Address: 320 BYRNE INDUSTRIAL DR. ROCKFORD, MI 49341 FRN: 0025939455 Telephone No: 616-866-3461 Email: [email protected] Signature [Tim Warwick] U.S. Agent Information: Company Name: Byrne Electrical Specialists, Inc. Contact Name: Tim Warwick Address: 320 BYRNE INDUSTRIAL DR. ROCKFORD, MI 49341 FRN: 0025939455 Telephone No: 616-866-3461 Email: [email protected] Signature [Tim Warwick] Tim Warwick (Aug 6, 2024 12:35 EDT) Tim Warwick (Aug 6, 2024 12:35 EDT) CANADIAN REPRESENTATIVE LETTER OF ATTESTATION Final Audit Report2024-08-06 Created:2024-08-06 By:Pamela Woodruff ([email protected]) Status:Signed Transaction ID:CBJCHBCAABAAC75UloojCO2EVvuhJHQ4Q2LU6DNOITkv "CANADIAN REPRESENTATIVE LETTER OF ATTESTATION" History Document created by Pamela Woodruff ([email protected]) 2024-08-06 - 2:21:31 PM GMT Document emailed to Tim Warwick ([email protected]) for signature 2024-08-06 - 2:21:35 PM GMT Email viewed by Tim Warwick ([email protected]) 2024-08-06 - 4:35:22 PM GMT Document e-signed by Tim Warwick ([email protected]) Signature Date: 2024-08-06 - 4:35:38 PM GMT - Time Source: server Agreement completed. 2024-08-06 - 4:35:38 PM GMT

Byrne Electrical Specialists, Inc. 2024.08.14 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Thesis Trademark: Byrne MODEL : BE010566-XX FCC ID: 2AJX5-BE010566 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Tim Warwick / Codes & Compliance Contact information / address: 320 BYRNE INDUSTRIAL DR. ROCKFORD, MI 49341

Byrne Electrical Specialists, Inc. 2024.08.14 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Thesis Trademark: Byrne MODEL : BE010566-XX FCC ID: 2AJX5-BE010566 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Tim Warwick / Codes & Compliance Contact information / address: 320 BYRNE INDUSTRIAL DR. ROCKFORD, MI 49341

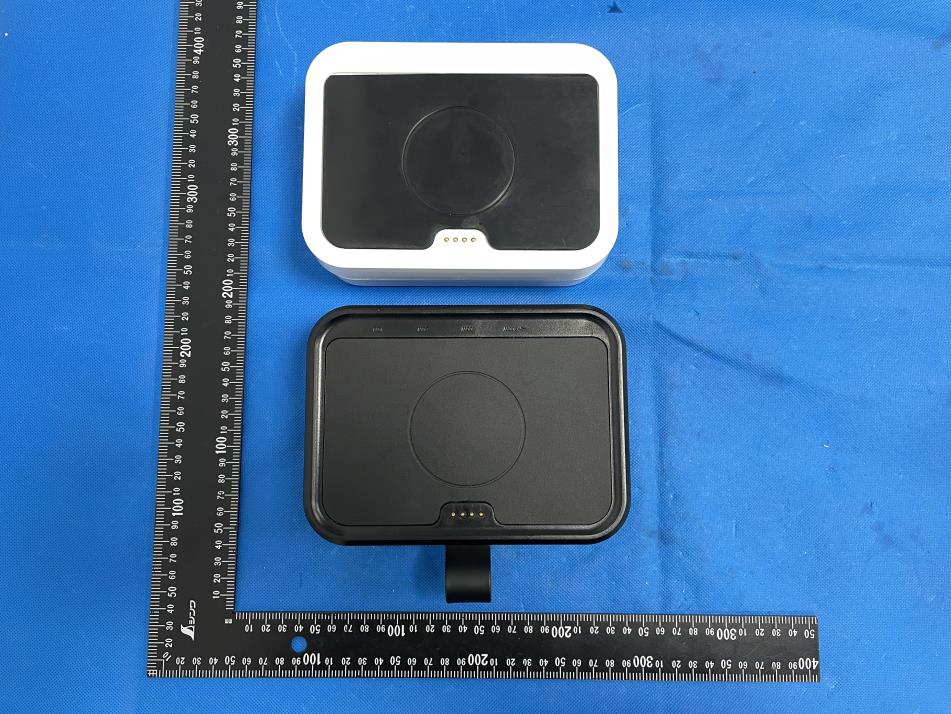

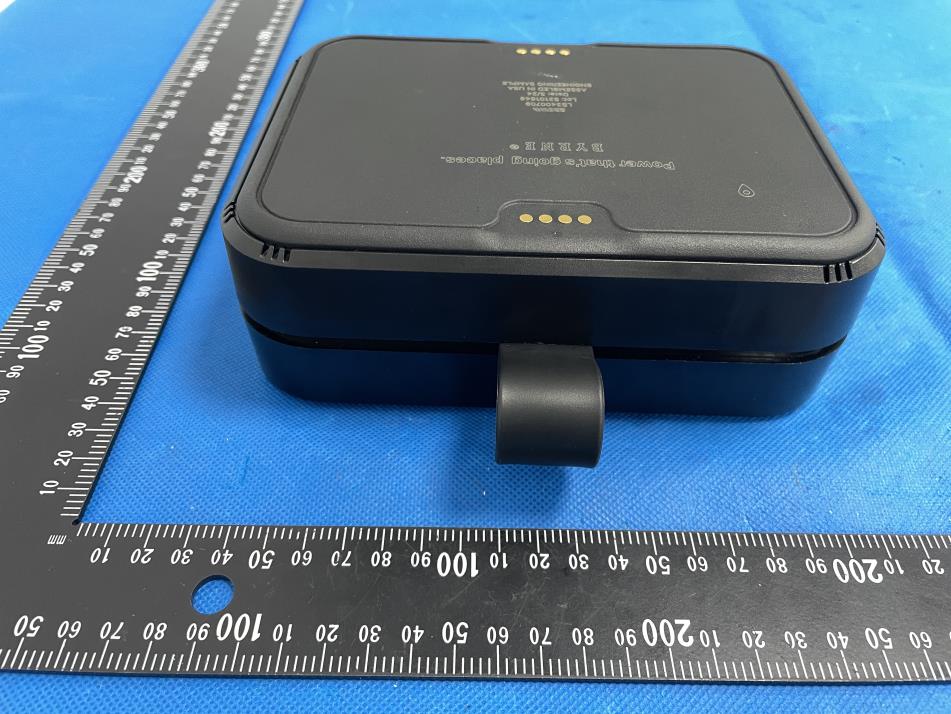

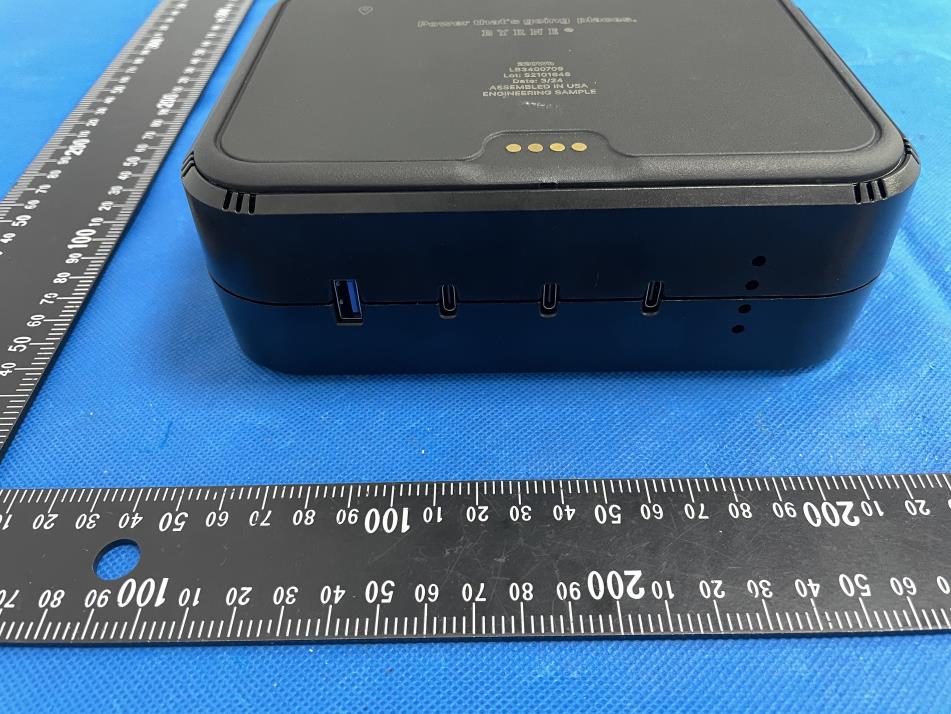

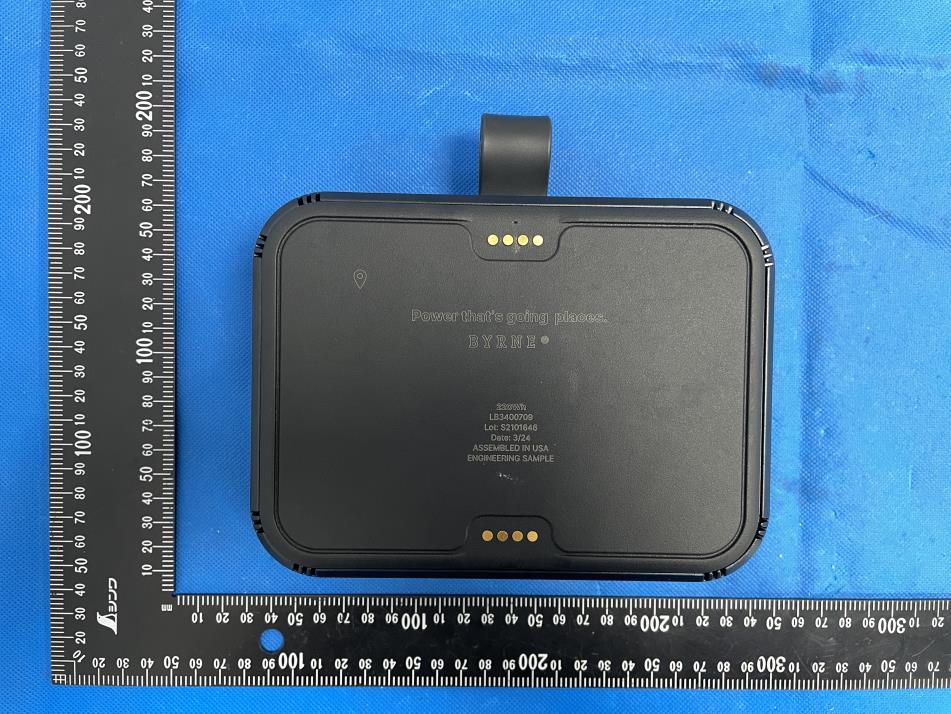

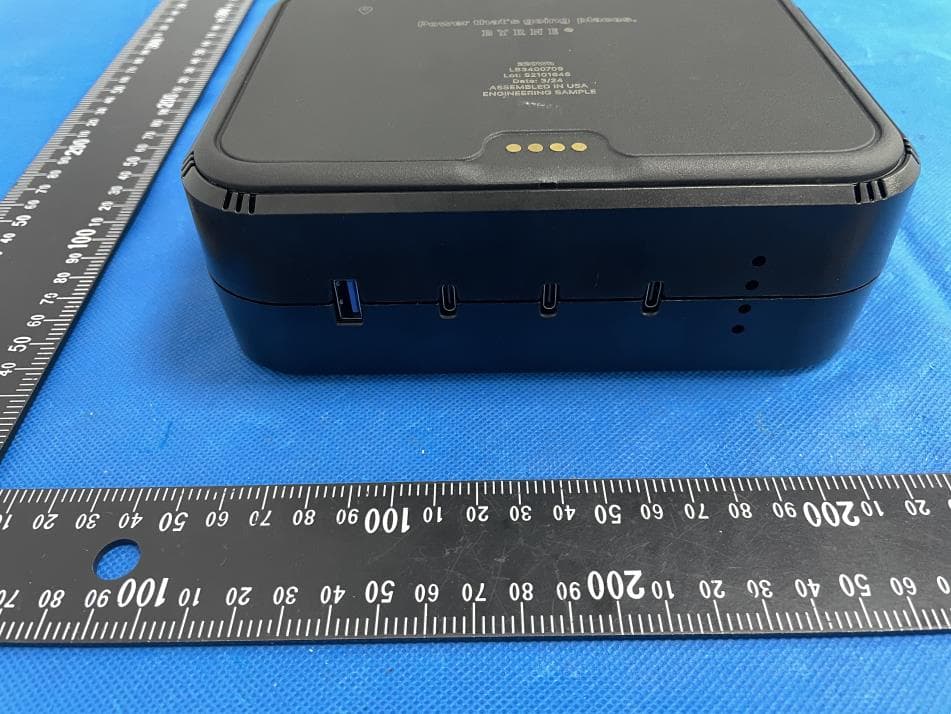

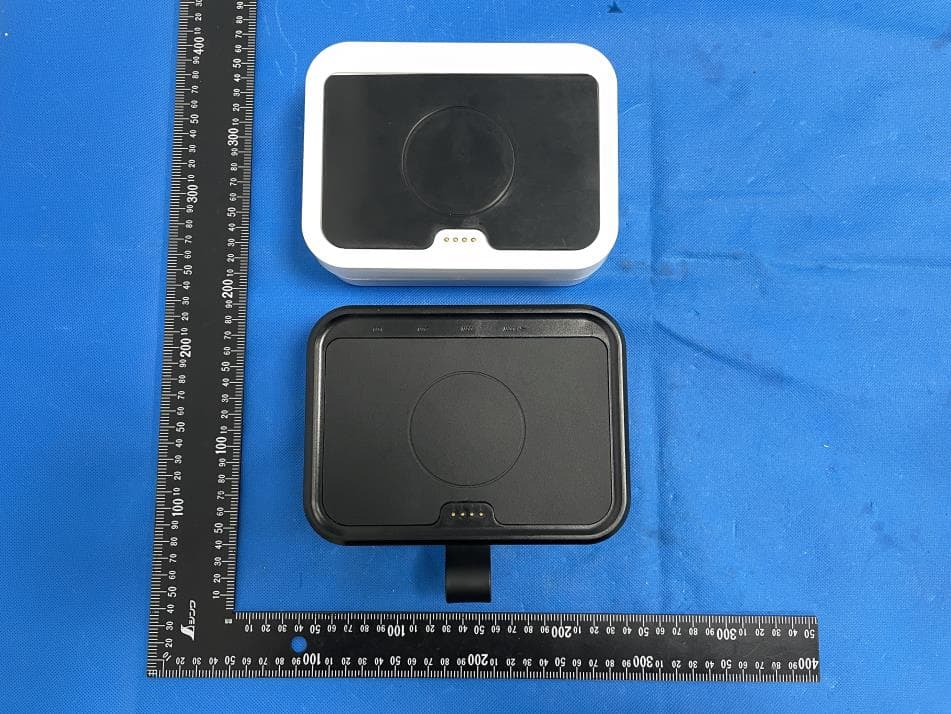

External Photos

Size:40*20mm Thesis FCC ID: 2AJX5-BE010566 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page 1 of 16 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2406853479-2E Applicant: Byrne Electrical Specialists, Inc. Product Name: Thesis Test Model: BE010566-XX Tested Date: 2024-06-20 to 2024-07-15 Issued Date: 2024-07-15 Report No.: BCTC2406853479-2E No.：BCTC/RF-EMC-005 Page 2 of 16 Edition：B.2 FCC ID: 2AJX5-BE010566 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Thesis Trademark: Byrne Model/Type Reference: BE010566-XX Prepared For: Byrne Electrical Specialists, Inc. Address: 320 BYRNE INDUSTRIAL DR. ROCKFORD, MI 49341 Manufacturer: Shenzhen Beeste Technology Co., Ltd. Address: No.602, Building A, Kangrui Times Square, Dalang Street, Longhua District, Shenzhen CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2024-06-20 Sample Tested Date: 2024-06-20 to 2024-07-15 Issue Date: 2024-07-15 Report No.: BCTC2406853479-2E Test Standards: FCC CFR 47 part1, 1.1307(b), 1.1310 Test Results: PASS Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2406853479-2E No.：BCTC/RF-EMC-005 Page 3 of 16 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Product Information ............................................................................................... 5 2.1 Product Information ............................................................................................... 5 2.2 Support Equipment ............................................................................................... 5 2.3 Test Mode ............................................................................................................. 6 3. Test Facility And Test Instrument Used ................................................................. 7 3.1 Test Facility ........................................................................................................... 7 3.2 Test Instrument Used ............................................................................................ 7 4. Method Of Measurement ....................................................................................... 8 4.1 Applicable Standard .............................................................................................. 8 4.2 Block Diagram Of Test Setup ................................................................................ 8 4.3 Limit ...................................................................................................................... 9 4.4 Test procedure ...................................................................................................... 9 4.5 Equipment Approval Considerations ................................................................... 10 4.6 E and H field Strength ......................................................................................... 11 5. Photographs Of Test Set-Up ............................................................................... 15 (Note: N/A Means Not Applicable) Report No.: BCTC2406853479-2E No.：BCTC/RF-EMC-005 Page 4 of 16 Edition：B.2 1. Version Report No. Issue Date Description Approved BCTC2406853479-2E 2024-07-15 Original Valid Report No.: BCTC2406853479-2E No.：BCTC/RF-EMC-005 Page 5 of 16 Edition：B.2 2. Product Information 2.1 Product Information Model/Type Reference: BE010566-XX Model Differences: N/A Hardware Version: N/A Software Version: N/A Modulation: ASK Operation Frequency: 115kHz-205kHz Antenna installation: loop coil antenna Ratings: Input: USB-C 1:5V/3A,9V3A,12V/3A,15V/3A,20V/5A Output: USB-C 1:3.3V-21V/5A USB-C 2:3.3V-21V/5A USB-C 3: 5V/3A, 9V/2.22A, 12V/1.67A USB-A:5V2.4A Wireless Charging:15W/10W/7.5W/5W 2.2 Support Equipment No. Device Type Brand Model Series No. Note E-1 Mobile Power Byrne BE010566-XX N/A EUT E-2 Adapter --- --- N/A Auxiliary E-3 Wireless charging load --- --- N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. Report No.: BCTC2406853479-2E No.：BCTC/RF-EMC-005 Page 6 of 16 Edition：B.2 2.3 Test Mode AC Mode Mode 1 Charging+Full Load Mode 2 Charging+Half Load Mode 3 Charging+Null Load DC Mode Mode 4 Full Load Mode 5 Half Load Mode 6 Null Load Note: 1) All test mode were tested and passed, only shows the worst case mode which were recorded in this report. Report No.: BCTC2406853479-2E No.：BCTC/RF-EMC-005 Page 7 of 16 Edition：B.2 3. Test Facility And Test Instrument Used 3.1 Test Facility All measurement facilities used to collect the measurement data are located at Shenzhen BCTC Testing Co., Ltd. Address:1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1-1 other equivalent standards. FCC Test Firm Registration Number: 712850 A2LA certificate registration number is: CN1212 ISED Registered No.: 23583 ISED CAB identifier: CN0017 3.2 Test Instrument Used EMF Test Equipment Manufacturer Model# Serial# Last Cal. Next Cal. Electromagnet -ic radiation tester Wavecontrol SMP160 19SN0980 May 25, 2024 May 24, 2025 Electromagnet -ic field probe Wavecontrol WP400-3 20WP120082 May 16, 2024 May 15, 2025 Software Frad EZ-EMC EM…

Text truncated - open the document above for the full version.

深圳市深广电子有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 客戶： CUSTOMER: 客戶料號： CUSTP/N: 名称： NAMAP/N: 産品型號： DESC: 日期： DATE: 版本： Version: 热风线CW11TS,0.08*72,8.1uH,Q>70,出线长6mm,磁 片 G42.5*5.3*0.8mm+20*0.8mm, 双槽 , 背胶 2024.08.06 A.0 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 谢燕琪段家旺 谢小仔 深圳市深广电子有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD VersionChangeHistory 版本 Rev. 變更前 BeforeChang 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 20240806 谢小仔 深圳市深广电子有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 産品型號： DESC 热风线CW11TS,0.08*72,8.1uH,Q>70,出 线长6mm,磁片 G42.5*5.3*0.8mm+20*0.8mm,双槽,背胶 版本 Rev：A.0 客戶CUST: 客户料号CUSTP/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: A 42.5±0.5 B 39±1 C 20.5±0.5 D 20±0.3 E 2-4 H 6+2 I 0.8±0.1 T 2Max(不含离型纸) 注： 1.交叉出线; 2.磁片尺寸42.5±0.5mm,厚度为 0.8±0.1mm。 3、折线位置贴3mm高温胶纸 4.两根引线间距5mm(Ref) 三、绕线参数WindingSpecification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1SF 漆包线0.08*72P 11TsCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND.S-F 4.8u H±10%单独线圈 100KHz/1.0V CH1063 2IND.S-F 8.1uH±10%加磁片 100KHz/1.0VCH1063 3DCRS-F 70mΩMAX 100KHz/1.0V502BC 4 Q S-F70MIN100KHz/1.0V502BC 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 2024-8-62024-8-6 深圳市深广电子有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 五、材料清单MaterialList: 序号 NO. 材料名称Material name 品名描述 Description 制造商 Martnumber 材质 Material 1 热风线 0.08*72P 2UEW 2 无铅锡条高温 3 丙酮水/ 4 胶水水基胶;白色 5磁片硬磁尺寸 G42.5*5.3*0.8+20*0.8 PC40 6 背胶双面背胶 7NTC / 8 9 10 11 12 六、包装/PACKAGE 6.1包装图片 6.2包装数量及规格PackingQuantity: 6.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackageshall prevail.Ifthereisanyrequirement,wecancustomizeit. 项目Item数量Quantity材料规格Material 盒Box 400Pcs370*265*55mm 箱BigCarton 1200Pcs420*270*310mm 七、贮存和使用条件StorageandUsecondition 7.1贮存条件Storagecondition 7.1.1建议贮存条件：温度-25°C ~ 85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C ~ 85°C,70%RH(Max.) 7.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeingproduced. 7.2使用条件Usecondition 使用条件限制：温度=-25°C ~ 85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

No.：BCTC/RF-EMC-005 Page 1 of 29 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2406853479-1E Applicant: Byrne Electrical Specialists, Inc. Product Name: Thesis Test Model: BE010566-XX Tested Date: 2024-06-20 to 2024-07-15 Issued Date: 2024-07-15 Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 2 of 29 Edition：B.2 FCC ID: 2AJX5-BE010566 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Thesis Trademark: Byrne Model/Type Reference: BE010566-XX Prepared For: Byrne Electrical Specialists, Inc. Address: 320 BYRNE INDUSTRIAL DR. ROCKFORD, MI 49341 Manufacturer: Shenzhen Beeste Technology Co., Ltd. Address: No.602, Building A, Kangrui Times Square, Dalang Street, Longhua District, Shenzhen CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2024-06-20 Sample Tested Date: 2024-06-20 to 2024-07-15 Issue Date: 2024-07-15 Report No.: BCTC2406853479-1E Test Standards: FCC Part15.209 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 3 of 29 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Support Equipment ............................................................................................... 7 4.3 Test Setup Configuration ...................................................................................... 8 4.4 Test Mode ............................................................................................................. 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 5.2 Test Instrument Used .......................................................................................... 10 6. Conducted Emissions .......................................................................................... 12 6.1 Block Diagram Of Test Setup .............................................................................. 12 6.2 Limit .................................................................................................................... 12 6.3 Test procedure .................................................................................................... 12 6.4 EUT operating Conditions ................................................................................... 12 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test procedure .................................................................................................... 16 7.4 Test Result .......................................................................................................... 17 8. Bandwidth Test .................................................................................................... 23 8.1 Test Procedure ................................................................................................... 23 8.2 Test Setup ........................................................................................................... 23 8.3 Test Result .......................................................................................................... 24 9. Antenna Requirements ........................................................................................ 25 9.1 Limit .................................................................................................................... 25 9.2 Test Result .......................................................................................................... 25 10. EUT Photographs ................................................................................................ 26 11. EUT Test Setup Photographs.............................................................................. 27 (Note: N/A Means Not Applicable) Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 4 of 29 Edition：B.2 1. Version Report No. Issue Date Description Approved BCTC2406853479-1E 2024-07-15 Original Valid Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 5 of 29 Edition：B.2 2. Test Summary The Product has been tested according to the following specifications: No. Test Parameter Clause No. Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 20dB Bandwidth 15.215 PASS 4 Antenna Requirement 15.203 PASS Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 6 of 29 Edition：B.2 3. Measurement Uncer…

Text truncated - open the document above for the full version.

Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 27 of 29 Edition：B.2 11.EUT Test Setup Photographs Conducted emissions Report No.: BCTC2406853479-1E No.：BCTC/RF-EMC-005 Page 28 of 29 Edition：B.2 Radiated Measurement Photos 9kHz-30MHz 30MHz-1GHz
