2AKBP-LC3Smart led strip controller

Setting Smart Life App 1.Download the “Smart Life”APP from APP Store or Google Play Market, or scan the QR code and install the "Smart Life" for either iOS or Android.2.Once downloaded, the app will ask you to registeryour account. 4.Type verification code to complete registration. 3.Type your email,click to get verification codeverification code will be sent to your email. - 10 - Connect with mobile phone (Auto Scan) 1.Turn on the smart phone or device Bluetooth function and ensure the smart phone or device network is ON.3. Hold controller the button for 5secouds, ensure red lights is now rapidly flashing (2 times per second).4.Open the application, click "+" to select "Auto Scan Mode", and then start to automatically scan products that can be connected.5. Once connected, the App will prompt the connection, then click "Done".2.Before connecting, please make sure your smart phone or device is connecting with your home Wi-Fi 2.4GHz successfully. - 11 - 6. Now you can control the Smart LED Lighting through Smart Life App. User Manual Smart LED Strip WiFi 2.4GHz & Bluetooth Connect with mobile phone (Add Manually)4.Open App and click "+" to add manually corresponding product.3. Hold Light strip controller the button for 5secouds, ensure red lights is fast blinking.1.Turn on the smart phone or device bluetooth function and ensure the smart phone or device network is ON.2.Before connecting, please make sure your smart phone or device is connecting with your home Wi-Fi 2.4GHz successfully. - 15 - 6. Once connected, the App will prompt the connection, then click "Done".5.Confirm Light strip is now rapidly flashing(2 times per second). Warranty description This product has one-year warranty from the day after signing. Please contact us if you have any questions or issues. - 21 - Warm Tips - 20 - Please check whether the device is connected with power and your phone is connected with Wi-Fi.Check routers: If the router is dual-band router, please select a 2.4GHz network to add device. You also need to open the router broadcasting function.Set up the wireless router: Set encryption method as WPA2-PSK authorization type as AES, or set both as auto. The Wireless mode cannot be only 5GHz.Please name router Wi-Fi in English. In order to stay strong Wi-Fi signal, please keep device and router within a certain distance.Check whether connected devices have reached the Maximum number router connection. If so, please try to turn off the Wi-Fi connection of some devices.Make sure router wireless MAC filtering function is enabled.Remove the device from the filter list and make sure that router is not prohibiting device from connection.Make sure the entered password is correct when adding a new device.App for more operations, please refer to the corresponding application tutorial. Into the home page 1 Select the correspondingproduct model pairing - 16 - - 13 - Enter the Wifi password 34 The equipment connected to the Internet Start pairing Enter the Wifi password - 17 - Support 3rd Party Control Type the edit menu of the user panel. 1 Select the third-party application to be operated. 23 - 19 - Smart LED Lighting Follow the instructions in the tutorial to connect and use. - 14 - Distribution network success Smart LED Lighting Smart LED Lighting Jump to the user panel 56 The equipment connected to the Internet Distribution network success - 18 - Smart LED Lighting Into the home page 1 Select Auto Scan Mode - 12 - Smart LED Lighting Utilisation of Controller box Music : Short press to enter the music mode, you can switch between 4 music modes.Colour : Short press to switch 8 kinds of colorful colour scene modesOn/off : Short press to turn on/off the led light bar. Long press distribution network. - 06 - IR Remote Controller 40 KEY 1. LED brightness adjustment button(+).2. LED brightness adjustment button(-).3. Pause/Run button.4. ON/OFF button. RGB CONTROLLER V+ RGB GREEN BLUE WHITE V- JUMP3 QUICK SLOW FLASH AUTO 1H 1234 2H 4H 8H JUMP7 FADE3 FADE7 JUMP3 QUICK SLOW FLASH AUTO JUMP7 FADE3 FADE7 5. LED color buttons(16 colors).Static red/Static green/Static blue/Static white/Static orange/Static light green/Static dark blue/Static dark yellow/Static cyan/Static lyons blue/ Static yellow/Static light blue/Static purple/ Static light yellow/Static sky blue/Static brown. 1 5 89 6 2 3 4 7 - 07 - 6.Brightness button 25%, 50%, 75%, 100% from top to bottom.8. Timing function on/off lights: 1 hour, 2 hours, 4 hours, 8 hours.7. 8 colorful modes9. 4 music modes: Pattern 1 : 7 color breathing gradients change with music changes, music stops 7 color breathing gradients continue;Pattern 2: 7 color breathing changes, each color breathing 2 gradients and changes with music changes, music Stop breathing change of 7 colors; Pattern 3: 7 color jump changes with music changes, music stop color is still to the current color; Pattern 4: 7 color flash changes with music changes, music stops lights off. - 08 - Please pull out the transparent chip from the bottom of the IR remote to ensure that the battery is powered properly. Pull out the transparent chip. Make sure the IR remote aims at the IR receiver within the sensing distance. The angle of the IR receiver is 120 and the sensing distance is 5 meters. Please remotely control within the sensing range. - 09 - - 05 - - 01 - - 02 - - 03 - - 04 - Specifications ColorPower supplyInput voltageControl methodWorking temperature RGBAC 110-240VDC 12VWiFi 2.4GHz & Bluetooth / Remote / Control box-25 -60 Dimmable,16Million Color, Music Sync Works with Alexa /Google Home APP Control, Remote control,Local control. Works on a variety of smooth surface without dust, like walls, wood, metal, glass, and etc High-bond sticky double-sided adhesive, fixing the LED strips. Please note that all colorful light strings cannot be DIY cut ! 3.Use alcohol pad to clean dust. Alcohol Pad 75% Ethyl Alcohol For Disinfection Use Alcohol Pad 75% Ethyl Alcohol For Disinfection Use 2.Fix the adapter in the right way. +12…

Text truncated - open the document above for the full version.

(Shenzhen Hysiry Technology Co., Ltd) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AKBP-LC3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( Haitao Zhan) Rev 11/20/07

Shenzhen Hysiry Technology Co., Ltd Model Difference 2020-09-28 EUT NAME: Smart led strip controller FCC ID: 2AKBP-LC3 MODEL : LC3, LC2, BLC2, BLC3, ICLC2, ICLC3, ICBLC2, ICBLC3, BW-LC1, BW- LC2, BW-LC3, BW-LT34, BW-LT35, BW-LT36, BDLC3, BDLC4, MSL1, MSL2, MSL3, MSL4, MSL5, MSL6, MSL7, MSL8, MSL9, MSL10, 2RSL1, 2RSL2, 2RSL3, 2RSL4, 2RSL5, 2RSL6 All the model are the same circuit and RF module, only for model name and color. Regards Sincerely Client’s signature Client’s name / title : Haitao Zhan / Manager Contact information / address: 2403D, 24th floor’coast huanqing building, no.24 futian road, xu town community, futian street, futian district, shenzhen, China

(Shenzhen Hysiry Technology Co., Ltd) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/09/04 SUBJECT: FCC Application for FCC ID: 2AKBP-LC3 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( Haitao Zhan)

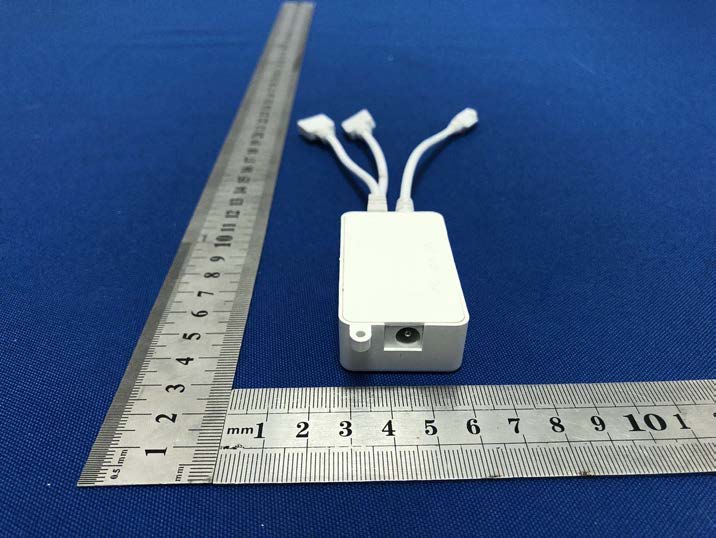

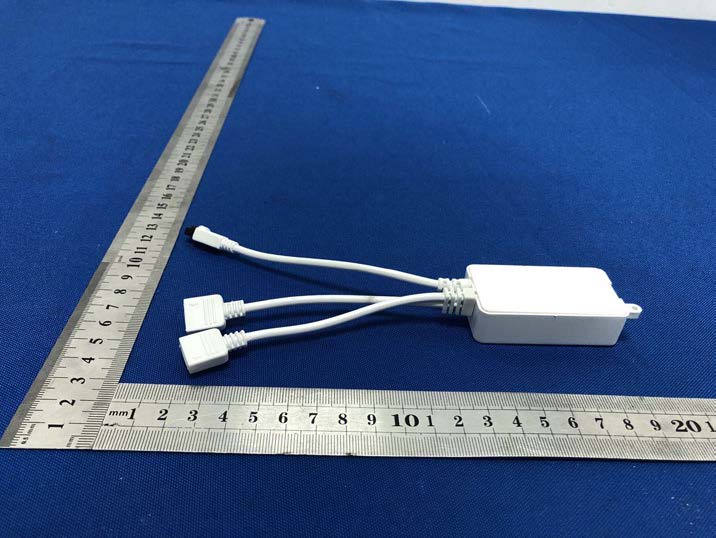

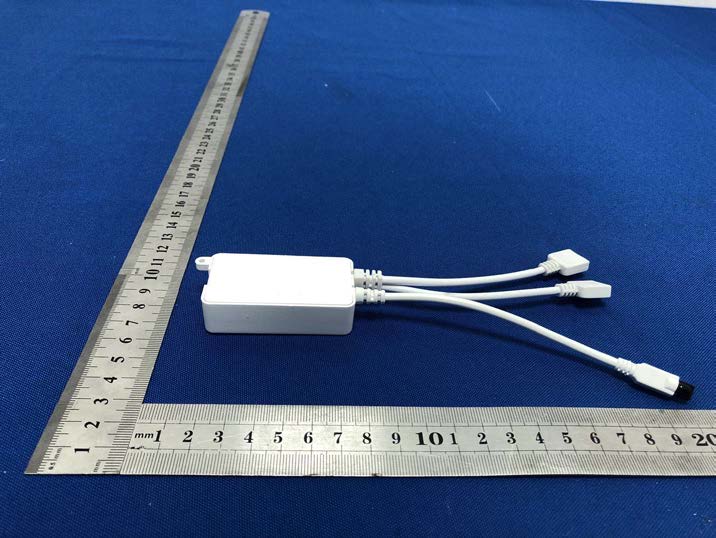

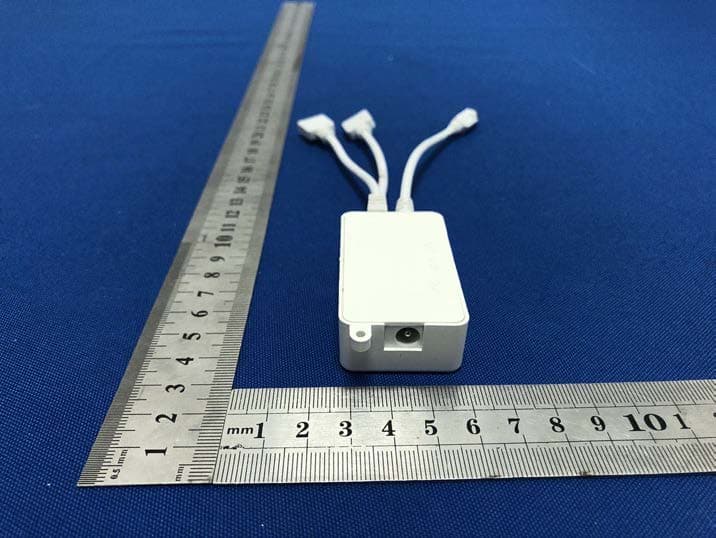

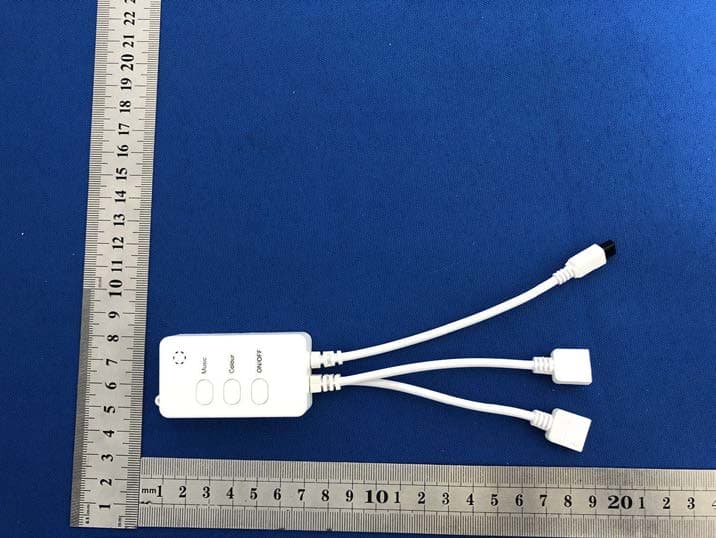

External Photos

Size:40*20mm Smart led strip controller FCC ID: 2AKBP-LC3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AKBP-LC3 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 802.11b (2.4G Hz WIFI) 12±1 13 19.95 1.259 (1dBi) 0.00500 1 Pass BLE 2±1 3 2.00 1.259 (1dBi) 0.00050 1 Pass

No.：BCTC/RF-EMC-00 5 Page: 1 of 69 Edition：A.1 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2009000491-1E Applicant: Shenzhen Hysiry Technology Co., Ltd Product Name: Smart led strip controller Model/Type Ref.: LC3 Tested Date: Sep, 11, 2020 to Sep, 2 7, 2020 Issued Date: Sep. 27, 2020 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 2 of 69 Edition：A.1 FCC ID: 2AKBP-LC3 Compiled by: Reviewed by: Approved by: Willem Wang Eric Yang Zero Zhou/Manager The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart led strip controller Trademark: N/A Model/Type Ref.: LC3 LC2, BLC2, BLC3, ICLC2, ICLC3, ICBLC2, ICBLC3, BW-LC1, BW-LC2, BW-LC3, BW-LT34, BW-LT35, BW-LT36, BDLC3, BDLC4, MSL1, MSL2, MSL3, MSL4, MSL5, MSL6, MSL7, MSL8, MSL9, MSL10, 2RSL1, 2RSL2, 2RSL3, 2RSL4, 2RSL5, 2RSL6 Prepared For: Shenzhen Hysiry Technology Co., Ltd Address: 2403D, 24th floor’coast huanqing building, no.24 futian road, xu town community, futian street, futian district, shenzhen, China Manufacturer: Shenzhen Hysiry Technology Co., Ltd Address: 2403D, 24th floor’coast huanqing building, no.24 futian road, xu town community, futian street, futian district, shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Sep, 11, 2020 Sample tested Date: Sep, 11, 2020 to Sep, 27, 2020 Issue Date: Sep. 27, 2020 Report No.: BCTC2009000491-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is WIFI-2.4GHz band radio test report. Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 3 of 69 Edition：A.1 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 5 2. TEST SUMMARY ...................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 7 4. PRODUCT INFORMATION AND TEST SETUP ............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................. 9 4.6 table of parameters of text software setting ................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 12 6. CONDUCTED EMISSIONS ............................................. 14 6.1 Block Diagram Of Test Setup ........................................... 14 6.2 Limit ................................................................. 14 6.3 Test procedure ........................................................ 14 6.4 EUT operating Conditions .............................................. 14 6.5 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 19 7.4 EUT operating Conditions .............................................. 20 7.5 Test Result ........................................................... 21 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .......................................................... 28 8.1 Block Diagram Of Test Setup ........................................... 28 8.2 Limit ................................................................. 28 8.3 Test procedure ........................................................ 29 8.4 EUT operating Conditions .............................................. 29 8.5 Test Result ........................................................... 30 9. POWER SPECTRAL DENSITY TEST ................................... 32 9.1 Block Diagram Of Test Setup ........................................... 32 9.2 Limit ................................................................. 32 9.3 Test procedure ........................................................ 32 9.4 EUT operating Conditions .............................................. 32 9.5 Test Result ........................................................... 33 10. BANDWIDTH TEST ................................................... 41 10.1 Block Diagram Of Test Setup .......................................... 41 10.2 Limit ................................................................ 41 10.3 Test procedure ....................................................... 41 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 4 of 69 Edition：A.1 10.4 EUT operating Conditions ............................................. 41 10.5 Test Result .......................................................... 42 11. PEAK OUTPUT POWER TEST ......................................... 50 11.1 Block Diagram Of Test Setup .......................................... 50 11.2 Limit ................................................................ 50 11.3 Test procedure ....................................................... 50 11.4 EUT operating Conditions ............................................. 50 11.5 Test Result .......................................................... 51 12. 100 KHZ BANDWIDT…

Text truncated - open the document above for the full version.

Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 41 of 69 Edition：A.1 10. BANDWIDTH TEST 10.1 Block Diagram Of Test Setup 10.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 10.3 Test procedure 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. . 10.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 42 of 69 Edition：A.1 10.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 12V Test Mode ： TX b Mode Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 10.07 500 Pass 2437 11.06 500 Pass 2462 11.54 500 Pass TX CH 01 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 43 of 69 Edition：A.1 TX CH 06 TX CH 11 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 44 of 69 Edition：A.1 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 12V Test Mode ： TX g Mode Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 13.80 500 Pass 2437 12.62 500 Pass 2462 15.07 500 Pass TX CH 01 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 45 of 69 Edition：A.1 TX CH 06 TX CH 11 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 46 of 69 Edition：A.1 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 12V Test Mode ： TX n Mode(20M) Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2412 13.79 500 Pass 2437 12.61 500 Pass 2462 15.08 500 Pass TX CH 01 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 47 of 69 Edition：A.1 TX CH 06 TX CH 11 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 48 of 69 Edition：A.1 Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 23Vz Test Mode ： TX n Mode(40M) Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 2422 33.80 500 Pass 2437 30.03 500 Pass 2452 26.38 500 Pass TX CH 03 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 49 of 69 Edition：A.1 TX CH 06 TX CH 09 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 50 of 69 Edition：A.1 11. PEAK OUTPUT POWER TEST 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Peak Output Power 1 watt or 30dBm 2400-2483.5 PASS 11.3 Test procedure a. The EUT was directly connected to the Power meter 11.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 51 of 69 Edition：A.1 11.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 12V Frequency Maximum Conducted Output Power(PK) LIMIT (MHz) (dBm) dBm 802.11b 2412 11.111 30 2437 9.460 30 2462 7.650 30 802.11g 2412 9.964 30 2437 9.294 30 2462 6.597 30 802.11n20 2412 8.777 30 2437 8.876 30 2462 6.523 30 802.11n40 2422 7.536 30 2437 7.476 30 2452 6.427 30 Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 52 of 69 Edition：A.1 12. 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 12.1 Block Diagram Of Test Setup 12.2 Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. 12.3 Test procedure Using the following spectrum analyzer setting: a) Set the RBW = 100KHz. b) Set the VBW = 300KHz. c) Sweep time = auto couple. d) Detector function = peak. e) Trace mode = max hold. f) Allow trace to fully stabilize.. 12.4 EUT operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 53 of 69 Edition：A.1 12.5 Test Result Temperature： 26°C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： DC 12V 802.11b: Band Edge, Left Side 802.11b: Band Edge, Right Side Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 54 of 69 Edition：A.1 802.11g: Band Edge, Left Side 802.11g: Band Edge, Right Side Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 55 of 69 Edition：A.1 802.11n-HT20: Band Edge, Left Side 802.11n-HT20: Band Edge, Right Side Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 56 of 69 Edition：A.1 802.11n-HT40: Band Edge, Left Side 802.11n-HT40: Band Edge, Right Side Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 57 of 69 Edition：A.1 CONDUCTED EMISSION MEASUREMENT 802.11b Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 58 of 69 Edition：A.1 802.11g Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 59 of 69 Edition：A.1 802.11n20 Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz Report No.: BCTC2009000491-1E No.：BCTC/RF-EMC-00 5 Page: 60 of 69 Edition：A.1 802.11n40 Low Channel 2422MHz Middle Channel 2437MHz High Channel 2452MHz …

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-007 Page: 1 of 44 Edition：A.1 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2009000491-2E Applicant: Shenzhen Hysiry Technology Co., Ltd Product Name: Smart led strip controller Model/Type Ref.: LC3 Tested Date: Sep, 11, 2020 to Sep, 24, 2020 Issued Date: Sep. 24, 2020 Report No.: BCTC2009000491-2E No.：BCTC/RF-EMC-007 Page: 2 of 44 Edition：A.1 FCC ID: 2AKBP-LC3 Compiled by: Reviewed by: Approved by: Willem Wang Eric Yang Zero Zhou/Manager The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart led strip controller Trademark: N/A Model/Type Ref.: LC3 LC2, BLC2, BLC3, ICLC2, ICLC3, ICBLC2, ICBLC3, BW-LC1, BW-LC2, BW-LC3, BW-LT34, BW-LT35, BW-LT36, BDLC3, BDLC4, MSL1, MSL2, MSL3, MSL4, MSL5, MSL6, MSL7, MSL8, MSL9, MSL10, 2RSL1, 2RSL2, 2RSL3, 2RSL4, 2RSL5, 2RSL6 Prepared For: Shenzhen Hysiry Technology Co., Ltd Address: 2403D, 24th floor’coast huanqing building, no.24 futian road, xu town community, futian street, futian district, shenzhen, China Manufacturer: Shenzhen Hysiry Technology Co., Ltd Address: 2403D, 24th floor’coast huanqing building, no.24 futian road, xu town community, futian street, futian district, shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Sep, 11, 2020 Sample tested Date: Sep, 11, 2020 to Sep, 27, 2020 Issue Date: Sep. 27, 2020 Report No.: BCTC2009000491-2E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth BLE radio test report. Report No.: BCTC2009000491-2E No.：BCTC/RF-EMC-007 Page: 3 of 44 Edition：A.1 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 5 2. TEST SUMMARY ...................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 7 4. PRODUCT INFORMATION AND TEST SETUP ............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................. 9 4.6 Table of parameters of text software setting ............................... 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 12 6. CONDUCTED EMISSIONS ............................................. 14 6.1 Block Diagram Of Test Setup ........................................... 14 6.2 Limit ................................................................. 14 6.3 Test procedure ........................................................ 14 6.4 EUT operating Conditions .............................................. 14 6.5 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 19 7.4 EUT operating Conditions .............................................. 20 7.5 Test Result ........................................................... 21 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .......................................................... 25 8.1 Block Diagram Of Test Setup ........................................... 25 8.2 Limit ................................................................. 25 8.3 Test procedure ........................................................ 26 8.4 EUT operating Conditions .............................................. 26 8.5 Test Result ........................................................... 27 9. POWER SPECTRAL DENSITY TEST ................................... 28 9.1 Block Diagram Of Test Setup ........................................... 28 9.2 Limit ................................................................. 28 9.3 Test procedure ........................................................ 28 9.4 EUT operating Conditions .............................................. 28 9.5 Test Result ........................................................... 29 10. BANDWIDTH TEST ................................................... 31 10.1 Block Diagram Of Test Setup .......................................... 31 10.2 Limit ................................................................ 31 10.3 Test procedure ....................................................... 31 Report No.: BCTC2009000491-2E No.：BCTC/RF-EMC-007 Page: 4 of 44 Edition：A.1 10.4 EUT operating Conditions ............................................. 31 10.5 Test Result .......................................................... 32 11. PEAK OUTPUT POWER TEST ......................................... 34 11.1 Block Diagram Of Test Setup .......................................... 34 11.2 Limit ................................................................ 34 11.3 Test procedure ....................................................... 34 11.4 EUT operating Conditions ............................................. 34 11.5 Test Result .......................................................... 35 12. 100 KHZ BANDWIDTH OF FREQ…

Text truncated - open the document above for the full version.

Report No.: BCTC2009000491-2E No.：BCTC/RF-EMC-007 Page: 42 of 44 Edition：A.1 15. EUT TEST SETUP PHOTOGRAPHS Conducted Measurement Photos Radiated Measurement Photos Report No.: BCTC2009000491-2E No.：BCTC/RF-EMC-007 Page: 43 of 44 Edition：A.1
