2AKBP-Q2SCWMSMART BULB

第1页共7页 SmartbulbUserManual ProductSchematic Featuresofsmartbulblight: 1.Controlledbymobilephonesfromanywhereatanytime 2.FreeappsmartlifesupportsAndroidandiOSsystems,simpletouse 3.Timerforschedulessetting 4.Energymonitoringforenergysavingplan 5.Voicecontrol:workswithAmazonAlexaandGooglehome 6.WidevoltagesuitableforAC100~240V50Hz/60Hz 7.Connection:Wi-Fi,3G,4G Specifications: Ratedpower:5W Inputvoltage:AC100~240V50Hz/60Hz Lumen:300lm Lightsource:LED CRI:≥80Ra Switchlife:15000times Powerfactor:＞0.5 Colortemperature:2700-6500K+RGB Workingtemperature:-20to40°C Base:E12 Connection:Wi-Fi,BT Easyinstallation-Thereare3stepstostartyoursmartlife.ScantheQRcodeto downloadtheAPP,installthelampandusetheAPPtocontroltheWi-Fibulb.Ifyoudonot linked,itjustanormalbulb,butonceyoulinkedittoyourAmazonEcho/Goolehome,you cancontrolitwithvoice,Turnsonandoffthelight,andthechangingofthecolorwhichis veryinteresting UseyourphonetoscantheQRcodebeloworsearch “ smartlife ” in applicationmarkettodownloadandinstalltheApp 第2页共7页 Step1:Registrationandlogin"smartlife"APP. Ifyoudon'thavetheaccountof“Smartlife”APP,registeranaccountorsigninwith cellphonenumber+verificationcode.ThispagedescribestheRegistrationprocess. 1.Tap“Register”intheupperright（pic1） 2.Thesystemautomaticallydeterminesyourcountry/area.Youcanalsoselectyour countrycodebyyourself.Enterthecellphonenumber/E-mailandtap“Next”（pic2） 3.Ifyouenterthemobilecellphonenumber，entertheverificationcodeinthemessage （pic3），andenterthepassword，tap"Confirm"tofinishyourregistration. 4.IfyouentertheE-mail，enterthepassword（pic4），tap”Confirm"tofinishyour registration. MakesureyourphoneisconnectedtoWiFiinyourhome.Click"+"intheupperright cornerofthehomepageandselect"Lightingdevices"fromthedevicetype. 第3页共7页 Step2:Connectwiththepowersupply,MakesuretheWiFismartbulbisstandby(the whitelightflashrapidly)Selectconfirmindicatorrapidlyblinks. Step3:EnteryourWiFipasswordforyourphoneandclick"Confirm"toenterthe pageofthesearchdevice. Step4:Enterthedevicepage,thencompletetheconfiguration 第4页共7页 HowtouseAmazonEchotocontrolyourSmartdevices? Step1:Openthe”AmazonAlexa”APP,thenfindthe“Skills“buttononthemenu.Press it. 第5页共7页 Step2:Searchthe”Smartlife”andchoosethefirstone,thenEnableit. Step3:SelectyourcountrycodeandEnteryour“Smartlife”APPAccountand Password,thenpressthe“LinkNow”button.WhentheAccountsuccesstologin pressthe“Done”button. 第6页共7页 Step4:Backtothemenu,andpressthe“Smarthome”button,thenchoosethe “Devices”,thenpressthe”Discover”button. Step5:NowyoucanuseyourAlexatocontrolyourSmartdevices,enjoyyourself. 第7页 共7页 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The devic e can be used in portable exposure condition without restriction. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

Rev11/20/07 (ShenzhenHysiryTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AKBP-Q2SCWM PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram, Schematics, OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, (ZhanHaitao)

(ShenzhenHysiryTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date: SUBJECT:FCCApplicationforFCCID:2AKBP-Q2SCWM ToWhomItMayConcern: We,theundersigned,herebyauthorizeAlanMeiatShenzhenBCTCTestingCo.,Ltd.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyAlanMeiofShenzhenBCTCTestingCo.,Ltd.onourbehalf shallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, (ZhanHaitao)

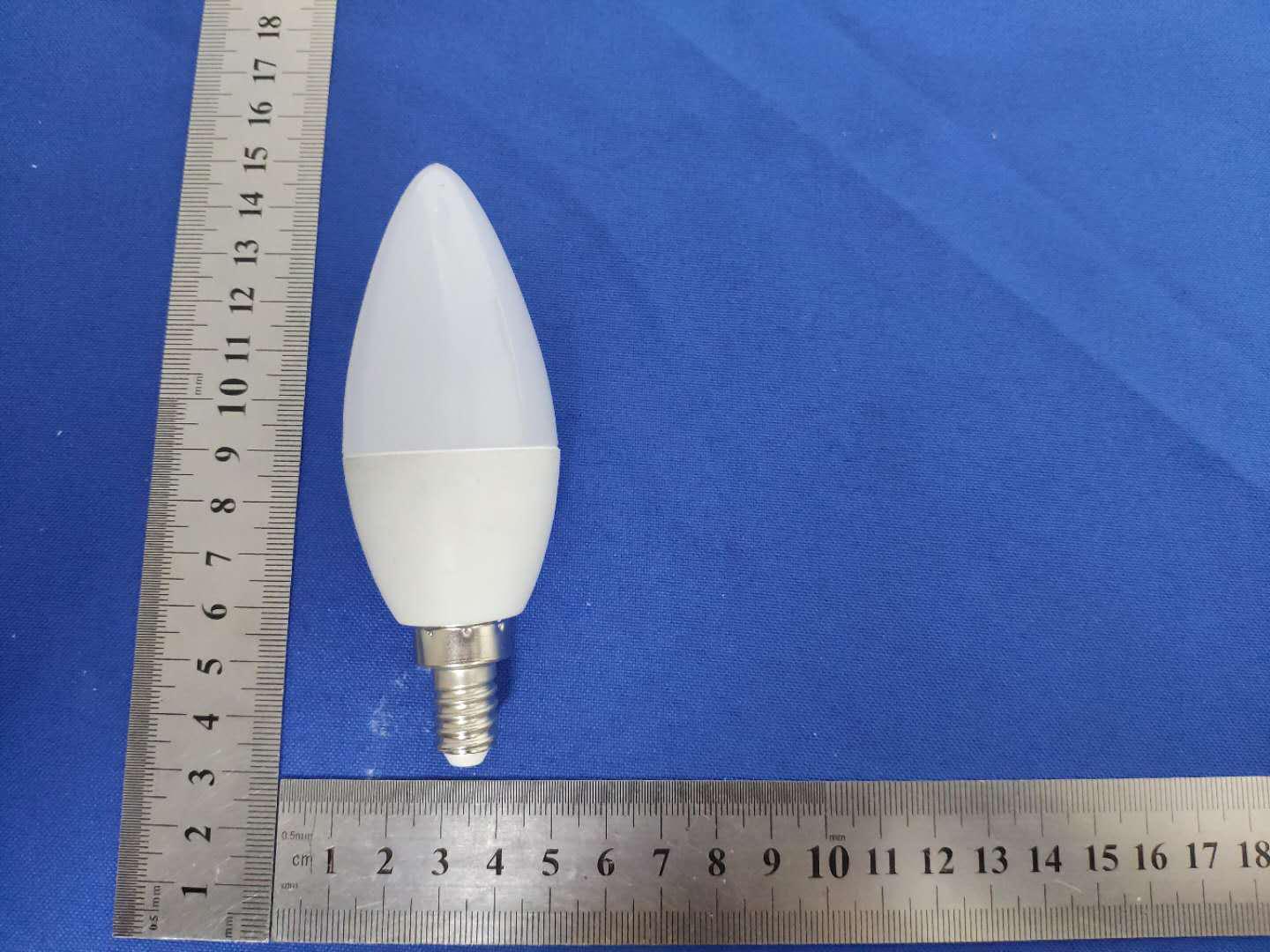

ExternalPhotos

Label&labellocation Size:40*20mm SMARTBULB FCCID:2AKBP-Q2SCWM Thisdevicecomplieswithpart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Label location

InternalPhotos Antenna

FCC§15.247(i),§2.1091–RFExposure FCCID:2AKBP-Q2SCWM Appliedprocedures/limit AccordingtoFCC§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelinexcessoftheCommission’sguidelines. LimitsforOccupational/ControlledExposure Frequency Range(MHz) ElectricField Strength(E) (V/m) MagneticField Strength(H) (A/m) PowerDensity(S) (mW/cm 2 ) AveragingTime |E| 2 ,|H| 2 orS (minutes) 0.3-3.06141.63(100)*6 3.0-301842/f4.89/f(900/f)*6 30-30061.40.1631.06 300-1500F/3006 1500-100,00056 Note:ƒisfrequencyinMHz *=Powerdensitylimitisapplicableatfrequenciesgreaterthan100MHz LimitsforGeneralPopulation/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(E) (V/m) MagneticField Strength(H) (A/m) PowerDensity(S) (mW/cm 2 ) AveragingTime |E| 2 ,|H| 2 orS (minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f)*30 30-30027.50.0730.230 300-1500F/150030 1500-100,0001.030 Note:f=frequencyinMHz *=Plane-waveequivalentpowerdensity MPEPREDICTION PredicationofMPElimitatagivendistance,EquationfromOETBulletin65,Edition97-01 Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna,R=0.2m TESTRESULTS Tuneup Produce power Maximum peakoutput power (dBm) Output power toantenna (mW) Antenna Gain (numeric) PowerDensity (S) (mW/cm2) Limit (mW/ cm2) Result 2.4G WIFI 10±11112.59 1.479 (1.7dBi) 0.003701Pass BT2±132.00 1.479 (1.7dBi) 0.000591Pass BLE2±132.00 1.479 (1.7dBi) 0.000591Pass
