2AKE4WPC2Wireless Pipe Clamp

Quick Start Guide for UEi HUB Tools v2 SETUP: Download and install the UEi HUB App Open the App and navigate to the appropriate Tools Connection Screen for the tool you wish to connect. Tap the tool box icon on the Ref Side display to connect to WPP1, WPC2 and WOT2 tools. Tap the tool box icon on the Air Side display to connect to WHP1 tools. Tap the tool box icon on the Vac display to connect to WVG2 tools. Power on the HUB Tools and wait until you see the flashing green LED. WOT2, WVG2, WPP1 – Press and hold Power button for 1 second. WHP1 – Press the probe release and extend the sensing probe 90° or 180° until it locks in place. WPC2 – Open the clamp jaw by placing a cylinder with a diameter larger than 9mm in the jaw. In the App you will see the tools appear in the “Nearby Tools list”. If tools are missing tap the refresh icon and the list will refresh. Touch and Drag a tool from the “Nearby Tool list” to an appropriate assignment slot (Match the tool icon to the slot you wish to assign it to.” To see tool values and associated calculated values return to the Display Screen by tapping the back button. You can swipe between the Vacuum, Refrigerant and Air side displays. You are now ready to monitor live measurements from your UEi HUB tools. SPECIFICATIONS: WHP1: Temperature Operating Range: 32 to 60°C (0 to 140°F) Resolution: 0.1° Accuracy: ±0.3°C (±0.5°F) Drift: <0.03°C/yr Relative Humidity Operating Range: 0 to 100% Resolution: 0.1% Accuracy: ±3% Drift: <0.25%/yr Operating Conditions Temperature: -41 to 140°F (5 to 60°C) %RH: 20 to 80% Storage Conditions (Batteries removed) Temperature: -40 to 257°F (-40 to 125°C) Ingress protection IP 52 Power Battery type: 2 AAA Alkaline Batteries Battery Life: 100+ hrs. WPP1: Pressure Operating Range: 0 to 50 bar (0 to 725 PSI) Resolution: 0.1 PSI Accuracy: ±0.5% F.S. (±2.5 to ± 5.0 PSIG) Operating Conditions Temperature: 14 to 158°F (-10 to 70°C) %RH: 30 to 85% Storage Conditions (Batteries removed) Temperature: -13 to 185°F (-25 to 85°C) Ingress protection IP 52 Power Battery type: 2 AA Alkaline Batteries Battery Life: 100+ hrs. WPC2: Temperature Operating Range: 0 to 82°C (32 to 180°F) Resolution: 0.1° Accuracy: ±0.3°C (±0.6°F) For 10°C to 80°C Otherwise ±0.5°C (±1.0°F) Operating Conditions Temperature: 32 to 180°F (0 to 82°C) Storage Conditions (Batteries removed) Temperature: 14 to 104°F (-10 to 40°C) < 75% RH Ingress protection IP 52 Power Battery type: 1 AA Alkaline Battery WOT2: Temperature Operating Range: 0 to 82°C (32 to 180°F) Resolution: 0.1° Accuracy: ±1.0°C (±2°F) Operating Conditions Temperature: 32 to 180°F (0 to 82°C) Storage Conditions (Batteries removed) Temperature: 14 to 104°F (-10 to 40°C) < 75% RH Ingress protection IP 52 Power Battery type: 2 AA Alkaline Battery WVG2: Vacuum Pressure: Range: 0-20000 microns Resolution: 1 micron Accuracy: ±5% reading ± 5 microns Max Over Pressure: 700 PSI Temperature Operating Range: -12 to 50°C (10 to 122°F) Resolution: 0.1° Accuracy: ±2.5°C (±5°F) Operating Conditions Temperature: 10 to 122°F (-12 to 50°C) Power Battery type: 2 AA Alkaline Battery FCC and IC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC/IC RSS102 radiation exposure limits set forth for an uncontrolled envi ronment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autoris é e aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC AND IC NOTICE This device complies with Part 15 of the FCC rules and Industry Canad…

Text truncated - open the document above for the full version.

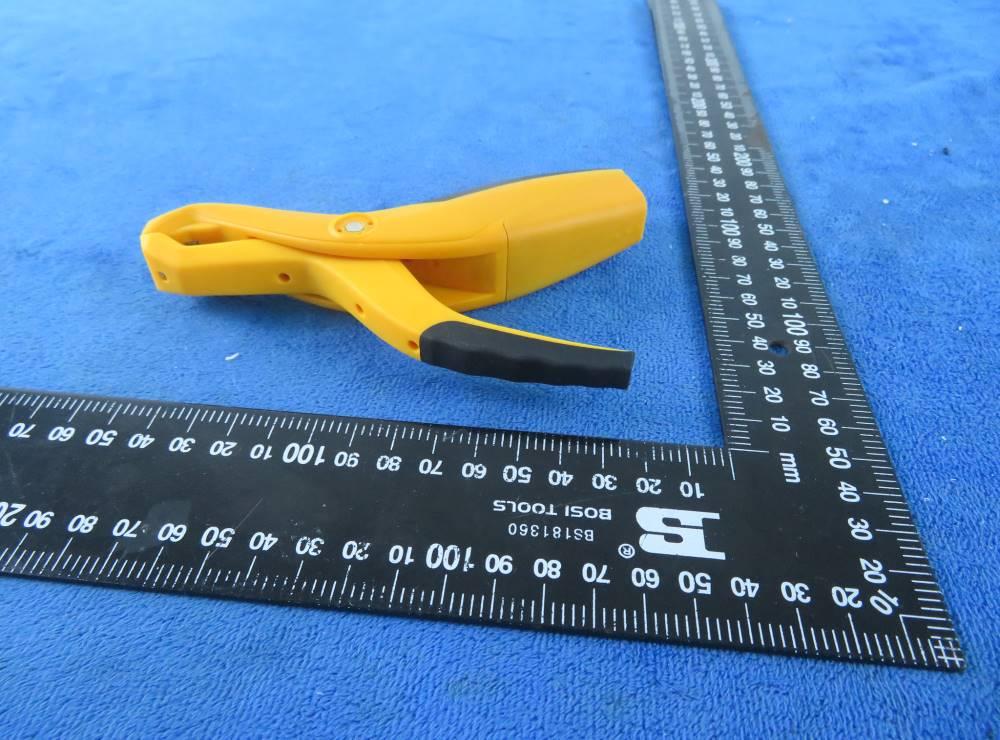

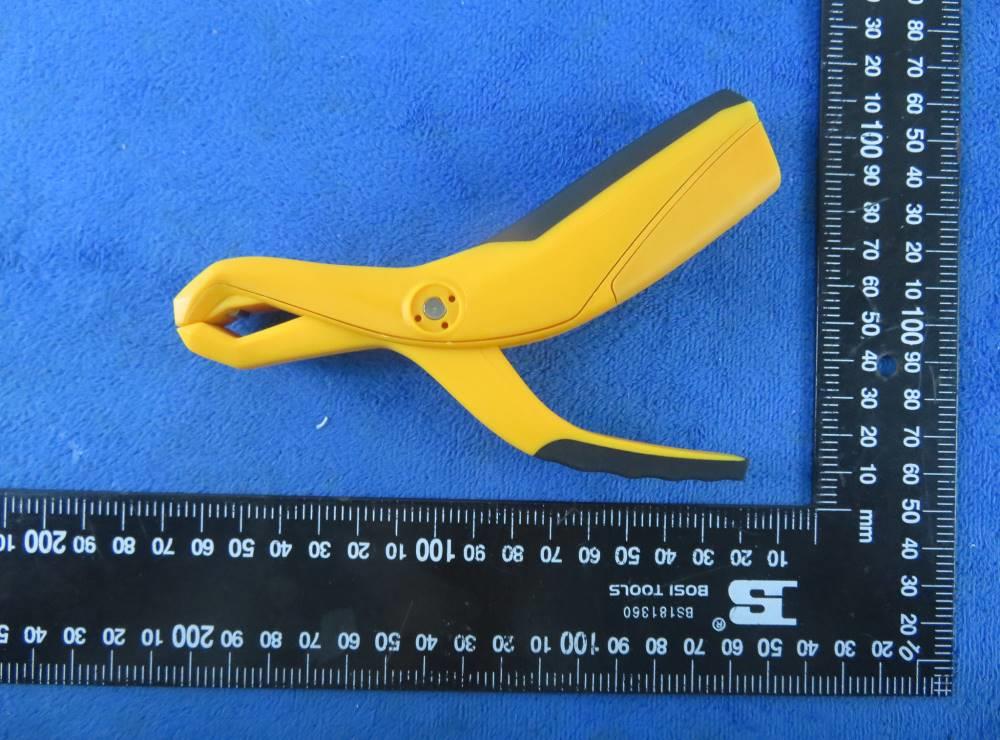

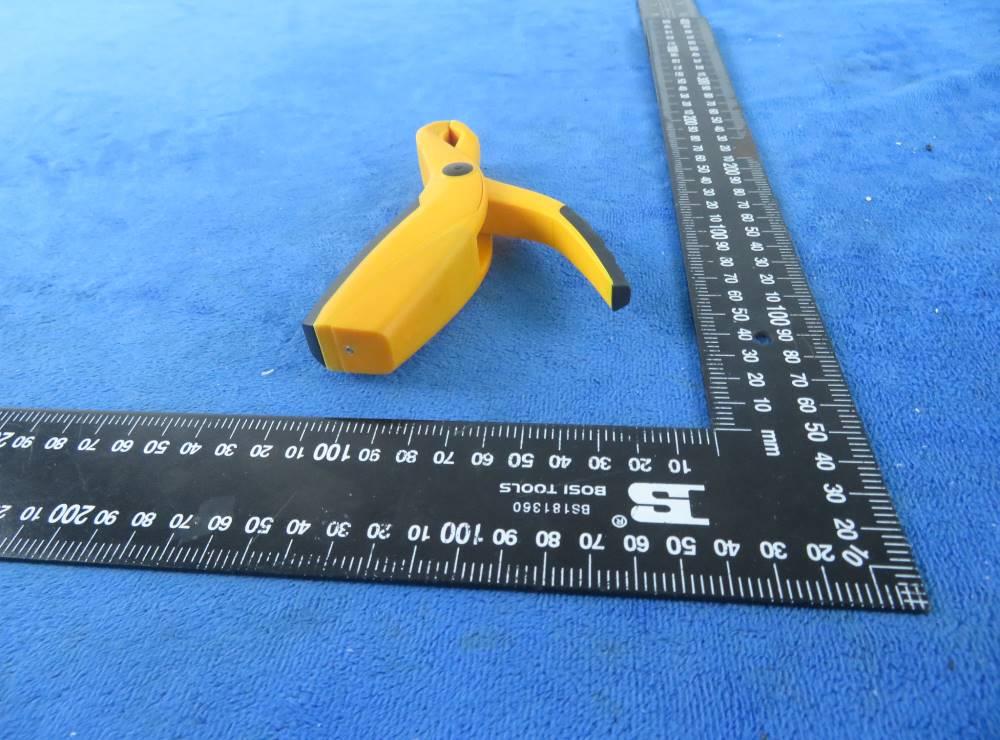

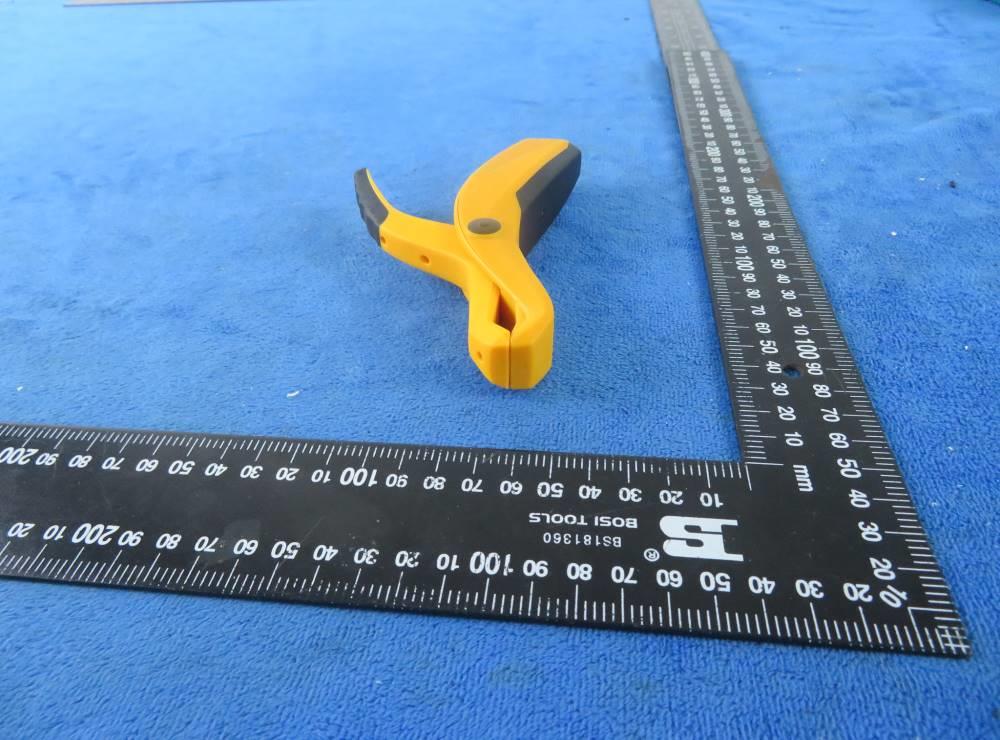

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 200103N044 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 200103N044 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 200103N044

2AKE4WPC2 3 2AKE4WPC2 3 2AKE4WPC2 2AKE4WPC2 2AKE4WPC2

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: 200103N044 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: 200103N044 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: 200103N044 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: 200103N044 BLE Antenna

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version 1 Test Report No.: FM200103N044 RF EXPOSURE REPORT Applicant Kane USA Inc. Address 7601 E 88th Place, Indianapolis IN 46256, USA Manufacturer or Supplier ePlus Innovation Corp. Address 3F-West, Litai factory Building C, Luoyang Town, Boluo District, Huizhou, Guangdong Province, China. Product Wireless Pipe Clamp Brand Name UEi Test Instruments Model WPC2 Additional Model & Model Difference N/A Date of tests Dec. 11, 2019 ~ Dec. 31, 2019 FCC Part 2 (Section 2.1091) KDB 447498 D01 IEEE C95.1 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Aaron Liang Project Engineer / EMC Department Approved by David Huang Supervisor/ EMC Department Date: Jan. 07, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version 1 Test Report No.: FM200103N044 Table of Contents RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION .............................................................................................. 4 2. RF EXPOSURE LIMIT ..................................................................................... 5 3. MPE CALCULATION FORMULA ..................................................................... 5 4. CLASSIFICATION ........................................................................................... 5 5. ANTENNA GAIN .............................................................................................. 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................... 6 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version 1 Test Report No.: FM200103N044 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FM200103N044 Original release Jan. 07, 2020 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version 1 Test Report No.: FM200103N044 1. CERTIFICATION FCC ID: 2AKE4WPC2 PRODUCT: Wireless Pipe Clamp BRAND NAME: UEi Test Instruments MODEL NO.: WPC2 ADDITIONAL NO.: N/A APPLICANT: Kane USA Inc. STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D01 IEEE C95.1 NOTE: 1. Test Lab Information: Lab: Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch Test Lab Address: Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District Shenzhen, Guangdong, 518108, People’s Republic of China. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version 1 Test Report No.: FM200103N044 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 6 Report Version 1 Test Report No.: FM200103N044 5. ANTENNA GAIN The antennas provided to the E…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 35 Report Version 1 Test Report No.: RF200103N044 TEST REPORT Applicant Kane USA Inc. Address 7601 E 88th Place, Indianapolis IN 46256, USA Manufacturer or Supplier ePlus Innovation Corp. Address 3F-West, Litai factory Building C, Luoyang Town, Boluo District, Huizhou, Guangdong Province, China. Product Wireless Pipe Clamp Brand Name UEi Test Instruments Model WPC2 Additional Model & Model Difference N/A Date of tests Dec. 11, 2019 ~ Dec. 31, 2019 the tests have been carried out according to the requirements of the following standard: FCC Part 15, Subpart C, Section 15.247 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Aaron Liang Project Engineer / EMC Department Approved by David Huang Supervisor / EMC Department Date: Jan. 07, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 35 Report Version 1 Test Report No.: RF200103N044 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS .................................................................................................... 5 2 MEASUREMENT UNCERTAINTY ............................................................................................... 5 3 GENERAL INFORMATION ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................... 7 3.2.1. CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 7 3.2.2. Test Mode Applicability and tested channel detail ............................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 10 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 10 4 TEST TYPES AND RESULTS .......................................................................................................11 4.1 RADIATED EMISSION MEASUREMENT ................................................................................... 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ..................................................... 11 4.1.2 TEST INSTRUMENTS ..................................................................................................... 12 4.1.3 TEST PROCEDURES ..................................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................... 14 4.1.5 TEST SETUP ................................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS .................................................................................... 15 4.1.7 TEST RESULTS .............................................................................................................. 16 4.2 6DB BANDWIDTH MEASUREMENT.......................................................................................... 21 4.2.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ............................................................ 21 4.2.2 TEST INSTRUMENTS ..................................................................................................... 21 4.2.3 TEST PROCEDURE ........................................................................................................ 22 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 22 4.2.5 TEST SETUP ................................................................................................................... 23 4.2.6 EUT OPERATING CONDITIONS .................................................................................... 23 4.2.7 …

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 1 Report Version 1 Reference No.: 200103N044 SET-UP FOR RADIATED EMISSION TEST RADIATED EMISSION TEST (30MHz-1GHz) RADIATED EMISSION TEST (Above 1GHz)
