2AKG5-TC01Dog Training Collar

NO OFF ® +1(833)-220-1900 Model: TC01 If any quality problems or confusion, feel free to contact us via [email protected] Turn on the receiver : Hold the ON/OFF button for 2 seconds and the receiver will beep and vibrate. NO OFF 2 Complete charging in 2 hours.Offer only one wire in the package. 1 120Minutes 1 2s 4 To turn the transmitter on. Security Keypad Lock: Toggle it down to unlock. 3 ON / OFF 2 6 Vibrate Command: Press the vibration button briefly and the receiver vibrates once. Beep Command: Press the beep button briefly and the receiver beep once. 5 NO OFF NO OFF 3 NO OFF Static Intensity Adjustment: Press and hold the LEVEL button while rotating the remote control switch to adjust the shock intensity. Static Command: Press the static button briefly and the receiver shock once. Channel Switching: Able to train 9 dogs at the same time. Press the channel button briefly to select the dog to train. 7 8 9 4 HOLD NO OFF Model: TC01 If any quality problems or confusion, feel free to contact us via [email protected] NO OFF ® +1(833)-220-1900 I. Package Content 1 2 3 4 5 Remote Control Receiver Collar Silicone Caps X 2 USB Cable Lanyard User Manual 67 5 Pairing: Refer to “Page10”for more information. 9 NO OFF 5s NO OFF including Silicone Caps for electrodes Receiver Static Electrodes ON/OFF USB Charging Port & Rubber Lid Sound Speaker LED Status Light 6 1. Only when both electrodes are simutaneously touched, shock will work. 2. If collar has a delayed reaction or fails to sync up even in short distance, make sure there is no strong signal interference in your surroundings. The remote's range could be affected by obstacles, electromagnetic field, or even stormy weather. 3. If you find collar cannot work, please check whether you push the lock button on which is on the left side of remote. 4.The sensitivity to static depends on your dog's siz weight, amount of fur, and even skin condition. When wearing the collar, it is most suitable if one finger can be insert ed under it. Too tight is not good for your dog, but too loose will dull the static function for the electrodes cannot touch your dog’s skin. If your dog has thick fur, please separate the fur apart so that both electrodes can touch the skin Make sure protective silicone caps are off the electrodes. They can dull the static sensation sent to your dog. COLLAR STATIC STIMULATION QUICK GUIDE Not feelling the SHOCK? Try these solutions. Note: One last thing you cantry is to shear the fur where both electr- odes aretouched. Water can help con- duct electricity If you spray some water around the electrodes, the shock function can be feltmore effectively. II.Product Overview ON & OFF Switch / Static Level Regulator Keypad Lock Static Level Regulator Activation Button Vibrate Button Antenna Display Screen Static Button Channel Switch / Match Button Beep Button Lanyard Holder Micro USB Charging Port Training Mode Keypad Lock Remote’s Signal Battery Status (Remote) Battery Status (Receiver) Channel Display ( 1-9 ) Static Level Display (01-99) Screen Remote Control 7 III. Setting Up Remote Control: Charge the device until the battery icon on the display indicates full bars. Receiver: Charge the device until the red LED turns green. The display on the Remote will indicate full bars as well. 1. Charge the devices respectively for 2-3 hours. If you charge it for a long time. The receiver couldn't hold a charge. 1.Thread the collar through the Receiver. 2.If your dog has thick fur, please separate the fur at the electrodes with a comb to enable them to reach the skin. IV. Wearing the Receiver Collar 2. Configurating Static Levels: Press and hold Static Level Regulator Activation Button and simultane- ously slowly rotate Static Level Regulator until the digit on the screen reaches a suitable strength. Recommended Static Level strength starts from “10”. This is the minimum sensation your dog can feel. The right static level goes down to an individual basis that your dog is responsive to the shock function. The sensitivity to static depends on your dog’s size and weight, amount of fur, and even skin condition. 8 V. Training Modes 1. Vibration Mode: Press Vibrate Button, and the Receiver will vibrate once; hold the button and the vibration persists. 2. Sound Mode: Press Beep Button, and the Receiver will give a “beep” sound; hold the button and the “beep” sound persists. 3. Static Stimulation Mode: Press the Static Button, and the Receiver will give a Static Stimulation to the wearer. Do not hold the button as it is not recommended to have prolonged shock to your dog. However, the static will be cut off in 4 secs.will cut off in 4 secs automatically to prevent unintentional harm to your pet. 4. Switching Channel: Press the Channel Switch Button to choose which Receiver you want to control when you match more than one Receiver. NO O FF NO OFF 3.When wearing the collar, the tightness is at most fit if one finger can be inserted underneath. 4.The Silicone Caps can dull the static sensation, you should decide weather you need to put them on. The soft caps also protect your dog from direct contact with metal electrodes, which in some cases will cause discomfort. 9 NO OFF ‘beeps’ ‘vibrates’ OFF ON ‘beeps’ ‘vibrates’ OFF VII. Training Tips VI. Match the Remote Control to the Receiver: 1. Reward your dog with food will usually help to achieve the best result. 2. Do not use the device on dogs aged below 6-month, old, pregnant, easily frightened, aggressive, in heat, old, and dogs not in best of health. *You may skip this step because the set is already paired by factory setting. After confirming that the receiver is turned off, hold the ON/OFF button of receiver for 5 seconds until the LED indicator Light on receiver flashes in green. Press and hold Channel Switch / Match Button for 5 secs. The Receiver will vibrate and beep which indicates the matching is completed. You will see “1” (or subsequent number) in the Channel Display when the match …

Text truncated - open the document above for the full version.

1.Antenna Description: Antenna type Spring ANT Model： TC01 Manufacturer： Shenzhen DogCare Innovation & Technology Co., Ltd. Frequency range 433.50MHz ANT Peak Gain 3.00dBi 2.Antenna Photo:

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2022-8-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AKG5-TC01 TC01 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jiujun Zhou/General Manager Assistant Company: SHENZHEN DOGCARE INNOVATION & TECHNOLOGY CO., LTD. Address: Rm 2708, Bldg 4, Cloud Park Phase II, Longgang Dist, Shenzhen, Guangdong China Phone: 0755-61903099 Fax: N/A E-Mail: [email protected]

SHENZHEN DOGCARE INNOVATION & TECHNOLOGY CO., LTD. Rm 2708, Bldg 4, Cloud Park Phase II, Longgang Dist, Shenzhen, Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022-8-27 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AKG5-TC01 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jiujun Zhou/General Manager Assistant Company: SHENZHEN DOGCARE INNOVATION & TECHNOLOGY CO., LTD. Address: Rm 2708, Bldg 4, Cloud Park Phase II, Longgang Dist, Shenzhen, Guangdong China Phone: 0755-61903099 Fax: N/A E-Mail: [email protected]

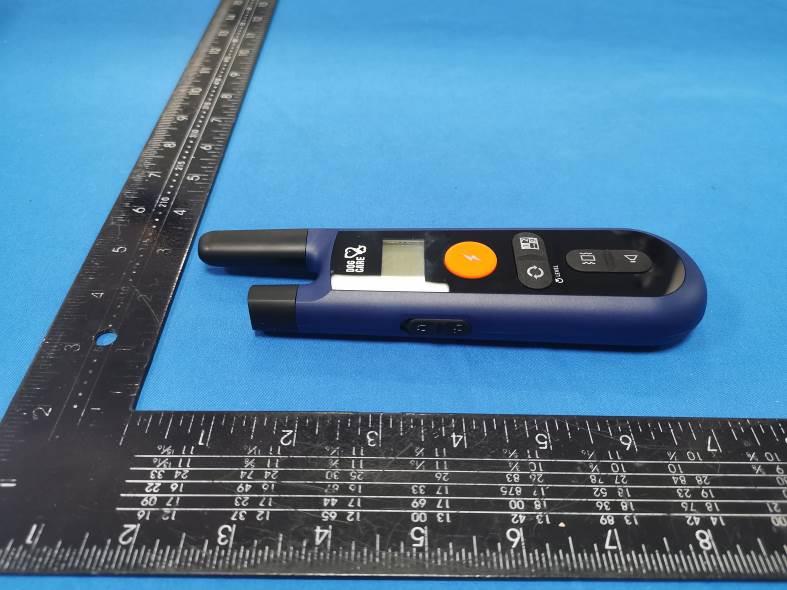

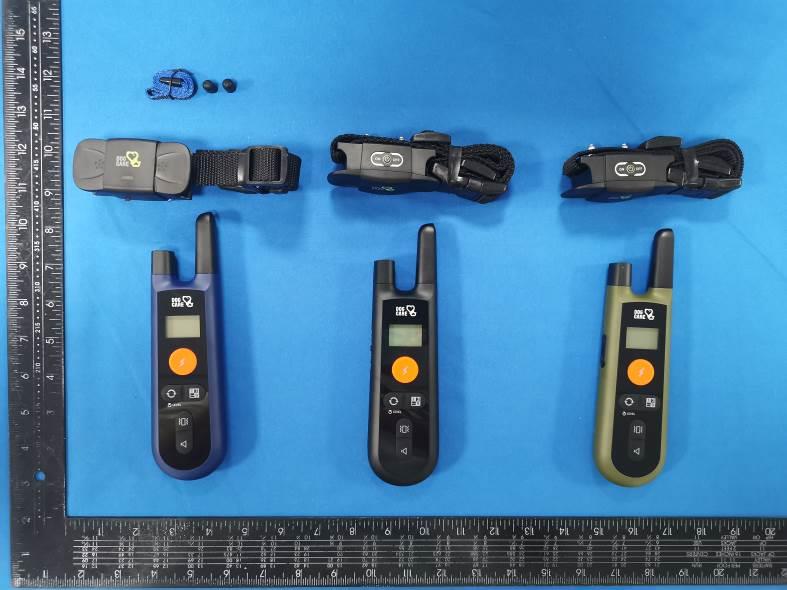

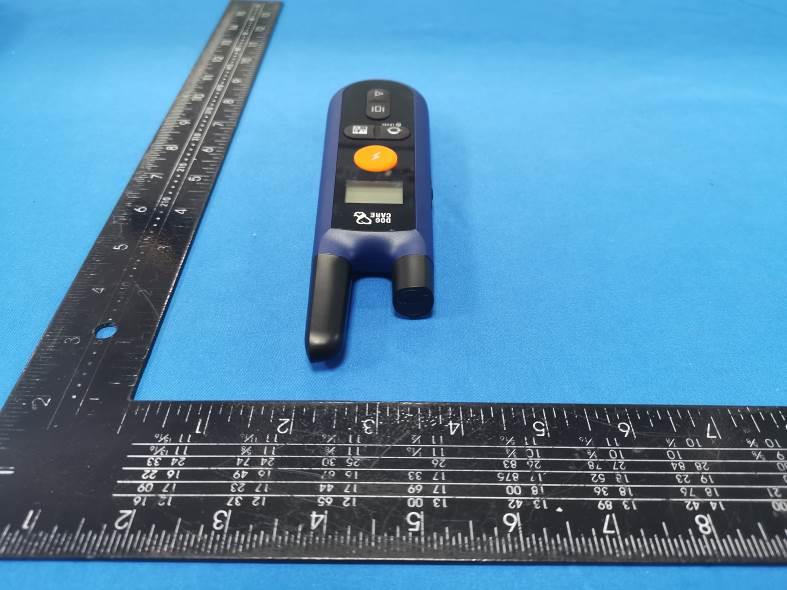

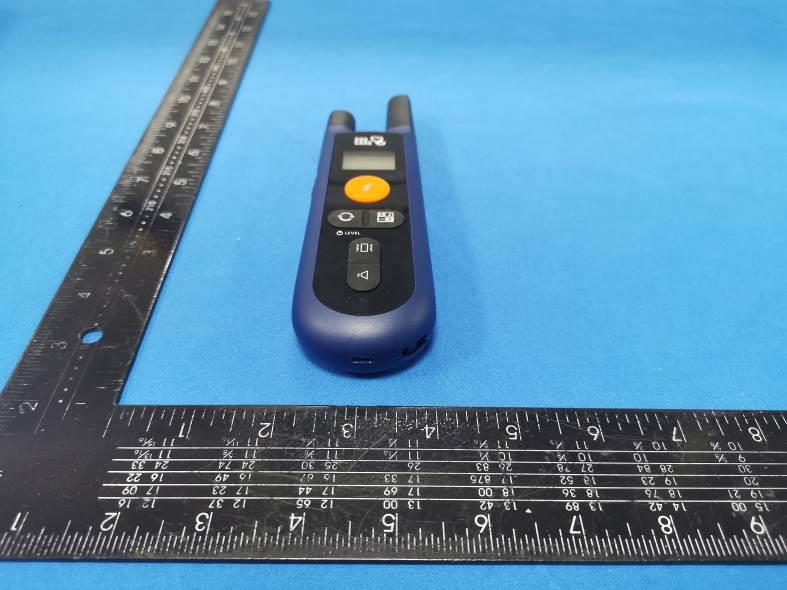

FCC ID: 2AKG5-TC01 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AKG5-TC01 Photo 4 Photo 5 Photo 6 FCC ID: 2AKG5-TC01 Photo 7

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2AKG5-TC01

FCC ID: 2AKG5-TC01 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 433MHz Built-in spring antenna FCC ID: 2AKG5-TC01 Photo 4 Photo 5

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : CTA22082400301 2AKG5-TC01 Compiled by ( position+printed name+signature) .. : File administrators Kevin Liu Supervised by ( position+printed name+signature) .. : Project Engineer Kevin Liu Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Aug. 27, 2022 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : SHENZHEN DOGCARE INNOVATION & TECHNOLOGY CO., LTD. Address ............................................ : Rm 2708, Bldg 4, Cloud Park Phase II, Longgang Dist, Shenzhen, Guangdong, China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Dog Training Collar Trade Mark ....................................... : DogCare Manufacturer .................................... : Shenzhen DogCare Innovation & Technology Co., Ltd. Model/Type reference....................... : TC01 Listed Models .................................. : N/A Modulation ....................................... : ASK Frequency .......................................... 433.50MHz Ratings ............................................. : DC 3.7V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA22082400301 Page 2 of 23 T E S T R E P O R T Equipment under Test : Dog Training Collar Model /Type : TC01 Listed Models : N/A Applicant : Shenzhen DogCare Innovation & Technology Co., Ltd. Address : Rm 2708, Bldg 4, Cloud Park Phase II, Longgang Dist, Shenzhen, Guangdong, China Manufacturer : Shenzhen DogCare Innovation & Technology Co., Ltd. Address : Rm 2708, Bldg 4, Cloud Park Phase II, Longgang Dist, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22082400301 Page 3 of 23 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 20dB Bandwidth 16 4.4 Deactivation Time 17 4.5 Antenna Requirement 18 5 T E S T S E T UP P H O T O S O F T H E E U T ......................................... 19 6 P H O T O S O F T H E E U T ........................................................... 20 Report No.: CTA22082400301 Page 4 of 23 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA22082400301 Page 5 of 23 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Aug. 15, 2022 Testing commenced on : Aug. 15, 2022 Testing concluded on : Aug. 27, 2022 2.2 Product Description Product Name: Dog Training Collar Model/Type reference: TC01 Testing sample ID： CTA220824003-1# (Engineer sample), CTA220824003-2#(Normal sample) Power supply: DC 3.7V From Battery and DC 5.0V From external circuit Adapter information(Supplied by testing Lab): Model: EP-TA20CBC Input: AC 100-240V 50/60Hz Output: DC 5V 2A Modulation: ASK Operation frequency: 433.50MHz Channel number: 1 Antenna type: Built-in spring antenna Antenna gain: 3.00 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.7V From Battery and DC 5.0V From external circuit 2.4 Short description of the Equipment under Test (EUT) This is a Dog Training Collar. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: EUT DC 5.0V from adapter Report No.: CTA22082400301 Page 6 of 23 Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of…

Text truncated - open the document above for the full version.

FCC ID: 2AKG5-TC01 Test Setup Photos of the EUT conduction radiation L radiation H
