2AKI8-NTWSWireless Sport Earbuds

Powering on/o 75x50mm Bluetooth pairingwhat’s in boxSpecication Trouble Shooting and Common Situations Wireless Sport Earbuds Model17LY86BK PRODUCT GUIDE Ver.01 Remove insulating film and place earbuds in the charging case for activation. The earbuds automatically turn on & connect to each other right out of the case. LED of one earbud flash Red/Blue alternatively. there is "pairing" voice remind. Connect your device by searching for” TWS EARBUDS” Blue LED lights on when connected. there is "connected" voice remind. TWS earbuds will automatically reconnect to your last paired device. there is “connected”voice remind. The earbuds automatically turn on & connect to each other right out of the case. LED light flashes Blue two times. there is “power on”voice remind. If you want to pair with another device, please disconnect Bluetooth on your last paired device if it’s nearby. there is “pairing”voice remind. Bluetooth versionV5.1 Pairing name: TWS EARBUDS Waterproof rating: IPX 4 Speaker diameter13mm Impedance16Ω +/- 15% at 1kHz Frequency range: 20Hz20KHz Sensitivity: 94± 3dB @1mw 1kHz Microphone_Sensitivity: -42 ± 3dB at 1mw 1kHz Operating range 10m Battery capacity of earbuds: 70mAh Battery capacity of charging box: 1200mAh Working hour: 10 hours per full charge Charging time: 1.5 hrs Bluetooth profile:HFP A2DP HSP AVRCP Place earbuds in the charging case , earbuds will power off automatically, LED light flash Red. there is “power off”voice remind. Power on by hand: press & hold for 3s to power on. there is “power on”voice remind. power off by hand: press & hold for 5s to power off. there is “power off”voice remind. Earbuds and charging case x1 Gel cushion tips x3 insulating film 30cm USB charging cable x1Manual x1 ChargingFCC StatementPhone call 1x press either side , answer/ hang up, press and hold 1s either side, reject incoming call. Siri & voice assistant : Double-click either earbuds MFB button Play/pause music Four LED lights flash in turn When the charging case is full charged: 4 Blue LED lights will be on When earbuds in charging, the charging case LED will keep lighting on, until the earbuds been full charged. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference in a residential installation, this equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. May cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. 3s5s solid Red Earbuds charging lights off Earbuds full charged reject a call Warning: Changes or modifications to this unit not espressly approved by the party responsible for compliance could void the user’s authority to operate the equipment The device has been evaluated to meet general RF exposure requirement. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could vold the user’s authority to operate the equipment. About 2.5 hours Play music 2 2 L & RL & R L & RL & R L & RL & R L & RL & R L R R & L sideR & L side R & L side R R TWS EARBUDS off LED light flashes Blue two times LED of one earbud flash Red/Blue alternatively Solid Blue FCC ID: 2AKI8-NTWS Earbuds cannot power on Battery drain, please charge the device for 30 minutes, and then powering on. Earbuds will be disconnected from time to time 1. The battery drain. 2. The Earbuds is beyond the communication range(10m) No sound on talking mode 1. Confirmed the Earbuds connected to smart phone mode on talking. 2. Try to volume up Earbuds or smart phone. No sound with music playing 1. Try to volume up Earbuds or smart phone. 2. Earbuds disconnected with smart phoneplease reconnected again. Cannot charge for Earbuds 1. Make sure the earbuds placed well in the charging case. 2. make sure LED lights red. 3. Check if the charging case is drain up. 4. Charge the charging case. Smart phone cannot search Bluetooth Earbuds 1. Make sure the Earbuds is in pairing mode ( red and blue LED flashing alternately) 2. Delete pairing list in smart phone and searching Earbuds again. 3. If it still cannot be found, please restart smart phone and Earbuds again.

TOPWAY EM ENTERPRISE LTD. Agent Authorization Company: TOPWAY EM ENTERPRISE LTD. Address: 8F BLOCK B BUILDING 6 BAONENG S&T PARK LONG HUA SHENZHEN GD, 518109 China Product Name: Wireless Sport Earbuds Model Number(s): 17LY86BK Product Description: Wireless Sport Earbuds We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 02, 2021 Name: ZHUANG LIANG Title: Manager Company: TOPWAY EM ENTERPRISE LTD.

TOPWAY EM ENTERPRISE LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 02, 2021 Subject; Request for Confidentiality FCC ID: 2AKI8-NTWS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ZHUANG LIANG Title: Manager

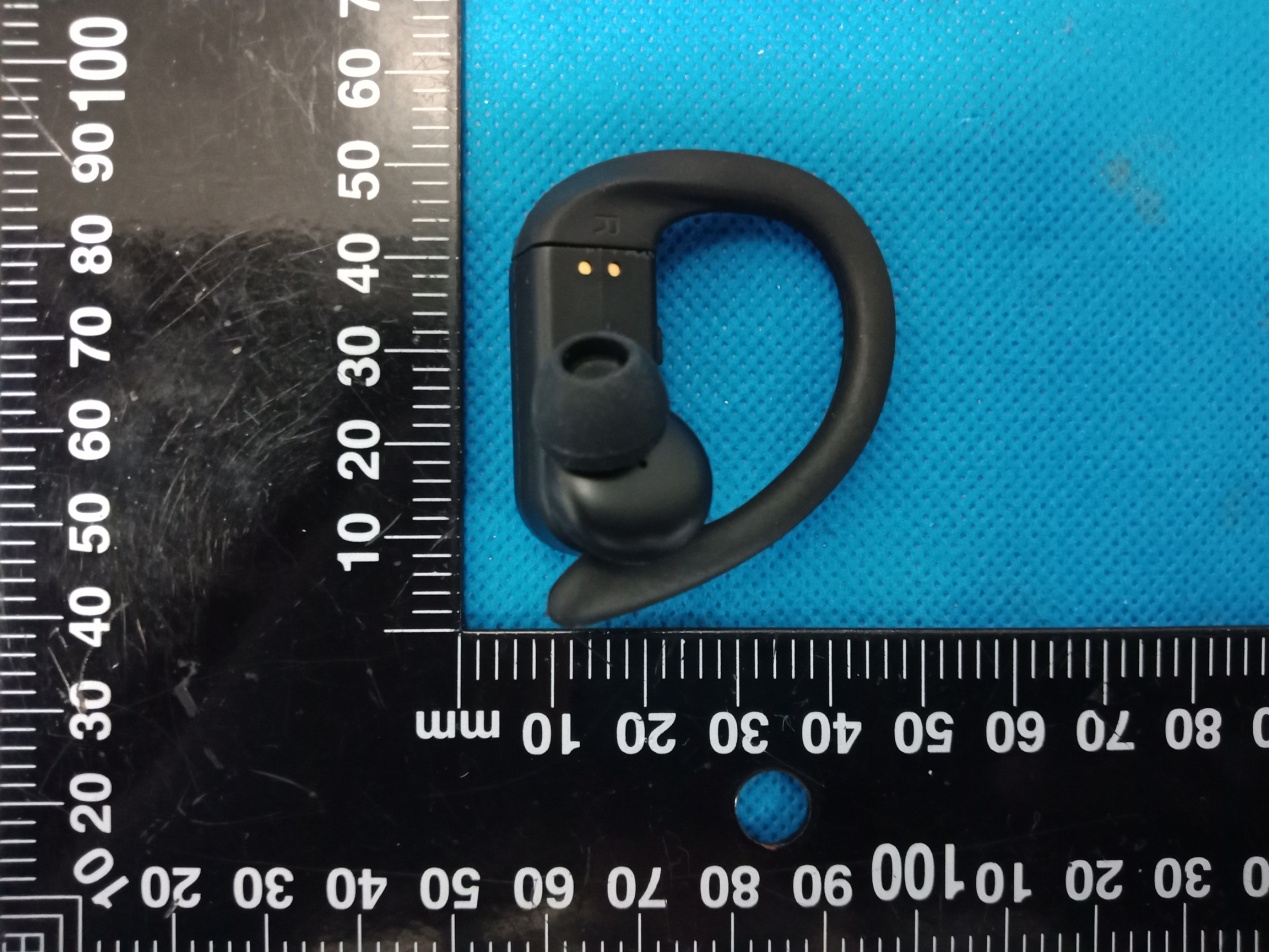

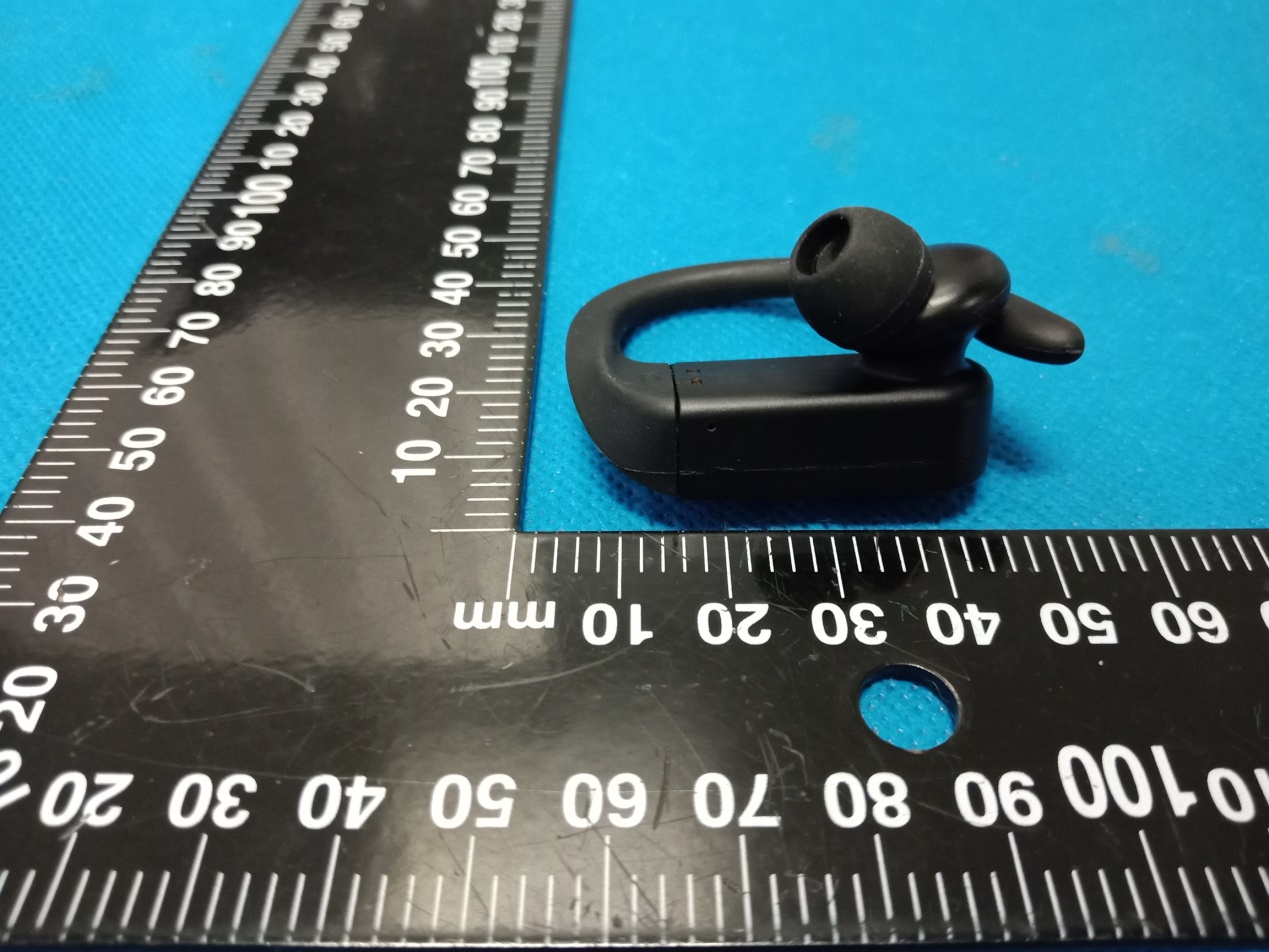

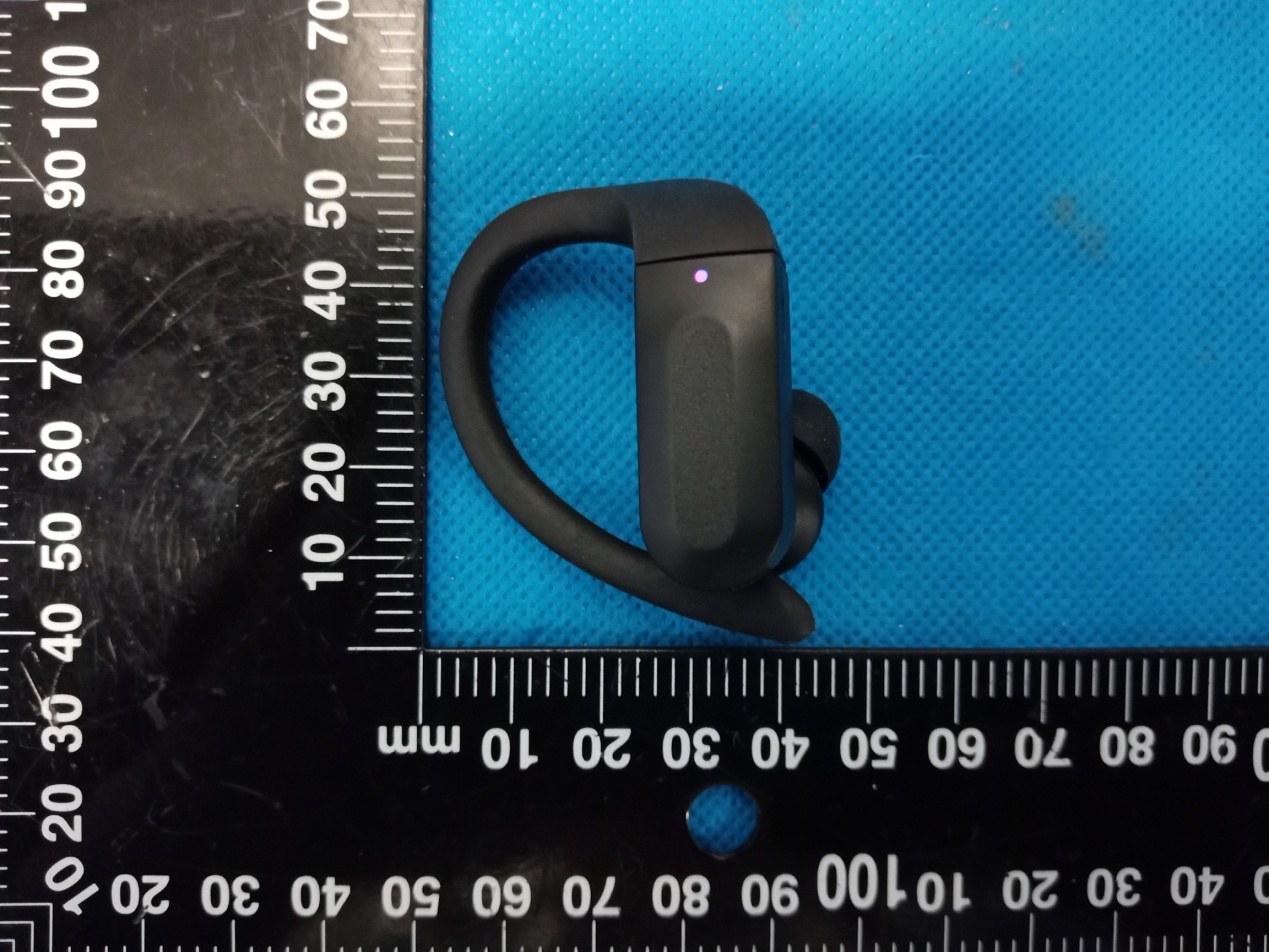

Annex A External Photos Report No.: HK2105241601‐E Page 1 of 4 Report No.: HK2105241601‐E Page 2 of 4 Report No.: HK2105241601‐E Page 3 of 4 Report No.: HK2105241601‐E Page 4 of 4

FCC ID LABEL: Because the product is too small, the FCC ID number will be printed on the first page of the manual. FCC ID: 2AKI8-NTWS

Annex B Internal Photo Report No.:HK2105241601-E Page 1 of 2 Antenna Antenna Report No.:HK2105241601-E Page 2 of 2

FCC RF Exposure EUT Description: Wireless Sport Earbuds Model No.: 17LY86BK FCC ID: 2AKI8-NTWS 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR -5.115 -6±1(-5) 0.316 5 0.098 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2105241601-E antenna gain=1dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.098 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 45 Report No.: HK2105241601-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of TOPWAY EM ENTERPRISE LTD. For Wireless Sport Earbuds Model No.: 17LY86BK FCC ID: 2AKI8-NTWS Prepared For : TOPWAY EM ENTERPRISE LTD. 8F BLOCK B BUILDING 6 BAONENG S&T PARK LONG HUA SHENZHEN GD, 518109 China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 21, 2021 ~ Jun. 02, 2021 Date of Report: Jun. 02, 2021 Report Number: HK2105241601-E Page 2 of 45 Report No.: HK2105241601-E TEST RESULT CERTIFICATION Applicant’s name ....... TOPWAY EM ENTERPRISE LTD. Address ....................... . 8F BLOCK B BUILDING 6 BAONENG S&T PARK LONG HUA SHENZHEN GD, 518109 China Manufacture's Name . . SHENZHEN JIA HUA LI DIAN ZI YOU XIAN GONG SI Address ........................ NO 101, 201, BUILDING E, NEW INDUSTRIAL ZONE, SHENZHU ROAD, LIUYUE SHENKENG VILLAGE, HENGGANG, LONGGANG DISTRICT, SHENZHEN CHINA Product description Trade Mark: N/A Product name ................ Wireless Sport Earbuds Model and/or type reference ................... . 17LY86BK Standards ................... . 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ................................. . Date (s) of performance of tests ... .May. 21, 2021 ~ Jun. 02, 2021 Date of Issue ................................ .Jun. 02, 2021 Test Result .................................... . Pass Prepared by: Project Engineer Reviewed b y : Project Supervisor Approved b y : Technical Director Page 3 of 45 Report No.: HK2105241601-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ................................................................................................................................................... 5 1.3. TEST FACILITY ........................................................................................................................................................... 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ............................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ............................................................................................ 8 2.4. EQUIPMENTS USED DURING THE TEST .................................................................................................................... 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................................ 9 2.6. MODIFICATIONS ...................................................................................................................................................... 9 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ............................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ................................................................................................................ 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................................................... 25 3.4. 20DB BANDWIDTH ................................................................................................................................................ 26 3.5. FREQUENCY SEPARATION ...................................................................................................................................... 29 3.6. NUMBER OF HOPPING FREQUENCY ...................................................................................................................... 31 3.7. TIME OF OCCUPANCY (DWELL TIME) ..................................................................................................................... 33 3.8. OUT‐OF‐BAND EMISSIONS ..................................................................................................................................... 36 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................................... 41 3.10. ANTENNA REQUIREMENT...................................................................................................................................... 42 4. TEST SETUP PHOTOS OF THE EUT ....................................…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
