2AKP3-100025111DISCO LAMP SPEAKER WITH COLOR/WHITE LED LIGHTING

Thanks for choosing the onn. Disco Lamp Speaker. Play onn. onn. DISCO LAMP SPEAKER WITH COLOR/WHITE LED LIGHTING PRODUCT GUIDE Model: 100025111 January 03, 2021_V1 We ‘d love to hear from you. Scan with your Walmart app and let us know what you think. 66 8 1 1 3 1 3 1 2 8 0 Need help? We’re here for you every day from 7 a.m. – 9 p.m. CST. Give us a call at 1-888-516-2630 PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. PRODUCT DIAGRAM 1 2 3 45687 1. Power Button Long press it for 3-5 seconds to turn on; Short press remote control to turn on disco lamp speaker when it is in sleeping status; 2. 3.5mm Audio Input Jack 3. Volume-/Brightness- Button Long press to volume down; Short press to dim night lamp; 4. Volume+/Brightness+ Button Long press to volume up; Short press to make light brighter; 5. Mode Button 1: Short press to switch 5 preset modes which set in a sequential order : Music +Disco lamp Music + Night Lamp Music Disco lamp Night Lamp. 2: Short press to answer the phone calls, long press to reject it when a call is ringing 6. LED Light Button Short press to switch the color of disco lamp and night lamp. 7. Light Indicator 8. USB charging Port(5VDC/1A) 1 REMARK Low battery warning: Disco lamp speaker will have a voice warning with “Battery Low” when battery is running low and will shut down after several times warning, please recharge it immediately. It should be recharged each month during storage to protect battery and extend battery life. Note: Disco lamp speaker will shut down automatically if no music is playing or no operation. 1. Battery low: Please charge for 2 hours before use. 2. Charging failure: Please use original cable and please make sure adaptor is 5V±0.2V, 1A. 3. No sound from speaker: Sound is played only under music, music + disco, Music + night lamp modes. Please check mode setting. Please ensure bluetooth or 3.5mm audio input is connected. 4. No sound under Bluetooth mode: Make sure to power on the speaker rst, and connect your cell phone with the speaker successfully under Bluetooth. 5. Bluetooth not connected: Ensure no other bluetooth devices are connected to the Disco Light. Unpair and re-pair your bluetooth device to conrm bluetooth connection.Check sound level on your bluetooth device. TROUBLE SHOOTING 6 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC information 7 Wal-Mart Stores,Inc., Bentonville, AR 72716 Hotline: 1-888-516-2630 size180x216mm PRODUCT FEATURES - Rechargeable Disco Lamp with Color/White LED lighting - 5 Watt speaker with microphone for hands-free calling - Bluetooth® - Lamp shade/dimming cover - Built-in 1000 mAh rechargeable battery with up to 1.5 hours of playtime per charge - Aux-in port PLAY TIME - 1:Battery Playback Time ( 50% volume on cell Phone.) : 2 hours - 2: Battery playback (Under disco lamp) (default setting): 2.5 hours - 3:Battery playback (Under Speaker + disco lamp) (default setting): 1.5 hours STANDARD ACCESSORIES 1. Disco Lamp Speaker 1 pc 2. Lamp shade/ dimming cover 1pc 3. Remote Control 1pc 4. USB Charging Cable 1pc 5. Audio Cable 1pc 6. User Manual 1 pc 7. 1 Bag hanging hardware 1set 8. Quick Start Guide 1pc AUX INTERFACE: Aux port can connect with an external audio source for music playing, however, the voice-controlled light mode is not workable while it connects with an external audio source for music playing. Indicator: - Red light is ON when charging - Blue light is ashing when paring - Blue light xed when paired CHARGING: Tips: It is strongly suggested that charging the battery up to 5 hours with DC5V 1A power supply in the rst use of the product. Battery is fully charged when red light is o. 23 Make Light Dimmer Brightest Warm White Light Next Color Volume Down Last Song/Backward Pause Music Motion Music Motion Make Light Brighter Answer/Hang Up Previous Color Volume Up 1 Hour Timer 5 Hours Timer Next Song/Forward Mute 3 Hours Timer Icon Function Name Function Description Note: 1. Night lamp mode only 5 2. Please press the remote control with ngertips for higher sensitivity. 3. The remote control On/ O keys will work only when Disco lamp speaker turned on. 4You can set the timer 1 hour,3 hours or 5 hours when you hear "Di" tone 1 time, 3 times or 5 times respectively. Press again to cancel the timer Acoustic stroboscopic mode Reduce night light brightness Increase night light brightness Highest night light brightness Pick up/hang up the phone call The white night light Night light mode switch back key Night light mode switch forward key Increase volume key One hour t…

Text truncated - open the document above for the full version.

ZheJiang Fousine Science & Technology Co., LTD 30 December 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement ZheJiang fousine science & Technology Co., ltd. FCC ID: 2AKP3-100025111 To Whom It May Concern: We, ZheJiang Fousine Science & Technology Co., LTD, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AKP3-100025111 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 30 December 2020. The Limited Agency Agreement expires on 31 December 2021, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, IVY ZHU Marketing Director

1(2) ZheJiang Fousine Science & Technology Co., LTD Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AKP3-100025111 To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1.Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2.Describe how public access is restricted for products serviceable by professional designated technicians. 3.A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are alwa ys held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure 2(2) Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ IVY ZHU Marketing Director 30 December 2020

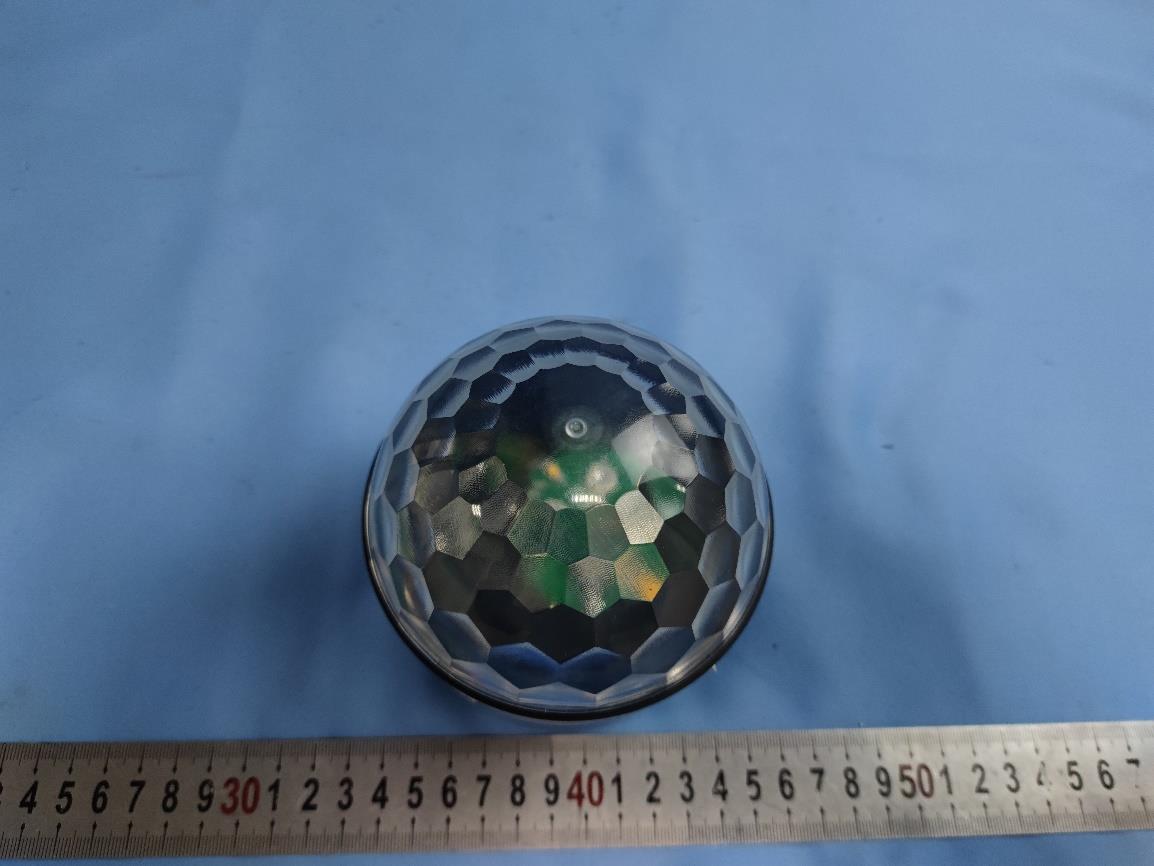

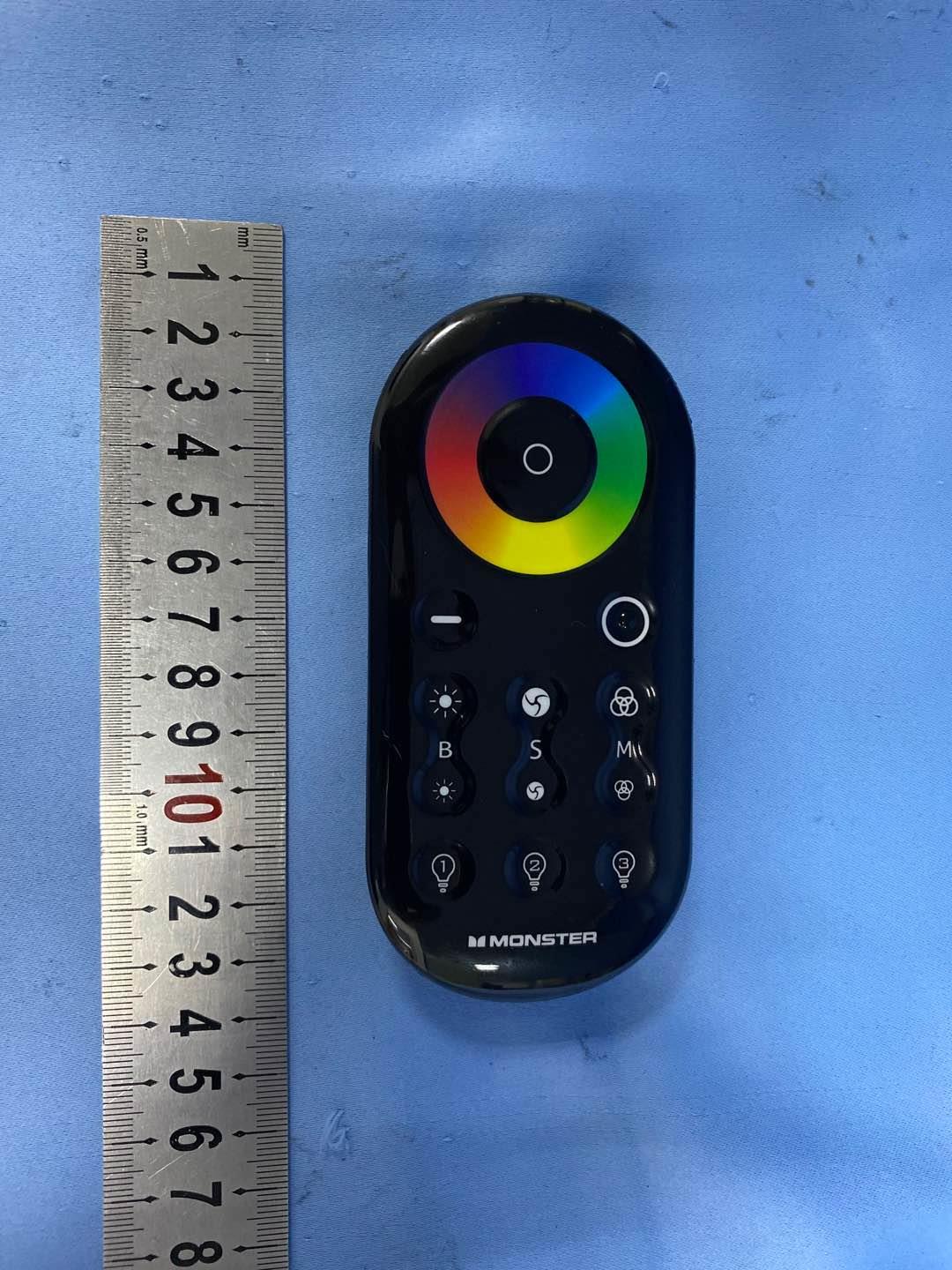

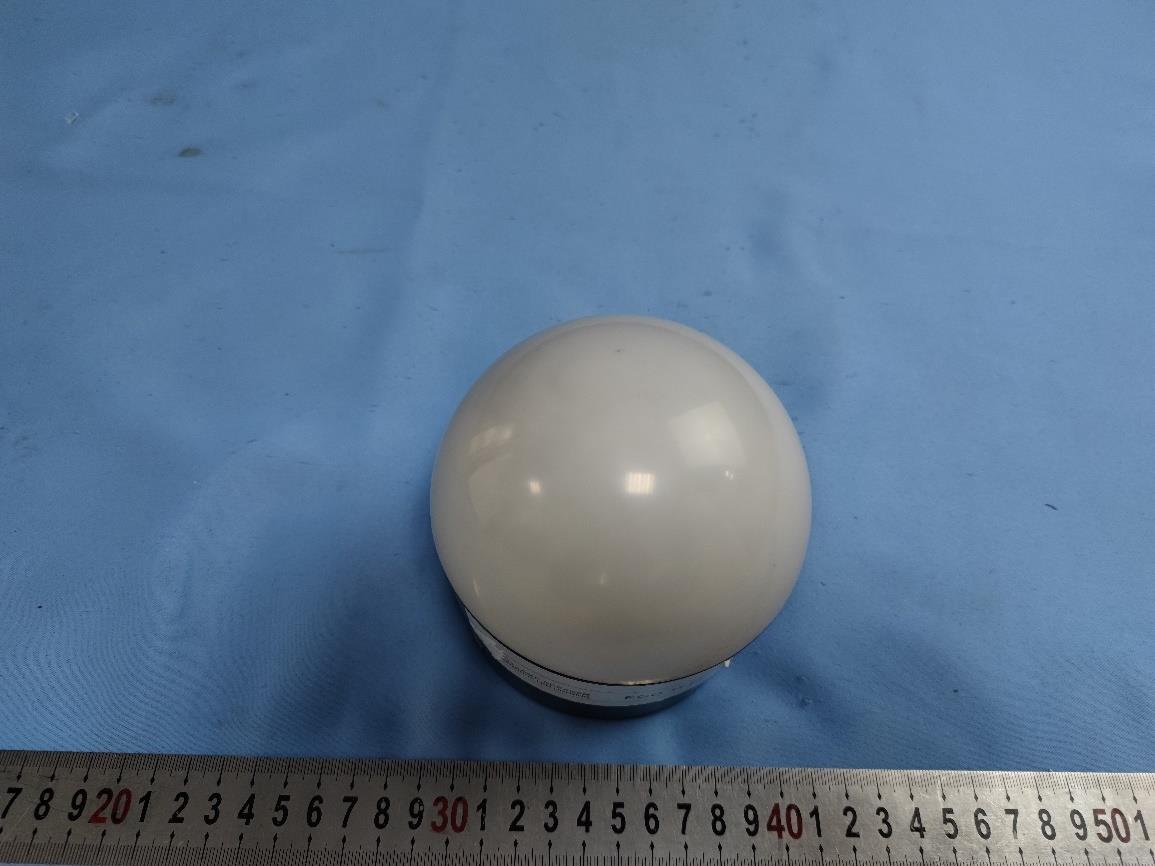

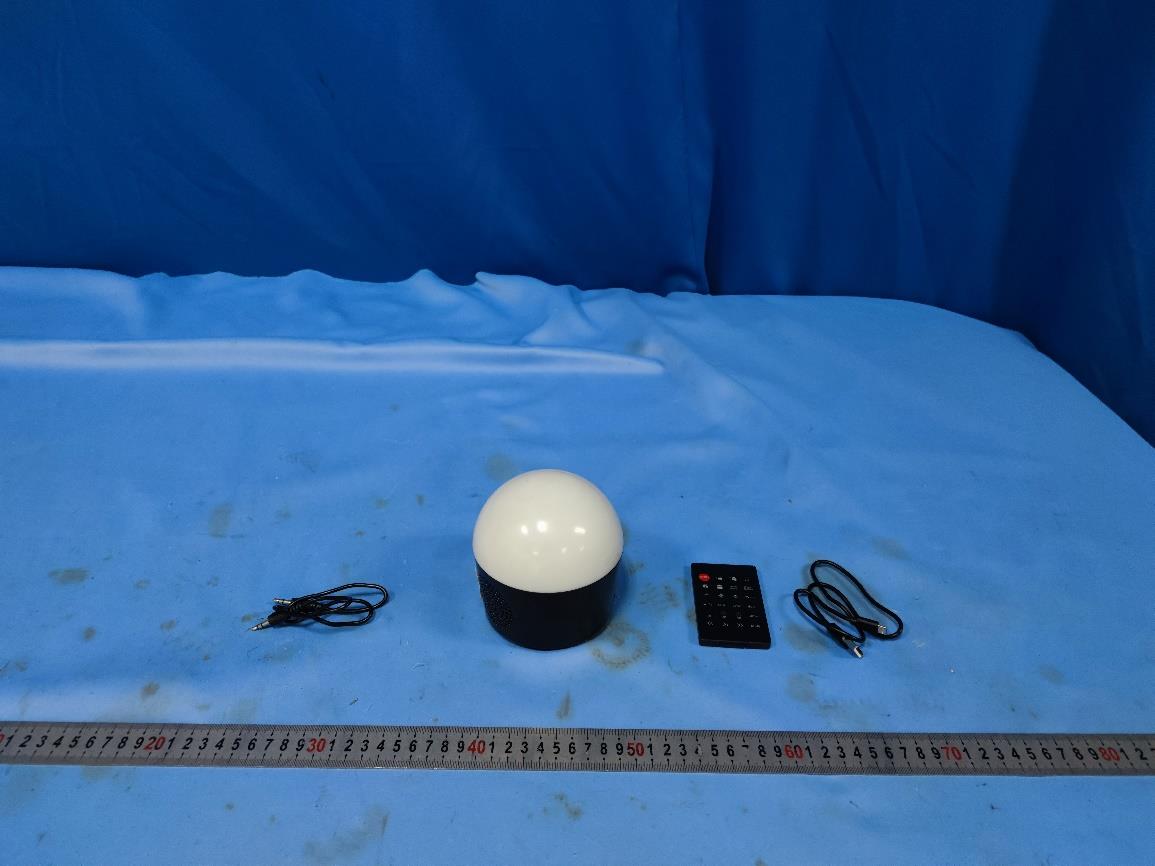

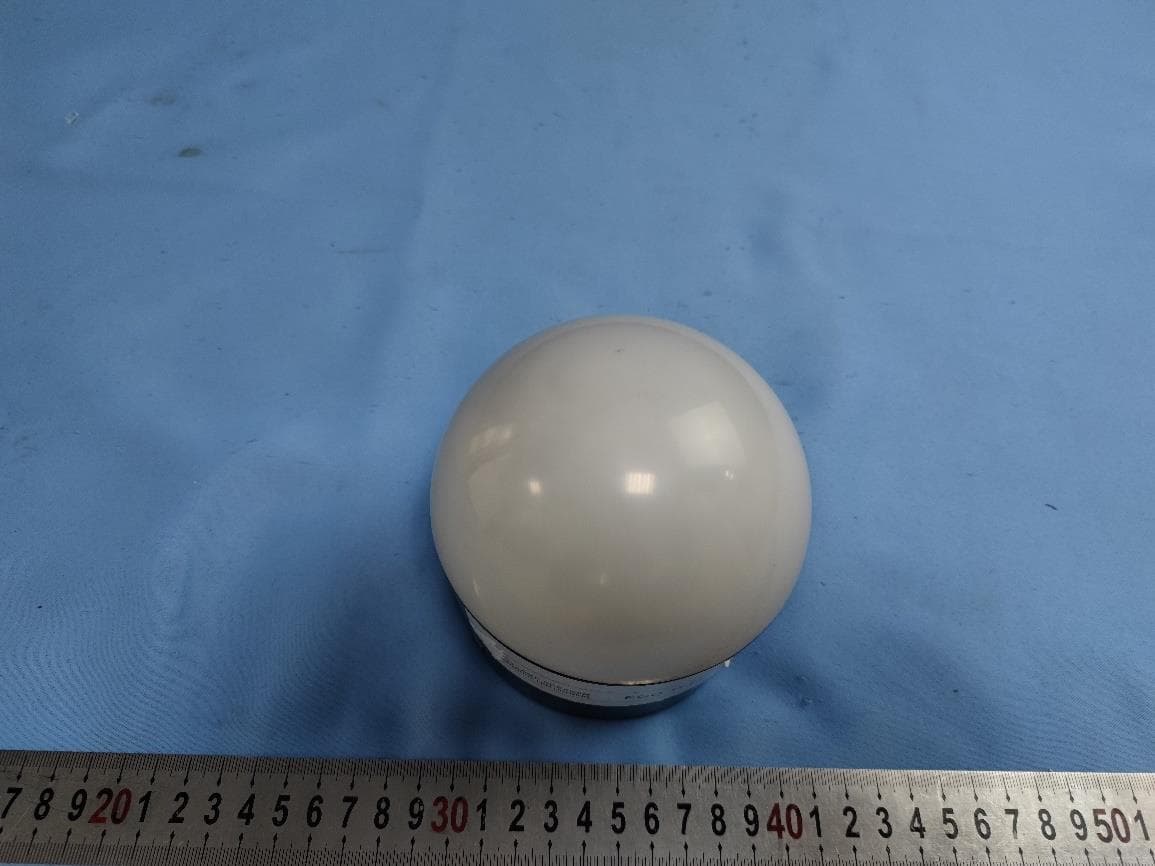

External photos

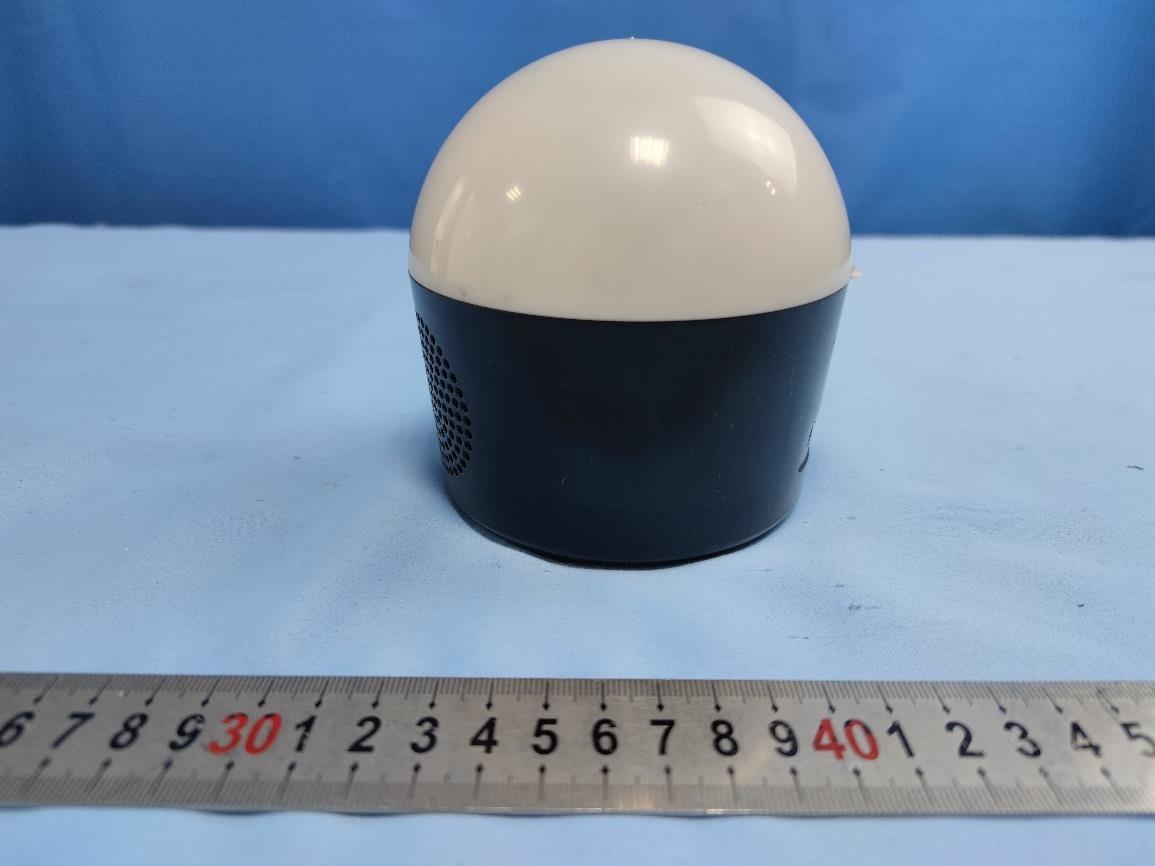

Bottom View

Internal Photos Bluetooth ANT

INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a DISCO LAMP SPEAKER WITH COLOR/WHITE LED LIGHTING with Bluetooth functions. The EUT is powered by DC 3.7V rechargeable battery which can be powered by adapter. For more detailed features description, please refer to the user’s manual. Bluetooth Version: 5.1 (Dual mode) Antenna Type: Integral antenna. Antenna Gain: -0.58dBi. Modulation Type: GFSK, π/4-DQPSK and 8-DPSK The nominal conducted output power specified: -1.42dBm (+/-3dB) The nominal radiated output power (e.i.r.p) specified: -2dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 94.2dBμV/m at 3m in the frequency 2440MHz (BLE mode) The EIRP = [(FS*D) ^2 / 30] mW = -1.03dBm which is within the production variation. The minimum peak radiated emission for the EUT is 90.9dBμV/m at 3m in the frequency 2480MHz (BLE mode) The EIRP = [(FS*D) ^2 / 30] mW = -4.33dBm which is within the production variation. The maximum conducted output power specified is 1.58dBm = 1.44mW The source- based time-averaging conducted output power = 1.44 * Duty factor mW (where Duty Factor≤1) = 1.44mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AKP3-100025111
