2AKQD-M-3024-port UHF RFID Module

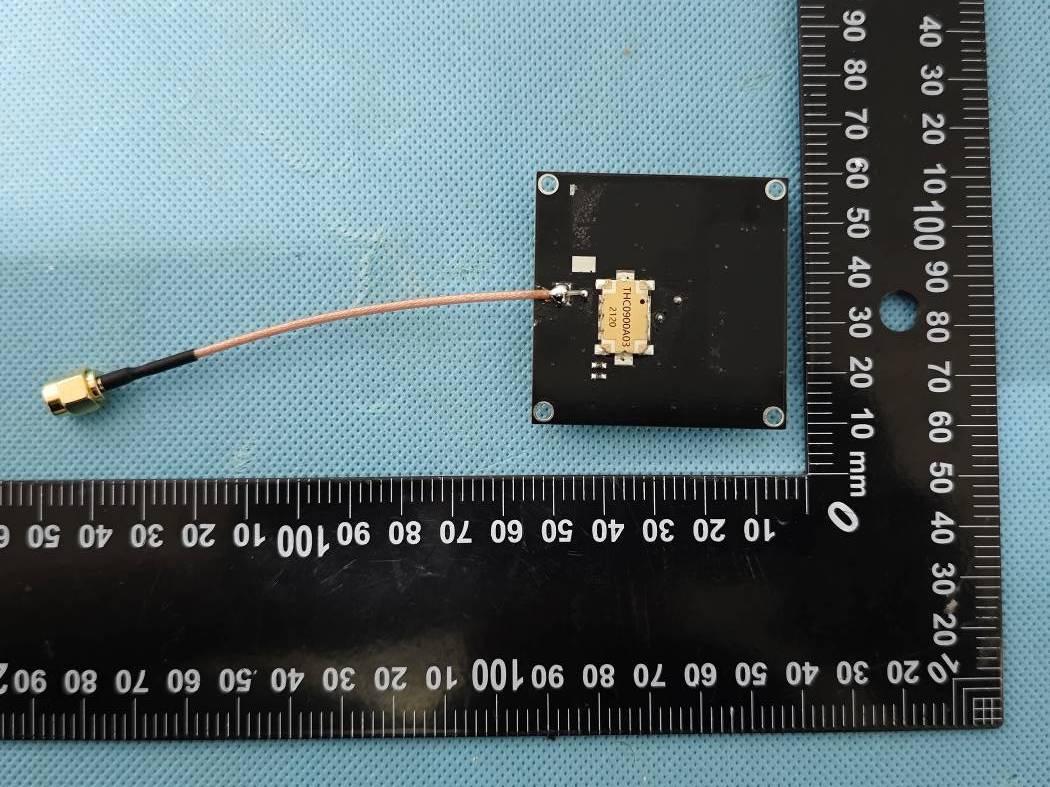

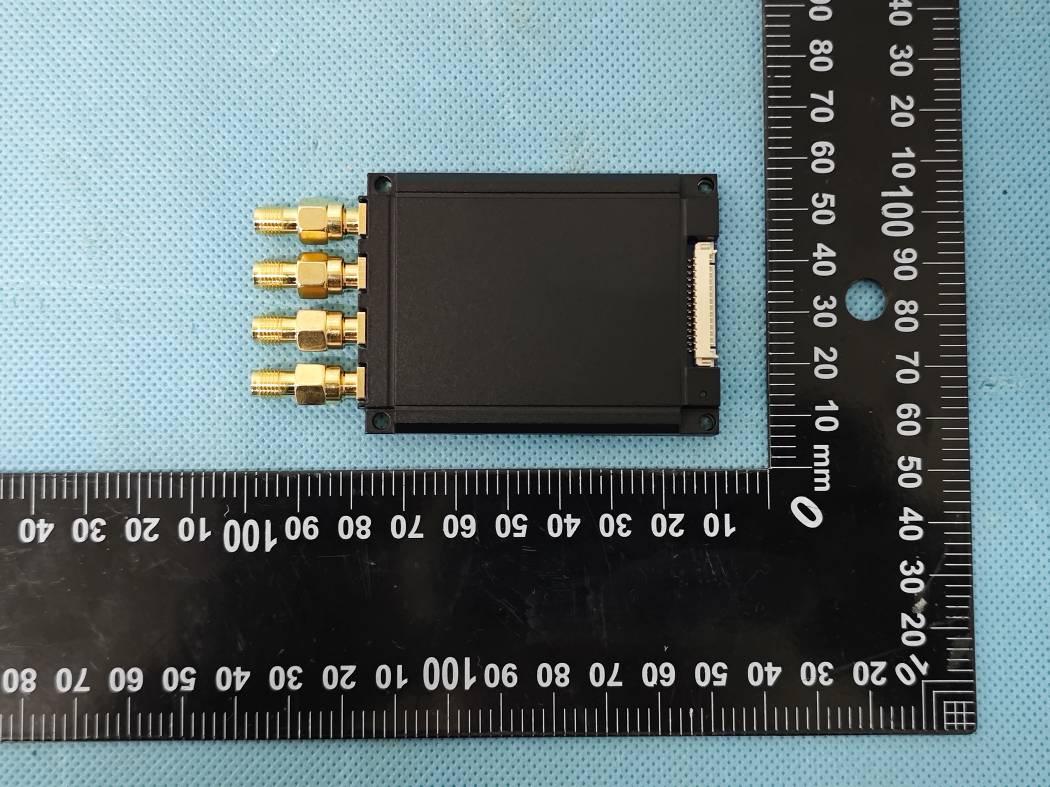

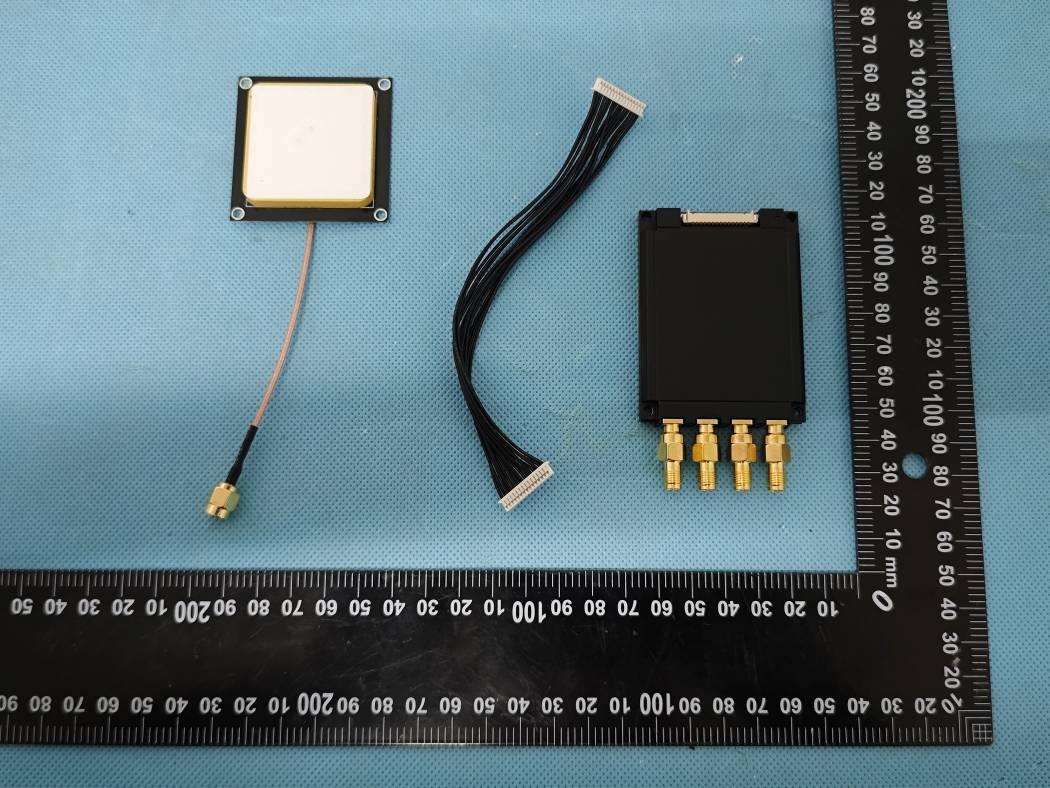

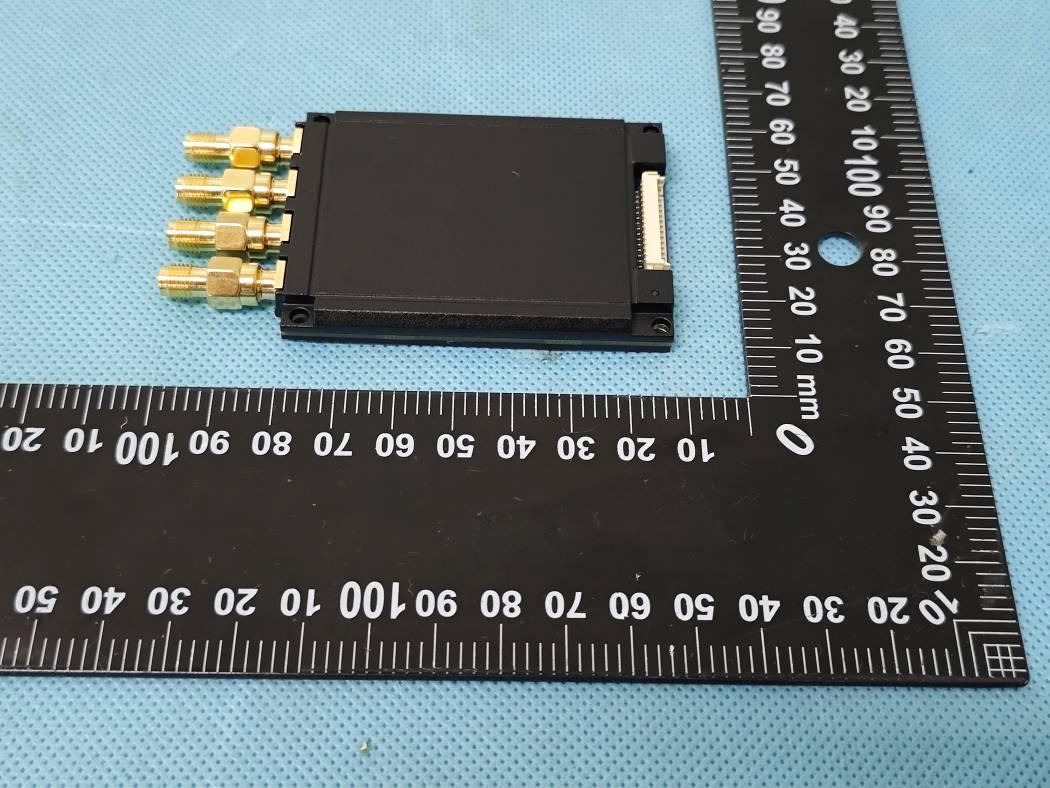

M30X Series UHF RFID Module Module Specification M-301 UHF RFID Module 1. Product View M-301 ▪ RF Channel: Single Channel ▪ RF Connector: MMCX ▪ Antenna Connection Mode : Single Antenna ▪ Interface Connector: FH34SRJ-30S-0.5SH（50） ▪ RF Connectors Material:Gold-plated brass ▪ PCB Material: Rogers FR4 gold-plated ▪ Shield Material: Cupronickel 2. Module Dimensions （ unit: mm ） 3. Kit Dimensions （ unit: mm ） Note： Dimensional drawings are three-dimensional renderings, not physical. Module Specification M-302 UHF RFID Module 1. Product View M-302 ▪ RF Channel: Four channels ▪ RF Connector: SMA ▪ Antenna Connection Mode : Four Antenna ▪ Interface Connector: Molex 53261-1571 ▪ RF Connectors Material:Gold-plated brass ▪ PCB Material: Rogers FR4 gold-plated ▪ Shield Material: Aluminum 2. Module Dimensions （ unit: mm ） 3. Kit Dimensions （ unit: mm ） Note： Dimensional drawings are three-dimensional renderings, not physical. Module Specification M-303 UHF RFID Module 1. Product View M-303 ▪ RF Channel: Eight Channels ▪ RF Connector: SMA ▪ Antenna Connection Mode : Eight Antenna ▪ Interface Connector: Molex 53261-1571 ▪ RF Connectors Material:Gold-plated brass ▪ PCB Material: Rogers FR4 gold-plated ▪ Shield Material: Aluminum 2. Module Dimensions （ unit: mm ） 3. Kit Dimensions （ unit: mm ） Note： Dimensional drawings are three-dimensional renderings, not physical. Module Specification M-304 UHF RFID Module 1. Product View M-304 ▪ RF Channel: Sixteen channels ▪ RF Connector: SMA ▪ Antenna Connection Mode :Sixteen Antenna ▪ Interface Connector: Molex 53261-1571 ▪ RF Connectors Material:Gold-plated brass ▪ PCB Material: Rogers FR4 gold-plated ▪ Shield Material: Aluminum 2. Module Dimensions （ unit: mm ） 3. Kit Dimensions （ unit: mm ） Note： Dimensional drawings are three-dimensional renderings, not physical. Module Specification UHF RFID Module PIN Connector Pin Assignments PIN Connector Pin Assignments Connector (15Pin , Space between PINs 1.25mm) PIN Interface Instruction 1 GND Meanwhile grounding 2 GND 3 4.5V – 5.5V DC Meanwhile connect power, Recommended input voltage: 4.6V 4 4.5V – 5.5V DC 5 GPIO 3 Output 6 GPIO 4 Output 7 GPIO 1 Input 8 Beeper Has driven with > 50mA output current 9 UART_RXD TTL level 10 UART_TXD 11 USB_DM For testing 12 USB_DP 13 GPIO 2 Input 14 EN High level enable 15 GPIO 5 RS-485 direction control Module Specification UHF RFID Module PIN Connector Pin Assignments FPC connector (30Pin , Space between PINs 0.5mm) PIN Interface Instruction 1 GND Meanwhile grounding 2 GND 3 GND 4 GND 5 GND 6 4.5V–5.5V DC Meanwhile connect power, Recommended input voltage: 4.8V 7 4.5V–5.5V DC 8 4.5V–5.5V DC 9 4.5V–5.5V DC 10 4.5V–5.5V DC 11 4.5V–5.5V DC 12 4.5V–5.5V DC 13 4.5V–5.5V DC 14 4.5V–5.5V DC 15 4.5V–5.5V DC 16 GND Meanwhile grounding 17 GND 18 GND 19 GND 20 GND 21 UART_RXD TTL level 22 UART_TXD 23 EN High level enable 24 GPIO1 Input 25 Beeper Has driven with > 50mA output current 26 GPIO3 Output 27 GPIO4 Output 28 GPIO5 RS-485 direction control 29 GND Meanwhile grounding 30 GND Module Specification UHF RFID Module Electrical Characteristics Electrical Characteristics Operating Voltage 4.5V – 5.5V Standby Mode Current 50mA ( EN high level ) Sleep Mode Current <100uA ( EN high level ) Operating Current Conditions Min Type Max @5V( 33dbm Output，Multi-tag，25°C ) 300mA1.3A+-10% 2.5A Operating Temperature - 20 °C ~ + 65 °C Storage Temperature - 40 °C ~ + 85 °C Humidity 5%RH~95%RH (non -condensing) Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Spectrum Range 902MHz – 928MHz，865MHz – 868MHz Supported Regions US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 China , Korea , Malaysia Output Power 0 – 33dBm Output Power Precision +/- 1dB Output Power Flatness +/- 0.2dB Receive Sensitivity < -88 dBm Peak Inventory Speed >900 tags/sec Tag RSSI Supported Antenna Detector Supported Ambient Temp Monitor Supported Working Mode Single/DRM Host Communication Uart 3.3V GPIO 2 inputs & 2 outputs（3.3V level） Max Baud Rate 38400 bps ，115200 bps ( Default and recommended )，921600bps Heat Dissipation External radiator Note： • When the temperature, measured by the ambient temperature measurement function, exceeds 60°C, please do not keep the device working at full capacity. • Please connect the device to heat sink when it continuously work at full load. • Supply voltage must not exceed 5.5V,otherwise it will damage the internal protection circuit. • Be cautious if set RF output power over 30dBm, as the peak current and internal temperature will increase significantly. FCC WARNING: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to w…
