2AKVT-MW111Radio

MW111 USB Media Player Instruction Manual 气匀酰 Please read the instruction manual carefully before operating the unit RADIO Specifications Model MW111 Operating Voltage 10.SV-16V Power Output 25 W X 4 @ 4 Ohms RMS 50 W x 4 @ 2 Ohms Peak Max. RCA Output Voltage 4V Output Impedance 500Q Frequency Response 20-20 KHz FM Frequency Range 87.5 - 107.9 MHz AM Frequency Range 530 -1710 KHz WB Frequency Range 162.40-162.55 MHz Tuner Presets 18 FM / 12 AM/6WB Display 3" Full Dot Matrix LCD Gorilla Glass Bluetooth 5.0+EDR, A2DP USB Compatibility 2.0 USB Capacity 64 GB max USB Charger 1A Audio File Compatibility MP3, WMA 02 冗言

MusicWaveLimited Modeldifferences We: MusicWaveLimitedStatementthatAllthemodel “MW111,MRX2,MRX200,MW112,MW113,MW114,MW115,MW116,MW117,MW118,MW119”are identicalexceptmodelname.AllabovemodelsareidenticalinthesamePCBlayout,interiorstructureand electricalcircuits.Theonlydifferenceismodelnameforcommercialpurpose. CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) HongKong2020/12/24AmyNgGeneral Manager

C5266091_X8_Ed.1 1/1 Letter of Authorization Music Wave Limited Company: Music Wave Limited Address: Rm1611-1613 Luen Cheong Can Centre, 8 Yip Wong Road, Tuen Mun, N.T., Hong Kong Product Name: Radio Model Number: MW111, MRX2, MRX200, MW112, MW113, MW114, MW115, MW116, MW117, MW118, MW119 FCC Identifier: 2AKVT-MW111 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Amy Ng Date: 2020.12.24 Title: General Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 MusicWaveLimited Rm1611-1613LuenCheongCanCentre,8YipWongRoad,TuenMun,N.T.,Hong Kong Date:2020.12.21 Subject:RequestforConfidentiality FCCID:2AKVT-MW111 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManualNoNo InternalPhotosNoNo PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Name:AmyNgDate:2020.12.23 Title:GeneralManager Signatureofapplicant:

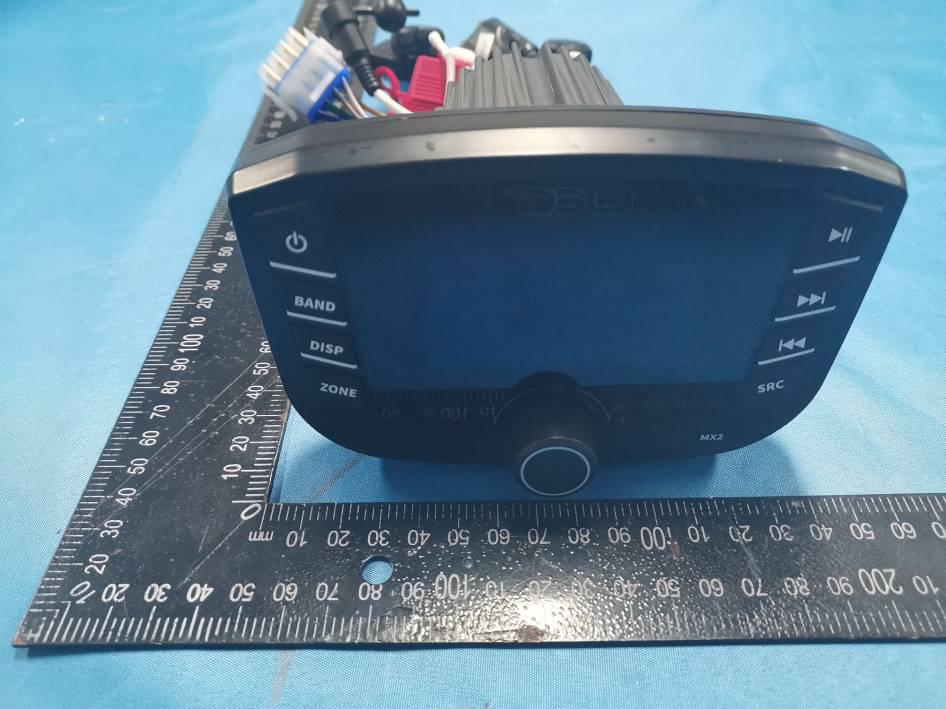

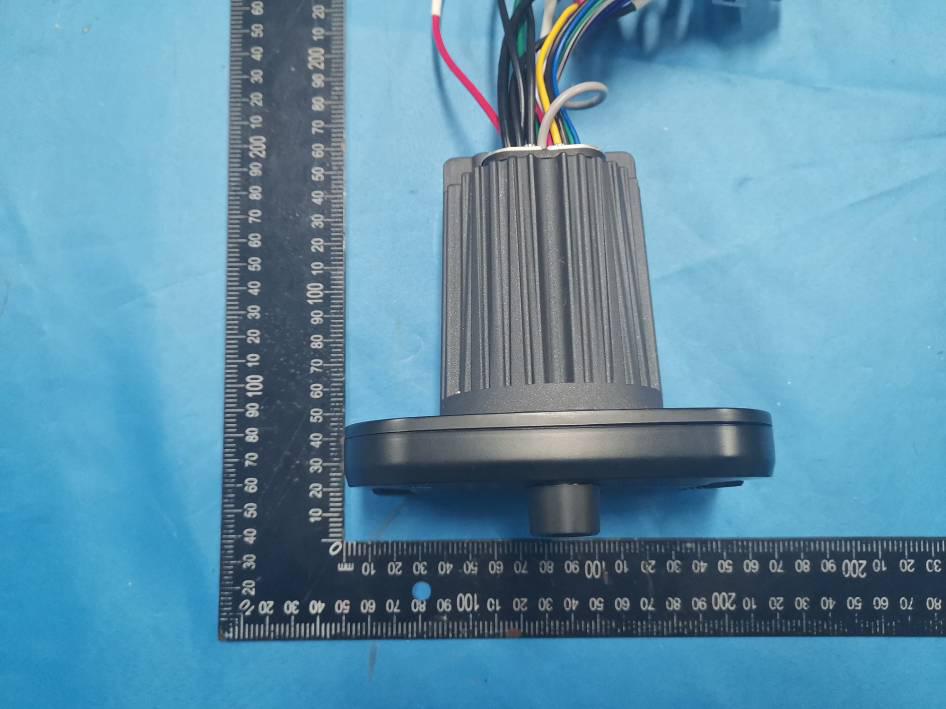

FCCID:2AKVT-MW111 EUT

FCCIDLABELINGANDLOCATION FCCIDLabel FCCIDLabelLocation Thelabelshownshallbepermanentlyaffixedataconspicuouslocationonthedeviceandbe readilyvisibletotheuseratthetimepurchase(Labelingrequirementsper2.925) Radio FCCID:2AKVT-MW111

FCCID:2AKVT-MW111 RFCHIP:Model:AP1048BManufacturer:AMPAK PCBAntenna RFCHIP

Global United Technology Services Co., Ltd. Report No.: GTSL202012000189F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 38 + TEST REPORT Applicant: Music Wave Limited Address of Applicant: Rm1611-1613 Luen Cheong Can Centre, 8 Yip Wong Road, Tuen Mun, N.T., Hong Kong Manufacturer: Music Wave Limited Address of Manufacturer: Rm1611-1613 Luen Cheong Can Centre, 8 Yip Wong Road, Tuen Mun, N.T., Hong Kong Equipment Under Test (EUT) Product Name: Radio Model No.: MW111,MRX2,MRX200,MW112,MW113,MW114,MW115, MW116, MW117,MW118,MW119 Trade Mark: N/A FCC ID: 2AKVT-MW111 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 Date of sample receipt: Dec.14, 2020 Date of Test: Dec.14, 2020 ~ Dec.23, 2020 Date of report issued: Dec.24, 2020 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202012000189F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 38 2 Version Version No. Date Description 00 Dec.24, 2020 Original Prepared By: Date: Dec.24, 2020 Project Engineer Check By: Date: Dec.24, 2020 Reviewer Report No.: GTSL202012000189F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 38 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 8 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 8 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 8 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 8 5.6 TEST FACILITY .................................................................................................................................... 9 5.7 TEST LOCATION ................................................................................................................................. 9 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 9 6 TEST INSTRUMENTS LIST ................................................................................................................... 10 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 12 7.1 ANTENNA REQUIREMENT ................................................................................................................... 12 7.2 RADIATED EMISSION METHOD ........................................................................................................... 13 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.2.2 Spurious emissions .................................................................................................................... 17 7.2.3 Bandedge emissions.................................................................................................................. 25 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 28 8 TEST SETUP PHOTO ............................................................................................................................ 32 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 33 Report No.: GTSL202012000189F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 38 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pass AC Power Line Conducted Emission 15.207 N/A Field strength of the fundamental signal 15.249 (a) Pass Spurious emissions 15.249 (a) (d)/15.209 Pass Band edge 15.249 (d)/15.205 Pass 20dB Occupied Bandwidth 15.215 (c) Pass Pass: The EUT complies with the essential…

Text truncated - open the document above for the full version.

FCCID:2AKVT-MW111 RE
