2AKW5-RW506Wireless vibration temperature sensor

I Please read carefully before using the Manual Wireless Vibration Temperature Sensor Manual Executive standard: GB/T 3836.1-2021 GB/T 3836.4-2021 Q/RH081—2022 Version number: VER 1.1 Publication date: 2022.6 Anhui Ronds Science & Technology Incorporated Company II Preface This manual describes the use method and precautions of the wireless Vibration Temperature sensor. Users must read it carefully before use. The wireless Vibration Temperature sensor implements the enterprise standard Q/RH081-2022 of Anhui Ronds Science & Technology Incorporated Company. Wireless Vibration Temperature Sensor Manual 3 Warning: *Read the operation manual before installation and use, and install and operate in strict accordance with the methods in the manual. *Do not modify the circuit without authorization. *The model, specification and electrical parameters of related short circuits and components shall not be modified during maintenance. *It is forbidden to replace batteries in explosion-proof places, and batteries other than those specified in the specifications shall not be replaced. *The product shell contains plastic material, which has the potential danger of electrostatic charge! Avoid friction during use! Please wipe with a damp cloth when cleaning. Overview 1.1 Uses and Application Scope The wireless Vibration Temperature sensor (hereinafter referred to as the sensor) can monitor the equipment vibration signal, and can monitor the vibration data for a long time and transmit it. The sensor has intrinsically safe explosion-proof function and meets the standards of GB/T 3836.1-2021 Explosive Atmospheres Part 1: Equipment--General Requirements and GB/T 3836.4-2021 Explosive Atmospheres Part 4: Equipment Protected by Intrinsically safe "i"; The explosion-proof sign is Ex ia IIC T4 Ga, which can be installed in normal places and dangerous places in Zone 0 with IIA, IIB, IIC dangerous gases. The sensor communicates wirelessly. 1.2 Functional Features (1) Wireless transmission. saves a lot of wiring work such as signal, power supply and network (2) Adopt transmission frequency of 2.4G free frequency band, with long transmission distance and strong anti-interference ability, which is convenient for Wireless Vibration Temperature Sensor Manual 4 industrial field use (3) Low power design. Able to monitor and transmit vibration data for a long time. (4) Small size. Suitable for installation in various industrial sites. (5) Support temperature measurement. 1.3 Model description R W X 0 6 X Operating Status Monitoring: Empty - not supported M - supported Vibration Measuring Axial: 506 - one axial Vibration 606- three axials Vibration Wireless communication Company code The current product models are as follows: RW506: Frequency response range: Z-axis direction 2-20000Hz (±3dB ); Analysis frequency: Z axis 1000Hz，10000Hz ,20000Hz; Battery life: 5 years (estimated under the condition that the temperature is 25 °C (± 2 °C) and the conventional index is 30 minutes / time, the service life decreases under the conditions of extreme low temperature and extreme high temperature); Temperature measurement range: -40°C～125°C; RW506M: RW506M has the same performance parameters as RW506W, and RW506M has working condition monitoring function. Wireless Vibration Temperature Sensor Manual 5 RW606: Frequency response range: Z-axis direction 0.1-20000Hz (±3dB ), X & Y-axis direction 0.1-1000Hz (±3dB ); Analysis frequency: Z axis 1000Hz, 10000Hz, 20000Hz; X & Y-axis direction 1000Hz; Battery life: 5 years (estimated under the condition that the temperature is 25 °C (± 2 °C) and the conventional index is 30 minutes / time, the service life decreases under the conditions of extreme low temperature and extreme high temperature); Temperature measurement range: -40°C～125°C; RW606M: RW606M has the same performance parameters as RW606, and RW606M has working condition monitoring function. 1.4 Application Environment Conditions 1.4.1 Working Environment Conditions a) Ambient temperature: -40°C～+70°C; b) Average relative humidity: ≤95%HR (+25°C ); c) Atmospheric pressure: 70kPa～110kPa; d) Occasions without ponding; e) Zone 0 hazardous places with IIA, IIb and IIC hazardous gases, but without corrosive gases damaging insulation. 1.4.2 Bearable Storage and Transportation Conditions a) High temperature: +85°C; b) Low temperature: -40°C; c) Average relative humidity: +95%HR (+25°C ); d) Vibration: 50m/s2; e) Impulse: 500m/s2。 1.5 Safety Features Explosion proof type: intrinsically safe, explosion-proof sign: Ex ia IIC T4 Ga Wireless Vibration Temperature Sensor Manual 6 2 Working Principle and Structural Features 2.1 Operating Voltage and Current a) Operating voltage: rated voltage 3.6V (battery is one of the following three models) ①EVE ER34615 Maximum open circuit voltage 3.9V; ②LISUN ER34615 Maximum open circuit voltage 3.9V; b) Operating current of the whole machine: ≤50mA； 2.2 Measurement Range vibration acceleration (Z-axis direction) measurement range: ±50g; (g：gravitational acceleration g=9.8m/s2) vibration acceleration (X & Y-axis direction) measurement range: ±16g (g：gravitational acceleration g=9.8m/s2) Resolution ratio is 0.01m/s2; Temperature measurement range: -40°C～125°C； 2.3 Basic Error Allowable basic error of vibration measurement:±3dB; 2.4 Linearity Linearity: 2%; 2.5 Signal Output Way 1、2.4G (IEEE 802.15.4 )Wireless communication: (1)Frequency: 2405MHz～2475MHz (2)Transmission distance: 300 meters line of sight. 2、BLE Wireless communication: (1)Frequency: 2402MHz～2480MHz (2)Transmission distance: 50 meters line of sight. Wireless Vibration Temperature Sensor Manual 7 2.6 IP Grade:IP68 (1m, 40min) 3. Dimensions, Weight and Material 3.1 Dimensions: φ45.5*110.3mm (diameter×Height, including mounting base ); 3.2 Weight: About 320g (including mounting base); 3.3 Upper cover material: flame retardant PC; Battery compartment material: flame retardant PA66 + 30% glass fiber + SUS304 (integrated injection molding); Base and mounti…

Text truncated - open the document above for the full version.

Anhui Ronds Science & Technology Incorporated Company U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: United Consulting Technology Services Co., Ltd. FRN: 0033495714 Contact Name: David Wu Street Address: 17800 CASTLETON ST STE 665 CITY OF INDUSTRY City/Province/Zip: CA 91748 Telephone No: (626) 217-4022 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023-07-2 0 Signed by (Printed Name/Title): David Wu The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Anhui Ronds Science & Technology Incorporated Company Grantee Code: 2AKW5 FCC ID: 2AKW5-RW506 Contact Name: Tengfei Liu Address: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Telephone No: +860551-65335195 Email: [email protected] Applicant Signature: Date: 2023-07-2 0 Signed by (Printed Name/Title): Tengfei Liu

Anhui Ronds Science & Technology Incorporated Company Current Date: 2023-07-20 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Anhui Ronds Science & Technology Incorporated Company) HEREBY DECLARED THAT Product Description Wireless vibration temperature sensor Add Model No. RW506,RW506M,RW606 Manufacturer’s Name Anhui Ronds Science & Technology Incorporated Company Manufacturer’s Address #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China There are series models mentioned in this report, and they are identical in electrical and electronic characters. Only the model RW606M was tested since their differences are as below: 1. Model number 2. The model RW506 and RW506M are uniaxial vibrations, RW506M has added working condition monitoring function compared to RW506. RW606 and RW606M are triaxial vibrations, RW606M has added working condition detection function compared to RW606. The difference between uniaxial vibration and triaxial vibration is welding materials on the PCB board, the details can refer to schematics. Except for the above differences, all other factors are identical with the model(s) we chose to be tested by SGS. Model (型号): RW606M Manufacturer’s Name (生产商名称): Anhui Ronds Science & Technology Incorporated Company Manufacturer’s Address（生产商商地址): #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Sincerely, Signature (签字): Printed Name (姓名): Tengfei Liu Position/Title (职位): Engineer Contact Number (联系电话): +860551-65335195

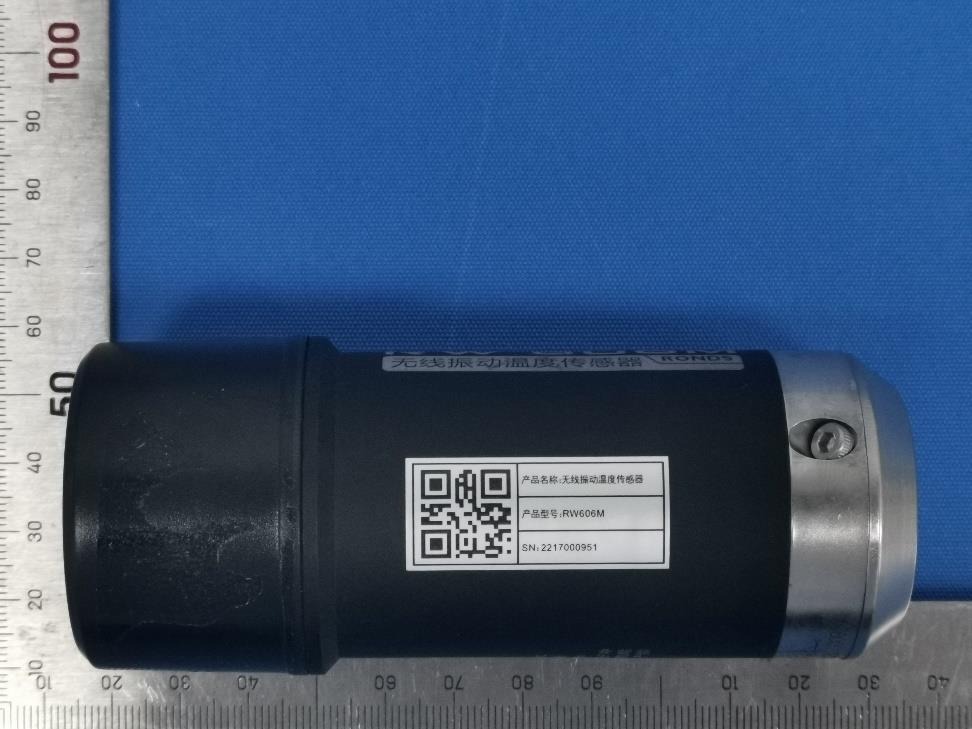

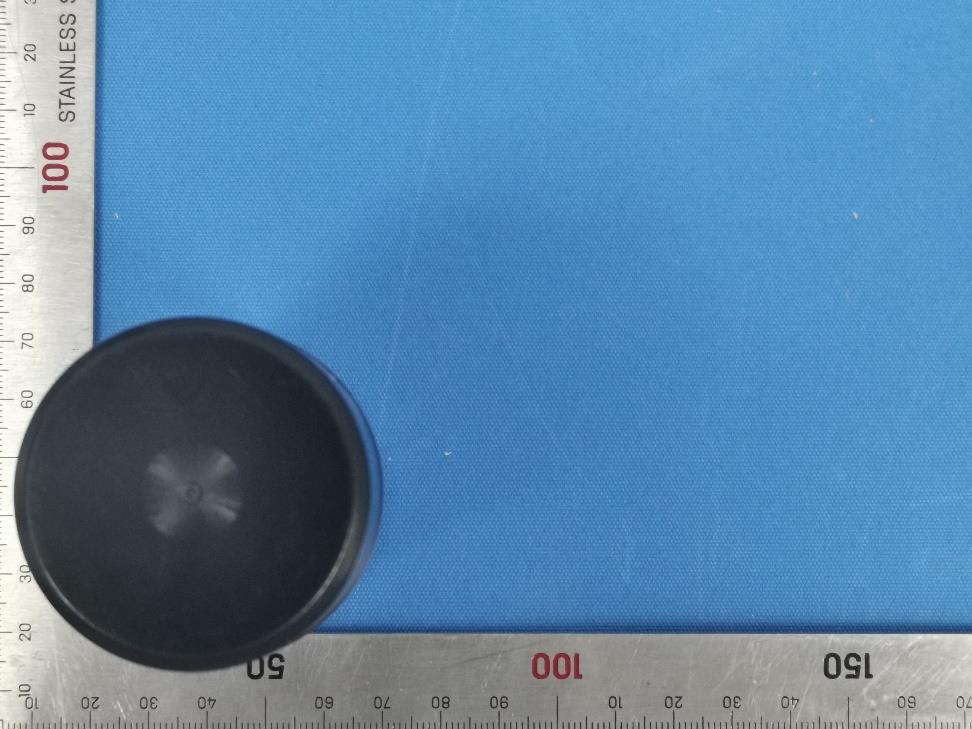

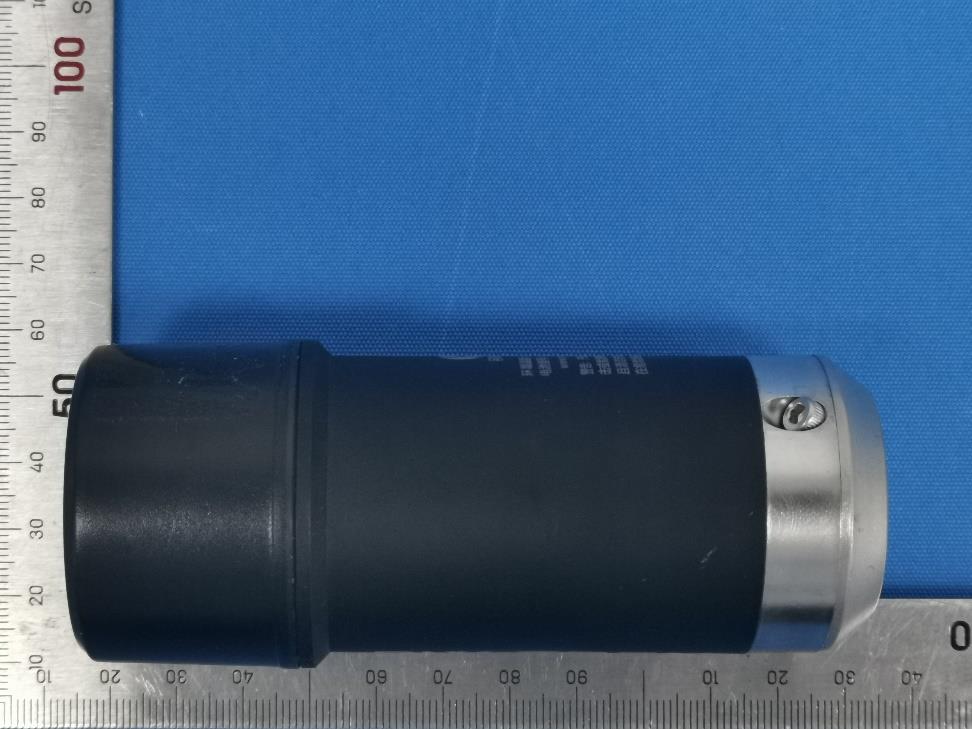

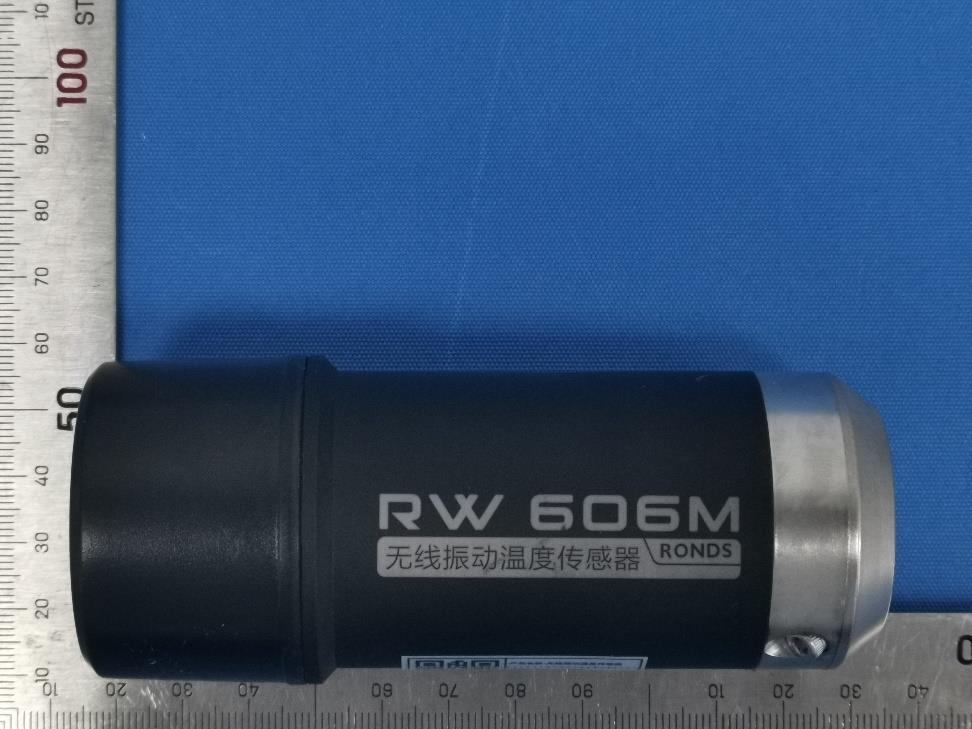

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 External Photos for SHCR2307001432AT Test Model No.: RW606M SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

Remark：It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 8 Internal Photos for SHCR2307001432AT Test Model No.: RW606M SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 8 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 8

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143204 Page: 1 of 11 Parlam Zhan Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2307001432AT FCC ID: 2AKW5-RW506 Applicant: Anhui Ronds Science & Technology Incorporated Company Address of Applicant: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Manufacturer: Anhui Ronds Science & Technology Incorporated Company Address of Manufacturer: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Factory: Anhui Ronds Science & Technology Incorporated Company Address of Factory: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Equipment Under Test (EUT): EUT Name: Wireless vibration temperature sensor Model No.: RW506,RW506M,RW606,RW606M Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2023-06-27 Date of Test: 2023-06-28 to 2023-07-12 Date of Issue: 2023-07-13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143204 Page: 2 of 11 Revision Record Version Description Date Remark 00 Original 2023-07-13 / Authorized for issue by: Micheal Niu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143204 Page: 3 of 11 2 Contents Page 1 Cover Page ........................................................................................................................................ 1 2 Contents ............................................................................................................................................ 3 3 General Information .......................................................................................................................... 4 3.1 General Description of E.U.T. .................................................................................................... 4 3.2 Technical Specifications ............................................................................................................. 4 3.3 Separation Distance ................................................................................................................... 4 3.4 Test Location .............................................................................................................................. 5 3.5 Test Facility ................................................................................................................................ 5 4 RF Exposure Test Exemptions ........................................................................................................ 6 4.1 RF Exposure Test Exemptions for single RF sources ............................................................... 6 4.2 RF Exposure Test Exemptions for Simultaneous Transmission ................................................ 8 5 Measurement and Calculation ....................................................................................................... 10 5.1 Maximum transmit power ......................................................................................................... 10 5.2 RF Exposure Calculation ......................................................................................................... 11 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143204 Page: 4 of 11 3 General Information 3.1 General Description of E.U.T. Power supply: DC 3.6V by battery 3.2 Technical Specifications BLE Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.2 LE Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Data Rate: 1Mbps, 2Mbps Antenna Type: FPC Antenna Antenna Gain: 1.71dBi(Provided by the manufacturer) Zigbee Operation Frequency: 2405MHz to 2475MHz Modulation Type: O-QPSK Number of Channels: 15 Channel Spacing: 5MHz Antenna Type: FPC Antenna Antenna Gain: 1.71dBi(Provided by the manufacturer) 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. R has been stated in user manual. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143204 Page: 5 of 11 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. E&E Lab 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g., max. internal working frequency, antenna gain, cable loss, etc) is provided by the applicant. (If applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (If applicable). 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: •A2LA (Certificate No. 6332.01) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the American Association for Laboratory Accreditation(A2LA). •FCC (Designation Number: CN1301) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. •ISED (CAB Identifier: CN0020) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 8617A •VCCI (Member No.: 3061) The 3m Semi-anechoic chamber and Shielded Room of SGS-CSTC Sta…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143202 Page: 1 of 77 Parlam Zhan Laboratory Manager TEST REPORT Application No.: SHCR2307001432AT FCC ID: 2AKW5-RW506 Applicant: Anhui Ronds Science & Technology Incorporated Company Address of Applicant: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Manufacturer: Anhui Ronds Science & Technology Incorporated Company Address of Manufacturer: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Factory: Anhui Ronds Science & Technology Incorporated Company Address of Factory: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Equipment Under Test (EUT): EUT Name: Wireless vibration temperature sensor Model No.: RW506,RW506M,RW606,RW606M   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2023-06-27 Date of Test: 2023-06-28 to 2023-07-12 Date of Issue: 2023-07-13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143202 Page: 2 of 77 Revision Record Version Description Date Remark 00 Original 2023-07-13 / Authorized for issue by: Micheal Niu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143202 Page: 3 of 77 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Customer Declaration Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass There are series models mentioned in this report, and they are identical in electrical and electronic characters. Only the model RW606M was tested since their differences are as below: 1. Model number 2. The model RW506 and RW506M are uniaxial vibrations, RW506M has added working condition monitoring function compared to RW506. RW606 and RW606M are triaxial vibrations, RW606M has added working condition detection function compared to RW606. The difference between uniaxial vibration and triaxial vibration is welding materials on the PCB board, the details can refer to schematics. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143202 Page: 4 of 77 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 Test Summary ........................................................................................................................................... 3 3 Contents .................................................................................................................................................... 4 4 General Information .................................................................................................................................. 5 4.1 Details of E.U.T. ................................................................................................................................. 5 4.2 Power level setting using in test ......................................................................................................... 5 4.3 Description of Support Units .............................................................................................................. 5 4.4 Measurement Uncertainty .................................................................................................................. 6 4.5 Test Location ...................................................................................................................................... 7 4.6 Test Facility ........................................................................................................................................ 7 4.7 Deviation from Standards ................................................................................................................... 7 4.8 Abnormalities from Standard Conditions ........................................................................................... 7 5 Equipment List .......................................................................................................................................... 8 6 Radio Spectrum Technical Requirement ............................................................................................... 9 6.1 Antenna Requirement ........................................................................................................................ 9 7 Radio Spectrum Matter Test Results .................................................................................................... 10 7.1 Conducted Peak Output Power........................................................................................................ 10 7.2 Minimum 6d…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143203 Page: 1 of 59 Parlam Zhan Laboratory Manager TEST REPORT Application No.: SHCR2307001432AT FCC ID: 2AKW5-RW506 Applicant: Anhui Ronds Science & Technology Incorporated Company Address of Applicant: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Manufacturer: Anhui Ronds Science & Technology Incorporated Company Address of Manufacturer: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Factory: Anhui Ronds Science & Technology Incorporated Company Address of Factory: #59, branch road of biomedical park, high-tech district, Hefei, Anhui, China Equipment Under Test (EUT): EUT Name: Wireless vibration temperature sensor Model No.: RW506,RW506M,RW606,RW606M   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2023-06-27 Date of Test: 2023-06-28 to 2023-07-12 Date of Issue: 2023-07-13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143203 Page: 2 of 59 Revision Record Version Description Date Remark 00 Original 2023-07-13 / Authorized for issue by: Micheal Niu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143203 Page: 3 of 59 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Customer Declaration Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Note: There are series models mentioned in this report, and they are identical in electrical and electronic characters. Only the model RW606M was tested since their differences are as below: 1. Model number 2. The model RW506 and RW506M are uniaxial vibrations, RW506M has added working condition monitoring function compared to RW506. RW606 and RW606M are triaxial vibrations, RW606M has added working condition detection function compared to RW606. The difference between uniaxial vibration and triaxial vibration is welding materials on the PCB board, the details can refer to schematics. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR230700143203 Page: 4 of 59 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 Test Summary ........................................................................................................................................... 3 3 Contents .................................................................................................................................................... 4 4 General Information .................................................................................................................................. 5 4.1 Details of E.U.T. ................................................................................................................................. 5 4.2 Power level setting using in test ......................................................................................................... 5 4.3 Description of Support Units .............................................................................................................. 5 4.4 Measurement Uncertainty .................................................................................................................. 6 4.5 Test Location ...................................................................................................................................... 7 4.6 Test Facility ........................................................................................................................................ 7 4.7 Deviation from Standards ................................................................................................................... 7 4.8 Abnormalities from Standard Conditions ........................................................................................... 7 5 Equipment List .......................................................................................................................................... 8 6 Radio Spectrum Technical Requirement ............................................................................................... 9 6.1 Antenna Requirement ........................................................................................................................ 9 7 Radio Spectrum Matter Test Results .................................................................................................... 10 7.1 Conducted Peak Output Power........................................................................................................ 10 7.2 Mini…

Text truncated - open the document above for the full version.

Antenna YRZ00A0AA Datasheet Antenna Services Version: 1.0 Date: 2022-08-29 Status: Preliminary Antenna Services YRZ00A0AA Datasheet Antenna_Datasheet 1 / 15 At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local offices. For more information, please visit: http://www.quectel.com/support/sales.htm. For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm. Or email us at: [email protected]. Legal Notices We offer information as a service to you. The provided information is based on your requirements and we make every effort to ensure its quality. You agree that you are responsible for using independent analysis and evaluation in designing intended products, and we provide reference designs for illustrative purposes only. Before using any hardware, software or service guided by this document, please read this notice carefully. Even though we employ commercially reasonable efforts to provide the best possible experience, you hereby acknowledge and agree that this document and related services hereunder are provided to you on an “as available” basis. We may revise or restate this document from time to time at our sole disc…
