2AKXB-W1201500SwitchBot Contact Sensor

SwitchBot Contact Sensor User Manual 1.In the Box Note: The visuals used in this manual are for reference only. Due to the future updates and improvements of the product, the actual product images may differ. 2.Device Instruction 3.Preparation A smartphone or tablet with Bluetooth 4.2 or above Download the SwitchBot app Create a SwitchBot account and sign in 4.Installation Remove the release paper behind the main body and the magnet, stick it on the door frame or window frame, and press for more than 60 seconds. Note that the two parts need to be aligned at the bottom Installation Tips: Make sure the sensor is not pointing to appliances or heat source in order to reduce interfer- ence and to avoid false alarms. The sensor senses up to 5m away and up to 90°, horizontally. The sensor senses up to 5m and up to 60°, vertically. 5.Initial Setup 1.Remove the back lid of the sensor. Follow the "+" and "-" marks, insert two AAA batteries into the battery box. Put the back lid back. Contact Sensor x 1 AAA batteries x 2 magnet x 1 Sticker x 1 LED Indicator Light and Light Sensor Button and Fresnel Lens 2. Open the SwitchBot app and sign in. 3. Tap the "+" icon on the top right of the Home page. 4. Choose the Presence Sensor icon to add the device to your account. 6.Battery Replacement, Firmware, and Factory Reset Battery Replacement Remove the back lid of the sensor. Follow the "+" and "-" marks, replace the old batteries with new ones. Put the back lid back. Firmware Make sure you have the up to date firmware by upgrading in time. Factory Reset Long press the Reset Button for 15 seconds or until the LED Indicator Light is on. Note: After the device is reset, all settings will be set to the default values and the activity logs will be erased. 7.Specification Model Number：W1201500 Size：Body size 70.5*25.5*23mm，magnet size 35*12*12.5mm Weight：Body Weight：43g，magnet Weight 13g Power & Battery Life：AAAx2, typically 3 years Measure Range：-10°C~60°C，20~85%RH Maximum Detection Distance: 5m Maximum Detection Angle: 120° horizontally and 60° vertically 8.Return and Refund Policy This product has one-year warranty (start from the purchasing day). The situations below do not fit the Return and Refund Policy. Intended damage or abuse. Inappropriate storage (drop down or soaking in water). User modify or repair. Using loss. Force majeure damage (Natural disasters). 9.Contact and Support Setup and Troubleshooting: support.switch-bot.com Support Email: [email protected] Feedback: If you have any concern or problem when using our products, please kindly send feed- back from the Profile> Feedback page in the SwitchBot app. 10.FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates uses and can radiate radio frequency energy and, if not installed Magnet and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. -Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC RF exposure statement: The equipment complies with FCC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. SwitchBot Contact Sensor User Manual 1.In the Box Note: The visuals used in this manual are for reference only. Due to the future updates and improvements of the product, the actual product images may differ. 2.Device Instruction 3.Preparation A smartphone or tablet with Bluetooth 4.2 or above Download the SwitchBot app Create a SwitchBot account and sign in 4.Installation Remove the release paper behind the main body and the magnet, stick it on the door frame or window frame, and press for more than 60 seconds. Note that the two parts need to be aligned at the bottom Installation Tips: Make sure the sensor is not pointing to appliances or heat source in order to reduce interfer- ence and to avoid false alarms. The sensor senses up to 5m away and up to 90°, horizontally. The sensor senses up to 5m and up to 60°, vertically. 5.Initial Setup 1.Remove the back lid of the sensor. Follow the "+" and "-" marks, insert two AAA batteries into the battery box. Put the back lid back. 2. Open the SwitchBot app and sign in. 3. Tap the "+" icon on the top right of the Home page. 4. Choose the Presence Sensor icon to add the device to your account. 6.Battery Replacement, Firmware, and Factory Reset Battery Replacement Remove the back lid of the sensor. Follow the "+" and "-" marks, replace the old batteries with new ones. Put the back lid back. Firmware Make sure you have the up to date firmware by upgrading in time. Factory Reset Long…

Text truncated - open the document above for the full version.

Woan Technology (Shenzhen) Co., Ltd. Agent Authorization Company: Woan Technology (Shenzhen) Co., Ltd. Address: Room 101-116, Building B4, Yintian Industrial Zone, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Product Name: SwitchBot Contact Sensor Model Number(s): W1201500, W1201501, W1201502, W1201503, W1201504, W1201505 Product Description: SwitchBot Contact Sensor We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Xianmin Lin Date: 2021.05.19 Name: Title: Management Company: Woan Technology (Shenzhen) Co., Ltd.

May 13, 2021 Declaration Of Identity To Whom It May Concern: With regards to the application for Model: W1201500, According to the designer, Woan Technology (Shenzhen) Co., Ltd., we hereby declare the difference between Model: W1201500 and Model: W1201501, W1201502, W1201503, W1201504, W1201505 as; Basic Model Number: W1201500 Basic Brand Name: SwitchBot Basic Product Name: SwitchBot Contact Sensor Basic Certificate Number: ☐New/☒ Additional Model Number(s): W1201501, W1201502, W1201503, W1201504, W1201505 Declare the Circuit, PCB Layout, Electrical Parts, and appearance of the following product(s) are identical to the basic model: Except the following(s): Only differences are model names for trading purpose, the others are the same. Yours Sincerely, Woan Technology (Shenzhen) Co., Ltd. Charge Person Printed Name: Xianmin Lin Charge Person Title: Management

Woan Technology (Shenzhen) Co., Ltd. Date: May 14, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Woan Technology (Shenzhen) Co., Ltd. , the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the Woan Technology (Shenzhen) Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AKXB‐W1 201500 including the signing of documents in connec tion with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Woan Technology (Shenzhen) Co., Ltd. . The Woan Technology (Shenzhen) Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti‐ Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Print name: Yang Pan Title: Manager Woan Technology (Shenzhen) Co., Ltd.

Woan Technology (Shenzhen) Co., Ltd. Date: May 14, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Woan Technology (Shenzhen) Co., Ltd. FCC ID: 2AKXB‐W1201500 FC C Ce rtification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Woan Technology (Shenzhen) Co., Ltd. requests that the following documents regarding this submission for FCC ID : 2AKXB‐W1 201500 be kept Long‐Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf And below exhibit kept short‐term confidential (180 days): Exhibit Type File Name External Photos External Photo.pdf Internal Photos Internal Photo.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which Woan Technology (Shenzhen) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Woan Technology (Shenzhen) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Print name: Yang Pan Title: Manager Woan Tec hnology (Shenzhen) Co., Ltd.

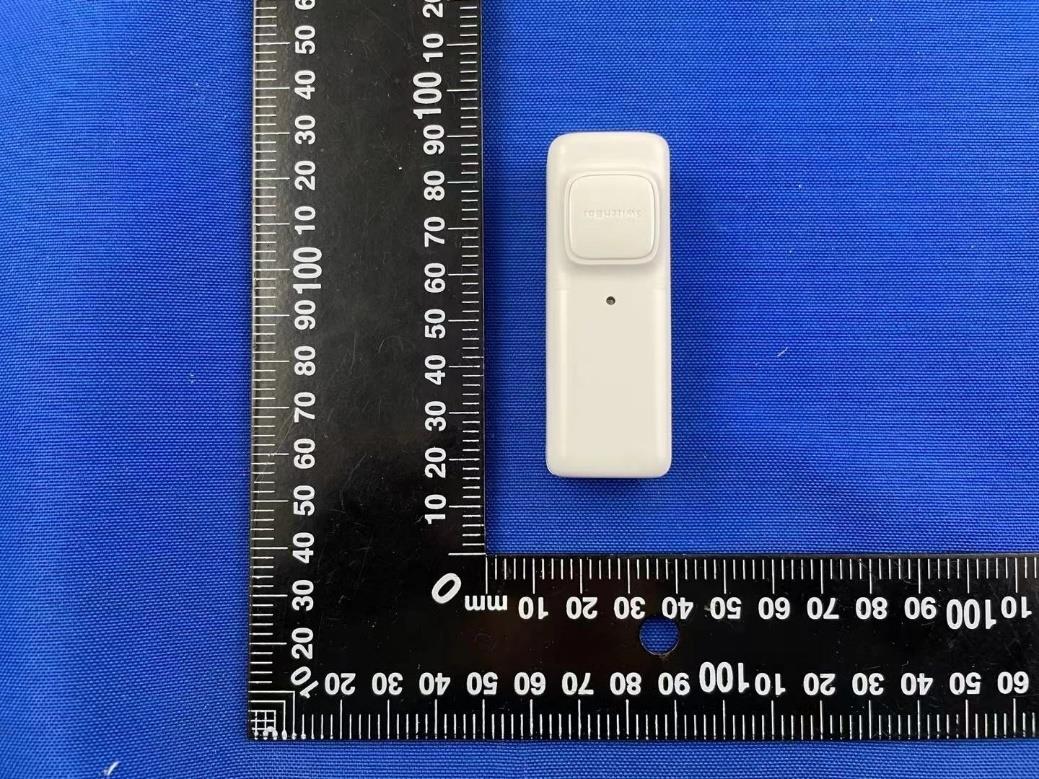

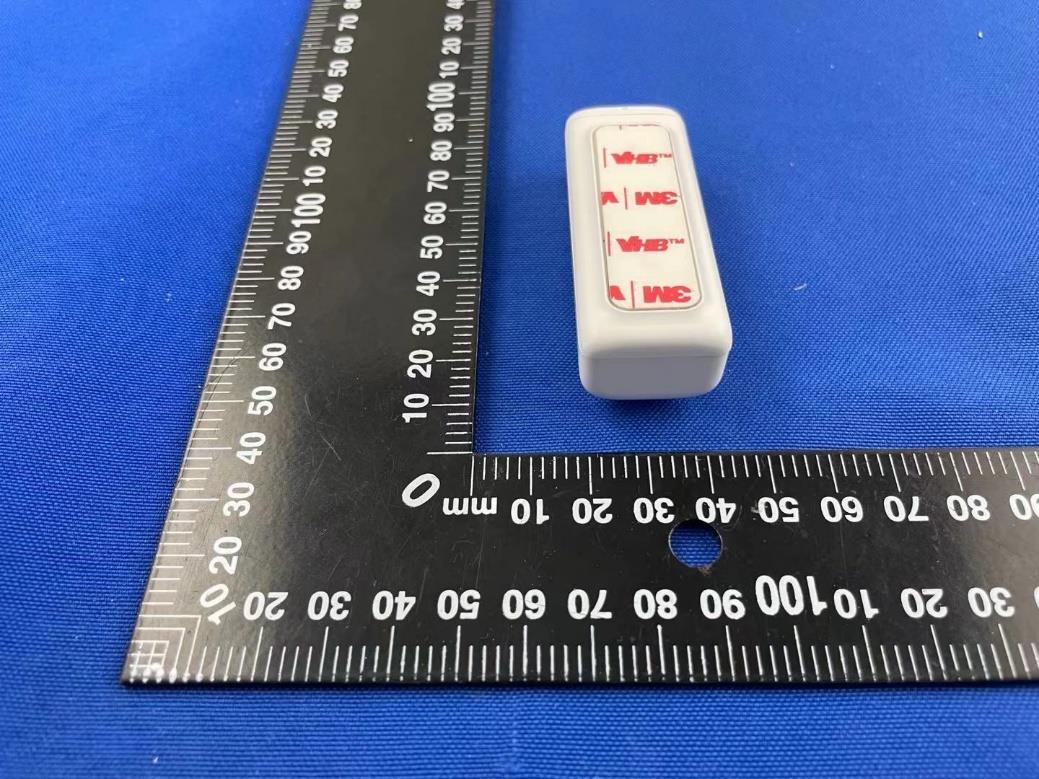

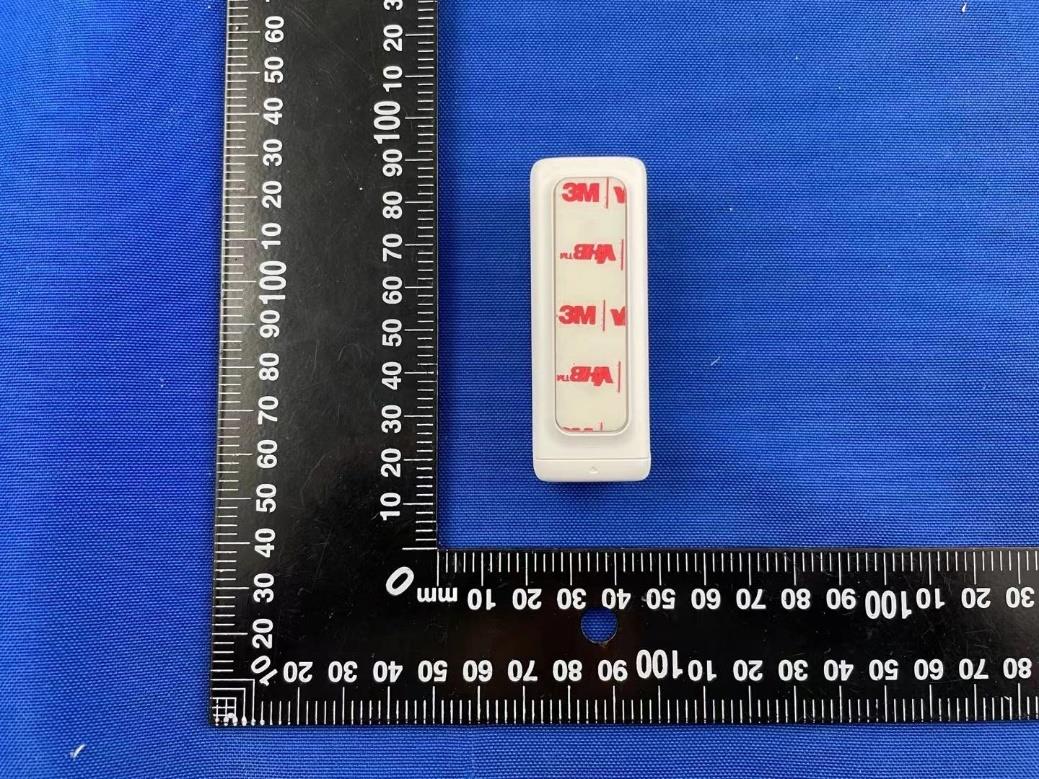

Annex No.: BL-SZ2140932-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT BACK VIEW OF EUT Annex No.: BL-SZ2140932-AW 2 / 4 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ2140932-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ2140932-AW 4 / 4 Accessory

Annex No.: BL-SZ2140932-AI 1 / 2 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW Annex No.: BL-SZ2140932-AI 2 / 2 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW b Ceramic Antenna RF Chip

RF Exposure Evaluation for FCC ID: 2AKXB-W1201500 Refer user manual this device is a SwitchBot Contact Sensor, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test data BLUETOOTH Mode GFSK (BLE) Low Channel Middle Channel High Channel Peak Power (dBm) -4.43 -5.36 -5.44 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Range (dBm) Bluetooth (-5.50) – (-4.50) Test result Evolution mode Maximum peak output power （dBm） Antenna Gain (typical) (dBi): Total Power (mw) Distance (cm) Limit of Power Density (mW/cm²) Power Density (mW/cm²) Verdict Bluetooth -4.50 2.5 0.63 20 1 0.0001 Pass Note: 1. The SwitchBot Contact Sensor work frequency range used is 2400 MHz ~ 2483.5 MHz, the result close to the limit by the above formula. 2. More power list please refer to RF test report. Conclusion: RF exposure Evaluation Results: Compliance

Report No.: BL-SZ2140932-601 2 / 49 Revision History Version Issue Date Revisions Content Rev. 01 May 18, 2021 Initial Issue Rev. 02 May 27, 2021 Updated the FCC ID TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory ....................................................................................... 5 1.2 Identification of the Responsible Testing Location 5 1.3 Laboratory Condition ................................................................................................................... 5 1.4 Announce .................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant Information ................................................................................................................... 6 2.2 Manufacturer Information ............................................................................................................ 6 2.3 Factory Information ..................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ................................................................ 6 2.5 Technical Information .................................................................................................................. 7 2.6 Additional Instructions ................................................................................................................. 8 3 SUMMARY OF TEST RESULTS .............................................................................................................. 9 3.1 Test Standards ............................................................................................................................ 9 3.2 Verdict ......................................................................................................................................... 9 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 10 4.1 Test Environments .................................................................................................................... 10 4.2 Test Equipment List ................................................................................................................... 10 4.3 Measurement Uncertainty ......................................................................................................... 10 4.4 Description of Test Setup .......................................................................................................... 11 4.4.1 For Antenna Port Test ............................................................................................................... 11 4.4.2 For AC Power Supply Port Test ................................................................................................ 11 4.4.3 For Radiated Test (Below 30 MHz) ........................................................................................... 12 4.4.4 For Radiated Test (30 MHz-1 GHz) .......................................................................................... 12 4.4.5 For Radiated Test (Above 1 GHz) ............................................................................................. 13 4.5 Measurement Results Explanation Example ............................................................................. 14 4.5.1 For conducted test items: .......................................................................................................... 14 Report No.: BL-SZ2140932-601 3 / 49 4.5.2 For radiated band edges and spurious emission test: ............................................................... 14 5 TEST ITEMS ........................................................................................................................................... 15 5.1 Antenna Requirements .............................................................................................................. 15 5.1.1 Relevant Standards ................................................................................................................... 15 5.1.2 Antenna Anti-Replacement Construction .................................................................................. 15 5.1.3 Antenna Gain ............................................................................................................................ 15 5.2 Output Power ............................................................................................................................ 16 5.2.1 Test Limit ................................................................................................................................... 16 5.2.2 Test Setup ................................................................................................................................. 16 5.2.3 Test Procedure .......................................................................................................................... 16 5.2.4 Test Result ................................................................................................................................ 17 5.3 Occupied Bandwidth ................................................................................................................. 18 5.3.1 Limit ........................................................................................................................................... 18 5.3.2 Test Setup ................................................................................................................................. 18 5.3.3 Test Procedure ..................................................................…

Text truncated - open the document above for the full version.

Annex No.: BL-SZ2140932-AR 1 / 3 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz 30MHz-1GHz Annex No.: BL-SZ2140932-AR 2 / 3 Close-up Above 1GHz Annex No.: BL-SZ2140932-AR 3 / 3 Close-up 2 Conducted Test Photo Conducted Test-BT3.0
