2AKXB-W2802000SwitchBot Outdoor Spotlight Cam

文件名称: Outdoor Cam-SMS-EN-2207 版本号: V1.2-2207 设计师：WQY 成品尺寸：65*100mm 完成时间：2022/07/14 更改内容：1.增加IC警语 2.修改CE和KCC警语认证信息 3.修改版本号 材质和工艺： 封面157g铜版纸 内页128g铜版纸，骑马钉 www.switch-bot.com V1.2-2207 User Manual Outdoor Spotlight Cam Please read this user manual carefully before using your device. Contents 1. Package Contents 2. List of Components 3. Specifications 4. Preparation 5. Precautions 6. Getting Started 7. Installation 8. Safety Information 9. LED Indicator Light 10. Features 11. Powering On/Off And Resetting Factory Settings 12. Firmware Upgrades 13. Troubleshooting 14. Disclaimer 15. Warranty 16. Contact & Support 01 02 04 05 06 07 08 15 17 19 21 22 23 25 26 27 Screw Pack × 2 Adhesive Wall Mount × 1 Alignment Sticker × 1 User Manual × 1Outdoor Spotlight Cam × 1 Base × 1 Type-C Cable (1 m [3.3 ft.]) × 1 Camera Lens Infrared Light Spotlight Light Sensor Microphone PIR Motion Sensor Speaker Tapped Hole Package ContentsList of Components LED Indicator Light Reset Button Rubber Plug Type-C Charging Port Battery Charging Indicator Light ON/OFF Switch microSD Card Slot 0102 Screw Package Contents Base M3 × 20 mm (#5 × 25/32'') Screw × 4 M3 × 6 mm (#5 × 1/4'') Screw × 4 Drywall Anchor × 4 The base of your Outdoor Spotlight Cam is detachable. You can also flexibly adjust the angle of your camera to monitor the area you want. Model: W2802000 Color: White Material: ABS with UV-resistant coating Size: 86 × 86 × 83 mm (3.4 × 3.4 × 3.3 in.) Weight: 320 g (11.3 oz.) Power: 5 V 2 A Operating Temperature: −20 ºC to 50 ºC (−4 ºF to 122 ºF) Video Resolution: 1080P HD Field of View: 110° horizontal Storage: Supports FAT32 formatted microSD card up to 256GB (Not included) Night Vision: 7.5 m (24.6 ft.) Operating Humidity: ≤ 95 % RH Network Connectivity: 802.11 b/g/n, 2.4 GHz; Bluetooth Low Energy 4.2 Battery Capacity: 10000 mAh PIR Detection Distance: 7.5 m (24.6 ft.) PIR Detection Angle: 110° Weather Resistance: IP55 Specifications 0304 You will need: • A smartphone or tablet using Bluetooth 4.2 or later. • The latest version of our app, downloadable via the Apple App Store or Google Play Store. • A SwitchBot account, you can register via our app or sign in to your account directly if you already have one. 1. Avoid placing the camera under direct sunlight. 2. Make sure high traffic areas are out of the camera's view. 3. Do not place the camera near any heat sources. PreparationPrecautions 0506 iOS 11.0+Android OS 5.0+ Open the SwitchBot app and sign in to your account. Tap "+" at the top right of the home page, find the Outdoor Spotlight Cam icon and select, then follow the instructions to add your camera. 1. Add your camera to the SwitchBot app Please fully charge your camera battery before mounting it. Remove the rubber plug at the back of your camera, find the Type-C charging port and connect it to a power supply with the USB cable included. Note: • Use an adapter with 5 V 2 A output or higher. • The battery charging indicator light will be solid red when your camera is charging and turn solid green when your camera is fully charged. 2. Fully charge your camera Getting Started • To ensure your camera works normally after installation, it is recommended that you test the Wi-Fi connection of the area you'd like to install it. Place your camera in the area and then check the video quality and fluency via the app. • The perfect height and angle to install your camera are shown in the picture below: Height: 2.5 m (8.2 ft.) above the ground Angle: 15° downwards vertically • You can keep your camera plugged in by connecting it to a power supply or a Solar Panel using the USB cable. Please select an appropriate installation location based on the cable length. • When you connect your camera to a Solar Panel, make sure to place the Solar Panel in an area that can receive direct sunlight. What you need to know before installation: Installation 0708 2.5 m (8.2 ft.) 15° ①When mounting on more rugged surfaces like concrete or brick: Drill holes with the 6 mm (15/64'') sized drill bit according to the alignment sticker, hammer the drywall anchors into the wall, then screw the base using four M3 × 20 mm (#5 × 25/32'') screws firmly to the wall. b. Choose drill bit size and mount the base a. Confirm installation position What you'll need for installation: an electric drill, a screwdriver and a rubber hammer. For outdoor usage, we recommend that you install your camera using screws to prevent it from falling accidentally. Concrete or other hard surfaces can be challenging for drilling. If you are not experienced with drilling into a particular type of wall, you may want to consider consulting a professional. Stick the alignment sticker on the spot where you plan to install your camera. Method 1: Install Using Screws Prepare a proper-sized drill bit before drilling. 0910 ②When mounting on surfaces like wood or plaster: Drill holes with the 2.5 mm (7/64'') sized drill bit according to the alignment sticker, then screw the base using four M3 × 20 mm (#5 × 25/32'') screws to the wall. Make sure the base is firmly mounted. c. Attach your camera to the base Attach your camera to the base. You can adjust the camera angle to get the view you want based on the live video shown on the app. 1112 What you'll need for installation: a cleaning cloth, a screwdriver Adhesive wall mount can only stick firmly to smooth surfaces like glass, ceramic tile, smooth door surface and wallpaper. Please clean the surface first before installation. Method 2: Install Using Adhesive Wall Mount Method 3: Mount your camera on a stand You can also mount your Outdoor Spotlight Cam on a camera stand (not included). Align the tapped hole at the bottom of your camera with the screw on the stand, then rotate your camera to tighten it onto the stand. Make sure your camera is firmly mounted, then adjust the stand to get the view you want based on the live view shown on the app. c. Attach your camera to the base Attach your camera to the base. You can adjust the camer…

Text truncated - open the document above for the full version.

Woan Technology (Shenzhen) Co., Ltd. Agent Authorization Company:Woan Technology (Shenzhen) Co., Ltd. Address: Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Product Name: SwitchBot Outdoor Spotlight Cam Model Number(s): W2802000, W2802001, W2802002, W2802003, W2802004, W2802005 Product Description: SwitchBot Outdoor Spotlight Cam W e authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. W e declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 8/11/2022 Name: Yang Pan Title: manager Company: Woan Technology (Shenzhen) Co., Ltd.

Woan Technology (Shenzhen) Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 8/11/2022 Subject; Request for Confidentiality FCC ID: 2AKXB-W2802000 To W hom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Yang pan Title: manager Email:[email protected]

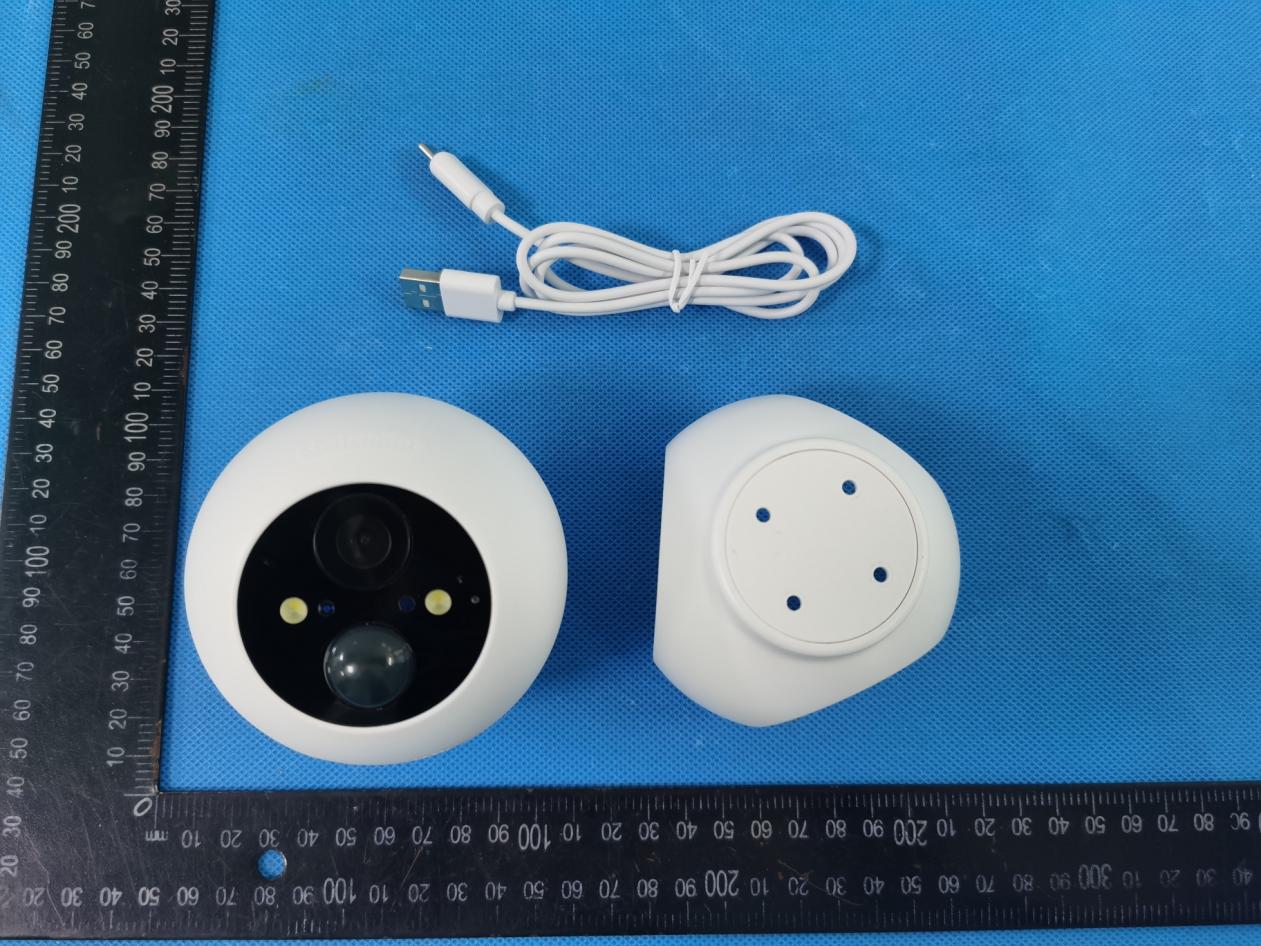

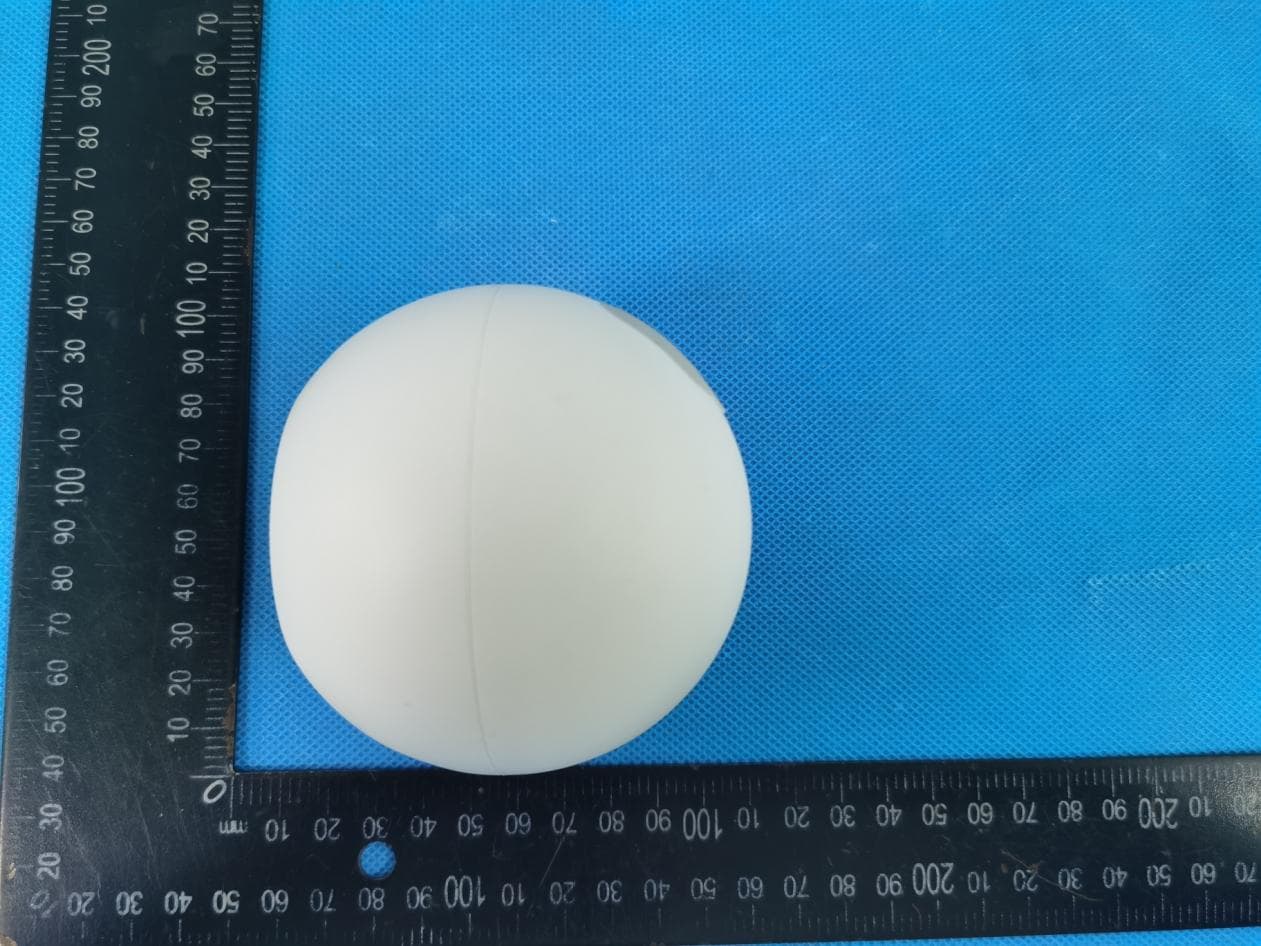

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 WIFI ANT Photo 15 Photo 16 Photo 17 Photo 18 BT ANT Photo 19 Photo 20 Photo 21

FCC ID: 2AKXB-W2802000 Maximum Permissible Exposure (MPE) According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Operation Frequency: 802.11b/g/n HT20: 2412-2462MHz Power density limited: 1mW/ cm 2 Antenna Type: FPC Antenna Antenna gain: 2.7dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(2.7/10)=1.86 2.4g WIFI conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric Ant 124121616±117 50.1192.701.860.018571 Ant 1243716.5416±117 50.1192.701.860.018571 Ant 1246215.3516±117 50.1192.701.860.018571 Ant 1241216.5916±11750.1192.701.860.018571 Ant 1243716.9716±117 50.1192.701.860.018571 Ant 1245615.1716±117 50.1192.701.860.018571 Ant 1241215.5616±11750.1192.701.860.018571 Ant 1243716.1816±117 50.1192.701.860.018571 Ant 1246215.1816±117 50.1192.701.860.018571 802.11n H20 Channel Freq. (MHz) modulation 802.11g (mW/cm2) Antenna Gain 802.11b Max Antenna tune-up pow er Tune-up pow er (dBm) (dBm)(mW/cm2 ) Operation Frequency: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: FIPA Antenna Antenna gain: 0.36 dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(0.36/10)=1.09 BLE conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 2402 2.422 2±13 1.9950.361.090.000431 2440 2.882 2±13 1.9950.361.090.000431 2480 1.423 2±13 1.9950.361.090.000431 2402 2.429 2±13 1.9950.361.090.000431 2440 2.872 2±13 1.9950.361.090.000431 2480 1.392 2±13 1.9950.361.090.000431 Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) BLE(2M) (mW/cm2 )(mW/cm2) Antenna Gain BLE(1M) Max tune-up pow er Note: This product does not support simultaneous transmission. The conclusion should be 0.01857＜1 for Max Power Density, Compliance the RF Exposure requirement. Signature: Date: 2022-08-12 NAME AND TITLE (Please print or type): alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22041203710001 Version.1.3 Page 1 of 61 RADIO TEST REPORT FCC ID: 2AKXB-W2802000 Product: SwitchBot Outdoor Spotlight Cam Trade Mark: SwitchBot Model No.: W2802000 Family Model: W2802001, W2802002, W2802003, W2802004, W2802005 Report No.: S22041203710001 Issue Date: Aug 01, 2022 Prepared for Woan Technology (Shenzhen) Co., Ltd. Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22041203710001 Version.1.3 Page 2 of 61 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 8.1 1M .................................................................................................................................................................. 34 8.2 2M .................................................................................................................................................................. 48 Report No.: S22041203710001 Version.1.3 Page 3 of 61 1 TEST RESULT CERTIFICATION Applicant’s name ....................... : Woan Technology (Shenzhen) Co., Ltd. Address ....................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Manufacturer's Name ................ : Woan Technology (Shenzhen) Co., Ltd. Address ....................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Factory's Name ............................... : Woan Technology (Shenzhen) Co., Ltd. Address ............................................ : Building A2, Zhengfeng Industrial Area, No.610 Fengtang Boulevard, Fuhai Sub-district, Bao'an District, Shenzhen, China Product description Product name .............................. : SwitchBot Outdoor Spotlight Cam Trademark SwitchBot Model and/or type reference ...... : W2802000 Family Model ............................... : W2802001, W2802002, W2802003, W2802004, W2802005 Test Sample Number ................... : S220412037011 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described…

Text truncated - open the document above for the full version.

Report No.: S22041203710002 Version.1.3 Page 1 of 69 FCC RADIO TEST REPORT FCC ID: 2AKXB-W2802000 Product: SwitchBot Outdoor Spotlight Cam Trade Mark: SwitchBot Model No.: W2802000 Family Model: W2802001, W2802002, W2802003, W2802004, W2802005 Report No.: S22041203710002 Issue Date: Aug 01, 2022 Prepared for Woan Technology (Shenzhen) Co., Ltd. Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website:http://www.ntek.org.cn Report No.: S22041203710002 Version.1.3 Page 2 of 69 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 29 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 31 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 33 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 35 7.9 ANTENNA APPLICATION .......................................................................................................................... 36 8 TEST RESULTS ................................................................................................................................................... 37 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 37 8.2 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 38 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 48 8.4 BAND EDGE .................................................................................................................................................... 53 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 60 Report No.: S22041203710002 Version.1.3 Page 3 of 69 1 TEST RESULT CERTIFICATION Applicant’s name .................... : Woan Technology (Shenzhen) Co., Ltd. Address .................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Manufacturer's Name ............. : Woan Technology (Shenzhen) Co., Ltd. Address .................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 Factory's Name ............................... : Woan Technology (Shenzhen) Co., Ltd. Address ........................................ : Building A2, Zhengfeng Industrial Area, No.610 Fengtang Boulevard, Fuhai Sub-district, Bao'an District, Shenzhen, China Product description Product name .............................. : SwitchBot Outdoor Spotlight Cam Model and/or type reference ...... : SwitchBot Trade Mark ............................…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photo
