2AKXB-W4001100SwitchBot Pan/Tilt Cam 3K

Package Contents 1. When letting your camera scan the QR code on your phone to access the Internet, please make sure that your phone screen is brighter than the surrounding environment. 2. Make sure the anti-rub function of your Wi-Fi is turned off. Turning on this function may lead to a connection failure. 3. Please make sure your camera is connected to a 802.11 b/g/n, 2.4 GHz, IPV4 wireless network. Precautions User Manual Pan/Tilt Cam 3K Specifications Product Name: SwitchBot Pan/Tilt Cam 3K Model: W4001100 Power Input: 5 V 2 A Video Resolution: 2592 × 1944 Image Compression: H.264 Field of View: 127° diagonal Storage: Supports up to 256 GB microSD card, FAT32 format Operating Temperature: −15 °C to 45 °C (5 ºF to 113 ºF ) Operating Humidity: ≤95 % RH Network Connectivity: 802.11b/g/n, 2.4 GHz Add your camera • Open our app, create a SwitchBot account or sign in directly if you already have one. • Put your camera closer to the router and ensure that your camera is powered on. • Tap "+" at the top right of the Home page, find the Pan/Tilt Cam 3K icon and select, then follow the instructions to add your camera. 3 If you are installing your camera on a ceiling, go to Pan/Tilt Cam 3K > Settings > Basic Settings in the app and turn on the Flip Screen function. Then install the base at the place of the sticker. www.switch-bot.com V1.0-2308 Features 1. Pan-Tilt Control Pan-Tilt Control consists of vertical and horizontal control. The vertical visual angle is 115° and horizontal visual angle is 360°. You may control its direction and view images from different angles remotely via the app. Instructions Connect your camera to a power supply Connect your camera to power supply using the cable. The light indicator on your camera will flash red when power is connected. 1 Add Device to the SwitchBot App Download the SwitchBot app on App Store or Google Play Store. Download and install the SwitchBot app 2 Pan/Tilt Cam 3K × 1Base × 1 Screw Pack × 1 User Manual × 1 Reset Pin × 1 Sticker × 1 Micro USB Cable (2 m [6.6 ft.]) × 1 USB Adaptor × 1 Attach your camera firmly on the base. >1m List of Components Front Back Speaker Reset Hole Type-C Port microSD Card Slot Installation Hole Camera Lens Microphone LED Indicator Light Please read this user manual carefully before using your device. 4. Night Vision When Night Vision is turned on, Pan/Tilt Cam 3K will turn on infrared light and change the video to black and white. You can set this mode as Auto, so when the camera senses the surrounding is dark, Night Vision will auto turn on for you to see the dark scene more clearly. 3. Motion Tracking When Motion Tracking is turned on, Pan/Tilt Cam 3K will follow the objects as they move, and rotate horizontally or vertically to keep them in the middle of the screen. It will also take a photo and record a video of the event (requires a memory card and Recording to be turned on). 2. Motion Detection When Motion Detection is turned on, Pan/Tilt Cam 3K will take a photo and record a video (requires a memory card and Recording to be turned on) of any moving object detected and send you notifications (requires Allow Notifications to be turned on). How to Install >1m Put on a table 1 Install on a ceiling or wall Attach the sticker to a ceiling/wall surface you want to install on. 2 iOS 11.0+Android OS 5.0+ • This camera is for indoor use only. • Keep the device away from water, fire, humid or hot environments. • Unplug this device if there is lightening storms or when unused for a long period. • Do not attempt to disassemble, repair, or modify the device. • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers apart from those recommended. • Do not use in places where wireless devices are not allowed. • Adapter shall be installed near the equipment and shall be easily accessible. LED Indicator Light Warranty We warrant to the original owner of the product that the product will be free from defects in materials and workmanship. Please note that this limited warranty does not cover: Contact & Support Setup and Troubleshooting: support.switch-bot.com Support Email: [email protected] Feedback: If you have any concerns or problems when using our products, please send feedback via our app through the Profile > Feedback page. LED Indicator Light Description Stays lit upDevice starting Flashes rapidly (0.25 s/ flash) Ready to configure Wi-Fi Flashes slowly (1.5 s/ flash) Connecting to Wi-Fi router Flashes rapidly (0.25 s/ flash) Connected to Wi-Fi router and now connecting to the Internet Stays lit upDevice is online Flashes rapidly alternately (0.25 s/ flash) Connected to Wi-Fi router but failed to connect to the Internet Flashes slowly alternately (1.5 s/ flash) Error in network connection Red Green Green Green Red + Green Red Red + Green • Products submitted beyond the original limited warranty period. To comply with RF exposure requirements, a minimum separation distance of 20 cm must be maintained between the user’s body and the device, including the antenna. Use only the supplied or an approved antenna. This device is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. All essential radio test suites have been carried out. CE DOC Hereby, Woan Technology (Shenzhen) Co., Ltd. declares that the radio equipment type W4001100 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: support.switch-bot.com This product can be used in EU member states and UK. Manufacturer: Woan Technology (Shenzhen) Co., Ltd. Address: Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Subdistrict, Bao'an District, Shenzhen, Guangdong, P.R.China, 518100 CE Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device …

Text truncated - open the document above for the full version.

- Woan Technology (Shenzhen) Co., Ltd. - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/23/2023 U.S. Agent Designation [Woan Technology (Shenzhen) Co., Ltd.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: [2AKXB-W4001100]): [Stone Trading Limited] acknowledges their obligation to accept service of process on behalf of [Woan Technology (Shenzhen) Co., Ltd.] Nameand company of U.S. agent:Stone TradingLimited Physical U.S. address of agent:6547 N Academy Blvd #2266,Colorado Springs,CO 80918,United States FRN of U.S. agent: 0033401936 Email address of U.S. agent:[email protected] . [Woan Technology (Shenzhen) Co., Ltd.] with the FRN [0026172536] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature [Name] Yang Pan [Title] Manager [Company] Woan Technology (Shenzhen) Co., Ltd. [Name of U.S. agent] Dongmei Fang [Title of U.S. agent] Manager [Company of U.S. agent] Stone Trading Limited 48_[mo del] US_Agent_2.911(d)(7) - U, V04

Woan Technology (Shenzhen) Co., Ltd. The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/23/2023 To whom it may concern: We, [Woan Technology (Shenzhen) Co., Ltd.], hereby certify that the equipment for which authorization is sought (FCC ID: [2AKXB-W4001100]) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the fili ng of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist ) as an entity producing “covered” equipment. By signing this fo rm, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature [Name] Yang Pan [Title] Manager [Company] Woan Technology (Shenzhen) Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

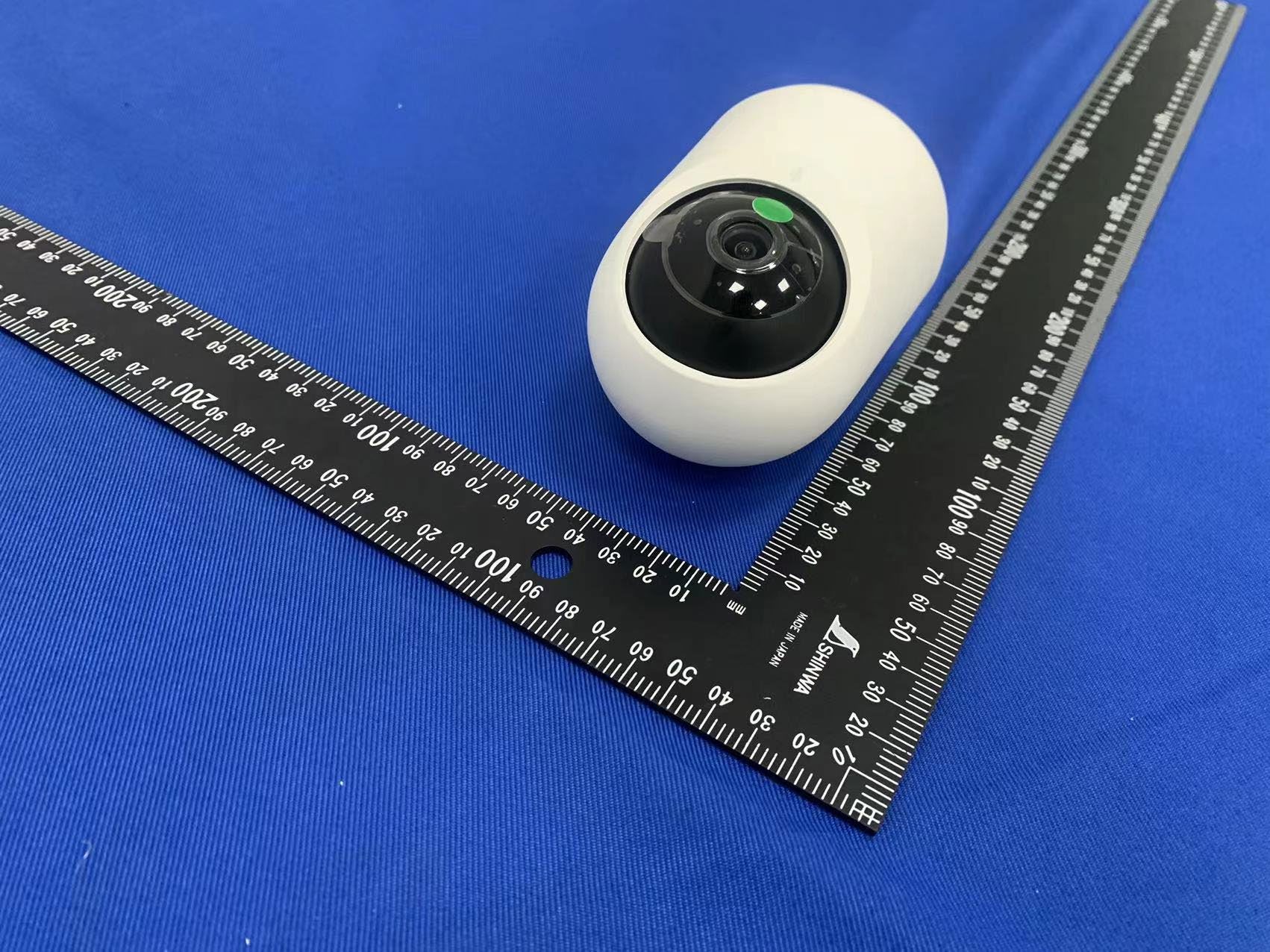

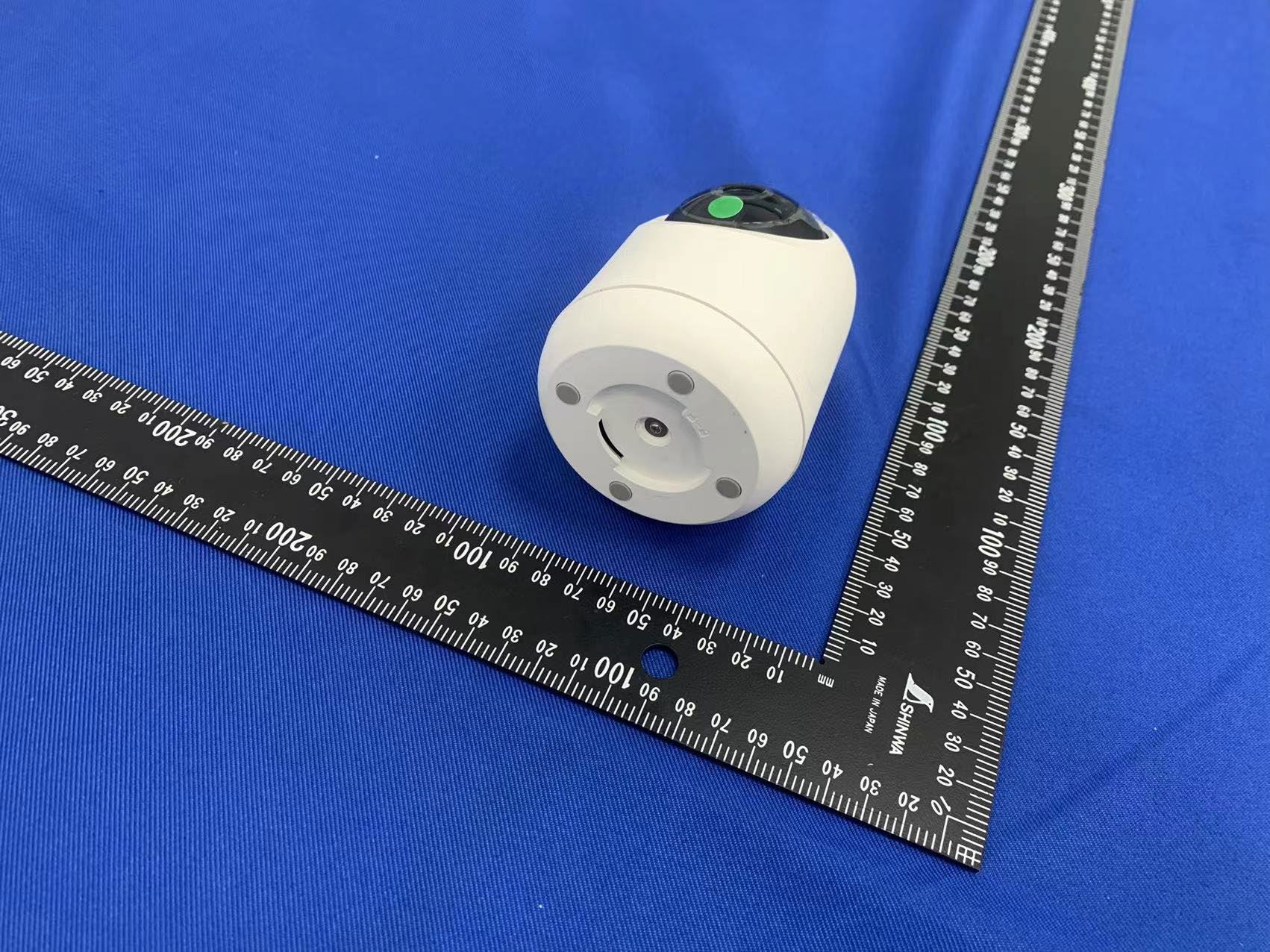

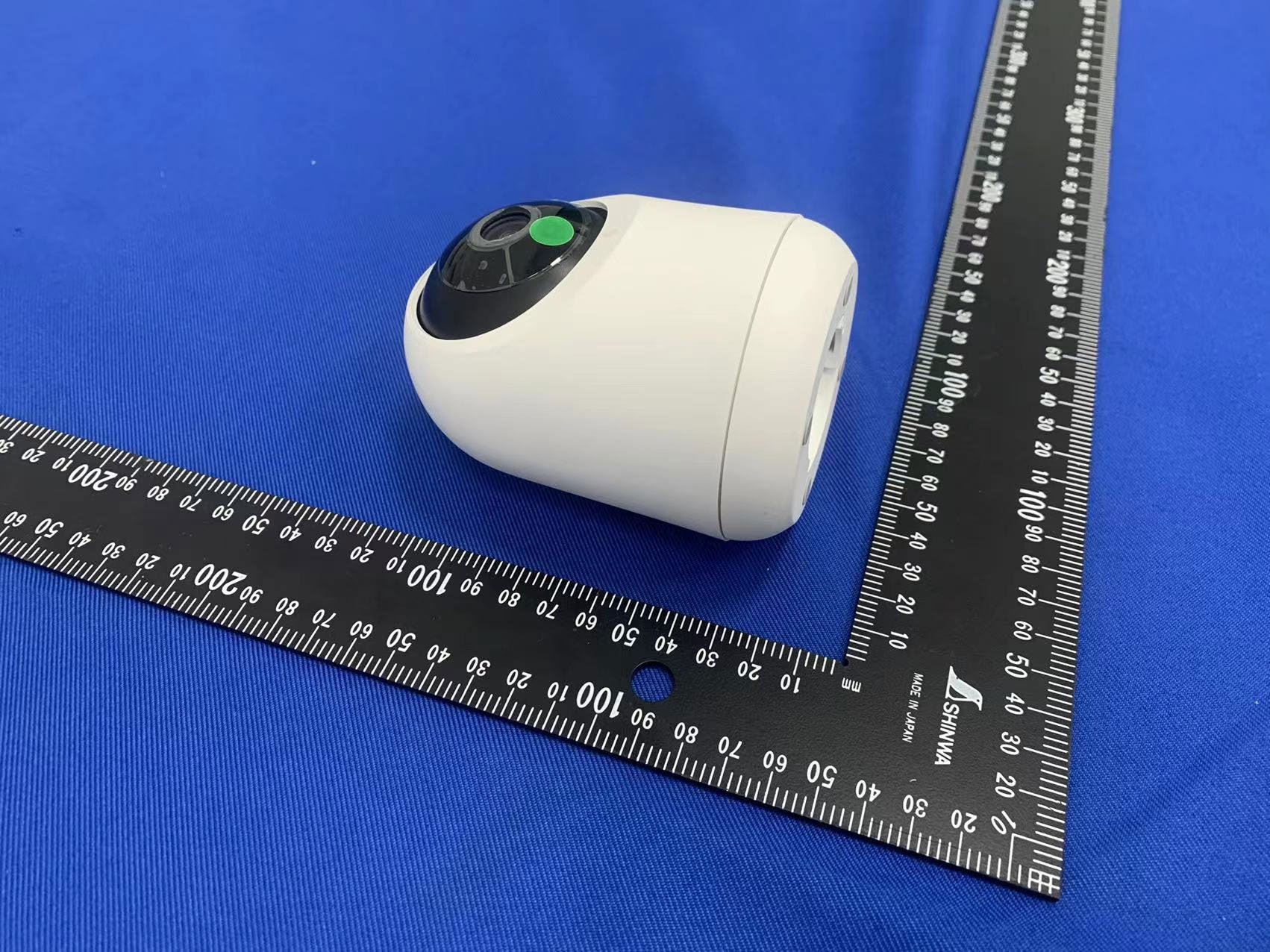

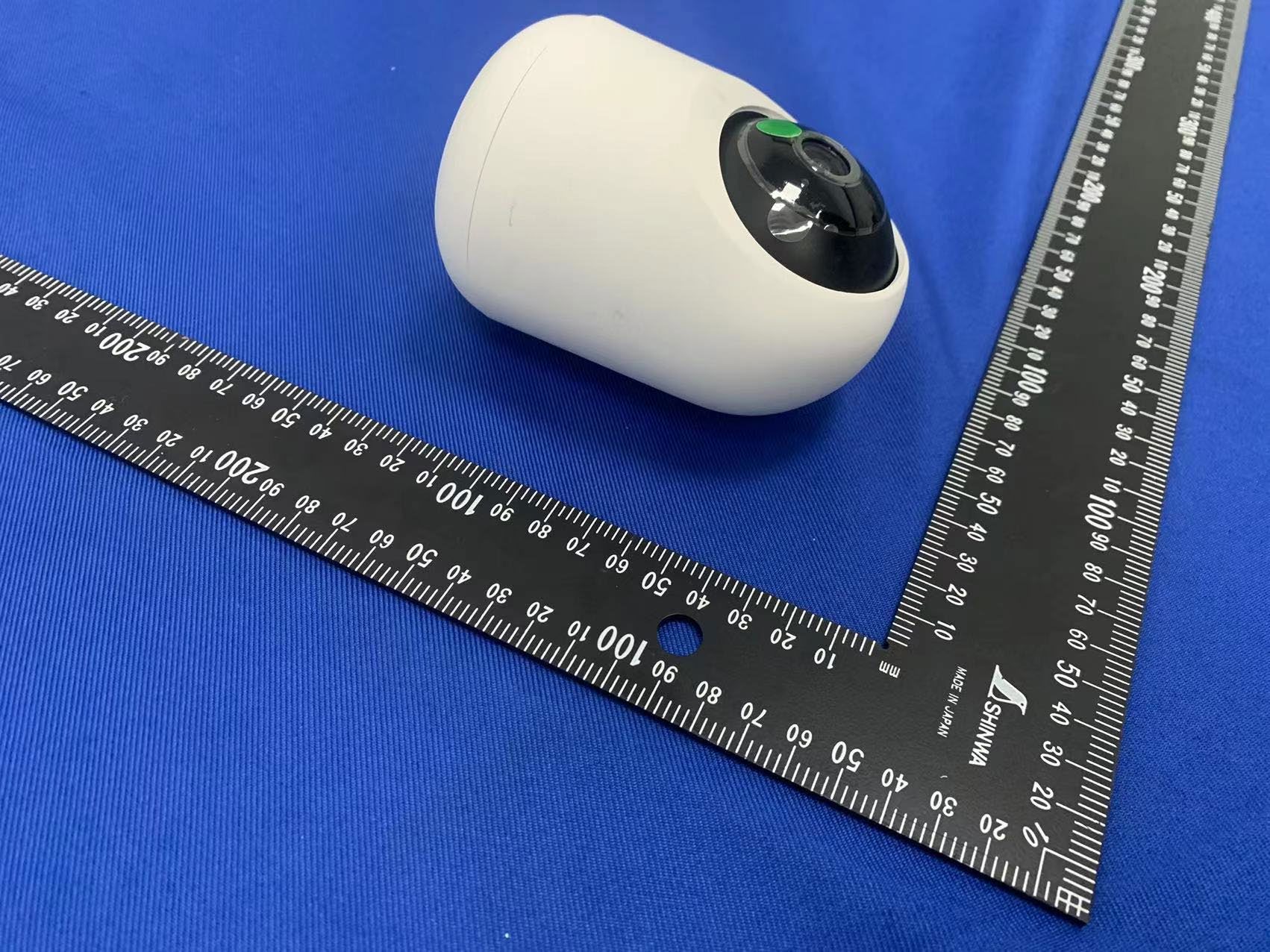

EXTERNAL PHOTOGRAPH (Model No.: W4001100) ---------------- End ----------------

Label Location On EUT Label Product Name: SwitchBot Pan/Tilt Cam 3K Model No.: W4001100 FCC ID: 2AKXB-W4001100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

INTERNAL PHOTOGRAPH (Model No.: W4001100) Monopole Antenna ---------------- End ----------------

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2AKXB-W4001100 EUT Specification EUT SwitchBot Pan/Tilt Cam 3K Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz BLE Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 24.31dBm (0.2698W) Antenna gain (Max) 2.34 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm 2 ) (MHz) (dBm) (dBm) (dBm) (dBi) (mW/ cm 2 ) 802.11b 2412 20.38 20.38±1 21.38 2.34 0.0469 1 2437 20.84 20.84±1 21.84 2.34 0.0521 1 2462 20.69 20.69±1 21.69 2.34 0.0503 1 802.11g 2412 23.82 23.82±1 24.82 2.34 0.1034 1 2437 24.28 24.28±1 25.28 2.34 0.1150 1 2462 23.96 23.96±1 24.96 2.34 0.1068 1 802.11n (HT20) 2412 23.53 23.53±1 24.53 2.34 0.0968 1 2437 24.31 24.31±1 25.31 2.34 0.1158 1 2462 23.80 23.80±1 24.80 2.34 0.1030 1 Pass

Project No.: ZKT-230817L6446E Page 1 of 64 FCC TEST REPORT FCC ID: 2AKXB-W4001100 Report Number. .............................. : ZKT-230817L6446E Date of Test ........................................ Aug. 15, 2023 to Aug. 18, 2023 Date of issue .................................... : Aug. 23, 2023 Total number of pages ...................... 64 Test Result ....................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Woan Technology (Shenzhen) Co., Ltd. Address .......................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Manufacturer's name ................... : Woan Technology (Shenzhen) Co., Ltd. Address .......................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ............................ : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-110_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : SwitchBot Pan/Tilt Cam 3K Trademark ...................................... : SwitchBot Model/Type reference ...................... : W4001100 Ratings ............................................. : Input: DC 5V, 2A Project No.: ZKT-230817L6446E Page 2 of 64 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim.Liu Tested by (name + signature) .................... : Jackson.Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-230817L6446E Page 3 of 64 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3.5EQUIPMENTS LIST FOR ALL TEST ITEMS 10 4. EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 TEST PROCEDURE 12 4.1.3 DEVIATION FROM TEST STANDARD 12 4.1.4 TEST SETUP 13 4.1.5 EUT OPERATING CONDITIONS 13 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 TEST RESULTS 18 5.RADIATED BAND EMISSIONMEASUREMENT 24 5.1 TEST REQUIREMENT: 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM TEST STANDARD 25 5.4 TEST SETUP 25 5.5 EUT OPERATING CONDITIONS 25 5.6 TEST RESULT 25 6.POWER SPECTRAL DENSITY TEST 29 6.1 APPLIED PROCEDURES / LIMIT 29 6.2 TEST PROCEDURE 29 6.3 DEVIATION FROM STANDARD 29 6.4 TEST SETUP 29 6.5 EUT OPERATION CONDITIONS 29 Project No.: ZKT-230817L6446E Page 4 of 64 6.6 TEST RESULT 30 7. CHANNEL BANDWIDTH & 99% OCCUPY BANDWIDTH 35 7.1 APPLIED PROCEDURES / LIMIT 35 7.2 TEST PROCEDURE 35 7.3 DEVIATION FROM STANDARD 35 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 7.6 TEST RESULT 36 8.PEAK OUTPUT POWER TEST 46 8.1 APPLIED PROCEDURES/LIMIT 46 8.2 TEST PROCEDURE 46 8.3 DEVIATION FROM STANDARD 46 8.4 TEST SETUP 46 8.5 EUT OPERATION CONDITIONS 46 8.6 TEST RESULT 47 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION 48 9.1 APPLICABLE STANDARD 48 9.2 TEST PROCEDURE 48 9.3 DEVIATION FROM STANDARD 48 9.4 TEST SETUP 48 9.5 EUT OPERATION CONDITIONS 48 9.6 TEST RESULTS 48 10. ANTENNA REQUIREMENT 63 11. TEST SETUP PHOTO 64 12. EUT CONSTRUCTIONAL DETAILS 64 Project No.: ZKT-230817L6446E Page 5 of 64 1. VERSION Report No. Version Description Approved ZKT-230817L6446E Rev.01 Initial issue of report Aug. 23, 2023 Project No.: ZKT-230817L6446E Page 6 of 64 2. SUMMARY OF TEST RESULTS Te s t procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Result Remark FCC part 15.203/15.247 (c) Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.247 (b)(3) Conducted Peak Output Power PASS FCC part 15.247 (a)(2) Channel Bandwidth & 99% OCB PASS FCC part 15.247 (e) Power Spectral Density PASS FCC part 15.247(d) Band Edge PASS FCC part 15.205/15.209 Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Project No.: ZKT-230817L6446E Page 7 of 64 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add.: 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 CAB identifier: CN0110 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expende…

Text truncated - open the document above for the full version.

version01 Woan Technology (Shenzhen) Co., Ltd. Declaration concerning Antenna Specification It i s hereby declared that the product Model No.: W4001100, W4001101, W4001102, W4001103, W4001104, W4001105 FCC ID: 2AKXB-W4001100 fulfill s the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Monopole antenna type(s) described below: Model No. of antenna: PTC_KVS Type of antenna: Monopole antenna Gain of the antenna: 2.34 dBi Frequency range: 2400-2500 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Woan Technology (Shenzhen) Co., Ltd. Address: Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, City: Shenzhen, Guangdong ZIP / Postal code: Country: China Place: Place: Date: 2023-08-23 Signature:

深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber1-10 规格书 for PEC_KVS天线 卧安科技（深圳）有限公司 客户料号 本公司料号 WA-PTC_KVSmetal 编制：曾小凤审核：李明 日期：2023.03.27 深圳市铄点电子科技有限公司 深圳市南山区马家龙金龙工业城64栋西508 邮箱：[email protected] 电话:0755-86006322 传真:0755-86006323 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number2-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber2-10 目录 规格书....................................................................................................................................1 深圳市铄点电子科技有限公司................................................................................................1 目录............................................................................................................................................2 1.双方确认.................................................................................................................................3 2.一般事项.................................................................................................................................4 3.产品一般规格.........................................................................................................................4 4.产品规格明细.........................................................................................................................5 4.1产品结构参数......................................................................................................................5 4.2产品电性能测试数据.........................................................................................................7 5.产品包装方式.....................................................................................................................10 6.文档履历.............................................................................................................................10 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number3-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber3-10 1.双方确认 1.1客户确认签字 客户：卧安科技（深圳）有限公司 客户部门/职位确认人签字确认日期 硬件/射频 结构 项目经理 商务/采购 审核 1.2 铄点科技确认签字 部门/职位确认人签字确认日期 天线工程师 结构工程师 项目经理 QA 审核 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number4-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber4-10 2.一般事项 2.1适用范围 本规格书只适用于卧安科技PTC_KVS天线 2.2使用温度范围 本产品使用温度范围-20~+65°C 2.3 保存温度范围 本产品保存于-30~+75°C 3.产品一般规格 NO.ITEMSDETAILS 1机型 PTC_KVS 2频段2400-2500MHz 3VSWR≤2.0 4阻抗50Ω 5天线类型Monopole 6天线实现形式Metal 7天线图片 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number5-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber5-10 4.产品规格明细 4.1产品结构参数 4.11 产品物料组成： 序号材料规格(MM) 1洋白铜21.17*6.8*0.3厚度 4.12 外观 产品外观良好，无伤痕、汗迹、突起等严重影响外观缺陷。 4.13 结构尺寸 参考产品图纸： ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number6-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber6-10 产品图纸： ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number7-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber7-10 4.2 产品电性能测试数据 4.21测试环境及仪器设备 测试环境： 温度：10°C——+30°C 相对湿度：≤80%（+40°C） 大气压力：750mmkg±30mmkg 测试设备： 网络分析仪 AgilentE8358A ETS微波暗室 4.22产品电性能测试数据： 产品的S11图： Marker2400MHz2450MHz2500MHz Returnloss-11.92-12.29-11.31 VSWR1.671.651.76 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number8-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber8-10 匹配电路数值图： 2.7nH 0Ω ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number9-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber9-10 4.23增益、效率及辐射方向图 频率（MHz）Gain（dBi）Efficiency（%） 2400.02.2951.0 2410.01.8647.8 2420.01.9647.5 2430.02.0149.4 2440.02.1350.2 2450.02.2450.8 2460.02.2750.9 2470.02.3452.3 2480.02.6053.9 2490.02.8454.5 2500.03.1255.4 辐射方向图频率2450MHz XOZXOYYOZ ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2014-6-30Page number10-8 深圳市铄点电子科技有限公司 ShenzhenShuodianElectronicTechnologyCo.,Ltd Date:2023-03-27Pagenumber10-10 5.产品包装方式 包装方式： 自封袋包装，每包200PCS。 6.文档履历 文件编号 DocumentNo. 日期 ReleaseDate 2023/03/27 编制 Author Hungjie 复核 Review WH 文件历次表 RevisedHistory DateVersionRevisedRecord 2023/03/271.00NewProject

EUT TEST PHOTO
