2AKXB-W8302100SwitchBot Candle Warmer Lamp

Woan Technology (Shenzhen) Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 17, 2025
Application Purpose: Original Equipment
Equipment Note: SwitchBot Candle Warmer Lamp
Frequency Range: 2402.00000000 - 2480.00000000
Company: Woan Technology (Shenzhen) Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Please read this user manual carefully before using your device. Candle Warmer Lamp Scannen Sie den QR-Code, um die deutsche Version unseres Benutzerhandbuchs zu erhalten. Scannez le code QR pour obtenir notre manuel d'utilisation en version française. Escanee el código QR para obtener la versión en español de nuestro manual de usuario. Scan de QR code voor de Nederlandse versie van onze gebruikershandleiding. Scansionate il codice QR per ottenere la versione italiana del nostro manuale d'uso. Zeskanuj kod QR, aby pobrDÉLQVWUXNFMÛ REVăXJLZMÛzyku polskim. https:ZZZ.sZLWFK-bot.com/pages/ sZLWFKbot-user-manual User Manual Package Contents Candle Warmer Lamp × 1 Halogen Bulb (GU10) × 2 Controller × 1 List of Components Controller pairing mode. Preparation YRXZLOOQHHG • A smartphone or tablet using Bluetooth 4.2 or later. • The latest version of our app, doZnloadable via the Apple App Store or Google Play Store. • A6ZitchBot account, you can register via our app or sign in to your account directly if you already have one. iOS and Android system requirements: KWWSVVXSSRUWVZLWFKERWFRPKFHQXV articles/12567397397271 How to Use 1 Install a halogen bulb, then plug in the poZHUFRrd. 2. Place the scented candle directly beneath the Lamp's bulb. Cleaning & Maintaining 1. Regular cleaning and inspection are recommended to maintain optimal performance. 2. AOZays disconnect poZer and ensure the Lamp is completely cool before cleaning. 3. Do not use abrasives (e.g., sandpaper) or solvents for cleaning. 4. Never rinse the Lamp base directl\ZLth Zater. Brightness Control Timer Button Button*

External Photos

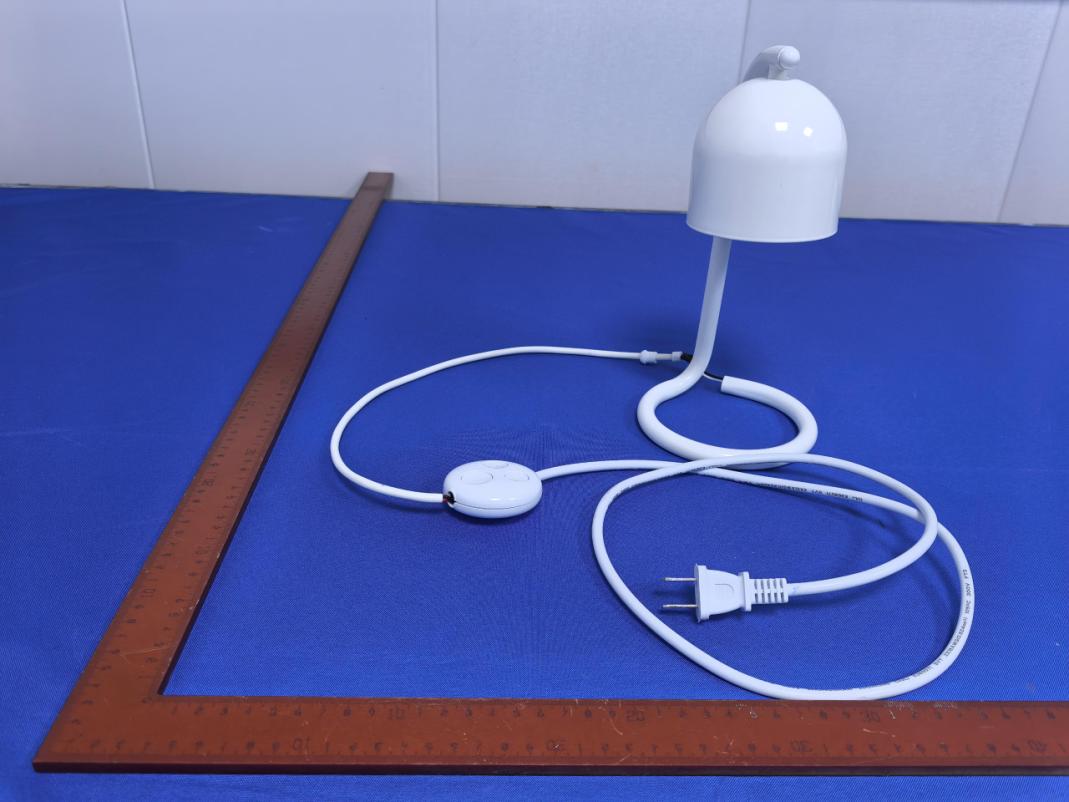

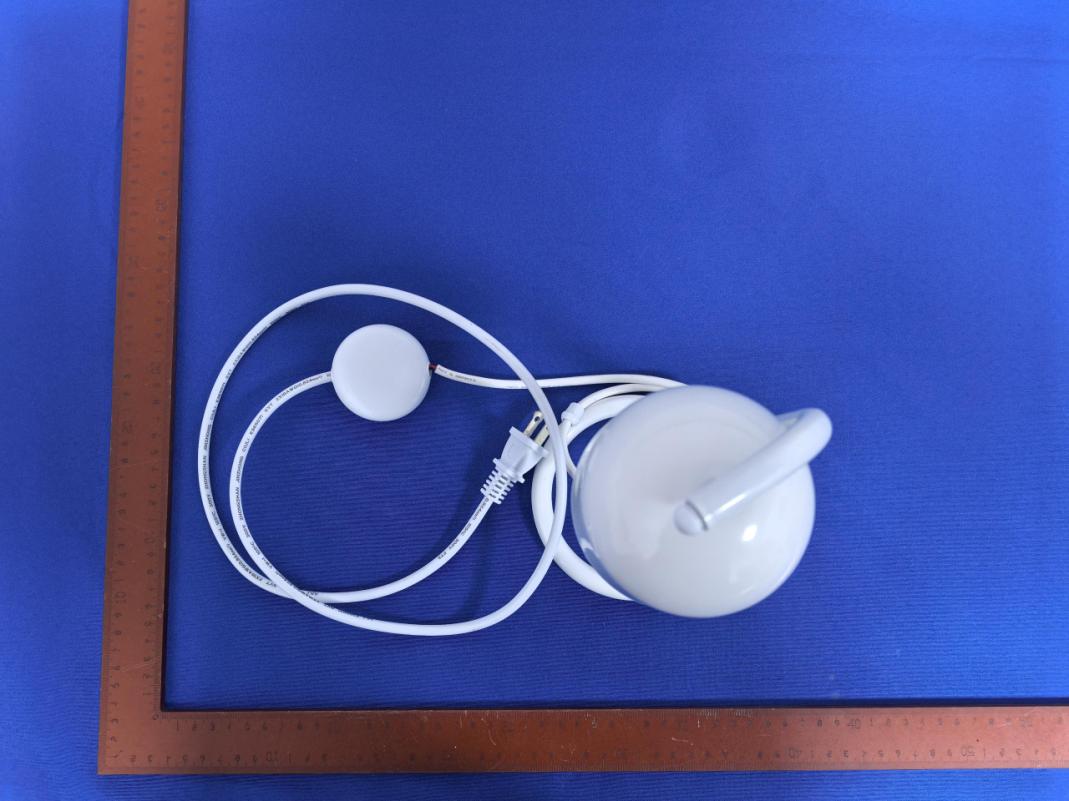

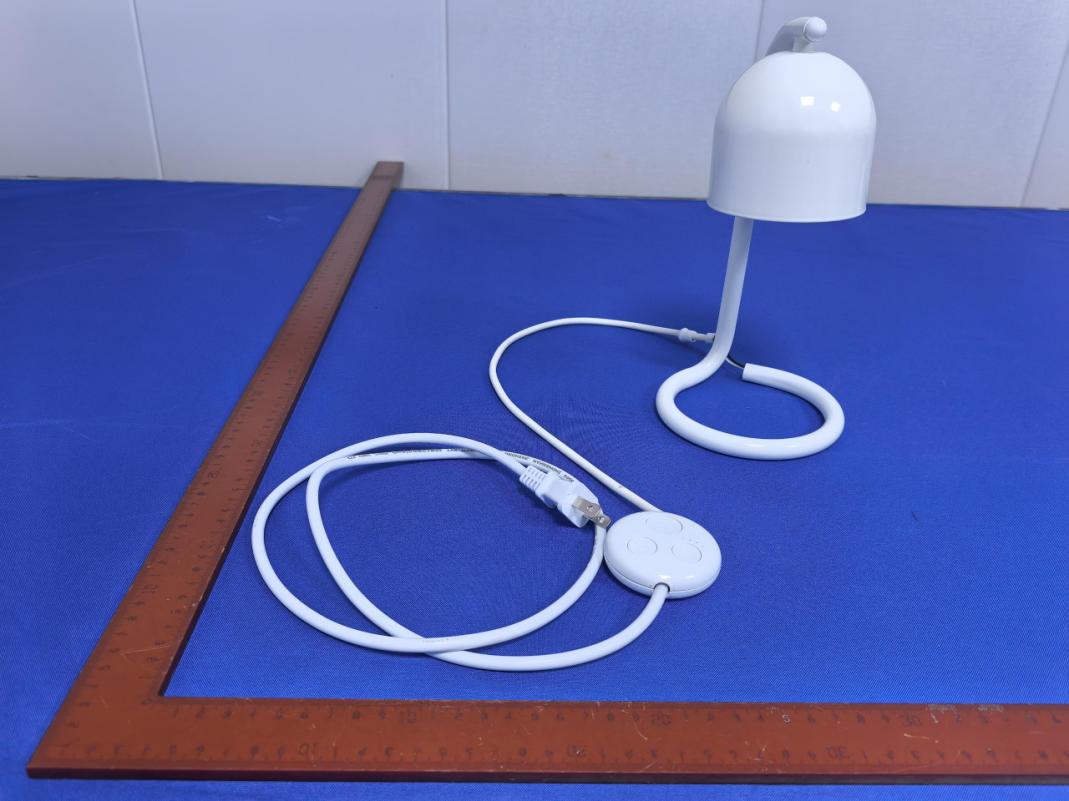

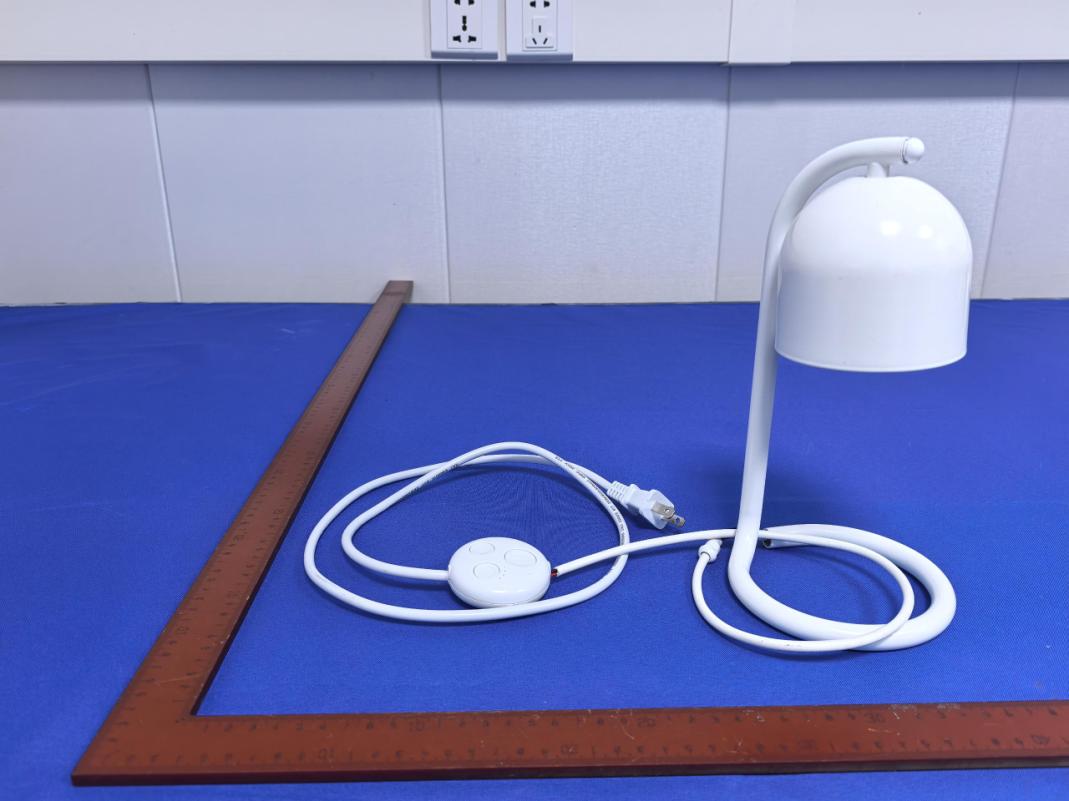

Page 1 of 3 FCC ID: 2AKXB-W8302100 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 3 FCC ID: 2AKXB-W8302100 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 3 FCC ID: 2AKXB-W8302100 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6

ID Label/Location Info

Candle LampUS-�� .�*��.�mm Candle LampUS-�� /��/�� 更新参数信息 SwitchBot Lamp Controller SwitchBot ライトコントローラー型番: W�� 入力：� ��.�A 定格出力：��W Made in China ��-JP�� SwitchBot Candle Warmer Lamp GU�� W Halogen Bulb max. Input: ��-��V AC ��/��Hz FCC ID: �AKXB-W�� Model: W�� XXXX 生产年周例�� 19.5 mm 16.8 mm 19.3 mm

Internal Photos

Page 1 of 2 FCC ID: 2AKXB-W8302100 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2AKXB-W8302100 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 BT/WIFI Antenna

RF Exposure Info

Page 1 of 11 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation For Woan Technology (Shenzhen) Co., Ltd. SwitchBot Candle Warmer Lamp Test Model: W8302100 Additional Model No.: Please Refer to Page 6 Prepared for : Woan Technology (Shenzhen) Co., Ltd. Address : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 22, 2025 Number of tested samples : 2 Sample number : B250721027-1, B250721027-2 Serial number : Prototype Date of Test : July 22, 2025 ~ August 28, 2025 Date of Report : August 29, 2025 Page 2 of 11 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation Report Reference No. ................. : LCSC07215002EC Date of Issue ................................... : August 29, 2025 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ........................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Woan Technology (Shenzhen) Co., Ltd. Address ........................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Test Specification Standard .......................................... : FCC CFR 47 part1 1.1310 FCC CFR 47 part2 2.1091 Test Report Form No. ................... : TRF-4-E-214 A/0 TRF Originator ................................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : SwitchBot Candle Warmer Lamp Trade Mark ...................................... : SwitchBot Test Model ...................................... : W8302100 Ratings ............................................ : Please Refer to Page 6 Result ........................................... : PASS Compiled by: Supervised by: Approved by: Lifeng Le/ Administrator Justin Zhu/ Technique principal Gavin Liang/ Manager Page 3 of 11 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC -- TEST REPORT Test Result PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC07215002EC August 29, 2025 Date of issue Test Model.............................. : W8302100 EUT......................................... : SwitchBot Candle Warmer Lamp Applicant............................... : Woan Technology (Shenzhen) Co., Ltd. Address................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Woan Technology (Shenzhen) Co., Ltd. Address................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Telephone............................... : / Fax.......................................... : / Factory................................... : Wo’an Technology (Shenzhen) Co., Ltd. Huizhou Branch Address................................... : Building 2, 2nd Floor, Baidi Zhigu Science and Technology Innovation Park, No.263 Chang'an Avenue, Shatian Town, Huiyang District, Huizhou City, Guangdong, China Telephone............................... : / Fax.......................................... : / Page 4 of 11 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Revision History Report Version Issue Date Revision Content Revised By 000 August 29, 2025 Initial Issue -- Page 5 of 11 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: webmaster@lcs-cert…

Text truncated - open the document above for the full version.

Test Report

AntennaTest Antennasize: S11: Project Name/ModelWARLD Frequency 2400-2500MHz VSWR ≤2.0 Impedance 50Ω AntennaType PCB Marker2400MHz2450MHz2500MHz Returnloss-19.66-15.25-11.45 VSWR1.211.411.72 FOSHAN ELECTRICAL & LIGHTING CO., LTD No. 64, Fenjiang North Road, Foshan City, Guangdong Province A25NL001 Manufacturer: GainEfficiencyDirectiondiagram 2450MHz: Eff:54.4%BackView Frequency(MHz)Gain(dBi)Efficiency(%) 24001.6953.84 24101.9253.47 24201.6353.43 24301.5552.87 24401.454.31 24501.3954.4 24601.1753.45 24701.0553.8 24800.852.66 24900.9749.89 25000.8351.6

Test Report

Page 1 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT LE (Conducted Measurement) Product Name: SwitchBot Candle Warmer Lamp Test Model: W8302100 Environmental Conditions Temperature: 23.8C Relative Humidity: 52.5% ATM Pressure: 100.0 kPa Test Engineer: Jone.Lee Supervised by: Yan Chen Page 2 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.671 >=0.5 Pass NVNT BLE 1M 2440 Ant1 0.64 >=0.5 Pass NVNT BLE 1M 2480 Ant1 0.657 >=0.5 Pass Page 3 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 Page 4 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 Page 5 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 -0.92 30 Pass NVNT BLE 1M 2440 Ant1 1.69 30 Pass NVNT BLE 1M 2480 Ant1 0.68 30 Pass Page 6 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 Page 7 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Power NVNT BLE 1M 2480MHz Ant1 Page 8 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -17.19 8 Pass NVNT BLE 1M 2440 Ant1 -14.72 8 Pass NVNT BLE 1M 2480 Ant1 -15.69 8 Pass Page 9 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 Page 10 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT BLE 1M 2480MHz Ant1 Page 11 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.4 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -55.13 -20 Pass NVNT BLE 1M 2480 Ant1 -56.26 -20 Pass Page 12 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission Page 13 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission Page 14 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.5 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -54.17 -20 Pass NVNT BLE 1M 2440 Ant1 -56.59 -20 Pass NVNT BLE 1M 2480 Ant1 -55.67 -20 Pass Page 15 of 23 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | …

Text truncated - open the document above for the full version.

Test Report

Page 1 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix B RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: SwitchBot Candle Warmer Lamp Test Model: W8302100 Environmental Conditions Temperature: 23.8C Relative Humidity: 52.5% ATM Pressure: 100.0 kPa Test Engineer: Jone.Lee Supervised by: Yan Chen Page 2 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com B.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 8.06 >=0.5 Pass NVNT b 2437 Ant1 8.105 >=0.5 Pass NVNT b 2462 Ant1 8.54 >=0.5 Pass NVNT g 2412 Ant1 16.093 >=0.5 Pass NVNT g 2437 Ant1 16.306 >=0.5 Pass NVNT g 2462 Ant1 16.304 >=0.5 Pass NVNT n20 2412 Ant1 16.871 >=0.5 Pass NVNT n20 2437 Ant1 17.136 >=0.5 Pass NVNT n20 2462 Ant1 17.157 >=0.5 Pass NVNT n40 2422 Ant1 35.665 >=0.5 Pass NVNT n40 2437 Ant1 35.46 >=0.5 Pass NVNT n40 2452 Ant1 35.5 >=0.5 Pass Page 3 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Page 4 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Page 5 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Page 6 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 7 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Page 8 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 9 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com B.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 14.12 30 Pass NVNT b 2437 Ant1 13.26 30 Pass NVNT b 2462 Ant1 13.65 30 Pass NVNT g 2412 Ant1 13.58 30 Pass NVNT g 2437 Ant1 12.56 30 Pass NVNT g 2462 Ant1 13.09 30 Pass NVNT n20 2412 Ant1 14.06 30 Pass NVNT n20 2437 Ant1 13.03 30 Pass NVNT n20 2462 Ant1 13.43 30 Pass NVNT n40 2422 Ant1 14.56 30 Pass NVNT n40 2437 Ant1 13.47 30 Pass NVNT n40 2452 Ant1 14.3 30 Pass Page 10 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com B.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -12.78 8 Pass NVNT b 2437 Ant1 -13.6 8 Pass NVNT b 2462 Ant1 -10.58 8 Pass NVNT g 2412 Ant1 -16.98 8 Pass NVNT g 2437 Ant1 -16.93 8 Pass NVNT g 2462 Ant1 -17.24 8 Pass NVNT n20 2412 Ant1 -15.63 8 Pass NVNT n20 2437 Ant1 -17.74 8 Pass NVNT n20 2462 Ant1 -17.19 8 Pass NVNT n40 2422 Ant1 -18.6 8 Pass NVNT n40 2437 Ant1 -20.41 8 Pass NVNT n40 2452 Ant1 -19.39 8 Pass Page 11 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 Page 12 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 Page 13 of 55 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVN…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 34 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC TEST REPORT For Woan Technology (Shenzhen) Co., Ltd. SwitchBot Candle Warmer Lamp Test Model: W8302100 Additional Model No.: Please Refer to Page 6 Prepared for : Woan Technology (Shenzhen) Co., Ltd. Address : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 22, 2025 Number of tested samples : 2 Sample No. : B250721027-1, B250721027-2 Serial number : Prototype Date of Test : July 22, 2025 ~ August 28, 2025 Date of Report : August 29, 2025 Page 2 of 34 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSC07215002EA Date of Issue ................................... : August 29, 2025 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ........................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Woan Technology (Shenzhen) Co., Ltd. Address ........................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : TRF-4-E-145 A/0 TRF Originator ................................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : SwitchBot Candle Warmer Lamp Trade Mark ...................................... : SwitchBot Test Model ...................................... : W8302100 Ratings ............................................ : Please Refer to Page 6 Result ............................................ : PASS Compiled by: Supervised by: Approved by: Lifeng Le/ Administrator Justin Zhu/ Technique principal Gavin Liang/ Manager Page 3 of 34 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC -- TEST REPORT Test Result PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC07215002EA August 29, 2025 Date of issue Test Model.............................. : W8302100 EUT......................................... : SwitchBot Candle Warmer Lamp Applicant............................... : Woan Technology (Shenzhen) Co., Ltd. Address................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Woan Technology (Shenzhen) Co., Ltd. Address................................... : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Telephone............................... : / Fax.......................................... : / Factory................................... : Wo’an Technology (Shenzhen) Co., Ltd. Huizhou Branch Address................................... : Building 2, 2nd Floor, Baidi Zhigu Science and Technology Innovation Park, No.263 Chang'an Avenue, Shatian Town, Huiyang District, Huizhou City, Guangdong, China Telephone............................... : / Fax.......................................... : / Page 4 of 34 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Revision History Report Version Issue Date Revision Content Revised By 000 August 29, 2025 Initial Issue --- Page 5 of 34 FCC ID: 2AKXB-W8302100 Report No.:LCSC07215002EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web:…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 37 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC TEST REPORT For Woan Technology (Shenzhen) Co., Ltd. SwitchBot Candle Warmer Lamp Test Model: W8302100 Additional Model No.: Please Refer to Page 6 Prepared for : Woan Technology (Shenzhen) Co., Ltd. Address : Room 1101, Qiancheng Commercial Center, No. 5 Haicheng Road, Mabu Community, Xixiang Sub-district, Bao’an District, Shenzhen, Guangdong, P.R.China, 518100 Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 22, 2025 Number of tested samples : 2 Sample number : B250721027-1, B250721027-2 Serial number : Prototype Date of Test : July 22, 2025 ~ August 28, 2025 Date of Report : August 29, 2025 Page 2 of 37 FCC ID: 2AKXB-W8302100 Report No.: LCSC07215002EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSC07215002EB Date of Issue ................................... : August 29, 2025 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ........................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Woan Technology (Shenzhen) Co., Ltd. Address .............................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Yang Pan

[email protected]Fax: 0755-23024003

Test Firm

Guangzhou LCS Compliance Testing Laboratory LtdAndy Yang

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.50 mW
2	15C	2.41 GHz - 2.46 GHz	28.60 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
