Table of Contents 1. Product Information Page 2 2. Product Description Page 2 3. Scope Page 2 4. Materials Page 2 5. Clip Electronics Characteristics Page 2 6. Battery Specification & Features Page 3 7. WiFi Specification Page 3 8. Clip Operation & Features Page 3 9. LED Functions Page 4 10. System Drawings Page 5 1. Product Information Product Name Clip Product Model Modj0005 Trade Mark Modjoul 2. Product Description 1.1 This product can collect and store human motion and posture, positioning information and environmental data. 1.2 Clip electronics include: 6-Axis Motion Tracking IMU, 3D magnetometer, barometric pressure / humidity and temperature sensors, WiFi 5G/2.4G module, Flash memory, high stability and low power consumption RTC chip that can work for up to 3 months when the battery is out of power. 1.3 Clip can connect to AWS IoT to upload data. 1.4 RGB LED displays different work states. 1.5 Clip supports OTA firmware. 3. Scope This document contains general requirements for the electrical and mechanical elements. 4. Materials 3.1 Clip housing: 65% ABS+35% PC (black) 5. Clip Electronics Characteristics Working Voltage Max 5V±5% Working Current Avg. 25mA WIFI Channel Frequency 2.4G & 5.0G Power off Current 60μA Charging Current 780mA Battery Charging Time <3 hours Battery Life (continuous working time) >80hours Humidity Accuracy 3% Pressure Accuracy ±1.5pa/k ESD Protect 5kv WiFi Communication Distance >15m 6. Battery Specifications & Features 7. WiFi Specification 7.1 Work Frequency: 2412 - 2462MHz & 5180 - 5825MHz 7.2 Transmit Power: 16.31 dBm transmit output power 7.3 Supported Data Rates: 6, 9, 12, 18, 24, 36, 48, 54Mbps 7.4 Working Temperature: -20°C ~ 60°C 7.5 Storage Temperature: -40°C ~ 85°C 7.6 Receive Current: 20mA (with ideal DC-DC converter) 7.7 Transmit Current: 230mA peak current in TX (13dBm) 8. Clip Operation & Features 8.1 POWER OFF State 8.1.1 The Clip default state is POWER OFF. Under this state, all the peripherals and functions for the system micro power consumption are closed. 8.1.2 Under NORMAL State, press and hold the Hotspot Button for 12s to power it off. 8.2 NORMAL State 8.2.1 From POWER OFF State, press and hold the SOS Button for 3s to enter into NORMAL State. 8.2.2 Once powered on, the Clip automatically collects motion posture and environmental data, and stores them in Flash. 8.2.3 Wi-Fi hotspot device (MiFi) with WPA-2 personal network broadcast. The credentials must be defined as follows: SSID: modjoul1 PW: BW489A600365 The broadcast SSID should NOT be a hidden network. 8.2.4 When the Clip is plugged into the Charger, the Clip will automatically connect to AWS loT core and update data. 8.3 CHARGING State 8.3.1 The Clip will enter into CHARGING State when it is connected to a Micro-USB Cable or plugged into Docking Station that is connected to a Power Supply. 8.3.2 In CHARGING State, the Clip can upload data via WiFi. Mechanical Form Factor 53 x 34 x 8.8mm Battery Type Lithium polymer battery Battery Capacity 3.7V DC, 2000mAh Protection Over current and short Working Environment -20°C ~ 60°C Mechanical Form Factor Φ4.8 x 2.5mm Battery Type Lithium battery Battery Capacity 3V, 2.3mAh 8.4 ERASE DATA State 8.4.1 In NORMAL State or CHARGING State, press and hold the Hotspot Button for 6s and then release the button, then press the button for 3 times to start erase data. 8.5 HW RESET 8.5.1 When MCU hang-up, Press and hold Reset Button for 1s or SOS Button for 16s to reset the system. 9. LED Functions Clip System State LED Status Power Off Off Normal Green LED on Charging Off Erase Data LED turns Red --> Green --> Red --> Blue --> Purple in order HW Reset Off 10. System Drawings FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Specific absorption rate (SAR): This Clip meets the government's requirements for exposure to radiowaves. The guidelines are based on standards developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a margin of safety designed to ensure the safety of all people regardless of their age or health. The FCC Statement of Exposure to RF and the SAR limit for the United States (FCC) is 1.6 W/kg average for each gram of tissue. This device was tested for typical operations of use on the body, with the back of the Clip at 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a distance of 0mm between the user's body and the back of the Clip. Functioning in the body T…

Text truncated - open the document above for the full version.

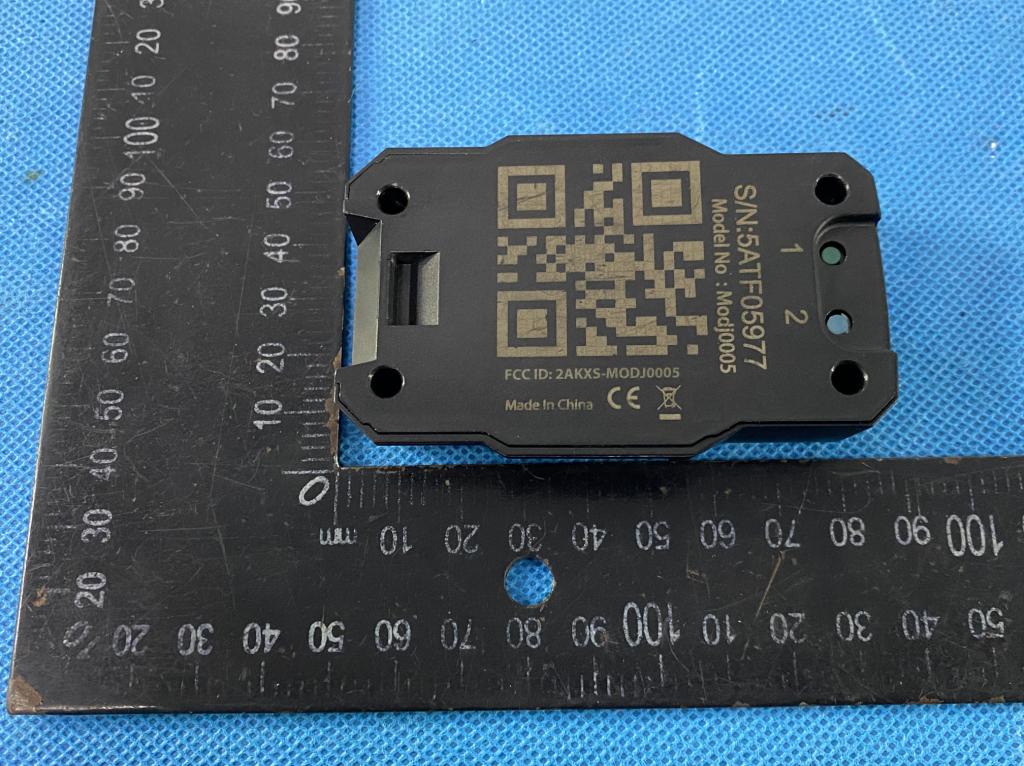

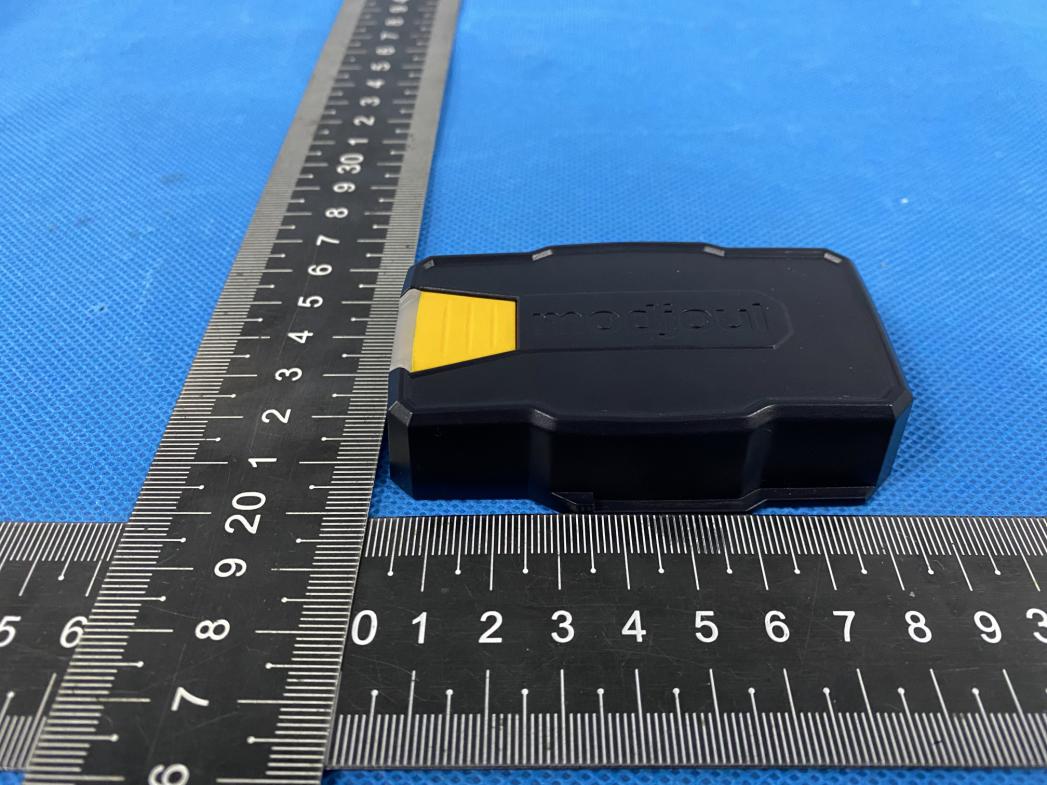

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

S/N : 6ATF11013 FCC ID: 2AKXS-MODJ0005IC: 28693-MODJ0005 53mm 82mm Made in China ClipC l i p 3.2版本控制器 ID DESIGNER: LYR PROJECT ENGINEER:CHECKED:CONFIRMED: DATE: 2022-10-28 VERSION: 1.01 效果图

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Ant

version01 Modjoul Inc Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Clip FCC ID: 2AKXS-MODJ0005 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Ceramic antenna antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Ceramic antenna Gain of the antenna: WIFI 2.4G: 1 dBi WIFI 5G: 4 dBi Frequency range: WIFI 2.4G: 2412-2462 MHz WIFI 5.2G: 5180-5240MHz WIFI 5.3G: 5260-5320MHz WIFI 5.6G: 5500-5700MHz WIFI 5.8G: 5745-5825MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Modjoul Inc Address: 121 Interstate Blvd, Unit 3C, Greenville, SC 29615, USA City: Greenville ZIP / Postal code: Country: United States Name: Eric Martinez Date: 09/11/2022 Signature:

802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoT Detail Specification: Page 1 of 14 AEC-Q200 qualification available. 1 Measured on 2450AD14A5500-EB2SMA eval-board (See pages 7-11 for details) Mechanical Dimensions ±± W ±± T a ±± b c ±± d ±± e ±± f ±± g h ±± https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved -Terminals 2 and 4 have two pads each -Make sure to have Pin 3 soldered to its PCB land pad but not connected to GND or input, they must be NC (or floating). If unsoldered, it may affect improper antenna resonance and drop-shock resistance. 3 4 Top View, looking "through" the component Scenario 2 1 2 GND NC NC NC NC FEED Scenario 1 FEED min.0.15min. 0.0020.250.05 0.0080.0010.200.03 0.010 0.006 0.0080.002 0.2150.05 0.40 Packing Style max. 0.001 0.0850.003 mm 2450AD14A5500-EB1SMA & 2450AD14A5500-EB2SMA see pages 2&7 for details Bulk (loose) T & R e.g. 2450AD14A5500(T or S) 0.0040.031 0.016 1.0 dBi typ. (XZ-Total) 12/1/2020 Part Number Explanation Part Number 2450AD14A5500 0.008 Function No. 0.80 Impedance50 Ω Input Power2 Watts max. (CW) 0.004 min. 6 min. L 0.086 max. 1.600.10 100% Tin 0.001 -3.5 dBi typ. (XZ-Total) "High Frequency Ceramic Solutions" 0.008min. 0.004 0.10 0.10 In P/N Suffix Terminal Configuration Evaluation Board 2400 - 24805150 - 5850 Frequency (MHz) P/N 2450AD14A5500 Let us help you with the antenna design, optimization, and tuning! General Specifications Suffix = T or S 0.003 Avg. Rad Efficiency 1 80%60% GND -2.5 dBi typ. (XZ-Total) 4.0 dBi typ. (XZ-Total) 0.030.20 Ver. 3.0 Storage Temperature e.g. 2450AD14A5500T 18 months max. Suffix = T Peak Gain (dBi typ.) Average Gain (dBi typ.) 0.063 0.03 0.208 Storage Period Return Loss (dB)6 min. Reel Quantity Operating Temperature e.g. 2450AD14A5500SSuffix = S -40 to +85°C -40 to +85°C 4000 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Top View e L f a W d c b g h Bottom View T Side View   https://www.johansontechnology.com/ipc-antenna-services 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 2 of 14 Mount these devices with brown mark facing up. https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved Ver. 3.0 "High Frequency Ceramic Solutions" 12/1/2020 Mounting Considerations 1: Antenna PCB Layout (Scenario 1 Terminal Configuration) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 0.25 1.0nH 5.8 3 0.65 4.1 0.35 0.21 0.3 0.29 0.15 0.5 0.6 0.45 0.4 1.1 0.15 0.6 3.5 1.43 PCB Layout (top) Land Solder Resist ALL Units in mm PCB Layout (bottom) Top RF Ground Vias to the other side of the PCB 4.1 0.65 0.25 5.66 2.2 0.14 Bottom RF Ground Not Connected! Vias to the other side of the PCB No metal layers in yellow area Floating Floating Matching circuit (shunt-series- shunt recommended) 0.15 Request this layout file! https://www.johansontechnology.com/ask‐a‐question 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 3 of 14 24 50 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved Ver. 3.0 5.579 "High Frequency Ceramic Solutions" 12/1/2020 Mounting Consideration 1: Evaluation Board, 40x70mm (Scenario 1 Terminal Configuration) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Frequency (GHz)Radiated Efficiency (%) 2.4466 Top RF Ground 40 5 50Feed Line 8 Matching circuit leave space fo a "pi" matching network. 70 Units in mm To order the ABOVE pre‐tuned 50Ω EVB with a female SMA connector click here: https://www.johansontechnology.com/request‐a‐sample Reference p/n: 2450AD14A5500‐EB1SMA No metal layers on yellow area What happens to the antenna’s performance if you reduce the ground plane to 35x40mm LxW? We’ll share the study with you, send us a message at: https://www.johansontechnology.com/ask‐a‐question Would you like the layout file of the above? Have antenna tuning issues? Please contact us if you have any questions regarding the implementation of this antenna in your PCB's layout. We'll be happy to guide you to maximize the antenna's performance. Contact our applications engineers at: https://www.johansontechnology.com/ask‐a‐question 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 4 of 14 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2020 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 12/1/2020 Mounting Consideration 1: Evaluation Board, 40x70mm Typical Electrical Performance (T=25°C) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Ver. 3.0 m128 freq= S(1,1)=0.122 / 95.014 impedance = 47.527 + j11.753 2.442GHz m135 freq= S(1,1)=0.093 / 81.368 impedance = 50.543 + j9.329 5.500GHz 2.53.03.54.04.55.05.52.06.0 -20 -15 -10 -5 -25 0 freq, GHz dB(S(1,1)) m129 m130 m131 m132 m133 m134 m129 freq= dB(S(1,1))=-18.254 2.442GHz m130 freq= dB(S(1,1))=-7.250 2.400GHz m131 freq= dB(S(1,1))=-8.854 2.484GHz m132 freq= dB(S(1,1))=-9.557 5.150GHz m133 freq= dB(S(1,1))=-20.673 5.500GHz m134 freq= dB(S(1,1))=-10.013 5.850GHz freq (2.000GHz to 6.000GHz) S(1,1) m128 m135 802.11 Dual Band 2.45/5 GHz Mini Chip Antenna. WiFi, WLAN, IoTP/N 2450AD14A5500 Detail Specification: Page 5 of 14 https://www.johansontechnology.com 40…

Text truncated - open the document above for the full version.

Page 1 of 86 Report No.: S22101203110001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Clip Trademark： Modjoul Model Name： Modj0005 Family Model： N/A Report No.： S22101203110001 FCC ID： 2AKXS-MODJ0005 Prepared for Modjoul Inc 121 Interstate Blvd, Unit 3C, Greenville, SC 29615, USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 86 Report No.: S22101203110001 TEST RESULT CERTIFICATION Applicant’s name ................. : Modjoul Inc Address .................................. : 121 Interstate Blvd, Unit 3C, Greenville, SC 29615, USA Manufacturer's Name ..................................... : WEEL Technologies, LTD. Address .................................. : Suite 305, No.47 QianKeng Road, XinHe Community, FuCheng Street,LongHua District, ShenZhen City,GuangDong, China Product description Product name ......................... : Clip Trademark ............................ : Modjoul Model Name ......................... : Modj0005 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S221012031001 Date of Test Date (s) of performance of tests ............. : Oct. 24, 2022 ~ Oct. 27, 2022 Date of Issue........................................... : Nov. 02, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 86 Report No.: S22101203110001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Nov. 02, 2022 Jacob Chen Page 4 of 86 Report No.: S22101203110001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty .............................................................. 24 6. RF Exposure Positions ...........................................…

Text truncated - open the document above for the full version.

Report No.: S22101203101001 Version.1.3 Page 1 of 69 FCC RADIO TEST REPORT FCC ID: 2AKXS-MODJ0005 Product: Clip Trade Mark: Modjoul Model No.: Modj0005 Family Model: N/A Report No.: S22101203101001 Issue Date: 25 Oct. 2022 Prepared for Modjoul Inc 121 Interstate Blvd, Unit 3C, Greenville, SC 29615, USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22101203101001 Version.1.3 Page 2 of 69 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 29 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 31 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 33 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 35 7.9 ANTENNA APPLICATION .......................................................................................................................... 36 8 TEST RESULTS ................................................................................................................................................... 37 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 37 8.2 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 38 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 48 8.4 BAND EDGE .................................................................................................................................................... 53 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 60 Report No.: S22101203101001 Version.1.3 Page 3 of 69 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Modjoul Inc Address ....................................... : 121 Interstate Blvd, Unit 3C, Greenville, SC 29615, USA Manufacturer's Name .................. : WEEL Technologies, LTD. Address ....................................... : Suite 305, No.47 QianKeng Road, XinHe Community, FuCheng Street,LongHua District, ShenZhen City,GuangDong, China Product description Product name .............................. : Clip Model and/or type reference ..... : Modj0005 Family Model ............................... : N/A Test Sample Number ................................ : S221012031002 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written a…

Text truncated - open the document above for the full version.

Radiated Measurement Photos AC Conducted Measurement Photos

Test Positions Front Side (Separation distance of 0mm) Back Side (Separation distance of 0mm) Left side (Separation distance of 0mm) Right side (Separation distance of 0mm) Top side (Separation distance of 0mm) Bottom side (Separation distance of 0mm) END
