2AKZ8-LBS006Bluetooth Speaker

UserGuide WirelessBluetoothSpeakerARBT106 KeysandFunctions USBinterface T-flashcard 5vpowersupply Audiooutput/microphone On/off Bluetoothmode ModeSwitch Volume+/Previous song Play/Pause Volume-/Nextsong Step1:SwitchOn,andtheprompttoneis:thebluetoothdeviceisreadytopair. Step2:findARBT106,andclickPair Step3:Aftertheparingissuccessful,thesoundpromptis:thebluetoothdeviceisconnected successfully. Step4:Disconnectbluetooth,thesoundpromptis:thebluetoothdeviceisreadytopair. Step5:SwitchOff,poweroff,Lightswentout Tips 1Ifyoucannotfindtheparingname,othermobilephonesmaybeconnected. Pleaseturnoffbluetoothonotherdevices,orwalkaway,orgo100metersfurther andsearchagain 2DeletethebluetoothdevicenameinthephoneandsearchforARBT106again    Charge 1.Pleaseensurethatthechargingequipmentforthespeakeris5V(pleasedonotuse6V, 9Vor12Vvoltagetochargethespeaker,astherewillbeariskofburningthechip) 2.Thespeakerischargedonceamonth,electronicproductsdonotchargeforalongtime willleadtobatteryself-protectioncannotstart Indicatinglightstatus CharginginprogressLongbrightredlight ThebatteryTheredlightout  attentionplease Donotremoveormodifythespeakertoavoiddamageordanger Donotcleanthespeakerwithstrongchemicalsorcleaners,andkeepthespeakerdry Donotstorethespeakerinextremetemperatures(below0°C,above45°C) Donotuseloudspeakersinheavyrainorlightning.Otherwise,theloudspeakersmay becomedisorderedandincreasetheriskofelectricshock FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

DongGuan LINPA ACOUSTIC TECHNOLOGY CO., LTD Model Difference Product Name: Bluetooth Speaker Trademark: LINPA Model Number(s): LBS006, ARBT106 FCC ID: 2AKZ8-LBS006 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Sally Yang / Manager Contact information / address: 2A, No 60, Lizhong Road, Dali Qingxi Town, Dongguan City, China.

DongGuan LINPA ACOUSTIC TECHNOLOGY CO., LTD Agent Authorization Company: DongGuan LINPA ACOUSTIC TECHNOLOGY CO., LTD Address: 2A, No 60, Lizhong Road, Dali Qingxi Town, Dongguan City, China. Product Name: Bluetooth Speaker Trademark: LINPA Model Number(s): LBS006, ARBT106 FCC ID: 2AKZ8-LBS006 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/04/27 Name: Sally Yang Title: Manager Company: DongGuan LINPA ACOUSTIC TECHNOLOGY CO., LTD

DongGuan LINPA ACOUSTIC TECHNOLOGY CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/04/27 Subject; Request for Confidentiality FCC ID: 2AKZ8-LBS006 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sally Yang Title: Manager

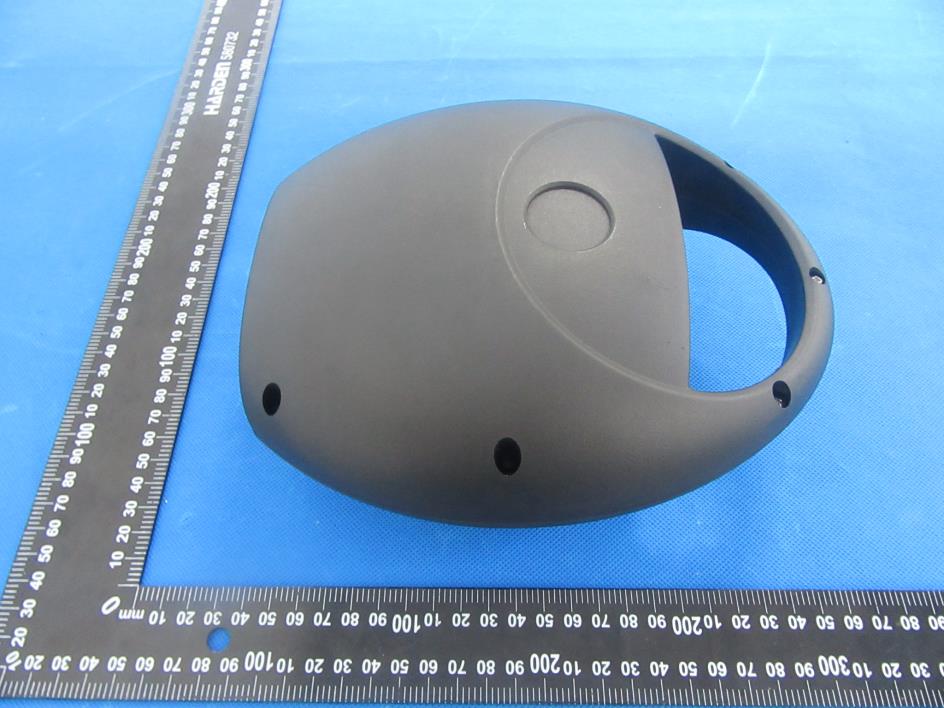

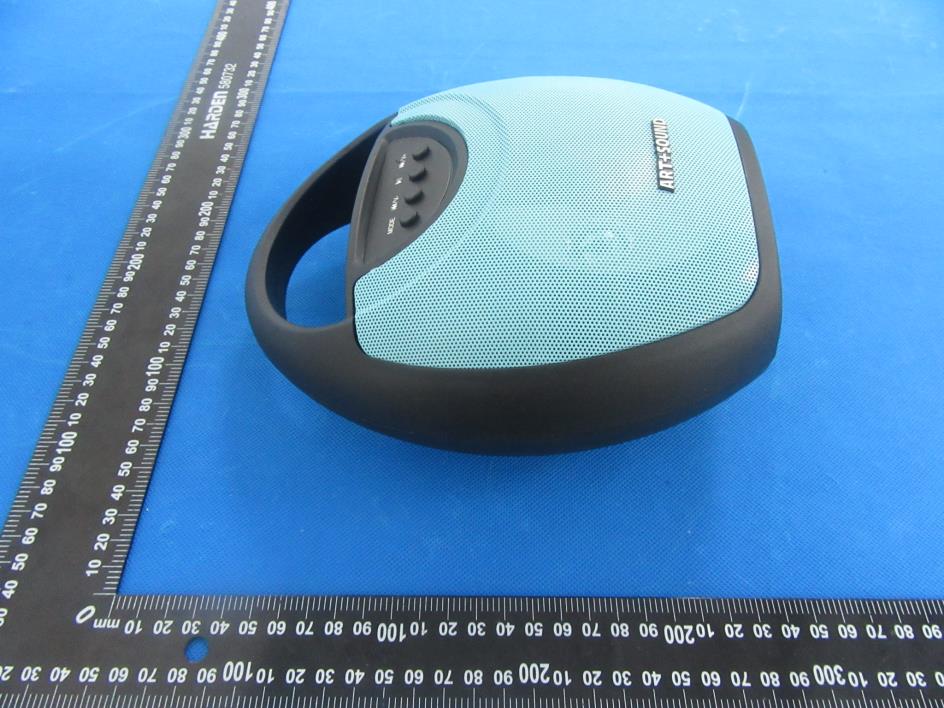

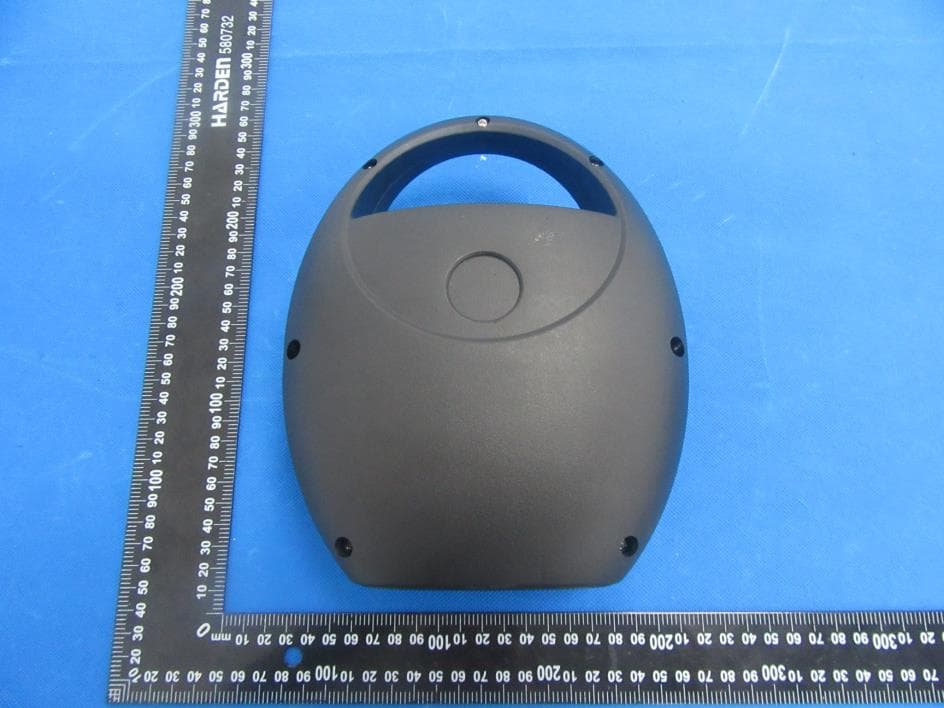

External Photos

Size:40*20mm Label Location FCC ID: 2AKZ8-LBS006 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Antenna

FCC ID: 2AKZ8-LBS006 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion π /4DQPSK 2.480-1.570.70-1±10.001.00<50.314963.00YES Conclusion: For the max result : 0.31496＜3.0, the SAR testing is not required.
