2AKZA-IW416WiFi+Bluetooth 5.2 System on Module

1 User Manual Product: WiFi+Bluetooth 5.2 System on Module Manufacturer: TechNexion Ltd. Manufacturer Address: 16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan Model: PIXI-IW416 For Original Equipment Manufacturer integration only – this device cannot be sold to the general public FCC ID :2AKZA-IW416 IC:22364-IW416 2 General Specifications Form Factor PIXI 16mm x 12mm x 1.0mm Wireless SIP Module MCU NXP IW416 WLAN IEEE 802.11 a/b/g/n Bluetooth Bluetooth 5.2 BDR/EDR/BLE Frequency Range Bluetooth: 2042MHz ~ 2480MHz 802.11b/g/n HT20: 2412MHz ~ 2472MHz 802.11n HT40: 2422MHz ~ 2462MHz 802.11a : 5180MHz ~ 5825MHz 802.11n HT20: 5180MHz ~ 5825MHz 802.11n HT40: 5190MHz ~ 5795MHz Antenna 1x MHF4 connector PIFA antenna 2.4G Gain: 2.54 dBi 5G Gain: 3 dBi Dipole antenna 2.4G Gain: 4 dBi 5G Gain: 6 dBi Host Interface WLAN: SDIO 3.0 BT: UART Voltage Input supply for host I/O: 3.3V Signaling WIFI control function through to SDIO interface BT control function through to UART interface Environment Support Operating Temperature: -40~85°C Storage Temperature: -55~125°C 3 User Manual with Statement required FCC Statement: FCC 15.119: This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause undesired operation. FCC 15.105: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a different circuit from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. •Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. •This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body 4 Modular Approval OEM INTEGRATION INSTRUCTIONS: This device is intended only for OEM integrators under the following conditions: 1) The module must be installed in the host equipment such that 20 cm is maintained between the antenna and users, and 2) the transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. USERS MANUAL OF THE END PRODUCT: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: 2AKZA-IW416 5 IC Statement: RSS-Gen Issue 4 8.4 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Co-located This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Cet appareil et son antenne (s) ne doivent pas être situés ou fonctionner en conjonction avec une autre antenne ou émetteur. RSS-GEN 8.3 transmitters equipped with detachable antennas This radio transmitter (identify the device by certification number) has been approved by Industry Canada to operate with the antenna types Antenna gain information: Dipole ANTENNA :4 dBi (2.4GHz),6 dBi(5GHz) and FPC ANTENNA 2.5 dBi (2.4GHz),3 dBi(5GHz) listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain grea…

Text truncated - open the document above for the full version.

TechNexion Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 5, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AKZA-IW416 16F-5 No. 736, Zhongzheng Road, Zhong he Dist, New Taipei City, 23511 Taiwan R.O.C. Phone +886-2-8227 3585 Fax : +886-2-8227 3590 TechNexion Ltd. ("the applicant") certifies that, as of the date of the filing of the application, Americas Compliance Consulting LLc dba iCertifi. is our designated U.S. agent for service of process. TechNexion Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Americas Compliance Consulting LLc dba iCertifi. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process. Sincerely, Designated U.S. Agent Information: FRN: 0033399411 Name: Americas Compliance Consulting LLc dba iCertifi Contact Person: Mr Paul A Preston Address: 1001 SW Disk Drive, ste 250 Office 3 Bend, OR 97702 United States Tel.: (866) 885-4575 Email: [email protected] U.S. Agent Signature: Applicant: Company Name: TechNexion Ltd. Contact Person: Marcel vandenHeuvel Address: 16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan Tel.: +866-2-8227-3585 Email: [email protected] AppHcant s;gnatu,e, D \

RF_734_03 26 March 2020 TechNexion Ltd. 16F-5 No. 736, Zhongzheng Road, Zhonghe Dist, New Taipei City, 23511 Taiwan R.O.C. Phone Fax : +886-2-8227 3585 : +886-2-8227 3590 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2AKZA-IW416 Items to be covered by Single modular transmitters. Answer from applicant 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes. The EUT provides the RF shielding. See EUT photo. 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes. The EUT has buffered modulation. Please see the Schematic Diagram. U1 RF IC: Wi-Fi baseband • Bandwidth supported: – 20 MHz – 20 in 40 MHz (upper and lower) – 40 MHz – 20 MHz duplicate • 802.11n modulation coding scheme (MCS) 0-7 and MCS 32 (HT duplicate mode) Bluetooth baseband • Baseband and radio Basic Data Rate (BDR)/Enhanced Data Rate (EDR) packet types – 1 Mbit/s (GFSK), 2 Mbit/s (π/4-DQPSK), and 3 Mbit/s (8DPSK) • Fully functional Bluetooth baseband—Adaptive Frequency Hopping (AFH), forward error correction, header error control, access code correlation, Cyclic Redundancy Check (CRC), encryption bit stream generation, and whitening • BLE shared RF with BDR/EDR • BLE Baseband and radio – 1 Mbps, 2 Mbps U4 PMIC: • Supports 2.7 V~5.5 V operating voltage • Two 1.5 A synchronous buck converters • Single LDO supports up to 525 mA • Ultra low 15 μA sleep current • 3 MHz switching frequency • High output voltage accuracy • Supports both DVS and AVS • Single wire proprietary serial interface 3. The module must contain power supply regulation on the module Yes. The EUT has own power supply requlation, please see the Schematic Diagram. U1 RF IC: Wi-Fi baseband • Bandwidth supported: – 20 MHz RF_734_03 26 March 2020 TechNexion Ltd. 16F-5 No. 736, Zhongzheng Road, Zhonghe Dist, New Taipei City, 23511 Taiwan R.O.C. Phone Fax : +886-2-8227 3585 : +886-2-8227 3590 – 20 in 40 MHz (upper and lower) – 40 MHz – 20 MHz duplicate • 802.11n modulation coding scheme (MCS) 0-7 and MCS 32 (HT duplicate mode) Bluetooth baseband • Baseband and radio Basic Data Rate (BDR)/Enhanced Data Rate (EDR) packet types – 1 Mbit/s (GFSK), 2 Mbit/s (π/4-DQPSK), and 3 Mbit/s (8DPSK) • Fully functional Bluetooth baseband—Adaptive Frequency Hopping (AFH), forward error correction, header error control, access code correlation, Cyclic Redundancy Check (CRC), encryption bit stream generation, and whitening • BLE shared RF with BDR/EDR • BLE Baseband and radio – 1 Mbps, 2 Mbps U4 PMIC: • Supports 2.7 V~5.5 V operating voltage • Two 1.5 A synchronous buck converters • Single LDO supports up to 525 mA • Ultra low 15 μA sleep current • 3 MHz switching frequency • High output voltage accuracy • Supports both DVS and AVS • Single wire proprietary serial interface 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated o nly with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes. The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The module must demonstrate compliance in a stand-alone configuration. Yes. The EUT was tested with a test board, please see the report. 6. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes. Please see exhibition label sample for the FCC ID of this module. 7. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8. The module must comply with RF exposure requirements. Yes. The EUT complies RF exposure requirement. Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. Yes. 2. Only the radio front end must be shielded. The physical crystal and tuning Yes. RF_734_03 26 March 2020 TechNexion Ltd. 16F-5 No. 736, Zhongzheng Road, Zhonghe Dist, New Taipei City, 23511 Taiwan R.O.C. Phone Fax : +886-2-8227 3585 : +886-2-8227 3590 capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. Yes. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. Yes. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Yes. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): Marcel vandenHeuvel Date: September 18, 2023 Signature:

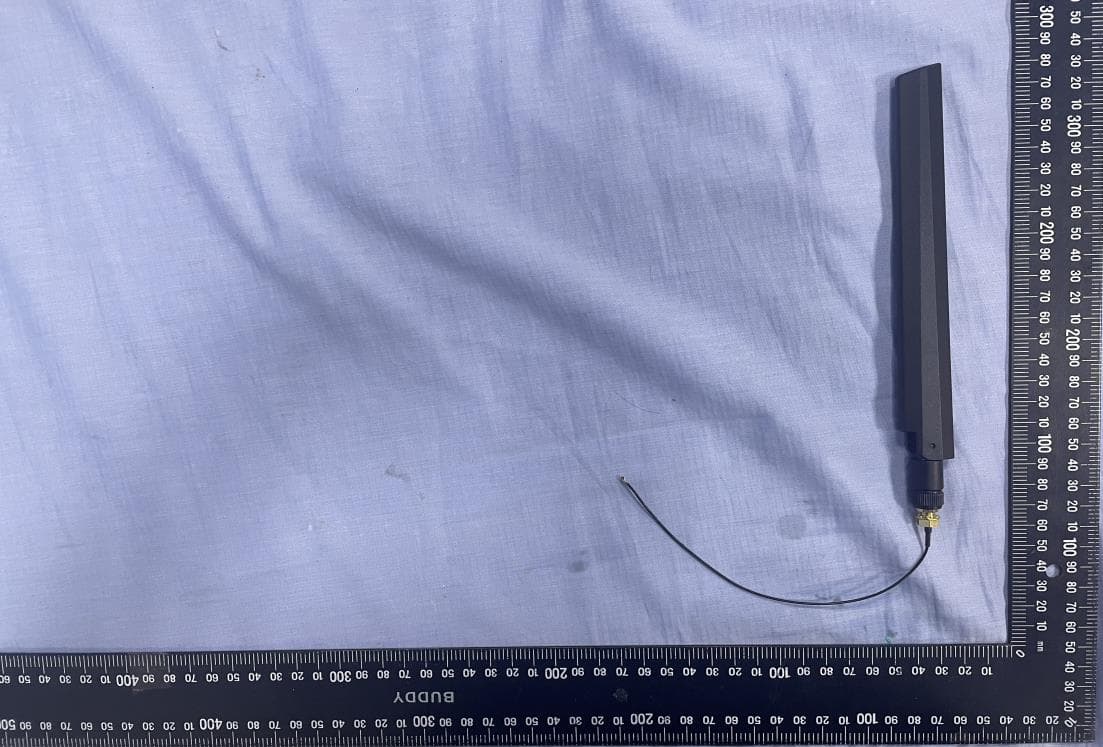

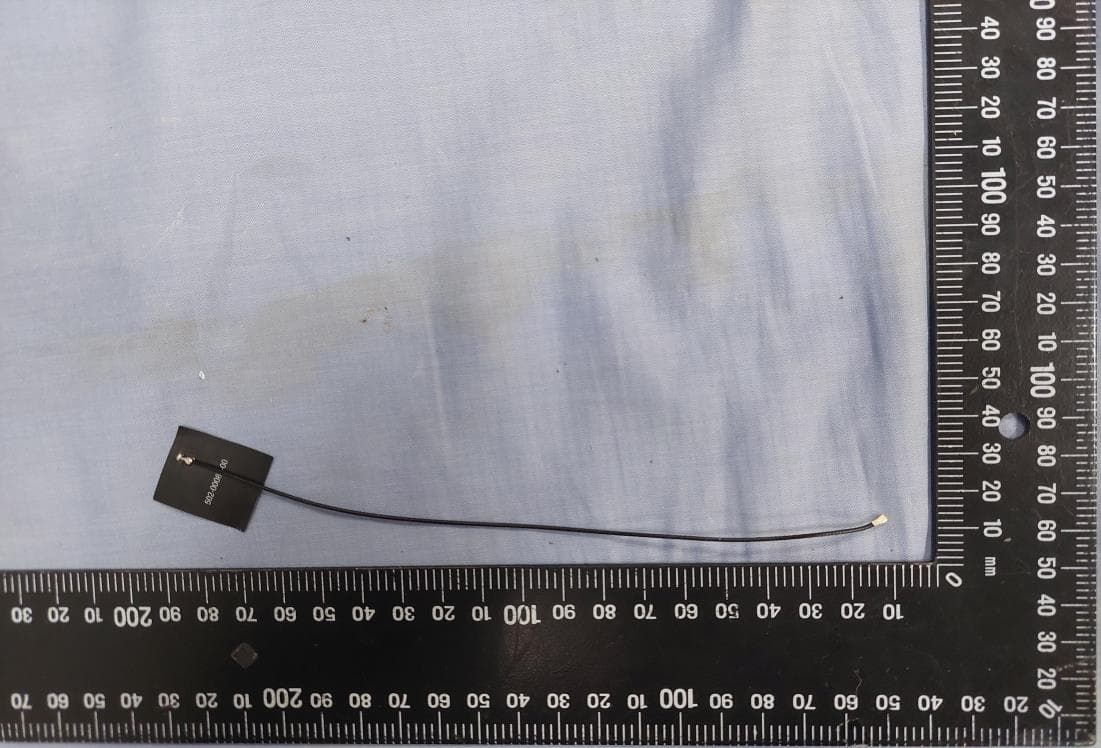

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2305000172P Page: 1 / 4 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2305000172P Page: 2 / 4 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2305000172P Page: 3 / 4 Rev.: 00 Dipole Antenna PIFA Antenna

LABEL LABEL LOCATION

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2305000172P Page: 4 / 4 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT RF IC & Crystal

Project No.: TM-2305000172P FCC ID: 2AKZA-IW416 Page 1 / 15 Report No.: TMWK2305001497KS Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for WiFi+Bluetooth 5.2 System on Module Model Name.: PIXI-IW416 Prepared for: TechNexion Ltd. 16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. Issue Date: August 7, 2023 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 15 Report No.: TMWK2305001497KS Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 7, 2023 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 15 Report No.: TMWK2305001497KS Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION .............................................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................................... 7 4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 9 4.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................... 9 4.2 MPE CALCULATION METHOD ........................................................................................... 10 4.3 MPE EXEMPTION ............................................................................................................... 11 4.4 MULTIPLE RF SOURCES ................................................................................................... 12 5 MPE EXEMPTION OPTION B ............................................................................ 13 6 SIMULTANEOUS TRANSMISSION EXEMPT ................................................... 14 6.1 SUM OF THE WIFI 2.4GHZ & WIFI 5GHZ & BLUETOOTH ................................................ 14 7 FACILITIES ........................................................................................................ 15 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 15 Report No.: TMWK2305001497KS Rev.: 00 1 Attestation of Test Results Applicant Name TechNexion Ltd. Model Name PIXI-IW416 Applicable Standards FCC 47 CFR § 2.1091 FCC 47 CFR § 1.1307 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: May 16, 2023 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 15 Report No.: TMWK2305001497KS Rev.: 00 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 RF Exposure Reporting v01r02 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 6 / 15 Report No.: …

Text truncated - open the document above for the full version.

維克摩爾產品承認書 Specification For Approval 日 期： 2018/7/2 Date 編 號： R-20180702006 File No. 承認廠商：彤晟科技有限公司 Customer 製造廠商：維克摩爾科技有限公司 Manufacturer 型號品名 2.4/5G WIFI ANTENNA+RF CABLE 180mm Part Number Description VM2450-ASSY1005 453300000006 廠商審核： Approved By 3D Radiation Pattern 2.4GHz 3D Radiation Pattern 2.45GHz 3D Radiation Pattern 2.5GHz 3D Radiation Pattern 5.15GHz 3D Radiation Pattern 5.55GHz 3D Radiation Pattern 5.85GHz Connector SMA Electrical Properties Impedance50 ohm Frequency Range0~6 GHz V.S.W.R ≦1.5 Working Voltage ≦170Vrms Dielectric Withstanding≦500 Vrms Voltage Insulation Resistance≧2000 Megohms Contact Resistance Center contact: 3.0 Milliohms (Max.) Outer contact: 2.0 Milliohms (Max.) BodyBrass Center Contact Recommended coupling nut torque 4.0 in. lbs. ~ 8.8in. lbs. Coupling nut retention force ≧60 lbs. Contact captivation axial ≧6 lbs. Brass InsulatorTeflon Coupling Proof Torque15 in-1bs.min Operating Temperature -65°C ~ +165°C Material Specifications Material DataMaterial SMA Impedance 50 ohm Max. Frequency 0-6Ghz V.S.W.R. (S11) < 1.5 Insertion Loss (S21) dB 0.1 / GHz Insulation Resistance 5G ohm Insulator PTFE,PA46 Contact Resistance center contact 3m ohm outer contact 2m ohm Proof Voltage @ 50 Hz 750 V Contact Current Max. 2.0A DC Nut Retention Force > 270 N Engagement Force / Sparation Force / Mating Cycles > 500 Working Temp. (C) - 65 / +165 StorageTemp. (C) - 40 / + 85

<= 2.0 @ 5150-5850 MHz . Return Loss : >10 dB @ 2400-2500 MHz 1. Specification . Product Number: VM2450-25523-OOX-180 . Version : 1.0 Electrical Characteristics . Frequency (MHz) : 2400-2500 / 5150-5850 . S.W.R. : <= 2.0 @ 2400-2500 MHz > 10 dB @ 5150-5850 MHz P k G i 2 5dBi @ 2400 2500 MH . Impedance : 50 ohm . Polarization : Linear Mechanical Characteristics 3.0dBi @ 5150-5850 MHz . Peak Gain : 2.5dBi @ 2400-2500 MHz . Antenna Type : PIFA Environmental Condition . Operation Temperature : -30 ~ +65 ºC . Storage Temperature : -30 ~ +85 ºC . Cable : RF-1.13 Black . Connector : MHF(IV) . Connector Pull Force : > 1.0 Kg . FPCB Color : Black . Material : RoHS Compatible / RoHS 2011/65/EU with IEC 62321:2008 2450MH5550MH 3. Gain / Efficiency Test Data

Project No.: TM-2305000172P FCC ID: 2AKZA-IW416 Page: 1 / 87 Report No.: TMWK2305001496KR IC: 22364-IW416 Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-247 Test Standard FCC Part 15.247 IC RSS-247 issue 2 and IC RSS-GEN issue 5 Product name WiFi+Bluetooth 5.2 System on Module Brand Name TechNexion Model PIXI-IW416 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Shawn Wu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 87 Report No.: TMWK2305001496KR Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 7, 2023 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 87 Report No.: TMWK2305001496KR Rev.: 00 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 6 1.5 FACILITIES AND TEST LOCATION .......................................................................... 7 1.6 INSTRUMENT CALIBRATION ................................................................................... 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................. 9 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ............................................. 9 2. TEST SUMMARY ..................................................................................................... 10 3. DESCRIPTION OF TEST MODES............................................................................ 11 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 11 3.2 THE WORST MODE OF MEASUREMENT .............................................................. 12 3.3 EUT DUTY CYCLE ................................................................................................... 13 4. TEST RESULT ......................................................................................................... 14 4.1 AC POWER LINE CONDUCTED EMISSION ........................................................... 14 4.2 6DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ...................................... 19 4.3 OUTPUT POWER MEASUREMENT ........................................................................ 25 4.4 POWER SPECTRAL DENSITY ................................................................................ 28 4.5 CONDUCTED BAND EDGE AND SPURIOUS EMISSION ...................................... 32 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION .......................................... 39 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 87 Report No.: TMWK2305001496KR Rev.: 00 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant TechNexion Ltd. 16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan Manufacturer TechNexion Ltd. 16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan Equipment WiFi+Bluetooth 5.2 System on Module Model No. PIXI-IW416 Model Discrepancy N/A Trade Name TechNexion Received Date May 16, 2023 Date of Test May 19 ~ June 27, 2023 Power Supply Power from host system. (DC 3.3V) HW Version A1 SW Version 1.0 Remark: 1. For more details, please refer to …

Text truncated - open the document above for the full version.

Project No.: TM-2305000172P FCC ID: 2AKZA-IW416 Page: 1 / 144 Report No.: TMWK2307002174KR IC: 22364-IW416 Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADI…

Text truncated - open the document above for the full version.
