2AL3B-XT-ZB6ZigBee+BLE Module

XT-ZB6 ——Zigbee3.0 and BLE5.0 Coexistence Module Version: 1.0 Date: June.23, 2022 Features  General  Chip: BL706C-22  Optional: 16M bit Flash, 16M bit pSRAM  Module Size:16mm x 24mm x 3mm  Bluetooth® Specification v5.0  Zigbee 3.0, Base Device Behavior, Core Stack R21, Green Power  2.4 GHz RF transceiver  Support BLE/Zigbee coexistence  Standards Supported  IEEE 802.15.4 MAC/PHY  Bluetooth® Low Energy 1Mbps and 2Mbps  Bluetooth® Long Range Coded 500Kbps and 125Kbps  Integrated balun, PA/LNA  MCU Features  32-bit RISC CPU with FPU  One RTC timer update to one year  CPU frequency configurable from 1MHz to 144MHz  JTAG development support  XIP QSPI Flash/pSRAM with hardware encryption support  132KB RAM  192KB ROM  1Kb eFuse  Peripheral Interfaces  USB2.0 Full-Speed interface  GPIO * 31;  UART * 2;  IIC * 1;  IIS * 1  Ethernet RMII interface  Camera interface  SPI * 1;  EN * 1;  PWM *5;  10-bit DAC ;  12-bit ADC;  PIR * 1;  IR remote control interface  Working temperature: -40°C-85°C Applications ● Serial transparent transmission; ● Smart power plug/Smart LED light; ● Sensor networks; ● Industrial wireless control; Module Type Name Antenna Type XT-ZB6 PCB ANT XT-ZB6-E IPEX V1 Module Structure Product Specification Update Record Date Version Update 2022-06-23 V1.0 First released Table of Contents 1. Introduction ....................................................................................................................... 1 2. Interface Definition ........................................................................................................... 3 3. Size and Layout ................................................................................................................. 5 4. Electrical Characteristics ................................................................................................... 6 5. Power Consumption .......................................................................................................... 7 6. RF Characteristics ............................................................................................................. 7 7. Recommended Reflow Profile .......................................................................................... 8 8. Minimum User System ...................................................................................................... 8 9. Recommended Layout Design .......................................................................................... 9 10. Peripheral Design Suggestion ....................................................................................... 10 11. Product Handling ........................................................................................................... 10 12. U.F.L RF Connector ...................................................................................................... 11 13. Packing Instruction ........................................................................................................ 11 XT-ZB6 User Manual ShenZhen ThingsTurn Technology Co.,Ltd Copyright@2017-2022 Page 1 1. Introduction XT-ZB6 is highly integrated BLE and Zigbee combo module for IoT applications. XT-ZB6’s wireless subsystem contains 2.4G radio, BLE + Zigbee baseband and MAC designs. Microcontroller subsystem contains 32-bit RISC CPU, high-speed cache and memories. Power Management Unit controls ultra-low-power modes. Moreover, varieties of security features are supported. Peripheral interfaces include UART, PWM, USB, I2C, ADC, DAC and GPIOs. Fig.1.1 XT-ZB6 Module Structure XT-ZB6 User Manual ShenZhen ThingsTurn Technology Co.,Ltd Copyright@2017-2022 Page 2 Technical parameters for XT-ZB6 are listed as follows. Table 1.1 XT‐ZB6 Parameters Types Items Parameters RF Zigbee Sensitivity -104 dBm @250Kbps BLE Sensitivity -104 dBm @120Kbps -100 dBm @500Kbps -97 dBm @1Mbps -94 dBm @2Mbps TX Power 0-14 dBm TX EVM 11% Antenna PCB antenna / U.F.L IPEX V1 Hardware CPU 32-bit RISC CPU Interface UART/GPIO/PWM Working voltage 2.5V ~ 3.6V Working current 3.5mA @RF only 17mA @TX 10dBm 45mA @TX 14dBm Working temperature -40°C ~85°C Storage temperature -45°C ~ 135°C Shape 16mm x 24mm x 3mm Software Encryption type AES 128/192/256 Update firmware UART Download Software develop SDK XT-ZB6 User Manual ShenZhen ThingsTurn Technology Co.,Ltd Copyright@2017-2022 Page 3 2. Interface Definition XT-ZB6 module interface definition is shown as below。 Fig.2.1 XT-ZB6 Pin Definition Working mode and pins function are shown in Table 2.1. Table.2.1 Working mode Mode GPIO31 UART Download Mode High Flash Boot Mode LOW (default) Table.2.2 Pins Function Definition Num. Pin Name Type Function 1.28. 32.40 GND P POWER GROUND 2 GPIO14 I/O TXD (download),SS,SCL,ADC_CH5,I2S_DIO,PWM_CH4 3 GPIO15 I/O RXD(download), SCLK,SDA,ADC_CH1,I2S_DIO,PWM_CH0 4 GPIO16 I/O MOSI,SCL,PWM_CH1 5 GPIO17 I/O MISO/MOSI,SDA,I2S_FS,PWM_CH2,DAC,PIX_DAT4 6 GPIO18 I/O SF1_IO1,SS,PIX_DAT5,RMII_MDC 7 GPIO19 I/O SF1_CS,SCLK,SDA,PIX_DAT6,RMII_MDIO XT-ZB6 User Manual ShenZhen ThingsTurn Technology Co.,Ltd Copyright@2017-2022 Page 4 8 GPIO20 I/O SF1_IO3,PIX_DAT7,SCL,RMII_RXERR 9 GPIO21 I/O SF1_CLK,SDA,RMII_TX_EN 10 GPIO22 I/O SF1_IO2,SS,PWM_CH2,RMII_RX_DV 11 GPIO23 I/O SCLK, I2S_DI, SPI,SDA,PWM_CH3,IRTX 12 GPIO24 I/O SF2_IO1,PIX_DAT5,SCL,RMII_MDC 13 GPIO25 I/O MISO/MOSI,SDA,I2S_FS,PWM_CH0 14 GPIO26 I/O SF2_IO3,SS,PIX_DAT7,RMII_RXERR 15 GPIO29 I/O PIX_DAT5,PEM_CH4 16 GPIO28 I/O MISO/MOSI,SCL,I2S_BCLK,PWM_CH3,RMII_RX_DV 17 GPIO27 I/O SF2_CLK,SCLK, RMII_TX_EN 18 GPIO30 I/O PIX_DAT6,SCL,PWM_CH0 19 GPIO31 I/O PIX_DAT7,SDA,PWM_CH1,,PULL-DOWN 20 GPIO0 I/O MISO/MOSI,SCL,I2S_BCLK,PWM_CH0 21 GPIO1 I/O MISO/MOSI,SDA,I2S_FS,PWM_CH1 22 GPIO2 I/O MISO/MOSI,SCL,I2S_DIO,PWM_CH2 23 GPIO3 I/O PIX_DAT0,SDA 24 GPIO4 I/O PIX_DAT1,SCL 25 GPIO5 I/O PIX_DAT2,SDA 26 GPIO6 I/O PIX_DAT3,SCL 27 VCC P POWER IN,3.3V 29 VUSB P USB power 30 GPIO7 I/O USB_DP,SCLK,SDA,PWM_CH2,ADC_CH6 31 GPIO8 I/O USB_DM, MISO/MOSI,SCL,PWM_CH3,AD…

Text truncated - open the document above for the full version.

< ShenZhen Doctors of Intelligence & Technology Co.,Ltd.> Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Company name: ShenZhen Doctors of Intelligence & Technology Co.,Ltd. FCC ID: 2AL3B-XT-ZB6 Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v02’. FCC ID: 2AL3B-XT-ZB6 has been examined against the following requirements. Items to be covered by Single modular transmitters. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v02 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The modular have the radio frequency circuitry shielded 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal All modulation and data inputs are buffered by circuitry on the transmitter chip ESP32, as is shown in the schematic. 3. The module must contain power supply regulation on the module Power supply regulation is provided by circuitry on the transmitter chip ESP32, as is shown in the schematic. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) EUT module contain a permanently attached antenna. Please reference the exhibition Test Report. 5. The module must demonstrate compliance in a stand- alone configuration Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) The instruction on the labelling rule of the end product has been stated in the Users manual of this module. Please also see the exhibition Label Sample. 7. The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The module must comply with RF exposure requirements Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Name: Liuji Shang Title: Manager Signature of applicant Date: 2022.11.08

ShenZhen Doctors of Intelligence & Technology Co., Ltd. (2022.11.08) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (ZigBee+BLE Module / XT-ZB6 / FCC ID: 2AL3B-XT-ZB6) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Liuji Shang Title: Manager

ShenZhen Doctors of Intelligence & Technology Co.,Ltd. (2022.11.08) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Liuji Shang Title: Manager

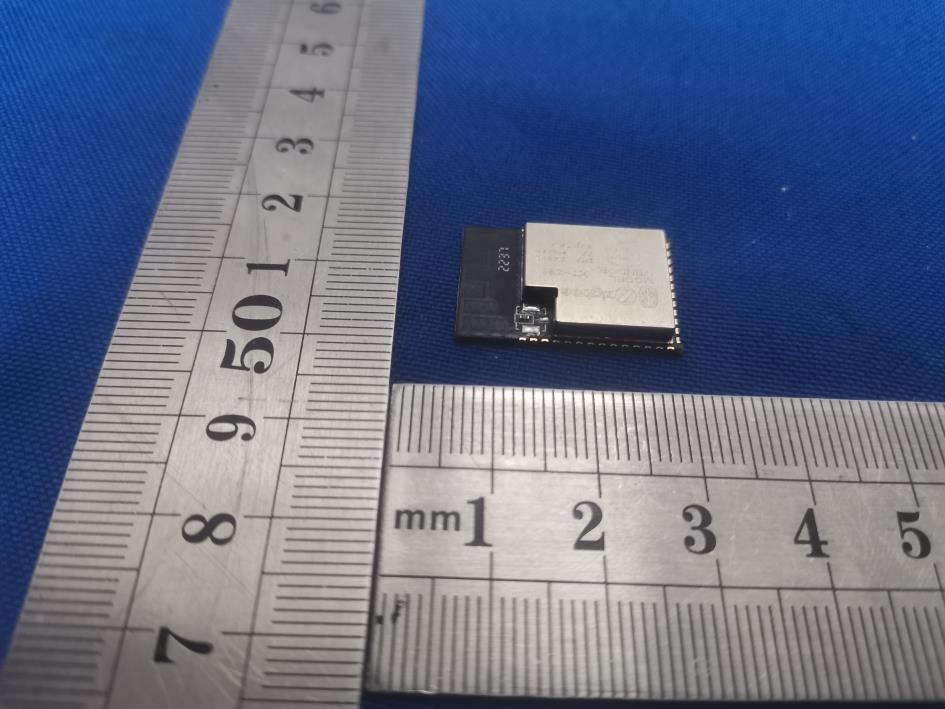

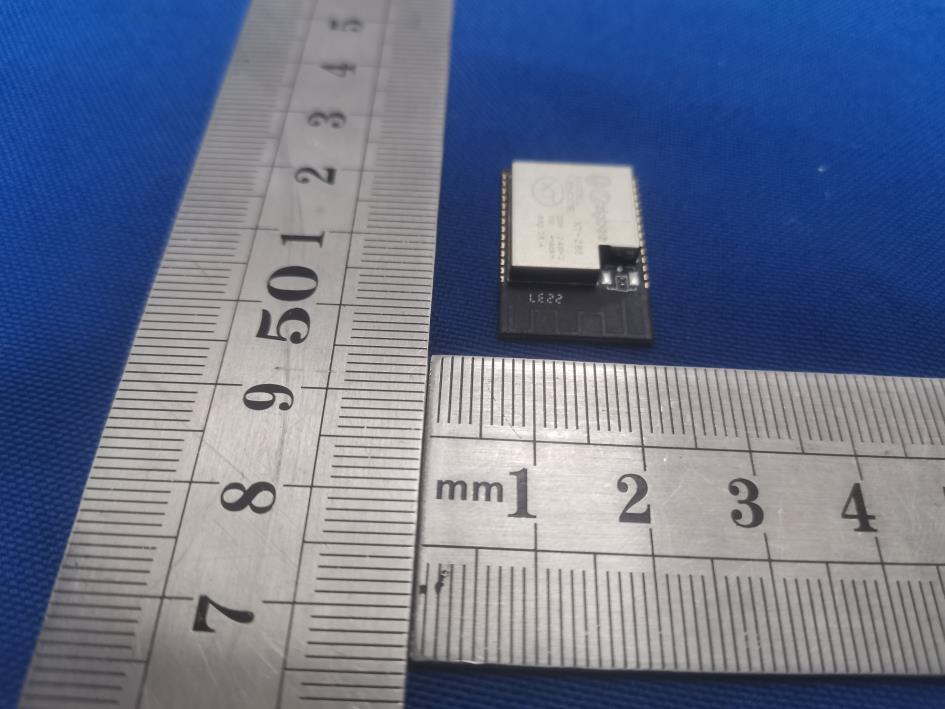

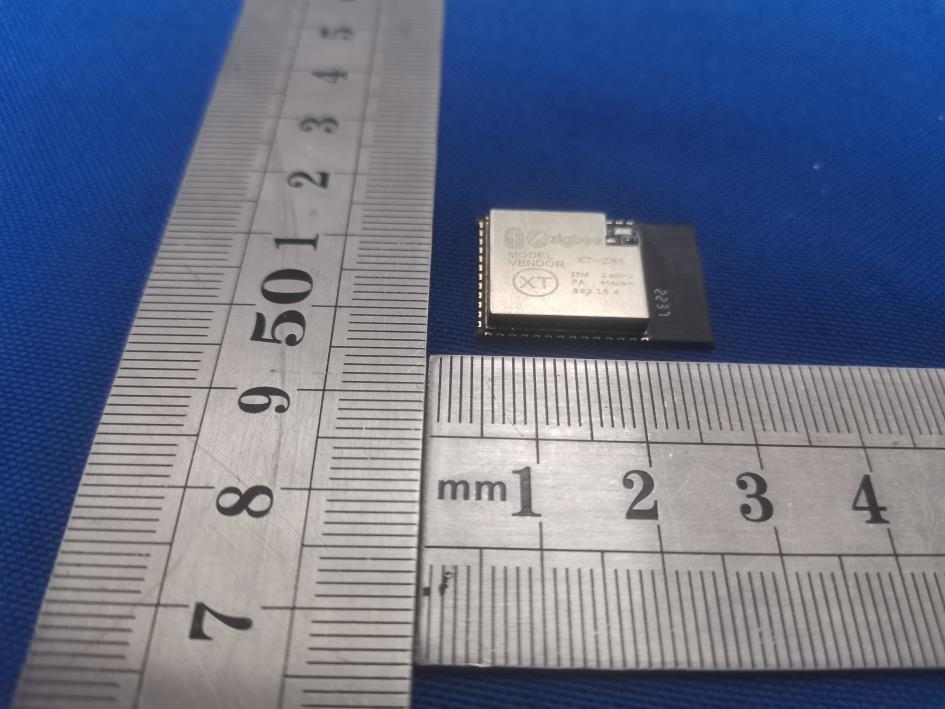

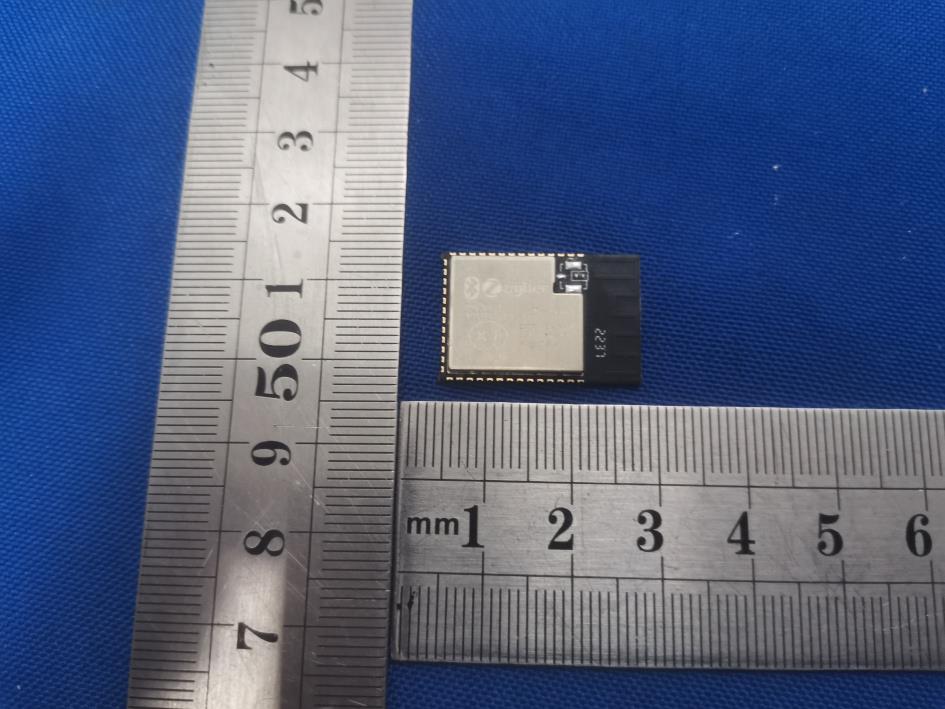

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 3 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 3 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 3

Model: XT-ZB6 FCC ID: 2AL3B-XT-ZB6 Label Location

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Internal Photos ANT

普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. Antenna Test Report For XT-ZB6 Customer 深圳四博智联科技有限公司 Project XT-ZB6 Band 2.4G Color 黑色 PRS PN Version V1.0 Issued by Jason Checked by Mem Confirmed by Zhang Date 2018.06.27 一．TEST INSTRUMENTATION CHAMBER SATIMO Chamber Wireless Networking Test Set Agilent 8960 5515C NETWORK ANALYZER Agilent 8753D TEMPERATURE 20±2°C HUMIDITY 50±20%rh 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. XT-ZB6 Module Antenna Dimension for XT-ZB6 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. 二. Definitions VSWR：Voltage Standing Wave Rate TRP：total radiated power TIS： total istropic sensitivity 主天线驻波比: 2.4G VSWR 1.1 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. 主天线无源效率测试 Freq (MHz) Effi (%) Gain (dBi) 2400 30.91 -1.2 2410 30.74 -1.21 2420 31.4 -1.18 2430 32.06 -1.18 2440 32.66 -1.24 2450 33.14 -1.37 2460 33.31 -1.48 2470 33.49 -1.49 2480 33.81 -1.08 2490 33.79 -0.79 2500 33.38 -0.96 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public. 无源方向图： 普尔信通讯科技(深圳)有限公司 Percsson Communication Equipment Co., Ltd This test report belongs to PERCSSON COMMUNICATION EQUIPMENT CO.LTD. and related clients to file,please keeping it propely,without our company and related clients allowed,anybody has no rights to reval it to public.

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AL3B-XT-ZB6 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation BT+ ZigBee supported simultaneous transmission: BLE+ ZigBee: ∑MPE Ratio =0.0031+0.0031 =0.0062≤1, So passed. Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE GFSK& MCH 12±1 13 19.9526 0.7798 (-1.08dBi) 0.0031 1 Pass ZigBee O-QPSK &MCH 12±1 13 19.9526 0.7798 (-1.08dBi) 0.0031 1 Pass

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101023RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 35 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Not e: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: ZigBee+BLE Module FCC ID: 2AL3B-XT-ZB6 Trademark: Model Number: XT-ZB6 Prepared For: ShenZhen Doctors of Intelligence & Technology Co., Ltd. Address: 903, 904, Building A, Building 8, International Innovation Valley, Second Dashi Road, Xili, Nanshan District, Shenzhen, China Manufacturer: Shenzhen Star Link Technology Co., LTD Address: Floor 2, Building D, Kejitong Industrial Zone, Fuhai Street, Bao 'an District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, China. Sample Received Date: Oct. 21, 2022 Sample tested Date: Oct. 21, 2022 to Nov. 07, 2022 Issue Date: Nov. 07, 2022 Report No.: CTB221101023RFX Te s t Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101023RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 35 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 14 7.1 Block Diagram Of Test Setup ......................................................................................................... 14 7.2 Limit ................................................................................................................................................ 14 7.3 Test procedure ............................................................................................................................... 15 7.4 Test Result ..................................................................................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 23 8.1 Block Diagram Of Test Setup ......................................................................................................... 23 8.2 Limit ................................................................................................................................................ 23 8.3 Test procedure ............................................................................................................................... 23 8.4 Test Result ..................................................................................................................................... 24 9. COUDUCTED OUTPUT POWER .........................…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 35 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director N ote: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: ZigBee+BLE Module FCC ID: 2AL3B-XT-ZB6 Trademark: Model Number: XT-ZB6 Prepared For: ShenZhen Doctors of Intelligence & Technology Co., Ltd. Address: 903, 904, Building A, Building 8, International Innovation Valley, Second Dashi Road, Xili, Nanshan District, Shenzhen, China Manufacturer: Shenzhen Star Link Technology Co., LTD Address: Floor 2, Building D, Kejitong Industrial Zone, Fuhai Street, Bao 'an District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, China. Sample Received Date: Oct. 21, 2022 Sample tested Date: Oct. 21, 2022 to Nov. 07, 2022 Issue Date: Nov. 07, 2022 Report No.: CTB221101024RFX Te s t Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is zigbee radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 35 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 14 7.1 Block Diagram Of Test Setup ......................................................................................................... 14 7.2 Limit ................................................................................................................................................ 14 7.3 Test procedure ............................................................................................................................... 15 7.4 Test Result ..................................................................................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 23 8.1 Block Diagram Of Test Setup ......................................................................................................... 23 8.2 Limit ................................................................................................................................................ 23 8.3 Test procedure ............................................................................................................................... 23 8.4 Test Result ..................................................................................................................................... 24 9. COUDUCTED OUTPUT POWER ............................…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Radiated Emission Below 1G Above 1G Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB221101024RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
