2AL3T-WB800DWiFi Module

Guangzhou Shikun Electronic Technology Company Limited SPECIFICATION SKI.WB800D.3 B21495 IEEE 802.11a/b/g/n/ac/ax 1T1R Wi-Fi Module Integrated BT 5.2 Approved by Shikun Checked byRechecked byApproved by Hao XuGuitian LvAaron Wu Please send the original back to us after you have approved and signed. Approved by customer CommentsApproved byCompany’s seal Customer’s Name: REVISIONHISTORY. VERSIONDATEBOARDIDPAGEDESCRIPTIONAUTHOR V0 .02021.6.16 SKI.WB800D.3A（21175） AllFirst IssuedFan V1.02021.9.7SKI.WB800D.3B(21272)All Modifymoduleblockdiagram, Bluetoothpower,physicaldiagram Fan V1.12021.11.24SKI.WB800D.3B(21272)All Addreferenceschematics,furnace temperaturemarks,reliabilitystandards Fan V1.22022.08.23SKI.WB800D.3B(21495)All Addedthedescriptionof power configuration Fan SKI.WB800D.3 1 Content 1. Introduction......................................................................................1 2. Features...........................................................................................1 3. Block Diagram...................................................................................2 4. Package Outline and Mounting.............................................................2 5. Pin Definition.................................................................................... 3 6. Product Pictures................................................................................ 4 7. Key Materials....................................................................................4 8. General Requirements..........................................................................................................4 9. Electrical Characteristics......................................................................................................6 9.1 IEEE 802.11b Section(2.4GHz)..............................................................................6 9.2 IEEE 802.11g Section(2.4GHz)......................................................................................6 9.3 IEEE 802.11n HT20/40 Section(2.4GHz)...................................................................7 9.4 IEEE 802.11ax HE20/40 Section(2.4GHz).................................................................8 9.5 IEEE 802.11a Section(5GHz).................................................................................. 9 9.6 IEEE 802.11n HT20/40 Section(5GHz).............................................................10 9.7 IEEE 802.11ac VHT20/40 Section(5GHz)........................................................ 11 9.8 IEEE 802.11ax HE20/40 Section(5GHz)...........................................................12 9.9 Bluetooth Section.......................................................................................................13 10. Reference Design............................................................................................................... 14 10.1 Timing specification................................................................................................14 10.2 DC Electrical Characteistics.................................................................................14 10.3 Reference schematic..............................................................................................15 11. Mechanical,Environmental and Reliability Tests....................................................15 12. Package..................................................................................................................................17 13. Storage and Production...................................................................................................18 13.1Storage requirements.............................................................................................. 18 13.2 Production parameters..........................................................................................18 SKI.WB800D.3 1 1. Introduction SKI.WB800D.3 module is based on AICSEMI AIC8800D solution.SKI.WB800D.3 is a Wi-Fi 6 / BT 5.2 combo low-power, high-performance and high-integrated wireless communication module，which is designed for meeting the customers’ needs of small size and low cost. This module supports both WLAN and BT functions. Its WLAN/BT function supports the USB 2.0 interface, and the module meets the requirements of standard protocol IEEE 802.11 b/g/n/ax. Such units as power management, power amplifier and low-noise amplifier are integrated in the main chip of the module.This documentation describes the engineering requirements specification. 2. Features Protocol IEEE Std. 802.11b/g/a/n/ac/ax BT 5.2 Chip Solution AIC8800D Band 2.4GHz：2400~2483.5MHz 5GHz:B1:5150~5250MHzB2:5250~5350MHz B3:5350~5470MHzB4:5745~5825MHz Bandwidth 20MHz/40MHz Dimensions 19mm×17mm×3.2mm Remark model Install way Supported Standards Data ratefrequency band antenna interface rema rk SKI.WB800D.3SMDIEEE 802.11a/b/g/n/ac/ax229Mbps2.4GHz/5GHz Stamp hole *2 SKI.WB800D.3 2 3. Block Diagram Figure 1 SKI.WB800D.3 Block Diagram 4. Package Outline and Mounting SKI.WB800D.3 3 5. Pin Definition PINSYMBOLDESCRIPTION 1LEDLED0 2AGNDGround 3MAINWi-Fi RF port0(2.4G+5G)connect to external antenna 4AGNDGround 5AUXWi-Fi RF port1(BT)connect to external antenna 6AGNDGround 7BT_DIS BT Disable，L Active 8WL_DIS WIFI Disable，L Active 9VDD333.3V input 10AGNDGround 11WL_USB_DMWLAN USB2.0 DM Signal 12WL_USB_DPWLAN USB2.0 DP Signal 13AGNDGround 14PDN Power Down，L Active 15D_WAKE_H WIFI Device Wake Host，L Active 16H_WAKE_D Host Wake WIFI Device，L Active 170_TXWIFI&BT Uart0_TX 180_RXWIFI&BT Uart0_RX 191_TXBT Uart1_TX 201_RXBT Uart1_TX 17 18 19 20 SKI.WB800D.3 4 6. Product Pictures top view bottom view Screen printing description: (1) The character in the red box is the PCB model of the product; (2) The characters in the yellow box are the product cycle number; (3) Other characters are non-key characters and do not need to be controlled 7. Key Materials serial number Key namemodel Specifications/ Materials remark 1 integrated circ…

Text truncated - open the document above for the full version.

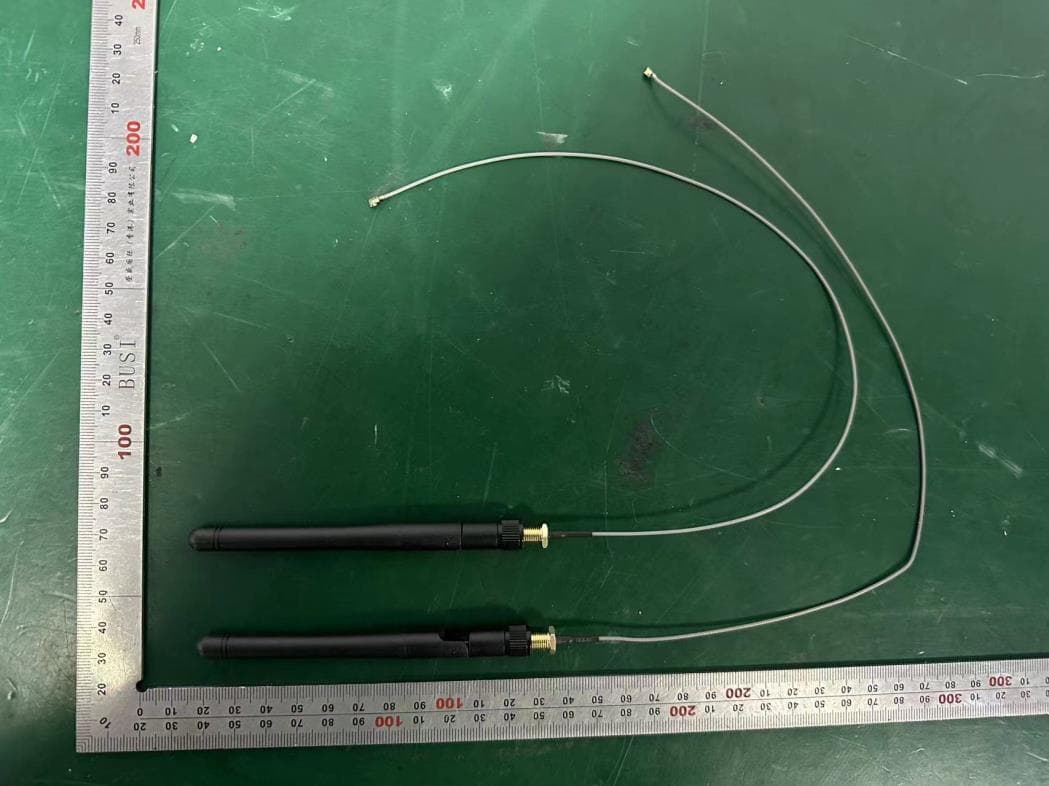

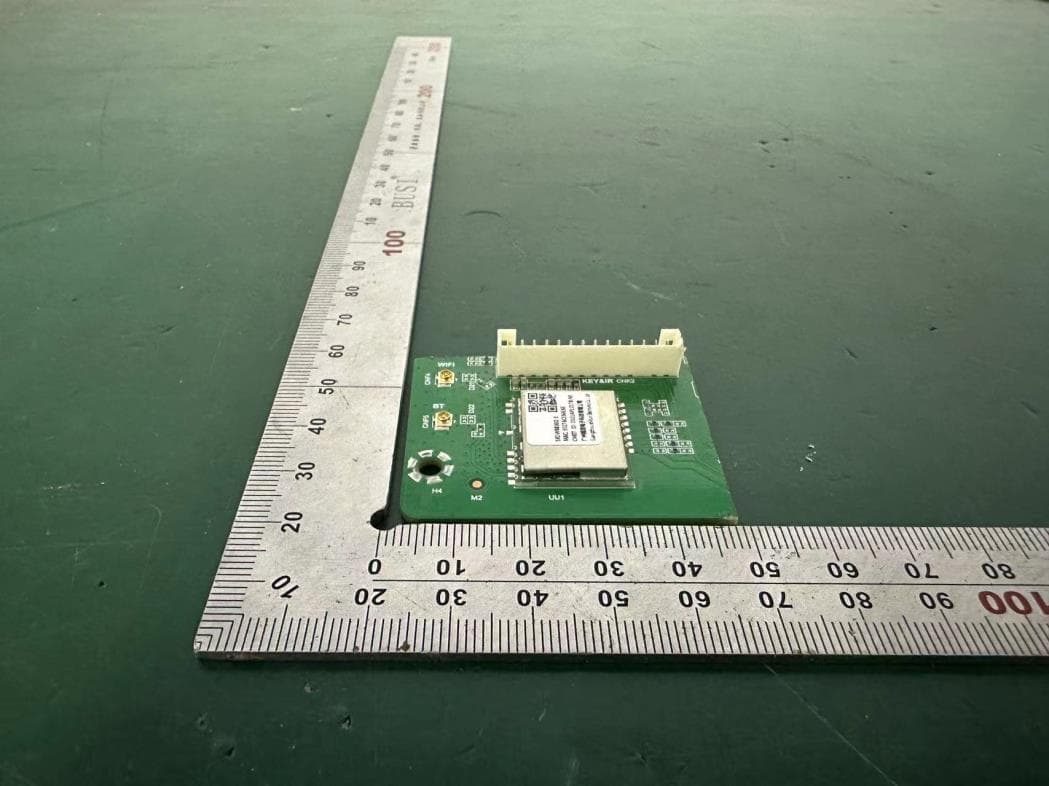

External photos M/N: WB800D External photos M/N: WB800D External photos M/N: WB800D External photos M/N: WB800D

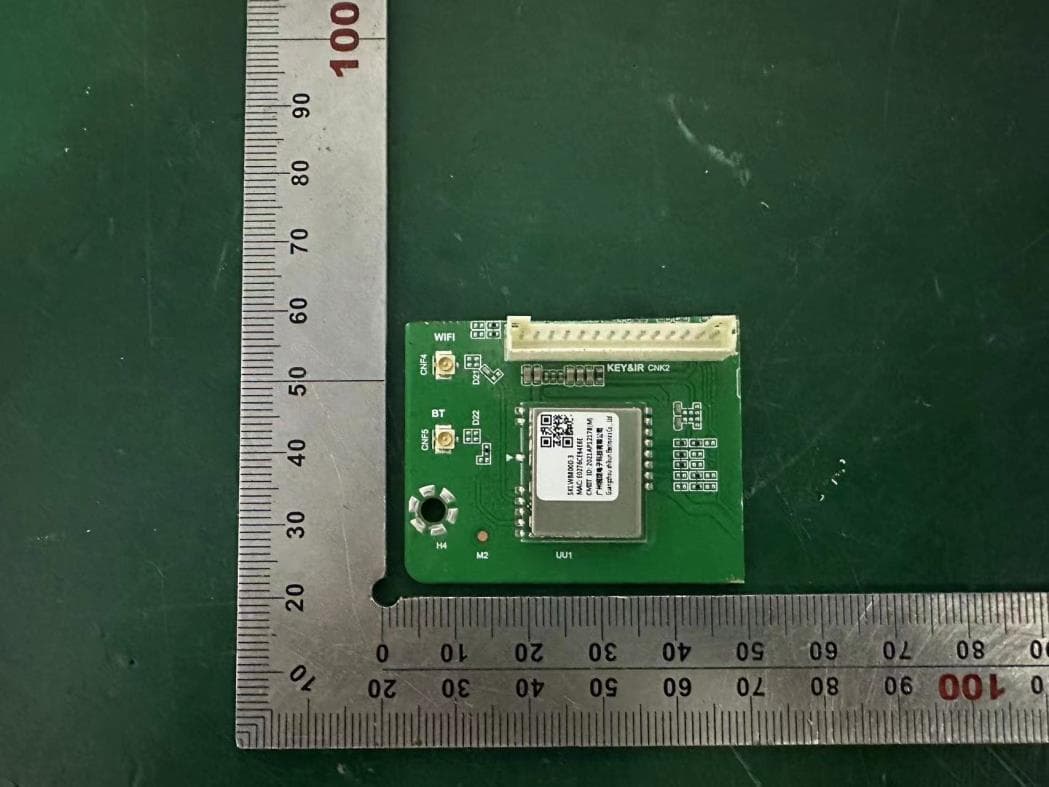

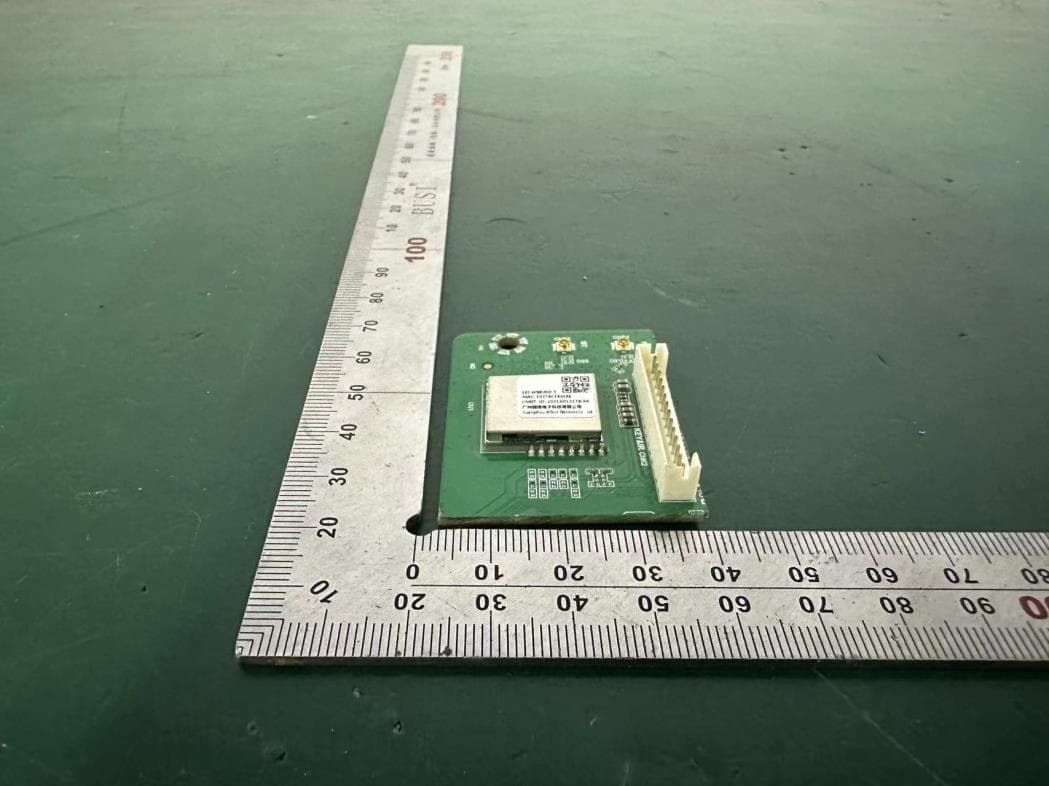

Internal photos M/N: WB800D

FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 1 of 8 FCC 47 CFR MPE REPORT PDi Communication Systems, Inc. WiFi Module Model Number: WB800D FCC ID: 2AL3T-WB800D Applicant: PDi Communication Systems, Inc. Address: 40 Greenwood Lane, Springboro, Ohio, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2306040 Date of Test: Apr. 04~Jun. 07, 2023 Date of Report: Jun. 09, 2023 FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 2 of 8 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 3 of 8 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 4 of 8 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 7.36 5.445 2441 7.35 5.433 2480 6.85 4.842 π/4-DQPSK 2402 7.53 5.662 2441 7.28 5.346 2480 6.83 4.819 8-DPSK 2402 7.76 5.970 2441 7.52 5.649 2480 7.21 5.260 BLE 1M 2402 7.84 6.081 2440 7.43 5.534 2480 7.22 5.272 BLE 2M 2402 7.92 6.194 2440 7.68 5.861 2480 7.42 5.521 IEEE 802.11b 2412 19.21 83.368 2437 18.91 77.804 2462 18.91 77.804 IEEE 802.11g 2412 21.65 146.218 2437 21.87 153.815 2462 21.69 147.571 IEEE 802.11n HT20 2412 21.79 151.008 2437 21.9 154.882 2462 21.67 146.893 IEEE 802.11n HT40 2422 21.33 135.831 2437 21.96 157.036 2452 21.95 156.675 IEEE 802.11ax HE20 2412 23.31 214.289 2437 23.35 216.272 2462 23.12 205.116 IEEE 802.11ax HE40 2422 22.45 175.792 2437 23.12 205.116 2452 23.05 201.837 IEEE 802.11a 5180 7.56 5.702 FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 5 of 8 5200 6.94 4.943 5240 7.61 5.768 5260 7.58 5.728 5300 7.75 5.957 5320 7.33 5.408 5500 9.39 8.690 5580 9.23 8.375 5700 7.88 6.138 5745 9.56 9.036 5785 7.47 5.585 5825 6.1 4.074 IEEE 802.11n HT20 5180 6.63 4.603 5200 6.86 4.853 5240 7.61 5.768 5260 7.51 5.636 5300 7.52 5.649 5320 7.16 5.200 5500 9.51 8.933 5580 9.27 8.453 5700 7.87 6.124 5745 9.59 9.099 5785 7.34 5.420 5825 5.98 3.963 IEEE 802.11ac VHT20 5180 6.52 4.487 5200 6.81 4.797 5240 7.22 5.272 5260 7.64 5.808 5300 7.43 5.534 5320 7.3 5.370 5500 9.2 8.318 5580 9.24 8.395 5700 7.87 6.124 5745 9.85 9.661 5785 7.48 5.598 5825 6.08 4.055 5180 8.19 6.592 5200 7.73 5.929 5240 8.41 6.934 FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 6 of 8 IEEE 802.11ax HE20 5260 8.68 7.379 5300 8.69 7.396 5320 8.26 6.699 5500 10.71 11.776 5580 10.25 10.593 5700 9.32 8.551 5745 10.1 10.233 5785 8.04 6.368 5825 6.9 4.898 IEEE 802.11n HT40 5190 6.9 4.898 5230 7.36 5.445 5270 7.8 6.026 5310 7.79 6.012 5510 9.83 9.616 5550 8.97 7.889 5670 8.79 7.568 5755 9.53 8.974 5795 7.47 5.585 IEEE 802.11ac VHT40 5190 6.72 4.699 5230 7.58 5.728 5270 7.81 6.039 5310 7.72 5.916 5510 9.98 9.954 5550 9.28 8.472 5670 8.63 7.295 5755 9.34 8.590 5795 7.4 5.495 IEEE 802.11ax HE40 5190 7.41 5.508 5230 8.62 7.278 5270 8.62 7.278 5310 8.64 7.311 5510 10.26 10.617 5550 9.79 9.528 5670 9.36 8.630 5755 10.12 10.280 5795 8.11 6.471 FCC ID: 2AL3T-WB800D EST Technology Co. ,Ltd Report No. ESTE-R2306040 Page 7 of 8 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW/cm2) Test Result (dBi) (Linear) 2.4G Band GFSK 7.36 8±1 9 4.82 3.034 0.0048 1 Complies π/4-DQPSK 7.53 7±1 8 4.82 3.034 0.0038 1 Complies 8-DPSK 7.76 7±1 8 4.82 3.034 0.0038 1 Complies BLE 1M 7.84 7±1 8 4.82 3.034 0.0038 1 Complies BLE 2M 7.92 7±1 8 4.82 3.034 0.0038 1 Complies IEEE 802.11b 19.21 19 ±1 20 4.82 3.034 0.0604 1 Complies IEEE 802.11g 21.87 21 ±1 22 4.82 3.034 0.0957 1 Complies IEEE 802.11n HT20 21.9 21 ±1 22 4.82 3.034 0.0957 1 Complies IEEE 802.11n HT40 21.96 21±1 22 4.82 3.034 0.0957 1 Complies IEEE 802.11ax HE20 23.35 23±1 24 4.82 3.034 0.1516 1 Complies IEEE 802.11ax HE40 23.12 23±1 24 4.82 3.034 0.1516 1 Complies 5G Band IEEE 802.11a 9.56 9 ±1 10 4.62 2.8973 0.0058 1 Complies IEEE 802.11n HT20 9.59 9 ±1 10 4.62 2.8973 0.0058 1 Complies IEEE802.11ac VHT20 9.85 9 ±1 10 4.62 2.8973 0.0058 1 Complies IEEE802.11ax HE20 10.71 10 ±1 11 4.62 2.8973 0.0073 1 Complies IEEE 802.11n HT40 9.83 9 ±1 10 4.62 2.8973 0.0058 1 Complies IEEE802.11ac VHT40 9.98 …

Text truncated - open the document above for the full version.

FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 1 of 223 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of PDi Communication Systems, Inc. WiFi Module Model Number: WB800D FCC ID: 2AL3T-WB800D Applicant : PDi Communication Systems, Inc. Address: 40 Greenwood Lane, Springboro, Ohio, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2306038 Date of Test: Apr. 04~Jun. 07, 2023 Date of Report: Jun. 09, 2023 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 2 of 223 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. The antenna information for EUT .................................................................................................... 6 1.3. Information of RF Cable .................................................................................................................. 6 2. SUMMARY OF TEST ......................................................................................................................... 7 2.1. Summary of test result ...................................................................................................................... 7 2.2. Test Facilities ................................................................................................................................... 8 2.3. Measurement uncertainty for EST Technology Co., Ltd. ................................................................ 9 2.4. Assistant equipment used for test ..................................................................................................... 9 2.5. Block Diagram ................................................................................................................................. 9 2.6. Test Mode ....................................................................................................................................... 10 2.7. Channel List ................................................................................................................................... 13 2.8. Power Setting of Test Software ...................................................................................................... 14 2.9. Duty Cycle of Test Signal .............................................................................................................. 15 2.10. Test Equipment List ....................................................................................................................... 16 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ...................................... 18 3.1. Limit ............................................................................................................................................... 18 3.2. Test Setup ....................................................................................................................................... 18 3.3. Spectrum Analyzer Setting ............................................................................................................. 18 3.4. Test Procedure ................................................................................................................................ 19 3.5. Test Result ...................................................................................................................................... 19 4. MAXIMUM CONDUCTED OUTPUT POWER ..................................................................................... 20 4.1. Limit ............................................................................................................................................... 20 4.2. Test Setup ....................................................................................................................................... 20 4.3. Spectrum Analyzer Setting ............................................................................................................. 20 4.4. Test Procedure ................................................................................................................................ 20 4.5. Test Result ...................................................................................................................................... 20 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 21 5.1. Limit ............................................................................................................................................... 21 5.2. Test Setup ....................................................................................................................................... 21 5.3. Spectrum Analyzer Setting ............................................................................................................. 21 5.4. Test Procedure ................................................................................................................................ 21 5.5. Test Result ...................................................................................................................................... 21 6. UNWANTED EMISSIONS AND BAND EDGE ..................................................................................... 22 6.1. Limit ............................................................................................................................................... 22 6.2. Test Setup .........................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 97 of 223 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 98 of 223 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 99 of 223 11AC40SISO_Ant1_5795 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 100 of 223 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 101 of 223 Appendix C: Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 25.440 5166.680 5192.120 --- --- 5200 24.480 5187.800 5212.280 --- --- 5240 25.080 5227.680 5252.760 --- --- 5260 25.400 5247.280 5272.680 --- --- 5300 25.560 5287.200 5312.760 --- --- 5320 24.720 5307.320 5332.040 --- --- 5500 25.200 5487.000 5512.200 --- --- 5580 24.960 5567.200 5592.160 --- --- 5700 24.680 5687.360 5712.040 --- --- 5745 25.720 5732.080 5757.800 --- --- 5785 24.960 5772.160 5797.120 --- --- 5825 24.680 5812.240 5836.920 --- --- 11N20SISO Ant1 5180 26.040 5166.960 5193.000 --- --- 5200 26.120 5186.800 5212.920 --- --- 5240 27.400 5226.600 5254.000 --- --- 5260 25.480 5247.600 5273.080 --- --- 5300 26.360 5287.000 5313.360 --- --- 5320 25.920 5307.240 5333.160 --- --- 5500 26.440 5487.120 5513.560 --- --- 5580 25.840 5567.040 5592.880 --- --- 5700 26.240 5686.320 5712.560 --- --- 5745 25.320 5732.000 5757.320 --- --- 5785 25.880 5771.720 5797.600 --- --- 5825 26.040 5811.560 5837.600 --- --- 11N40SISO Ant1 5190 49.520 5164.880 5214.400 --- --- 5230 47.120 5206.320 5253.440 --- --- 5270 48.320 5245.360 5293.680 --- --- 5310 48.640 5284.480 5333.120 --- --- 5510 46.880 5486.400 5533.280 --- --- 5590 47.440 5565.280 5612.720 --- --- 5670 48.160 5646.160 5694.320 --- --- 5755 47.280 5731.080 5778.360 --- --- 5795 48.480 5770.600 5819.080 --- --- 11AC20SISO Ant1 5180 26.000 5166.880 5192.880 --- --- 5200 26.520 5187.080 5213.600 --- --- 5240 26.520 5227.040 5253.560 --- --- 5260 25.280 5247.280 5272.560 --- --- 5300 25.200 5287.280 5312.480 --- --- 5320 26.280 5307.120 5333.400 --- --- 5500 26.000 5487.240 5513.240 --- --- 5580 26.240 5567.160 5593.400 --- --- 5700 25.720 5687.240 5712.960 --- --- 5745 25.920 5732.040 5757.960 --- --- 5785 26.400 5771.600 5798.000 --- --- 5825 26.640 5811.880 5838.520 --- --- 11AC40SISO Ant1 5190 47.280 5165.920 5213.200 --- --- 5230 46.400 5206.960 5253.360 --- --- 5270 47.120 5247.040 5294.160 --- --- 5310 47.040 5286.400 5333.440 --- --- 5510 47.840 5486.400 5534.240 --- --- 5590 47.520 5566.320 5613.840 --- --- 5670 48.160 5646.000 5694.160 --- --- 5755 47.440 5730.440 5777.880 --- --- 5795 48.240 5770.360 5818.600 --- --- 11AX20SISO Ant1 5180 24.880 5167.840 5192.720 --- --- FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 102 of 223 5200 23.920 5188.080 5212.000 --- --- 5240 25.120 5227.360 5252.480 --- --- 5260 25.840 5247.440 5273.280 --- --- 5300 26.200 5286.520 5312.720 --- --- 5320 25.160 5307.360 5332.520 --- --- 5500 25.680 5487.800 5513.480 --- --- 5580 25.040 5567.480 5592.520 --- --- 5700 25.360 5687.720 5713.080 --- --- 5745 25.560 5732.480 5758.040 --- --- 5785 26.160 5771.880 5798.040 --- --- 5825 24.840 5812.240 5837.080 --- --- 11AX40SISO Ant1 5190 45.280 5167.520 5212.800 --- --- 5230 45.680 5206.880 5252.560 --- --- 5270 45.600 5247.120 5292.720 --- --- 5310 45.440 5287.280 5332.720 --- --- 5510 46.000 5487.360 5533.360 --- --- 5590 45.760 5567.440 5613.200 --- --- 5670 44.400 5647.680 5692.080 --- --- 5755 45.040 5731.480 5776.520 --- --- 5795 45.440 5772.120 5817.560 --- --- FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 103 of 223 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 104 of 223 11A_Ant1_5260 11A_Ant1_5300 11A_Ant1_5320 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 105 of 223 11A_Ant1_5500 11A_Ant1_5580 11A_Ant1_5700 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 106 of 223 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 107 of 223 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 108 of 223 11N20SISO_Ant1_5260 11N20SISO_Ant1_5300 11N20SISO_Ant1_5320 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 109 of 223 11N20SISO_Ant1_5500 11N20SISO_Ant1_5580 11N20SISO_Ant1_5700 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 110 of 223 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 111 of 223 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11N40SISO_Ant1_5270 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 112 of 223 11N40SISO_Ant1_5310 11N40SISO_Ant1_5510 11N40SISO_Ant1_5590 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 113 of 223 11N40SISO_Ant1_5670 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 114 of 223 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 115 of 223 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5300 11AC20SISO_Ant1_5320 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 116 of 223 11AC20SISO_Ant1_5500 11AC20SISO_Ant1_5580 11AC20SISO_Ant1_5700

FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 117 of 223 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 118 of 223 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5270 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 119 of 223 11AC40SISO_Ant1_5310 11AC40SISO_Ant1_5510 11AC40SISO_Ant1_5590 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 120 of 223 11AC40SISO_Ant1_5670 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 121 of 223 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 122 of 223 11AX20SISO_Ant1_5260 11AX20SISO_Ant1_5300 11AX20SISO_Ant1_5320 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 123 of 223 11AX20SISO_Ant1_5500 11AX20SISO_Ant1_5580 11AX20SISO_Ant1_5700 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 124 of 223 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 11AX20SISO_Ant1_5825 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 125 of 223 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX40SISO_Ant1_5270 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 126 of 223 11AX40SISO_Ant1_5310 11AX40SISO_Ant1_5510 11AX40SISO_Ant1_5590 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 127 of 223 11AX40SISO_Ant1_5670 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 128 of 223 Appendix D: Occupied channel bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 17.025 5171.4456 5188.4706 --- --- 5200 17.097 5191.4134 5208.5104 --- --- 5240 17.255 5231.2715 5248.5265 --- --- 5260 17.238 5251.2727 5268.5107 --- --- 5300 17.285 5291.2379 5308.5229 --- --- 5320 17.092 5311.4247 5328.5167 --- --- 5500 17.220 5491.3504 5508.5704 --- --- 5580 17.056 5571.3853 5588.4413 --- --- 5700 17.176 5691.2916 5708.4676 --- --- 5745 17.260 5736.1917 5753.4517 --- --- 5785 17.243 5776.2483 5793.4913 --- --- 5825 17.225 5816.3186 5833.5436 --- --- 11N20SISO Ant1 5180 18.352 5170.7814 5189.1334 --- --- 5200 18.355 5190.8343 5209.1893 --- --- 5240 18.349 5230.8168 5249.1658 --- --- 5260 18.321 5250.8206 5269.1416 --- --- 5300 18.365 5290.7569 5309.1219 --- --- 5320 18.384 5310.7888 5329.1728 --- --- 5500 18.351 5490.8149 5509.1659 --- --- 5580 18.308 5570.7960 5589.1040 --- --- 5700 18.419 5690.7239 5709.1429 --- --- 5745 18.407 5735.6969 5754.1039 --- --- 5785 18.337 5775.7268 5794.0638 --- --- 5825 18.326 5815.7551 5834.0811 --- --- 11N40SISO Ant1 5190 37.409 5171.2744 5208.6834 --- --- 5230 37.421 5211.3148 5248.7358 --- --- 5270 37.242 5251.3103 5288.5523 --- --- 5310 37.431 5291.1407 5328.5717 --- --- 5510 37.456 5491.3351 5528.7911 --- --- 5590 37.416 5571.1701 5608.5861 --- --- 5670 37.174 5651.2772 5688.4512 --- --- 5755 37.453 5735.9318 5773.3848 --- --- 5795 37.539 5776.0096 5813.5486 --- --- 11AC20SISO Ant1 5180 18.368 5170.8350 5189.2030 --- --- 5200 18.417 5190.8534 5209.2704 --- --- 5240 18.337 5230.8439 5249.1809 --- --- 5260 18.360 5250.7955 5269.1555 --- --- 5300 18.429 5290.7708 5309.1998 --- --- 5320 18.448 5310.7995 5329.2475 --- --- 5500 18.300 5490.8123 5509.1123 --- --- 5580 18.495 5570.7336 5589.2286 --- --- 5700 18.324 5690.7609 5709.0849 --- --- 5745 18.404 5735.7201 5754.1241 --- --- 5785 18.351 5775.7288 5794.0798 --- --- 5825 18.390 5815.7329 5834.1229 --- --- 11AC40SISO Ant1 5190 37.301 5171.3359 5208.6369 --- --- 5230 37.244 5211.4084 5248.6524 --- --- 5270 37.196 5251.3894 5288.5854 --- --- 5310 37.200 5291.2830 5328.4830 --- --- 5510 37.262 5491.3673 5528.6293 --- --- 5590 37.404 5571.2423 5608.6463 --- --- 5670 37.470 5651.1131 5688.5831 --- --- 5755 37.325 5736.0965 5773.4215 --- --- 5795 37.292 5776.1556 5813.4476 --- --- 11AX20SISO Ant1 5180 19.224 5170.3770 5189.6010 --- --- FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 129 of 223 5200 19.245 5190.3746 5209.6196 --- --- 5240 19.264 5230.3525 5249.6165 --- --- 5260 19.285 5250.3270 5269.6120 --- --- 5300 19.301 5290.2971 5309.5981 --- --- 5320 19.296 5310.3139 5329.6099 --- --- 5500 19.200 5490.3675 5509.5675 --- --- 5580 19.347 5570.2712 5589.6182 --- --- 5700 19.328 5690.2970 5709.6250 --- --- 5745 19.277 5735.3016 5754.5786 --- --- 5785 19.337 5775.2704 5794.6074 --- --- 5825 19.170 5815.3836 5834.5536 --- --- 11AX40SISO Ant1 5190 38.502 5170.6815 5209.1835 --- --- 5230 38.388 5210.7468 5249.1348 --- --- 5270 38.477 5250.6561 5289.1331 --- --- 5310 38.520 5290.6735 5329.1935 --- --- 5510 38.399 5490.8114 5529.2104 --- --- 5590 38.533 5570.6265 5609.1595 --- --- 5670 38.483 5650.7149 5689.1979 --- --- 5755 38.436 5735.5874 5774.0234 --- --- 5795 38.598 5775.5900 5814.1880 --- --- FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 130 of 223 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 131 of 223 11A_Ant1_5260 11A_Ant1_5300 11A_Ant1_5320 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 132 of 223 11A_Ant1_5500 11A_Ant1_5580 11A_Ant1_5700 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 133 of 223 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 134 of 223 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 135 of 223 11N20SISO_Ant1_5260 11N20SISO_Ant1_5300 11N20SISO_Ant1_5320 FCC ID: 2AL3T-WB800D EST Technology Co., Ltd Report No.ESTE-R2306038 Page 136 of 223 11N20SISO_Ant1_5500 11N20SISO_Ant1_5580 11N20SISO_Ant1_5700 FCC ID: 2AL…
