2AL54-M546Care Predict

FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CarePredict, Inc. Agent Authorization Company: CarePredict, Inc. Address: 324 S. University Dr Plantation, Florida 33324 USA Product Name: Care Predict Trade Mark: N/A Model Number(s): M546 FCC ID: 2AL54-M546 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-12-15 Name: Satish Movva Title: C.E.O Company: CarePredict, Inc.

CarePredict, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-12-15 Subject; Request for Confidentiality FCC ID: 2AL54-M546 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Satish Movva / C.E.O Company: CarePredict, Inc. Address: 324 S. University Dr Plantation, Florida 33324 USA Phone: (800) 608-7188 500 Fax: / E-Mail: [email protected]

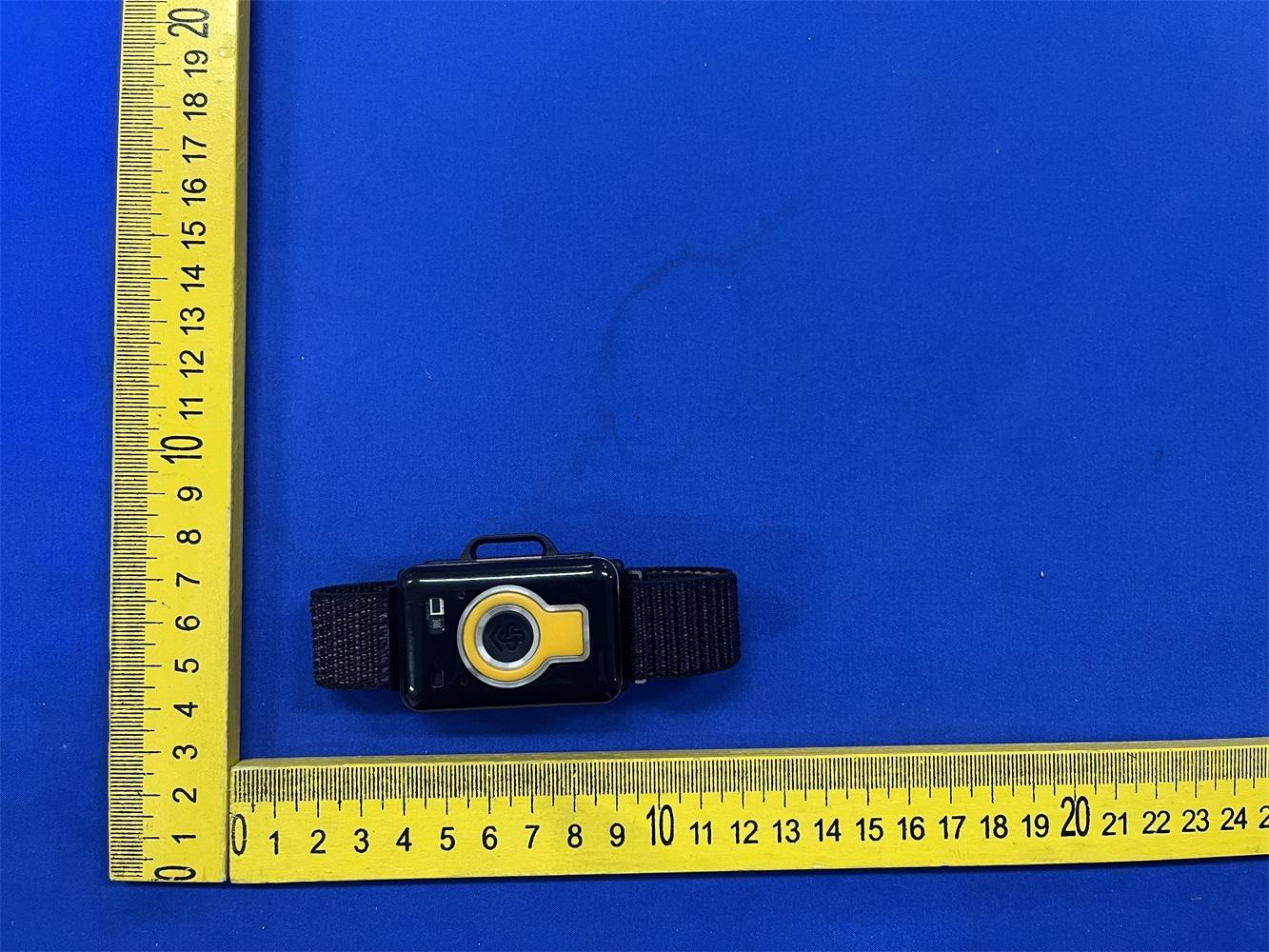

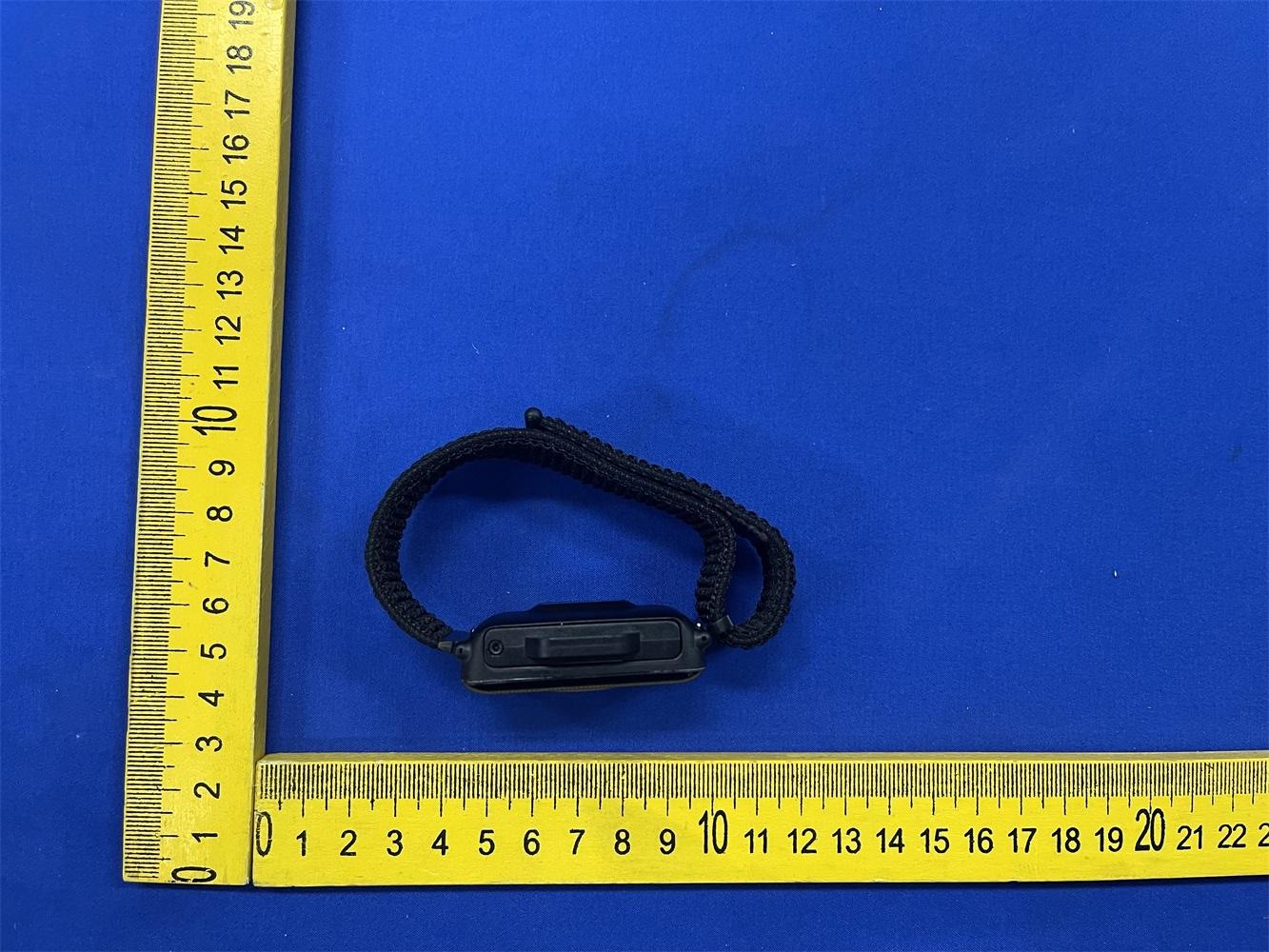

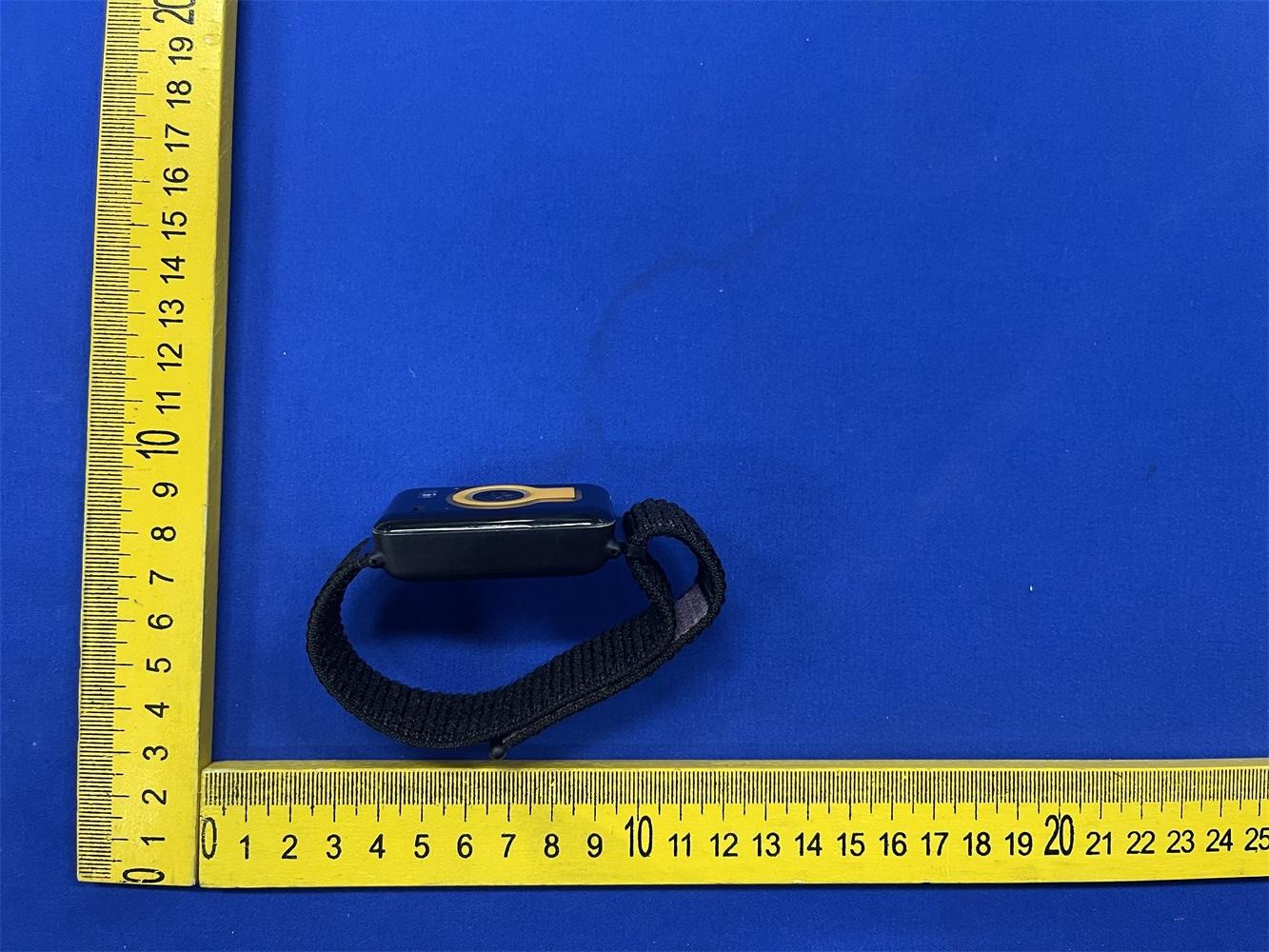

FCC ID: 2AL54-M546 Fig. 1 Fig. 2 FCC ID: 2AL54-M546 Fig. 3 Fig. 4 FCC ID: 2AL54-M546 Fig. 5 Fig. 6 FCC ID: 2AL54-M546 Fig. 7

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L 1.5cm x 0.7cm) Label Location FCC ID: 2AL54-M546

FCC ID: 2AL54-M546 Fig. 1 Fig. 2 FCC ID: 2AL54-M546 Fig. 3 Fig. 4 Antenna FCC ID: 2AL54-M546 Fig. 5 Fig. 6 FCC ID: 2AL54-M546 Fig. 7 Fig. 8 FCC ID: 2AL54-M546 Fig. 9 Fig. 10

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. .................... : FCC ID. ............................................ : GTS20221019011-1-7 2AL54-M546 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Dec.08, 2022 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................. : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : CarePredict, Inc. Address ............................................. : 324 S. University Dr Plantation, Florida 33324 USA Test specification .......................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Care Predict Trade Mark ....................................... : N/A Manufacturer ..................................... : Kinglisheng(Shenzhen) Electronic & Technology Co.,Limited Model/Type reference ....................... : M546 Listed Models ................................... : N/A Exposure category ............................ : General population/uncontrolled environment EUT Type .......................................... : Portable Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.8V by battery Result ................................................ : PASS Report No.: GTS20221019011-1-7 Page 2 of 10 T E S T R E P O R T Test Report No. : GTS20221019011-1-7 Dec.08, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Care Predict Model /Type : M546 Listed model : N/A Applicant : CarePredict, Inc. Address : 324 S. University Dr Plantation, Florida 33324 USA Manufacturer : Kinglisheng(Shenzhen) Electronic & Technology Co.,Limited Address : 2F, Building 4, Shayi Beifang Yongfa Technology Park, Xinhe Road, Gonghe Community, Shajing Street Baoan District, Shenzhen City, China, Zip code: 518104 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221019011-1-7 Page 3 of 10 Contents 1. S U M M A R Y .................................................................................. 4 1.1. EUT configuration ....................................................................................................................................... 4 1.2. Product Description .................................................................................................................................... 4 2. T E S T E N V I R O N M E N T ................................................................... 5 2.1. Address of the test laboratory ................................................................................................................... 5 2.2. Test Facility .................................................................................................................................................. 5 2.3. Environmental conditions .......................................................................................................................... 5 2.4. Statement of the measurement uncertainty ............................................................................................. 5 3 . M E T H O D O F M E A S U R EM E N T ......................................................... 6 3.1. Applicable Standard .................................................................................................................................... 6 3.2. Evaluation Method and Limit...................................................................................................................... 6 4. C O N D U C T E D P O W E R R E S U L T S ...................................................... 7 5. M A N U F A C T U R I N G T O L E R ANCE ...................................................... 8 6 . E V A L U A T I O N R E S U L TS ................................................................ 9 6.1. Standalone Evaluation ................................................................................................................................ 9 7. C O N C L U S I O N ............................................................................ 10 Report No.: GTS20221019011-1-7 Page 4 of 10 1. S U M M A R Y 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Adapter Length (m) : 0.4m Shield : Non-Shielded Detachable : Non- Detachable 1.2. Product…

Text truncated - open the document above for the full version.

1. Antenna Profile 2. Antenna Performance Test 3. Antenna Passive Test 4. Assembly Drawing Tester : Xiang Zhirong Approval : Chen Guoqiang Date : 2022 / 09 / 29 1. Antenna Profile Agilent E5071B S Paramet er Test // WiFi （2.4G） 2. Antenna Performance Test 3. Antenna Passive Test Passive Test For WiFi(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 240033.91-4.7-1.03 241034.29-4.65-1 242034.22-4.66-1.17 243031.97-4.95-1.61 244030.81-5.11-1.9 245030.15-5.21-2.08 246028.44-5.46-2.41 247027.52-5.6-2.62 248027.41-5.62-2.64 249028.51-5.45-2.47 250028.37-5.47-2.46

Case No. : GTS20221019011-1-6 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.10.28 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.512 2401.680 2402.192 0.5 PASS 2440 0.640 2439.680 2440.320 0.5 PASS 2480 0.504 2479.680 2480.184 0.5 PASS Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0478 2401.489 2402.537 --- --- 2440 1.0468 2439.487 2440.533 --- --- 2480 1.0532 2479.486 2480.540 --- --- Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 -3.94 ≤30 PASS 2440 -1.71 ≤30 PASS 2480 -1.83 ≤30 PASS Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -23.03 ≤8.00 PASS 2440 -14.9 ≤8.00 PASS 2480 -20.86 ≤8.00 PASS Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 -4.32 -49.8 ≤-24.32 PASS High 2480 -2.07 -49.05 ≤-22.07 PASS Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference -4.50 -4.50 --- PASS 30~1000 -4.50 -60.28 ≤-24.5 PASS 1000~26500 -4.50 -47.39 ≤-24.5 PASS 2440 Reference -3.08 -3.08 --- PASS 30~1000 -3.08 -59.36 ≤-23.08 PASS 1000~26500 -3.08 -47.25 ≤-23.08 PASS 2480 Reference -2.71 -2.71 --- PASS 30~1000 -2.71 -59.92 ≤-22.71 PASS 1000~26500 -2.71 -47.71 ≤-22.71 PASS Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 BLE_Ant1_2480_1000~26500

Case No. : GTS20221019011-1-10 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.12.06 Test Engineer: Jenny zeng Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.040 2407.480 2416.520 0.5 PASS 2437 9.520 2432.000 2441.520 0.5 PASS 2462 9.560 2456.960 2466.520 0.5 PASS 11G Ant1 2412 16.400 2403.800 2420.200 0.5 PASS 2437 16.400 2428.800 2445.200 0.5 PASS 2462 16.400 2453.800 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.320 2403.440 2420.760 0.5 PASS 2437 17.320 2428.440 2445.760 0.5 PASS 2462 17.080 2453.440 2470.520 0.5 PASS 11N40SISO Ant1 2422 32.640 2406.000 2438.640 0.5 PASS 2437 32.480 2421.000 2453.480 0.5 PASS 2452 32.880 2435.760 2468.640 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.331 2405.294 2418.625 --- --- 2437 13.298 2430.336 2443.634 --- --- 2462 13.478 2455.199 2468.677 --- --- 11G Ant1 2412 16.672 2403.688 2420.360 --- --- 2437 16.725 2428.711 2445.436 --- --- 2462 16.658 2453.701 2470.359 --- --- 11N20SISO Ant1 2412 17.487 2403.266 2420.753 --- --- 2437 17.453 2428.304 2445.757 --- --- 2462 17.416 2453.303 2470.719 --- --- 11N40SISO Ant1 2422 35.014 2404.643 2439.657 --- --- 2437 35.037 2419.605 2454.642 --- --- 2452 35.045 2434.582 2469.627 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[M Hz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 8.53 ≤30.00 PASS 2437 8.55 ≤30.00 PASS 2462 7.53 ≤30.00 PASS 11G Ant1 2412 8.15 ≤30.00 PASS 2437 8.18 ≤30.00 PASS 2462 8.47 ≤30.00 PASS 11N20SISO Ant1 2412 8.13 ≤30.00 PASS 2437 8.02 ≤30.00 PASS 2462 8.43 ≤30.00 PASS 11N40SISO Ant1 2422 8.25 ≤30.00 PASS 2437 7.65 ≤30.00 PASS 2452 7.53 ≤30.00 PASS Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -19.22 ≤8.00 PASS 2437 -17.74 ≤8.00 PASS 2462 -17.46 ≤8.00 PASS 11G Ant1 2412 -20.55 ≤8.00 PASS 2437 -18.65 ≤8.00 PASS 2462 -20.14 ≤8.00 PASS 11N20SISO Ant1 2412 -22.65 ≤8.00 PASS 2437 -18.74 ≤8.00 PASS 2462 -16.84 ≤8.00 PASS 11N40SISO Ant1 2422 -20.95 ≤8.00 PASS 2437 -20.48 ≤8.00 PASS 2452 -20.25 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix B.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 -5.34 -48.51 ≤-25.34 PASS High 2462 -7.57 -47.02 ≤-27.57 PASS 11G Ant1 Low 2412 -11.75 -47.87 ≤-31.75 PASS High 2462 -10.58 -47.1 ≤-30.58 PASS 11N20SISO Ant1 Low 2412 -12.11 -47.21 ≤-32.11 PASS High 2462 -9.51 -47.17 ≤-29.51 PASS 11N40SISO Ant1 Low 2422 -15.47 -47.04 ≤-35.47 PASS High 2452 -15.53 -46.7 ≤-35.53 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Appendix B.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -6.76 -6.76 --- PASS 30~1000 -6.76 -57.57 ≤-26.76 PASS 1000~26500 -6.76 -44.28 ≤-26.76 PASS 2437 Reference -6.00 -6.00 --- PASS 30~1000 -6.00 -58.67 ≤-26 PASS 1000~26500 -6.00 -45.05 ≤-26 PASS 2462 Reference -7.93 -7.93 --- PASS 30~1000 -7.93 -59.09 ≤-27.93 PASS 1000~26500 -7.93 -46.21 ≤-27.93 PASS 11G Ant1 2412 Reference -13.14 -13.14 --- PASS 30~1000 -13.14 -59.7 ≤-33.14 PASS 1000~26500 -13.14 -44.37 ≤-33.14 PASS 2437 Reference -12.67 -12.67 --- PASS 30~1000 -12.67 -60.14 ≤-32.67 PASS 1000~26500 -12.67 -45.2 ≤-32.67 PASS 2462 Reference -11.70 -11.70 --- PASS 30~1000 -11.70 -60.11 ≤-31.7 PASS 1000~26500 -11.70 -46.21 ≤-31.7 PASS 11N20SISO Ant1 2412 Reference -12.98 -12.98 --- PASS 30~1000 -12.98 -58.71 ≤-32.98 PASS 1000~26500 -12.98 -44.2 ≤-32.98 PASS 2437 Reference -13.40 -13.40 --- PASS 30~1000 -13.40 -60.73 ≤-33.4 PASS 1000~26500 -13.40 -45.45 ≤-33.4 PASS 2462 Reference -10.70 -10.70 --- PASS 30~1000 -10.70 -59.61 ≤-30.7 PASS 1000~26500 -10.70 -46.55 ≤-30.7 PASS 11N40SISO Ant1 2422 Reference -15.19 -15.19 --- PASS 30~1000 -15.19 -59.98 ≤-35.19 PASS 1000~26500 -15.19 -44.67 ≤-35.19 PASS 2437 Reference -15.63 -15.63 --- PASS 30~1000 -15.63 -59.63 ≤-35.63 PASS 1000~26500 -15.63 -45.3 ≤-35.63 PASS 2452 Reference -16.12 -16.12 --- PASS 30~1000 -16.12 -59.15 ≤-36.12 PASS 1000~26500 -16.12 -45.56 ≤-36.12 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : GTS20221019011-1-6 2AL54-M546 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Dec.08, 2022 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : CarePredict, Inc. Address ............................................ : 324 S. University Dr Plantation, Florida 33324 USA Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Care Predict Trade Mark ....................................... : N/A Manufacturer .................................... : Kinglisheng(Shenzhen) Electronic & Technology Co.,Limited Model/Type reference ...................... : M546 Listed Models .................................. : N/A Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.8V by battery Result ............................................... : PASS Report No.: GTS20221019011-1-6 Page 2 of 32 T E S T R E P O R T Test Report No. : GTS20221019011-1-6 Dec.08, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Care Predict Model /Type : M546 Listed model : N/A Applicant : CarePredict, Inc. Address : 324 S. University Dr Plantation, Florida 33324 USA Manufacturer : Kinglisheng(Shenzhen) Electronic & Technology Co.,Limited Address : 2F, Building 4, Shayi Beifang Yongfa Technology Park, Xinhe Road, Gonghe Community, Shajing Street Baoan District, Shenzhen City, China, Zip code: 518104 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221019011-1-6 Page 3 of 32 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. EUT Exercise Software .......................................................................................................................... 7 2.8. Special Accessories ............................................................................................................................... 7 2.9. External I/O Cable .................................................................................................................................. 7 2.10. Related Submittal(s) / Grant (s) ........................................................................................................... 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facility ............................................................................................................................................ 8 3.3. Environmental conditions ...........................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20221019011-1-10 2AL54-M546 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Dec.08, 2022 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : CarePredict, Inc. Address ............................................ : 324 S. University Dr Plantation, Florida 33324 USA Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Care Predict Trade Mark ....................................... : N/A Manufacturer .................................... : Kinglisheng(Shenzhen) Electronic & Technology Co.,Limited Model/Type reference....................... : M546 Listed Models .................................. : N/A Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.8V by battery Result................................................ : PASS Report No.: GTS20221019011-1-10 Page 2 of 27 T E S T R E P O R T Test Report No. : GTS20221019011-1-10 Dec.08, 2022 ____________________________________________________________________________________ Date of issue Equipment under Test : Care Predict Model /Type : M546 Listed model : N/A Applicant : CarePredict, Inc. Address : 324 S. University Dr Plantation, Florida 33324 USA Manufacturer : Kinglisheng(Shenzhen) Electronic & Technology Co.,Limited Address : 2F, Building 4, Shayi Beifang Yongfa Technology Park, Xinhe Road, Gonghe Community, Shajing Street Baoan District, Shenzhen City, China, Zip code: 518104 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221019011-1-10 Page 3 of 27 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode ..................................…

Text truncated - open the document above for the full version.
