2AL5X-DT2019209Remote control

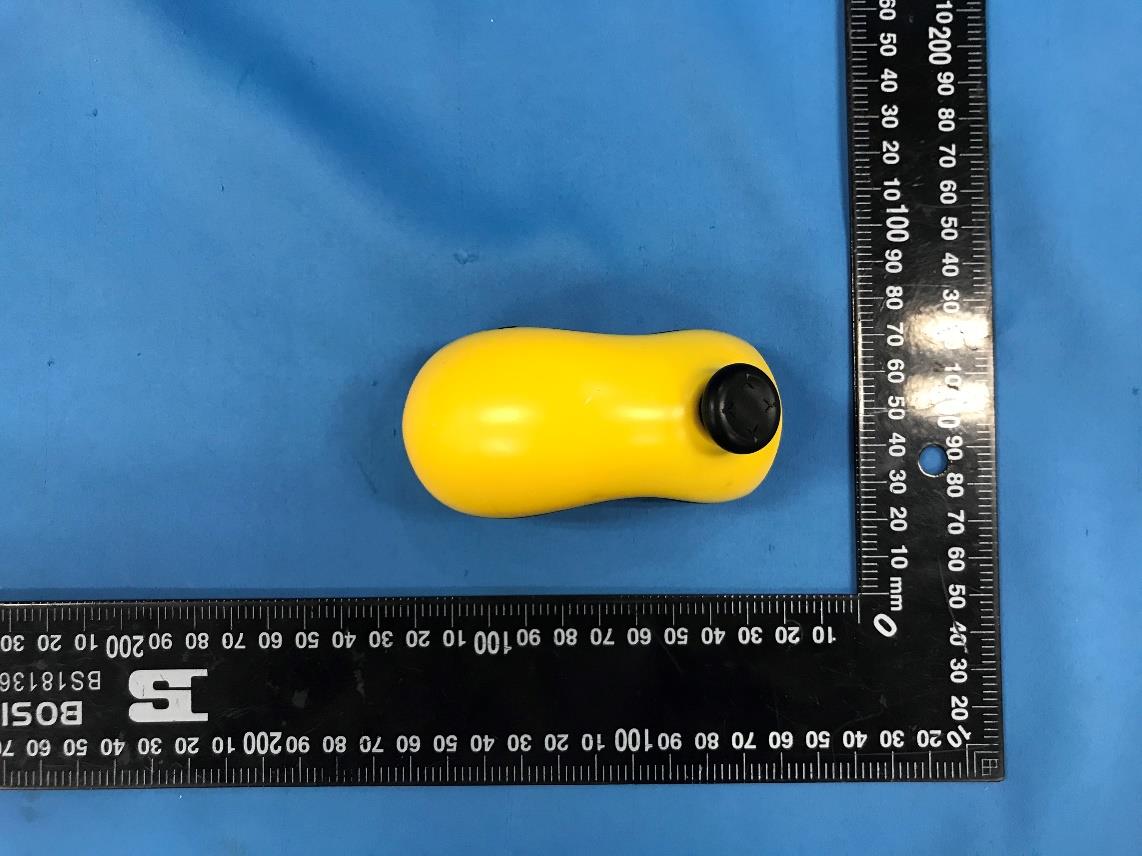

Report Number: 68.710.19.0471.01 Page 1 of 2 External Photos Details of: Outside view Details of: Outside view Report Number: 68.710.19.0471.01 Page 2 of 2 Details of: Battery box view

ID Label and label location Size= 4cm x 4cm

Report Number: 68.710.19.0471.01 Page 1 of 2 Internal Photos Details of: Inside view Details of: PCB view Report Number: 68.710.19.0471.01 Page 2 of 2 Details of: PCB view ANTENNA

Report Number: 68.710.19.0471.01A TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation 1. Introduction Applicant HangzhouTianyuan Pet Products Co.,Ltd Address No.10-1 Xingling Rd., XingQiao Town, Linping, Yuhang, 311100 Hangzhou, PEOPLE'S REPUBLIC OF CHINA Product Remote control FCC ID: 2AL5X-DT2019209 Model No.: DT2019209 Reference RF report #: 68.710.19.0471.01 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance v06, Mobile Portable RF Exposure, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 According to ANSI C63.10-2013 (9.5 Equations to calculate EIRP), Report Number: 68.710.19.0471.01A TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Field Strength (EMeas): 85.43 (dBuV/m) (f=2410MHz) Measurement Distance(dMeas): 3 (m) Equivalent Isotropically Radiated Power(EIRP): 0.106 (mW) Radiated Power + tune up tolerance = 0.106mW Distance = 5 mm f = 2.41 GHz [0.106/5] * SQRT(2.41) =0.033 0.033 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: Jessie He / EMC Project Manager Myron Yu / EMC Project Engineer Date: 2020-02-25 Date: 2020-02-25

Report Number: 68.710.19.0471.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 24 FCC - TEST REPORT Report Number:68.710.19.0471.01Date of Issue:March16,2020 Model:DT2019209 Product Type:Remote control Applicant:HangzhouTianyuan Pet Products Co.,Ltd Address:No.10-1 Xingling Rd., XingQiao Town, Linping, Yuhang, 311100 Hangzhou, PEOPLE'S REPUBLIC OF CHINA Production Facility:HangzhouTianyuan Pet Products Co.,Ltd Address:No.10-1 Xingling Rd., XingQiao Town, Linping, Yuhang, 311100Hangzhou, PEOPLE'S REPUBLIC OF CHINA Test Result:n Positiveo Negative Total pages including Appendices:24 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 68.710.19.0471.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 24 1 Table of Contents 1Table of Contents ........................................................................................................................................... 2 2Details about the Test Laboratory ................................................................................................................... 3 3Description of the Equipment under Test ........................................................................................................ 4 4Summary of Test Standards ........................................................................................................................... 5 5Summary of Test Results ................................................................................................................................ 6 6General Remarks ........................................................................................................................................... 7 7Test Setups .................................................................................................................................................... 8 8Technical Requirement ................................................................................................................................... 9 8.1Field strength of emissions and Out of band emissions ........................................................................... 9 8.2Bandedge ............................................................................................................................................. 14 8.320dB Bandwidth & 99% Occupied Bandwidth ........................................................................................ 19 9Test Equipment List ...................................................................................................................................... 23 10System Measurement Uncertainty............................................................................................................. 24 Report Number: 68.710.19.0471.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 24 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name:TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China FCC Registration Number: 514049 ISED#:10320A CAB identifier:CN0077 Telephone:86 755 8828 6998 Fax:86755 8828 5299 Report Number: 68.710.19.0471.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng W isdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 4 of 24 3 Description of the Equipment under Test Product/PMN:Remote control Model no./HVIN:DT2019209 FCC ID:2AL5X-DT2019209 Ratings:3.0VDC (2 x AAA battery), 36mW RF Transmission Frequency:2407.127MHz-2475.127MHz No. of Operated Channel:27 Modulation:O/QPSK Antenna Type:Integrated Antenna Antenna Gain:-2dBi Description of the EUT:The Equipment Under Test (EUT) is a Remote control supports 2.4GHz wireless technology. The TX range is2407.127MHz-2475.127MHz Report Number: 68.710.19.0471.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification an…
