2AL8MMISPUltimaker S5 Material Station with NFC connectivity

Ultimaker S5 Material Station Installation and user manual Ultimaker S5 Material Station user manual1 Table of contents 1. Safety and compliance 1.1 Safety messages 4 1.2 General safety information 4 1.3 Hazards 4 1.4 Health and safety 5 1.5 FCC / ISED regulatory notices 6 2. Introduction 2.1 Main components 8 2.2 Specifications 9 3. Installation 3.1 Unboxing 11 3.2 What’s in the box 11 3.3 Hardware installation 11 3.4 Firmware installation 12 3.5 Welcome setup 12 3.6 Loading filament 13 3.7 Ultimaker Cura 13 4. Operation 4.1 Operation recommendations 15 4.2 Material compatibility 15 4.3 Changing materials 15 4.4 Humidity control 16 5. Maintenance 5.1 Clean the Material Station 18 5.2 Dehumidifier 18 6. Troubleshooting 6.1 Error messages 20 6.2 Material Station not recognized 20 6.3 Material stuck 20 6.4 Grayed-out material 21 7. Warranty 7.1 General 23 7.2 Conditions 23 7.3 Notification 24 7.4 Exclusions 24 7.5 Applicable law and competent court 24 Ultimaker S5 Material Station user manual2 Disclaimer Please carefully read and understand the contents of this installation and user manual. Failure to read the manual may lead to personal injury, inferior results or damage to the Material Station, the Ultimaker S5 or its peripherals. Always make sure that anyone who uses this 3D printer knows and understands the contents of the manual to make the most out of the Ultimaker S5 Material Station. The Ultimaker S5 Material Station, together with the Ultimaker S5 Air Manager and the Ultimaker S5, form the Ultimaker S5 Pro Bundle. This user manual specifically describes the intended workflow and operation for the Material Station. First-time Ultimaker S5 users are advised to consult the Ultimaker S5 manual first. The conditions or methods used for assembling, handling, storage, use, or disposal of the device are beyond Ultimaker’s control and may be beyond its knowledge. For this and other reasons, Ultimaker does not assume responsibility and expressly disclaims liability for loss, injury, damage, or expense arising out of or in any way connected with the assembly, handling, storage, use, or disposal of the product. The information in this document was obtained from sources which Ultimaker believes are reliable. However, the information is provided without any warranty, express or implied, regarding its accuracy. Intended Use The Ultimaker S5 Material Station is designed and built for use in combination with the Ultimaker S5. The Ultimaker S5 Material Station delivers a more flexible, efficient, and reliable solution for material handling and storage on the Ultimaker S5. This is achieved by simplifying the 3D printing workflow, while improving the quality and success rate of single and dual extrusion 3D prints through humidity control and automatic material switching. Up to six spools can be loaded into the Ultimaker S5 Material Station. Both Ultimaker and third-party (composite) materials are compatible with the Material Station. 1. Safety and compliance Ultimaker S5 Material Station user manual4 1.1 Safety messages This guide contains warnings and safety notices. The information provided below is applicable to the combination of the Ultimaker S5 and the Material Station (“Ultimaker products”). Provides additional information that is helpful to do a task or to avoid problems. Warns of a situation that may cause material damage or injuries if the safety instructions are not followed. 1.2 General safety information The Material Station is designed for use with the Ultimaker S5. The following safety information is applicable: • The Ultimaker S5 generates high temperatures and has hot moving parts that can cause injury. Never reach inside of the Ultimaker S5 while it is in operation. Always control the printer with the touchscreen at the front or the power switch at the back. Allow the Ultimaker S5 to cool down for 5 minutes before reaching inside • Do not change or adjust any parts of the Ultimaker products unless the change or adjustment is authorized by the manufacturer • Do not store items inside Ultimaker products, except for compatible filament spools in the Material Station • Ultimaker products are not intended for use by persons with reduced physical and/or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instructions concerning the use of the appliance by a person responsible for their safety • Children should be under constant supervision when using Ultimaker products 1.3 Hazards Electrical safety Ultimaker products have been tested according to the IEC/UL 62368-1. All relevant products have undergone and passed Hi-pot testing before shipment. This test guarantees the right level of insulation against electrical shock. An earthed mains socket must be used. Be sure that the building installation has dedicated means for overcurrent and short-circuiting. For more information, please visit the Ultimaker website for the CB certificate. The printer is powered by mains voltage, which is hazardous when touched. This has been marked with a high-voltage symbol on the bottom cover. Only trained staff should remove the bottom cover. Always unplug Ultimaker products before performing maintenance or modifications. Mechanical safety Ultimaker products are compliant with the Machine Directive 2006/42/EU. The EC declaration of conformity can be found on the Ultimaker website. The Ultimaker S5 contains moving parts. No damage to the user will be expected from the drive belts. The force of the build plate is large enough to cause damage, so stay out of the reach of the build plate during operation. Always unplug Ultimaker products before performing maintenance or modifications. Ultimaker S5 Material Station user manual5 Risk of burns There is a potential risk of burns: the print head of the Ultimaker S5 can reach temperatures up to 280 °C, while the heated bed can reach temperatures of 140 °C. Do not touch either of these parts with your bare hands. Alway…

Text truncated - open the document above for the full version.

Date: 23/08/2022 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Agent letter for FCC ID: 2AL8MMISP We, Ultimaker B.V. Stationsplein 32, 3511 ED Utrecht The Netherlands hereby authorize DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucia Severo Ochoa, 2 & 6. 29590 Málaga (Spain) Mr. Antonio Olivares E-mail: [email protected] , Phone: +34 952 619 155 to act as our agent in the preparation of this application for equipment certification, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by DEKRA Testing and Certification, S.A.U., still resides with us. This agreement expires one year from the current date. Sincerely, __________________________ By: Yordanka Tchifligarova Title: Product Compliance Specialist Company: Ultimaker B.V. Telephone: +31 (0) 6 2366 2732 E-mail : [email protected]

Date: 23/08/2022 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Confidentiality request for FCC ID: 2AL8MMISP To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Ultimaker B.V. hereby requests that a part of the subject FCC application be held confidential to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Short Term Permanent SDR software and security information Permanent Confidentiality: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. Short-Term Confidentiality: We hereby request short-term confidentiality for the product stated above to avoid premature release of sensitive information prior to marketing or release of the product to the public. Release date of short-term confidentiality is: 45 days from grant date marked 90 days from grant date marked 135 days from grant date marked 180 days from grant date marked Specific date: We are also aware that we are responsible to notify DEKRA in the event information regarding the product or the product is made available to the public. DEKRA will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, __________________________ By: Yordanka Tchifligarova Title: Product Compliance Specialist Company: Ultimaker B.V. Telephone: +31 (0) 6 2366 2732 E-mail : [email protected]

SUPPLIER DECLARATION OF CONFORMITY This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product name: Apparatus Model: Ultimaker S5 Material Station Name of Responsible Party: Ultimaker USA Inc. Address of Responsible Party: 228 East 45th Street – Suite 9E, New York, New York, USA Contact Person: Jürgen von Hollen Phone No.: +1.617.714.4748 e-mail: [email protected] We, Ultimaker USA Inc., hereby declare that the equipment bearing the model number specified above, was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commissions requirements. Testing was carried out by an accredited testing facility with Designation Number ES0004. February-8, 2022 ----------------------------------- ------------------ Jürgen von Hollen / Director Date Auth: Scribble 10/02/2022 14:27:43 CET ID: 7aaece61-cb74-4b29-9134-6867ca370510 Signed By: Jürgen von Hollen <[email protected]> DocuSign Envelope ID: 5868B7EC-65A4-4832-9777-D40612FA737D

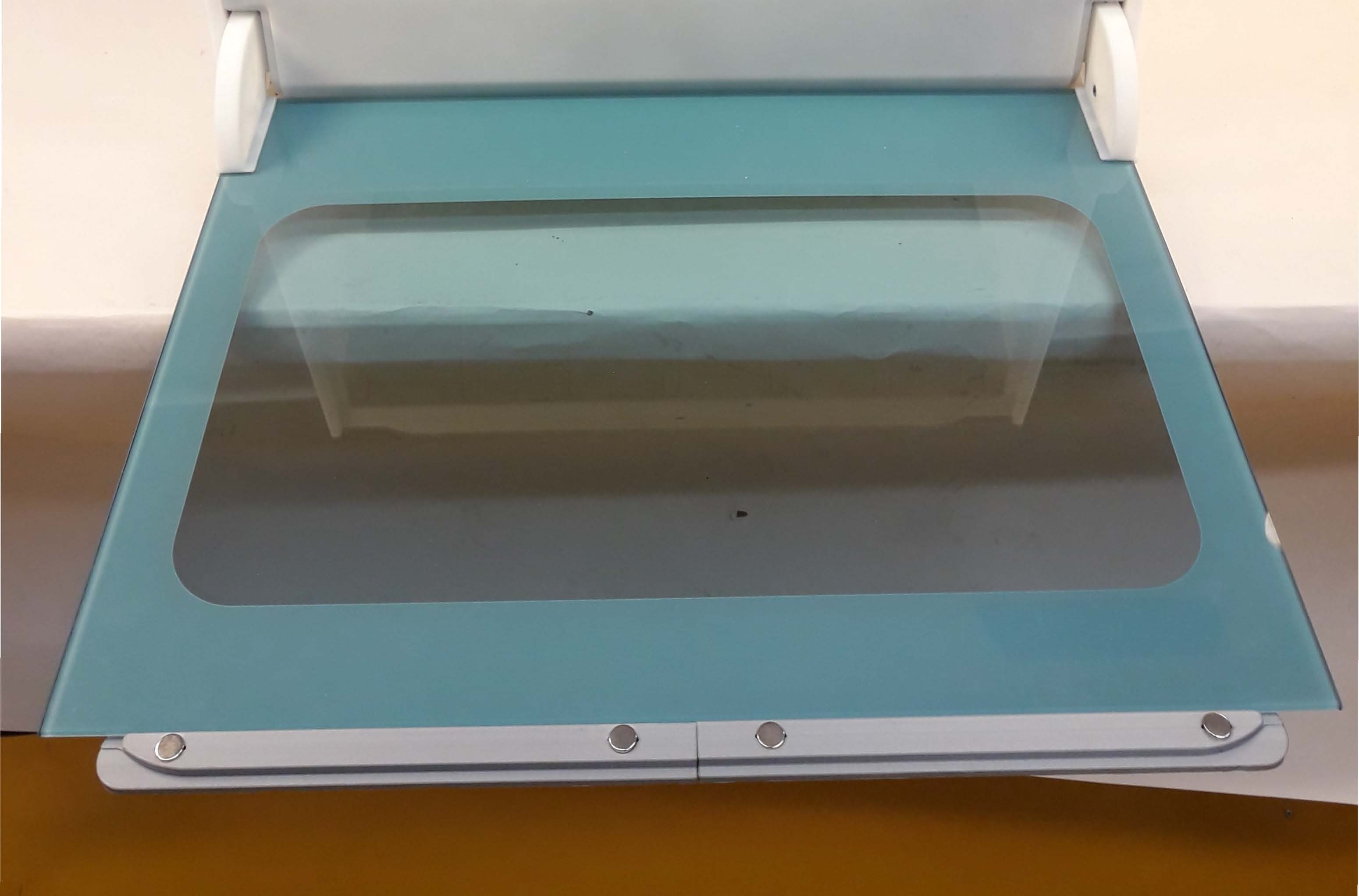

I I I I External Pictures - Material Station I " , I I I I I � {_!) ... � (.I) '- ' ,,. -..... �\'i �� -���� , .,- 1 , · ' 111u 1 1m111 i1nii f'ru • UtUL t 61-so-«)

Made in the Netherlands / / / Ultimaker S5 Material Station EU-123456-B01 Product Type: Apparatus Power ratings: 100-240 VAC / 7,2 A / 50-60 Hz Designed and manufactured by: Ultimaker B.V., Stationsplein 32, 3511 ED Utrecht, The Netherlands This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AL8MMISP; IC: 23486-MISP UK Responsible Person: Comply Express Ltd., Unit C2 Module no. 211420 UAE TRA Nr ER96421/21 CMIIT ID: 2020DJ0343 UL 62368-1 CSA C22.2 No. 62368-1 E114168 R-R-UVB-MS01

Internal Pictures - Material Station .... � ••• UltiMal< er · ·B • fUI lQnli Ml'•'N•trst .. ,oll'"tl i i i \ R321 R318 R315 R312 88 203824 ltiMal<er MISP Ma1nboard r r ' () 0 09''t,'t> C$J"(J) -" \ \ 9 J , o 9 'J -0 iv o 9 'J °' s o 9 'J 9 0 9 '3 5 Q 9 J � °'

Page | 1 Ultimaker B.V.: Material Station MPE evaluation MAXIMUM PERMISSIBLE EXPOSURE (MPE) EVALUATION Product: Ultimaker B.V.: Material Station Date: 21 November 2022 Applicant : Ultimaker B.V. Evaluated by : R. Brett Date : 21-11-2022 Signature : Page | 2 Ultimaker B.V.: Material Station MPE evaluation Table of contents 1 Applicable regulation ...................................................................................................................... 3 1.1 Reference documents ................................................................................................................ 3 2 Evaluation ......................................................................................................................................... 4 3 Assessment result ........................................................................................................................... 4 Page | 3 Ultimaker B.V.: Material Station MPE evaluation 1 Applicable regulation The applicable regulation: FCC Code of Federal Regulations, Title 47 (Telecommunications). According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. . Figure 1: Photo of the EUT According to §1.1307(b)(1) Requirements: With respect to the limits on human exposure to RF provided in § 1.1310 of Chapter I, the requirements of §1.1307(b)(1)(B) were chosen to for determination of the radiofrequency sources . §1.1307(b)(1)(B): Prepare an evaluation of the human exposure to RF radiation pursuant to § 1.1310 and include in the application a statement confirming compliance with the limits in § 1.1310 1.1 Reference documents Ref [1]: DEKRA RF Test report No. NIE: 61376RRF.002; Material manager machine (2019-09-12) Ref [2]:. ANSI C63: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Page | 4 Ultimaker B.V.: Material Station MPE evaluation 2 Evaluation Mobile device: As defined in § 2.1091(b) of chapter I, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimetres is normally maintained between the RF source's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location while transmitting. Transmitting devices designed to be used by consumers or workers that can be easily re- located, such as wireless devices associated with a personal desktop computer, are considered to be mobile devices if they meet the 20-centimeter separation requirement. The UM 3D printers and Material Stations are considered to be mobile devices. Table 1 (ii): Limits for General Population Exposure (MPE) Evaluation The RF exposure is calculated according to §1.1310 and §2.1093 RF Table 1 (ii): Limits for General Population Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 f = frequency in MHz * = Plane-wave equipment power density Compliance is with respect to field strength or power density limits in Table 1 of §1.1310 The Electric Field Strength limit (V/m) specified in Table 1 for 13.56MHz = 824/f = 60.77V/m The output RF of the RFID transmitter was set to its maximum transmission power during the measurements in Ref [1]. According to Ref [1] the maximum field strength (dBμV/m) measured at 3 m distance is 65.96dBuV/m. According to paragraph 6.4.4.2 of Ref [2]. Using the Maximum field strength extrapolated from 3m to 20cm = 153dBuV/m, equivalent to 44.67V/m This is below the General Population Exposure (MPE) limit of 60.77V/m at 13.56MHz. 3 Assessment result The Maximum field strength derived from [1] extrapolated from 3m to 20cm is below the General Population Exposure (MPE) limit of 60.77V/m at 13.56MHz.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 2022-10-06 Test report No: NIE: 61376RRF.002 Test report USA FCC Part 15.225, 15.209 CANADA RSS-210, RSS-Gen (*) Identification of item tested Material manager machine (*) Trademark Ultimaker (*) Model and /or type reference Material Station Other identification of the product FCC ID: 2AL8MMISP IC: 23486-MISP (*) Features Not provided data Hardware Version: B Software Version: 90699630852b04273ebf985d6f2efc7b156e2901 Applicant ULTIMAKER BV Stationsplein 32 3511 ED Utrecht, NEDERLAND Test method requested, standard USA FCC Part 15.225 (10–1–18 Edition): Operation within the band 13.110 -14.010. USA FCC Part 15.209 (10–1–18 Edition): Radiated emission limits, general requirements. CANADA RSS-210 Issue 9 (August 2016). CANADA RSS-Gen Issue 5 (April 2018). ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Rafael López Martín EMC Consumer & RF Lab. Manager Date of issue 2022-10-06 Report template No FDT08_22 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 Page 2 of 24 2022-10-06 Index Competences and guarantees ...................................................................................................................... 3 General conditions ......................................................................................................................................... 3 Uncertainty ..................................................................................................................................................... 3 Data provided by the client ............................................................................................................................ 3 Usage of samples .......................................................................................................................................... 4 Test sample description ................................................................................................................................. 4 Identification of the client ............................................................................................................................... 5 Testing period and place ............................................................................................................................... 5 Document history ........................................................................................................................................... 6 Environmental conditions .............................................................................................................................. 6 Remarks and comments ................................................................................................................................ 7 Testing verdicts .............................................................................................................................................. 8 Summary ....................................................................................................................................................... 8 Appendix A: Test results. ............................................................................................................................... 9 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 Page 3 of 24 2022-10-06 Competences and guarantees DEKRA Testing and Certification is a testing laboratory accredited by the National Accreditation Body (ENAC - Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is a FCC-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. DEKRA Testing and Certification is an ISED-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification at the time of performance of the test. DEKRA Testing and Certification is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without pr…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 2019-09-12 Appendix B: Photographs DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 Page 2 of 5 2019-09-12 EQUIPMENT VIEW DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 Page 3 of 5 2019-09-12 TEST SETUP FOR RADIATED MEASUREMENTS BELOW 30 MHz DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 Page 4 of 5 2019-09-12 TEST SETUP FOR RADIATED MEASUREMENTS ABOVE 30 MHz UP TO 200 MHz DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61376RRF.002 Page 5 of 5 2019-09-12 TEST SETUP FOR RF CONDUCTED MEASUREMENTS
