2ALA3-CBUTEDLRBluetooth controllable dimmer

Casambi Technologies Oy
Bluetooth controllable dimmer - FCC ID 2ALA3-CBUTEDLR - Casambi Technologies Oy
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 21, 2022
Application Purpose
Original Equipment
Date of Application
Dec 18, 2022
Equipment Note
Bluetooth controllable dimmer
Frequency Range
2402.00000000 - 2480.00000000
Company
Casambi Technologies Oy
Country
Finland

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

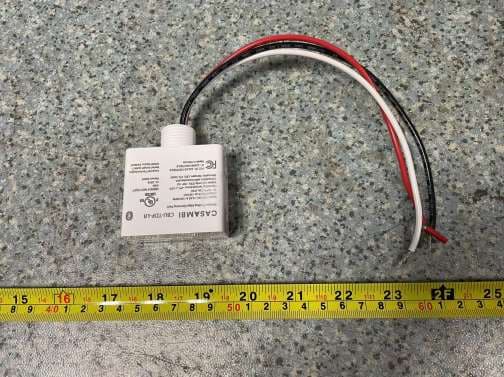

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CBU-TED-LR Bluetooth Long Range controllable dimmer casambi.com Dimensions 36,3 18,15 20,2 *Tc point is on bottom sideDimensions are in mm. 12,7 14,0 Description CBU-TED-LR is a Bluetooth controllable Long Range, Casambi enabled trailing-edge dimmer for incandescent lamps, dimmable LED lamps and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowed ambient temperature must be observed. CBU-TED-LR is able to control up to 100 VA at 230 VAC. It features an overcurrent and over temperature protection. CBU-TED-LR can be controlled with Casambi app, available for iOS and Android devices, as well as with traditional wall switches. The Casambi app can be downloaded free of charge from Apple App Store and Google Play Store. Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full featured light control system where up to 250 units form automatically an EN @ Warning! Hazardous voltages. Risk of electric shock or fire. Only qualified professionals should make the connections. Disconnect the mains power supply and verify its absence prior to installation. Mounting hole diameter: 3,5 mm 40,4 19 , 719 , 7 Antenna location Disposal Instructions In line with EU Directive 2012/19/EU for waste electrical and electronic equipment (WEEE), this electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling. FCC ID: 2ALA3-CBUTEDLR IC: 22496-CBUTEDLR UL: UL Listed, 5LE6 Tc* Technical data Input Voltage: 85–240 VAC Frequency: 50–60 Hz Max. mains current: 0,43 A No-load standby power: < 0,3 W Output Dimming method: trailing-edge phase control Max. output power: 100 VA @ 230 VAC Max. output current: 0,43 A Min. load requirement: 1 W Max. load inrush current: 10 A, 100 ms Radio transceiver Operating frequencies: 2402...2480 MHz Maximum output power: +8 dBm Operating conditions Ambient temperature, ta: -20 to +45°C Max. case temperature, tc: +75°C Location of tc point: bottom side, underneath output connector Storage temperature: -25...+75°C Max. relative humidity: 0...80%, non-condensing Connectors Wire range, solid: 0,5–1,5 mm 2 16–20 AWG Wire strip length: 6-8 mm Mechanical data Dimensions: 40,4 x 36,3 x 14,0 mm Weight: 15 g Degree of protection: IP20 (indoor use only) casambi.com Compatible devices: • iPhone iOS 10 and later are supported • iPad iOS 10 and later are supported • Android 4.4 version (KitKat) and later are supported Casambi uses mesh network technology so each Casambi unit, or Casambi Ready product, acts also as a repeater. Longer ranges can be achieved by using multiple Casambi products. 1) Range is highly dependant on the surrounding and obstacles, such as walls and building materials. 50 m 1) Up to 30 m 1) Range Installation Make sure that the mains voltage is switched off before making any connections. Use 0,5–1,5 mm² solid conductor electrical wires. Strip the wire 6–8 mm from the end. Press the buttons on top of the dimmer case and insert the wires to the corresponding terminals. Make sure to connect the input and output correctly. Input connector is marked with letters L and N, while the output connector is marked with letter N and a symbol with a wave and an arrow ( ). If you install the dimmer into a heat sensitive environment (e.g. inside a luminaire or in a ceiling outlet box above a luminaire), make sure that the ambient temperature does not exceed the specified maximum value. Using the dimmer in a heat sensitive environment may limit the maximum output power. Warning Changes or modifications not expressly approved by Casambi Technologies Oy could void the user’s authority to operate the equipment. casambi.com Warning Using CBU-TED-LR with maximum load will make it hot. Make sure to place the product in well-ventilated space and away from any flammable material. Type of load Incandescent and high voltage halogens Dimmable LED bulbs (C) 1) Dimmable CFL bulbs (C) 1) Trailing edge dimmable LED drivers 1) Low voltage halogens with electronic transformers High voltage AC LED modules 1) Wire wound transformers, electric motors and other inductive loads Non-dimmable fluorescent lamps, LED and CFL bulbs 1) Dimming quality depends solely on the load electronics. Do not mix different types of bulbs or loads. Some luminaires may flicker at low dimming Max. load 60 VA 100 VA 100 VA 100 VA 100 VA 100 VA Not allowed Not allowed Never connect inductive loads, such as iron core transformers. This could cause permanent damage to the dimmer. Do not mix different types of loads. L N Wiring diagram Wire info: Solid 0,5–1,5 mm 2 /16–20 AWG Strip length: 6–8 mm L N 85–240 VAC 50-60 Hz Tr ailing edge dimme r CBU-TE D L N N Max. 0,43 A Trailing edge dimme r CBU-TE D L N N Max. 0,43 A casambi.com Information in this document is subject to change. CBU-TED-LR Data Sheet V3.0 EN Casambi Technologies Oy Bertel Jungin aukio 1 E, 02600 Espoo, Finland Copyright Casambi Technologies Oy 2022 Profile #ProfileDescription 526*TED-LROne channel 50/60Hz trailing edge phase cut dimmer 11766TED-LR (Linear)One channel 50/60Hz trailing edge phase cut dimmer 8123TED-LR (Log)One channel 50/60Hz trailing edge phase cut dimmer 3534Presence Fixture providing presence and/or daylight sensing. Presence can be activated from smart switch, push button or dedicated presence sensor. *Default profile Fixture profile

External Photos

DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_External photo Page 1 / 3 Model CBU-TED-LR DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_External photo Page 2 / 3 DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_External photo Page 3 / 3 Model CBU-TDP-LR

ID Label/Location Info

CBU-TED-LR CBU-TED-LR CBU-TED CBU-TED-LR 5. “Long-range” and “Casambi” logos are of original Casambi Technologies Oy design. These are propriatery and copyrighted graphics CONFIDENTIAL Condentiality Notice: This document is condential and contains proprietary information and intellectual property of Casambi Technologies Oy. Neither this document nor any of the information contained herein may be reproduced or disclosed under any circumstances without the express written permission of Casambi Technologies Oy. Please be aware that disclosure, copying, distribution or use of this document and the information contained therein is strictly prohibited. CASAMBI TECHNOLOGIES OY Bertel Jungin aukio 1E, 02600 Espoo FINLAND 1234 Sheet size A4 1234 A B C D E F A B C D E F TITLE SCALE DWG NO SHEET REV CHECKED DRAWN PART NO FILE NAME REVISION HISTORY DESCRIPTIONDATEREVAPPROVED SUBTITLE PART NOREV SUBTITLE PART NOREV Write your description here. 0___ __.0_.2022 _______ ________ Write your description here. 0___ __.0_.2022 _______ ________ Casambi CBU-TED-LR Enclosure Printing (EE) Andrei Papshev (02.06.2022) CMKTC-TED-LR/CMKBC-EE-TED-LR CMKTC_BC-EE-CBU-TED-LR_Printing_v6.1 1/11:1 CASAMBI P/NV6.1 ________________ (xx.06.2022) CBU-TED-LR Printing TOPCBU-TED-LR Printing BOTTOM EE CMKBC-EE-TED-LRNANACMKTC-TED-LR NOTES 1. Font type is “Arial Regular”. 2. “WEEE” logo is according the official IP owner (ref. ec.europa.eu). 3. “CE” logo is according the official IP owner (ref. ec.europa.eu). 4. “Bluetooth” logo is according the official IP owner (ref. Bluetooth SIG web-site). 5. “UKCA” logo is according the official IP owner (ref. www.gov.uk web-site). 6. “Long-range” and “Casambi” logos are of original Casambi Technologies Oy design. These are propriatery and copyrighted graphics. 34,9 mm 29,8 mm 29,00 mm 31,75 mm CBU-TED-LR Trailing edge dimmer LN N Max. 0.43 A CBU-TED-LR Trailing edge dimmer LN N Max. 0.43 A CBU-TED-LR Trailing edge dimmer LN N Max. 0.43 A MADE IN ESTONIA Tc: 75°C FCC ID: 2ALA3-CBUTEDLR IC: 22496-CBUTEDLR OPEN ENERGY MGT EQPT 5LE6 IP20 HW: 4.0 F2A ε 1E4 Casambi Technologies Ta: -20...+45°C INPUT (CE): 85-240 VAC / 0.43 A / 50-60 Hz Bertel Jungin aukio 1, 02600 Espoo, Finland INPUT (UL/CSA): 120 VAC / 0.43 A / 50-60 Hz UL2043 PLENUM RATED MADE IN ESTONIA Tc: 75°C FCC ID: 2ALA3-CBUTEDLR IC: 22496-CBUTEDLR OPEN ENERGY MGT EQPT 5LE6 IP20 HW: 4.0 F2A ε 1E4 Casambi Technologies Ta: -20...+45°C INPUT (CE): 85-240 VAC / 0.43 A / 50-60 Hz Bertel Jungin aukio 1, 02600 Espoo, Finland INPUT (UL/CSA): 120 VAC / 0.43 A / 50-60 Hz UL2043 PLENUM RATED MADE IN ESTONIA Tc: 75°C FCC ID: 2ALA3-CBUTEDLR IC: 22496-CBUTEDLR OPEN ENERGY MGT EQPT 5LE6 IP20 HW: 4.0 F2A ε 1E4 Casambi Technologies Ta: -20...+45°C INPUT (CE): 85-240 VAC / 0.43 A / 50-60 Hz Bertel Jungin aukio 1, 02600 Espoo, Finland INPUT (UL/CSA): 120 VAC / 0.43 A / 50-60 Hz UL2043 PLENUM RATED

Internal Photos

DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_Inernal photo Page 1 / 3 Model CBU-TED-LR DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_Inernal photo Page 2 / 3 Antenna Model CBU-TDP-LR DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_Inernal photo Page 3 / 3

RF Exposure Info

DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250.56 Page 1 / 9 Test report No: 4392250.56 TEST REPORT Radio Spectrum Matters (RF) Identification of item tested Bluetooth controllable dimmer Trademark Casambi Model and /or type reference CBU-TED-LR, CBU-TDP-LR FCC/IC ID FCC ID: 2ALA3-CBUTEDLR IC ID: 22496-CBUTEDLR Features 85-240 Vac, 50-60 Hz Applicant ́s name / address Casambi Technologies Oy Alberga Business Park Bertel Jungin Aukio 1 C Espoo, Finland Test method requested, standard KDB 447498 D01V06 FCC Part 1.1310 Verdict Summary COMPLIANCE Tested by (name & signature) Harry Deng Approved by (name & signature) Tim Yan Date of issue 2022-11-14 Report template No TRF_EMC 2017-06- FCC_Exposure DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250.56 Page 2 / 9 INDEX page General conditions ............................................................................................................................................... 3 Uncertainty .......................................................................................................................................................... 3 Environmental conditions ..................................................................................................................................... 3 Possible test case verdicts ................................................................................................................................... 3 Definition of symbols used in this test report ......................................................................................................... 4 Abbreviations ....................................................................................................................................................... 4 Document History ................................................................................................................................................ 4 Remarks and Comments ..................................................................................................................................... 4 1 General Information .................................................................................................................................... 5 1.1 General Description of the Item(s) ..................................................................................................... 5 1.2 Test data ........................................................................................................................................... 6 1.3 The environment(s) in which the EUT is intended to be used ............................................................. 6 2 Description of Test Setup ............................................................................................................................ 7 2.1 Operating mode(s) used for tests ...................................................................................................... 7 2.2 Support / Auxiliary equipment / unit / software for the EUT ................................................................. 7 3 RF Exposure Evaluation .............................................................................................................................. 8 3.1 Limits ................................................................................................................................................ 8 3.2 Test Procedure ................................................................................................................................. 9 3.3 Test Result ........................................................................................................................................ 9 DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250.56 Page 3 / 9 GENERAL CONDITIONS 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or Competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA. 5. This report will not be used for social proof function in China market. UNCERTAINTY For all measurements where guidance for the calculation of the instrumentation uncertainty of a measurement is specified in EN 55016-4-2 (CISPR 16-4-2), EN/IEC 61000-4 series or a product standard, the measurement instrumentation uncertainty has been calculated and applied in accordance with these standards. Uncertainties have been calculated according to the DEKRA internal document. The reported expanded uncertainties are based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95%. ENVIRONMENTAL CONDITIONS The climatic conditions during the tests are within the limits specified by the manufacturer for the operation of the EUT and the test equipment. The climatic conditions during the tests were within the following limits: Ambient temperature 15 °C – 35 °C Relative Humidity air 30% - 60% Atmospheric pressure 86 kPa – 106 kPa If explicitly required in the basic standard or applied product / product family standard the climatic values are recorded and documented separately in this test report. POSSIBLE TEST CASE VERDICTS Test …

Text truncated - open the document above for the full version.

Test Report

1 14.11.2022 Casambi Technologies Oy [email protected] Bertel Jungin Aukio 1 C +358 10 501 2950 02600 Espoo, Finland casambi.com CBU-TED-LR Antenna Specification Antenna type = Planar Monopole Peak Gain = 0 dBi Figure 1: Radiation Pattern - YZ-plane 2 14.11.2022 Casambi Technologies Oy [email protected] Bertel Jungin Aukio 1 C +358 10 501 2950 02600 Espoo, Finland casambi.com Figure 2: Radiation Pattern - ZX-plane 3 14.11.2022 Casambi Technologies Oy [email protected] Bertel Jungin Aukio 1 C +358 10 501 2950 02600 Espoo, Finland casambi.com Figure 3: Radiation Pattern - XY-plane 4 14.11.2022 Casambi Technologies Oy [email protected] Bertel Jungin Aukio 1 C +358 10 501 2950 02600 Espoo, Finland casambi.com Figure 4: Antenna location in CBU-TED-LR

Test Report

DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250.55 Page 1 / 84 Test report No: 4392250.55 TEST REPORT Radio Spectrum Matters (RF) Identification of item tested Bluetooth controllable dimmer Trademark Casambi Model and /or type reference CBU-TED-LR, CBU-TDP-LR FCC/IC ID FCC ID: 2ALA3-CBUTEDLR IC: 22496-CBUTEDLR Features 85-240 Vac, 50-60 Hz Applicant ́s name / address Casambi Technologies Oy Alberga Business Park Bertel Jungin Aukio 1 C Espoo, Finland Test method requested, standard FCC CFR Title 47 Part15 Subpart C Section 15.247; KDB558074 D01v05r02; RSS-Gen Issue 5; RSS-247 Issue 2 Verdict Summary COMPLIANCE Tested by (name & signature) Harry Deng Approved by (name & signature) Tim Yan Date of issue 2022-11-14 Report template No TRF_EMC 2017-06- FCC_Part15C_247 DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250.55 Page 2 / 84 INDEX page General conditions ...................................................................................................................................................... 3 Uncertainty .................................................................................................................................................................. 3 Environmental conditions............................................................................................................................................ 3 Possible test case verdicts ......................................................................................................................................... 3 Definition of symbols used in this test report .............................................................................................................. 4 Abbreviations .............................................................................................................................................................. 4 Document History ....................................................................................................................................................... 4 Remarks and Comments ............................................................................................................................................ 4 1 General Information ........................................................................................................................................... 5 1.1 General Description of the Item(s) .......................................................................................................... 5 1.2 Test data ................................................................................................................................................. 6 1.3 The environment(s) in which the EUT is intended to be used ................................................................ 6 1.4 Channel List ............................................................................................................................................ 6 2 Description of Test Setup .................................................................................................................................. 7 2.1 Operating mode(s) used for tests............................................................................................................ 7 2.2 Support / Auxiliary equipment / unit / software for the EUT .................................................................... 7 3 Verdict summary section ................................................................................................................................... 8 3.1 Standards ................................................................................................................................................ 8 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ....................................................................... 8 3.3 Overview of results .................................................................................................................................. 8 3.4 Measurement procedure ....................................................................................................................... 10 4 Transmitter Test Results ................................................................................................................................. 11 4.1 AC Power Line Conducted Emission .................................................................................................... 11 4.2 Emissions in non-restricted frequency bands ....................................................................................... 14 4.3 Emissions in restricted frequency bands .............................................................................................. 35 4.4 Band Edge ............................................................................................................................................. 54 4.5 Duty cycle .............................................................................................................................................. 63 4.6 DTS Bandwidth ..................................................................................................................................... 68 4.7 Fundamental emission output power .................................................................................................... 77 4.8 Power Density ....................................................................................................................................... 79 5 Identification of the Equipment Under Test ...................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_Test setup Page 1 / 2 Radiated measurements DEKRA Testing and Certification (Shanghai) Ltd. Guangzhou Branch Block 5, No.3, Qiyun Road, Huangpu District, Guangzhou, Guangdong, China Tel +86 20 6661 2000 Fax +86 20 6661 2001 www.dekra-certification.com Report no.: 4392250_Test setup Page 2 / 2 Conducted measurements Conducted emission

Contact Information

Applicant

Kai Totterman(Director of Hardware Design)
[email protected]+358451379988Fax: No fax number

Technical Contact

DEKRA Testing and Certification (Shanghai) Ltd.Harry Deng
[email protected]

Block 5, No.3, Qiyun Road, Huangpu District · Guangzhou · China

Test Firm

DEKRA Testing and Certification (Shanghai) Ltd.Johnson Liu
[email protected]+86 20 66642980

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz5.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
