2ALCFPR0171WIRELESS CHARGER

WIRELESS CHARGER Instruction Manual XY-PR017-1 READ ALL INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THI S MANUAL. In the Box EAC–TR23 Trident 15WWireless Charge with FSC® Cor k & Recycled Plastic (x1) USB Type-C Charging Cable (x1) InstructionManual (x1) Safety Precautions This product is NOT a toy, keep away fromchildren and pets. Only use the device accor ding to the instructions in this manual. Never use the device foranything ot her than its intended purpos e. Do notopen this device orattempt to repair the unit yourself if it is not wor king properly. Doi ng so risks fire, shock orinjury. When notin use, the device should be stor ed in a dry, coollocation, away from sources ofwater orheat. Do notexpos e device orpower cable to extreme temperatures (heat orcol d), open flames, humid orwet conditions. Do notsubmerge in water. Do notuse in a locationwhere the device orpower cable could fall into liquid. Unplug the charging cable when notin use. Do notpull the power cable to disconnect, oruse the cable as a handle. Do notuse if device orpower cable is damaged. If device orpower cable is damaged, it MUST be serviced orreplaced by the manufacturer orits service agent befor e using again. Attachments onthe back ofyour device can impede effectiveness ofthe wireless charger, and lead to overheating. Remove attachments fromyour device befor e charging onthis wireless charger. P BACKVIEW Wirless Charging Surface LED IndicatorUSB Type-C Input/Output roduct Wireless Charging Instructions Plug one end ofthe included charging cable into the USB Type-C charging port onthe wireless charger. Plug the ot her end ofthe cable into a USB Type-C power source, such as the USB Type-C por t ona computer orinto a certified USB Type-C adapter (not included), and plug into a wall socket. The LED indicatorwillflash RED & BLUE3 times,thengl ow REDto indicate wtheireless charger is in standby mode and ready to begin charge. Place a wireless charging enabled mobile device onthe wireless charging surface, the mobile device will begin to charge automatically. The LED indicatorwillgl ow BLUEto indicate that your device is charging properly. If your device does notbegin to charge, try repos itioning your device onthe wireless charging surface. You may need to remove the case ofyour device to charge properly. Remove your device fromthe wireless charging surface when it is fully charged. Note: If the LED indicatoris flashing REDrapidly when the wireless charger is in use, either the device is NOT wireless charging enabled, orthere is an object between the device and charging pad interfering with the charging proc ess. To achieve a better wireless charging experience, please use 18W, 20Wor higher power adapter (notincluded). Note on Safety Features: The wireless charging will automatically power O FFwhen the wireless charging surface is overheated orwhen a metal object, such as a coi n, is placed onthe wireless charging surface. The LED indicatorwillflash REDrapi dlyto warn of automatic shutof f. Tech Specifications Power Input (PD/QC) : DC 5V/3A, 9V/2A Wireless Charging Output: 15W(Max) Working Temperature: 32°F ~ 122°F (0°C ~ 50° C) FCC Information This device complies with Part 15 ofthe FCC Rules. Caution:Any changes ormodifications notexpressly approved could voi d the user’s author ity to operate the equipment. Note:This equipment has been tested and found to comply with the limits fora Cl ass B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable prot ectionagainst harmful interference in a residenti al installation. This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accor dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will notoc cur in a particular installation. If this equipment does cause harmful interference to radio ortelevisionreception, which can be determined by turning the equipment of f and on, the user is encourag ed to try to cor rect the interference by one ormor e ofthe fol lowing measures: Reor ient orrelocate the receiving antenna. Increase the separationbetween the equipment and receiver. Connect the equipment into an outlet ona circuit different fromthat to which the receiver is connected. Consult the dealer oran experienced radio/ TV technician forhelp. T To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna. his device complies with part 15 ofthe FCC rules. Operationis subject to the fol lowing two conditions: (1) this device may notcause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Madein China 109137 109137

(Dongguan Xing Yue Electronic co., Ltd) (October 31, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2ALCFPR0171) [Dongguan Xing Yue Electronic co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Sunny zhang (Dongguan Xing Yue Electronic co., Ltd) (October 31, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2ALCFPR0171) [Dongguan Xing Yue Electronic co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sunny zhang

Dongguan Xing Yue Electronic co., Ltd Model Difference Data：October 31, 2023 Product description: WIRELESS CHARGER Model name: XY-PR017-1, EAC-TR23 Trade Name: N/A FCC ID: 2ALCFPR0171 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Sunny zhang（Manager） Contact information / address：#98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China

Dongguan Xing Yue Electronic co., Ltd (October 31, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (WIRELESS CHARGER / XY-PR017-1, EAC-TR23 / FCC ID: 2ALCFPR0171 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Sunny zhang Title: Manager

Dongguan Xing Yue Electronic co., Ltd (October 31, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Sunny zhang Title: Manager

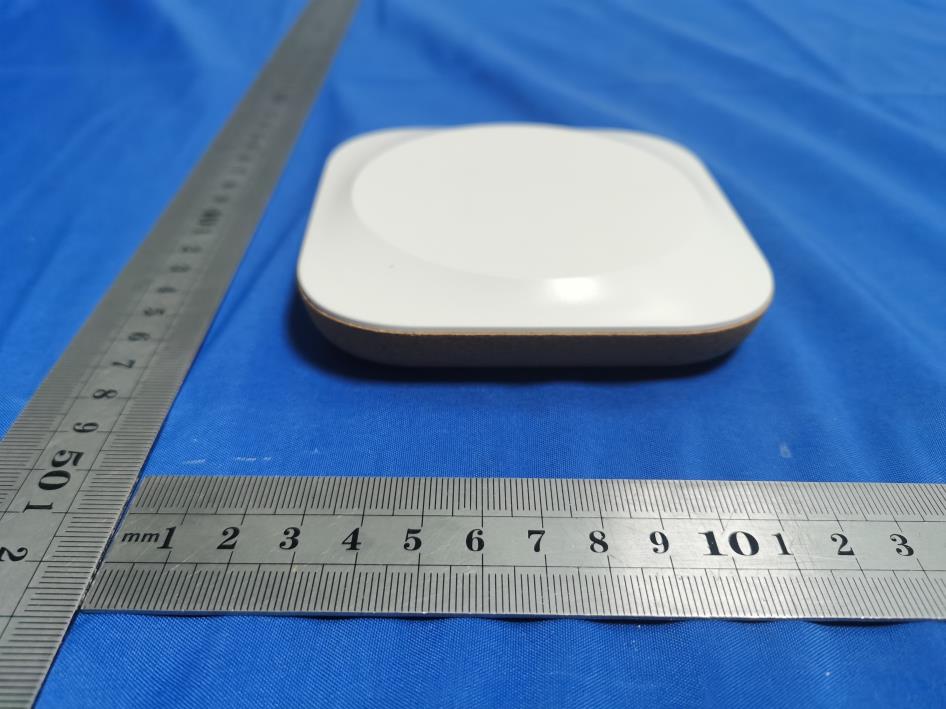

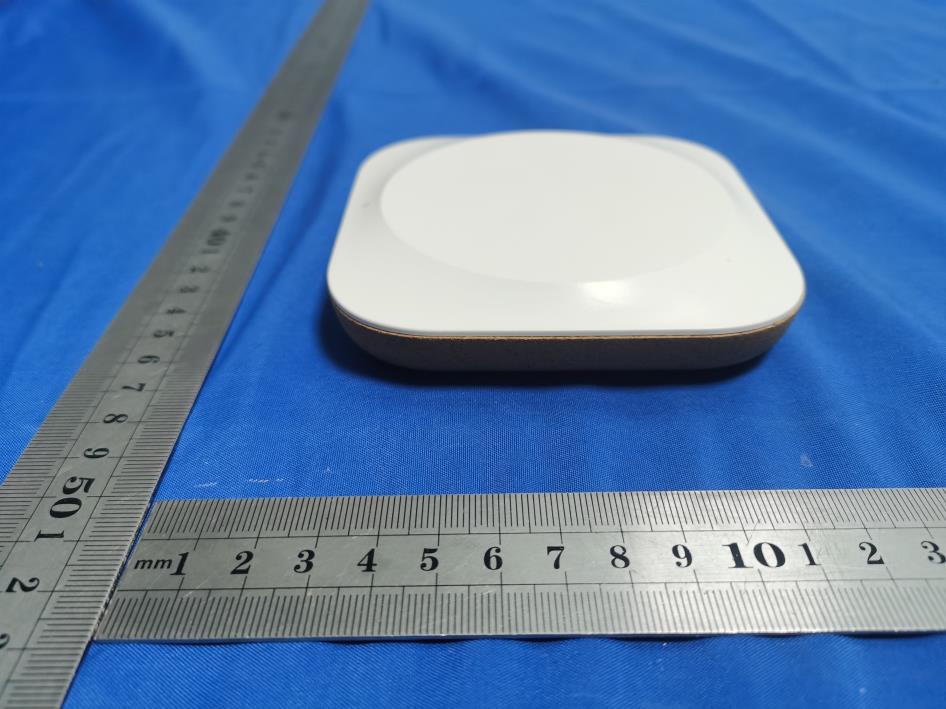

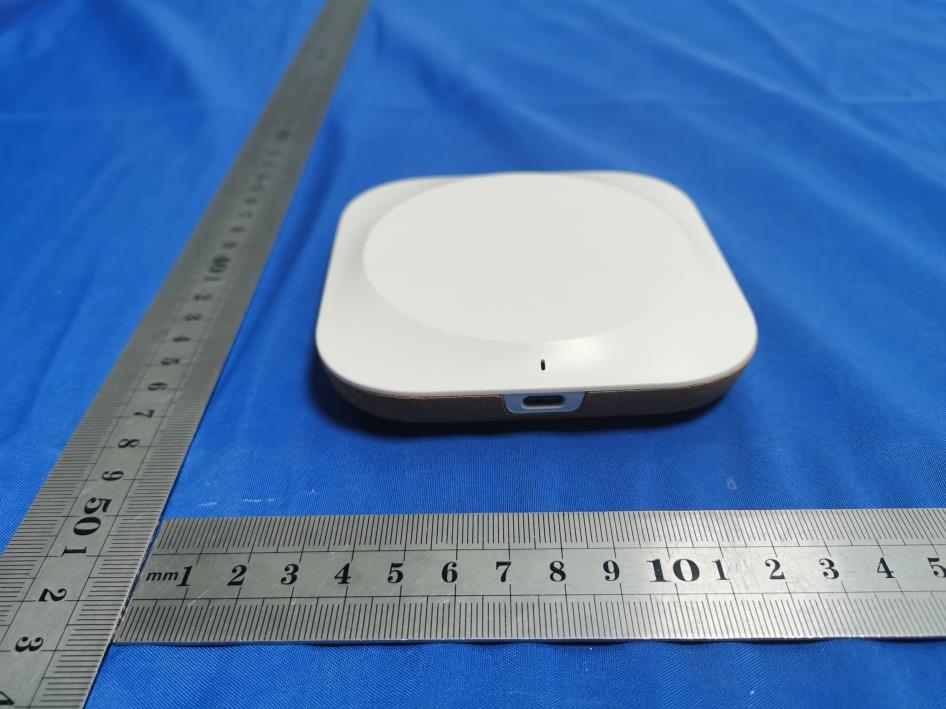

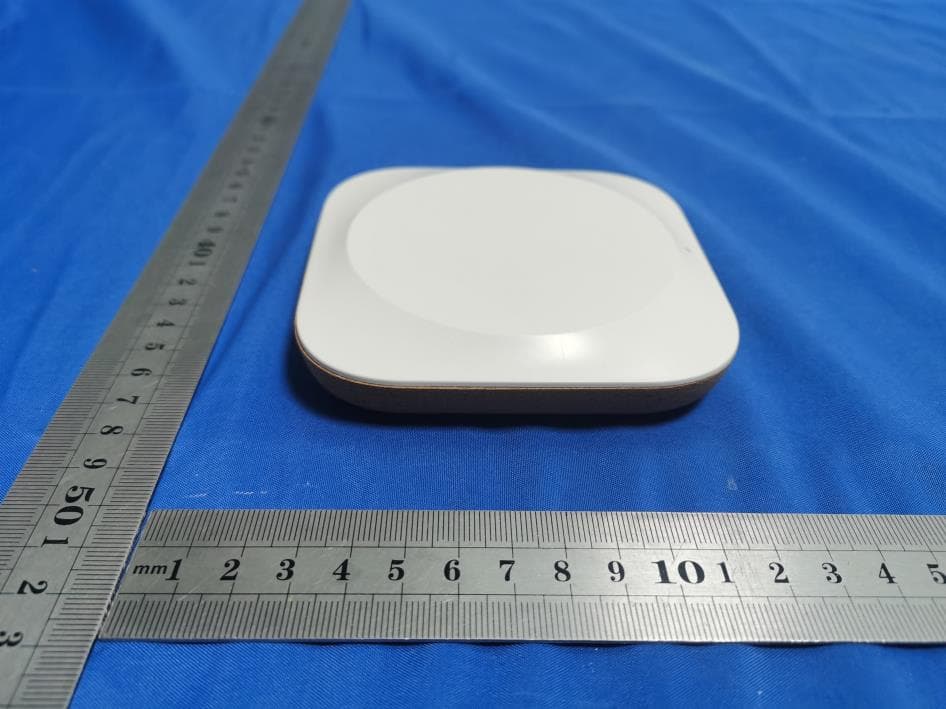

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: XY-PR017-1 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

109137 Model No.: XY-PR017-1 PO: F0003 FCC ID:2ALCFPR0171 Input: DC 5V/3A, 9V/2A Wireless Output: 5W/7.5W/10W/15W The plastic shell of the product contains 100% recycled ABS. 109137 Model No.: XY-PR017-1 PO: F0003 FCC ID:2ALCFPR0171 Input: DC 5V/3A, 9V/2A Wireless Output: 5W/7.5W/10W/15W The plastic shell of the product contains 100% recycled ABS. 29.5MM 17MM 17MM 29.5MM

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 3 Model: XY-PR017-1 Internal Photos ANT Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 3 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 3

RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: WIRELESS CHARGER FCC ID: 2ALCFPR0171 Trademark: N/A Model Number: XY-PR017-1, EAC-TR23 Prepared For: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Manufacturer: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Sep. 22, 2023 Sample tested Date: Sep. 22, 2023 to Oct. 10, 2023 Issue Date: Oct. 10, 2023 Report No.: CTB231010051RFX Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310, 47 CFR§2.1091; KDB 680106 D01 Wireless Power Transfer v04 Test Results PASS Remark: This is wireless charger EMF report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231010051RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page2 of 9 Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF TEST AND MEASUREMENT INSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231010051RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page3 of 9 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 5W/7.5W/10W/15W 1.2. Test Supporting System Adapter Description : Adapter Model No. : HP18A-0902000-AU Power Input : AC100-240V~ 1.0A 50/60Hz Output: 9V 2 .0A DC Line : Unshielded, Detachable 1.2m Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231010051RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page4 of 9 2.L IST OF TEST AND MEASUREMENT INSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Serial No. Last calibration Calibrated until 1 EMF TESTER Wavecontrol SMP160 19SN0989 2023.07.09 2024.07.08 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231010051RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page5 of 9 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106v04 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231010051RFX EMF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page6 of 9 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 V04 The EUT does comply with item 5(b) of KDB 680106 V04 1) The power transfer frequency is below 1 MHz. Yes, the device operate in the frequency range from 110KHz to 205KHz 2) The output power from each transmitting element (e.g., coil) is less than or equal to 15 watts. Yes, the maximum output power of the primary coil is 15000mW. 3) A client device providing the maximum permitted load is placed in physical contact with the transmitter (i.e., the surfaces of the transmitter and client device enclosures need to be in physical contact). Yes, the surfaces of the transmitter and client device enclosures are in physical contact 4) Only § 2.1091-Mobile exposure conditions apply (i.e., this provision does not cover § 2.1093-Portable exposure conditions).. Yes, the EUT is a Mobile Wireless Charger 5) The E-field and H-field strengths, at and beyond 20 cm surrounding the device surface, are demonstrated to be less than 50% of the applicable MPE limit, per KDB 447498, Table 1. Yes, the EUT field strength levels are less 50% x MPE limit. 6) For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e., clients absorbing maximum power available), and with all the radiating structures operating at maximum power at the same time, as per design conditions. Yes, the EUT has only one coil，all test modes met the conditions specified in (5). 4.3. E and H field Strength Shenzhen CTB Testing Technology Co., Lt…

Text truncated - open the document above for the full version.

ANT PHTOT L W H 41mm±0.2 41mm±0.2 0.2mm±0.1 All measurements were performed radiated and therefore additional antenna gain documentation is not required.

TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: WIRELESS CHARGER FCC ID: 2ALCFPR0171 Trademark: N/A Model Number: XY-PR017-1, EAC-TR23 Prepared For: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, QiaoTou Town, Dong Guan City, Guang Dong, China Manufacturer: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, QiaoTou Town, Dong Guan City, Guang Dong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Sep. 22, 2023 Sample tested Date: Sep. 22, 2023 to Oct. 10, 2023 Issue Date: Oct. 10, 2023 Report No.: CTB231010050RFX Test Standards FCC Part 15 C Test Results PASS Remark: This is wireless charger radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB231010050RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 21 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 3 1.1. Report information ................................................................................................................................. 3 1.2. Measurement Uncertainty ..................................................................................................................... 3 1.3. Test Facility ........................................................................................................................................... 3 1.4. Test Uncertainty .................................................................................................................................... 4 2. PRODUCT DESCRIPTION ......................................................................................................................... 5 2.1. EUT Description .................................................................................................................................... 5 2.2. Block Diagram of EUT Configuration ..................................................................................................... 5 2.3. Test Conditions ..................................................................................................................................... 5 2.4. DescriptionOfSupport Units (Conducted Mode) .................................................................................... 6 3. TEST RESULTS SUMMARY ...................................................................................................................... 6 4. TEST EQUIPMENT USED .......................................................................................................................... 7 4.1. MEASUREMENT INSTRUMENTS LIST ............................................................................................... 7 5. CONDUCTED EMISSION TEST ................................................................................................................. 9 5.1. Block Diagram of Test Setup ................................................................................................................. 9 5.2. Test Standard ........................................................................................................................................ 9 5.3. Conducted Emission Limit ..................................................................................................................... 9 5.4. EUT Configuration on Test .................................................................................................................... 9 5.5. Operating Condition of EUT ................................................................................................................ 10 5.6. Test Procedure .................................................................................................................................... 10 5.7. Test Result .......................................................................................................................................... 10 6. RADIATED EMISSION MEASUREMENT ................................................................................................ 13 6.1. Block Diagram of Test Setup ............................................................................................................... 13 6.2. Test Standard ...................................................................................................................................... 14 6.3. EMI Test Receiver Setup..................................................................................................................... 14 6.4. Test Procedure .................................................................................................................................... 14 6.5. Test Result .......................................................................................................................................... 14 7. OCCUPIED BANDWIDTH ........................................................................................................................ 18 7.1. Block Diagram of Test Setup .................................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 3 Model: XY-PR017-1 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 3 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 3

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Model: XY-PR017-1 Radiated Emission 9KHz-30MHz 30MHz-1GHz Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
