2ALCFXO-10013Speaker

How to use speaker (charging box): 1. Bluetooth Setup: Press and hold power button to turn ON the speaker ,LED Indicator will flash BLUE when in pairing mode. Turn on the Bluetooth function on mobile device, select “Cling Bluetooth Speaker”pairing name.LED will turn solid BLUE if successfully paired, Speaker will automatically pair if the mobile device has been paired before.If disconnect Bluetooth after 5 mins, the speaker Bluetooth will auto shut off. Long press Power button to turn off the speaker. 2.Playing Music: It has a built in microphone, can answer phone calls on speaker. Short press to control volume, long press to control audio tracks. It will auto off after disconnect Bluetooth 5mins. With tones prompts. Playback time at max volume is about 3hrs. 2.Charging the speaker Connect the provided charging cable to a power source and to the USB port on the bottom of the speaker. Red LED light when charging the speaker, light turn OFF when fully charged. How to use the earbuds: 1. Bluetooth pairing: Remove earbuds from case, prompt a voice "Power on", then a beep to indicate both earbuds sync to each other, now main earbud LED flash Red& Blue, secondary earbud flash Blue slowly. Turn on the Bluetooth function on mobile device, Select "TWS Earbuds" pairing name.After connect Bluetooth, prompt a voice "connected".now both earbuds LEDs flash blue slowly.Disconnect Bluetooth will prompt a voice "Disconnected". Long press earbuds button about 5 seconds to power off earbuds and hear a voice prompt "Power off". If disconnect Bluetooth after 5 mins, the earbuds will auto shut off. 2. Playing Music Play/Pause/Answer call/Hang up – One tap/touch/click on button Next track – Double tap/touch/click on button, Right Earbuds Previous track – Double tap/touch/click on button, Left Earbud Activate voice assistant – Long press on button2 seconds, both earbuds Reject call – Long press on button2 secondswhen calling. long press the button 5 seconds to turn off , long press 3 seconds to turn on. 3. Charging the earbuds Whencasehaspower,putoneearbudintocasethisearbudwillautostartcharginguntilearbuds fullycharged,theotherearbudwillremainson.Putbothearbudsintocase,earbudswillturnoff andstartautocharginguntilearbudsfullycharged. Earbudsplaybacktimeatmaxvolume:about4hours. Speakerchargetheearbuds:SolidRedLEDonearbudswhenchargingandsolidBlueoncase, LEDsonbothearbudsandoncaseallturnoffwhenearbudsarefullycharged. Warning: ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. FCCStatement Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassBdigitaldevice,pursuanttoPart15oftheFCC Rules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgeneratesusesandcanradiate radiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterference toradioortelevisionreception,whichcanbedeterminedby turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2020/2/2> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ALCFXO-10013 XO-10013 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Sunny zhang/manager Company: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Phone: 0769-81022708 Fax: 0769-83345348 E-Mail: [email protected]

Dongguan Xing Yue Electronic co., Ltd #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/2/2 To whom it may concern: We, Dongguan Xing Yue Electronic co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ALCFXO-10013 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Sunny zhang/manager Company: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Phone: 0769-81022708 Fax: 0769-83345348 E-Mail: [email protected]

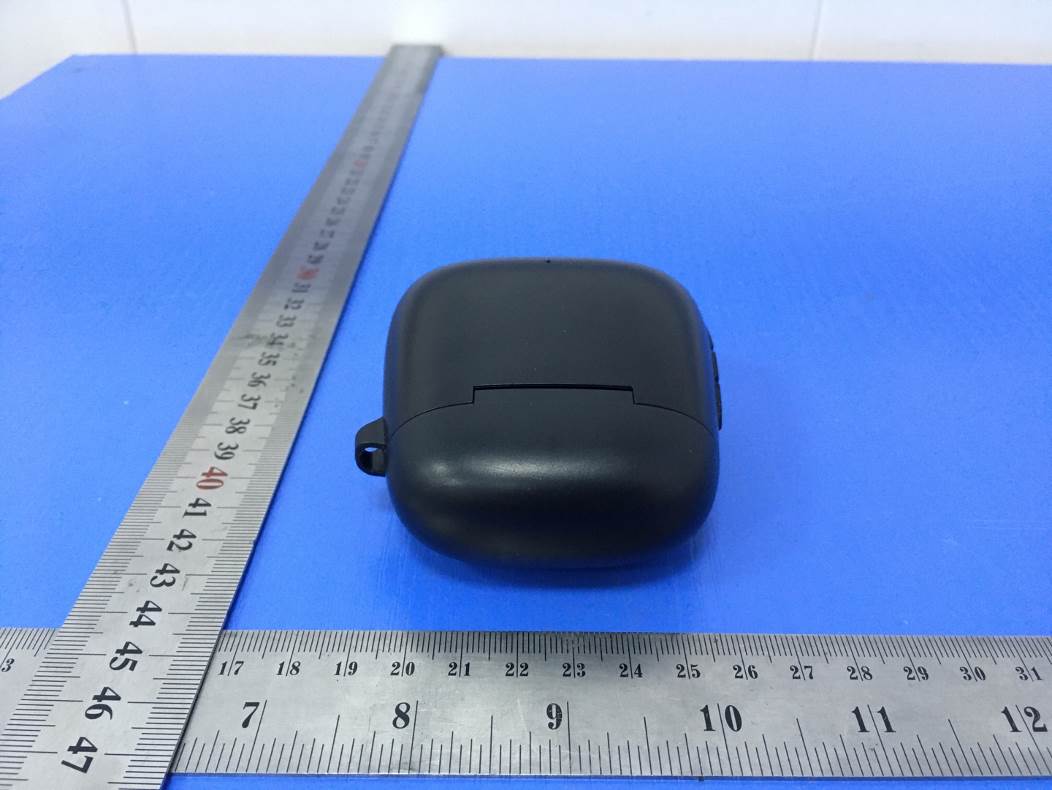

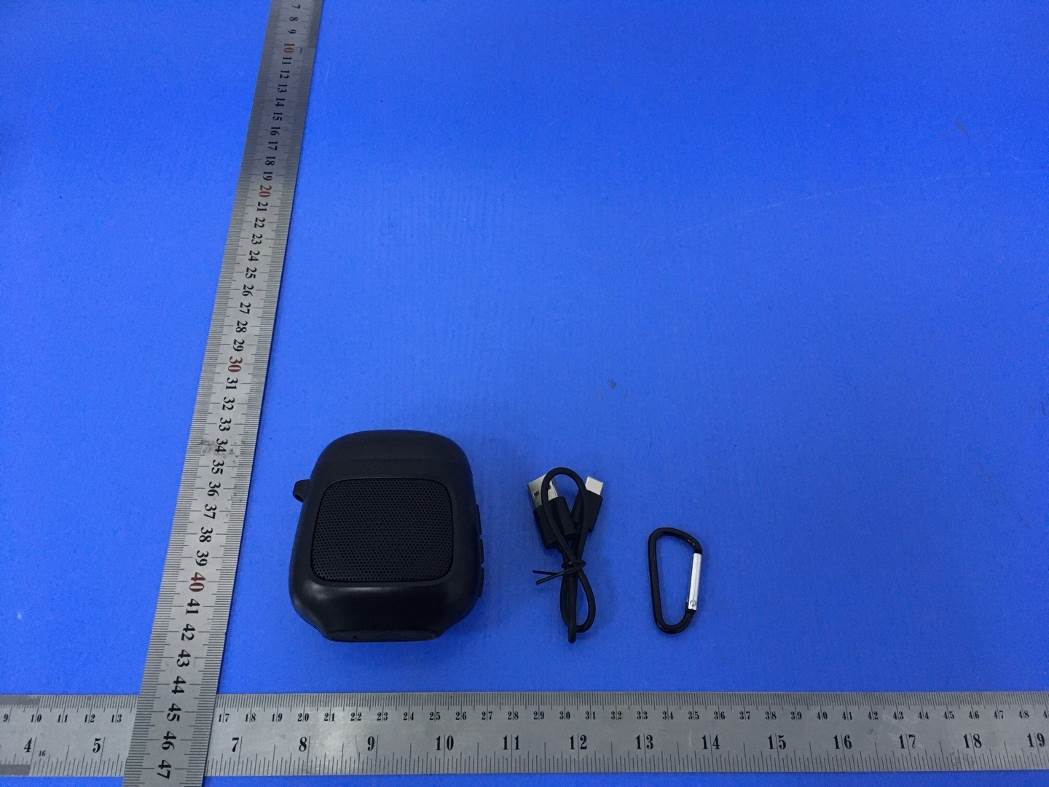

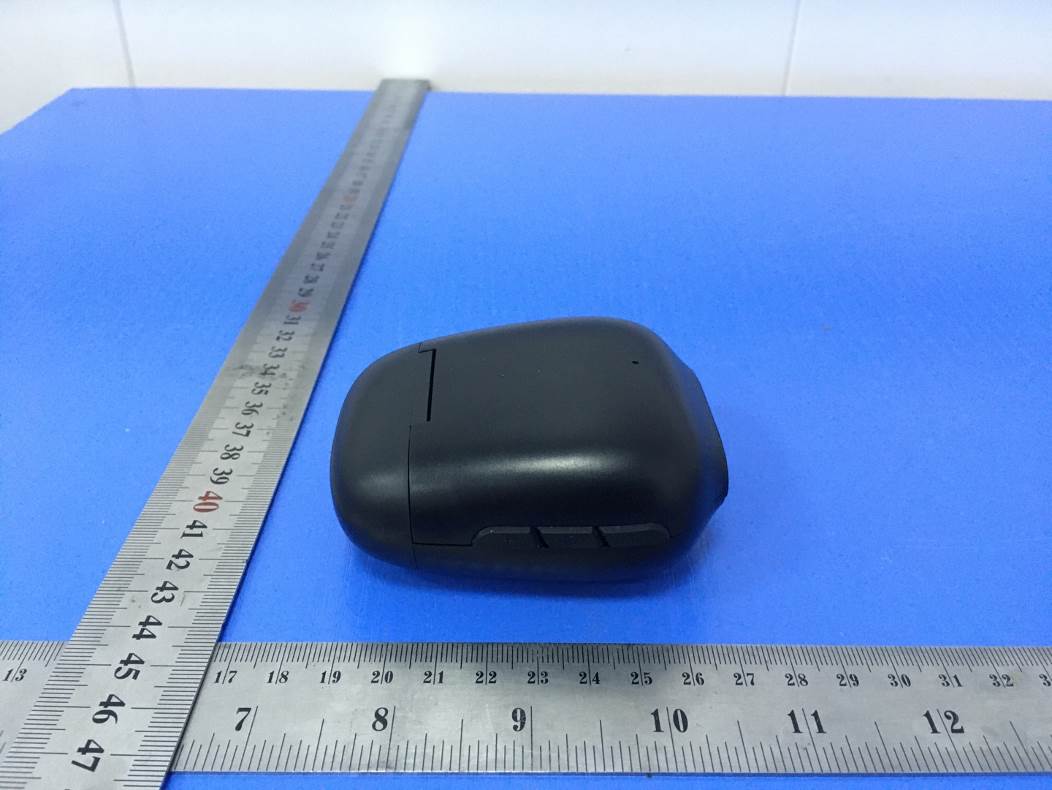

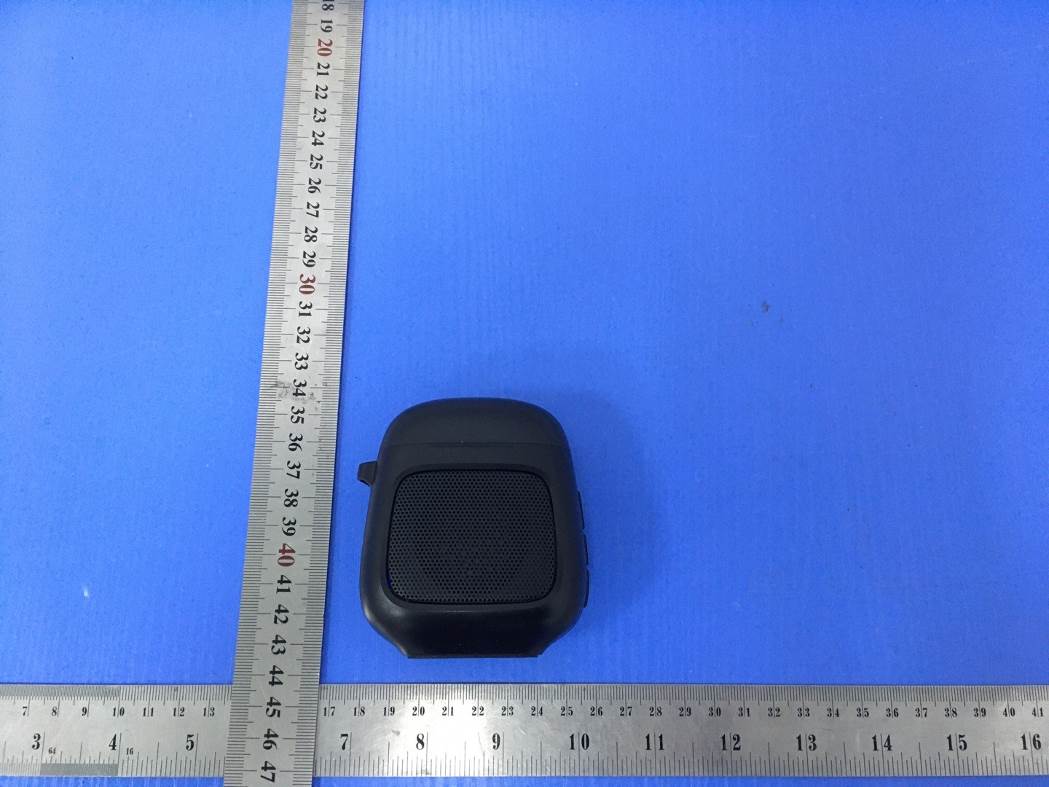

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.0cm Label Location Speaker Model No.: XO-10013 FCC ID: 2ALCFXO-10013

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO‐10013 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2ALCFXO‐10013 Product name Speaker Test Model XO‐10013 Power supply Input: DC 5V DC 3.7V by Rechargeable Li‐ion Battery, 600mAh, 2.22wh Modulation Type GFSK, π/4‐DQPSK,8‐DPSK for Bluetooth V5.1 (DSS) Antenna Type IntegralAntenna Antenna Gain ‐0.58dBi(maximum) Hardware version V14 Software version V10 Bluetooth Operation frequency 2402MHz‐2480MHz Bluetooth Version V5.1 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separaƟon distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO‐10013 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or esƟmated SAR for each standalone antenna configuraƟon, adjusted for maximum tune‐up tolerance) / 1.6 W/kg] + [∑ of MPE raƟos] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operaƟng in portable device exposure condiƟons are all ≤ 0.04, and the [∑ of MPE raƟos] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz)Peak Conducted Output Power (dBm) GFSK 0 2402 1.347 39 2441 ‐0.372 78 2480 ‐2.255 π/4DQPSK 0 2402 3.784 39 2441 1.965 78 2480 0.040 8‐DPSK 0 2402 4.179 39 2441 2.372 78 2480 0.393 5. Manufacturing Tolerance [BT Classics] GFSK (Peak) Channel Channel 0Channel 39Channel 78 Target (dBm) 1.0 0 ‐2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0Channel 39Channel 78 Target (dBm) 3.0 1.0 0 Tolerance ±(dB) 1.0 1.0 1.0 8‐DPSK (Peak) Channel Channel 0Channel 39Channel 78 Target (dBm) 4.0 2.0 0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO‐10013 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.4025 2.0 1.5849 0.4913 < 3.0 Yes π/4DQPSK 2.4025 4.0 2.5…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Report No.: LCS210107046AEA Page 1 of 47 Appendix A RF Test Data for BT V5.1(BDR/EDR) (Conducted Measurement) Product Name: Speaker Trade Mark: N/A Test Model: XO-10013 Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Ben Jin Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm]Limit [dBm] Verdict GFSK LCH 1.347 21 PASS MCH -0.372 21 PASS HCH -2.255 21 PASS π/4DQPSK LCH 3.784 21 PASS MCH 1.965 21 PASS HCH 0.040 21 PASS 8DPSK LCH 4.179 21 PASS MCH 2.372 21 PASS HCH 0.393 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9527 Not Specified PASS MCH 0.9515 Not Specified PASS HCH 0.9522 Not Specified PASS π/4DQPSK LCH 1.318 Not Specified PASS MCH 1.320 Not Specified PASS HCH 1.319 Not Specified PASS 8DPSK LCH 1.303 Not Specified PASS MCH 1.306 Not Specified PASS HCH 1.305 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.892 0.635 PASS MCH 1.042 0.635 PASS HCH 0.996 0.635 PASS π/4DQPSK LCH 1.206 0.880 PASS MCH 1.124 0.880 PASS HCH 1.120 0.880 PASS 8DPSK LCH 0.914 0.871 PASS MCH 1.030 0.871 PASS HCH 1.196 0.871 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N]Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s]Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.309 0.4 PASS 2DH5 MCH 2.9 106.7 0.309 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS 8DPSK 3DH5 LCH 2.9 106.7 0.309 0.4 PASS 3DH5 MCH 2.9 106.7 0.309 0.4 PASS 3DH5 HCH 2.9 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 0.936 -34.924 -19.064 PASS MCH -0.785 -37.203 -20.785 PASS HCH -2.576 -37.712 -22.576 PASS π/4DQPSK LCH 1.155 -38.269 -18.845 PASS MCH -0.751 -37.830 -20.751 PASS HCH -2.535 -37.916 -22.535 PASS 8DPSK LCH 1.16 -37.697 -18.840 PASS MCH -0.612 -37.725 -20.612 PASS HCH -2.833 -37.105 -22.833 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ALCFXO-10013 Report No.: LCS210107046AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC I…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Report No.: LCS210107046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For Dongguan Xing Yue Electronic co., Ltd Speaker Test Model: XO-10013 Prepared for : Dongguan Xing Yue Electronic co., Ltd Address : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 14, 2021 Number of tested samples : 2 Serial number : 210107046A-1(Engineer sample), 210107046A-2(Normal sample) Date of Test : January 14, 2021 ~ January 21, 2021 Date of Report : January 26, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Report No.: LCS210107046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210107046AEA Date of Issue .................................. : January 26, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Dongguan Xing Yue Electronic co., Ltd Address .......................................... : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Speaker Trade Mark ..................................... : N/A Test Model...................................... : XO-10013 Ratings ........................................... : Input: DC 5V DC 3.7V b y Rechargeable Li-ion Battery, 600mAh, 2.22wh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Report No.: LCS210107046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Model............................... : XO-10013 EUT......................................... : Speaker Applicant............................... : Dongguan Xing Yue Electronic co., Ltd Address.................................. : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Telephone............................... : Fax.......................................... : Manufacturer........................ : Dongguan Xing Yue Electronic co., Ltd Address................................... : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong, China Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210107046AEA January 26, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Report No.: LCS210107046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 January 26, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 Report No.: LCS210107046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description .................................................................................................................................. Page 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ...................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ALCFXO-10013 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
