2ALCFXO-9917Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger

Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger Instruction Manual XO-9917 •XO-9917 Sunrise Alarm Clock with Wireless Charger (x1) •Power Cable (x1) •User Manual (x1) •This product is NOT a toy, keep away from children and pets. •Only use the device according to the instructions in this manual. Never use the device for anything other than its intended purpose. •This device is NOT a substitute for proper medical equipment or attention. •ONLY use the supplied power cable. •Do not open this product or attempt to repair the unit yourself if it is not working properly. Doing so risks fire, shock or injury. •When not in use, the device should be stored in a dry, cool location, away from sources of water or heat. •Do not expose device or power cable to extreme temperatures (heat or cold), open flames, humid or wet conditions. •Do not submerge in water. Do n ot use in a location where the device or power cable could fall into liquid. •Unplug the charging cable when not in use. Do not pull the charging cable to disconnect, or use the cable as a handle. •Do not use if device or power cable is damaged. If device or power cable is damaged, it MUST be serviced or replaced by the manufacturer or its service agent before using again. •Attachments on the back of your device can impede effectiveness of the wireless charger, and lead to overheating. Remove attachments from your device before charging on this wireless charger. Safety Precautions In the Box READ ALL INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THIS MANUAL Setting the Alarm •Press the [SET] button until the alarm time is displayed. •Press the [DOWN] button to turn the alarm ON or OFF. The dot in the lower left corner of the clock display will light up when the alarm is turned on. •The clock display will turn on when the clock is connected to power. •If the clock is disconnected from power, it will only save the time and settings for 60 seconds. Display Modes •Press the [UP] button on the back of the clock to switch between clock display modes. Press the [SET] button to save as the default mode. •Mode 1 shows the time for 10 seconds and the date and temperature for 2 seconds. •Mode 2 shows the time, alarm, date and temperature at all times. Setting the Time •Press the [SET] button until the time is displayed. •Press and hold the [SET] button to set the time. The time hours will begin flashing. Press the [UP] and [DOWN] buttons to adjust. The dot in the upper left corner of the display will appear when the hour is PM. Press the [SET] button to save the hour setting. •Theminute digits will begin flashing. Press the [UP] and [DOWN] buttons to adjust, and press the[SET] button to save. The clock will return to its default display mode. Changing Temperature Units •Press the [SET] button until the temperature is displayed. •Press the [DOWN] button to switch between degrees Fahrenheit (⁰F) and Celsius (⁰C). •Press the[SET] button to save. The clock will return to default display mode. •When the alarm is turned on, press and hold the [SET] button to set the alarm time. The alarm hours will begin flashing. Press the [UP] and [DOWN] buttons to adjust. Press the [SET] button to save alarm hour setting. •The alarm minute digits will begin flashing. Press the [UP] and [DOWN] buttons to adjust, and press the[SET] button to save. The clock will return to its default display mode. Setting the Date •Press the [SET] button until the date is displayed. •Press and hold the [SET] button to set the date. The year will begin flashing. Press the [UP] and [DOWN] buttons to adjust. Press the [SET] button to save year setting. •The month will begin flashing. Press the [UP] and [DOWN] buttons to adjust, and press the[SET] button to save month setting. •The day will begin flashing. Press the [UP] and [DOWN] buttons to adjust, and press the[SET] button to save. The clock will return to default display mode. Using the Bedside Light •Press the [SNOOZE/LIGHT] button on the top of the clock to turn the bedside light ON in white light mode. •Press the [SNOOZE/LIGHT] button to adjust the light brightness between low, medium and high. •Press and hold the [SNOOZE/LIGHT] button to switch to color- changing light mode. •In color-changing light mode, press the [SNOOZE/LIGHT] button to choose a light color. •Press and hold the [SNOOZE/LIGHT] button to switch back to white light mode. Snooze Function •Press the [SNOOZE/LIGHT] button on the top of the clock when the alarm goes off to activated the Snooze function. The alarm will ring again in 5 minutes. The sunrise light will continue to shine at full brightness during the snooze time. •To turn the alarm and sunrise light off completely, press and hold the [SNOOZE/LIGHT] button when alarm goes off. This only turns them off for the day, and they will activate again as normal the next d ay. Using the Sunrise Light •The clock’s sunrise light function will turn on 20 minutes before your alarm time, and gradually increase in brightness until your alarm goes off. •To use the sunrise light, set the alarm before your go to sleep. Wireless Charging & USB Output Note: •The bedside light can only be powered OFF from white light mode. •The bedside light can NOT be used when the clock is in sunrise mode or snooze mode. •The LED indi cator will flash REDand BLUEalternatively, then turn REDto indicate the charging pad is in standby mode and ready to begin charge, when the clock is connected to power. •Place a wireless charging enabled device on the charging pad, the wireless charger will begin to charge automatically. The LED indicator will glow BLUEto indicate your device is charging properly. If your device does not begin to charge, try repositioning your devi ce on the charging pad. You may need to remove your smartphone case to charge properly. •When your device is fully charged, the wireless charging LED indicator will turn RED. Remove your device from the charging pad. •Note: If the LED indicator is flashing RED and Blue when the …

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-7-25> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ALCFXO-9917 XO-9917 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Sunny zhang/manager Company: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Phone: 0769-81022708 Fax: 0769-83345348 E-Mail: [email protected]

Dongguan Xing Yue Electronic co., Ltd #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-7-25 To whom it may concern: We, Dongguan Xing Yue Electronic co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ALCFXO-9917 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Sunny zhang/manager Company: Dongguan Xing Yue Electronic co., Ltd Address: #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Phone: 0769-81022708 Fax: 0769-83345348 E-Mail: [email protected]

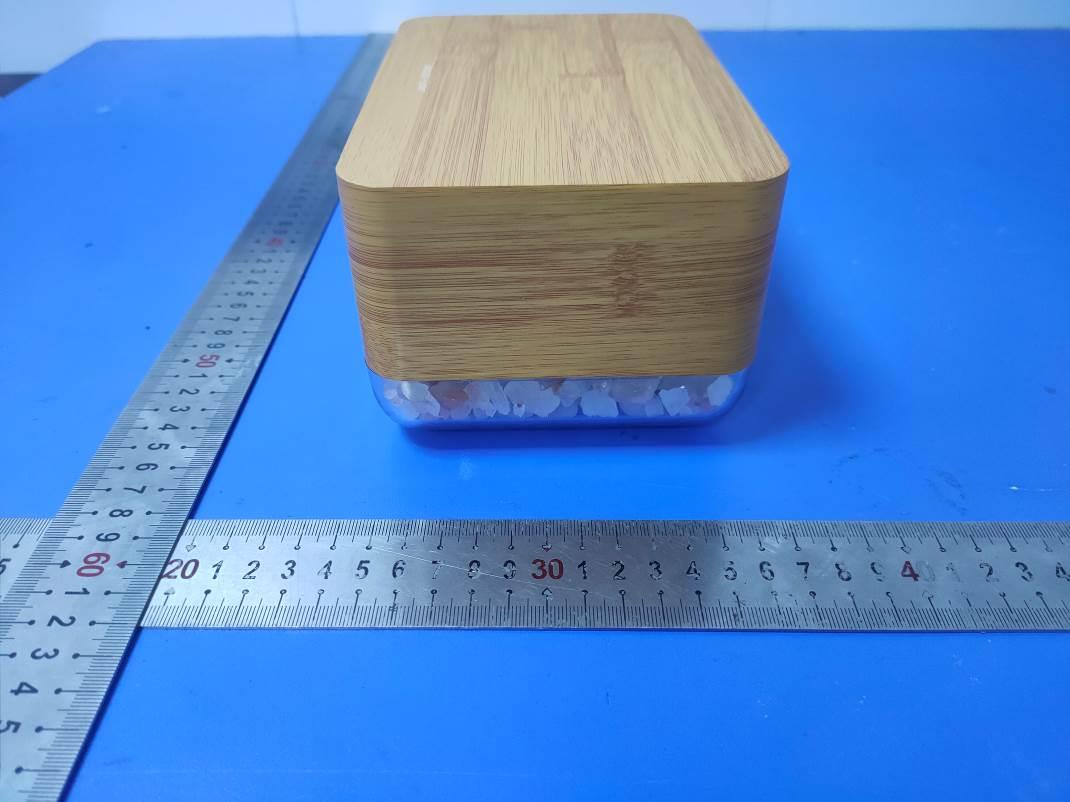

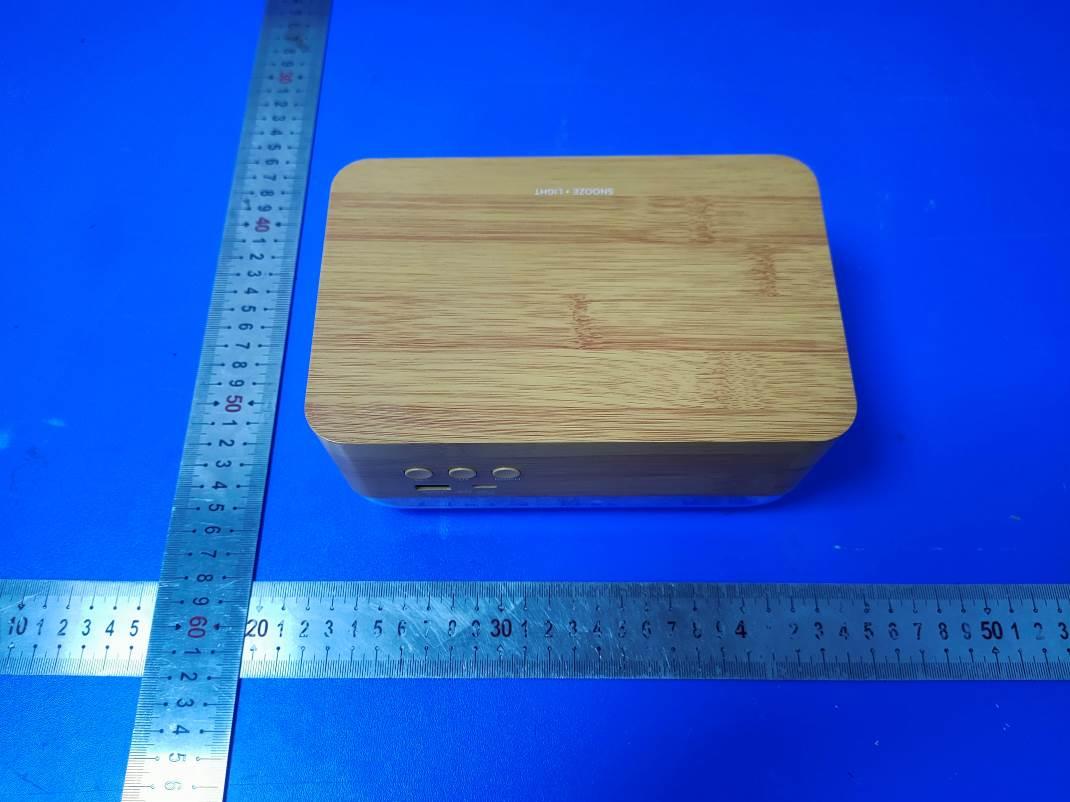

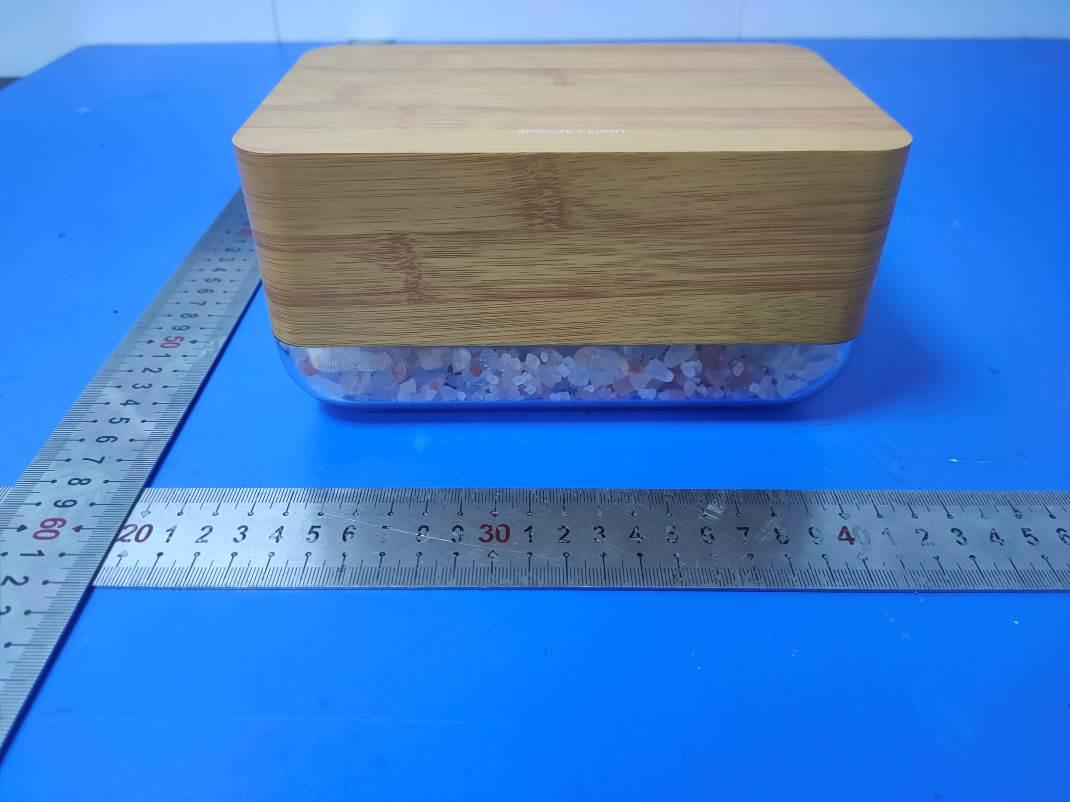

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

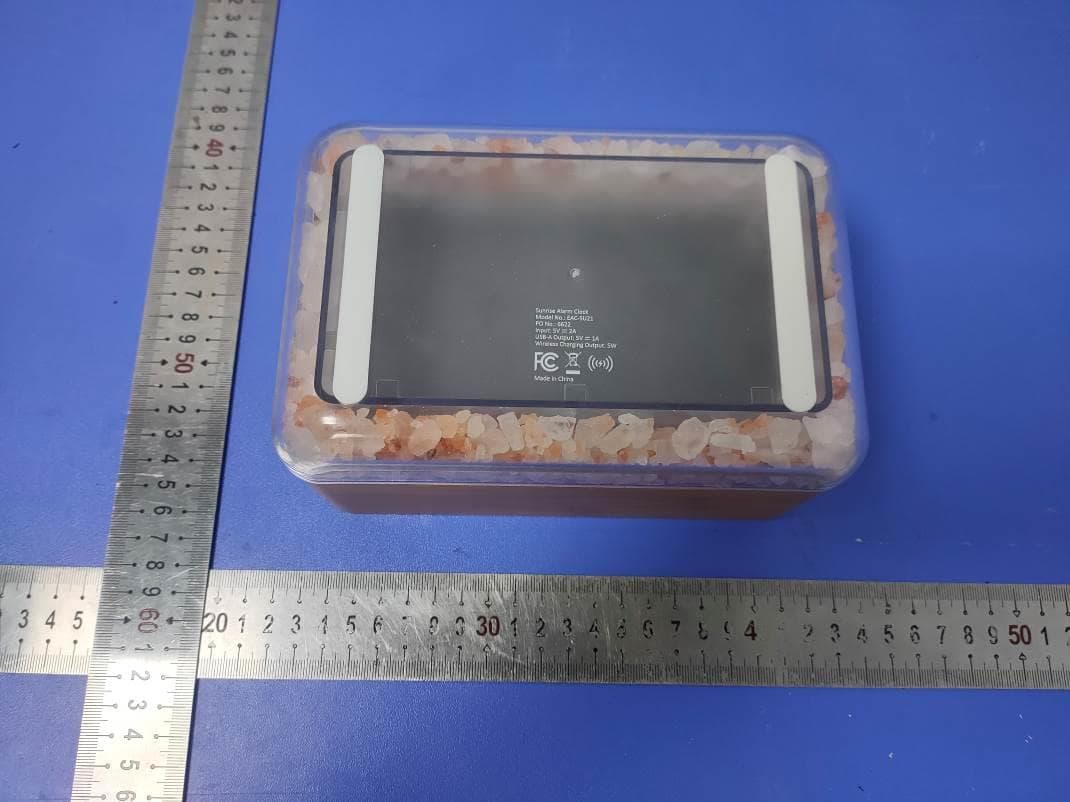

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.5cm*W1.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger Test Model: XO-9917 FCC ID: 2ALCFXO-9917

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8 Coil Antenna

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 9 RF Exposure Evaluation Report 1. Product Information FCC ID: 2ALCFXO-9917 Product Name Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger Model Number XO-9917 Power Supply Input: 5V/2A Output:5V/1A 5W Max Modulation Type Continuous Wave Frequency Range 110.0~205.0KHz Operation Frequency 188.4 KHz Antenna Type Coil Antenna Hardware version V4.2 Software version / Accessories Wireless charging load Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 9 resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance T…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 Report No.: LCS210626039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 24 FCC TEST REPORT For Dongguan Xing Yue Electronic co., Ltd Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger Test Model: XO-9917 Prepared for : Dongguan Xing Yue Electronic co., Ltd Address : #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 28, 2021 Number of tested samples : 2 Serial number : 210626039A-1(Engineer sample), 210626039A-2(Normal sample) Date of Test : June 28, 2021 ~ July 08, 2021 Date of Report : July 09, 2021 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 Report No.: LCS210626039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 15C Report Reference No. ................ : LCS210626039AEA Date Of Issue ................................. : July 09, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Dongguan Xing Yue Electronic co., Ltd Address .......................................... : #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Test Specification Standard ......................................... : FCC CFR 47 PART 15C Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger Trade Mark ..................................... : N/A Test Model ...................................... : XO-9917 Power Supply ................................. : Input: 5V/2A Output:5V/1A 5W Max Result ........................................... : Positive Compiled by: Supervised by: Approved by: Cherry Chen/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 Report No.: LCS210626039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 24 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210626039AEA July 09, 2021 Date of issue Test Model.............................. : XO-9917 EUT......................................... : Sunrise Alarm Clock with Himalayan Salt Lamp & Wireless Charger Applicant............................... : Dongguan Xing Yue Electronic co., Ltd Address.................................. : #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Xing Yue Electronic co., Ltd Address................................... : #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Xing Yue Electronic co., Ltd Address................................... : #98 LiWu Swan Industrial District, Qiao Tou Town,Dong Guan City,Guang Dong,China Telephone............................... : / Fax.......................................... : / Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 Report No.: LCS210626039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 24 Revision History Revision Issue Date Revisions Revised By 000 July 09, 2021 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 Report No.: LCS210626039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................. 6 1.1 Description of Device (EUT) ...................................................................................................... 6 1.2 Support equipment List ............................................................................................................... 6 1.3 External I/O Cable ...........................................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz-DC adapter charge mode Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2ALCFXO-9917 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission Below 1 GHz
